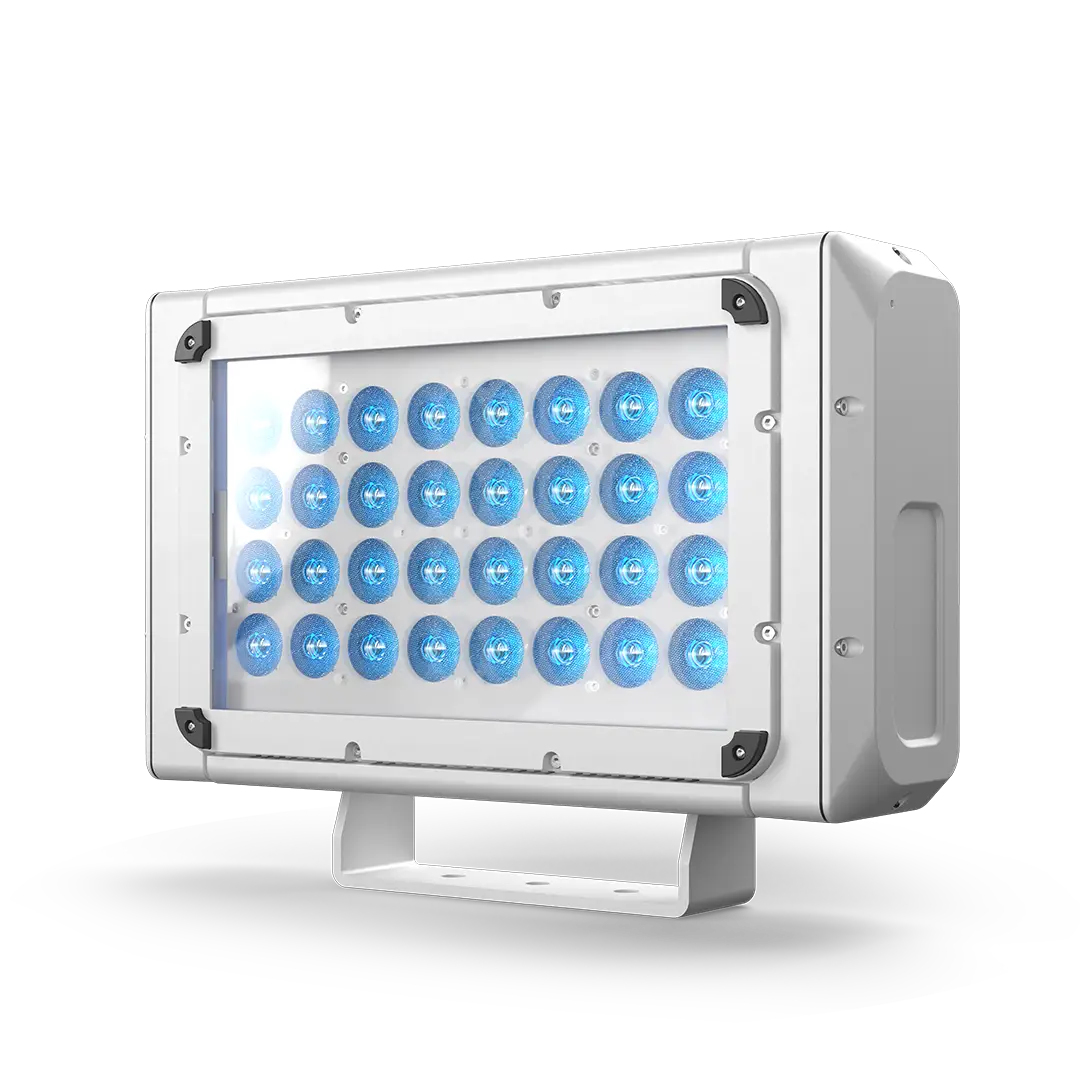

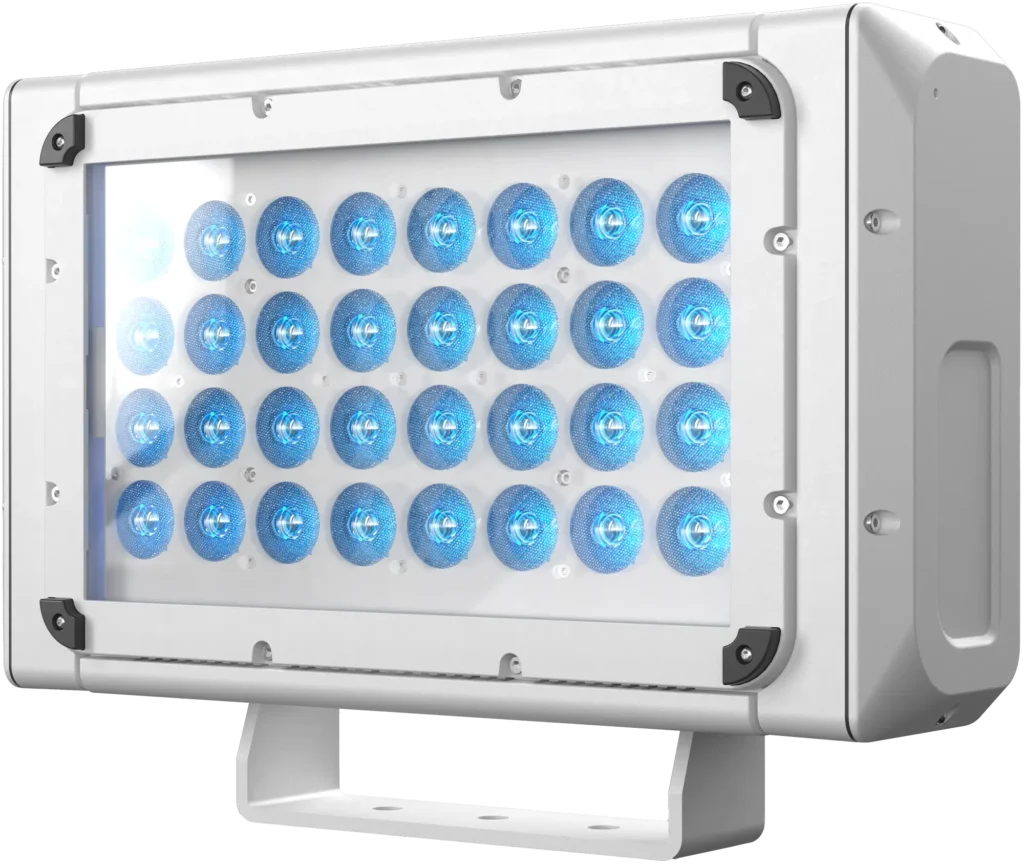

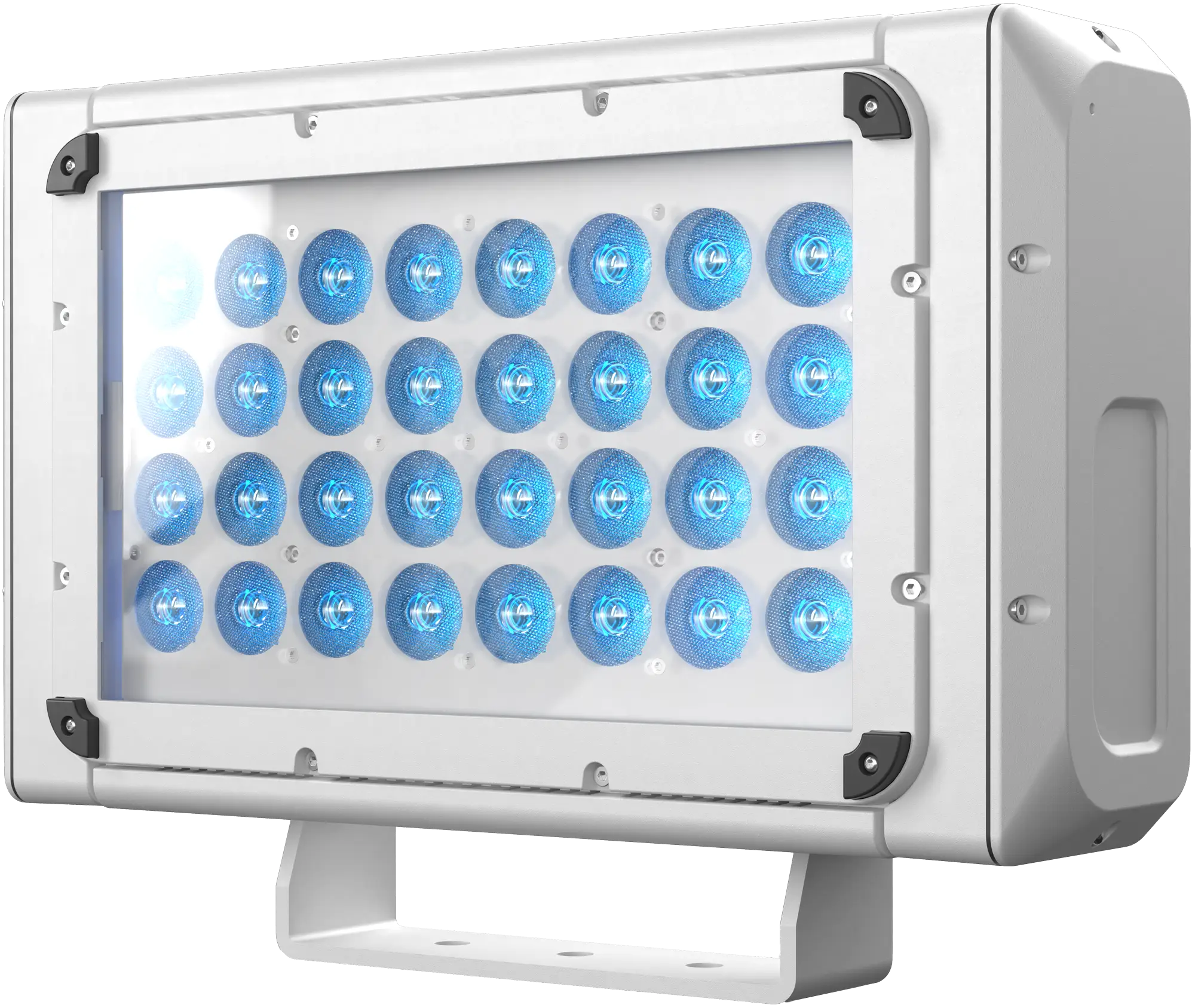

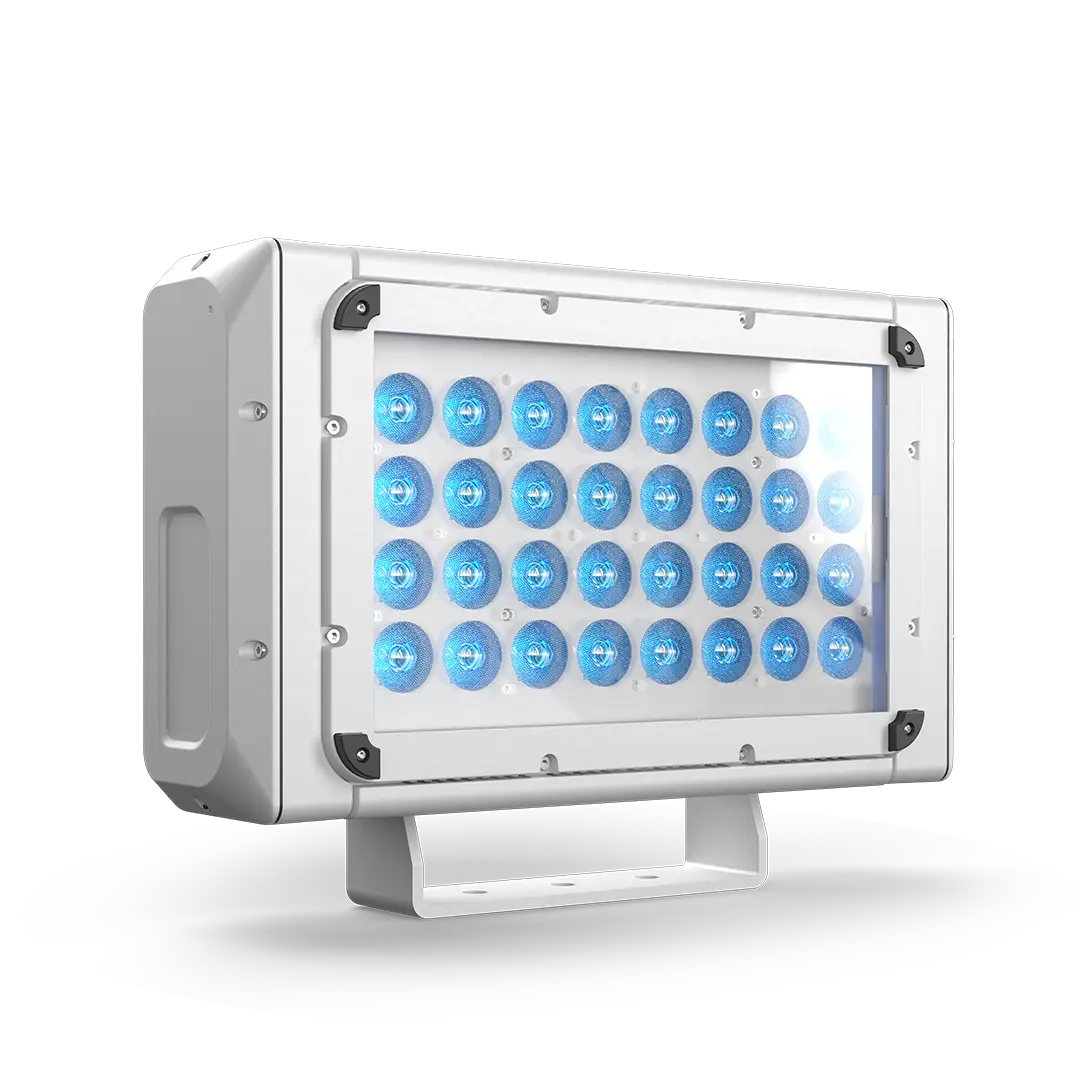

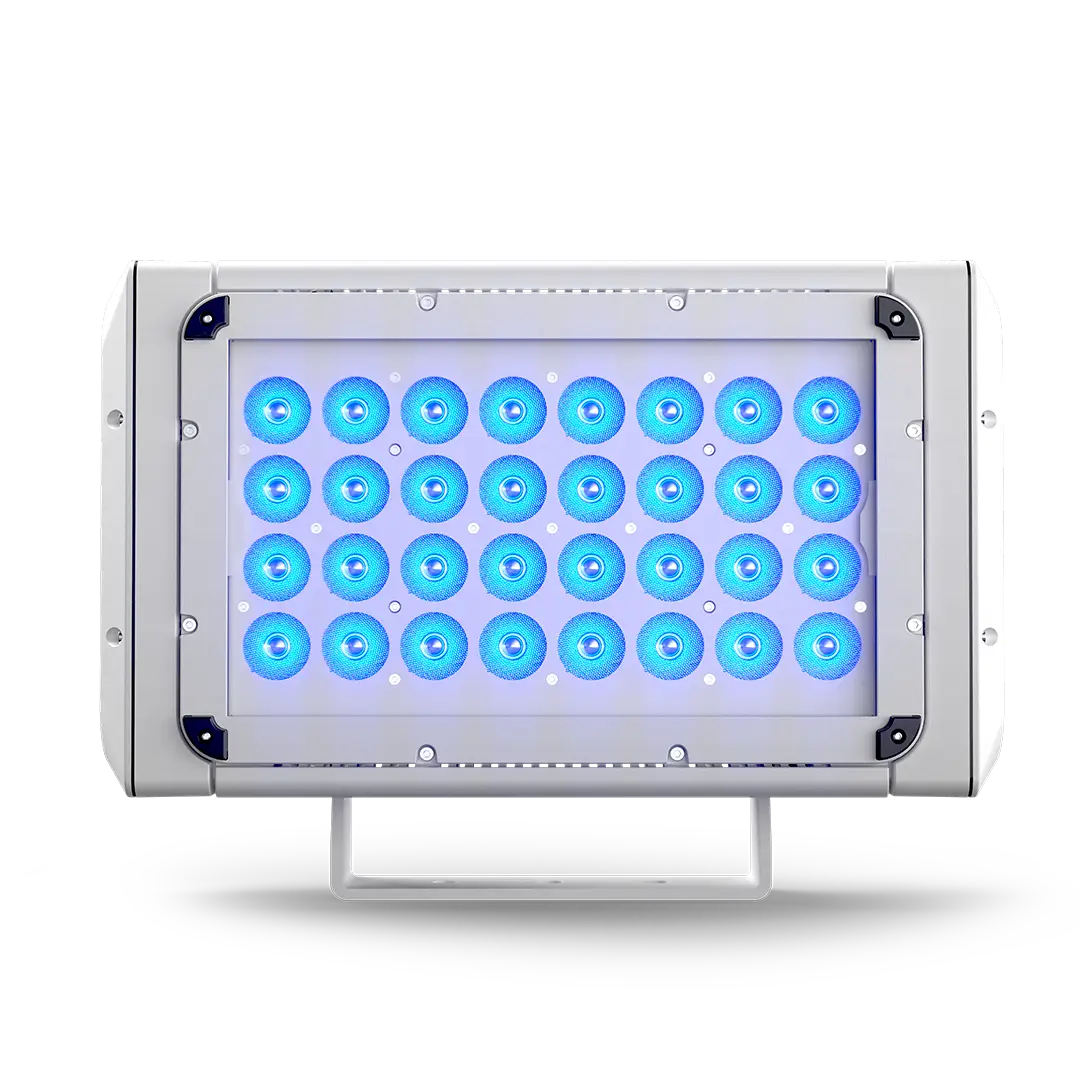

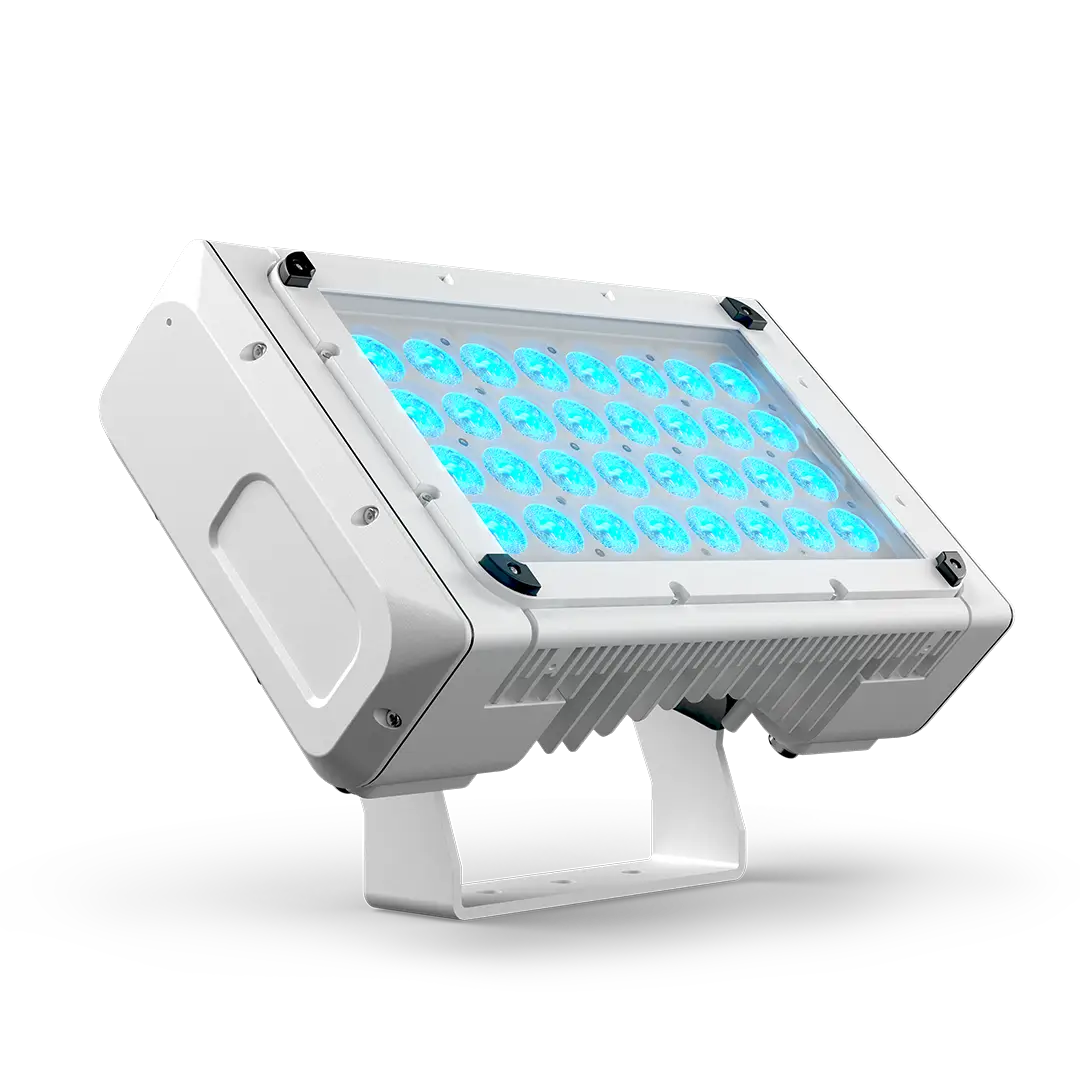

BRICK 32

LED wash projector for outdoor installations

BRICK 32 is a high-performance LED wash light designed for outdoor installations. Equipped with 32 four-color LEDs and 4 independent sectors for dynamic effects, it offers flexibility, durability, and efficiency. It features interchangeable beam angles, an integrated power supply, and a built-in DMX wireless transmitter. The robust housing and adjustable bracket ensure reliability and stability. Supporting DMX 512/RDM protocols, it is an ideal choice for professional and scenic applications.

highlights

Source

32 x 4-colors LEDs

Lumens

15300 lm (RGBW) - 14400 lm (RGBA)

IP Rating

IP67

DMX

DMX FULL OPERATION MODES 1. Chase mode 2. Extended mode 3. Sectors RGBW x4 4. Sectors RGBW fine x4 5. Sectors RGBW + Shut + Dim x 4 DMX SINGLE LAYER MODES (Compatibility with all BRICK models) 6. Standard 7. Global RGBW 8. Global RGBW + Shut + Dim 9. Global RGBW + Dim Fineel (Default)

operating
temperature

-20° / 45°

Applications

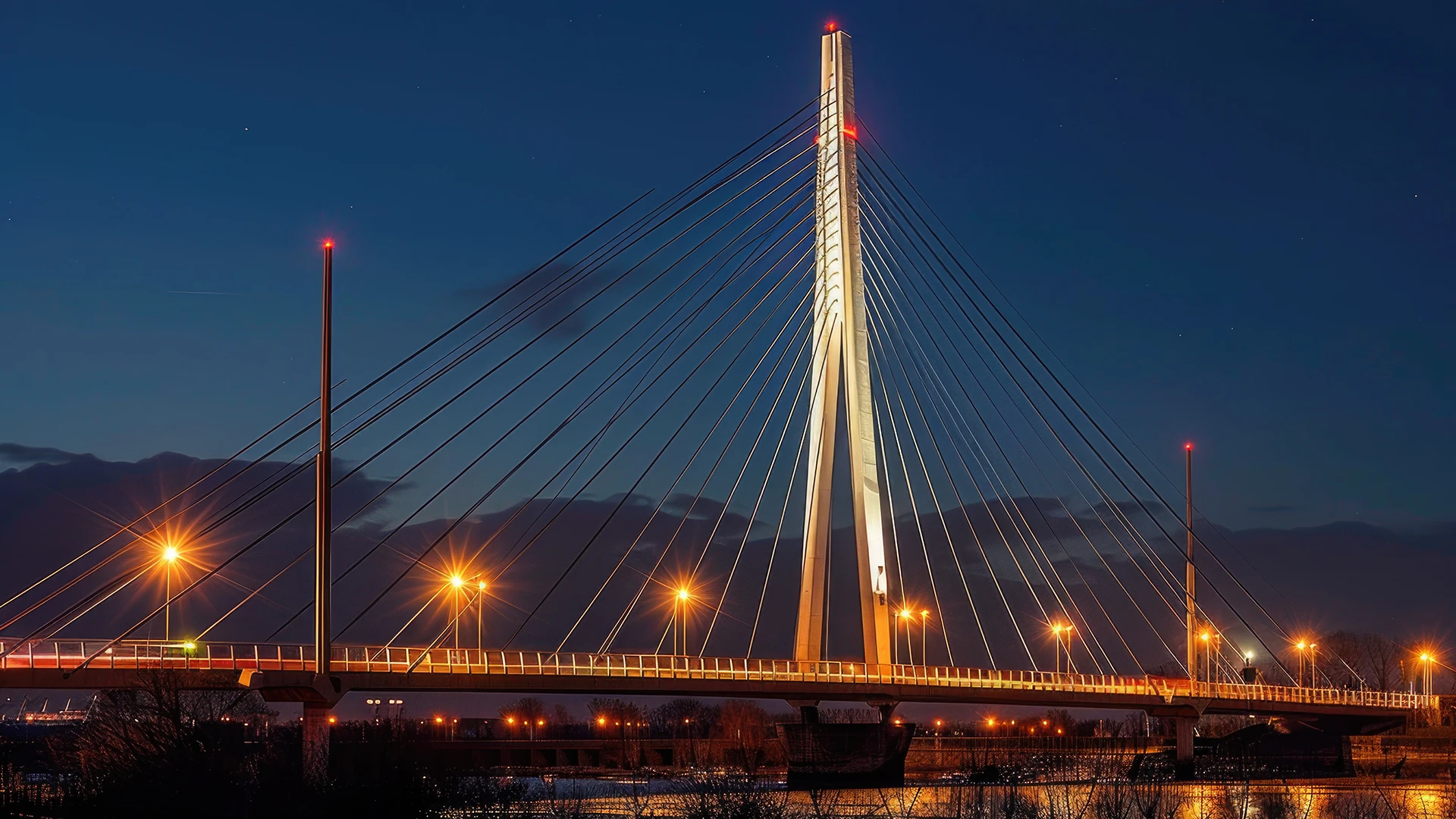

Fixed Installations and Architecture

Architects and designers can use the BRICK 32 for architectural lighting projects or art installations that require advanced, customizable lighting solutions.

Theatre and Live Performance

Theatre companies and live performance producers can use the BRICK 32 to create spectacular and dynamic lighting effects. The ability to customize light and colours is perfect for stage settings and changes in mood during performances.

Concerts and Musical Events

Concert and festival promoters can benefit from the power and quality of the light of the BRICK 32. Its robustness and advanced control options are ideal for music productions requiring complex, high-quality lighting effects

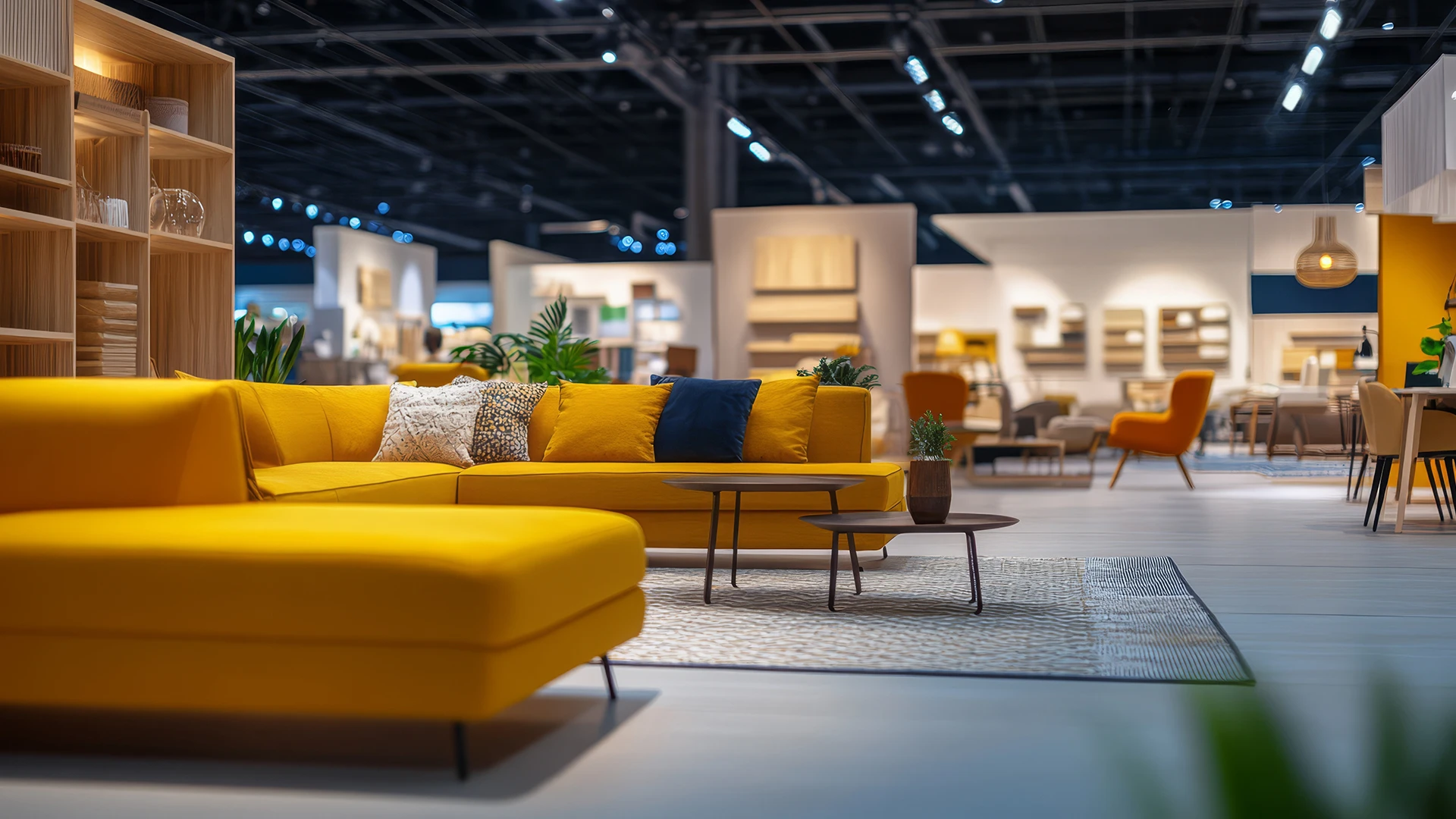

Exhibition Spaces and Trade Shows

For exhibitions and trade shows, the BRICK 32 can be used to draw attention to products and stands thanks to its eye-catching lighting effects and ability to create visually stimulating environments.

Features

Advanced LED Technology▼

The BRICK 32 uses high-quality LEDs that offer exceptional brightness and accurate colour rendering. This allows for more vibrant colours and greater precision in the representation of light.

Versatility and Customization▼

The ability to customize lighting effects and colours with precision is one of the strengths of the BRICK 32. Advanced programming options and support for various DMX control protocols offer greater flexibility than other fixtures.

Robustness and Design▼

The design of the BRICK 32 is designed to be particularly robust and resistant. This makes it suitable for harsh environmental conditions and intense use, such as that found on tour or in demanding professional environments.

Energy efficiency▼

Thanks to LED technology, the BRICK 32 is highly energy efficient. This not only reduces operating costs, but also contributes to less heat generation, improving product safety and durability.

Easy installation and adaptability▼

The projector offers flexible mounting options and a modular design that makes it easy to adapt to different setups and scenes. This is especially useful for applications that require quick changes or custom configurations.

Quality of Light▼

The quality of light produced by the BRICK 32 is superior thanks to the combination of high-efficiency LEDs and advanced optics. This can make a big difference in environments where visual quality is crucial.

Control and Integration▼

The BRICK 32 is compatible with a wide range of control protocols and can be easily integrated into existing lighting systems. This is an advantage for those who need a scalable and embeddable solution.

Technologic innovations▼

DTS is known for incorporating the latest technological innovations into its products. The BRICK 32 can include advanced features such as firmware updates via software, which improve functionality and reliability over time.

Versatility and customization
