DRIVENET 1664 24 VDC

Drivenet supports a wide input voltage range (100–240 Vac, 50–60 Hz), ensuring compatibility with international electrical standards. With a power factor above 0.96, it offers high energy efficiency. Its architecture includes 64 output channels divided into 16 groups of 4, with a constant output voltage of 24 Vdc and a maximum current of 700 mA per channel. The total available power is 1100 W, making the device suitable for powering complex and large-scale LED systems.

Thanks to optimized electronic design, Drivenet allows projectors to be installed up to 100 meters away while maintaining stable performance and no significant losses, making it ideal for large-scale distributed lighting systems.

Drivenet is equipped with professional-grade connectors designed to ensure installation ease and long-term reliability: screw terminals for LED channel outputs, PowerCON for mains input, and DMX connectors in both 3-pin and 5-pin configurations for maximum compatibility with lighting control systems. A DALI In/Out interface is also available for integration with advanced architectural control protocols.

The device is compatible with DMX512 and RDM protocols, enabling remote control and monitoring of connected fixtures. Art-Net protocol can also be enabled on request for Ethernet-based network integration. The system is managed via an intuitive full-color touch-screen display and can be updated over time using a DTS firmware dongle to ensure it always offers the latest features.

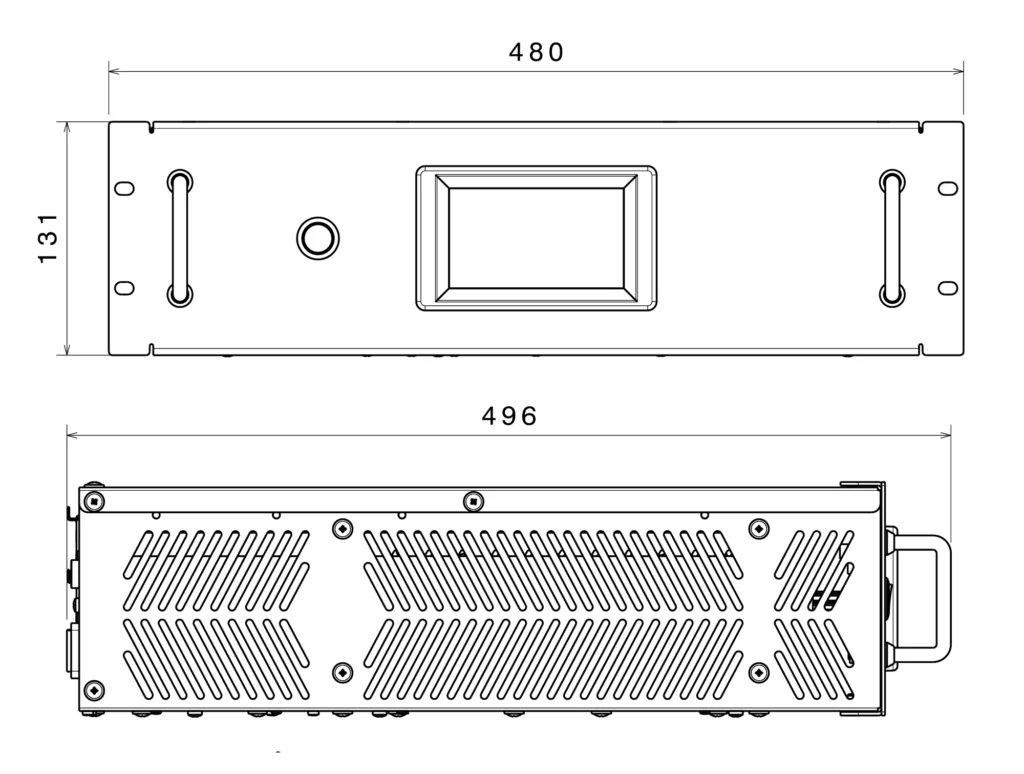

Drivenet is built with a robust 3-unit rack-mount chassis and offers an IP20 protection rating, suitable for indoor installations. Weighing 13.9 kg (30.7 lbs), it combines structural solidity with easy handling during setup and maintenance.
