Helios-9-WH

HELIOS 9 WH

Helios-9-WH
Architainment

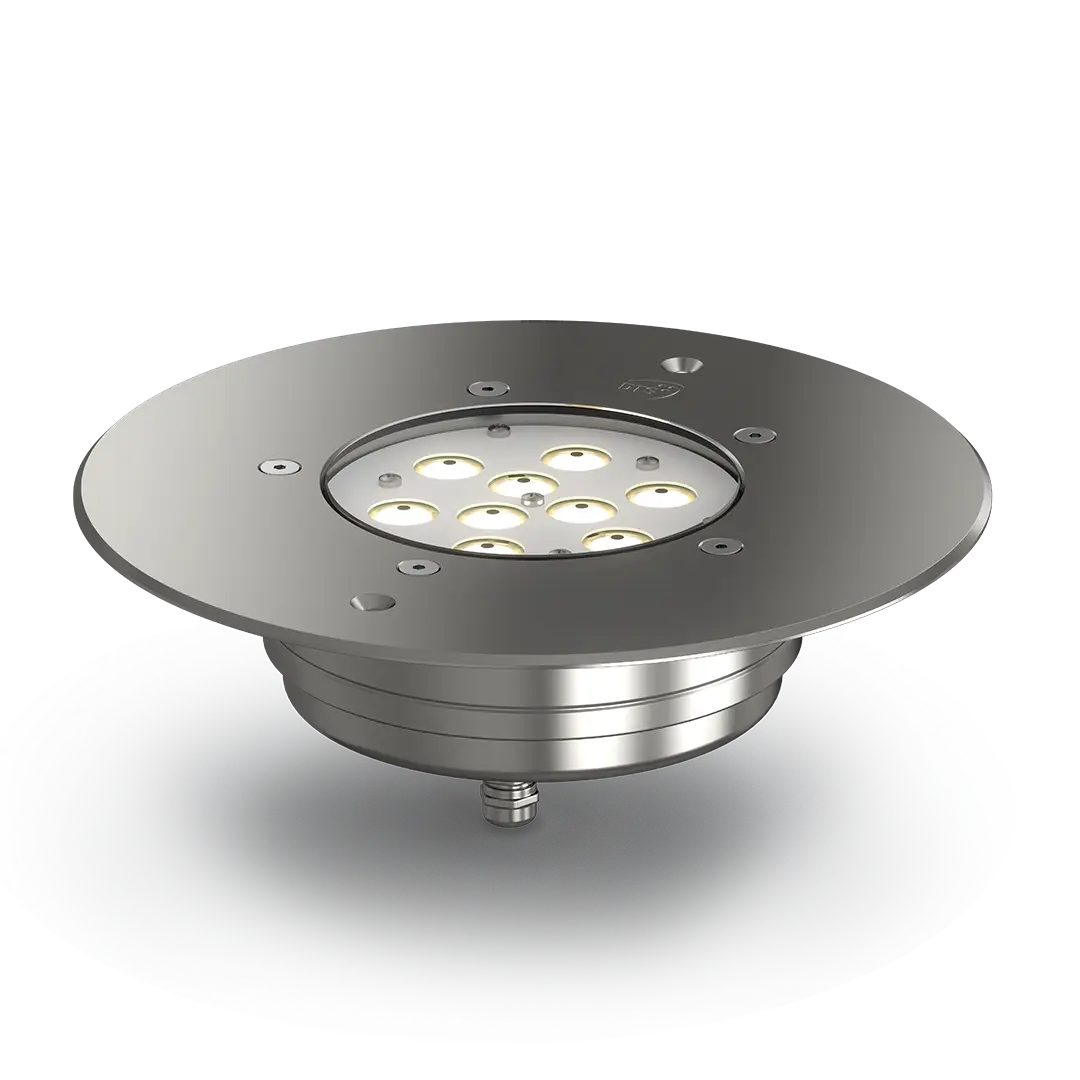

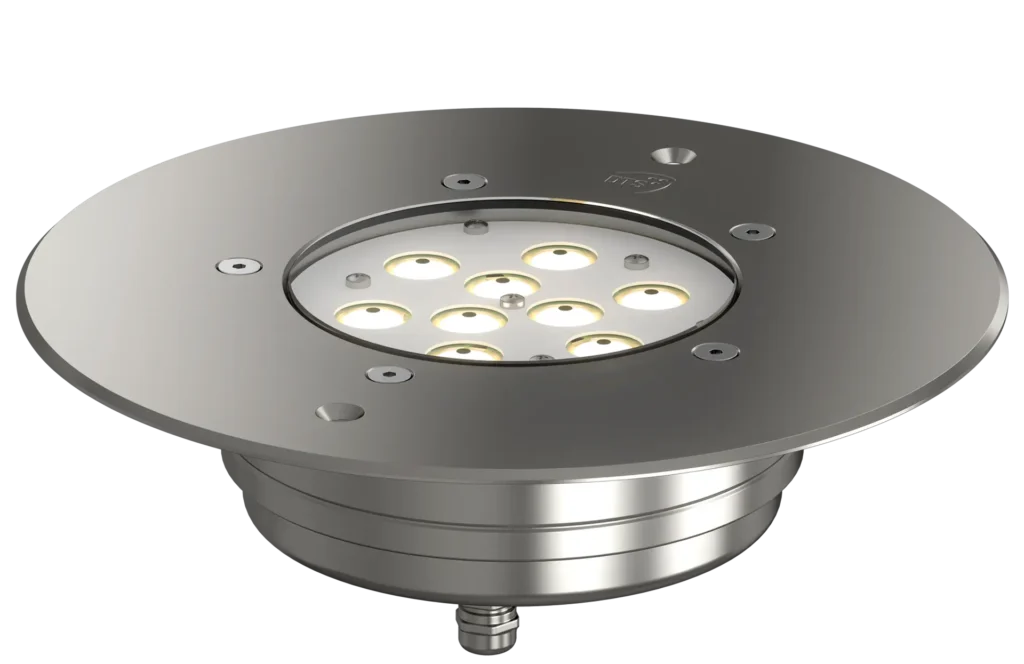

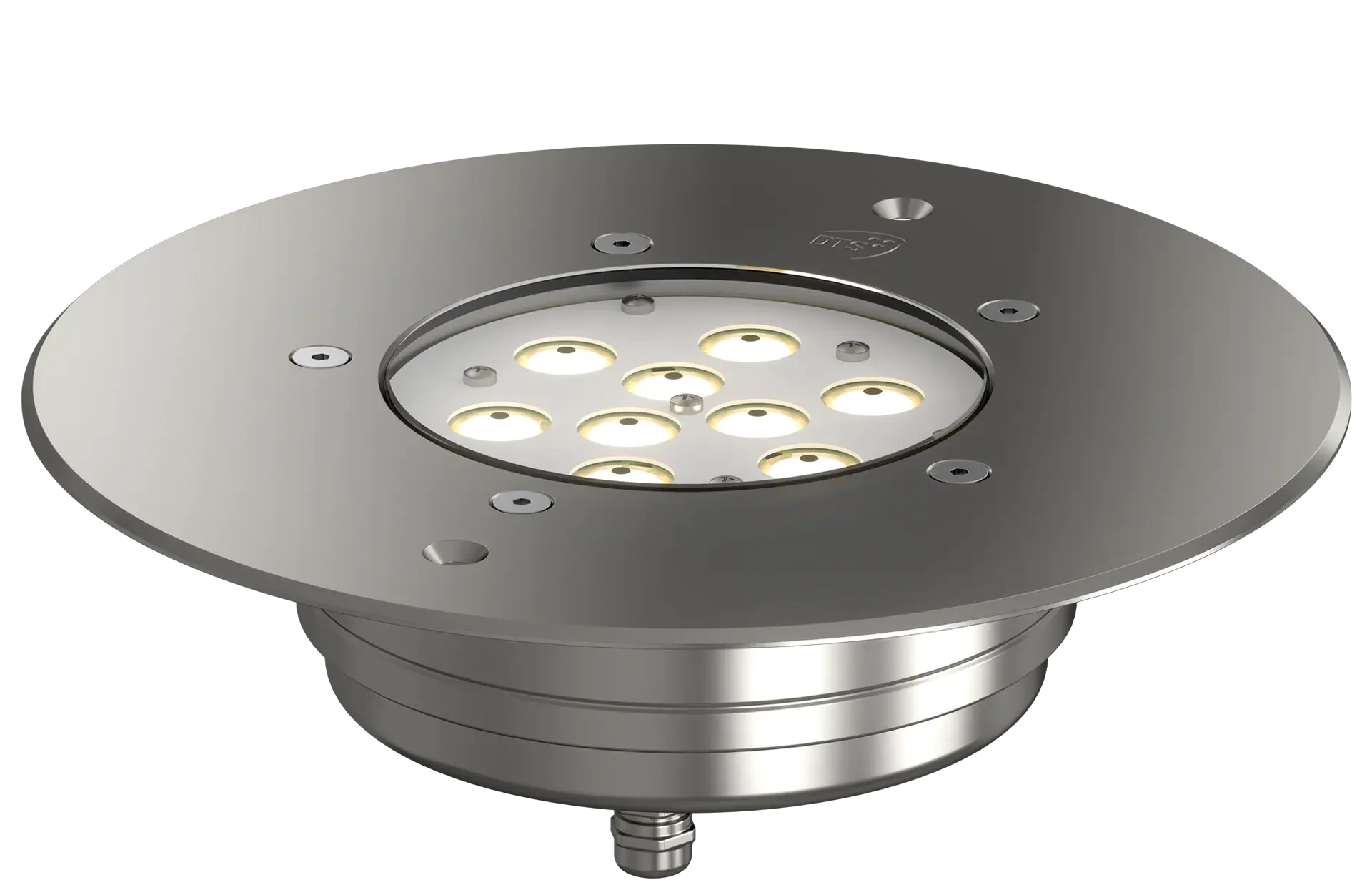

LED wash in-ground projector

A 9-LED projector designed for architectural and stage lighting, ideal for both indoor and outdoor applications thanks to its durability and versatility. HELIOS 9 WH features interchangeable optics for maximum flexibility.

highlights

Source

9 x White LED

Lumens

2000 lm 3000K 2350 lm 4000K 2500 lm 5600K

IP Rating

IP67

DMX

operating
temperature

-20° / 45° C

Applications

Helios-9-WH

Lighting Designers and Architects

Architectural lighting projects, interior design, restoration and enhancement of historic or contemporary buildings. Create lighting effects that enhance architectural details, manage atmospheres, enhance external structures and facades, with attention to sustainability and energy consumption. The DMX control via Drivnet, the control option via DALI with dedicated drivers, the versatility of the optics allows Helios 9 WH to be easily integrated into architectural designs, customizing the lighting effects and guaranteeing aesthetically impeccable results.

Museums and Exhibition Spaces

Permanent installations within art galleries, museums and exhibition spaces, to enhance works of art and installations. High-quality lighting that enhances details and colors, without overheating the works, and that can be programmed for static or dynamic effects.

Installers and Suppliers of Lighting Systems

Supply of lighting solutions for commercial, architectural and scenographic projects. Reliable and long-lasting products, with ease of installation and reduced maintenance. Helios 9 WH is built to last in harsh environments, with a flexible configuration that facilitates integration into different types of permanent installations.

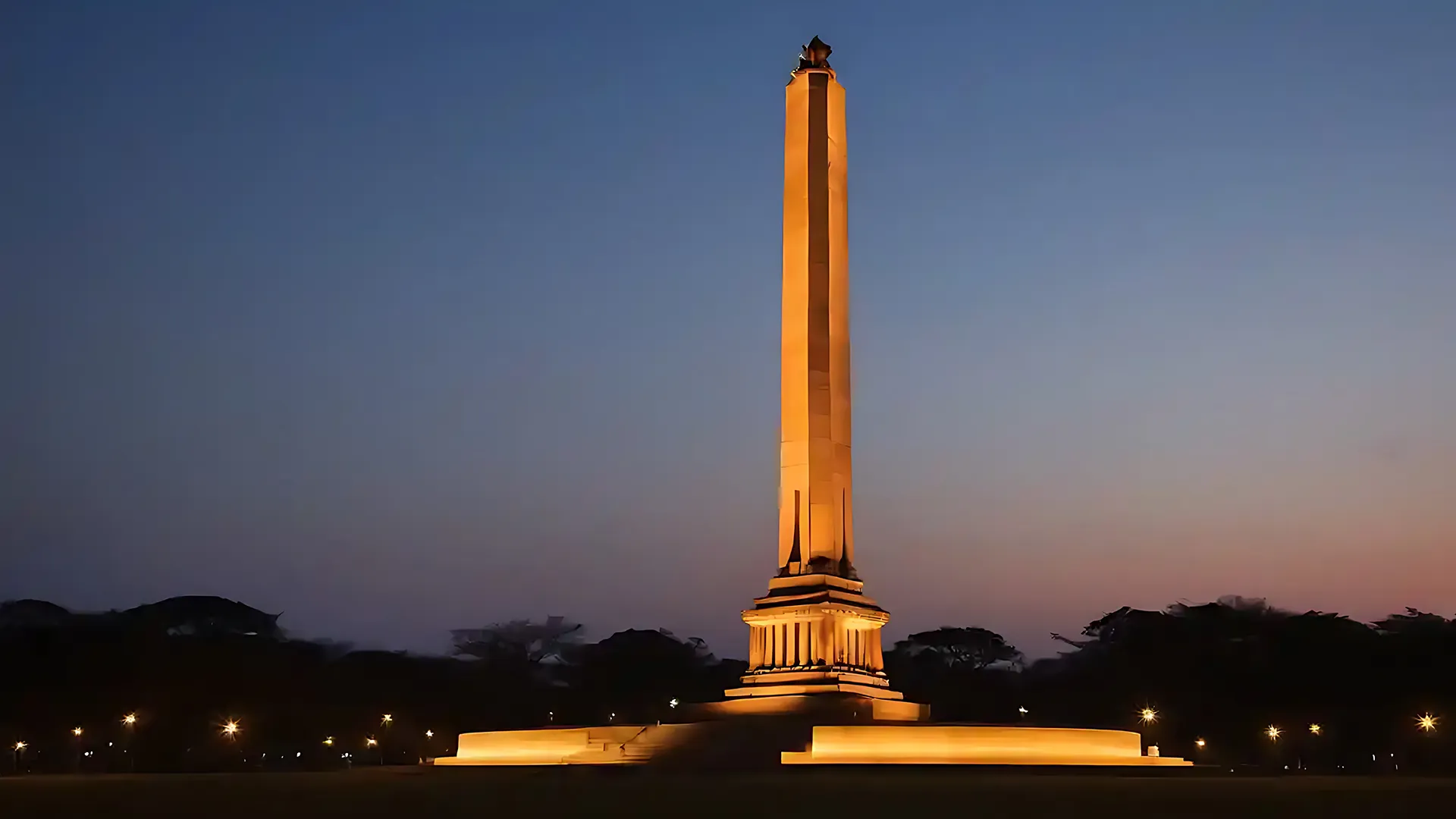

Municipalities and Public Administrations

Urban and monumental lighting projects and enhancement of public spaces.

Resistant and energy-efficient lighting solutions to illuminate parks, squares, facades of historic buildings and monuments. High-efficiency LED technology helps reduce energy and maintenance costs, while IP67 certification ensures weather resistance for long-term installations.

Features

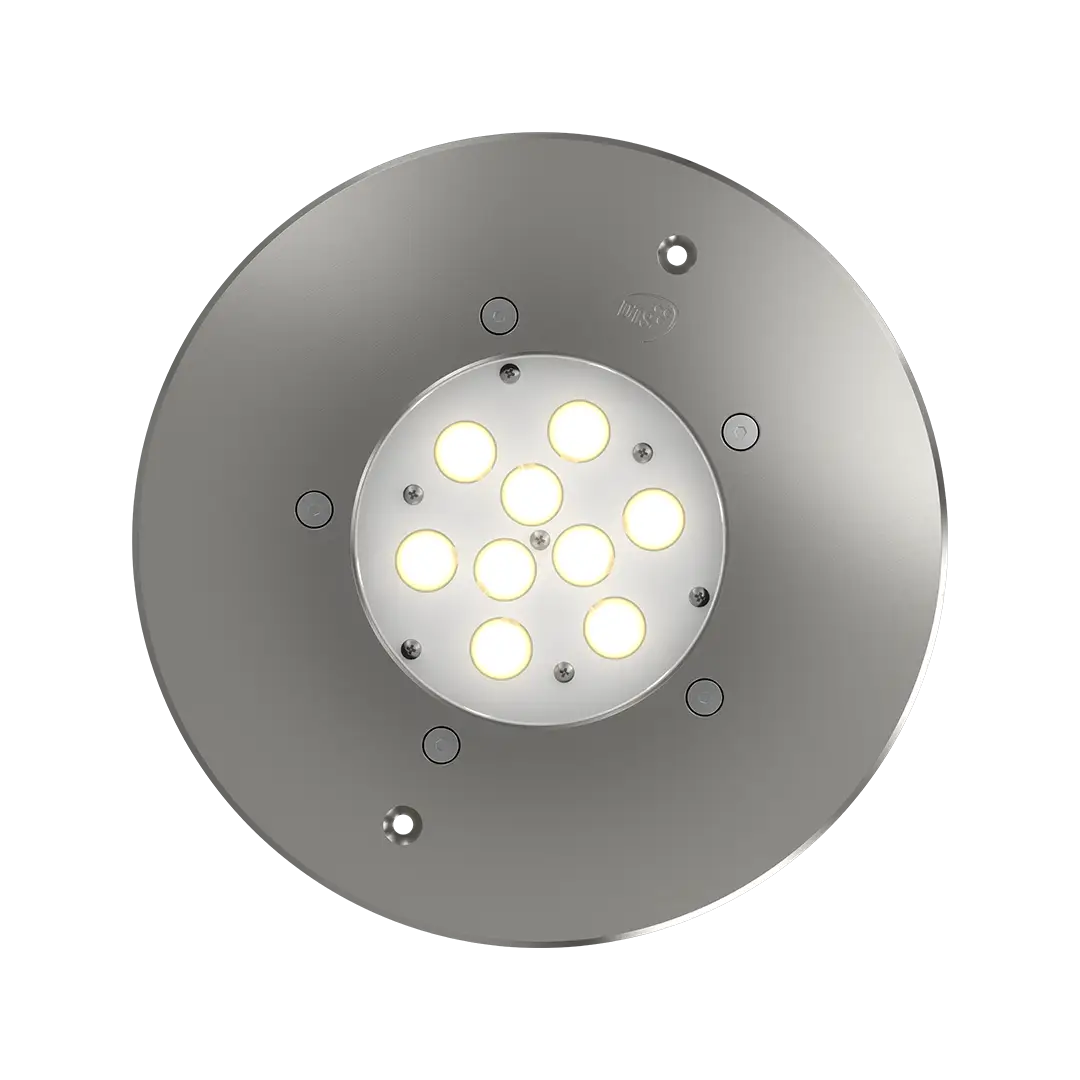

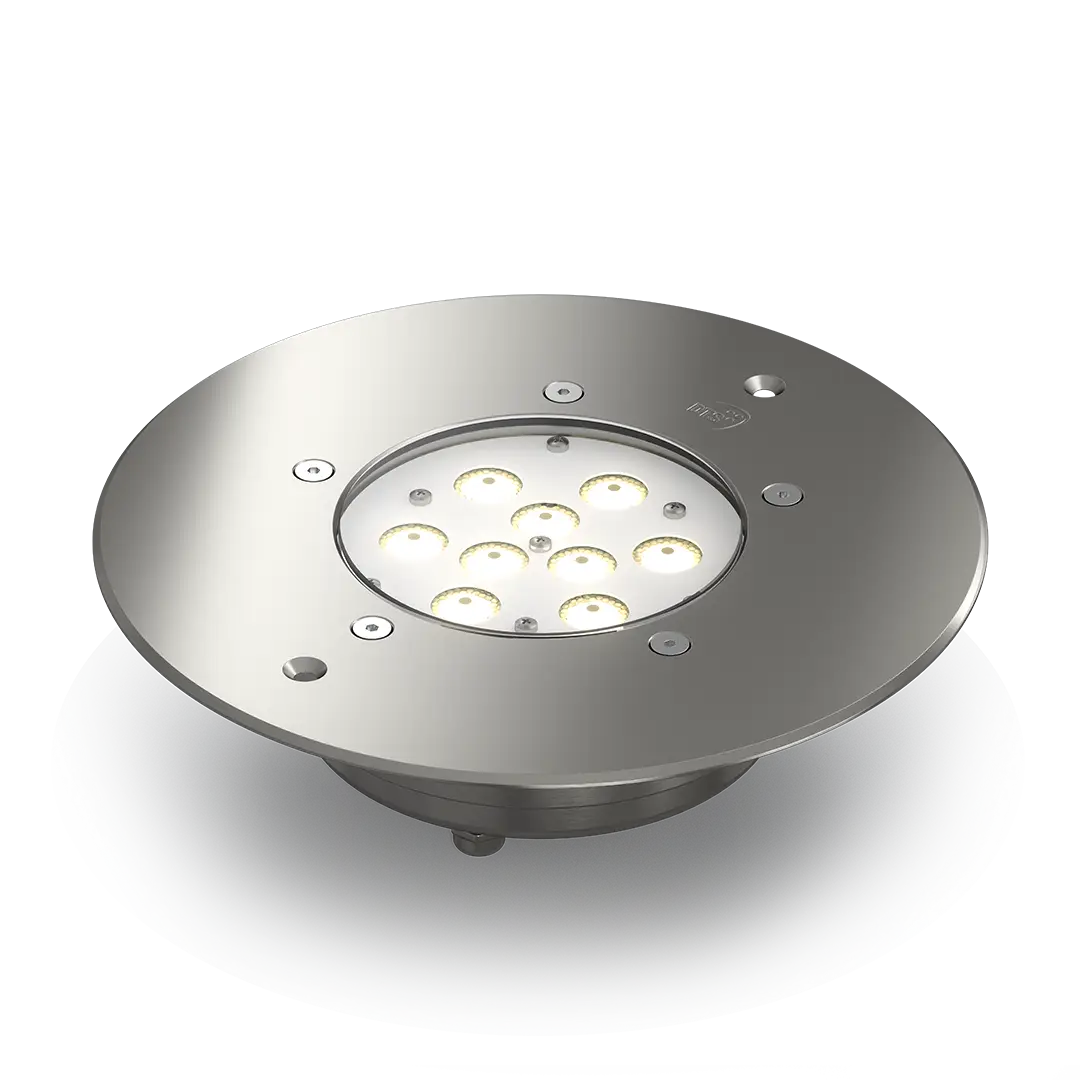

Helios 9 WH uses 9 high quality LEDs, available in 3000K, 4000K and 5000K.

One of the main strengths of Helios 9 WH is its exceptional light power, which allows you to illuminate large surfaces or large structures with uniformity and without dispersion. Compared to products from other brands, Helios 9 WH is known for its ability to maintain high performance even in harsh environmental conditions.

While many projectors offer IP66 protection, the Helios 9 WH has an IP67 rating, meaning it is completely dustproof with high liquid protection.

Built to withstand harsh environmental conditions, Helios 9 WH is designed with high-quality materials such as anodized aluminium and tempered glass. Compared to competing products, this robustness guarantees greater durability, reducing maintenance and replacement costs in the long term.

The optical system of Helios 9 WH is particularly sophisticated, featuring several types of lenses that allow easy adjustment of the projection angle — from narrow beams to wider spreads — to suit the specific needs of each installation. Many competing products do not offer this optical flexibility, limiting the customization of the lighting.

Helios 9 WH can be controlled via DMX via Drivnet, which offers full remote control to adjust the light intensity. The DALI (Digital Addressable Lighting Interface) functionality enables remote management and diagnostics, allowing users to monitor the status of the device and make changes without having to physically intervene.

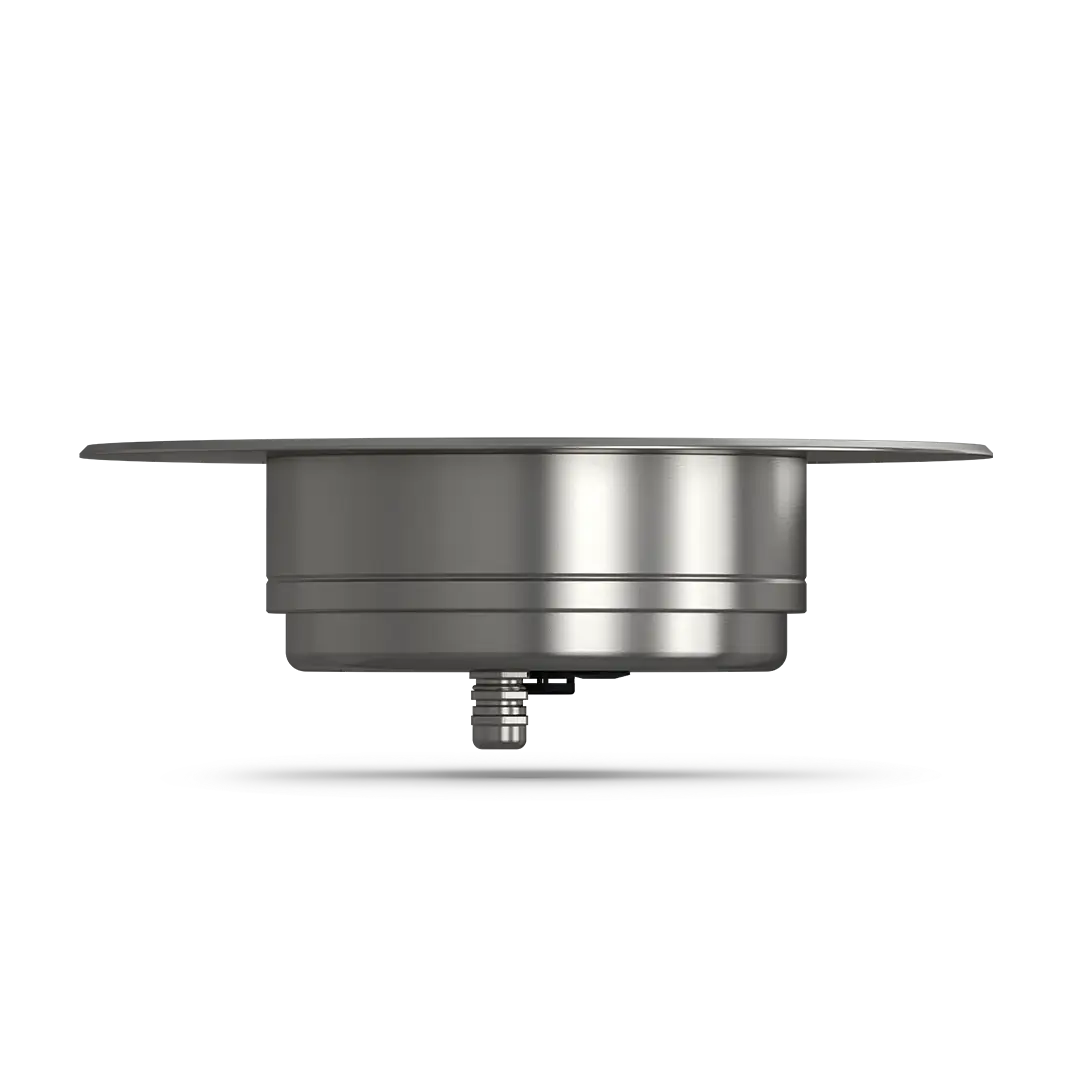

Helios 9 WH is designed to facilitate installation, with a simple and secure fixing system in its formwork. Its assembly flexibility allows it to be adapted to different situations, both for installations in gardens in contact with the ground and on paved surfaces, ensuring perfect integration with the architectural or landscape context. Other products often require more complex and less intuitive installations.

Thanks to the latest generation LED technology, Helios 9 WH offers powerful but low energy consumption lighting. The long useful life of LEDs reduces operating and maintenance costs over time, a feature that not all competing products can guarantee with the same efficiency.

Despite its high performance, Helios 9 WH maintains a compact and discreet design, which integrates perfectly into any context without compromising the aesthetics of the surrounding environment. This is a significant advantage over the bulkier and more visually intrusive products of some competitors.

DTS Lighting offers an excellent technical support service and the ability to customize some product configurations based on the specific needs of the project. This customer focus is another aspect that sets DTS apart from many other manufacturers, who may not offer the same level of flexibility and support.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical data

OUTPUT

  • 9 x White LED
  • Lumens output (3000 K): 2000 @ 700mA
  • Lumens output (4000 K): 2350 @ 700mA
  • Lumens output (5600 K): 2500 @ 700mA
  • LED lifespan: 50000 hours (L70B10)

OPTICAL GROUP

  • Spot 10°
  • Medium 25°
  • Wide 40°

POWER SUPPLY

  • External CC PSU Led driver 700mA max per channel
  • Max distance between Drivenet PSU and fixture 150 m
  • Consumption: max 18 W @ 700mA

CONNECTIONS

  • 5 m end-stripped 2-pole cable (Specific lengths needs must be requested to the sales manager at the time of ordering)

TEMPERATURE

  • Operating: -20° +45° C
  • Storage: -40° +85° C

PHYSICAL

  • Housing: Body in aluminium and flange in Stainless Steel
  • Weight: 2.2 Kg (4.85 lbs)
  • IP rating: IP67
  • IK rating: IK08

TEST AND CERTIFICATION

  • CE

ACCESSORIES INCLUDED

  • No accessories included

ACCESSORIES ON REQUEST

  • Cassaforma MYRA 3/6 (cod. 03.LA.078.V2)
  • Constant current PSU 700mA 9 ÷ 48Vdc – Max. 1 unit (code 0502T031)
  • 500-1400mA 60W *Push Dimming *DALI *230Vac Constant current PSU – Max 2 units serial wired @ 700mA (code 0514M240)
  • 2-pole underwater cable (code 0509C081)

Features and certifications

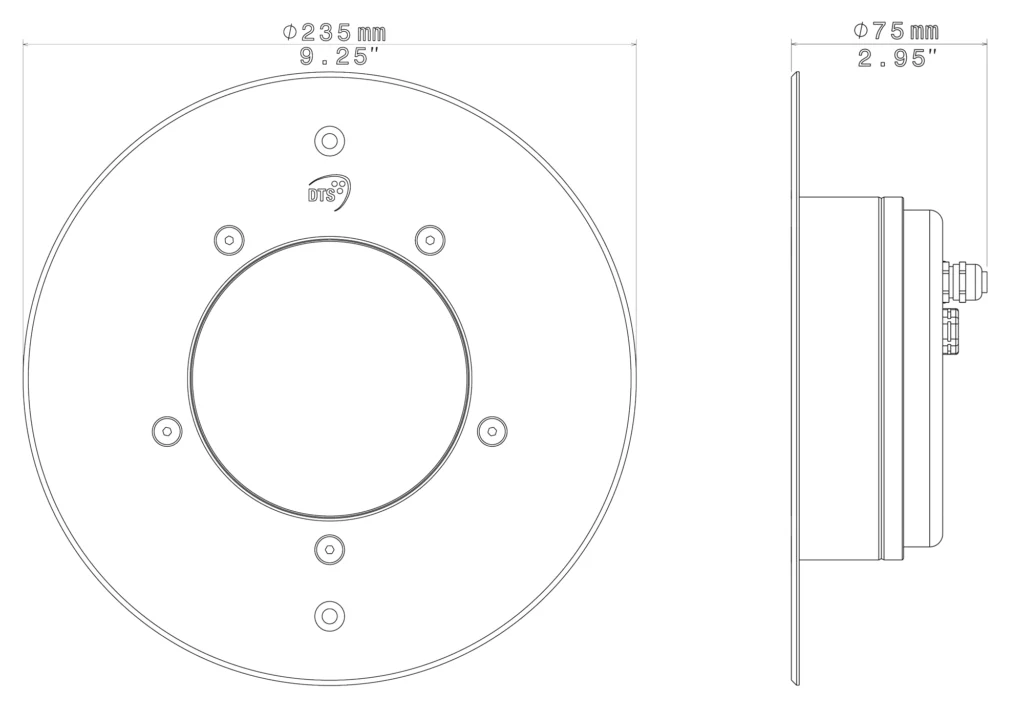

Helios 9 technical design

Product code:

03.EOS003E99WB WE WG3000K 4000K 5600K10 25 40Spot Medium Wide

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

Download

Accessories

500-1400mA 60W *Push Dimming *DALI *230Vac Constant current PSU – Max 2 units serial wired @ 700mA – 0514M240

Accessories

Constant current PSU 700mA 9 ÷ 48Vdc – Max. 1 unit – 0502T031

Accessories

Outer casing MYRA 3/6 – 03.LA.078.V2

Accessories

2-poles underwater cable 2×0,75mm² – 0509C081

Cad icons and Technical drawing

3D Icone HELIOS.d 6 – HELIOS 6 – HELIOS 9 WH

Cad icons and Technical drawing

2D Icone HELIOS 9 WH

Cad icons and Technical drawing

Technical drawing HELIOS 6/9

Catalogues and Data sheets

DATA SHEET HELIOS 9 WH
