helios.D 6

HELIOS.D 6

helios.D 6
Architainment

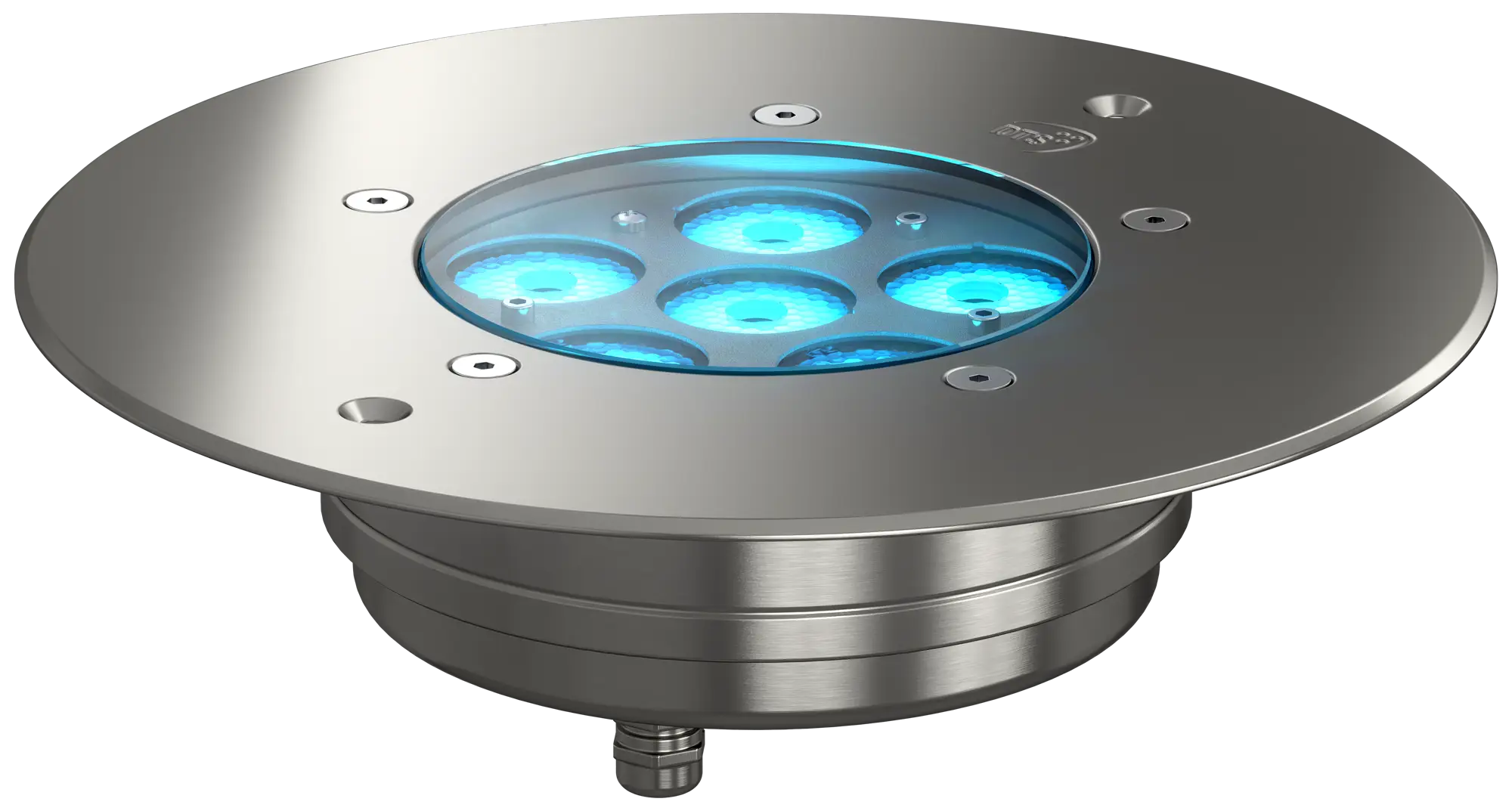

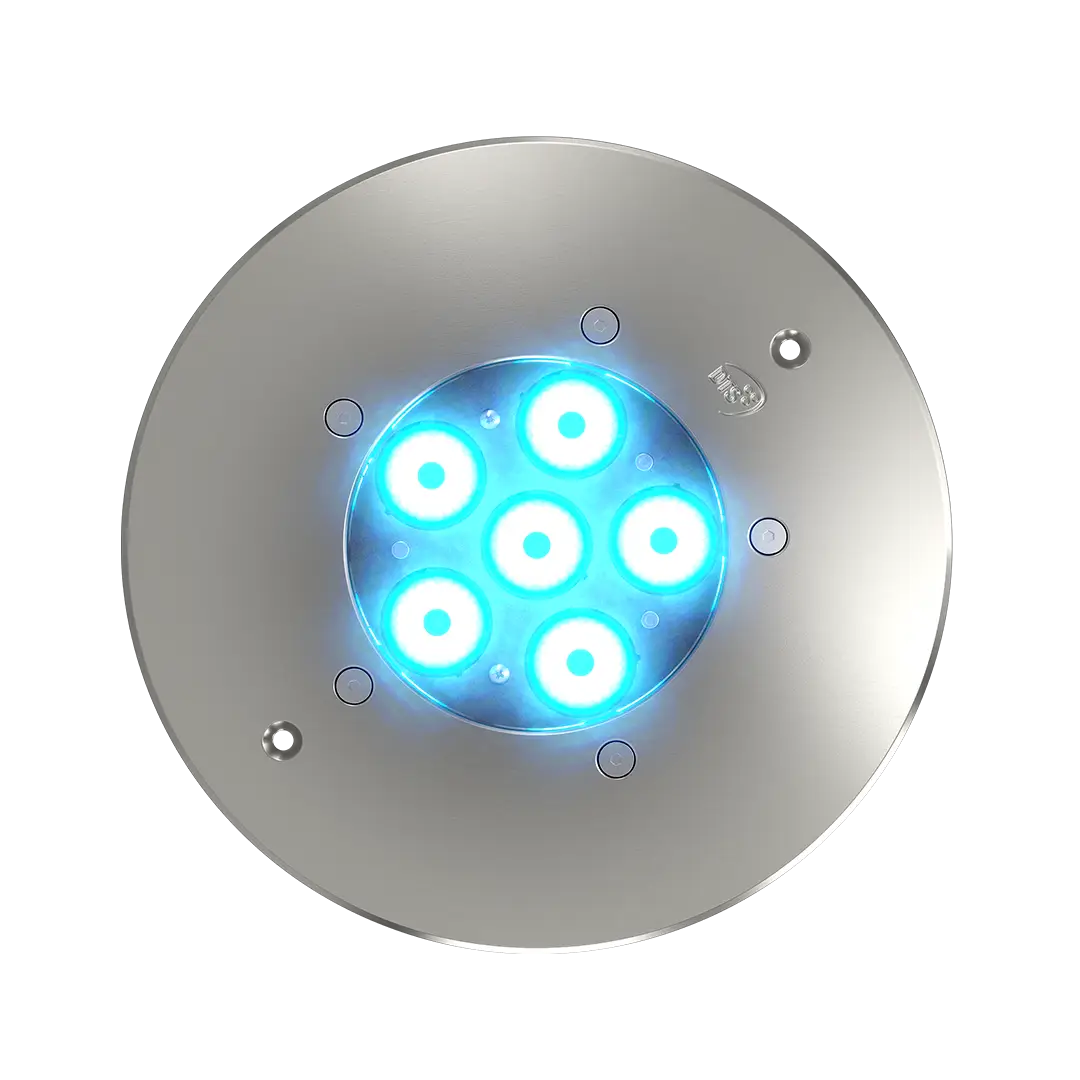

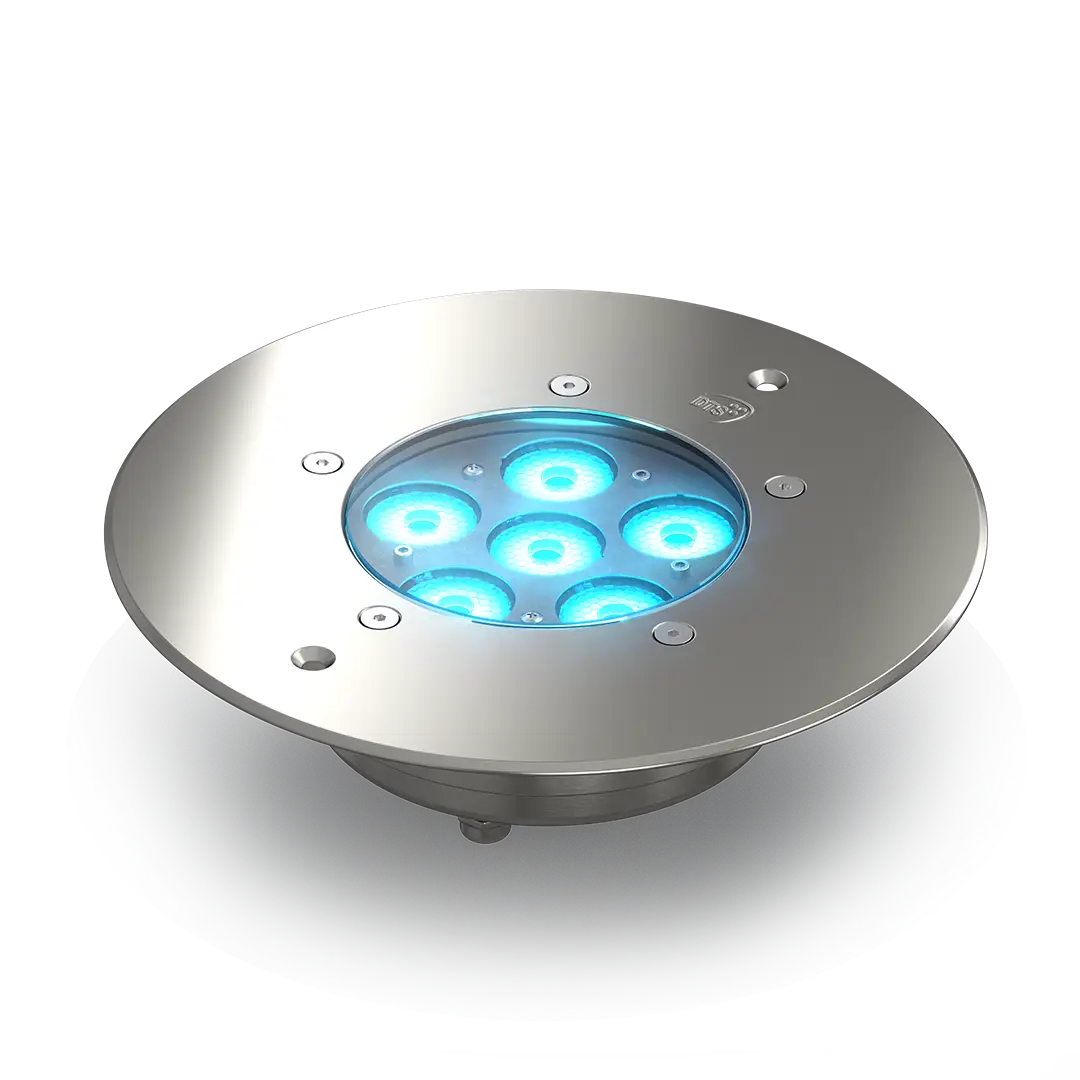

LED wash in-ground projector

HELIOS.d 6 is a compact and powerful outdoor LED projector, ideal for architectural applications and accent lighting. Its advanced optics ensure uniform and precise illumination, adapting to various lighting needs.

highlights

Source

6 x 4-colors LEDs

Lumens

2350 lm RGBW 2200 lm RGBA

IP Rating

IP67

DMX

4 channels 11 channels

operating
temperature

-20° / 45° C

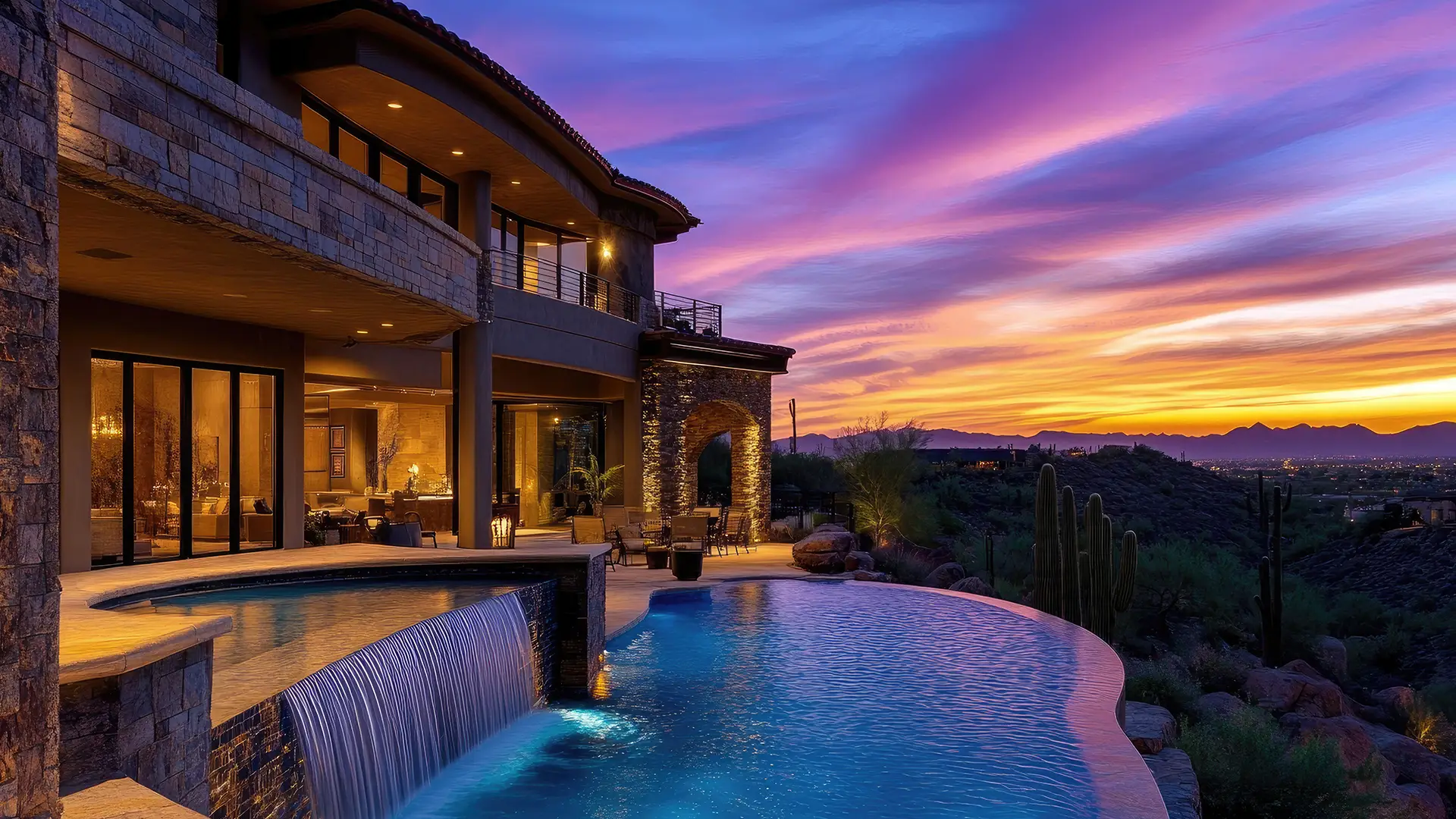

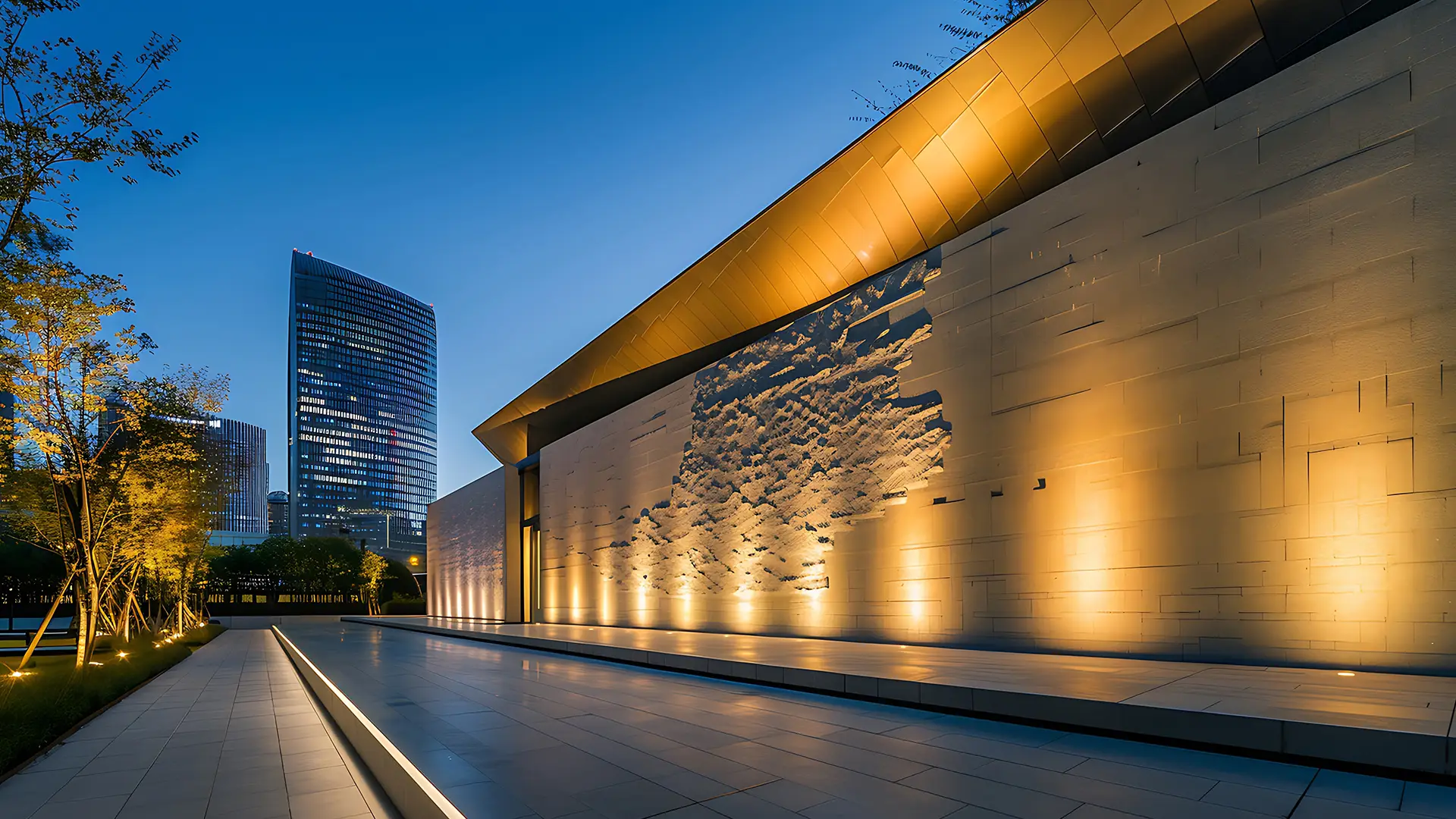

Applications

helios.D 6

Lighting Designers and Architects

Architectural lighting projects, interior design, restoration and enhancement of historic or contemporary buildings.

Create lighting effects that enhance architectural details, manage atmospheres, enhance external structures and facades, with attention to sustainability and energy consumption.

The DMX control and the versatility of the optics allow Helios 6 to be easily integrated into architectural designs, customizing the lighting effects and guaranteeing aesthetically impeccable results.

Museums and Exhibition Spaces

Permanent installations within art galleries, museums and exhibition spaces, to enhance works of art and installations.

High-quality lighting that enhances details and colors, without overheating the works, and that can be programmed for static or dynamic effects.

The wide range of colors and high white rendering make Helios 6 an ideal choice for refined and discreet lighting that enhances the aesthetics of the works on display.

Installers and Suppliers of Lighting Systems

Supply of lighting solutions for commercial, architectural and scenographic projects.

Reliable and long-lasting products, with ease of installation and reduced maintenance.

Helios 6 is built to last in harsh environments, with a flexible configuration that facilitates integration into different types of permanent installations.

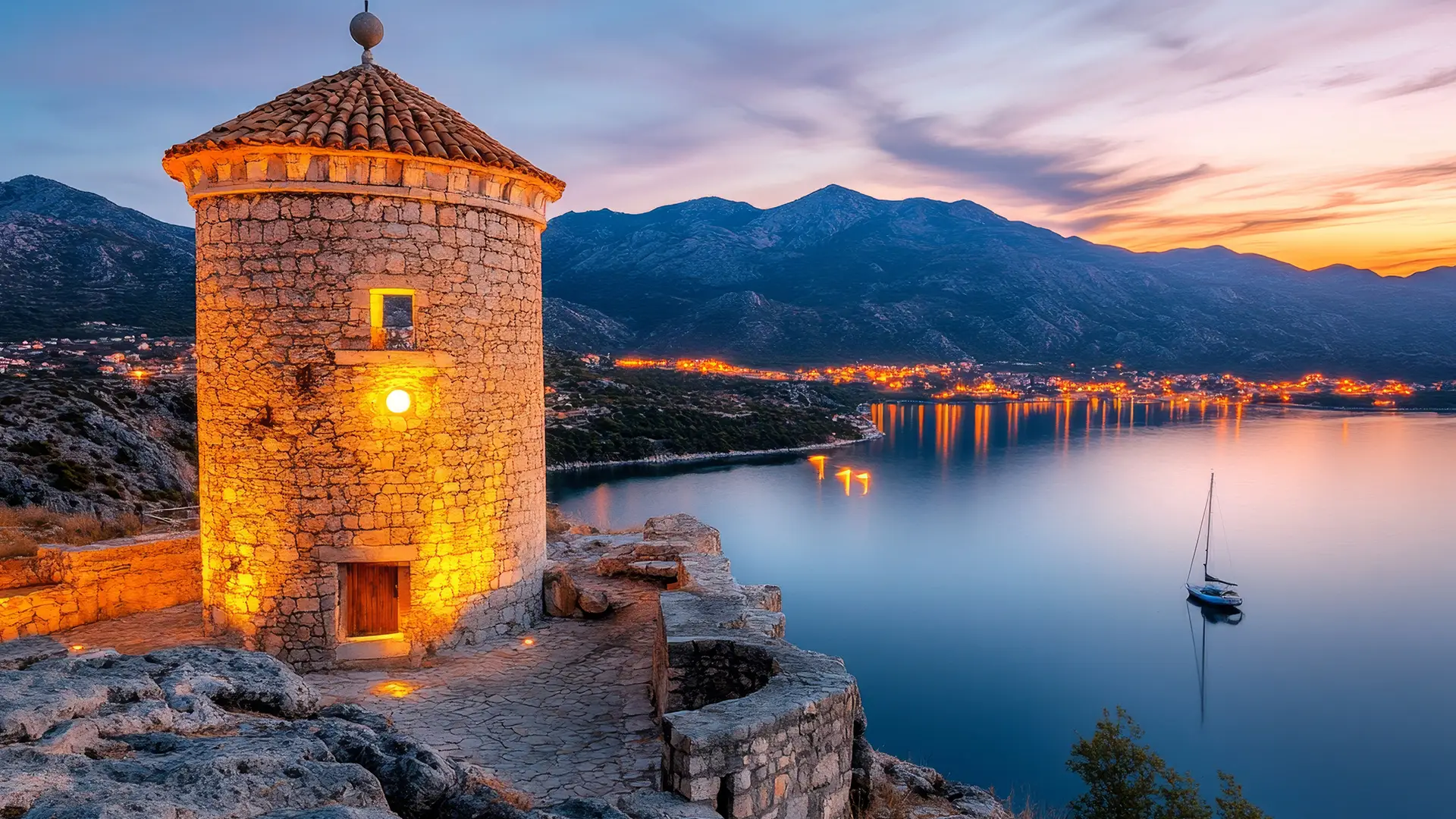

Municipalities and Public Administrations

Urban and monumental lighting projects and enhancement of public spaces.

Resistant and energy-efficient lighting solutions to illuminate parks, squares, facades of historic buildings and monuments.

High-efficiency LED technology helps reduce energy and maintenance costs, while IP67 certification ensures weather resistance for long-term installations.

Features

Helios 6 uses 6 high-quality LEDs with RGBW (Red, Green, Blue, White) technology, which offers a wide color gamut and superior light quality. This system allows you to obtain both saturated colors and more delicate shades, also guaranteeing white rendering with various color temperatures, something that many competing products cannot do with the same effectiveness.

One of the main strengths of Helios 6 is its exceptional light power, which allows you to illuminate large surfaces or large structures with uniformity and without dispersion. Compared to products from other brands, Helios 6 is known for its ability to maintain high performance even in harsh environmental conditions.

While many projectors offer IP66 protection, the Helios 6 has an IP67 rating, meaning it is completely dustproof with high liquid protection.

Built to withstand harsh environmental conditions, Helios 6 is designed with high-quality materials such as anodized aluminium and tempered glass. Compared to competing products, this robustness guarantees greater durability, reducing maintenance and replacement costs in the long term.

The optical system of Helios.d 6 is particularly sophisticated, featuring several types of lenses that allow easy adjustment of the projection angle — from narrow beams to wider spreads — to suit the specific needs of each installation. Many competing products do not offer this optical flexibility, limiting the customization of the lighting.

Helios 6 is equipped with a DMX and RDM control system, offering full remote control to adjust color, intensity and lighting effects. RDM (Remote Device Management) functionality enables remote management and diagnostics, allowing users to monitor device status and make changes without having to physically intervene. Helios is available in versions with integrated driver or remote driver. This advanced control capability differentiates Helios 6 from many competing products that offer only basic DMX control or require more complex manual setups.

In addition to the vast range of colors, Helios 6 allows the programming of dynamic effects, such as fades and color changes, to create suggestive and engaging atmospheres.

Helios 6 is designed to facilitate installation, with a simple and secure fixing system in its formwork. Its assembly flexibility allows it to be adapted to different situations, both for installations in gardens in contact with the ground and on paved surfaces, ensuring perfect integration with the architectural or landscape context. Other products often require more complex and less intuitive installations.

Thanks to the latest generation LED technology, Helios 6 offers powerful but low energy consumption lighting. The long useful life of LEDs reduces operating and maintenance costs over time, a feature that not all competing products can guarantee with the same efficiency.

Despite its high performance, Helios 6 maintains a compact and discreet design, which integrates perfectly into any context without compromising the aesthetics of the surrounding environment. This is a significant advantage over the bulkier and more visually intrusive products of some competitors.

DTS Lighting offers an excellent technical support service and the ability to customize some product configurations based on the specific needs of the project. This customer focus is another aspect that sets DTS apart from many other manufacturers, who may not offer the same level of flexibility and support.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical data

OUTPUT

  • 6 x 4-colors LED
  • Lumens output (RGBW): 2350
  • Lumens output (RGBA): 2200
  • LED lifespan: 50,000 hours (L70B10)

OPTICAL GROUP

  • Spot 10°
  • Medium 25°
  • Wide 40°

CONTROL

  • DMX 512 / RDM protocols
  • DMX address settings and functions can be also managed by the dedicated DLC 901 remote control
  • Internal operating system updatable via DTS dongle firmware uploader

DMX

  • 4 DMX channels (Default)
  • 11 DMX channels

POWER SUPPLY

  • LED driver on board
  • External constant voltage PSU Led driver 27 ÷ 48 VdC
  • Consumption: 60 W max

CONNECTIONS

  • 5 m end-stripped 4-pole cable for Power and DMX
(Specific lengths needs must be requested to the sales manager at the time of ordering)

TEMPERATURE

  • Operating: -20° +45° C
  • Storage: -40° +85° C

PHYSICAL

  • Housing: Body in aluminium and flange in Stainless Steel
  • Weight: 2 Kg (4.41 lbs)
  • IP rating: IP67
  • IK rating: IK08

TEST AND CERTIFICATION

  • CE

ACCESSORIES INCLUDED

  • No accessories included

ACCESSORIES ON REQUEST

  • Outercase MYRA 3/6 (03.LA.078.V2)
  • PSU constant current – Max 1 unit (code 0502T063)
  • PSU constant current 48VdC 240W IP67 – Max 4 unit connected in parallel (code 0502T099)
  • Dongle DLC 901 (code 03.LA.063.1 )
  • 4-pole outdoor cable 4 x 0.5 mm2 (code 0509C152)
  • DTS dongle firmware uploader (code 03.LA.206)

Features and certifications

Product code:

03.EOS006E99316L Steel and AluminiumFC FYRGBW RGBA10 25 40Spot Medium Wide
03.EOS006E99316L Acciao e AlluminioFC FYRGBW RGBA10 25 40Spot Medium Wide

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

Download

Cad icons and Technical drawing

3D Icone HELIOS.d 6 – HELIOS 6 – HELIOS 9 WH

Cad icons and Technical drawing

2D Icone HELIOS 6

Cad icons and Technical drawing

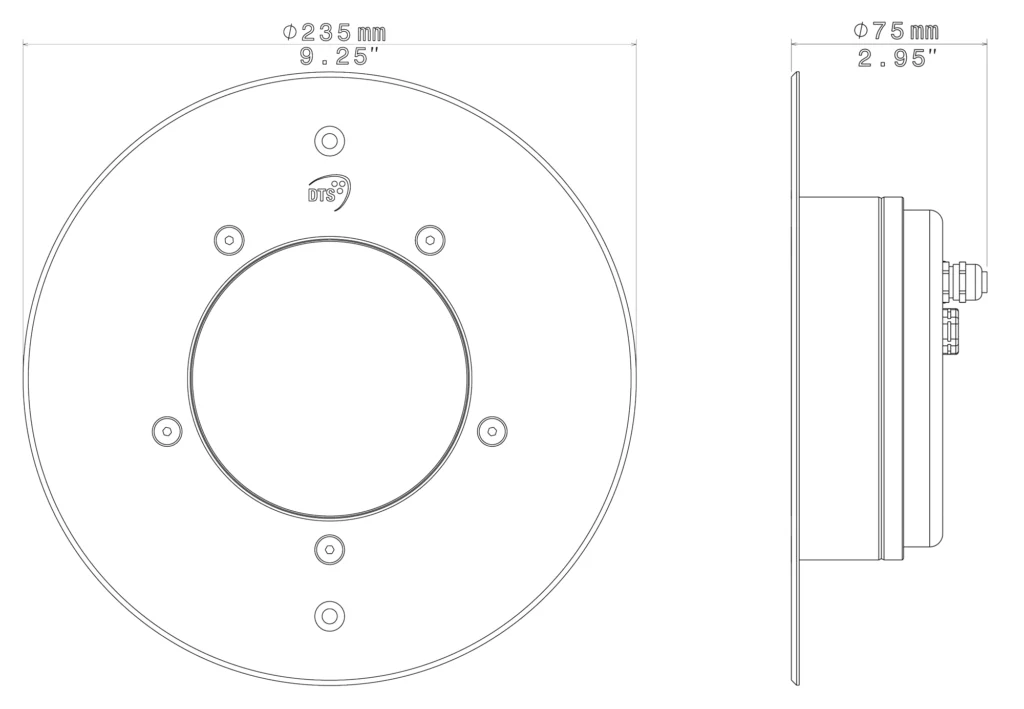

Technical drawing HELIOS 6/9

Accessories

DTS firmware uploader dongle – 03.LA.206

Firmware

Firmware Helios.d/Focus.d/Akhelios.d/Dive.d 6 Rel 102

Catalogues and Data sheets

DATASHEET – HELIOS.d 6_ENG

Software

DTS FIRMWARE UPGRADE UTILITY 2.02
