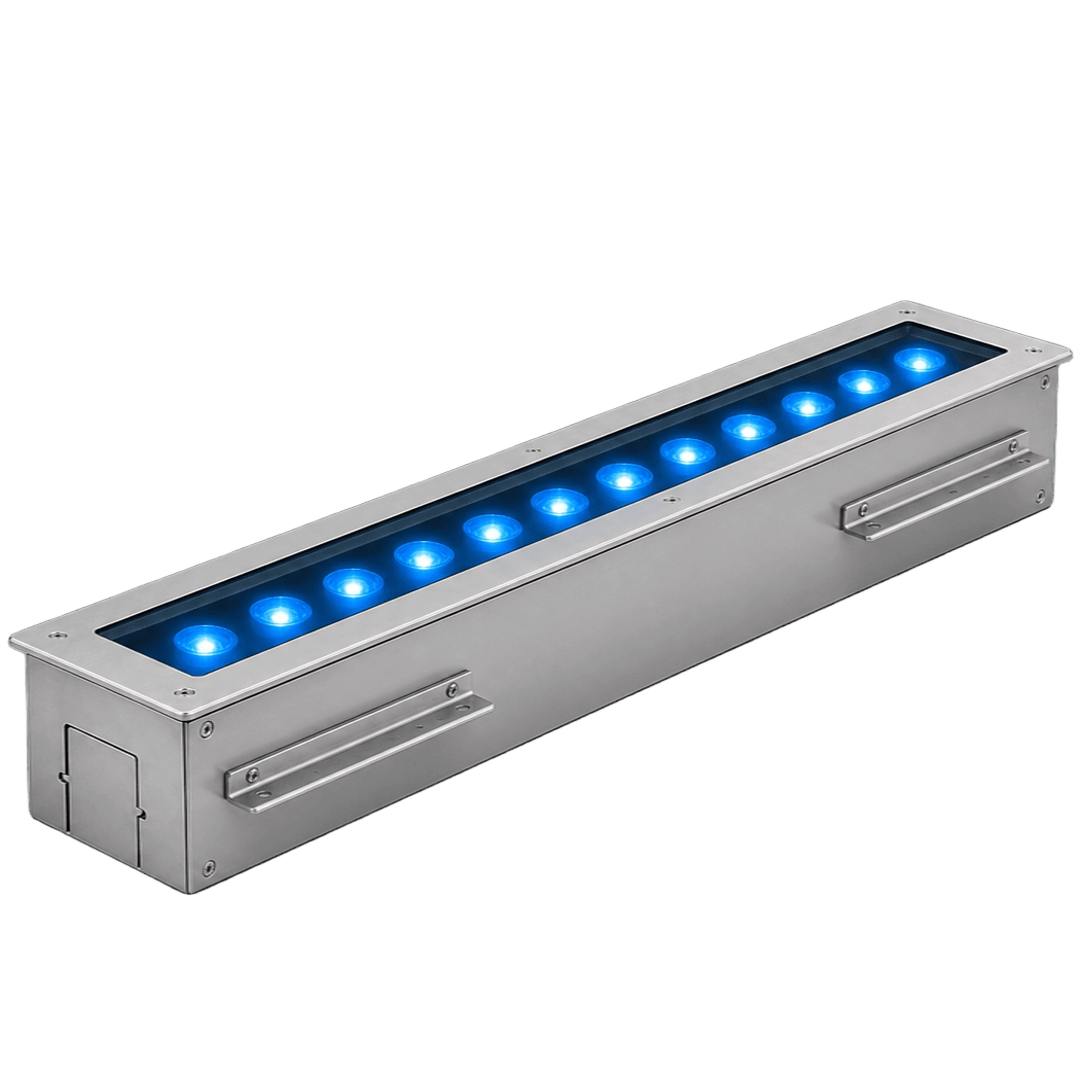

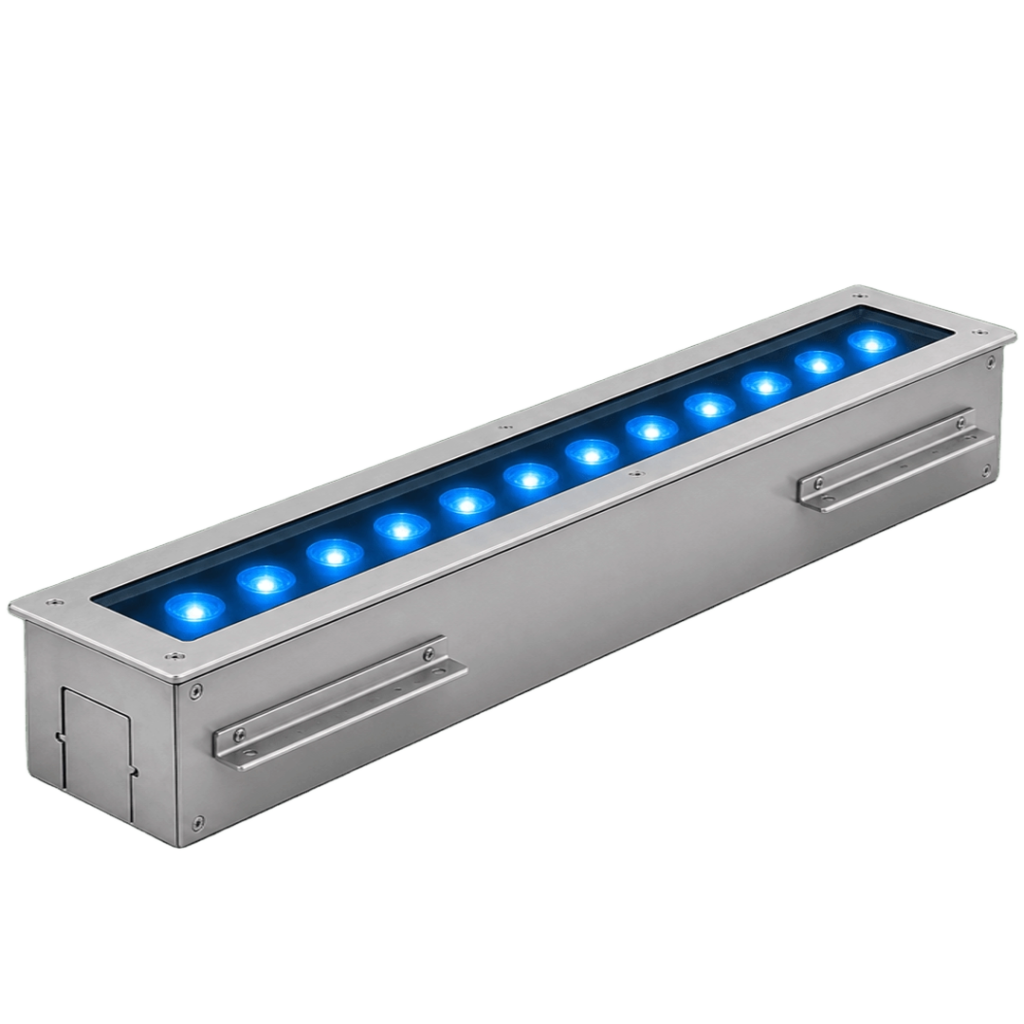

HI LINE 90 FC RECESSED

Linear LED projector

Hi Line Recessed is a linear recessed solution for architectural lighting, featuring RGBW, RGBA or white sources, high uniformity, IP67 fixture rating and an AISI 316L housing with IP20 protection.

highlights

Source

Model 90 - 12 Leds Ostar Stage N RGBW

Lumens

4680 lm

IP Rating

IP67

DMX

operating
temperature

-20° / 45° C

Applications

Lighting Designers and Architectural Studios

Hi-Line Recessed enables discreet, flush-mounted lighting integration, ideal for enhancing façades, pathways and architectural details with precision and uniformity.

Event and Entertainment Companies

Perfect for integrated lighting lines in scenography and flooring, delivering dynamic effects and strong visual impact even in outdoor environments.

Architectural and Urban Lighting

Designed for permanent installations, it combines IK10 mechanical resistance, AISI 316L construction and drainage management, making it ideal for public and urban spaces.

Hospitality and Luxury Retail

Enables refined lighting accents and pathways, seamlessly integrating into architecture without visual intrusion.

Facility Managers and Infrastructure

Ensures reliability, durability and low maintenance, ideal for large-scale environments such as airports, shopping malls and public areas.

Features

RGBW, RGBA or White Source: Available in RGBW, RGBA or white LED configurations, ensuring precise color mixing and high-quality light output. Combined with different optical options, it allows both dynamic effects and accurate functional lighting.

Uniform Light Distribution: The LED layout and calibration ensure a homogeneous light output along the entire length of the fixture, avoiding hotspots and providing consistent illumination on extended surfaces.
Recessed System with Dedicated Housing: Hi-Line Recessed is designed for flush-mounted installations and features a dedicated AISI 316L stainless steel housing. Side knock-outs for cable exit and a bottom provision for drainage facilitate installation and water management.
High Mechanical Resistance: The stepped glass, installed flush with the upper frame, provides impact resistance up to IK10, making the fixture suitable for walk-over applications in public and urban environments.
Materials for Harsh Environments: The use of AISI 316L stainless steel for the housing and A4 stainless steel hardware ensures excellent corrosion resistance and long-term durability, even in aggressive environments.
Easy and Reliable Installation: The system is designed for precise and clean installation, simplifying on-site operations and ensuring proper integration into floors and architectural surfaces.
Professional Control: Hi-Line Recessed supports DMX / RDM protocols, ensuring full compatibility with professional lighting control systems and advanced parameter management.
Architectural Integration: The minimal design and flush installation allow seamless integration into architectural contexts, enhancing spaces without visual intrusion.
DTS Reliability: Designed according to DTS quality standards, Hi-Line Recessed ensures operational reliability, long service life and qualified technical support for professional applications.

Versatility and customization
