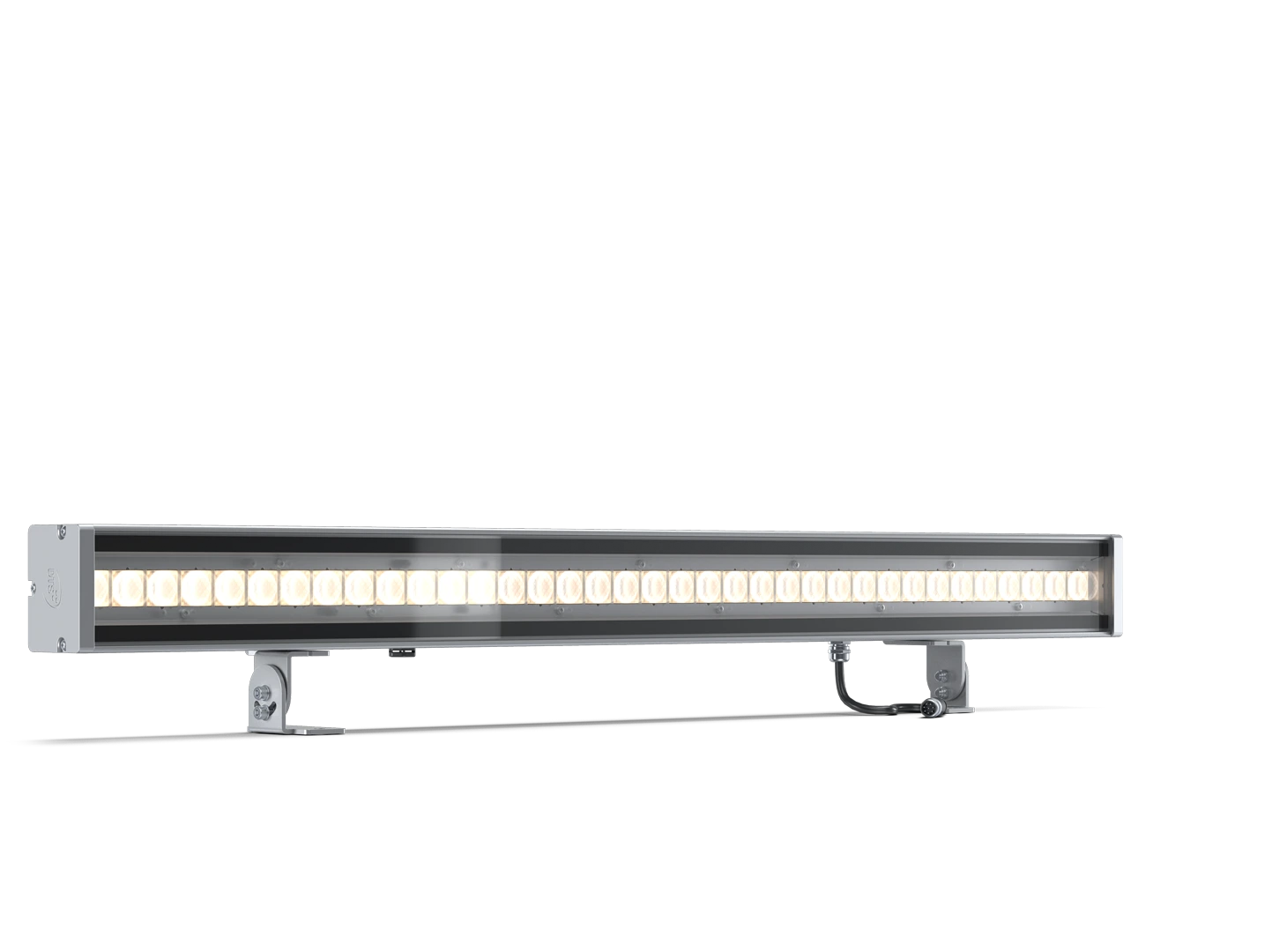

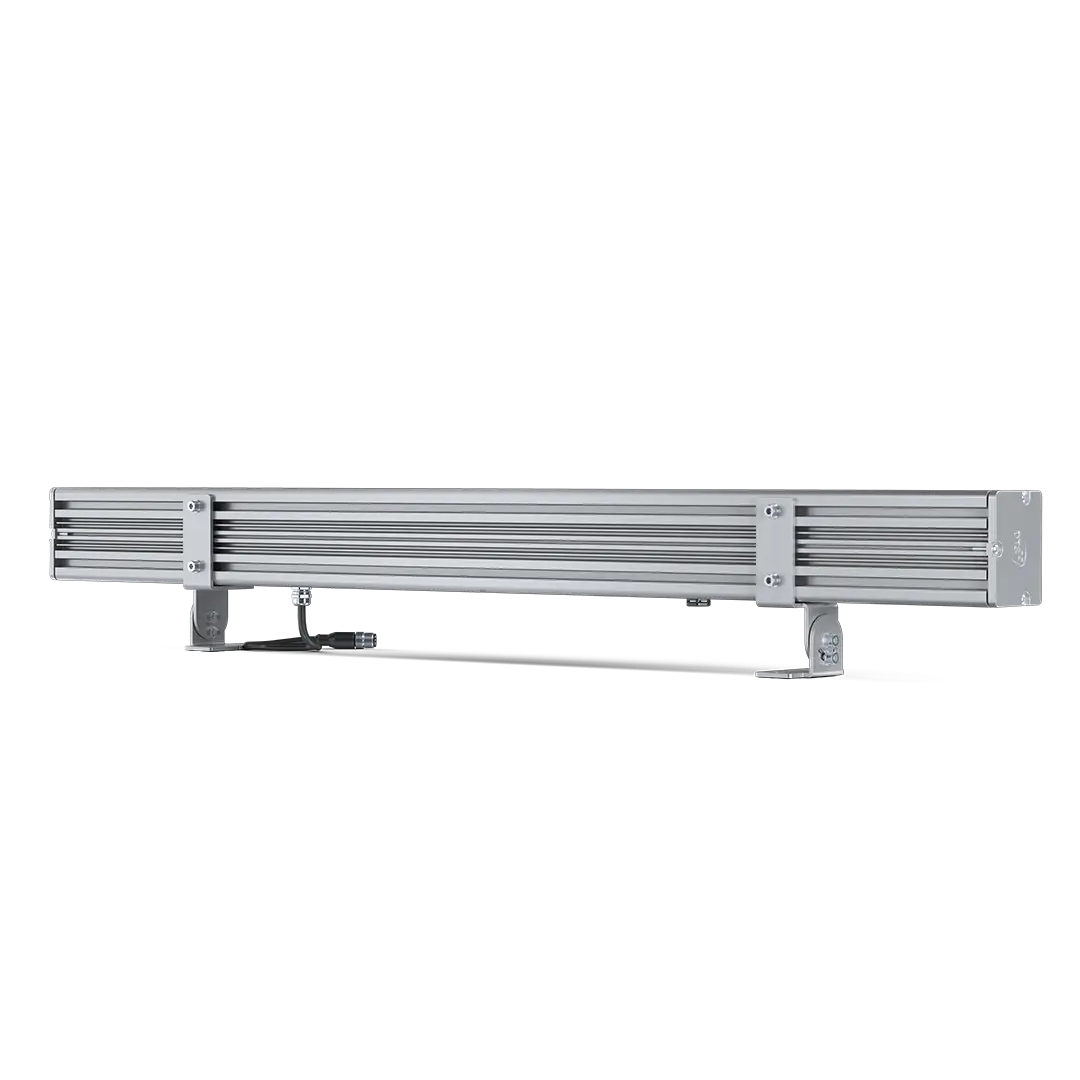

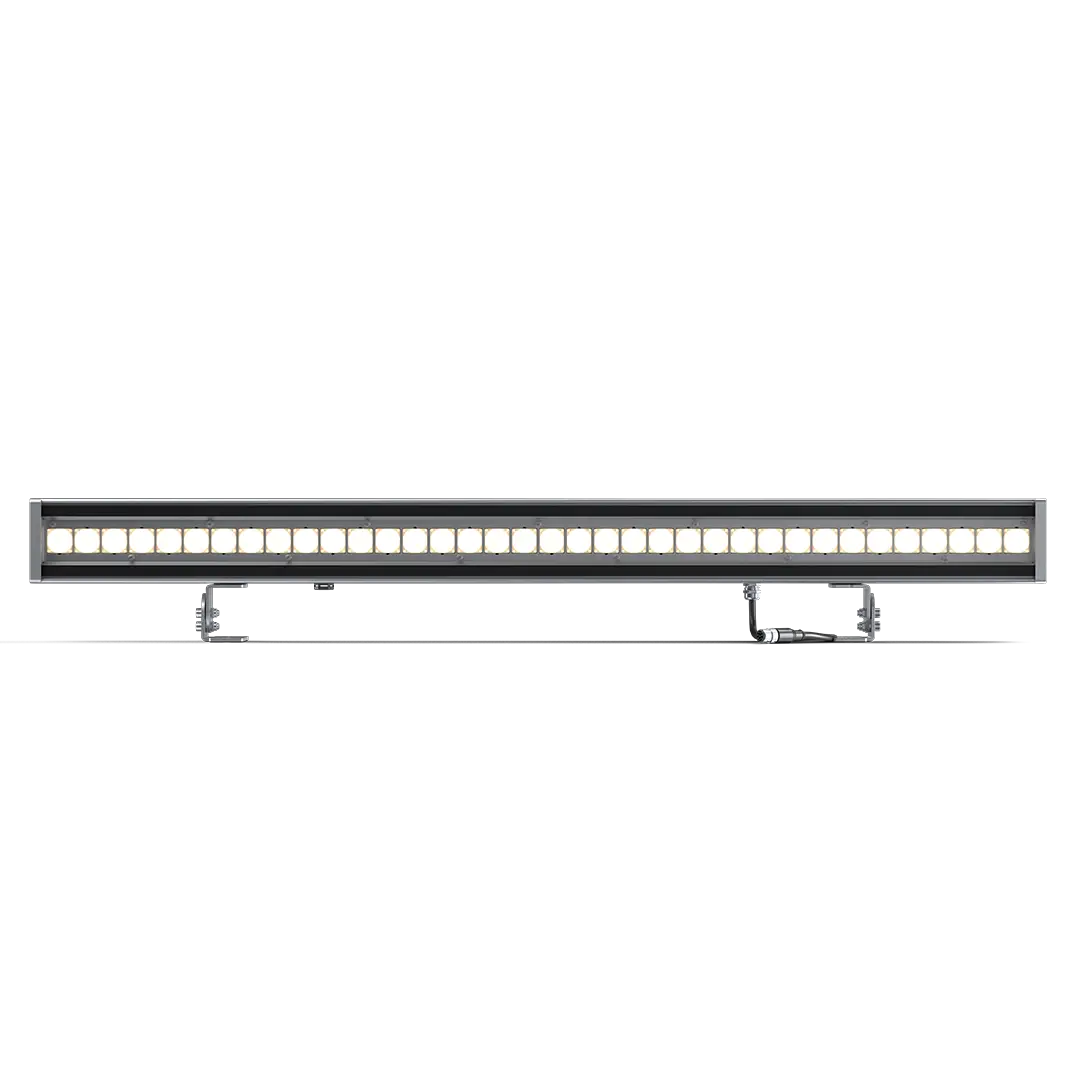

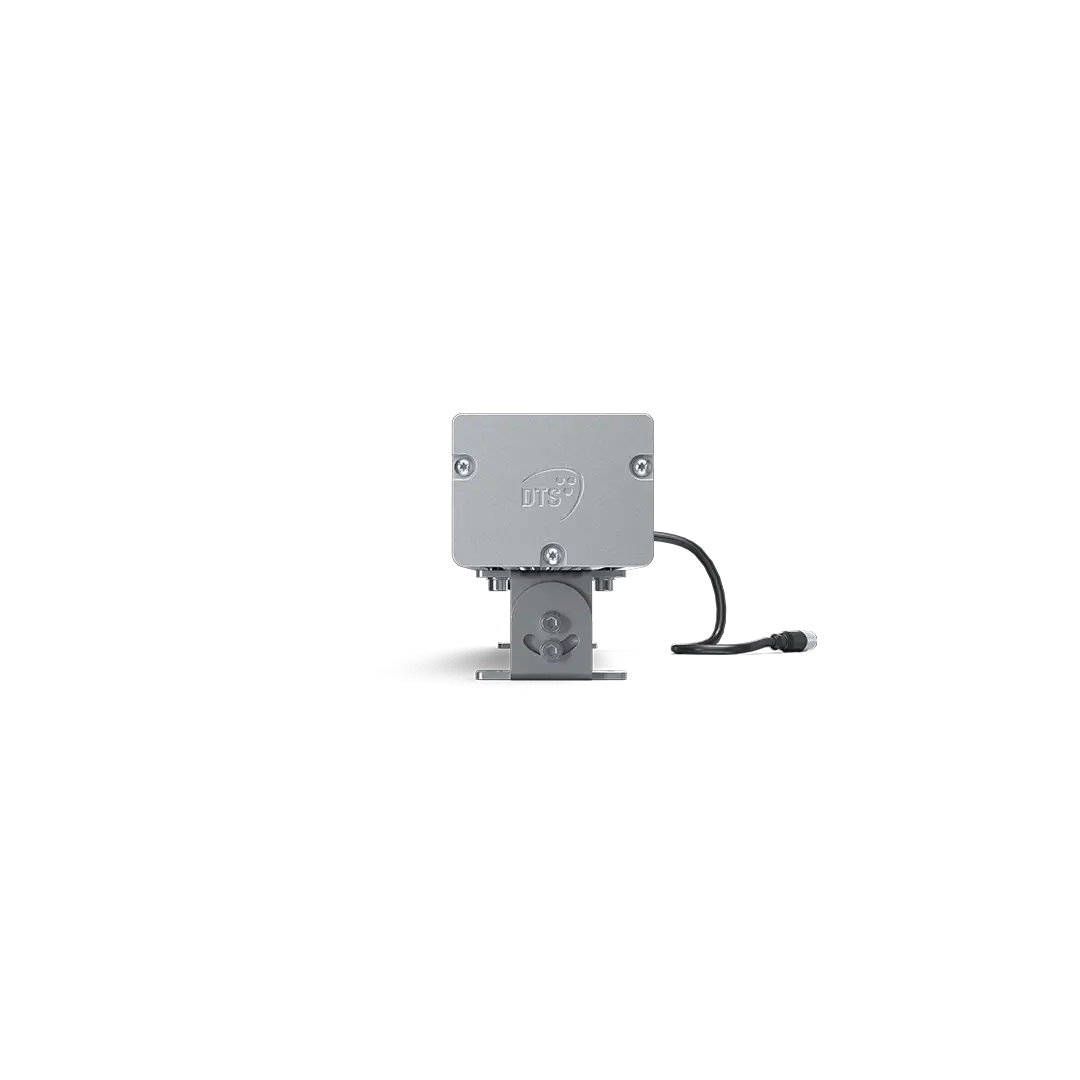

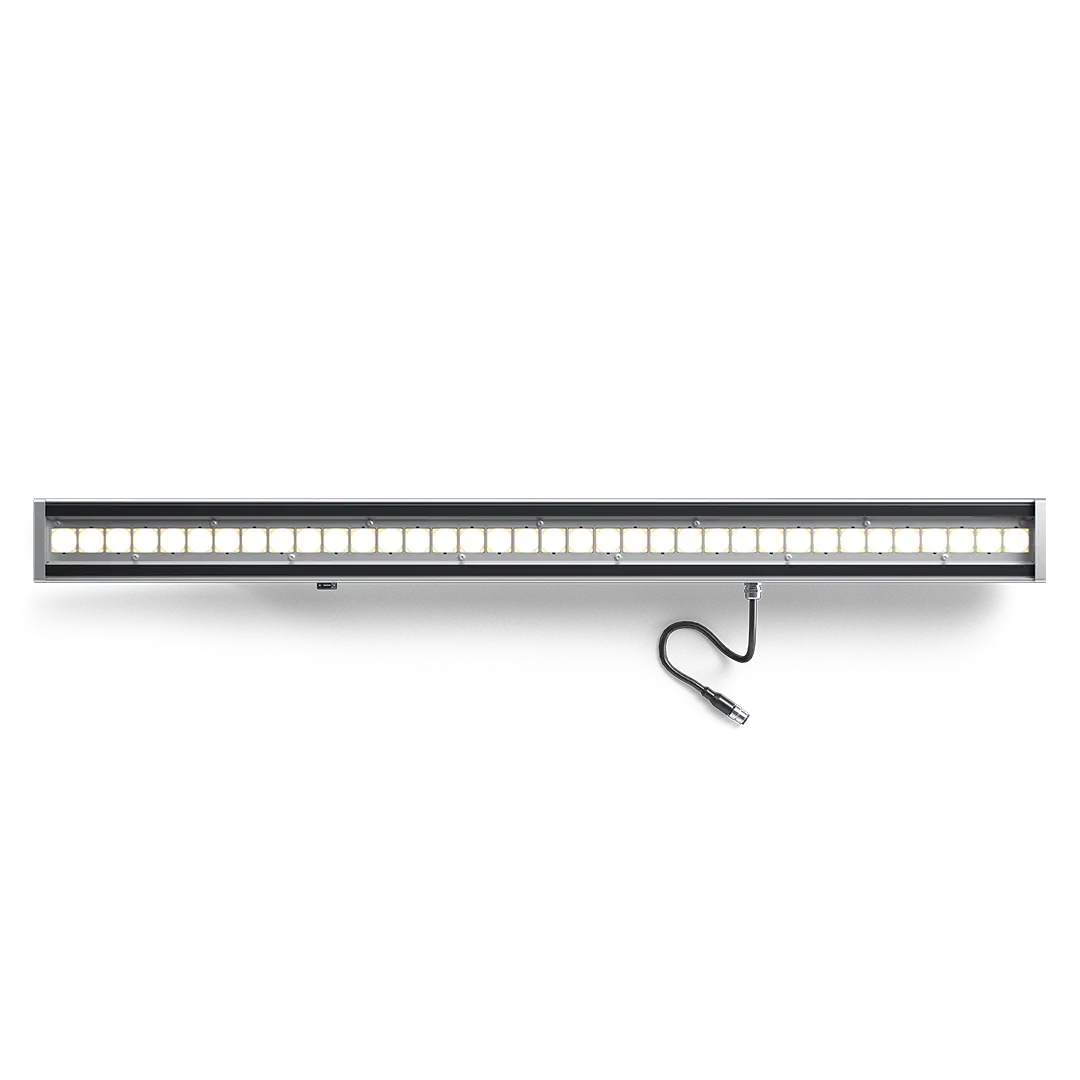

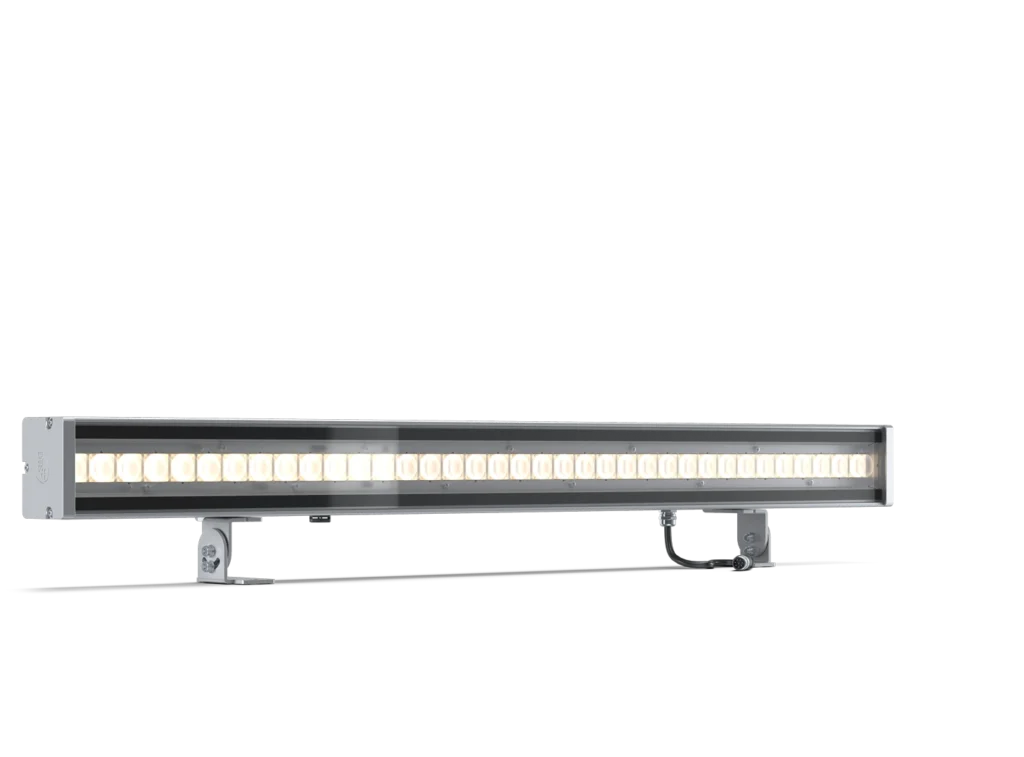

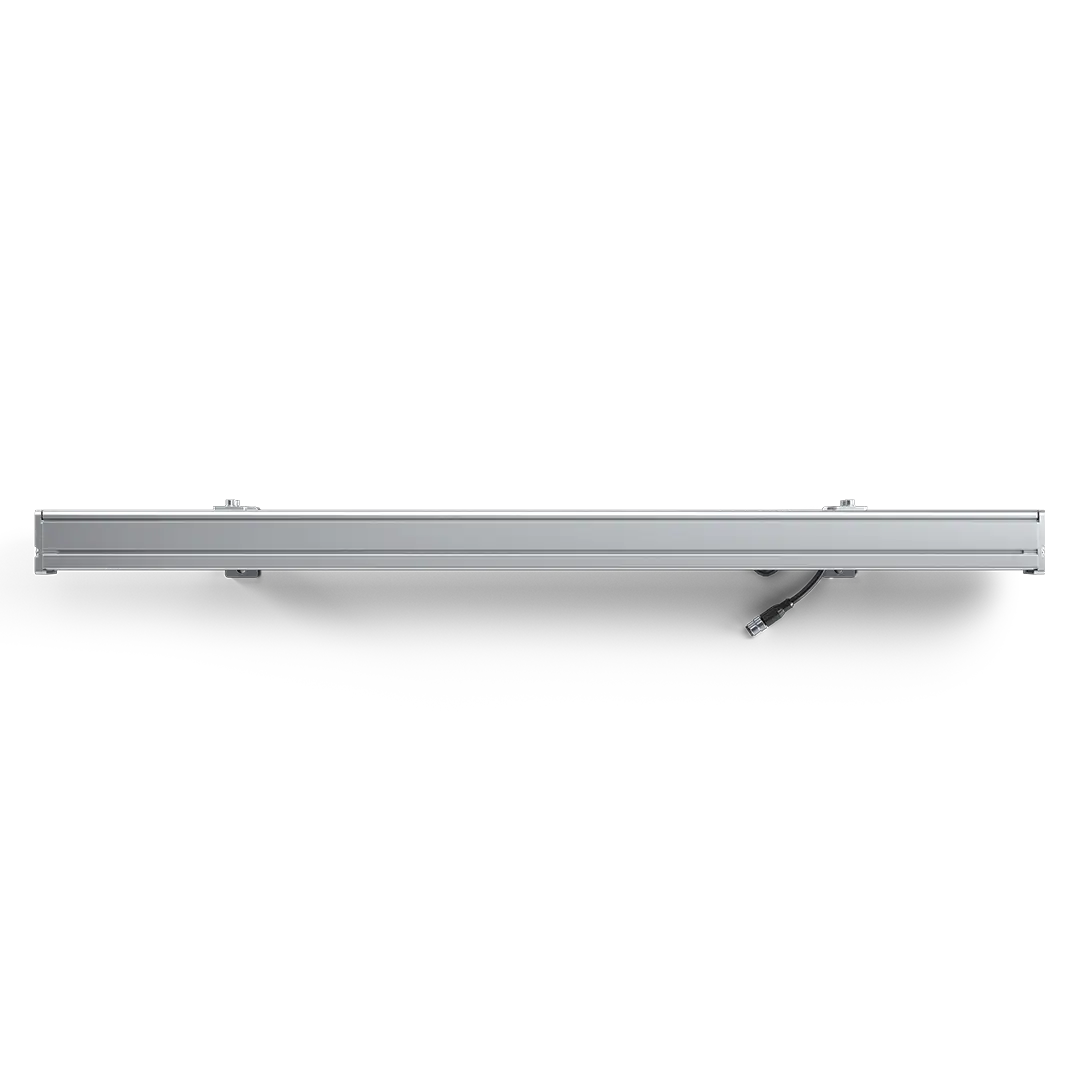

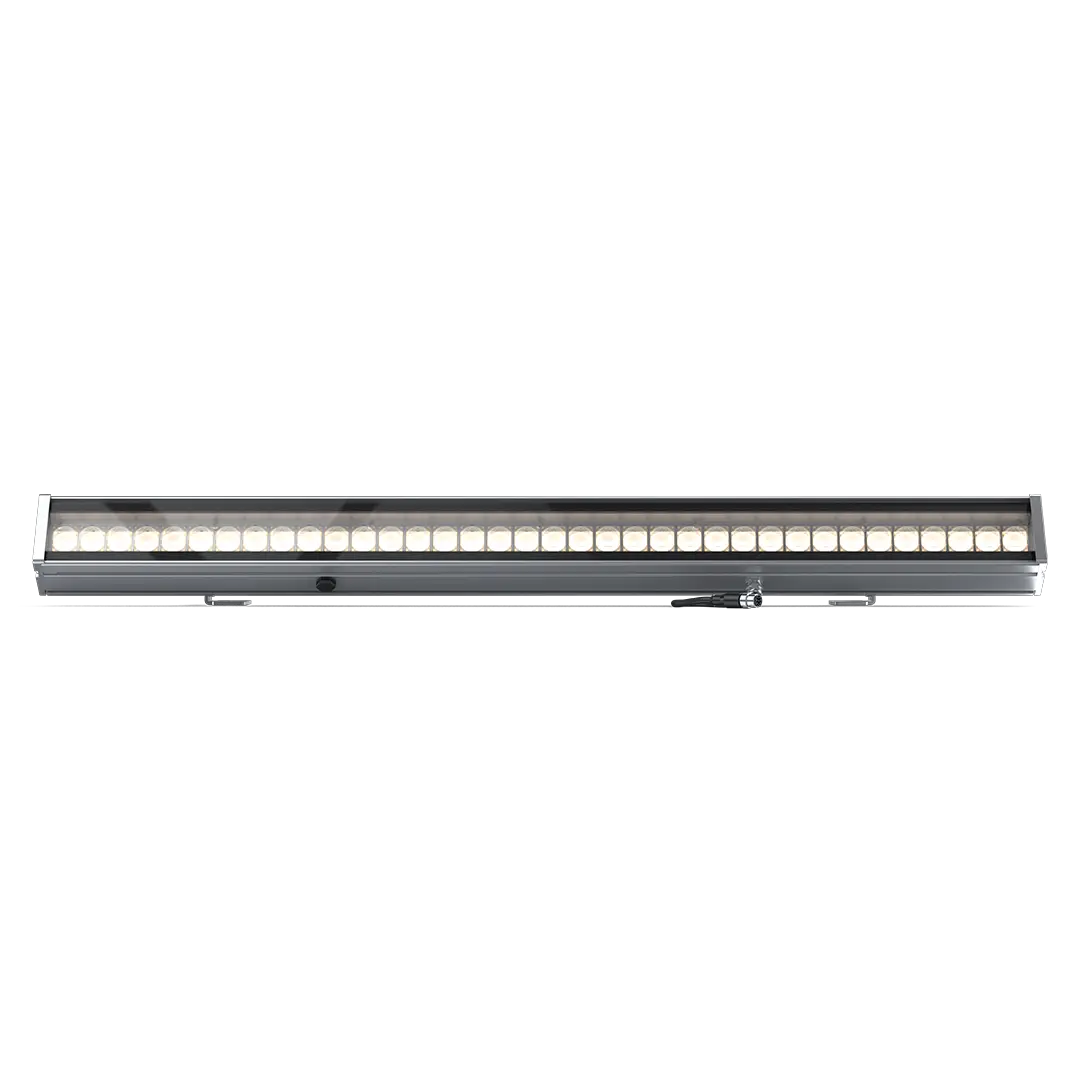

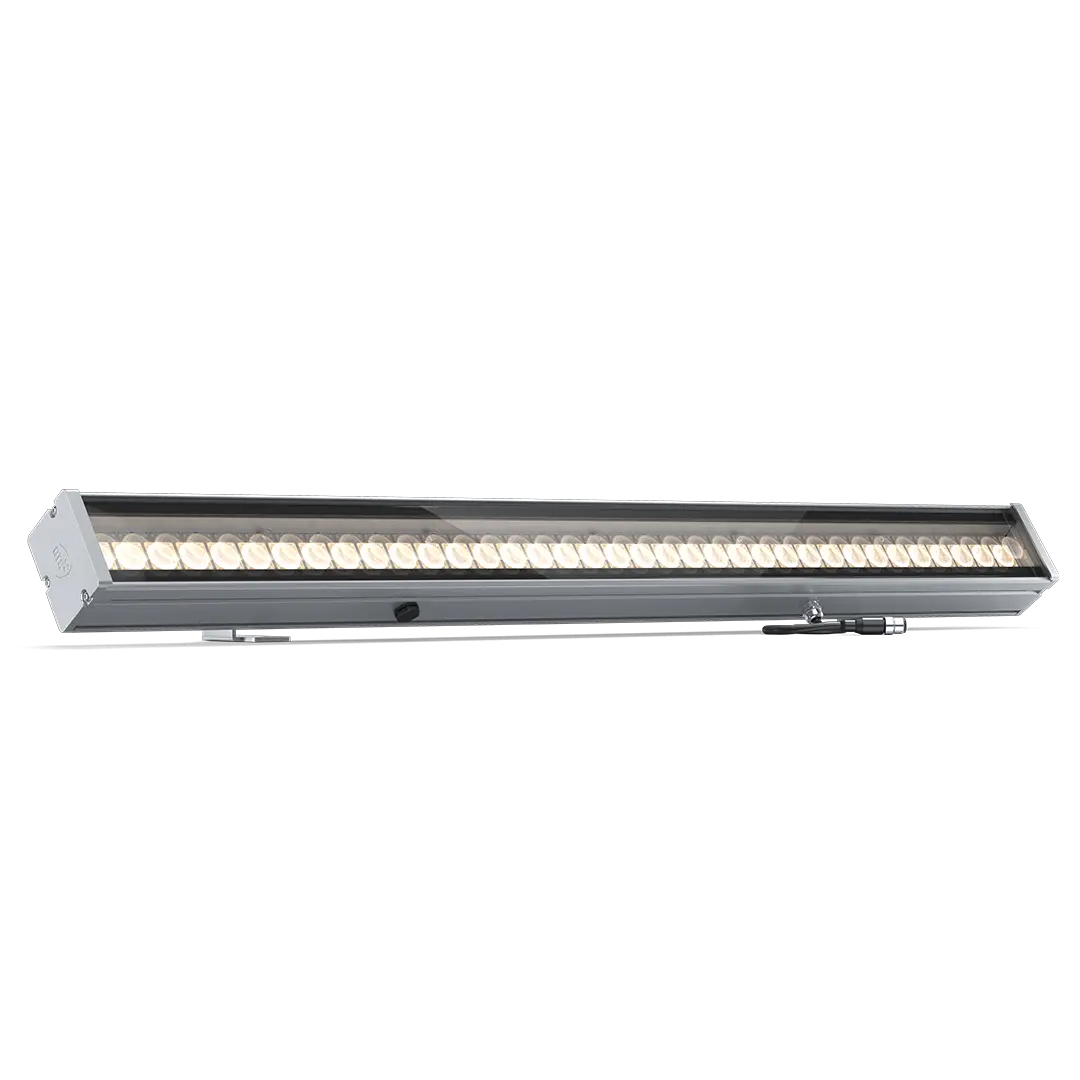

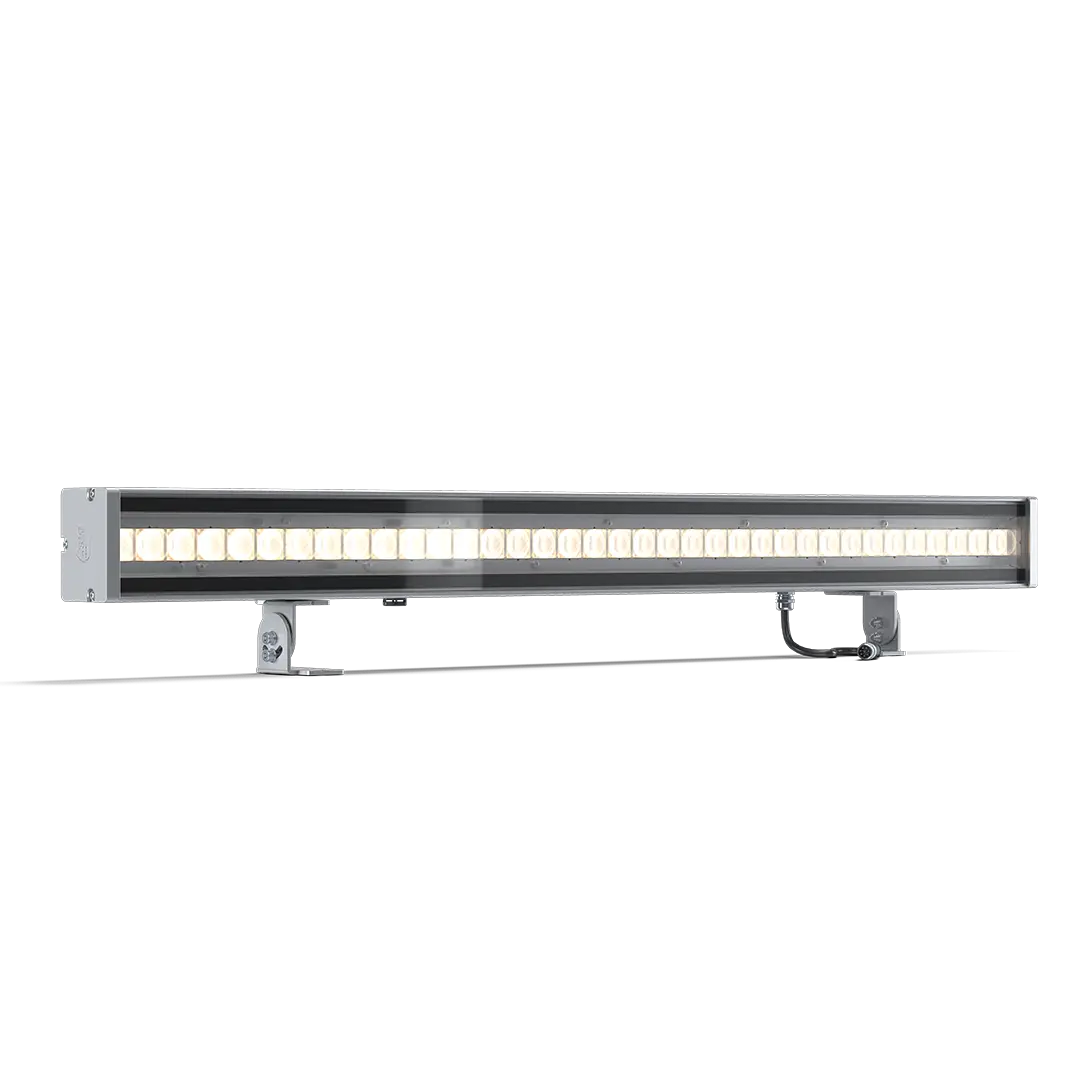

Hi-Line-90-WH

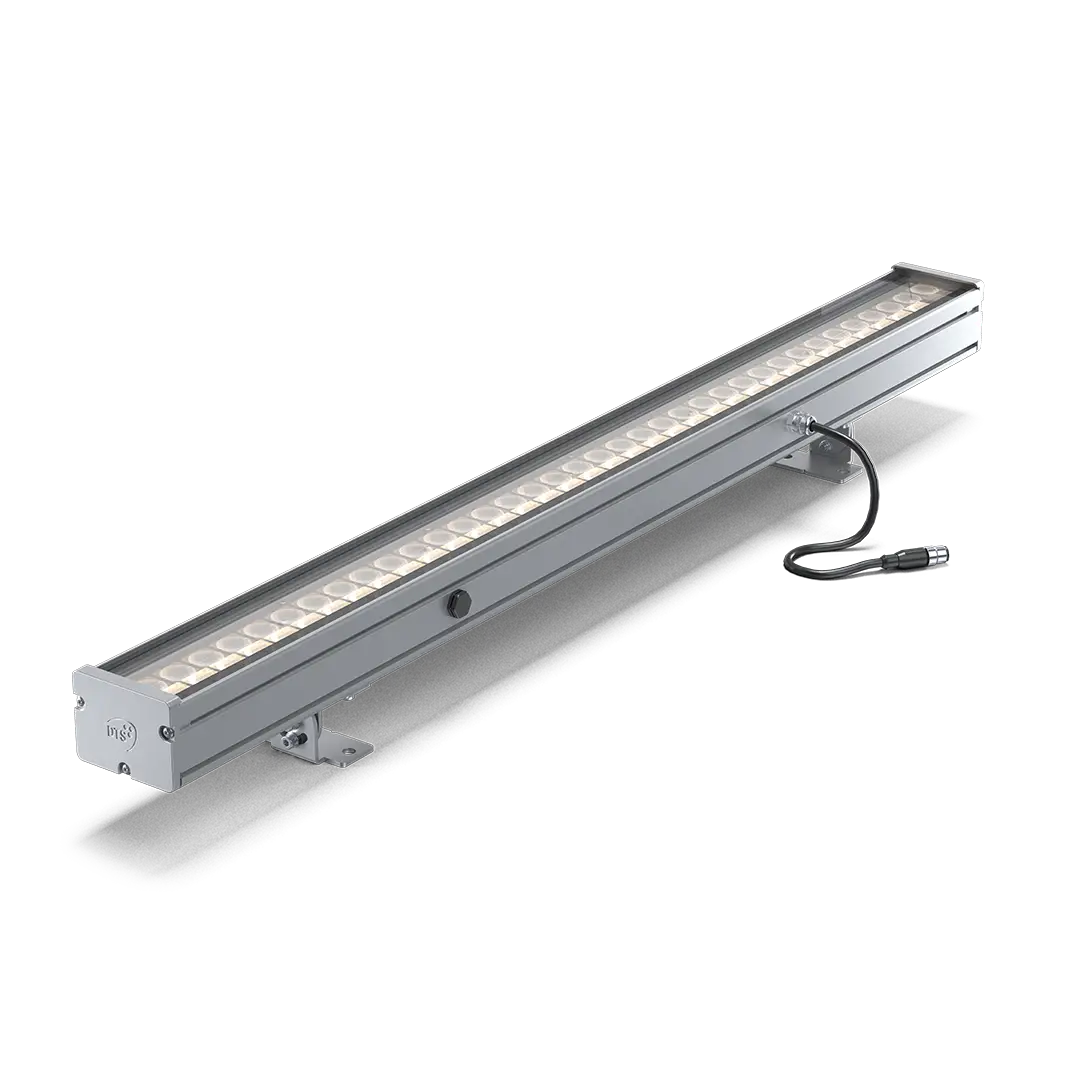

HI LINE 90 WH

Hi-Line-90-WH
Hi-Line-30-FC
Architainment

Linear LED projector

Linear LED projector with white light, perfect for enhancing facades and architectural elements. HI-LINE 90 WH ensures homogeneous and high-quality illumination, adapting to various project needs.

highlights

Source

• Model 90 - 36 Leds Z Power LED-Z5-M4

Lumens

7700 lm 3000K 9000 lm 4000K 9600 lm 5600K

IP Rating

IP67

DMX

operating
temperature

-20° / 45° C

Applications

Hi-Line-90-WH

Lighting Designers and Architectural Studios

Hi-Line is ideal for those who design lighting scenography or highlight architectural elements. It offers a wide color range and adjustable white tones, perfect for creating unique, uniform effects that match the space's aesthetic.

Architectural and Urban Lighting Companies

Weather-resistant and built for permanence, Hi-Line is designed for installations on façades, monuments, and public spaces. It ensures elegant, functional, and uniform lighting while enhancing both appearance and urban safety.

Hospitality and Luxury Retail Sector

In hotels, resorts, and high-end retail stores, Hi-Line allows the creation of refined and engaging environments. Perfect for enhancing façades, pools, or shop windows, it contributes to delivering a truly exclusive visual experience.

Facility Managers and System Supervisors

For large facilities like shopping centers and airports, Hi-Line ensures reliability, easy installation, and consistent lighting quality. A robust system that improves visibility and comfort in complex, high-traffic environments.

Features

The three versions fully satisfy all requests, guaranteeing superior white quality, useful for both creative scenography and functional lighting.

Both the Hi-Line 30 white and Hi-Line 90 white versions are designed to offer considerable light power, characterized by homogeneous lighting without dark areas. The precision in the arrangement and calibration of the LEDs ensures a uniform light beam along the entire length of the bar, a feature that is not always found in competing products, where "hotspot" or inhomogeneity effects can occur.

The Hi-Line's construction is rugged and designed to withstand the elements, making it ideal for both indoor and outdoor applications. The materials used are of high quality and the design is weatherproof, with an IP67 protection rating.

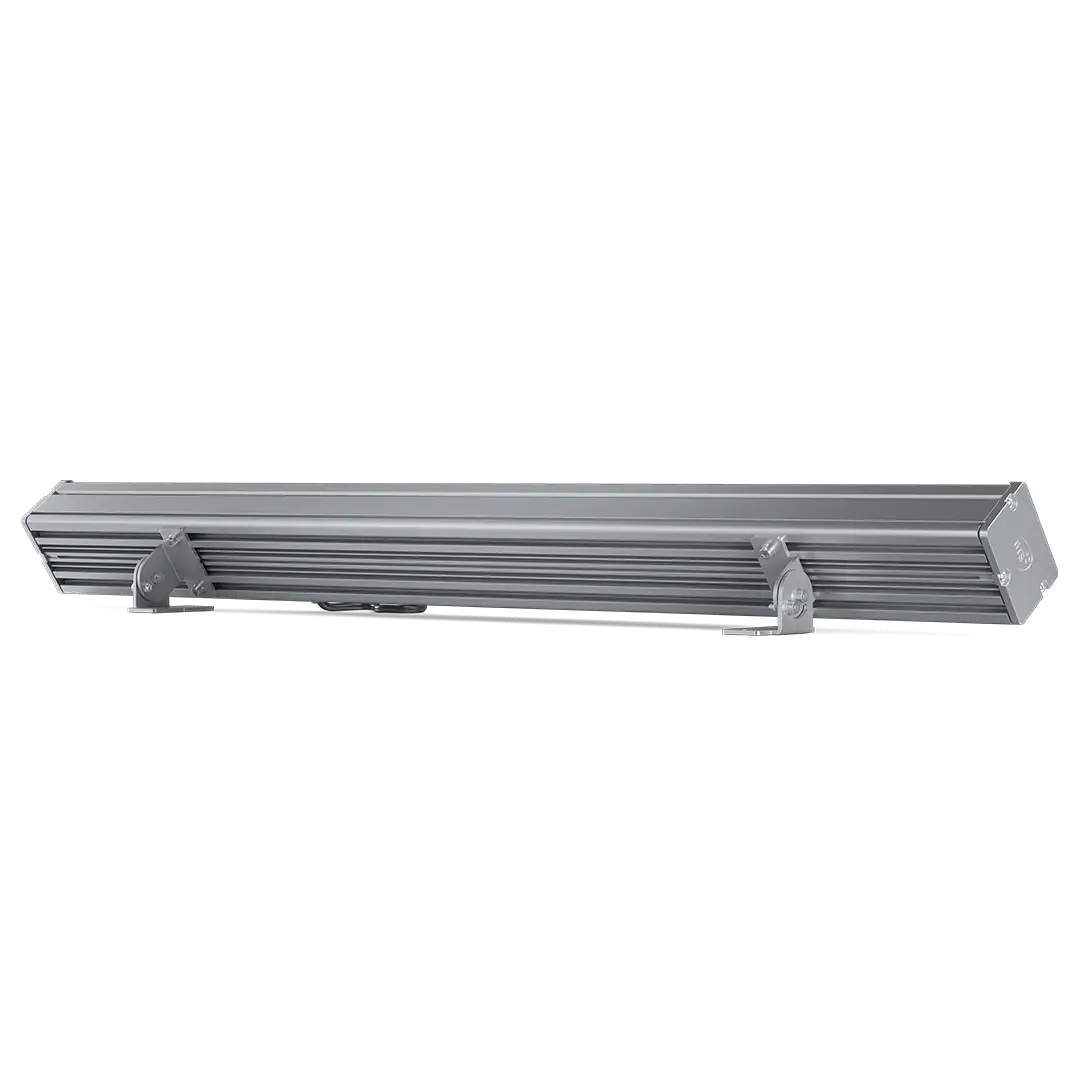

The Hi-Line mounting system is designed to offer flexibility and precision in orientation, facilitating adaptation to different design needs. Mounting options allow installation in different configurations, such as on vertical, horizontal or at specific angles surfaces, to suit any scenario.

The energy efficiency of the LEDs used is another strong point: reduced consumption with high light power makes the Hi-Line convenient from an operating cost point of view, especially for long-term installations. Furthermore, the life of the LEDs is guaranteed to last for a long time, reducing the need for maintenance, an aspect not always found in other solutions that use less durable or efficient components.

The design of the Hi-Line bars is elegant and minimalist, designed to integrate harmoniously into architectural environments without being intrusive. Aesthetics is an important element for architectural lighting, as products must not only provide quality lighting, but must also aesthetically integrate into the context. Many competing products do not offer the same attention to detail in design, resulting in them being bulkier or less visually appealing.

The availability of two versions, Hi-Line 30 white and Hi-Line 90 white, allows you to adapt the choice based on specific power and light coverage needs. This modularity allows designers to choose the most suitable device without having to make compromises.

DTS Lighting is an established brand in the professional lighting sector, with a reputation for quality, reliability and pre- and post-sales technical support. This is an element that distinguishes DTS products from the competition, as the support and availability of qualified assistance can make a big difference in the choice of product, especially for large-scale projects.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical data

OUTPUT

  • Model 90 – 36 Leds Z Power LED-Z5-M4:
    • Lumen output (3000K): 7700 lumen CRI > 90
    • Lumen output (4000K): 9000 lumen CRI > 90
    • Lumen output (5600K): 9600 lumen CRI > 90
  • LED Lifespan: 50000 hours (L70B10)

OPTICAL GROUP

  • 8 Lenses sets available :
    • Spot: 11°
    • Medium: 30°
    • Wide: 45°
    • Very Wide 65°
    • 40°x12°
    • 12°x40°
    • ASY WASH
    • ASY SPOT

HOLOGRAPHIC FILTERS

  • Symmetric:
20° 40° 60° 80°
  • Elliptical:
60° x 10° 60 °x 30°

CONTROL

  • Protocols: DMX via Drivenet

POWER SUPPLY

  • External CC PSU LED driver 4ch 48V-700mA
Max distance between Drivenet PSU and last fixture
on the same line (8×0,25mm2 cable):
1 x HI LINE 90 = 170 mt.
  • Model 90 – Power consumption: Max 75 W @700mA

CONNECTIONS

  • 25 cm. cable with M12 male connector IP67

TEMPERATURE

  • Operating: -20° +45° C
  • Storage: -40° +85° C

PHYSICAL

  • Housing : Alluminium – Bracket : 316L stainless steel
  • Finishing : Black – Silver – White
  • Corrosion rating: Cat. 4 (According to EN 1396) Very severe coastal marine application
  • Model 90 – Weight: 6,2 Kg
  • IP rating: IP67
  • IK rating: IK08
  • Vibration rating: G3

TEST AND CERTIFICATION

  • CE

ACCESSORIES INCLUDED

  • No accessiories included

ACCESSORIES ON REQUEST

  • Outer casing Hi-Line 90 (code 03.LA.261)
  • Holographic filters (will be installed inside the device, to not affect the IP rate):
    • 20° (code 0506A043.D40)
    • 40° (code 0506A045.D40)
    • 60° (code 0506A103.D40)
    • 80° (code 0506A121.D40)
    • 60°x10° (code 0506A092.D40)
    • 60°x30° (code 0506A119.D40)
    • 60°x20° bend angle 8° (code 0506A153.D40)
  • 8-Pole IP65 Cable *Diam. 5,6 mm *8 x 0,25 mm² (code 0509C062.PUR)
  • M12 8-pin female inline connector (code 0520P050)
  • Y-splitter M12 8 poles series connection (code 03.LA.209.S)

Features and certifications

Hi-Line-90-WH disegni-tecnici

Product code:

03.HLB100 101rear bracket side bracketE06 14 28White Black SilverWB WE WG3000K 4000K 5600K10 25 40 41 E1 E2 11 14Narrow Medium Wide Very Wide 40X12° 12X40° ASY WASH ASY SPOT
03.HLB100 101staffa posteriore staffa lateraleE06 14 28Bianco Nero ArgentoWB WE WG3000K 4000K 5600K10 25 40 41 E1 E2 11 14Narrow Medium Wide Very Wide 40X12° 12X40° ASY WASH ASY SPOT

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

Download

Manuals

User manual HI-LINE 90 SERIES rel 1.05 EN

Accessories

Holographic filters 20° – 0506A043.D40

Accessories

Holographic filters 40° – 0506A045.D40

Accessories

Holographic filters 60° – 0506A103.D40

Accessories

Holographic filters 80° – 0506A121.D40

Accessories

Holographic filters 60°x10° – 0506A092.D40

Accessories

Holographic filters 60°x30° – 0506A119.D40

Accessories

Holographic filters 60°x20° BEND 8° – 0506A153.D40

Accessories

M12 8-pin female inline connector – 0520P050

Accessories

Y-splitter M12 8 poles series connection – 03.LA.209.S

Accessories

8-pole outdoor cable 8 x 0.25 mm2 – 0509C062.PUR

Cad icons and Technical drawing

3D Icone HI-LINE 90

Cad icons and Technical drawing

2D Icone HI-LINE 90

Cad icons and Technical drawing

Technical drawing HI-LINE 90

Photometrics

PHOTOMETRICS HI-LINE 90 WH

Photometrics

FILE IES-LDT HI-LINE 90 WH

Catalogues and Data sheets

DATASHEET – HI-LINE 90 WH_ENG

Get more info

Loading...
