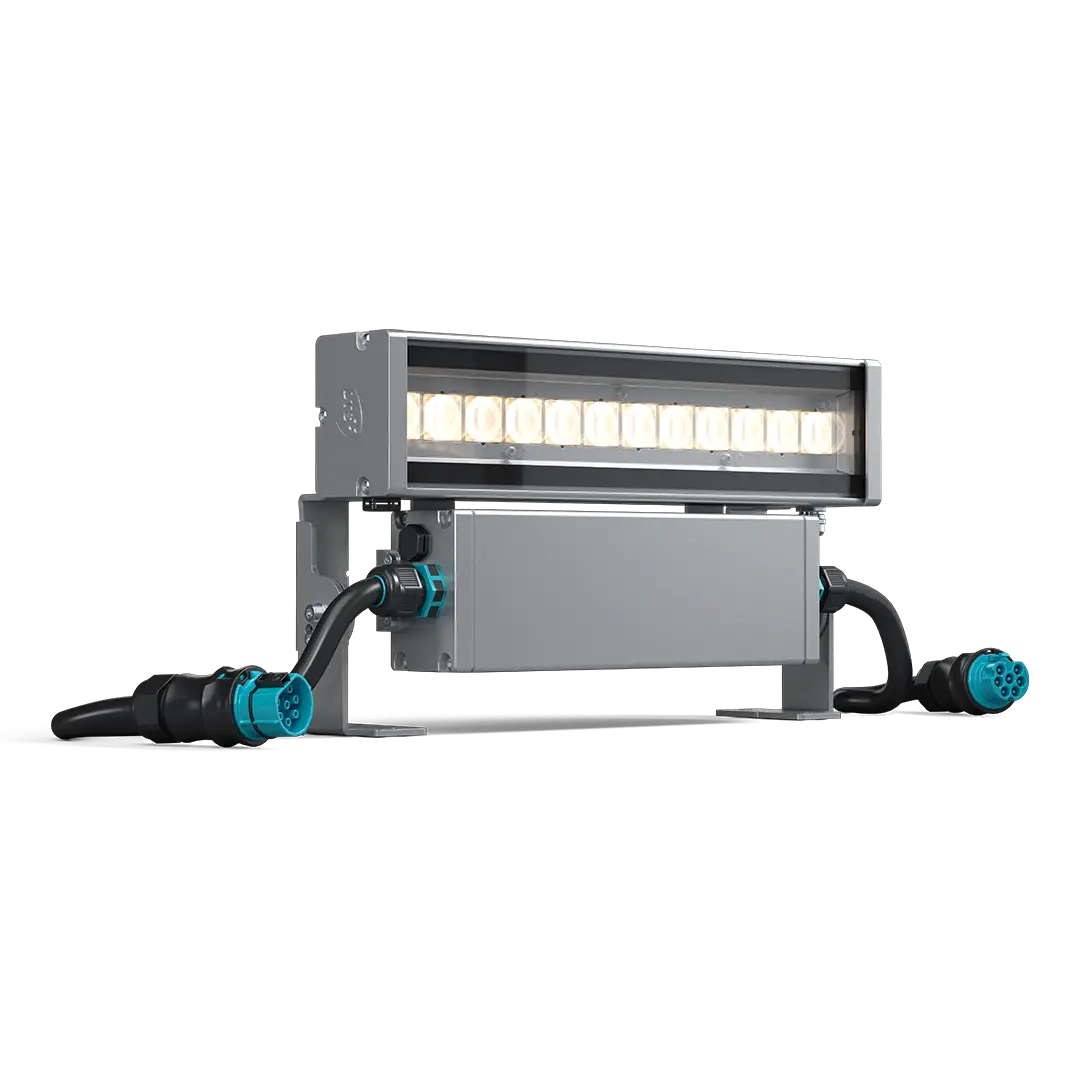

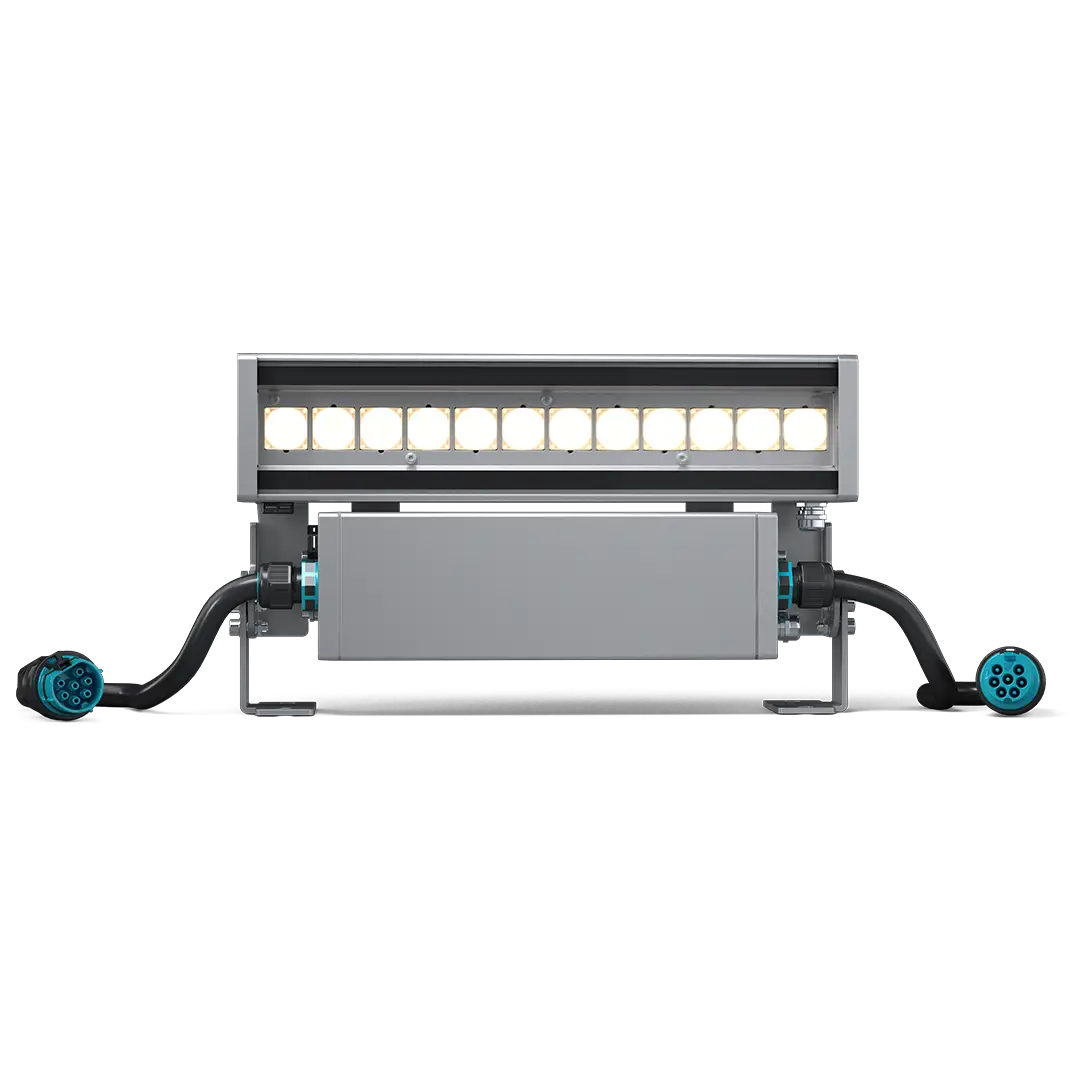

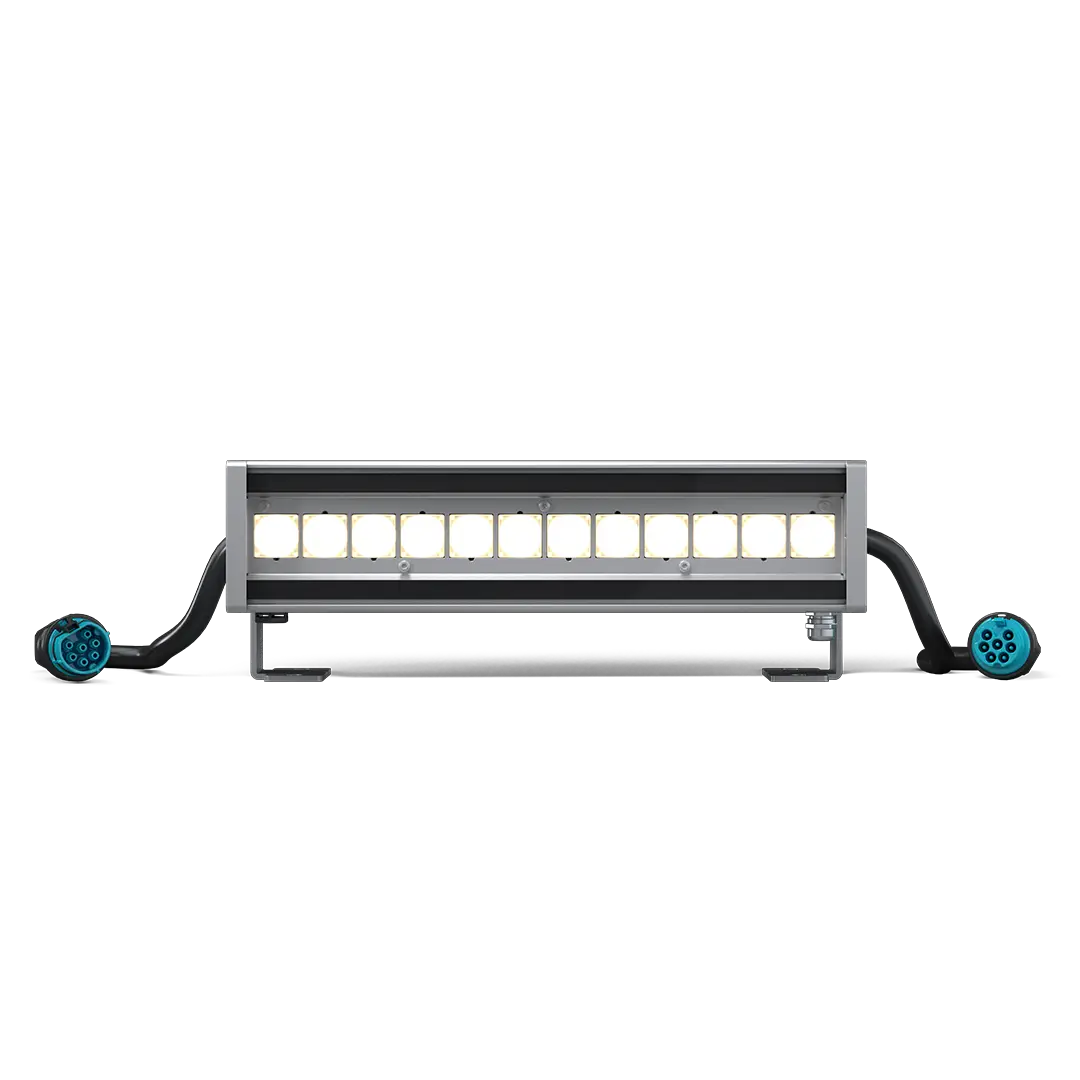

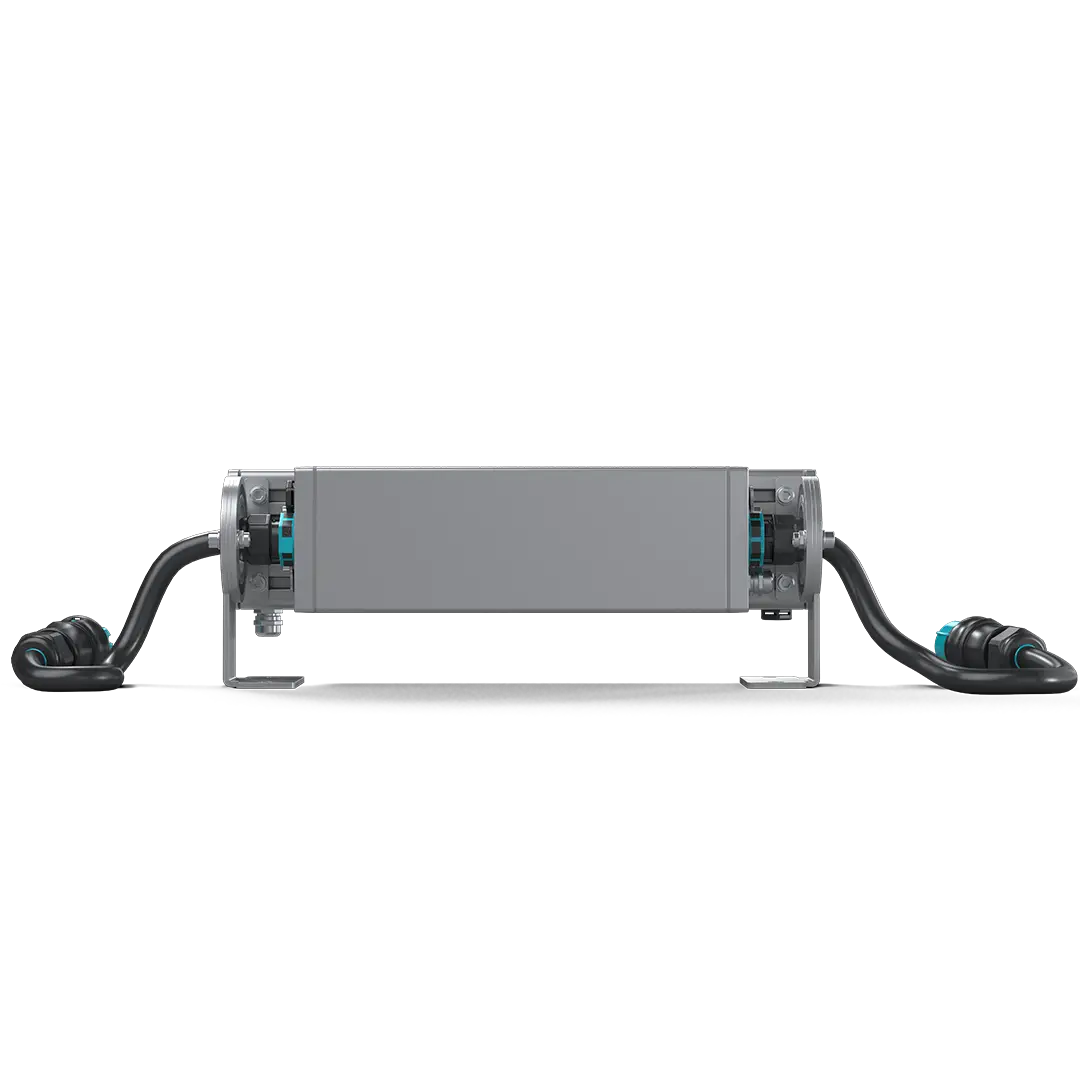

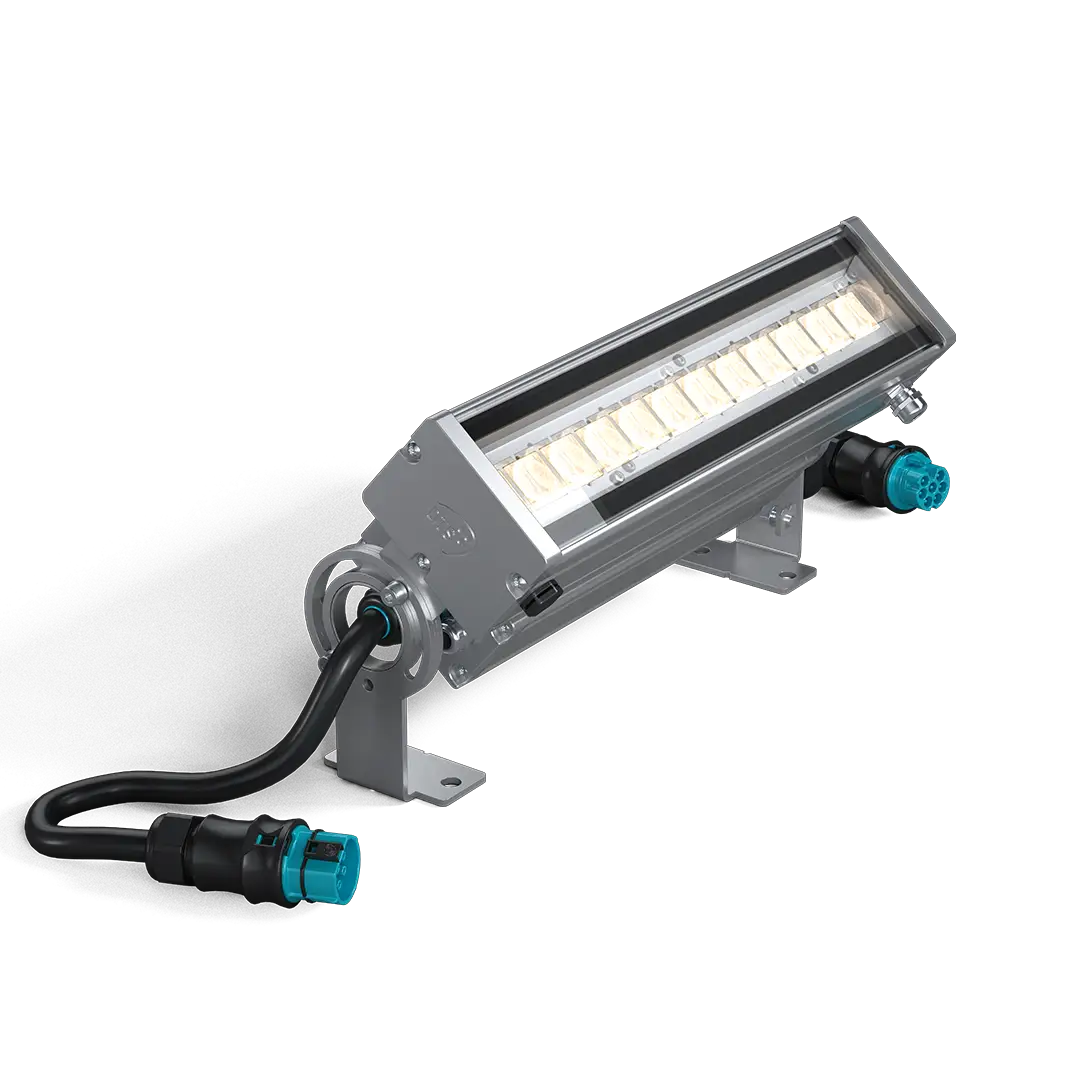

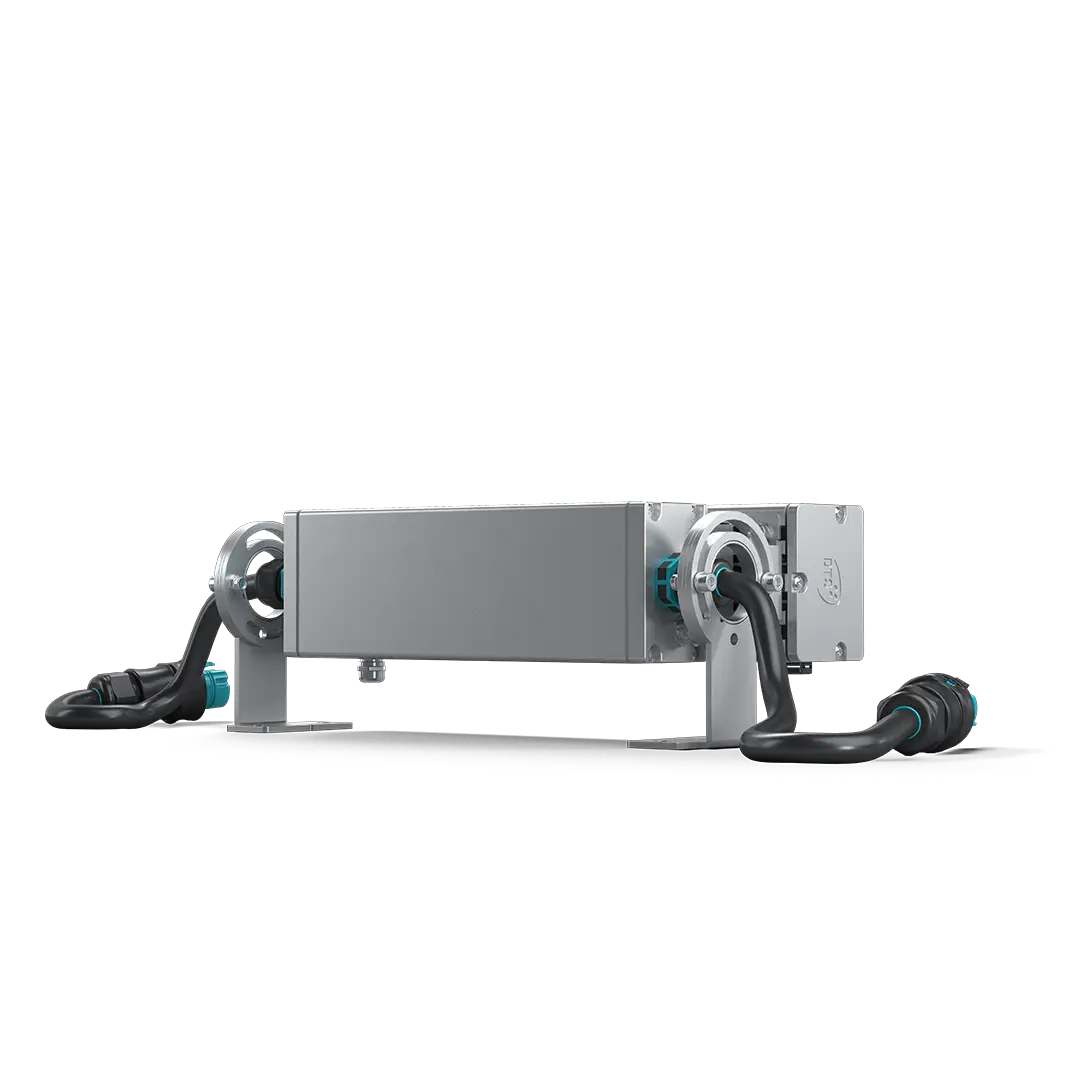

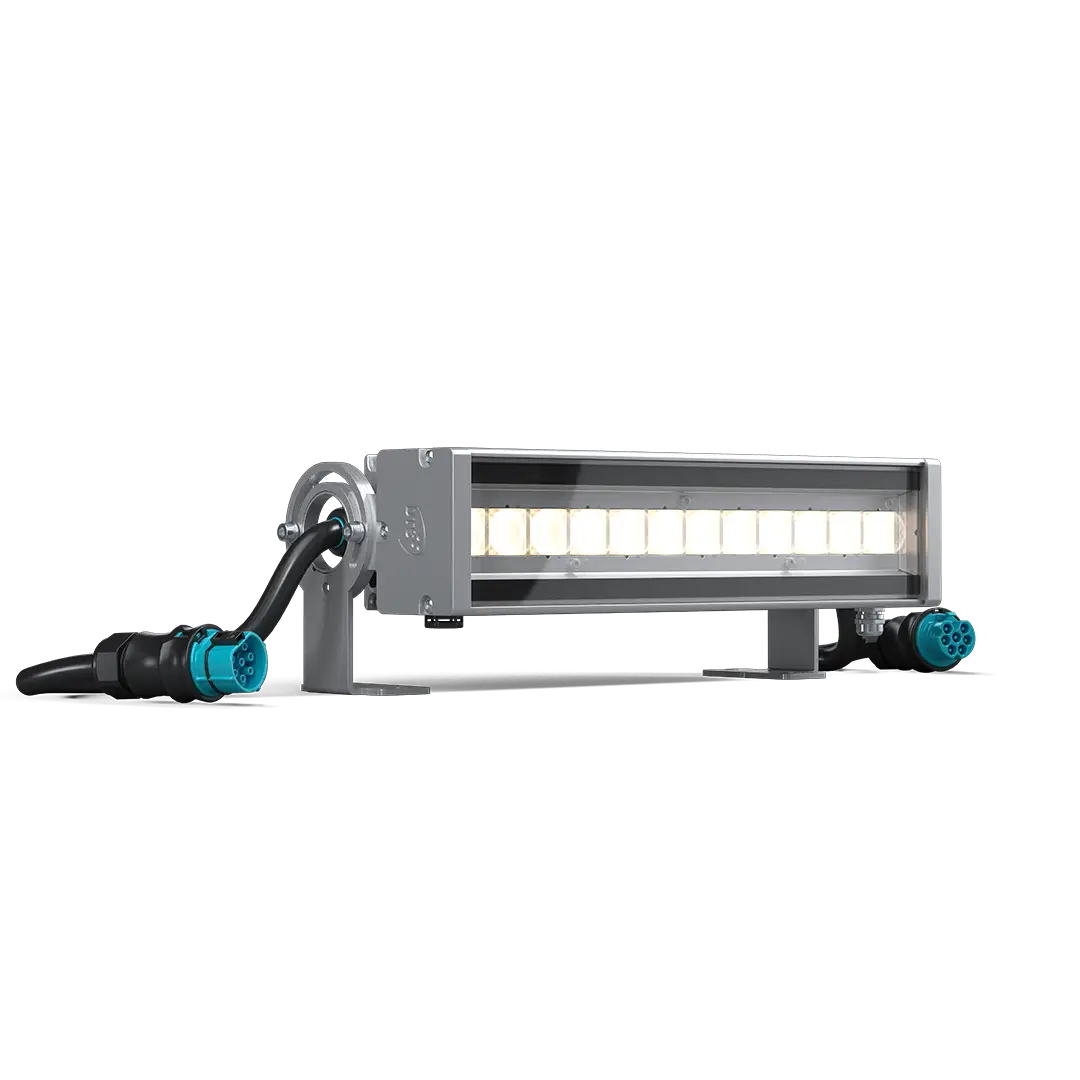

Linear LED projector

Compact outdoor linear LED projector with white light, designed for architectural applications in small spaces. HI-LINE.s 30 WH ensures uniform, high-quality illumination with maximum efficiency and reliability.

highlights

Source

• Model 30 - 12 Leds Z Power LED-Z5-M4

Lumens

2720 lm 3000K 3180 lm 4000K 3500 lm 5600K

IP Rating

IP67

DMX

operating
temperature

-20° / 45° C

Applications

Lighting Designers and Architectural Studios

Hi-Line is ideal for those who design lighting scenography or highlight architectural elements. It offers a wide color range and adjustable white tones, perfect for creating unique, uniform effects that match the space's aesthetic.

Architectural and Urban Lighting Companies

Weather-resistant and built for permanence, Hi-Line is designed for installations on façades, monuments, and public spaces. It ensures elegant, functional, and uniform lighting while enhancing both appearance and urban safety.

Hospitality and Luxury Retail Sector

In hotels, resorts, and high-end retail stores, Hi-Line allows the creation of refined and engaging environments. Perfect for enhancing façades, pools, or shop windows, it contributes to delivering a truly exclusive visual experience.

Facility Managers and System Supervisors

For large facilities like shopping centers and airports, Hi-Line ensures reliability, easy installation, and consistent lighting quality. A robust system that improves visibility and comfort in complex, high-traffic environments.

Features

The three versions fully satisfy all requests, guaranteeing superior white quality, useful for both creative scenography and functional lighting.

Both the Hi-Line.s 30 white and Hi-Line.s 90 white versions are designed to offer considerable light power, characterized by homogeneous lighting without dark areas. The precision in the arrangement and calibration of the LEDs ensures a uniform light beam along the entire length of the bar, a feature that is not always found in competing products, where "hotspot" or inhomogeneity effects can occur.

The Hi-Line's construction is rugged and designed to withstand the elements, making it ideal for both indoor and outdoor applications. The materials used are of high quality and the design is weatherproof, with an IP67 protection rating.

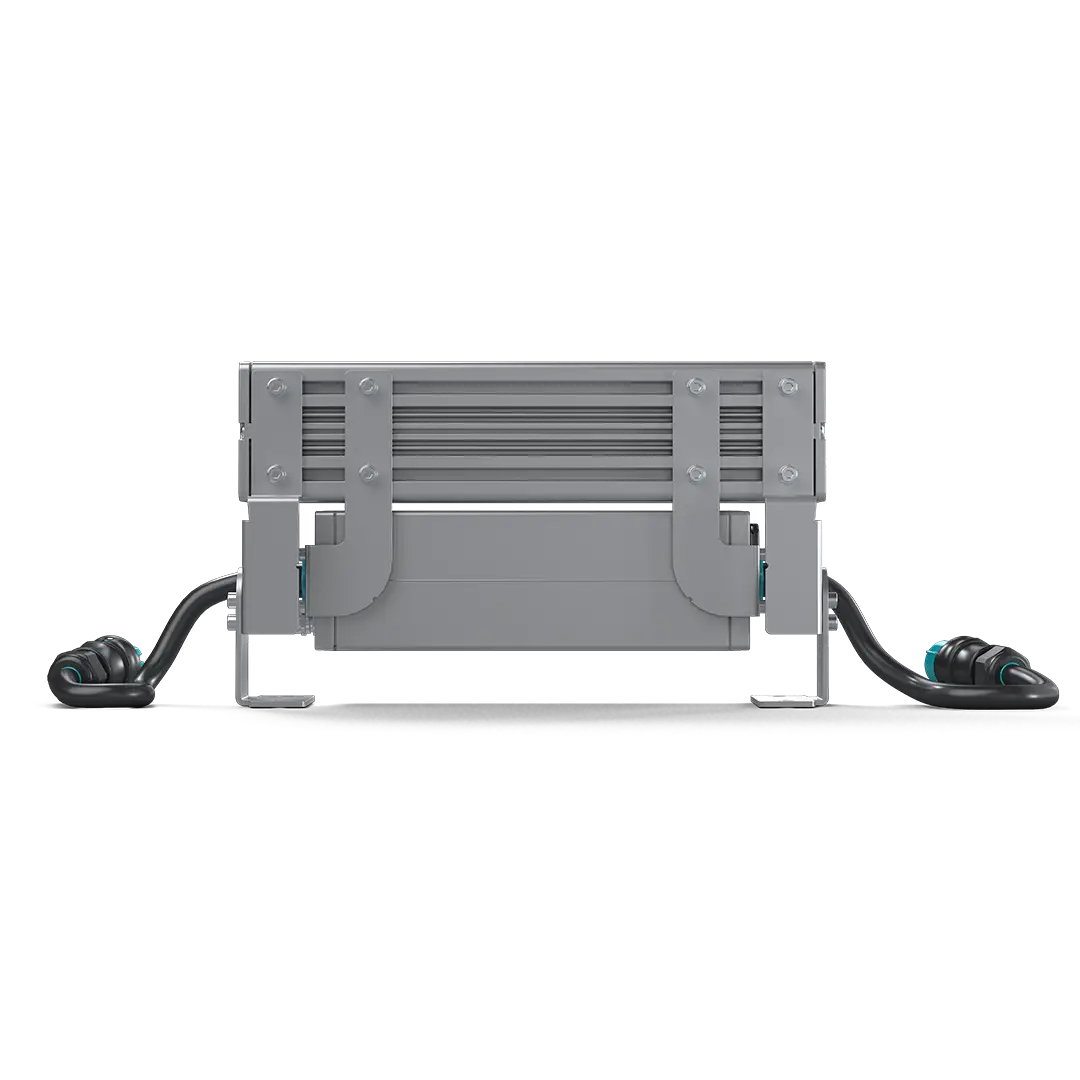

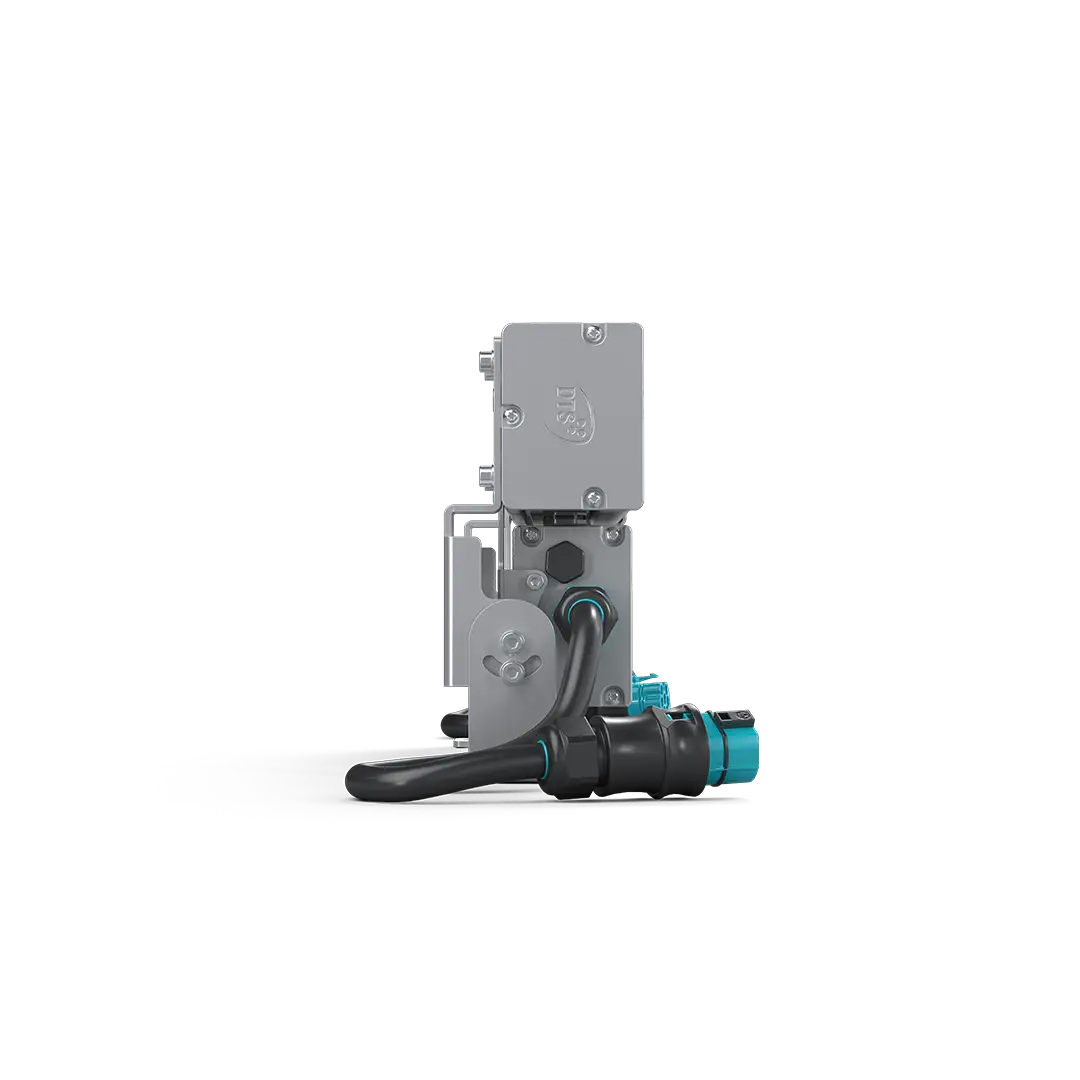

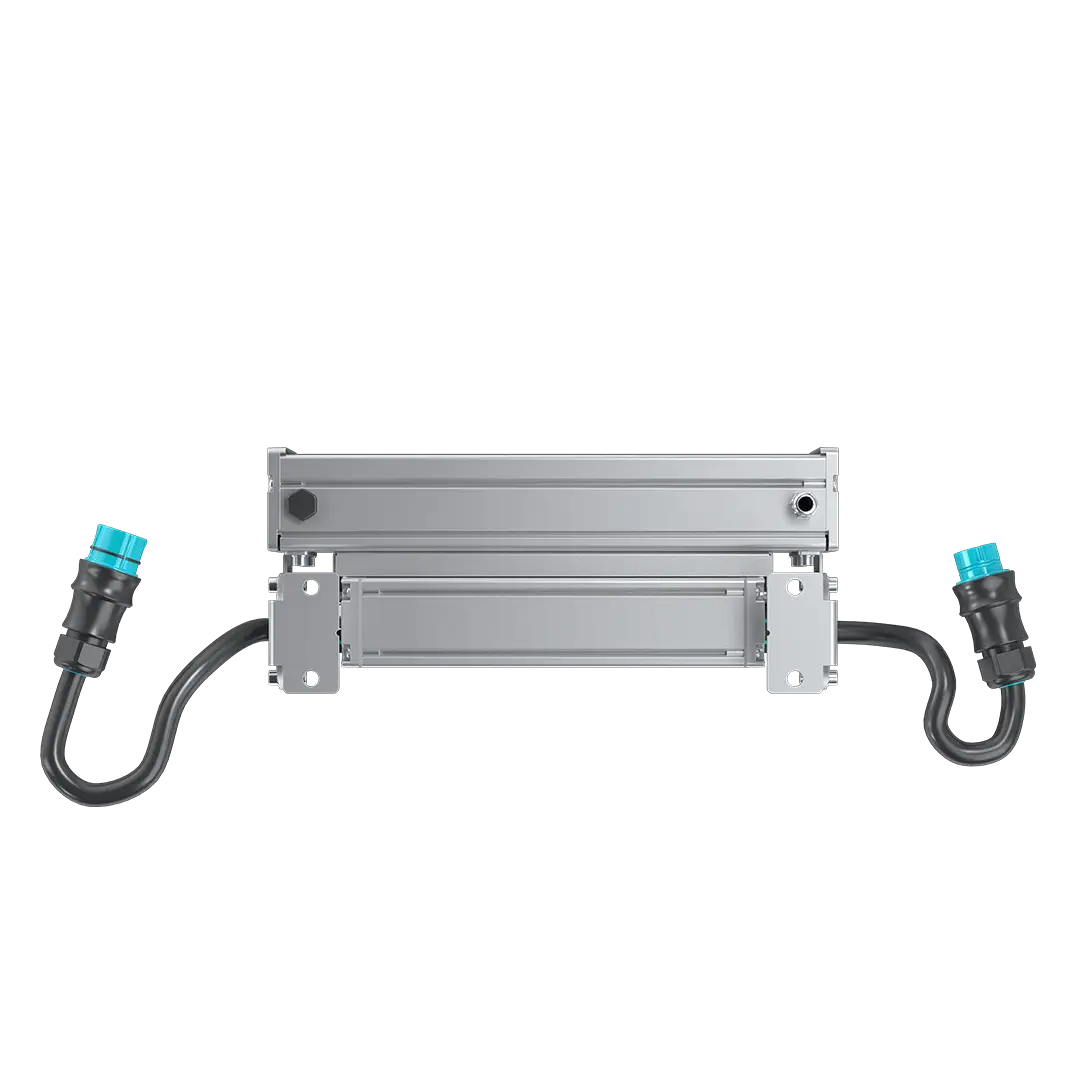

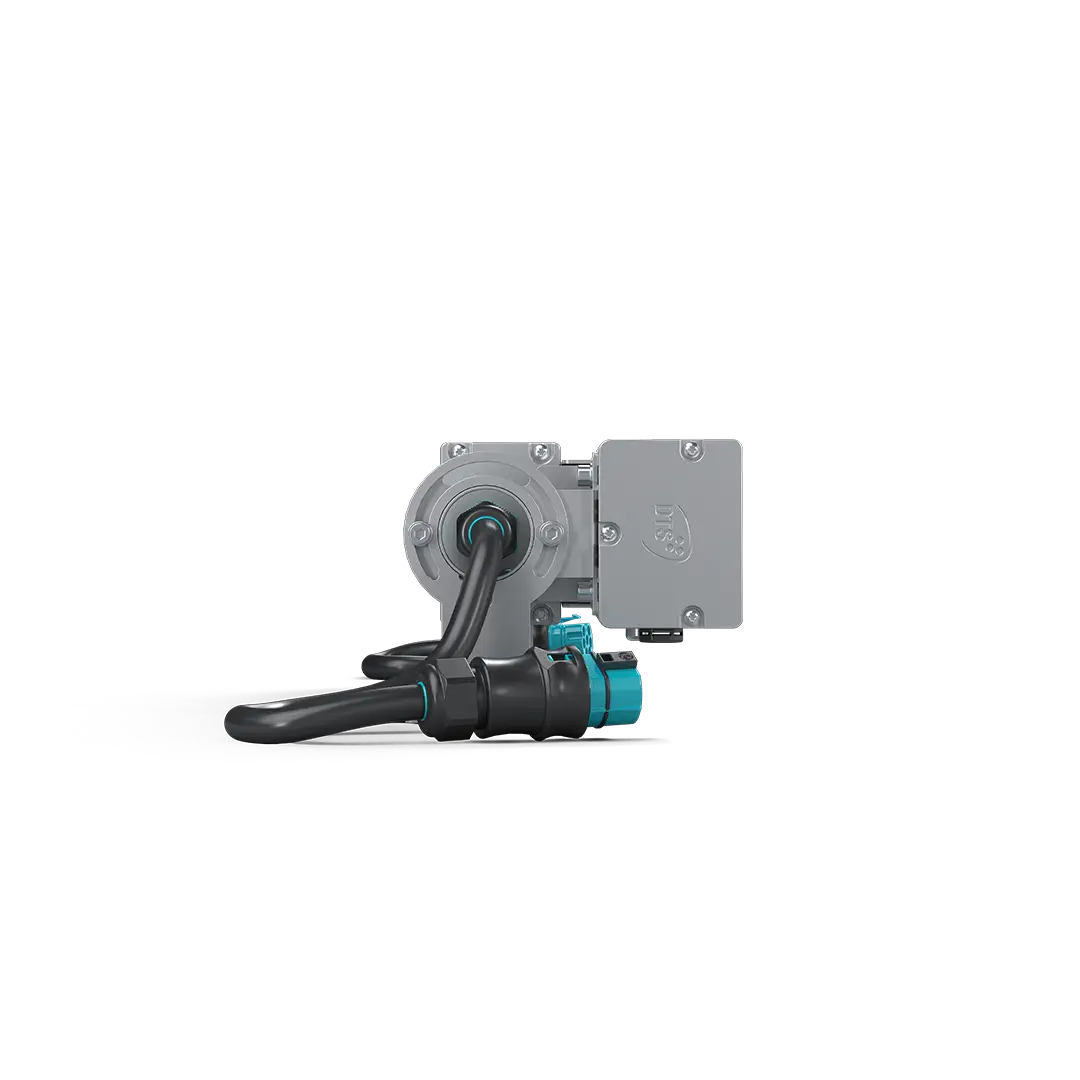

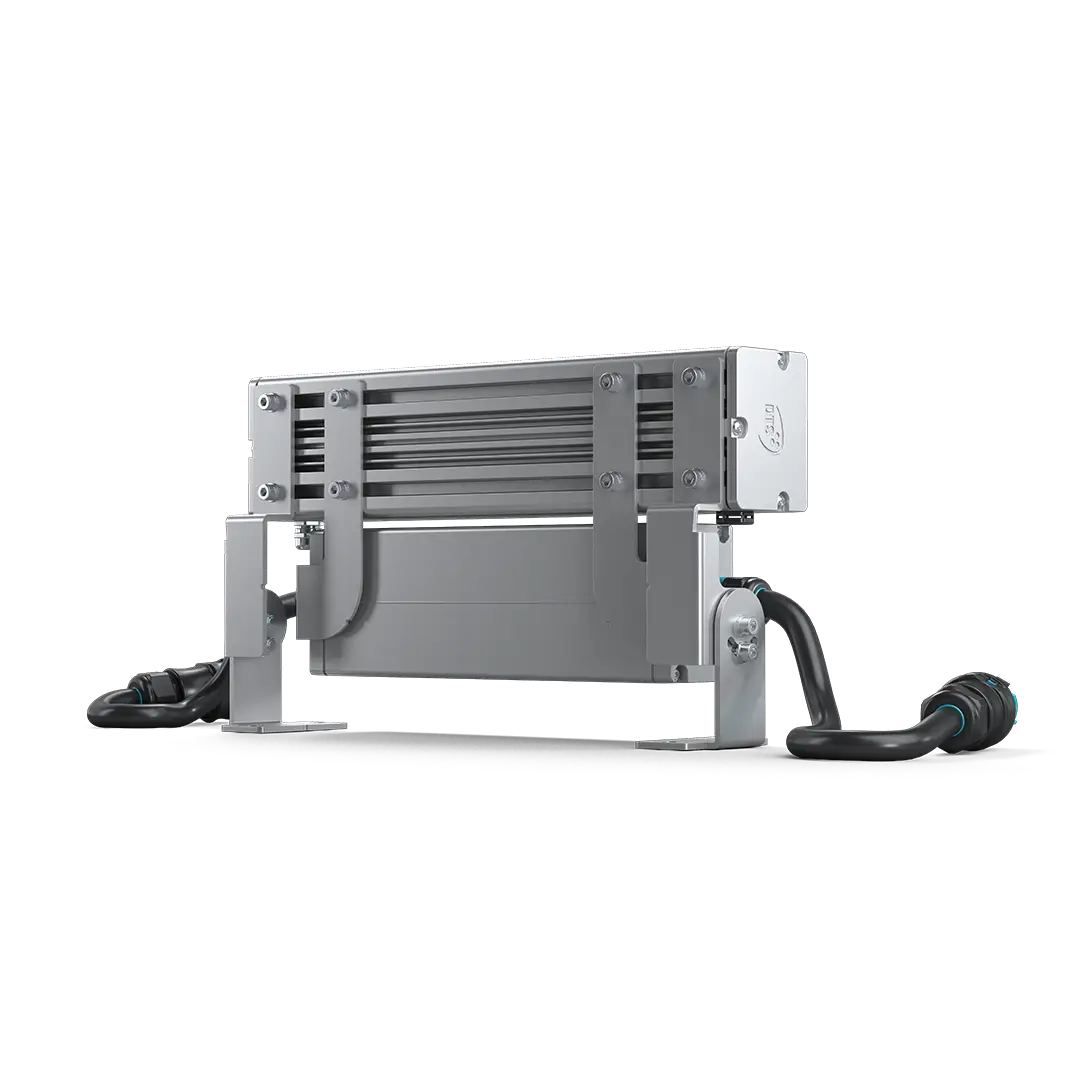

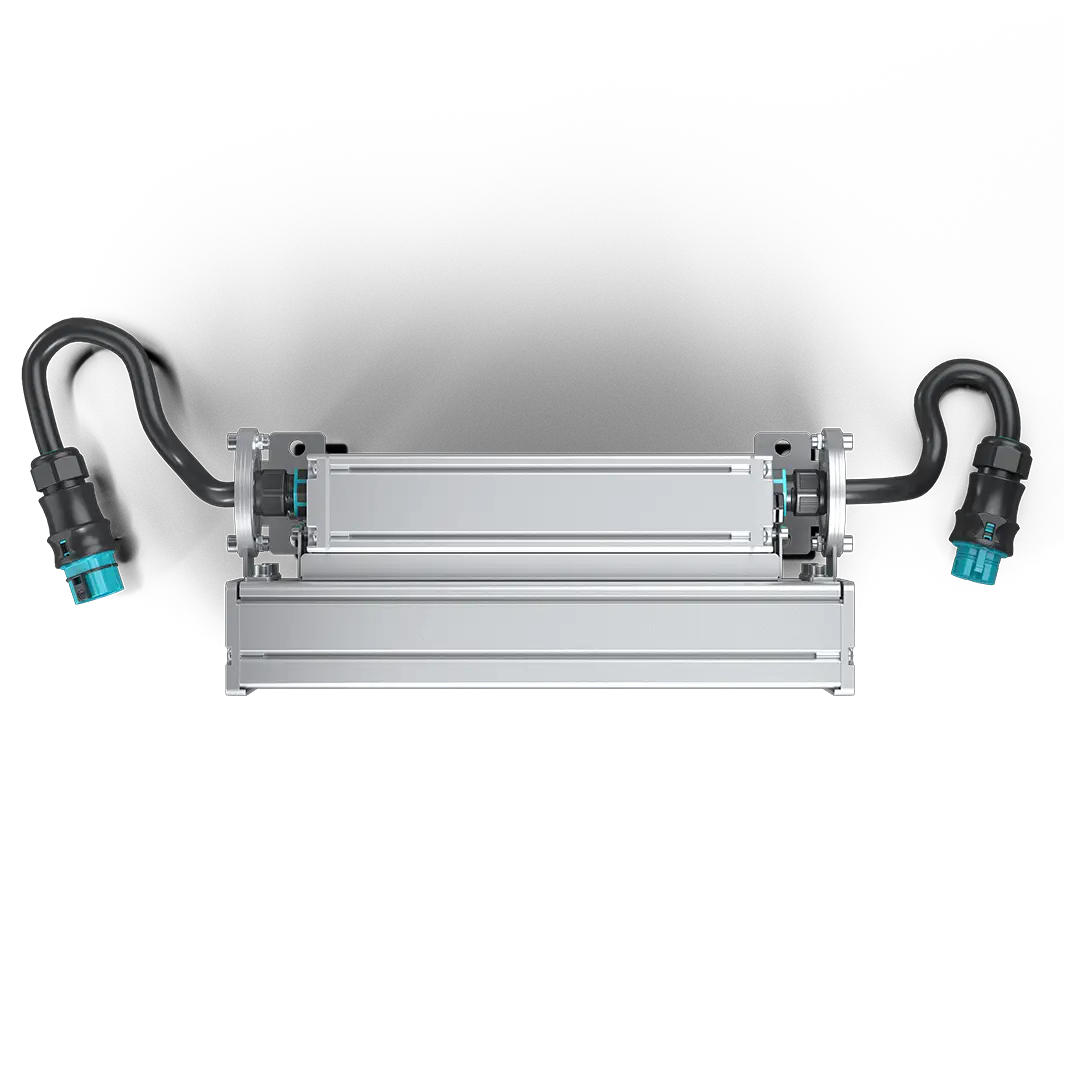

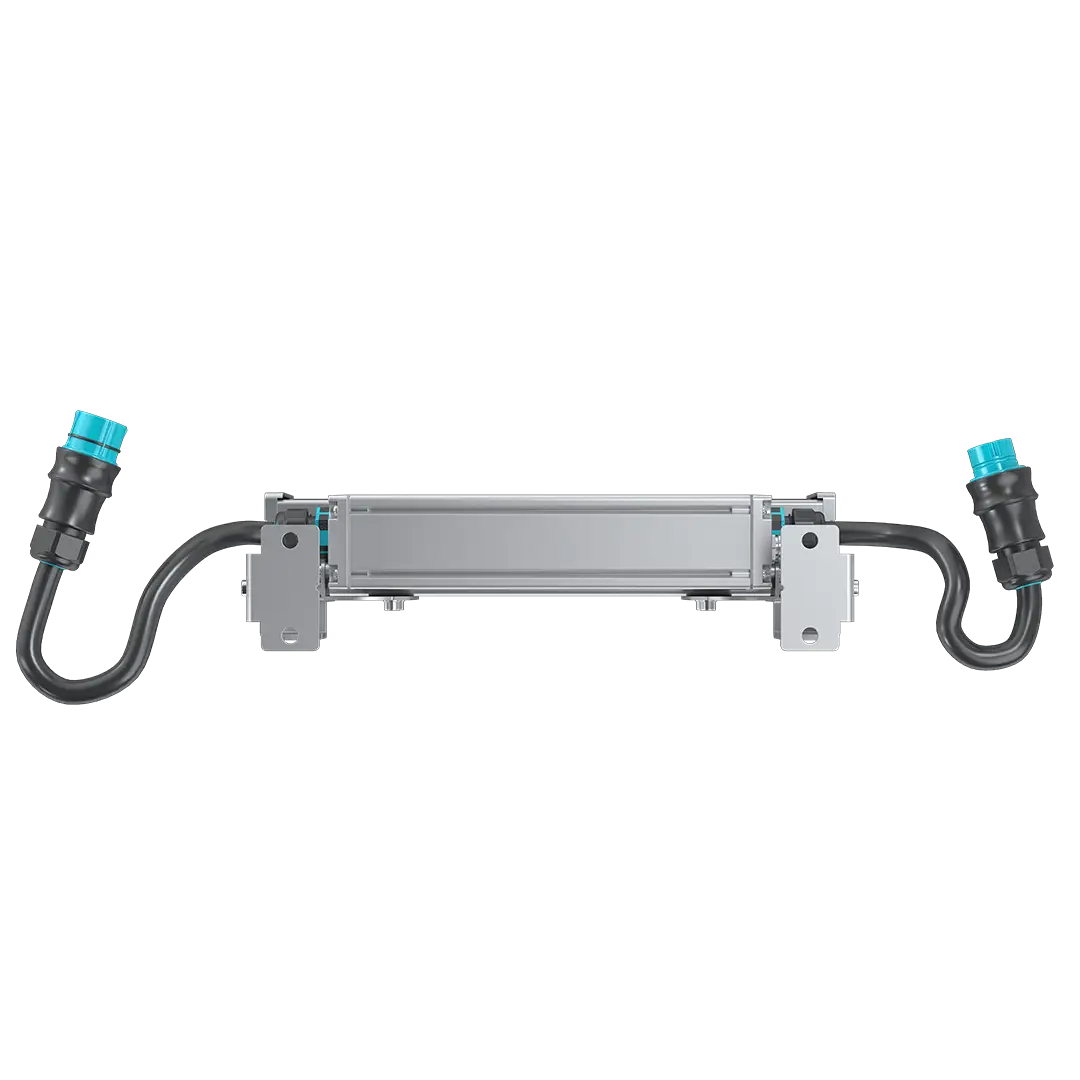

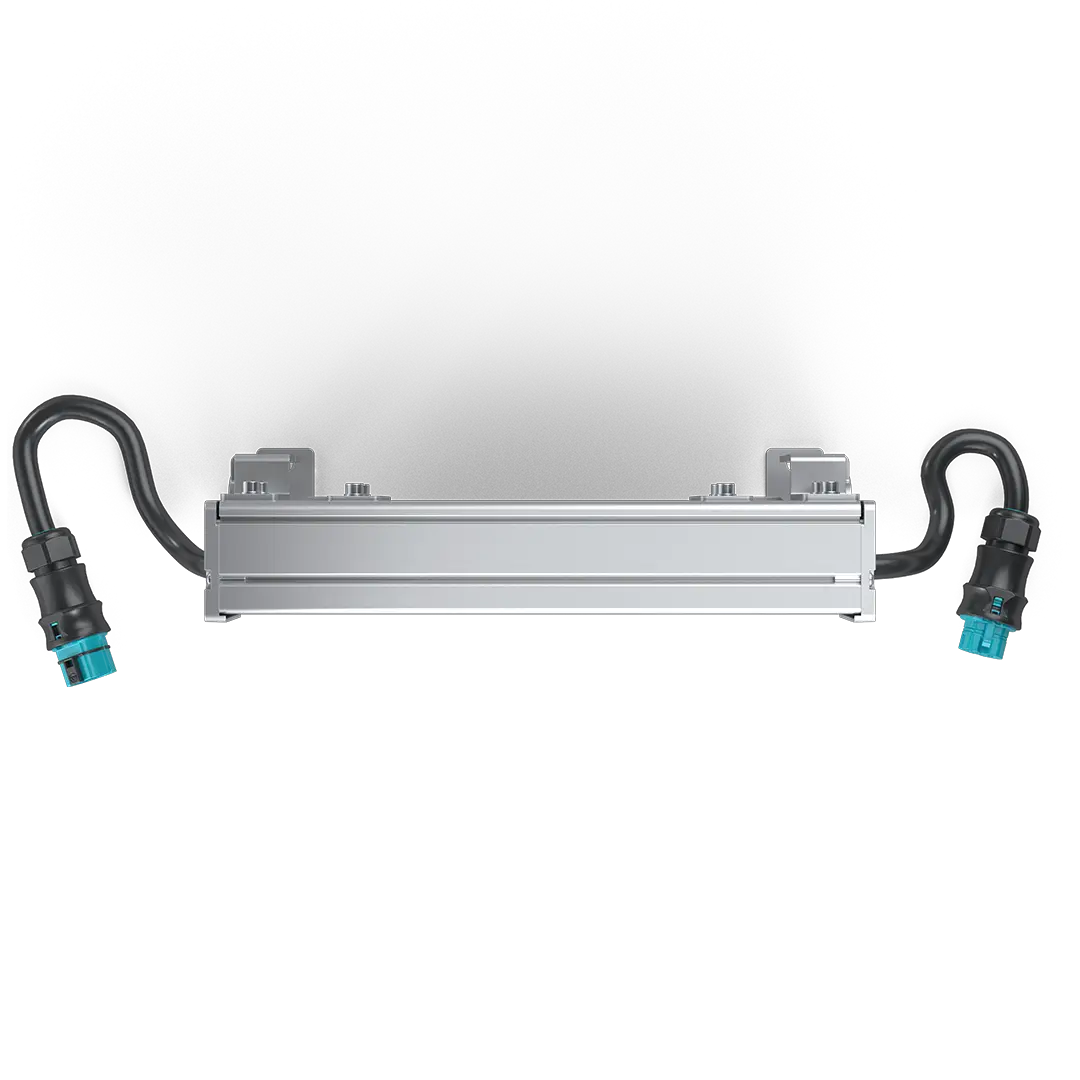

The Hi-Line mounting system is designed to offer flexibility and precision in orientation, facilitating adaptation to different design needs. Mounting options allow installation in different configurations, such as on vertical, horizontal or at specific angles surfaces, to suit any scenario.

The Hi-Line supports DMX/RDM control protocol ensuring maximum flexibility for integration into industrial and professional lighting systems.

The energy efficiency of the LEDs used is another strong point: reduced consumption with high light power makes the Hi-Line convenient from an operating cost point of view, especially for long-term installations. Furthermore, the life of the LEDs is guaranteed to last for a long time, reducing the need for maintenance, an aspect not always found in other solutions that use less durable or efficient components.

The design of the Hi-Line bars is elegant and minimalist, designed to integrate harmoniously into architectural environments without being intrusive. Aesthetics is an important element for architectural lighting, as products must not only provide quality lighting, but must also aesthetically integrate into the context. Many competing products do not offer the same attention to detail in design, resulting in them being bulkier or less visually appealing.

The availability of two versions, Hi-Line.s 30 white and Hi-Line.s 90 white, allows you to adapt the choice based on specific power and light coverage needs. This modularity allows designers to choose the most suitable device without having to make compromises.

DTS Lighting is an established brand in the professional lighting sector, with a reputation for quality, reliability and pre- and post-sales technical support. This is an element that distinguishes DTS products from the competition, as the support and availability of qualified assistance can make a big difference in the choice of product, especially for large-scale projects.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical data

OUTPUT

  • Model 30 – 12 Leds Z Power LED-Z5-M4:
    • Lumen output (3000K): 2720 lumen CRI > 90
    • Lumen output (4000K): 3180 lumen CRI > 90
    • Lumen output (5600K): 3500 lumen CRI > 90
  • LED Lifespan: 50000 hours (L70B10)

OPTICAL GROUP

  • 8 Lenses sets available :
    • Spot: 11°
    • Medium: 30°
    • Wide: 45°
    • Very Wide 65°
    • 40°x12°
    • 12°x40°
    • ASY WASH
    • ASY SPOT

HOLOGRAPHIC FILTERS

  • Symmetric:
20° 40° 60° 80°
  • Elliptical:
60° x 10° 60 °x 30°

DMX

  • DMX 512 / RDM protocols Internal operating system updatable via DTS dongle firmware uploader

POWER SUPPLY

  • 100-240 Vac 50/60 Hz
  • Model 30 – Power consumption: Max 29 W

CONNECTIONS

  • All connectors are ip67 rated with water-proof caps
  • Model 30 – Power supply/DMX in/out: Hybrid connector Wieland series RST20I7S with 35cm. Hybrid cable

CIRCUITS PROTECTIONS

  • Overvoltage

TEMPERATURE

  • Operating: -20° +45° C
  • Storage: -40° +85° C

PHYSICAL

  • Housing : Alluminium – Bracket : 316L stainless steel
  • Finishing : Black – Silver – White
  • Corrosion rating: Cat. 4 (According to EN 1396) Very severe coastal marine application
  • Model 30 – Weight: 3,7 Kg
  • IP rating: IP67
  • IK rating: IK08
  • Vibration rating: G3

TEST AND CERTIFICATION

  • CE

ACCESSORIES INCLUDED

  • No accessiories included

ACCESSORIES ON REQUEST

  • Outer casing Hi-Line 30 (code 03.LA.262)
(This accessory is not available for models with a side-mounted power supply)
  • Holographic filters (will be installed inside the device, to not affect the IP rate):
    • 20° (code 0506A043.D38)
    • 40° (code 0506A045.D38)
    • 60° (code 0506A103.D38)
    • 80° (code 0506A121.D38)
    • 60°x10° (code 0506A092.D38)
    • 60°x30° (code 0506A119.D38)
    • 60°x20° bend angle 8° (code 0506A153.D38)
  • Hybrid power + data cable, 3G1.5 + 3 x 0.22 mm, shielded, PUR, 100 Ohm, halogen-free, UV/water resistant (Lenght on request) (code 0509C166)
  • Kit connectors HI LINE (code 03.LA.260)
  • Safety cable 3 x 600 mm – BGV-C1 certified (code:0521A049)
-Single stranded: Max 20Kg (44Lbs)
-Double stranded: Max 30 Kg (66Lbs)
  • DTS firmware Uploader Dongle (code 03.LA.206)
  • Splitter Y 6P – 500mm (code 03.LA.259)

Features and certifications

hi-line.s-30-wh_disegni-tecnici

Product code:

03.HLB000 001Rear PSU Side PSUS06 14 28White Black SilverWB WE WG3000K 4000K 5600K10 25 40 41 E1 E2 11 14Spot Medium Wide Very Wide 40X12° 12X40° ASY WASH ASY SPOT
03.HLB000 001PSU posteriore PSU lateraleS06 14 28Bianco Nero ArgentoWB WE WG3000K 4000K 5600K10 25 40 41 E1 E2 11 14Spot Medium Wide Very Wide 40X12° 12X40° ASY WASH ASY SPOT

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

Download

Fixtures

GDTF FILE HI-LINE 30 WH

Accessories

Holographic filters 20° – 0506A043.D38

Accessories

Holographic filters 40° – 0506A045.D38

Accessories

Holographic filters 60° – 0506A103.D38

Accessories

Holographic filters 80° – 0506A121.D38

Accessories

Holographic filters 60°x10° – 0506A092.D38

Accessories

Holographic filters 60°x30° – 0506A119.D38

Accessories

Holographic filters 60°x20° BEND 8° – 0506A153.D38

Accessories

Outer casing – 03.LA.262

Accessories

Splitter Y 6P – 500mm – 03.LA.259

Accessories

Hybrid cable (Lenght on request) – 0509C166

Accessories

Safety cable 3 x 600 mm – BGV-C1 certified – 0521A049

Accessories

DTS firmware uploader dongle – 03.LA.206

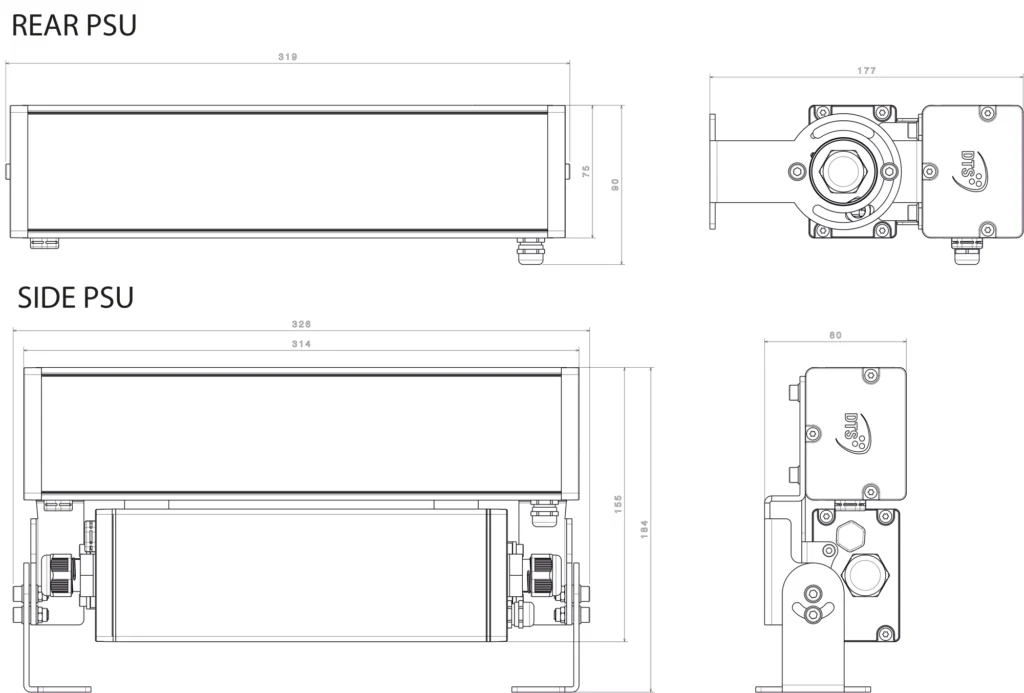

Cad icons and Technical drawing
