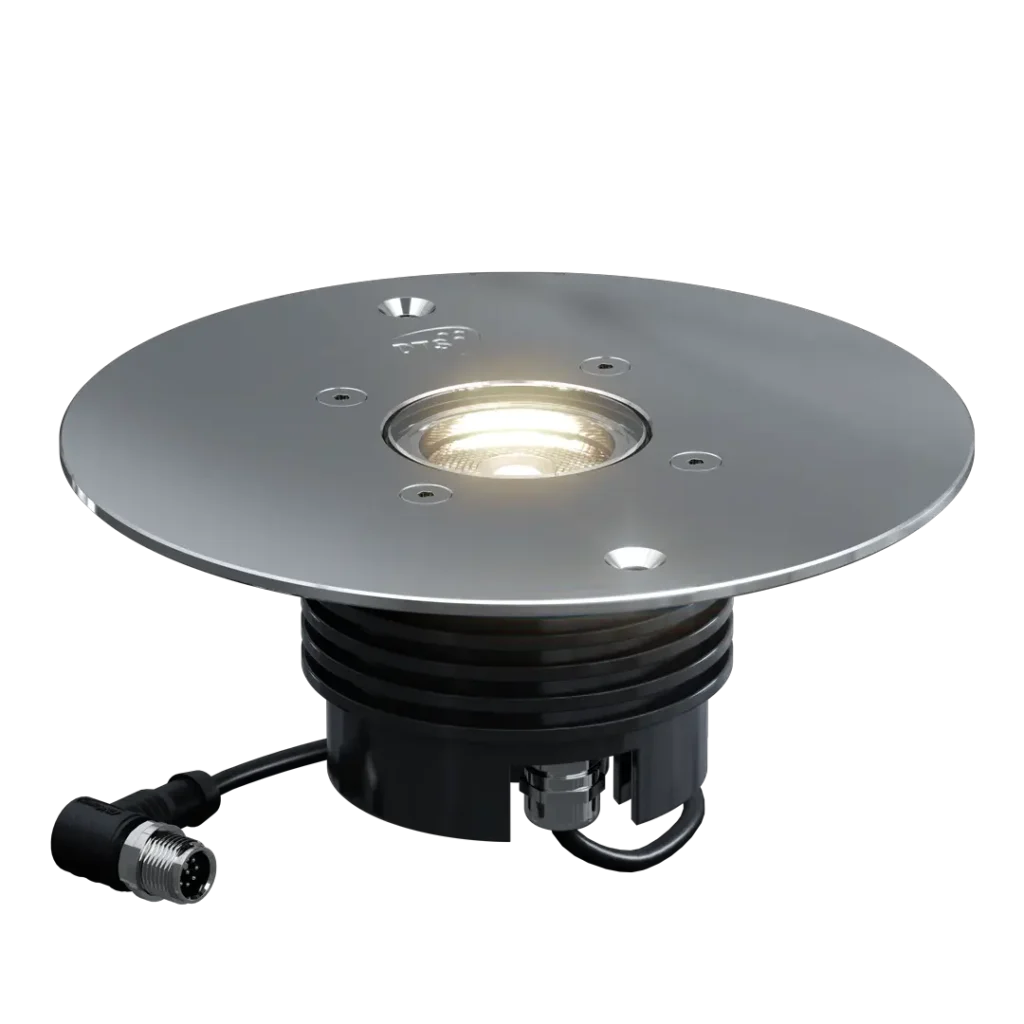

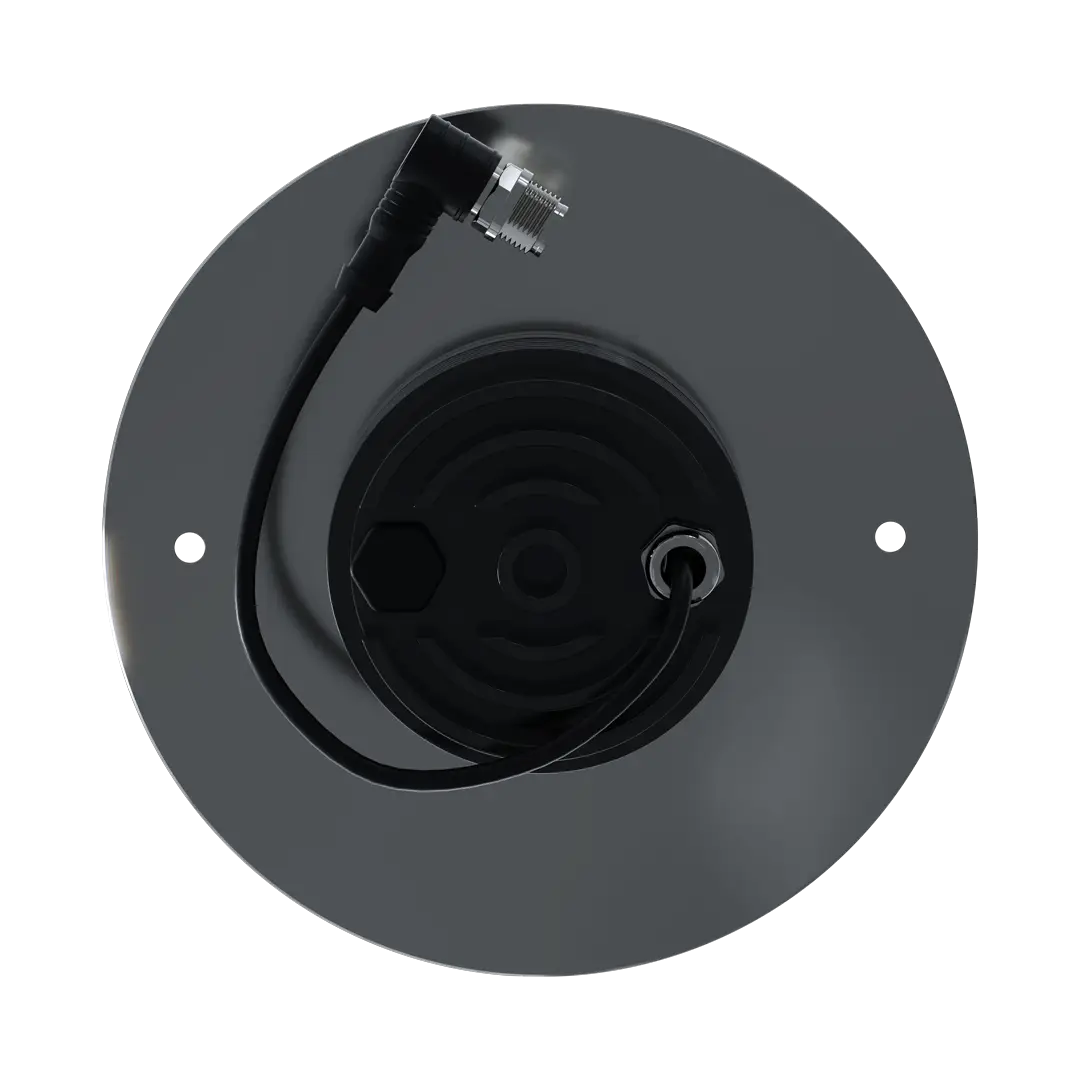

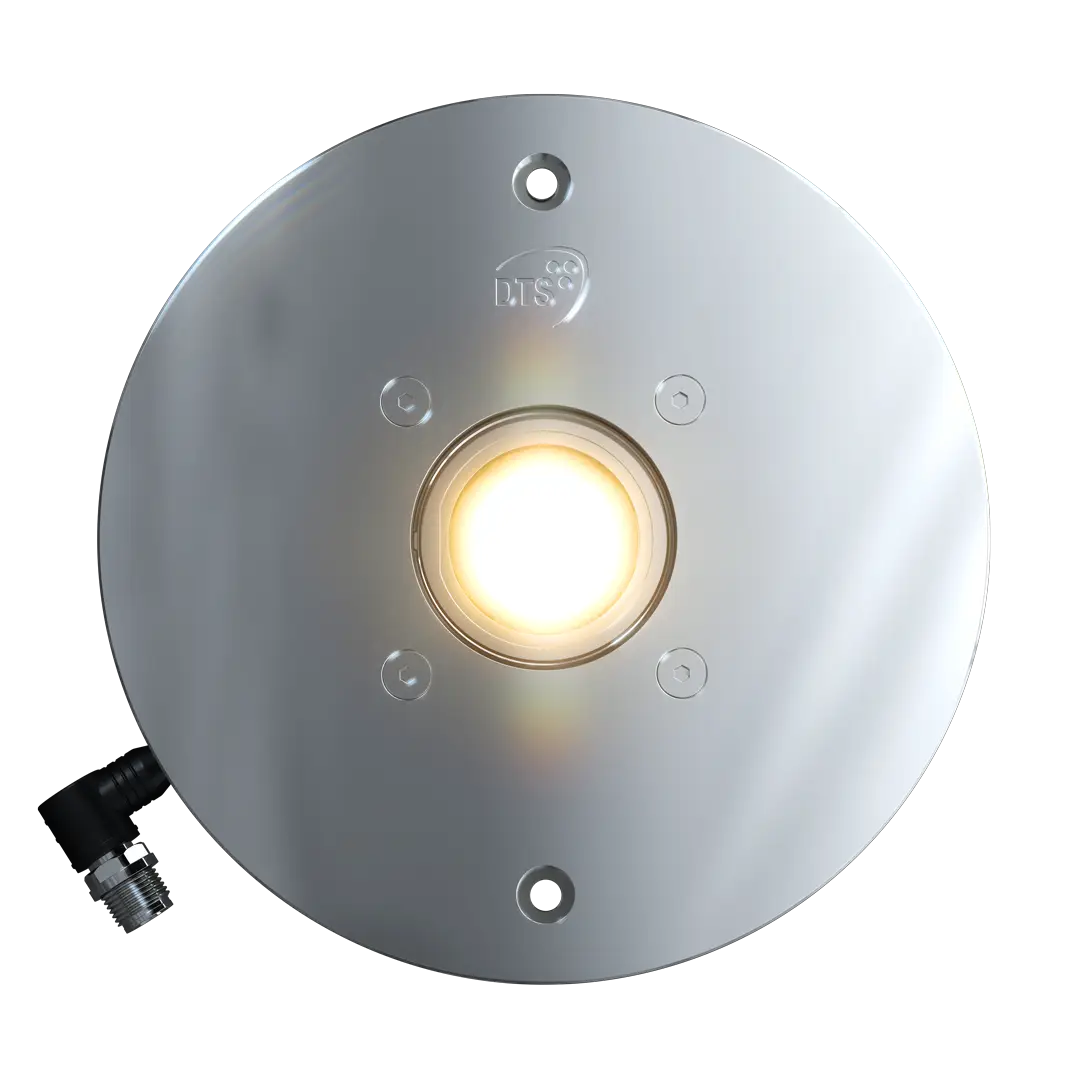

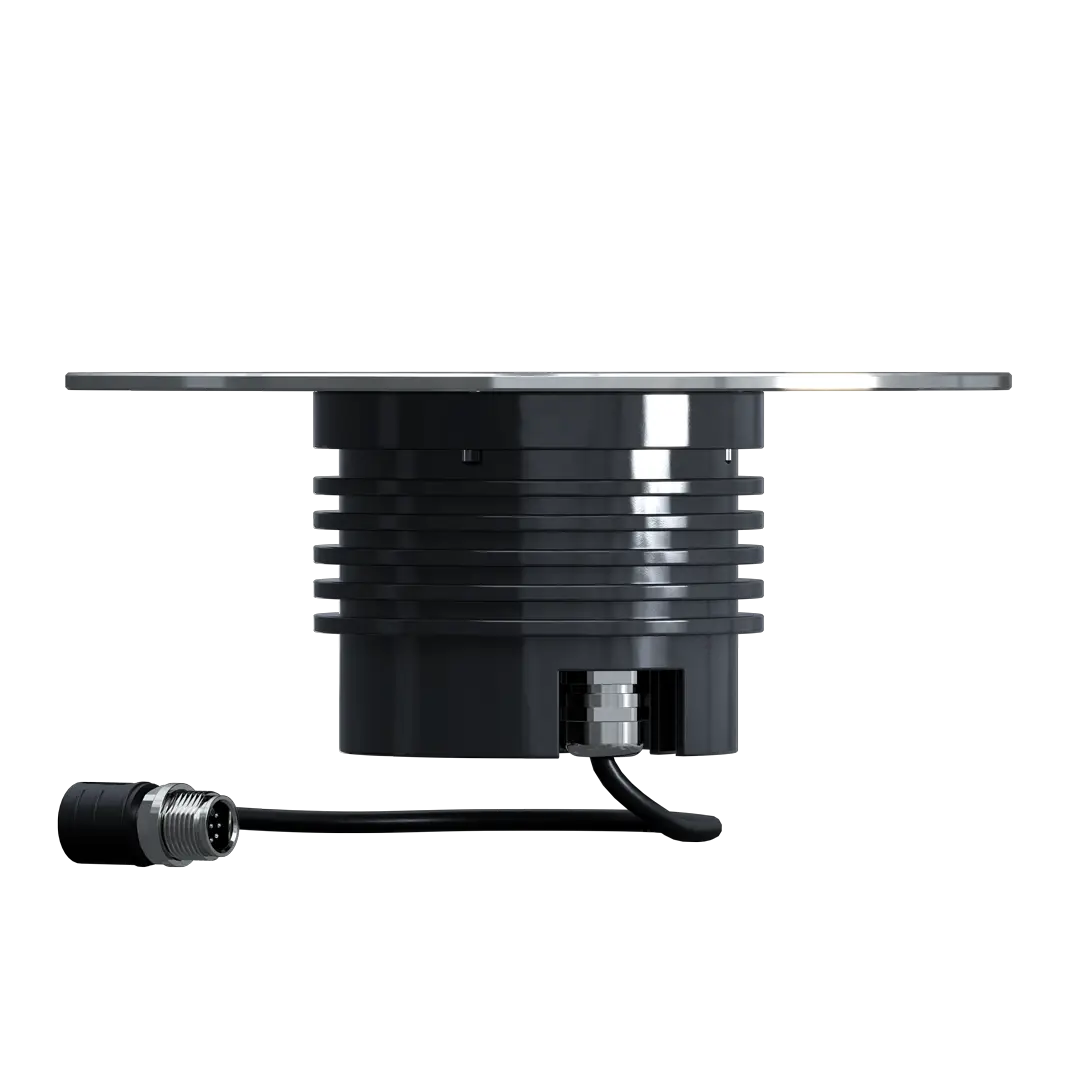

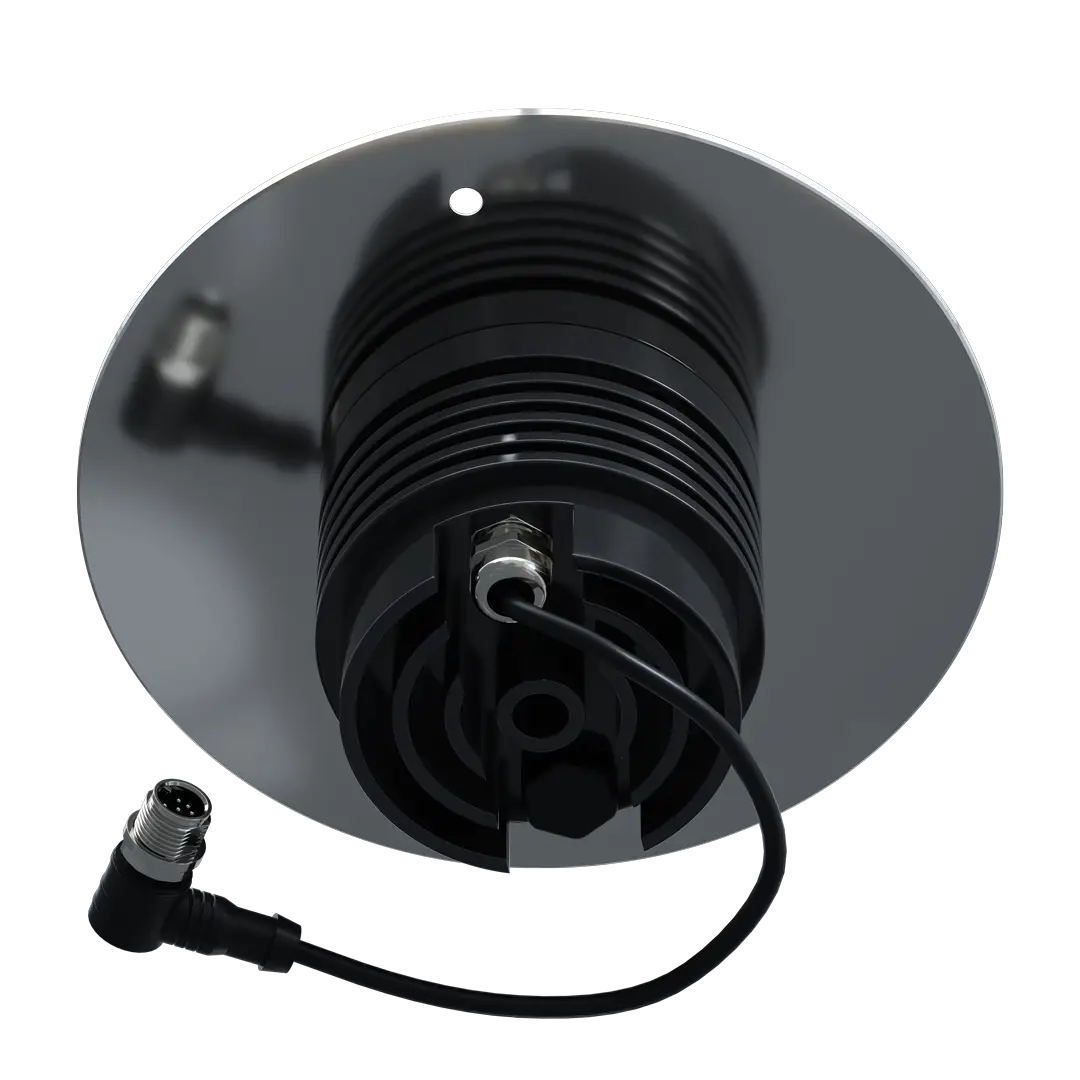

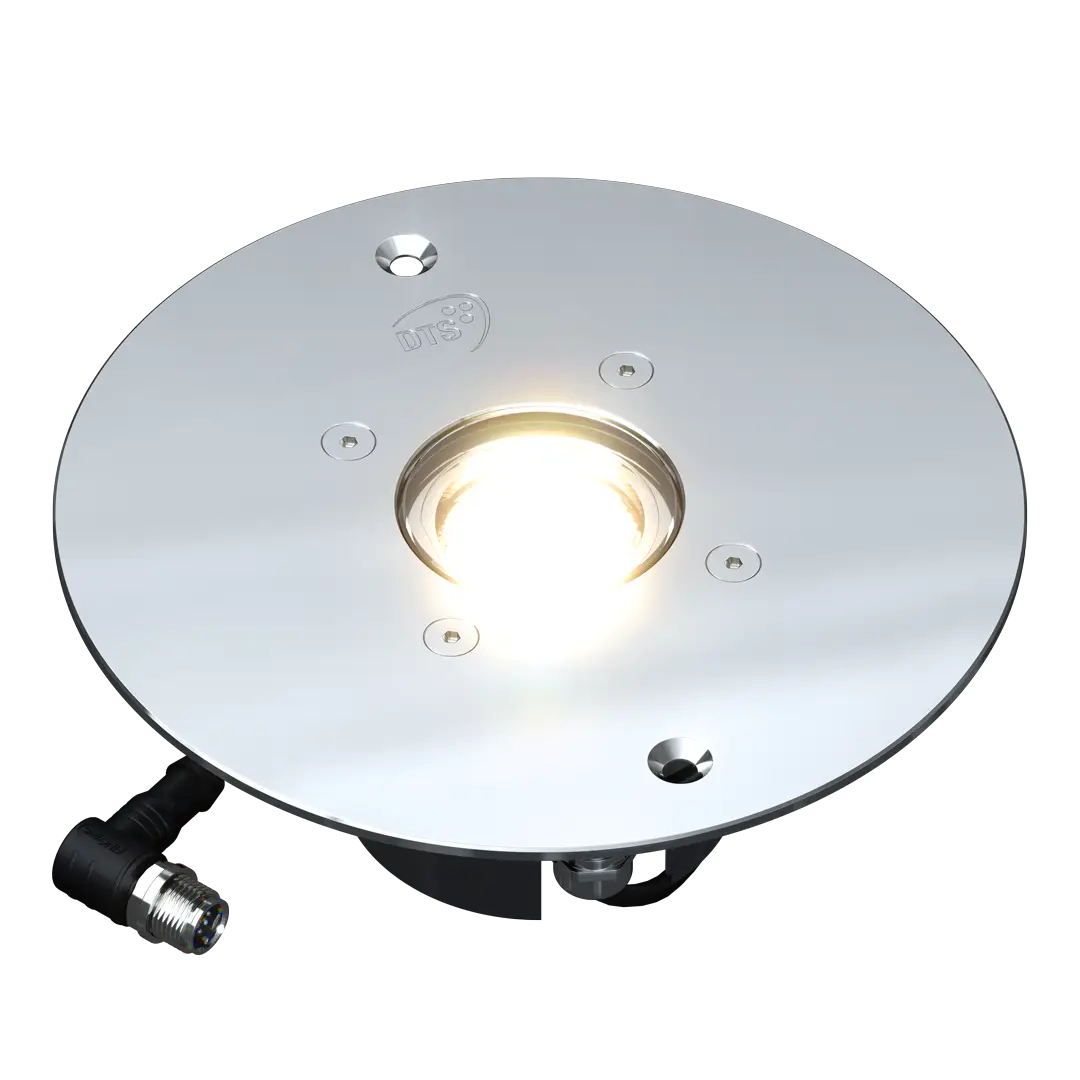

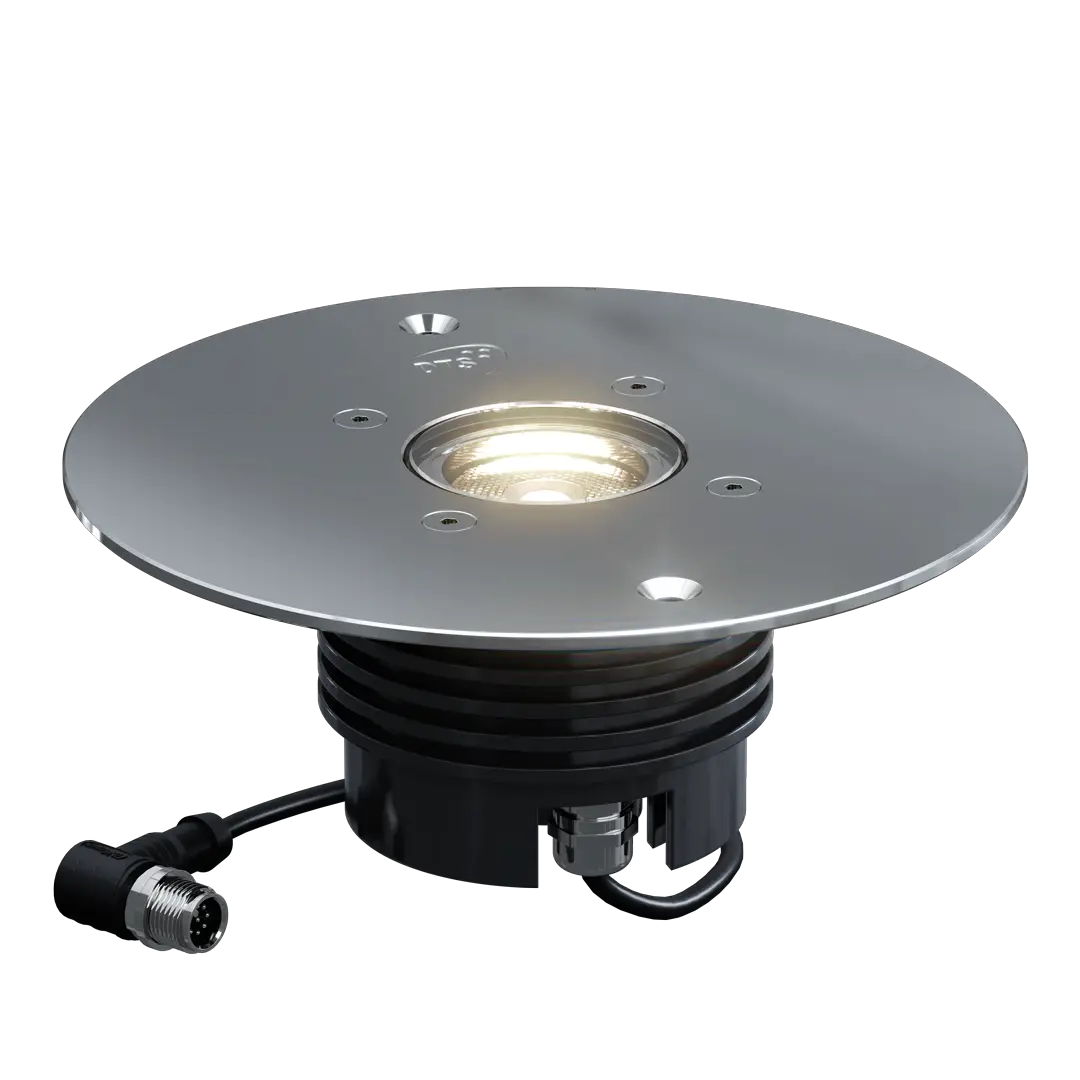

MYRA 1 WH

OUTPUT

• �� 1 x 4 FULL White LED
• �� CRI >90
• �� Lumens output (3000 K): 680 @ 700mA
• �� Lumens output (4000 K)): 720 @ 700mA
• �� LED Lifespan: 50000 hours (L70B10)

OPTICAL GROUP

• �� Spot 10°
• �� Medium 25°
• �� Wide 40°
• �� Elliptical 40°x12°

POWER SUPPLY

• �� External CC PSU LED driver 700mA max per channel
• �� Max distance between Drivenet PSU 48 Vdc and last fixture on the same line (considering 8×0.25 mm2 cable):
  • 1 x MYRA 1 = 400 mt.
  • 2 x MYRA 1 = 380 mt.
  • 3 x MYRA 1 = 350 mt.
  • 4 x MYRA 1 = 320 mt.
  • 5 x MYRA 1 = 290 mt.
  • 6 x MYRA 1 = 260 mt.
  • 7 x MYRA 1 = 240 mt.
  • 8 x MYRA 1 = 210 mt.
  • 9 x MYRA 1 = 180 mt.
  • 10 x MYRA 1 = 150 mt.
  • 11 x MYRA 1 = 120 mt.
  • 12 x MYRA 1 = 100 mt
• �� Consumption: max 8,5 W @ 700mA

CONNECTIONS

• ��15 cm. cable with M12 male connector IP67 8 poles

TEMPERATURE

• �� Operating: -20° +45° C
• �� Storage: -40° +85° C

PHYSICAL

• �� Housing: Body in Anticorodal aluminum with hardcoat anodizing
• �� Flange : Stainless Steel 316L
• �� Weight: 1 Kg (2,2 lbs)
• �� IP rating: IP67
• �� IK rating: IK10

TEST AND CERTIFICATION

• �� CE

ACCESSORIES INCLUDED

• �� M12 8-pin female inline connector (code 0520P050)

ACCESSORIES ON REQUEST

• �� Outer casing MYRA 1 INOX (code 03.LA.265)
• �� Holographic filters (will be installed inside the device, to not affect the IP rate):
  • 20° (code 0506A043.D33)
  • 40° (code 0506A045.D33)
  • 60° (code 0506A103.D33)
  • 80° (code 0506A121.D33)
  • 60°x10° (code 0506A092.D33)
  • 10°x60° (code 0506A048.D33)
  • 60°x30° (code 0506A119.D33)
  • 30°x60° (code 0506A133.D33)
  • 60°x20° bend angle8° (code 0506A153.D33)
• �� Asimmetric filter bender angle 20°(0508A138)

• �� 8-pole outdoor cable 8 x 0.25 mm2 (code 0509C062.PUR)
• �� Y-splitter M12 8 poles series connection (code 03.LA.209.S)
• �� Outdoor extension cable M12 Female + end stripped 8-pole
  • length 10 mt – 33 ft (code 02K001157.10)
  • length 20 mt – 66 ft (code 02K001157.20)
  • length 30 mt – 98 ft (code 02K001157.30)
  • length 40 mt – 131 ft (code 02K001157.40)
  • length 50 mt – 164 ft (code 02K001157.50)
  • length 100 mt – 328 ft ( code 02K001157.100)
• �� Outdoor extension cable with M12 M/F 8 pins – cable Ø 6 mm
  • length 1 m – 3,3 ft (code 03.LA.035.01)
  • length 5 m – 16,5 ft (code 03.LA.035.05)
  • length 10 m – 33 ft (code 03.LA.035.10)
  • length 15 m – 49 ft (code 03.LA.035.15)
  • length 20 m – 66 ft (code 03.LA.035.20)
  • length 25 m – 82 ft (code 03.LA.035.25)
  • length 30 m – 98 ft (code 03.LA.035.30)
  • length 50 m – 164 ft (code 03.LA.035.50)
