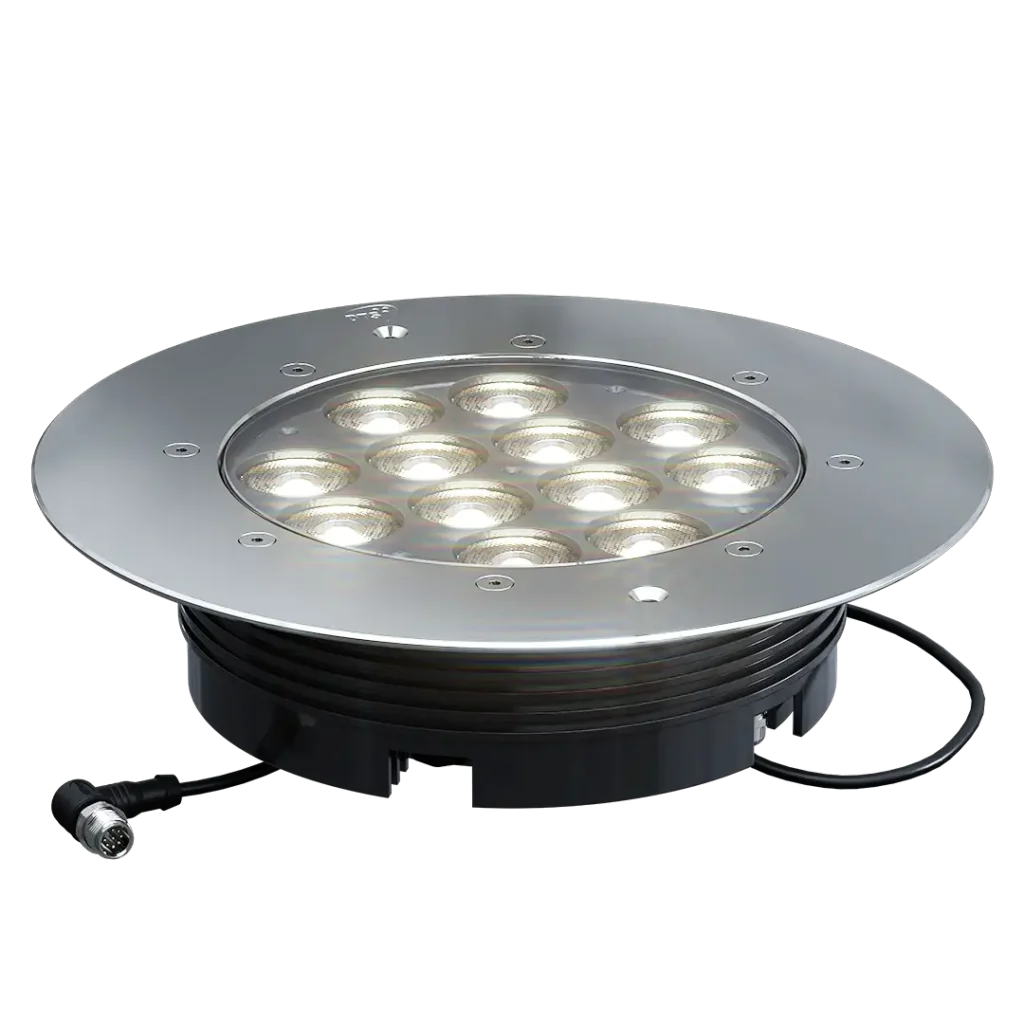

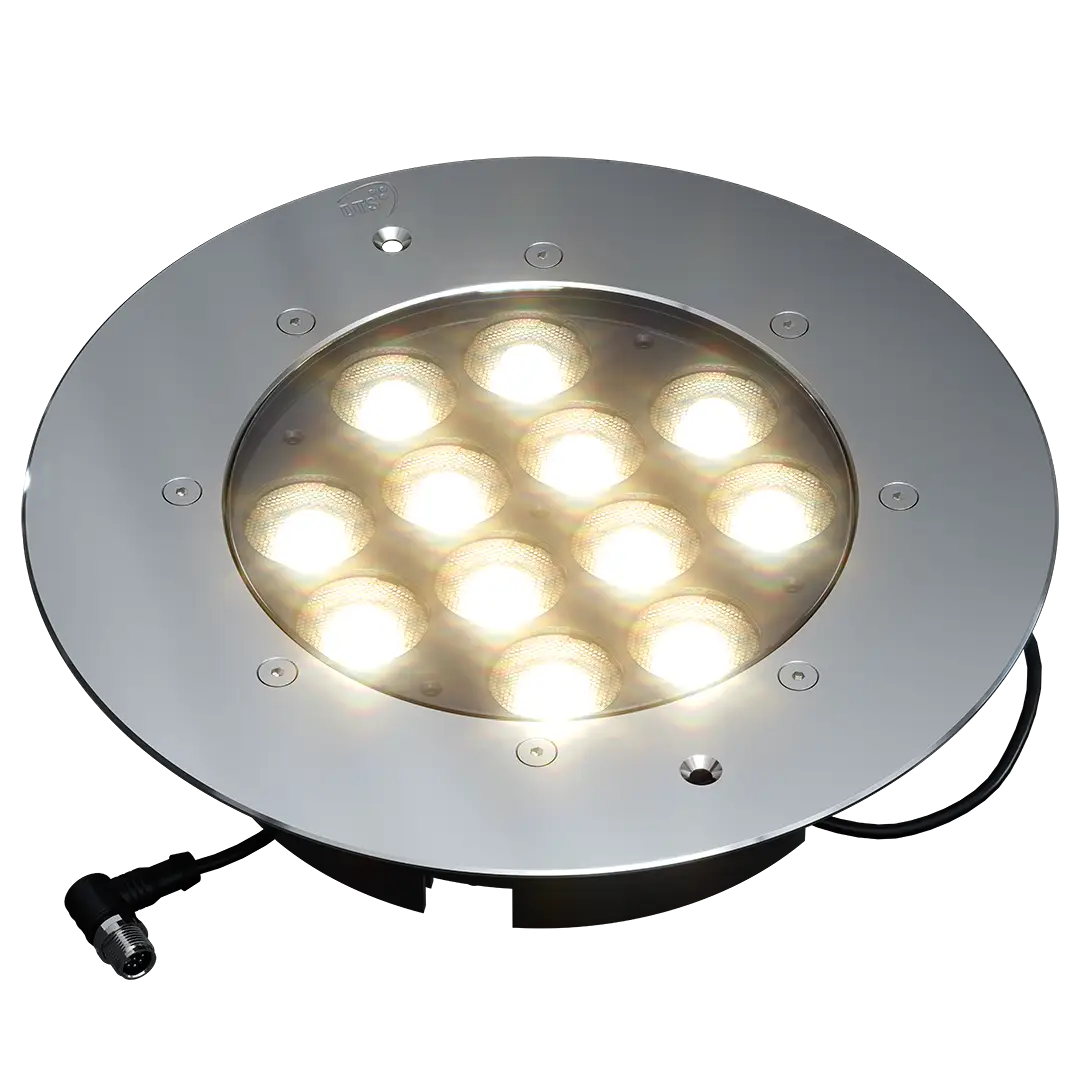

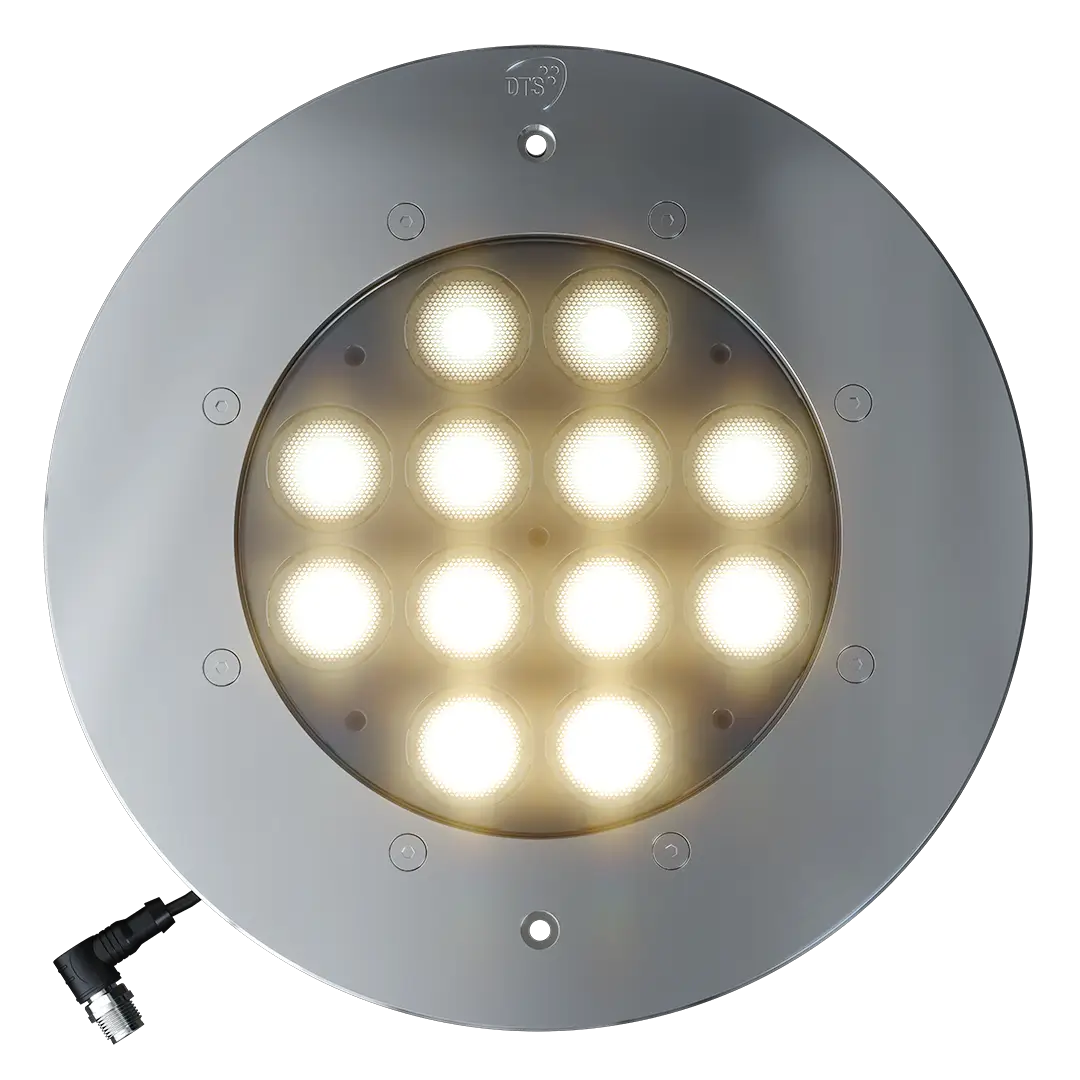

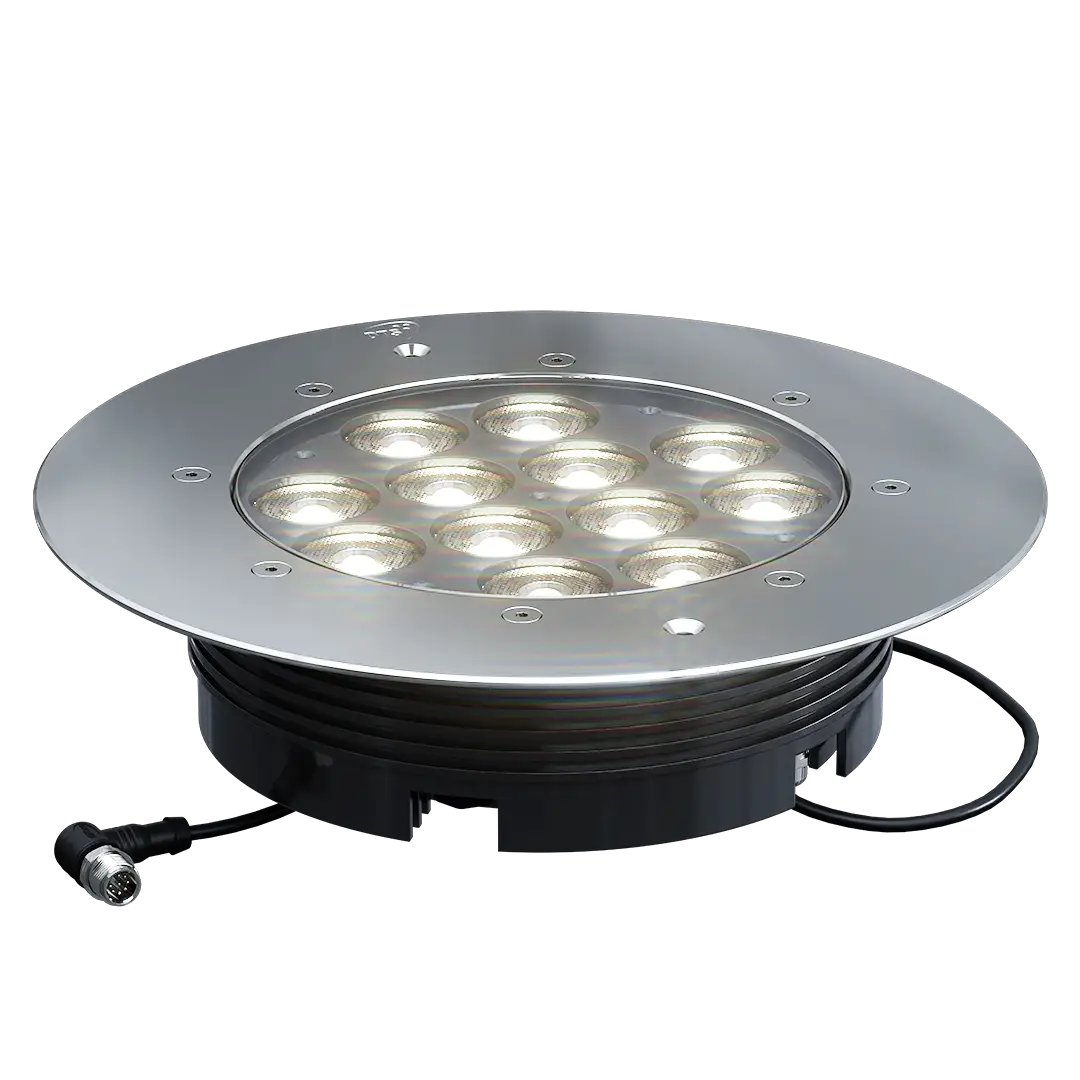

MYRA 12 WH

OUTPUT

• �� 12 x 4 White LEDs
• �� CRI >90
• �� Lumens output (3000 K): 5500 @ 500mA
• �� Lumens output (4000 K): 5800 @ 500mA
• �� LED Lifespan: 50000 hours (L70B10)

OPTICAL GROUP

• �� Spot 10°
• �� Medium 25°
• �� Wide 40°
• �� Elliptical 40°x12°

POWER SUPPLY

• �� External CC PSU LED driver 500mA max per channel
• �� Max distance between Drivenet PSU 48 Vdc and last fixture on the same line (considering 8×0.25 mm2 cable):
  • 1 x MYRA 12 = 100 mt
• �� Consumption: max 75 W @ 500mA

CONNECTIONS

• ��15 cm. cable with M12 male connector IP67 8 poles

TEMPERATURE

• �� Operating: -20° +45° C
• �� Storage: -40° +85° C

PHYSICAL

• �� Housing: Body in Anticorodal aluminum with hardcoat anodizing
• �� Flange : Stainless Steel 316L
• �� Weight: 4 Kg (8,8 lbs)
• �� IP rating: IP67
• �� IK rating: IK10

TEST AND CERTIFICATION

• �� CE

ACCESSORIES INCLUDED

• �� M12 8-pin female inline connector (code 0520P050)

ACCESSORIES ON REQUEST

• �� Outer casing MYRA 12 INOX (code 03.LA.268)
• ��Holographic filters (will be installed inside the device, to not affect the IP rate):
  • 20° (code 0506A043.D36)
  • 40° (code 0506A045.D36)
  • 60° (code 0506A103.D36)
  • 80° (code 0506A121.D36)
  • 60°x10° (code 0506A092.D36)
  • 10°x60° (code 0506A048.D36)
  • 60°x30° (code 0506A119.D36)
  • 30°x60° (code 0506A133.D36)
  • 60°x20° bender angle8° (code 0506A153.D36)
• �� Asimmetric filter bender angle 20°(0508A140)

• �� 8-pole outdoor cable 8 x 0.25 mm2 (code 0509C062.PUR)
• �� Outdoor extension cable M12 Female + end stripped 8-pole
  • length 10 mt – 33 ft (code 02K001157.10)
  • length 20 mt – 66 ft (code 02K001157.20)
  • length 30 mt – 98 ft (code 02K001157.30)
  • length 40 mt – 131 ft (code 02K001157.40)
  • length 50 mt – 164 ft (code 02K001157.50)
  • length 100 mt – 328 ft ( code 02K001157.100)
• �� Outdoor extension cable with M12 M/F 8 pins – cable Ø 6 mm
  • length 1 m – 3,3 ft (code 03.LA.035.01)
  • length 5 m – 16,5 ft (code 03.LA.035.05)
  • length 10 m – 33 ft (code 03.LA.035.10)
  • length 15 m – 49 ft (code 03.LA.035.15)
  • length 20 m – 66 ft (code 03.LA.035.20)
  • length 25 m – 82 ft (code 03.LA.035.25)
  • length 30 m – 98 ft (code 03.LA.035.30)
  • length 50 m – 164 ft (code 03.LA.035.50)
