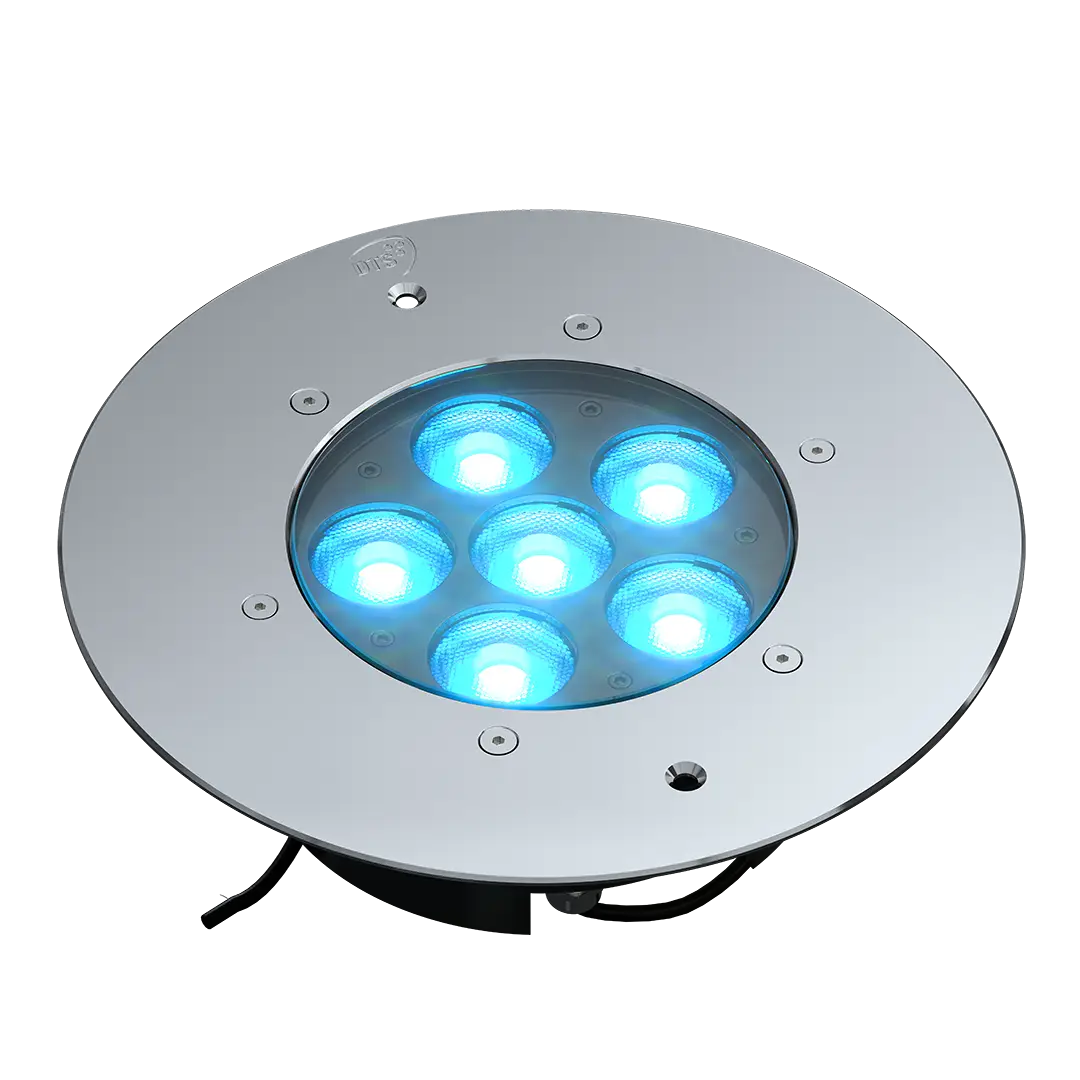

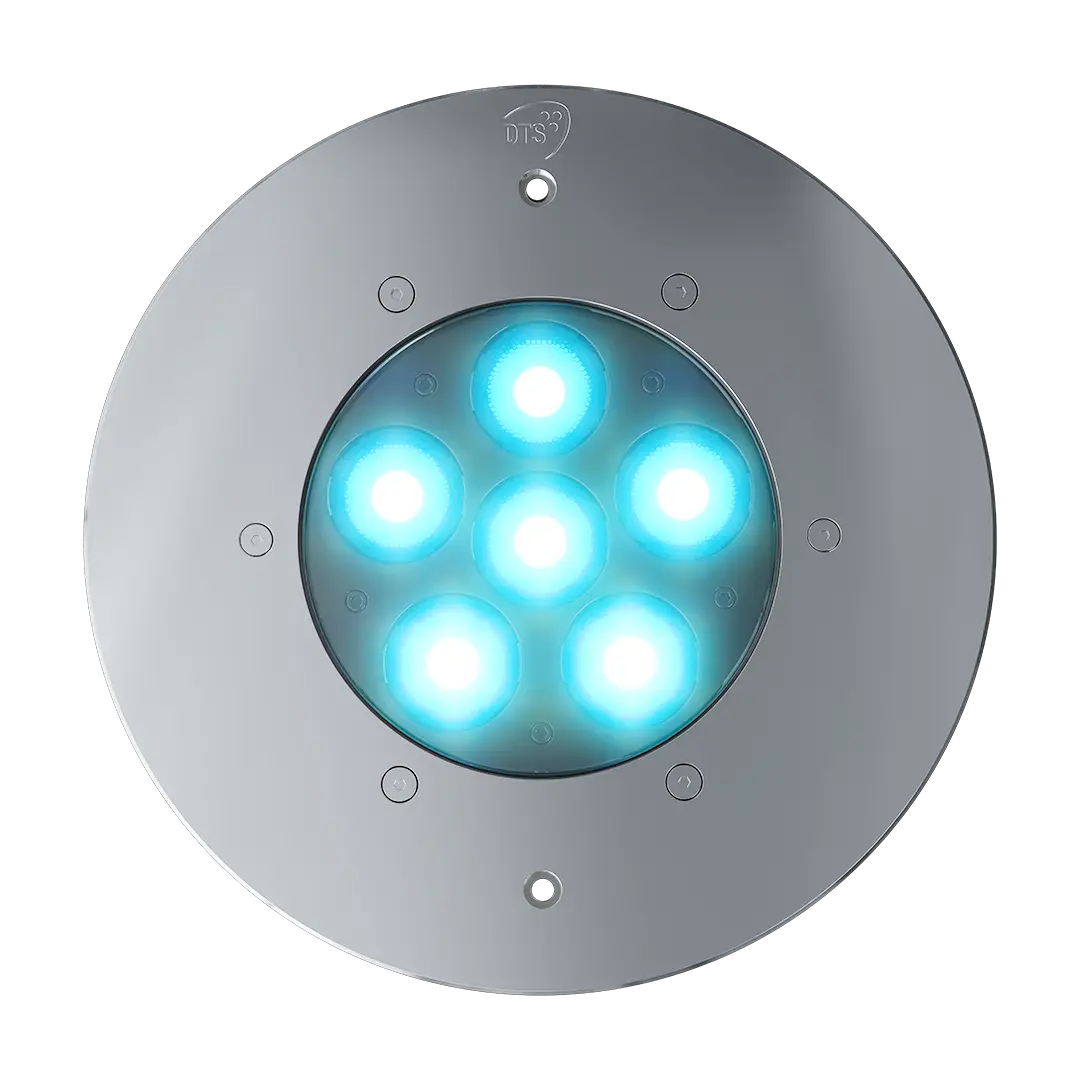

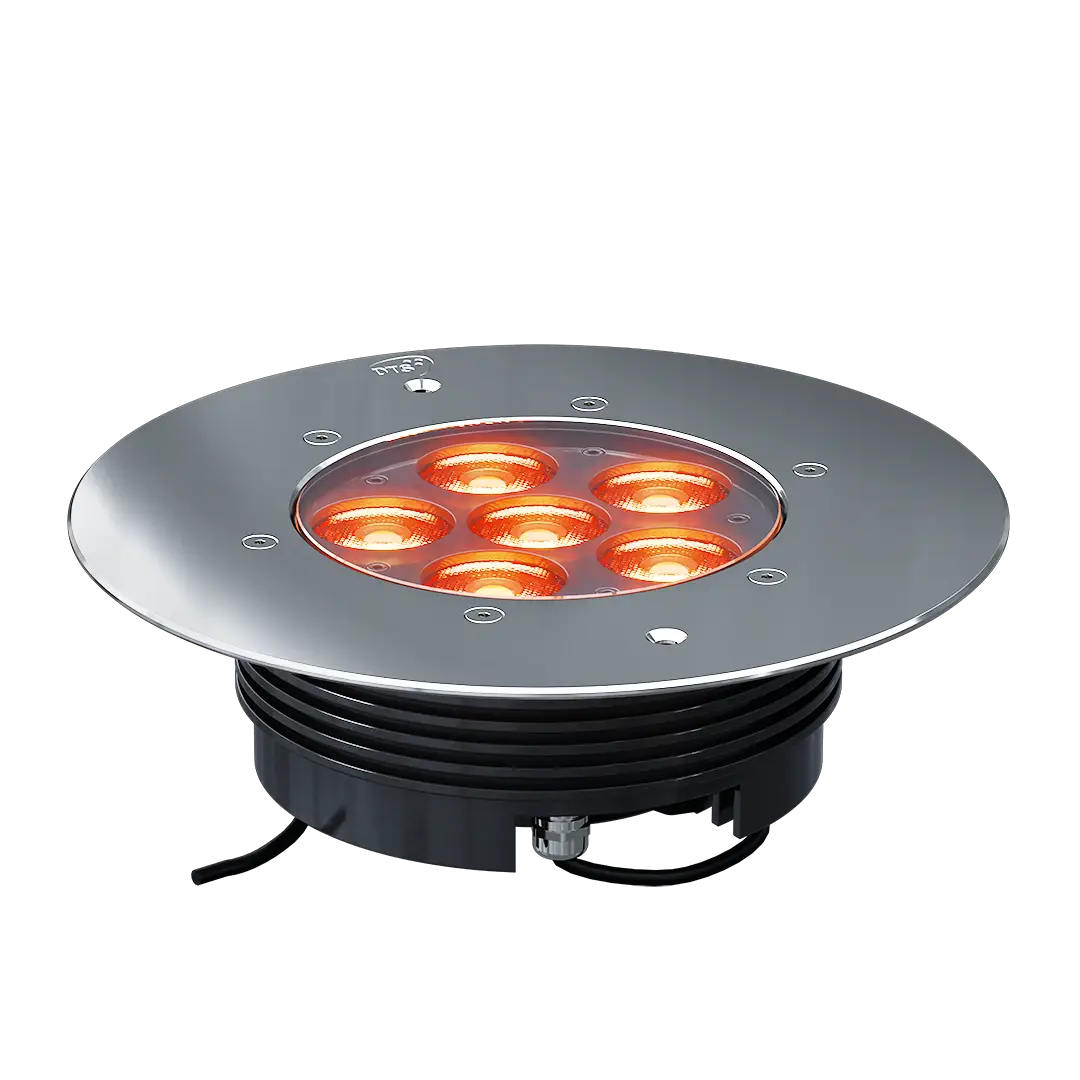

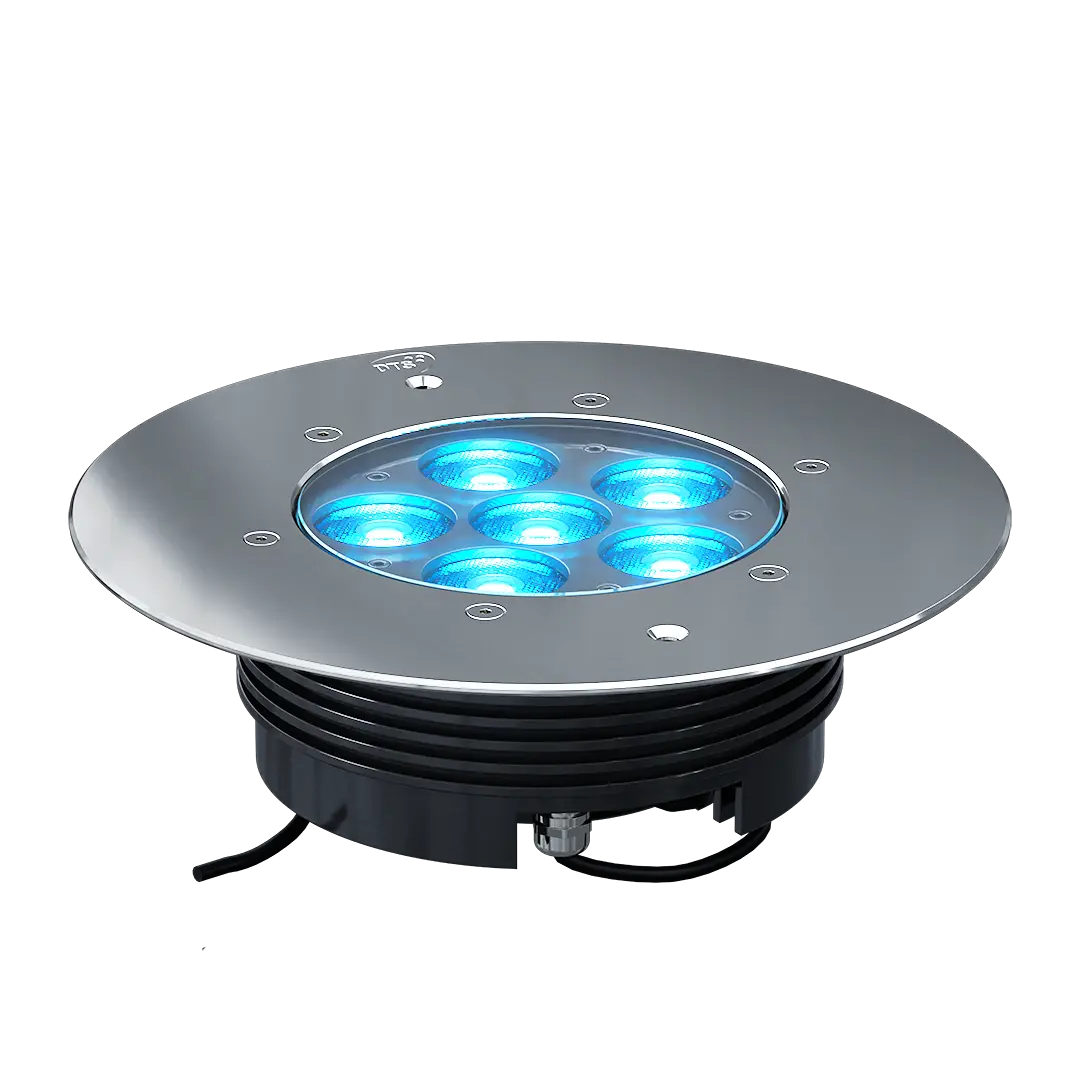

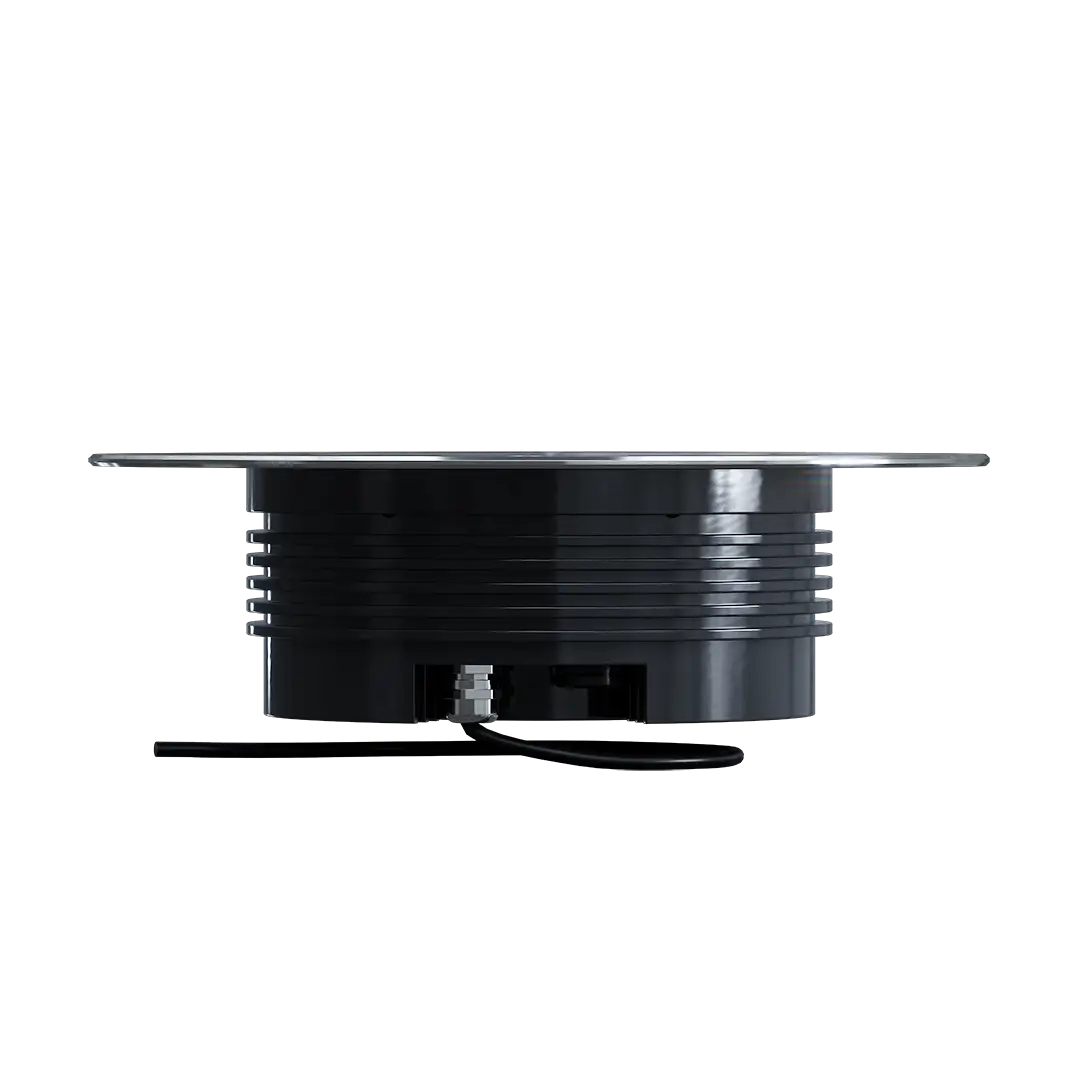

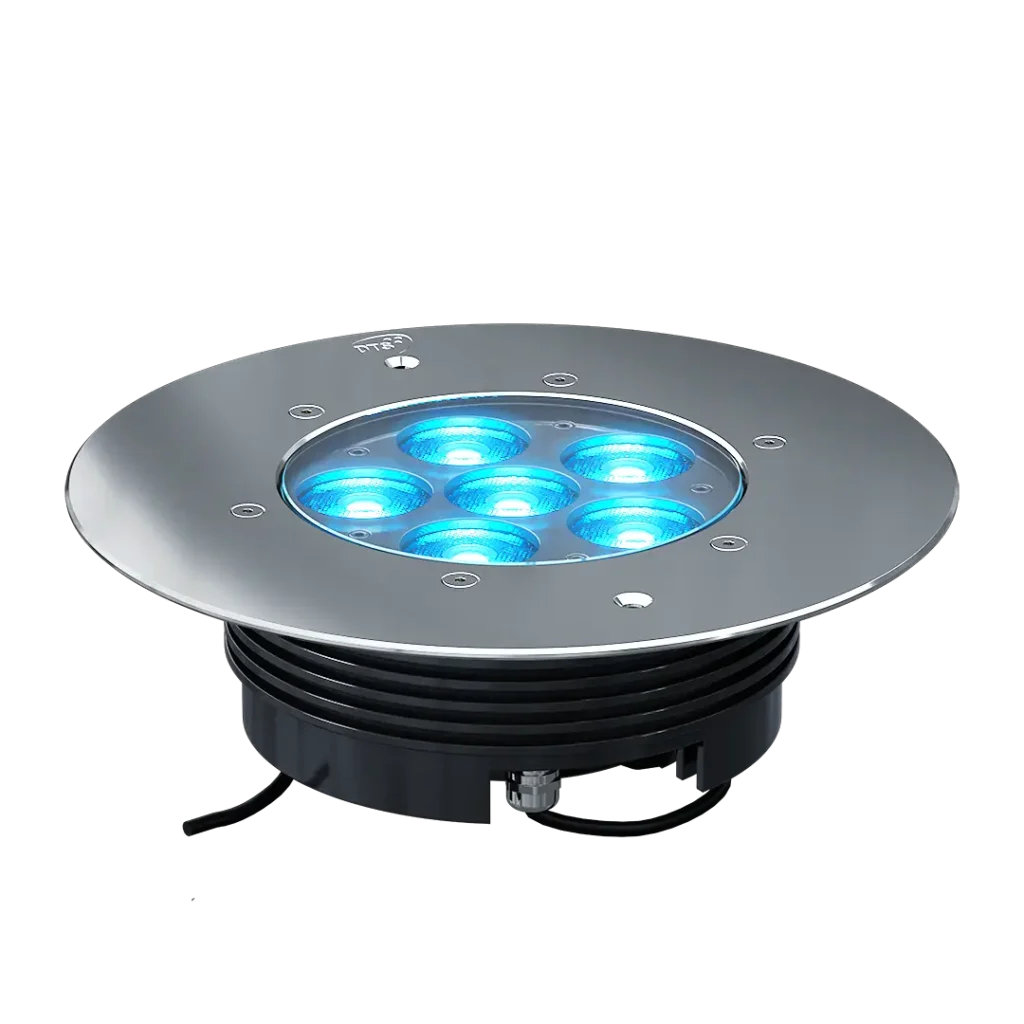

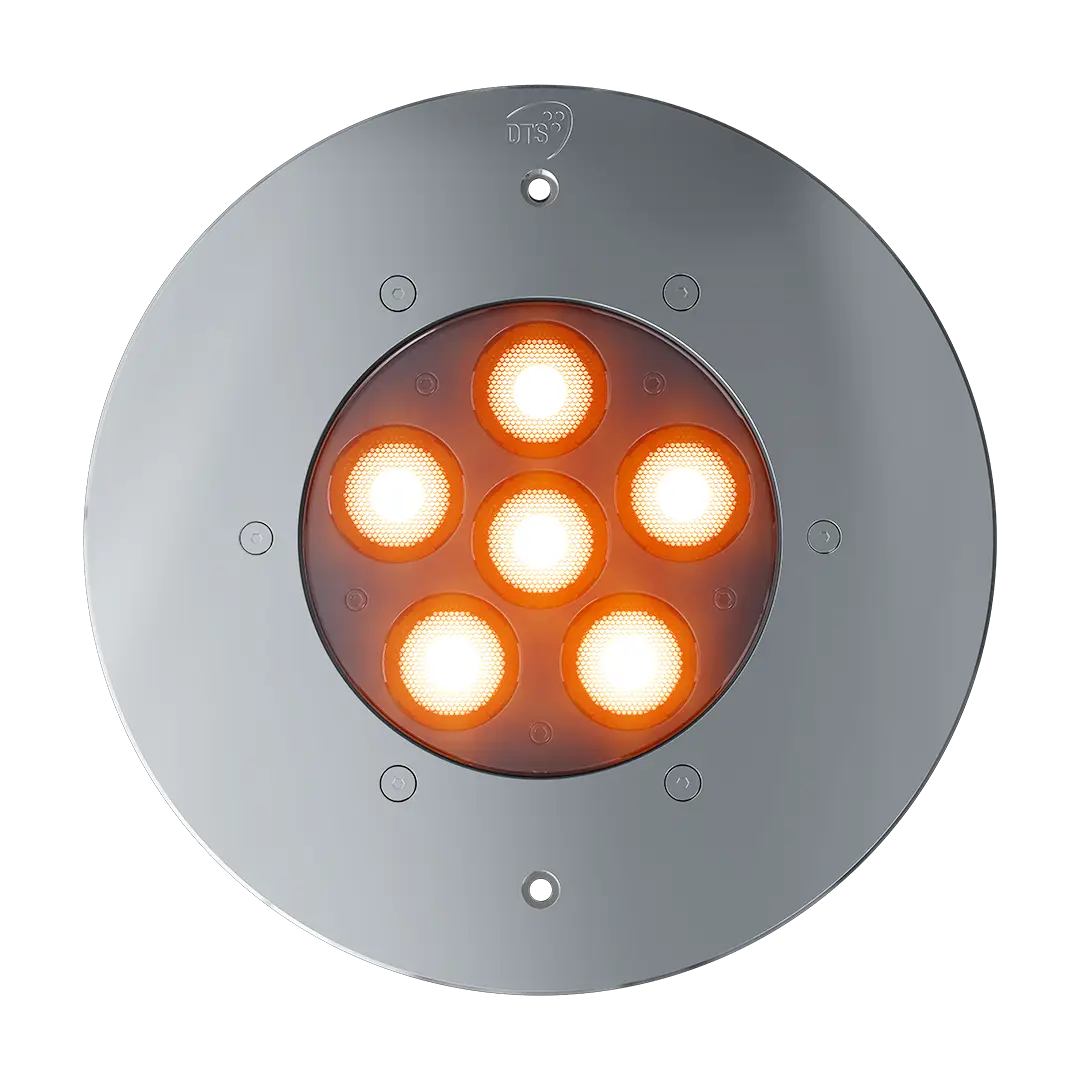

MYRA.D 6

Outdoor recessed LED projector

Compact and robust, this 6x4-colour LED projector provides precise illumination with several available optics and a luminous flux of up to 2400 lumens. Made of Anticorodal aluminium with hardcoat anodisation and stainless steel flange, MYRA.D 6 is ideal for outdoor use. It is powered by constant voltage (35-48 VDC) with integrated driver, supports DMX/RDM protocols and is upgradeable via DTS dongle. It is available with 4-pin cable, in different lengths, for power and control.

highlights

Source

6 x 4-colors LEDs

Lumens

2400 lm RGBW 2160 lm RGBA

IP Rating

IP67

DMX

4 canali 11 canali

operating
temperature

-20° / 45° C

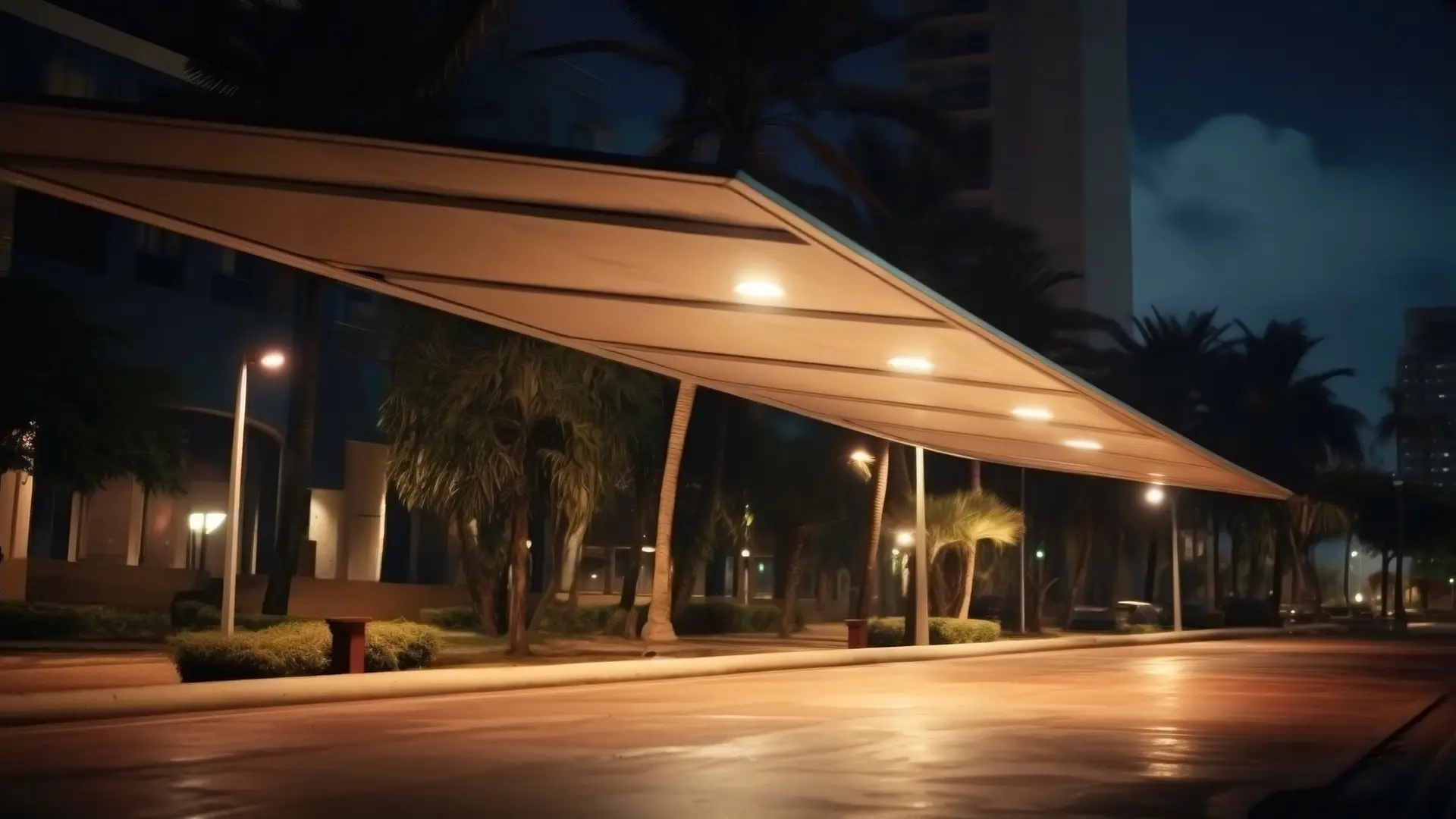

Applications

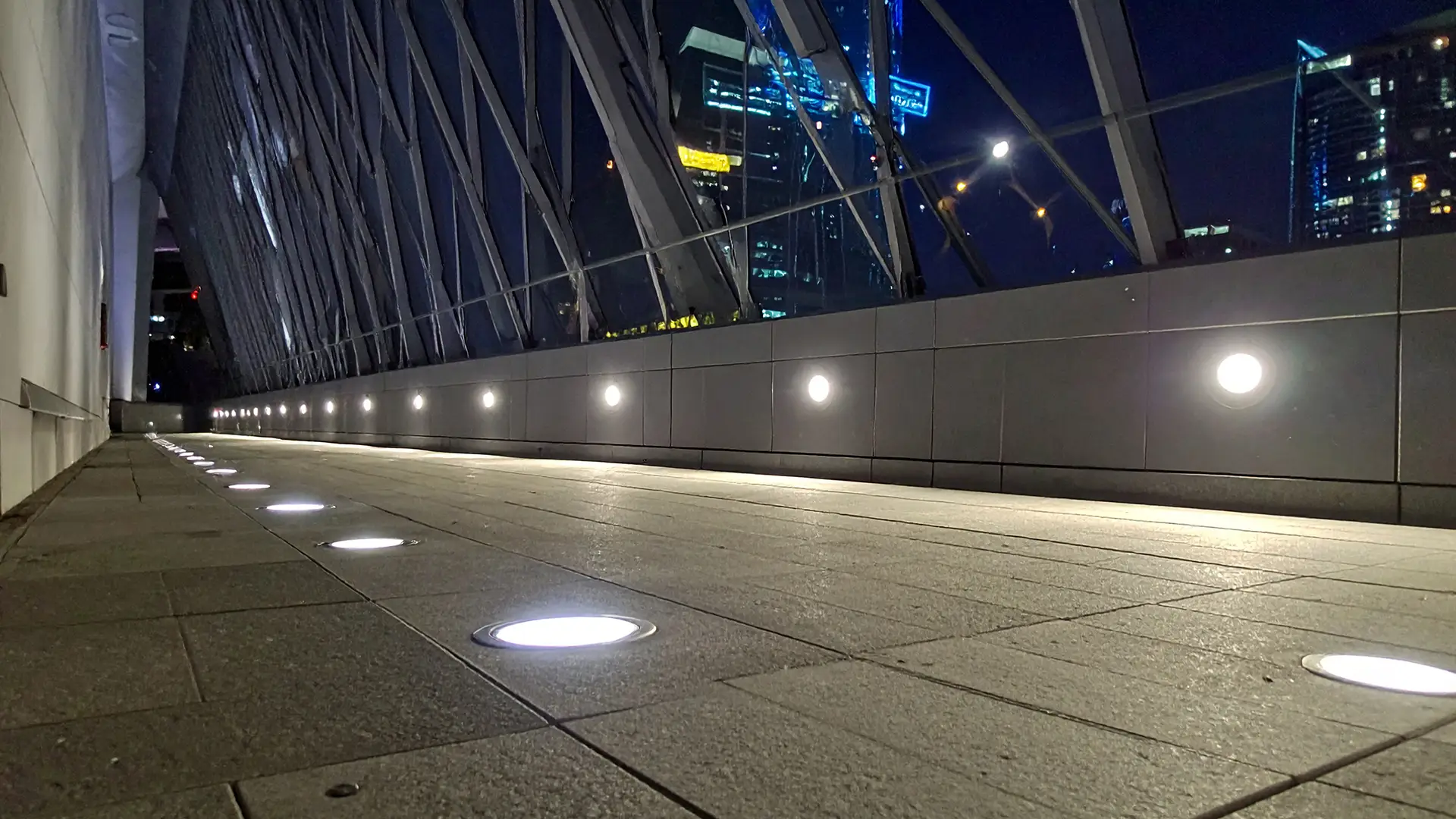

Architectural lighting

Highlights details of facades, columns, and entrances with precise and controlled light.

Theme parks and attractions

Creates long-lasting scenic effects in environments exposed to weather and wear.

Gardens and green areas

Enhances plants, paths, and ponds with discreet and suggestive accent lighting.

Outdoor exhibitions and installations

Illuminates artworks and artistic paths with dynamic colors and flexible optics.

Hospitality and wellness areas

Adds elegance and visual comfort to outdoor spaces in resorts, hotels, and SPAs.

Temporary events

Ideal for festivals and shows, with quick installation and impactful lighting.

Sacred spaces and places of worship

Contributes to the spiritual atmosphere with sober and focused illumination.

Features

High Luminous Output▼

Thanks to its 12 quad-color LEDs, the fixture delivers up to 2400 lumens (RGBW), ensuring visibility and brightness even in challenging environments.

Extended Lifespan▼

The LEDs offer a lifetime of 50,000 hours (L70B10), drastically reducing the need for maintenance and replacement.

Optical Flexibility▼

Equipped with 4 beam angles to meet a wide variety of lighting needs.

Advanced Digital Control▼

Fully compatible with DMX512 and RDM, making it easy to integrate into professional lighting systems. Firmware updates are supported via DTS dongle.

Energy Efficiency▼

With a maximum power consumption of just 55 W, it offers an excellent balance between brightness and energy use.

Full Dust and Water Protection▼

The IP67 rating ensures reliable performance outdoors, even in heavy rain or dusty conditions.

High Mechanical Resistance▼

Rated IK10 for impact protection, ideal for installations exposed to shock or potential vandalism.

Rugged Construction▼

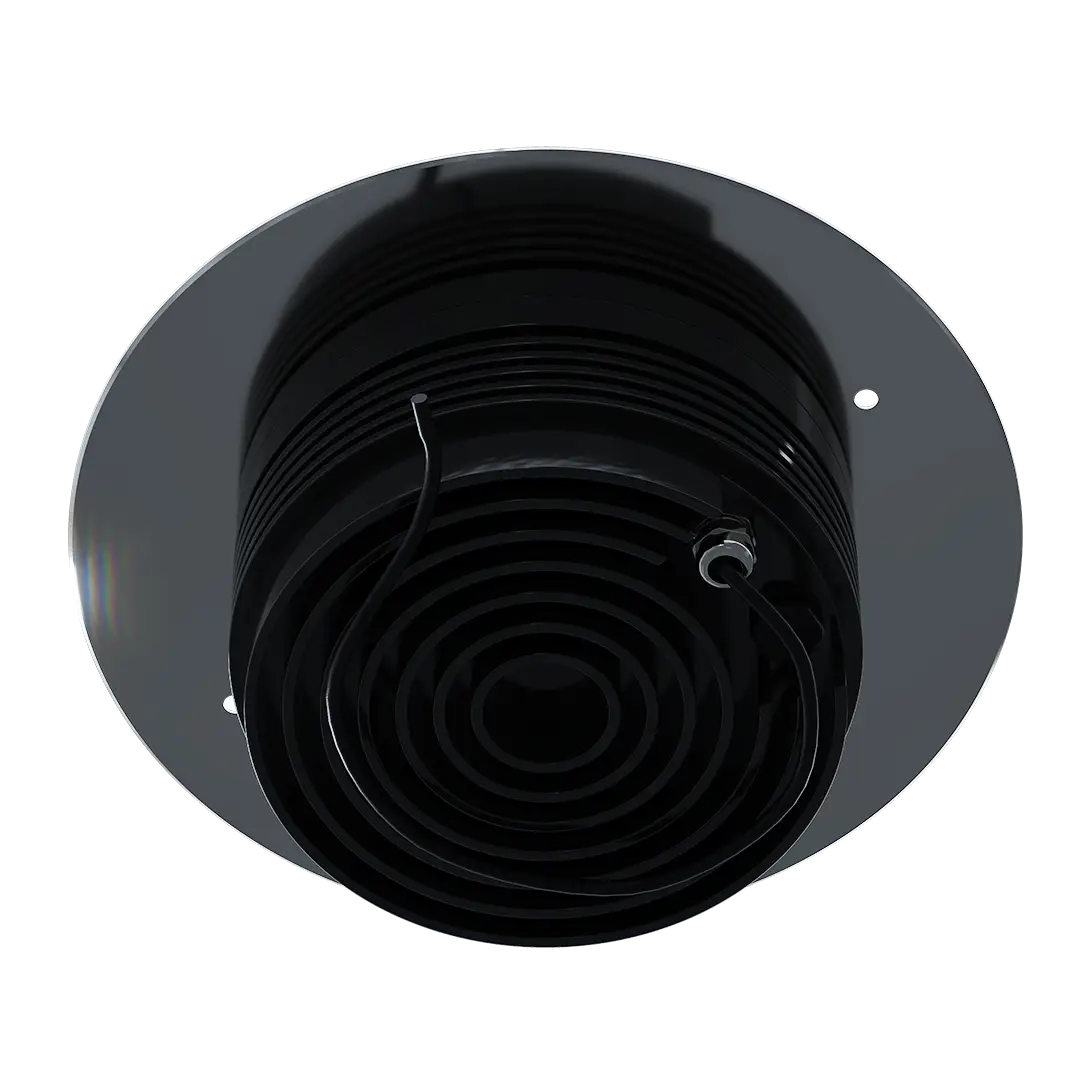

Made from hardcoat anodized Anticorodal aluminum with 316L stainless steel flange, ensuring long-term durability even in marine or industrial environments.

Wide Operating Temperature▼

Designed to operate in harsh climates, from -20°C to +45°C during use, and down to -40°C in storage.

Easy Installation▼

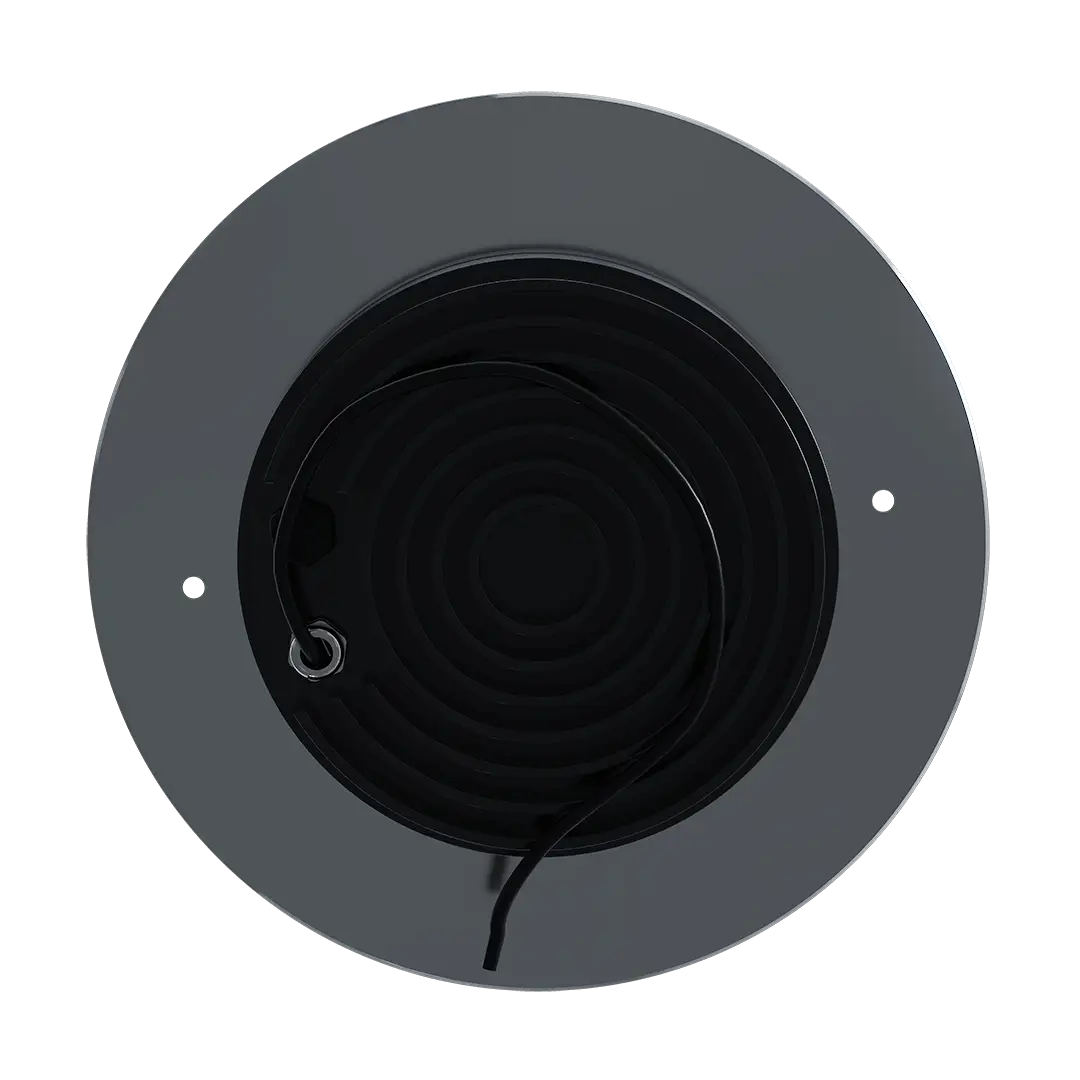

Comes with an integrated 4-pole cable for power and DMX, with customizable lengths available on request, for a quick and flexible setup.
