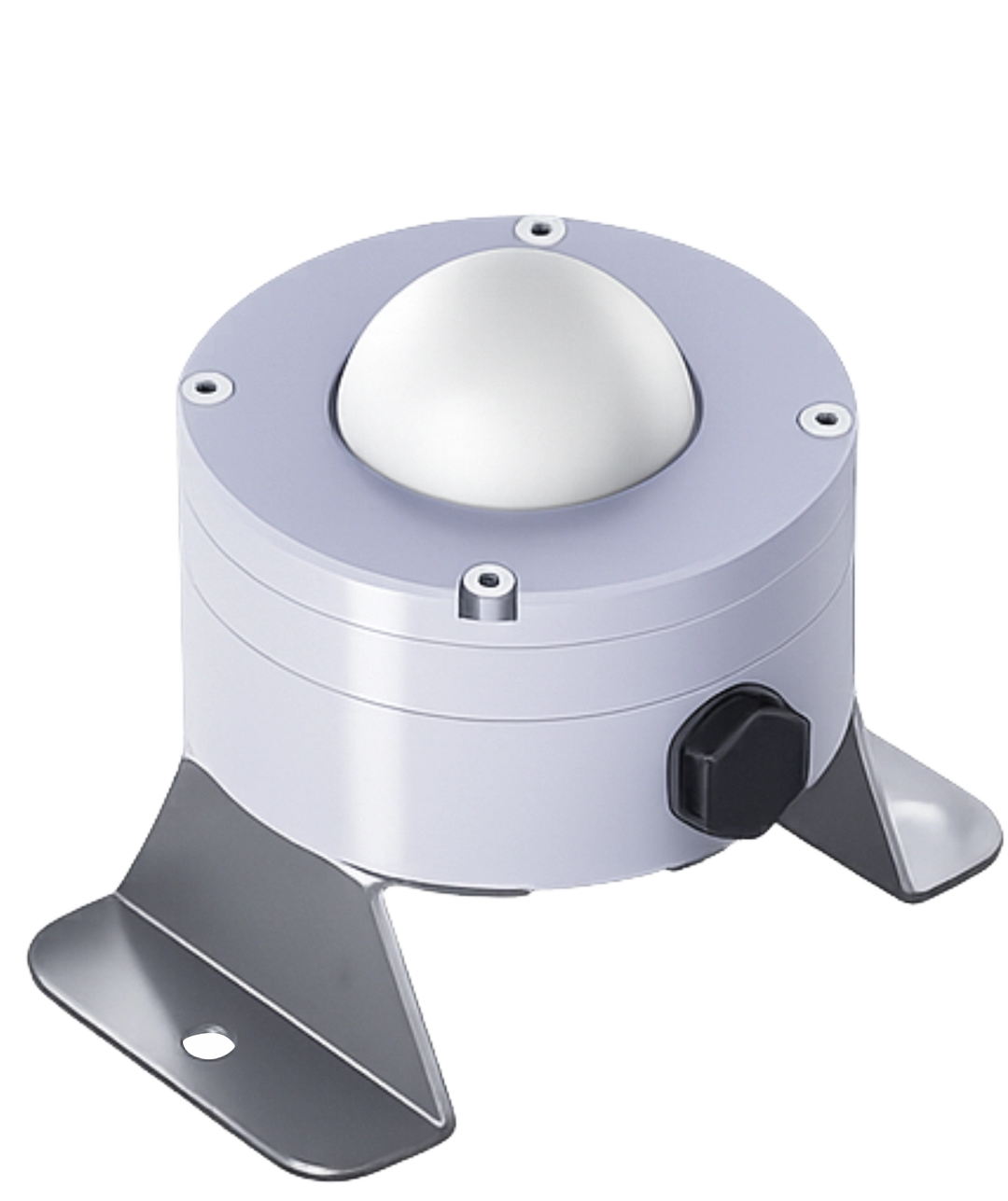

PIXEL PUNTO.D 1

Architectural LED pixel IP67 for professional and dynamic lighting scenographies.

IP67 LED point source for outdoor architectural lighting. High-efficiency RGBW or RGBA LEDs for dynamic scenographies. Maximum flexibility with three lens types and two mounting systems (flat or omega bracket) featuring optimized side/rear cabling.

highlights

Source

1 x 4-colors LEDs

Lumens

370 lm RGBW 330 lm RGBA

IP Rating

IP67

DMX

4 channels 11 channels

operating
temperature

-20° / 45° C

Applications

Offers a wide range of application possibilities, making it ideal for large-scale lighting installations and high-end accent lighting.

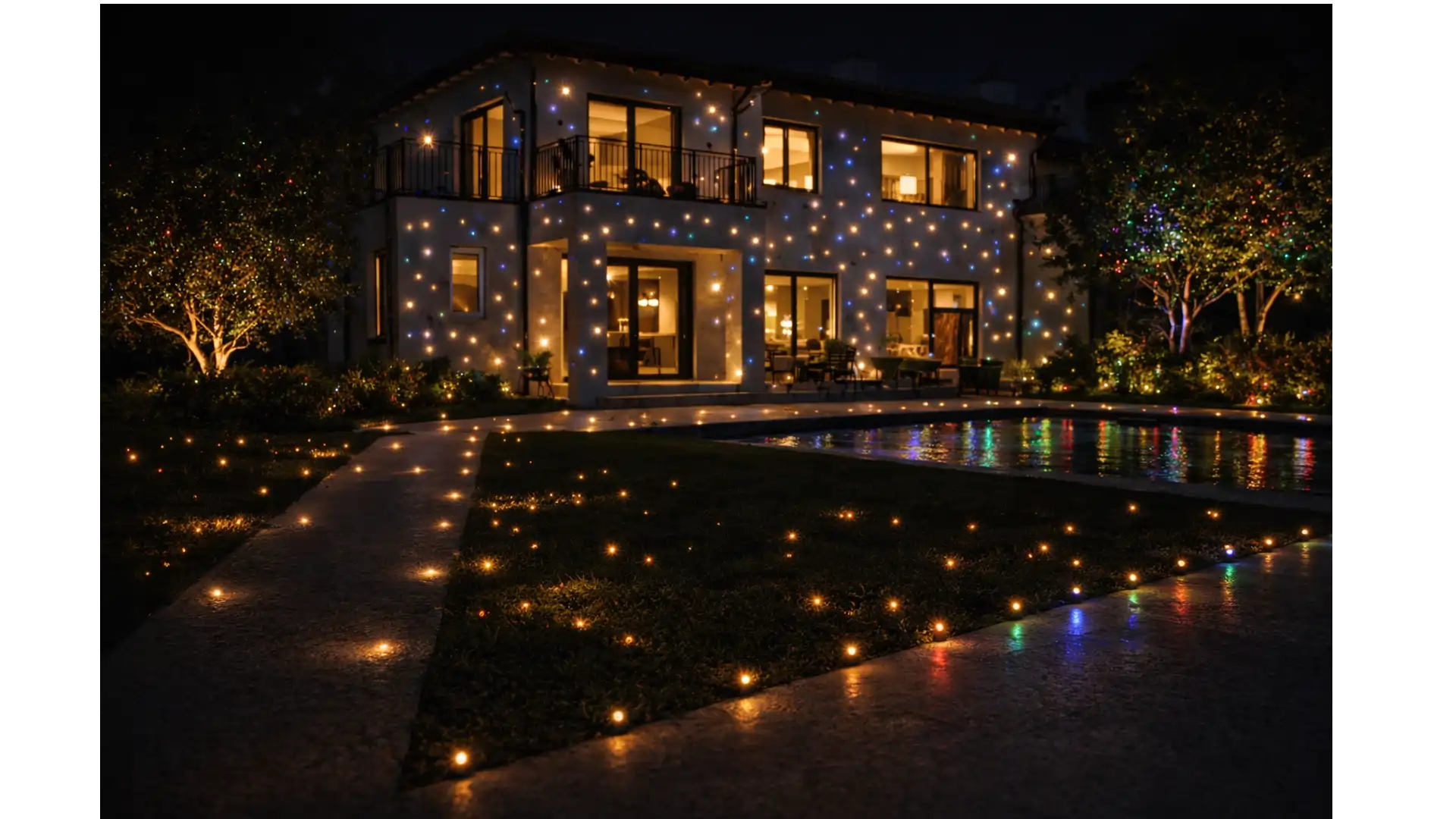

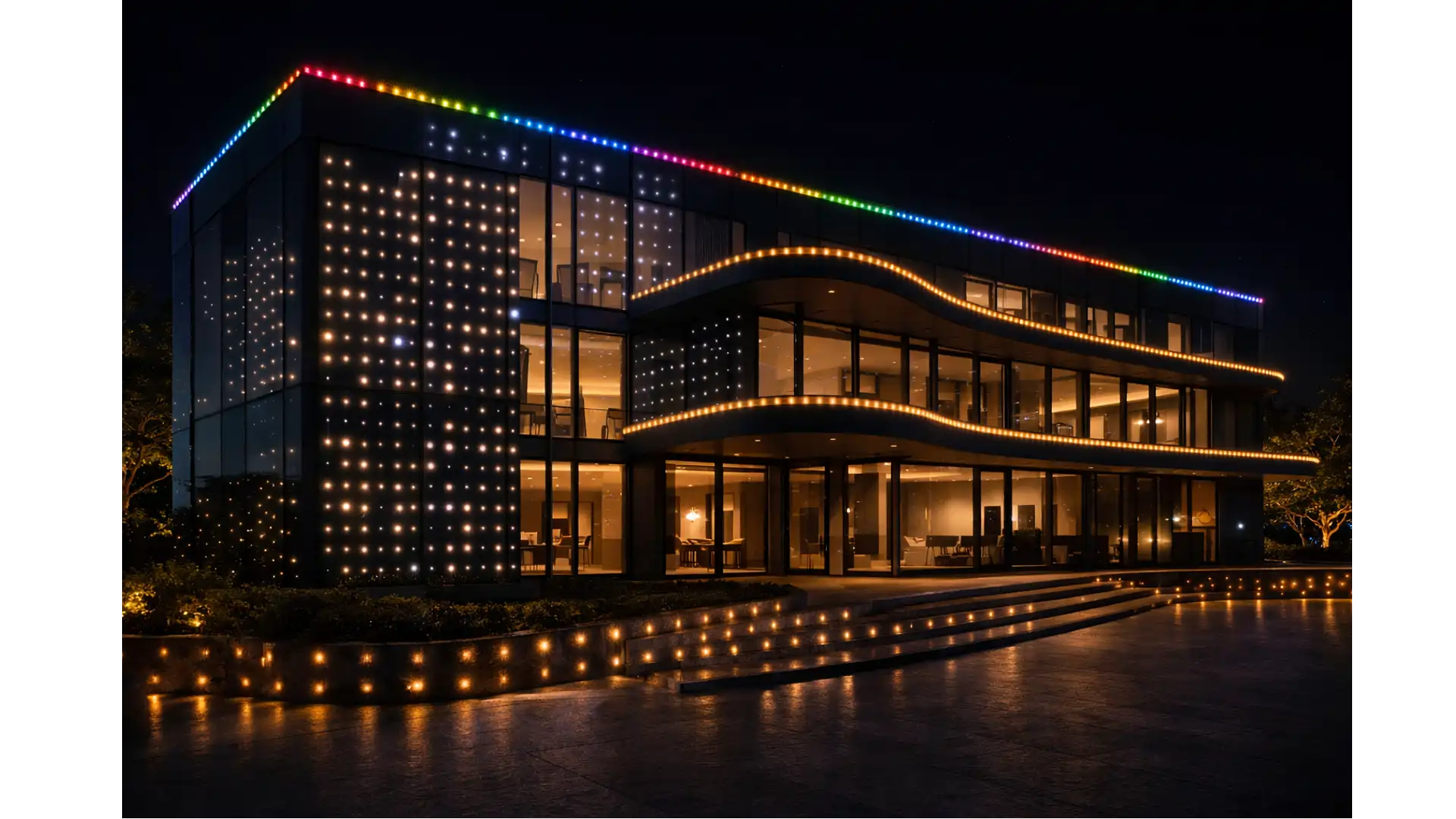

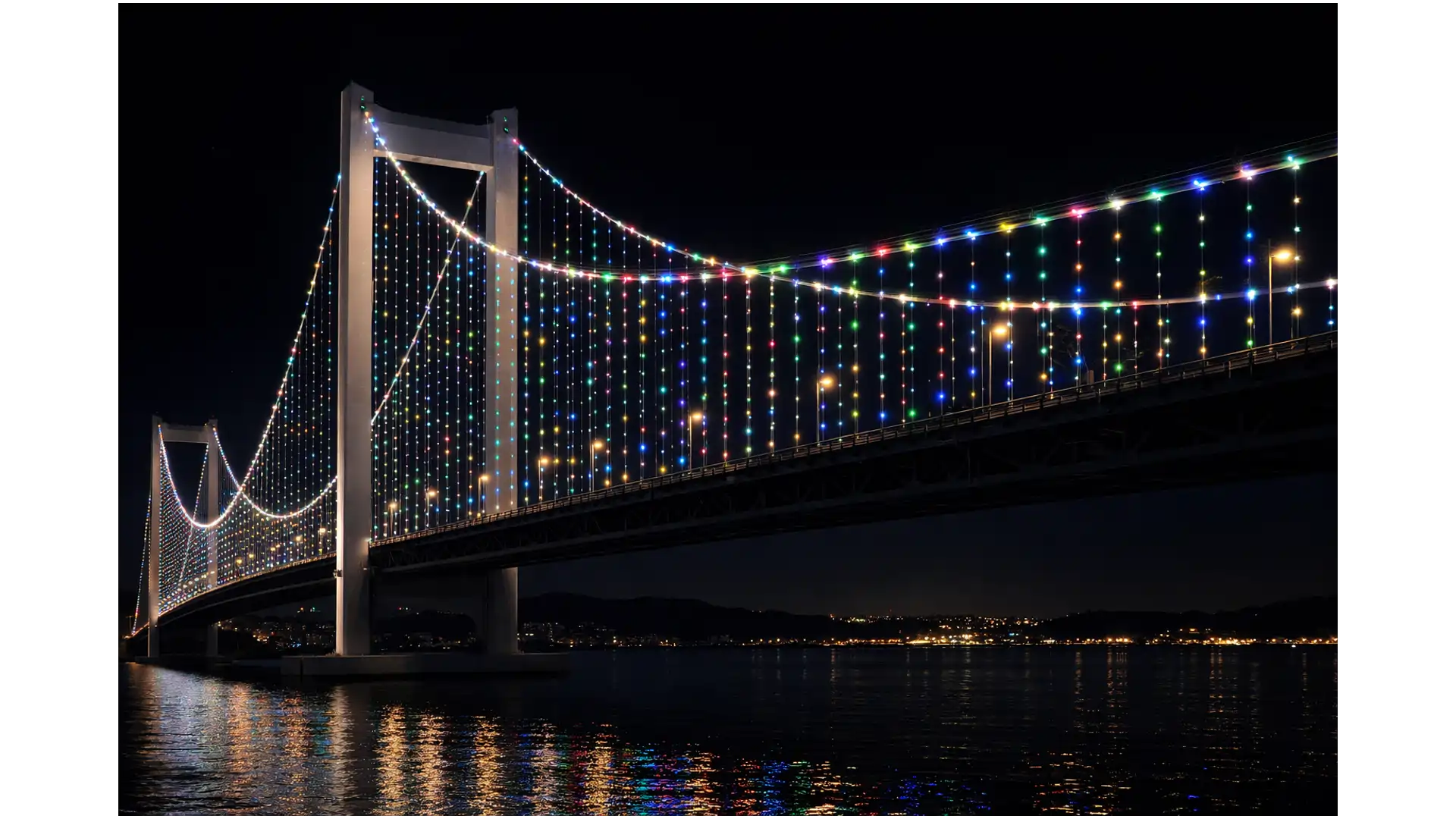

It is the perfect solution for enhancing modern building facades, bridges, monuments, and urban structures where the precision of each individual light point is essential for creating high-impact dynamic or static atmospheres.

Its total weather resistance makes it excellent for theme parks, experiential pathways, and large-scale permanent outdoor projects.

Thanks to RDM compatibility, remote configuration and monitoring are instantaneous, facilitating the management of complex systems on intricate architectural profiles.

Features

The technological heart of Pixel Punto.D 1 lies in its extraordinary adaptability and superior photometric performance. A hallmark of the series is its chromatic flexibility: the device is available in both RGBW configuration, for full color mixing supported by a dedicated pure white channel, and RGBA variant, which utilizes amber to achieve warm tones and pastel shades otherwise difficult to reproduce. To ensure maximum technical clarity, all ambiguous acronyms (such as "CY") have been removed, making source identification immediate.

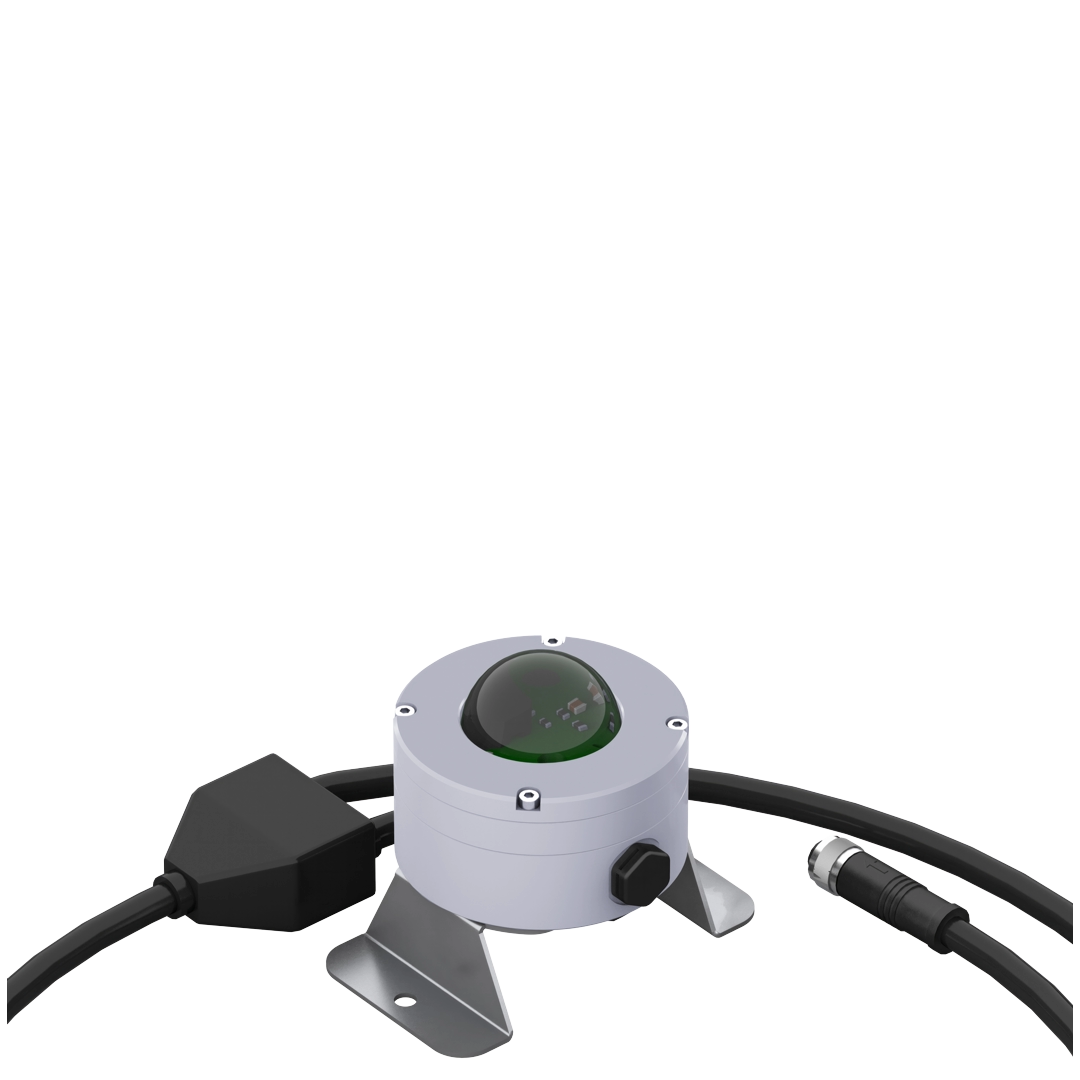

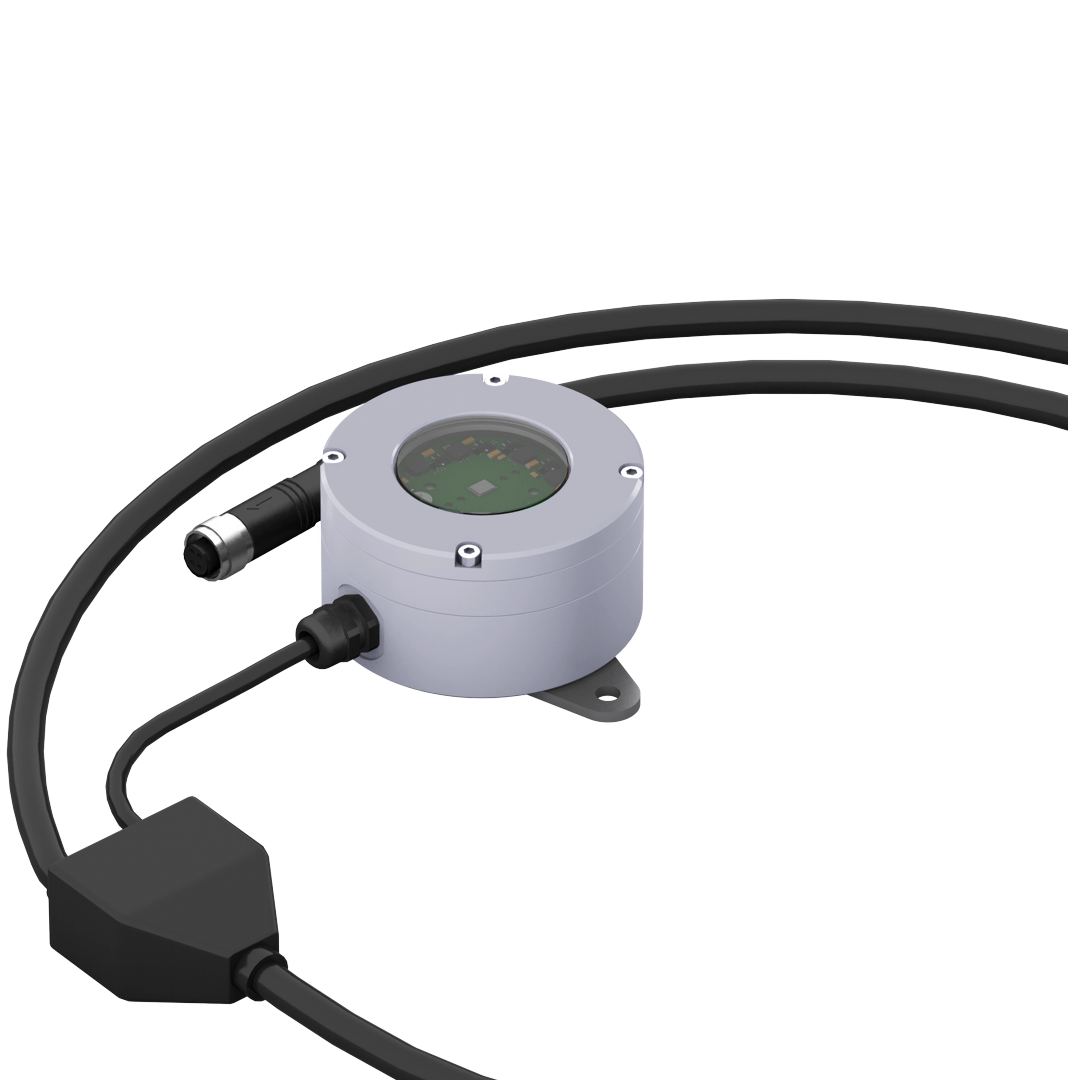

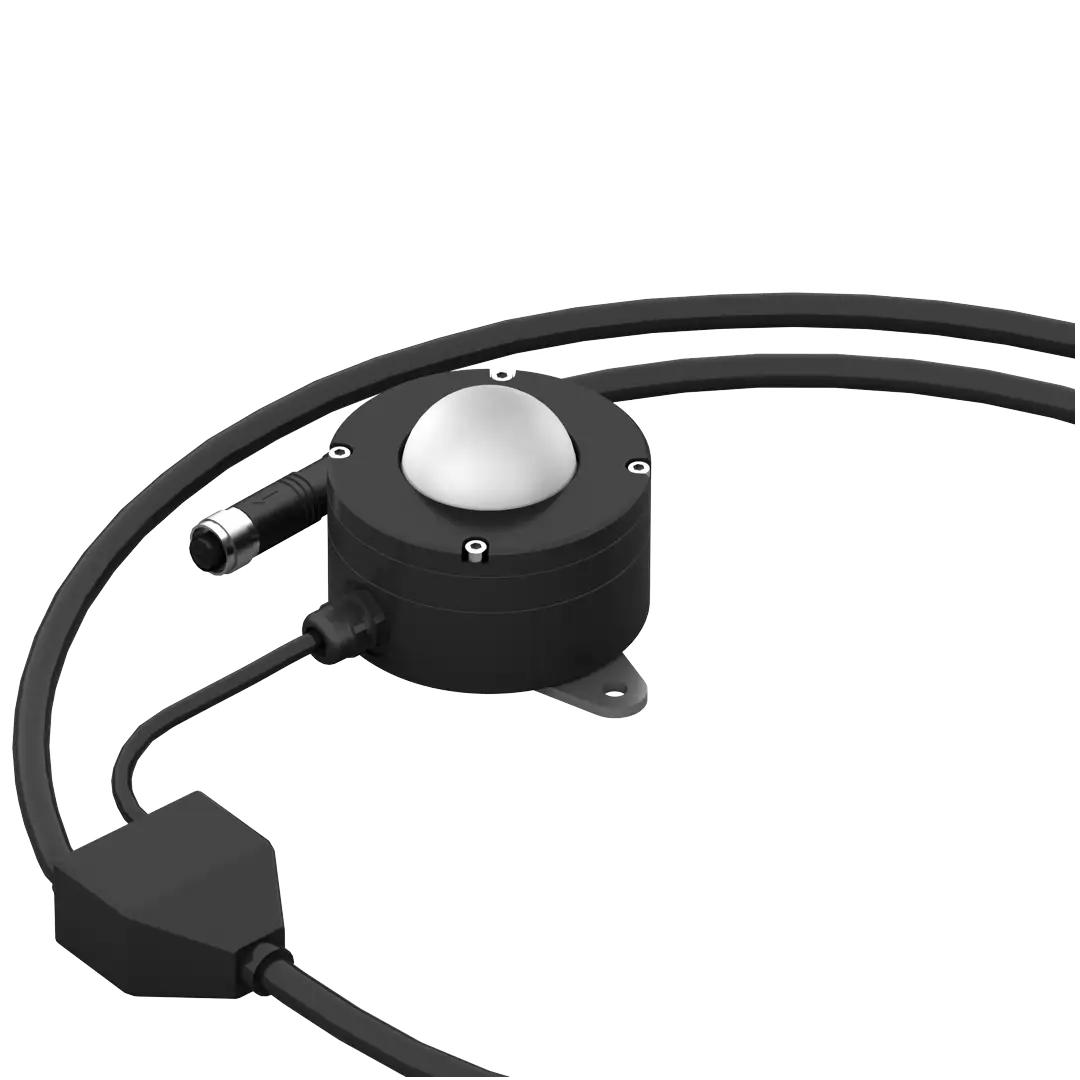

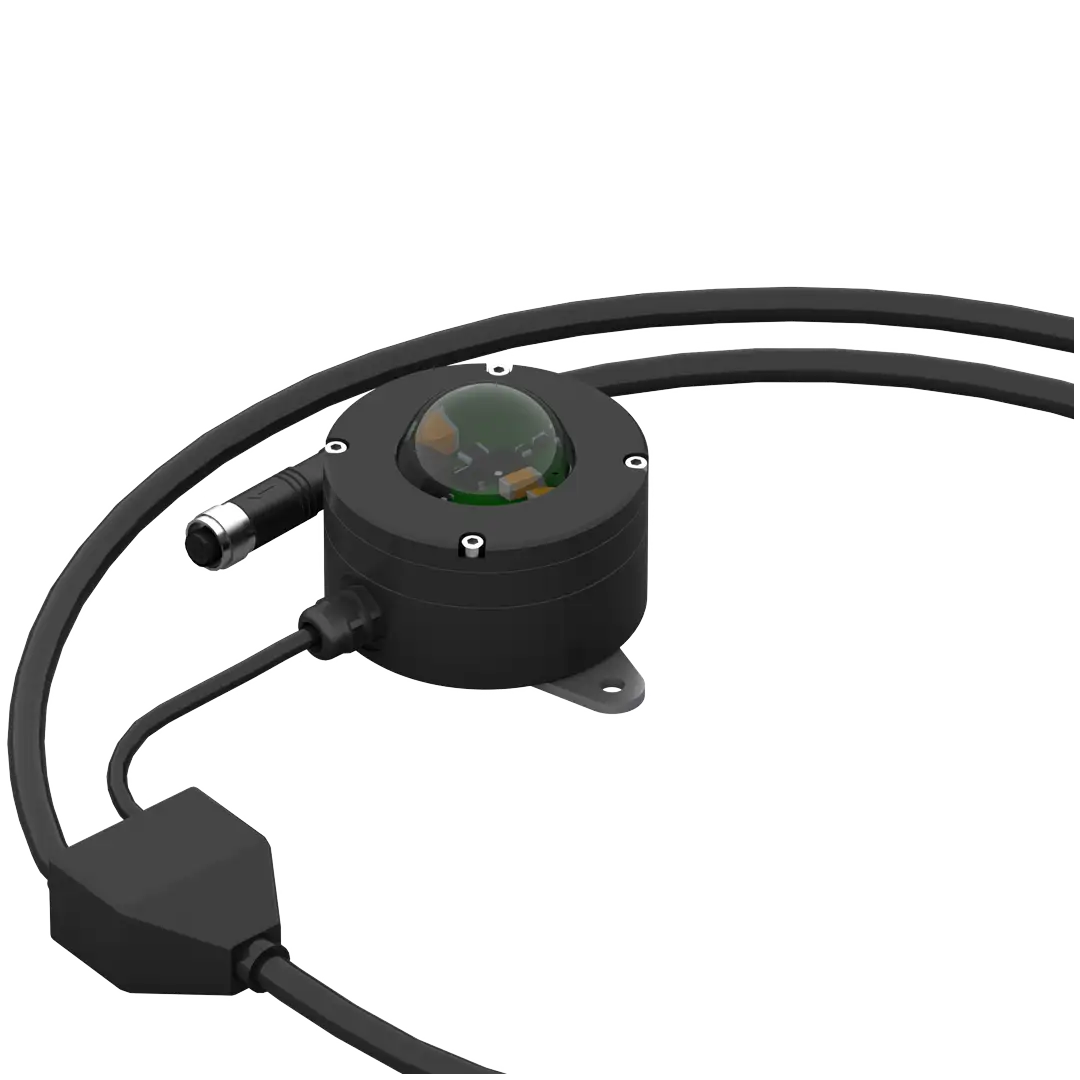

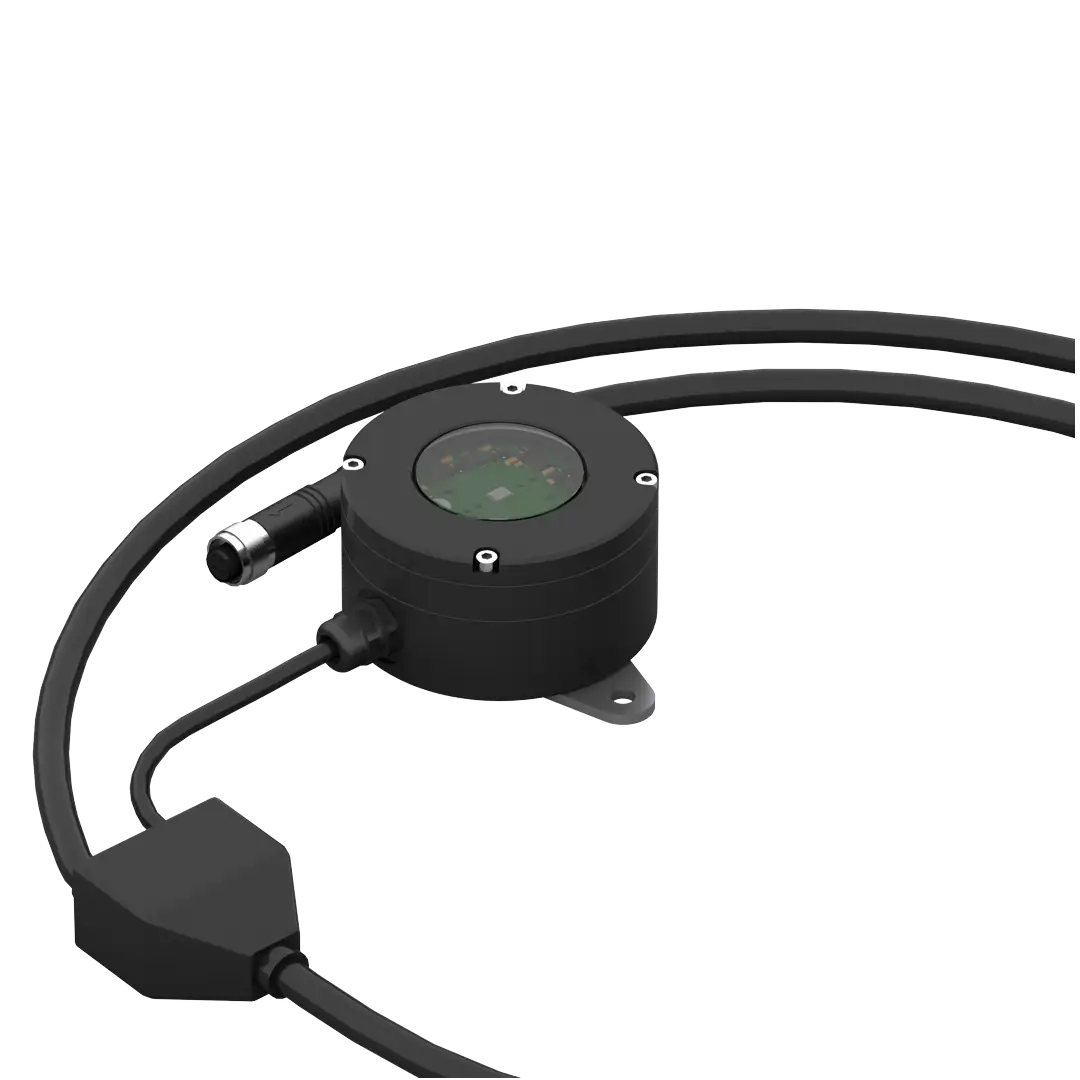

Optical customization is provided through three distinct lens types engineered for specific aesthetic results: an opal polycarbonate dome (Opal Dome) for soft, diffused light; a transparent dome (Clear Dome) for vivid brilliance; or a transparent flat glass (Clear Flat) for a minimal design and a clean, sharp luminous emission. This variety, combined with Black, Silver, or White finishes, allows the fixture to meet any architectural design requirement.

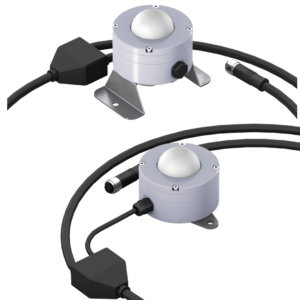

From a mechanical standpoint, integration is defined by two specific configurations that optimize cabling based on the mounting structure:

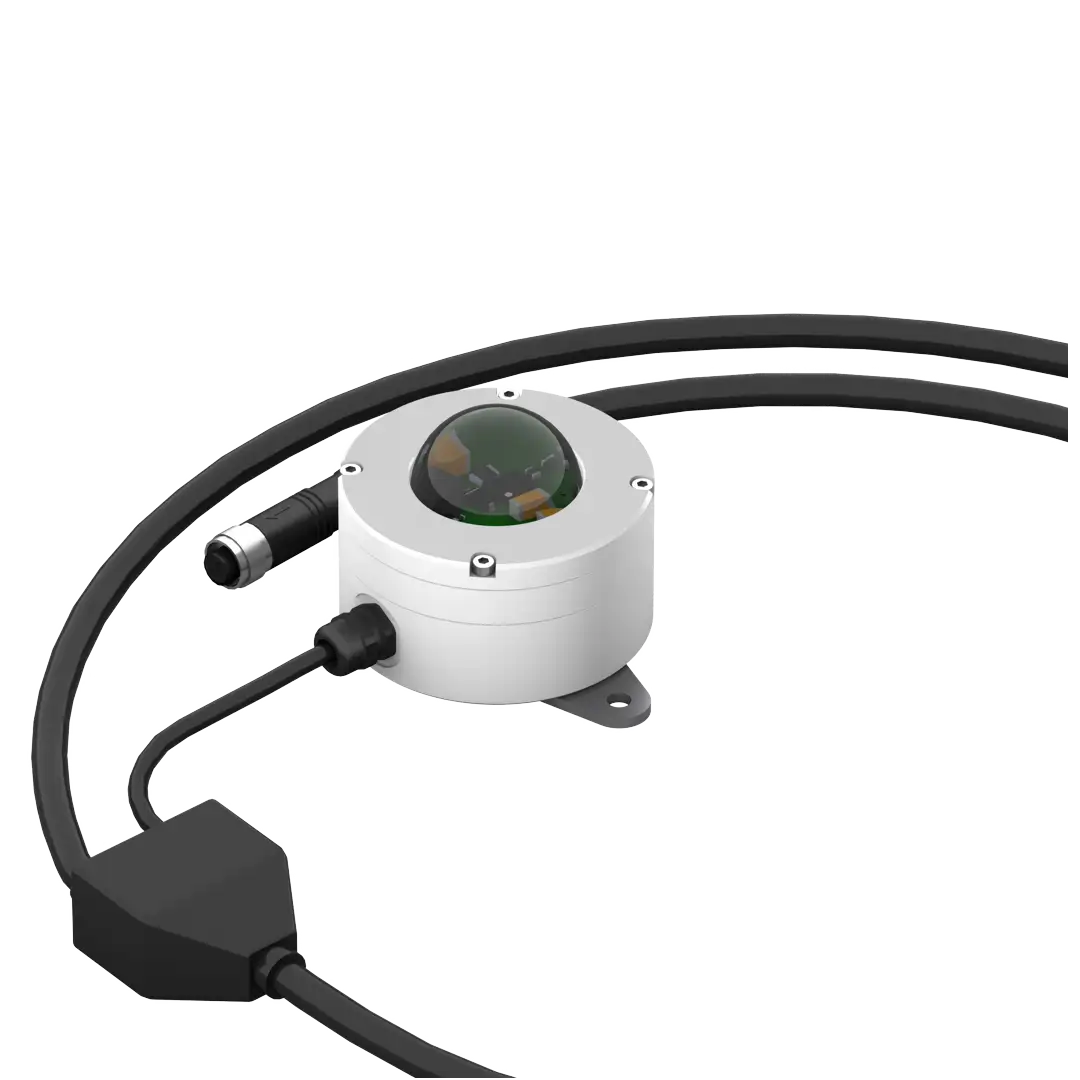

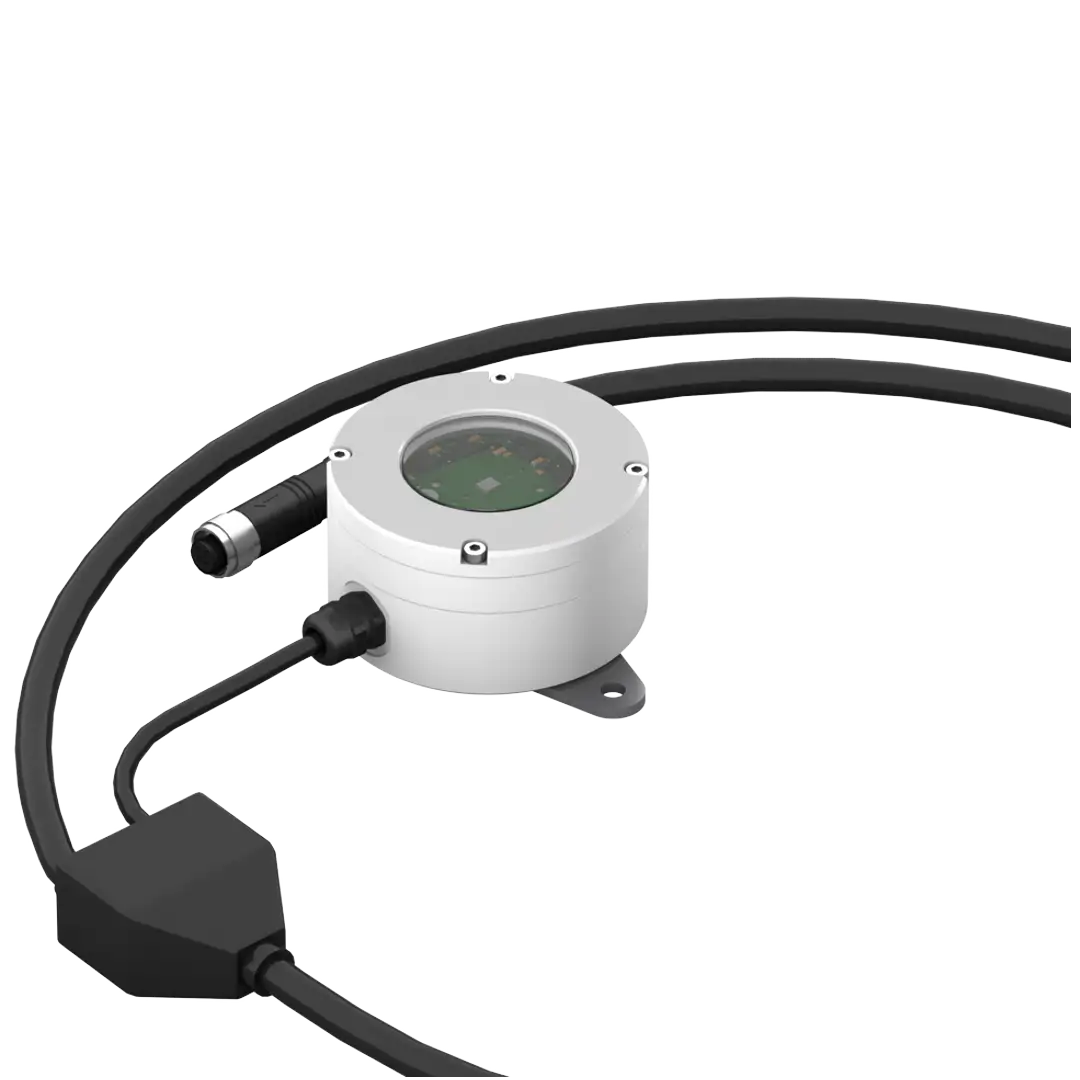

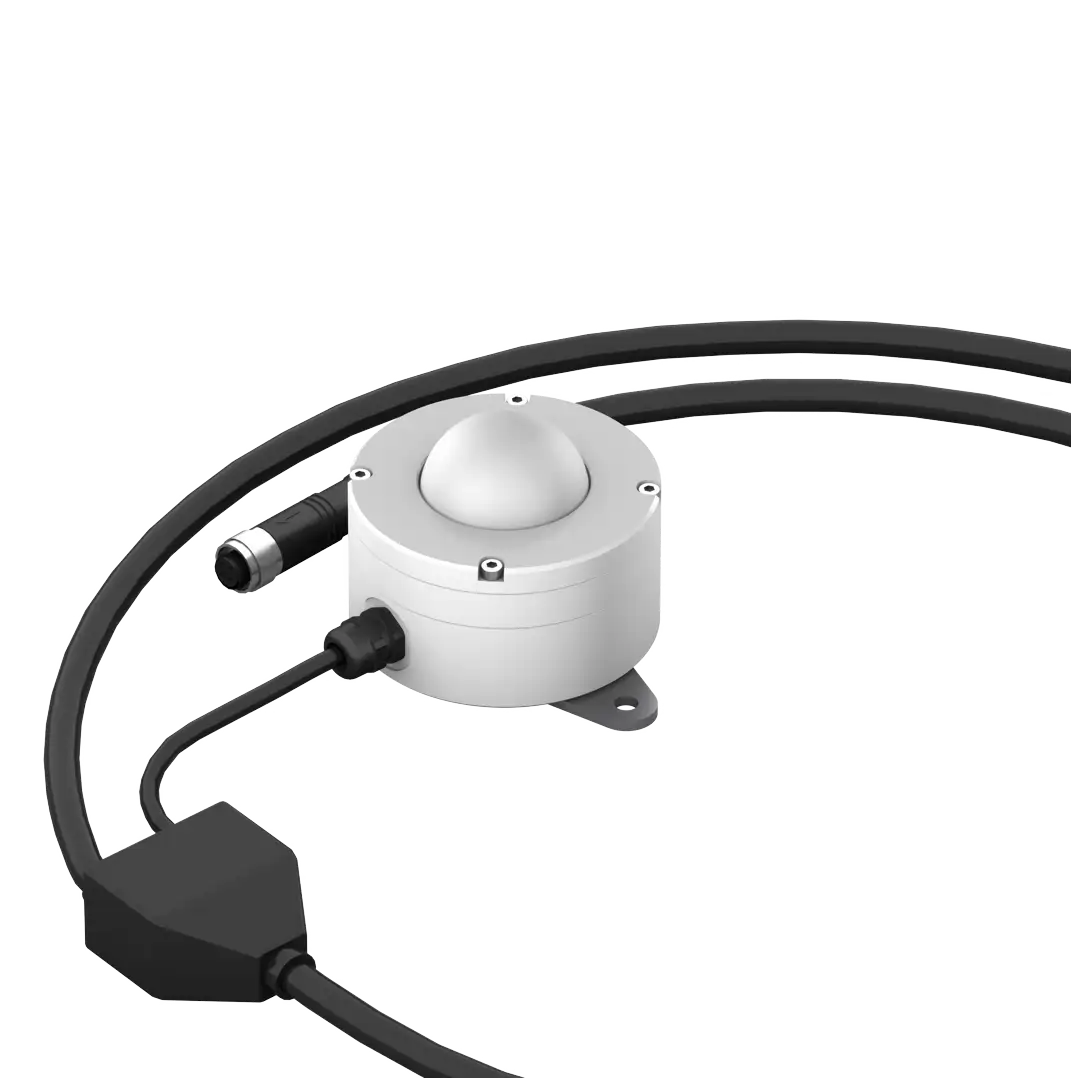

Flat Bracket with SIDE cable exit: This version is engineered to minimize depth footprint, allowing the fixture to sit nearly flush with the mounting surface. The lateral cable exit is designed for installations where cables run externally along the facade, facilitating daisy-chain connections between multiple units without the need for deep holes in the substrate.

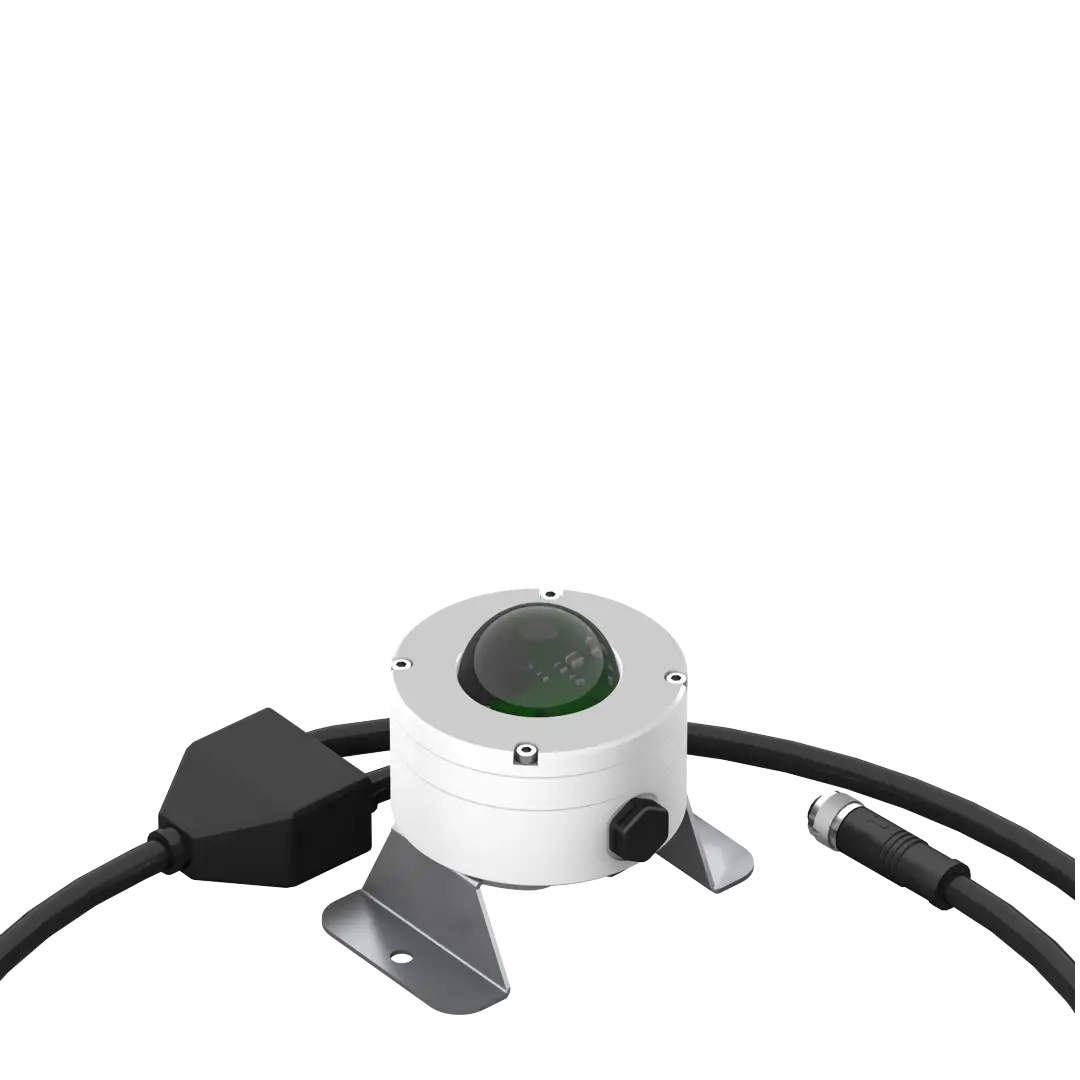

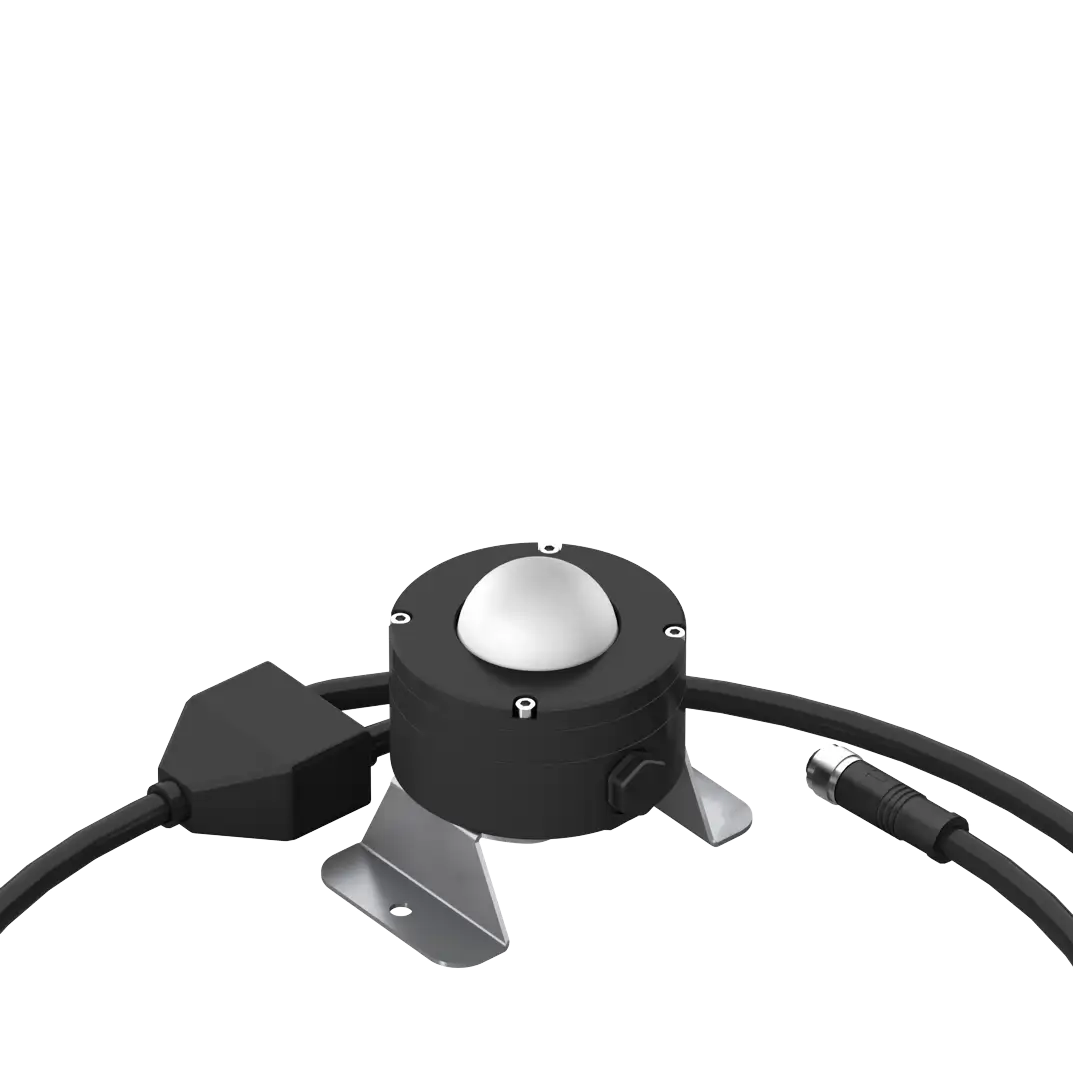

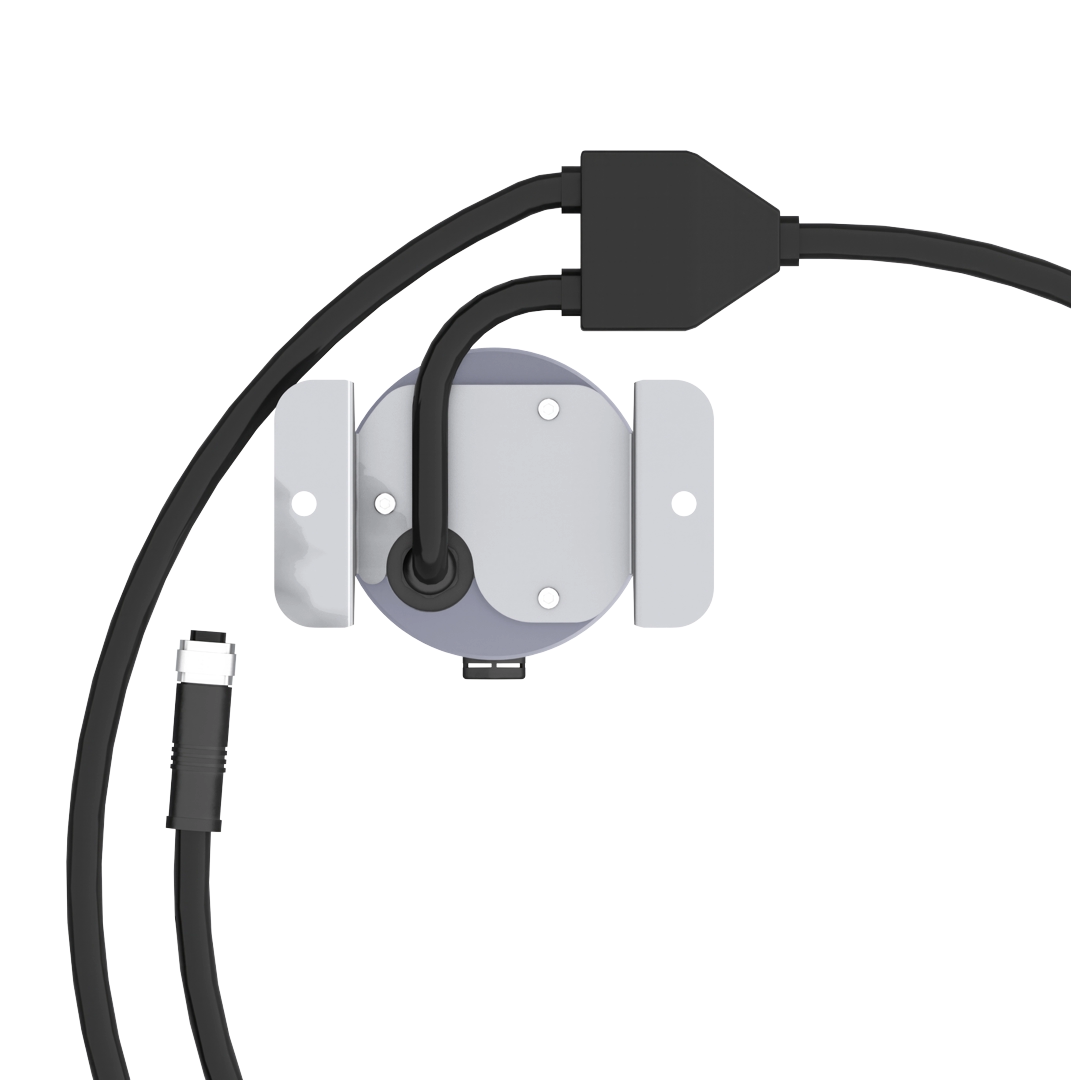

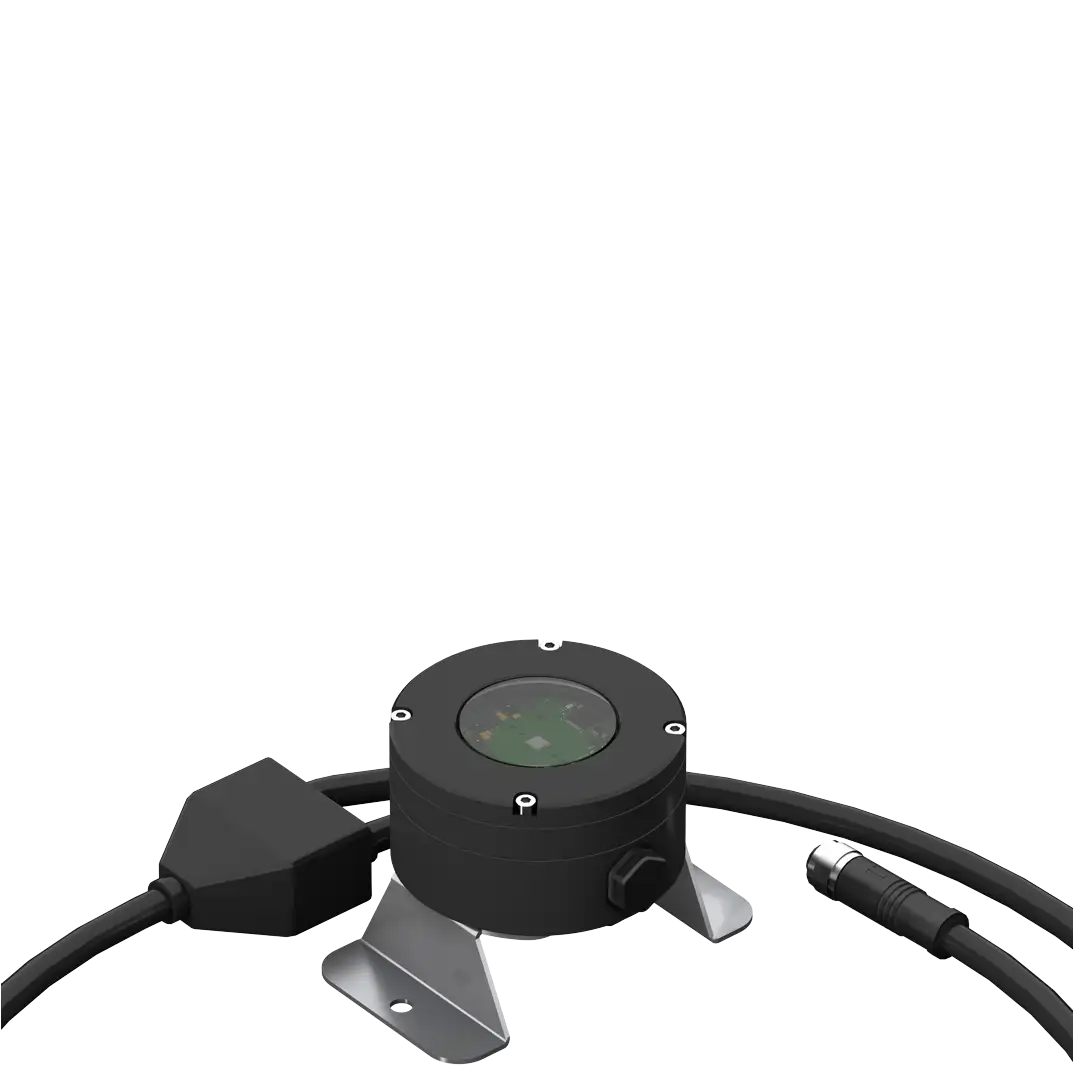

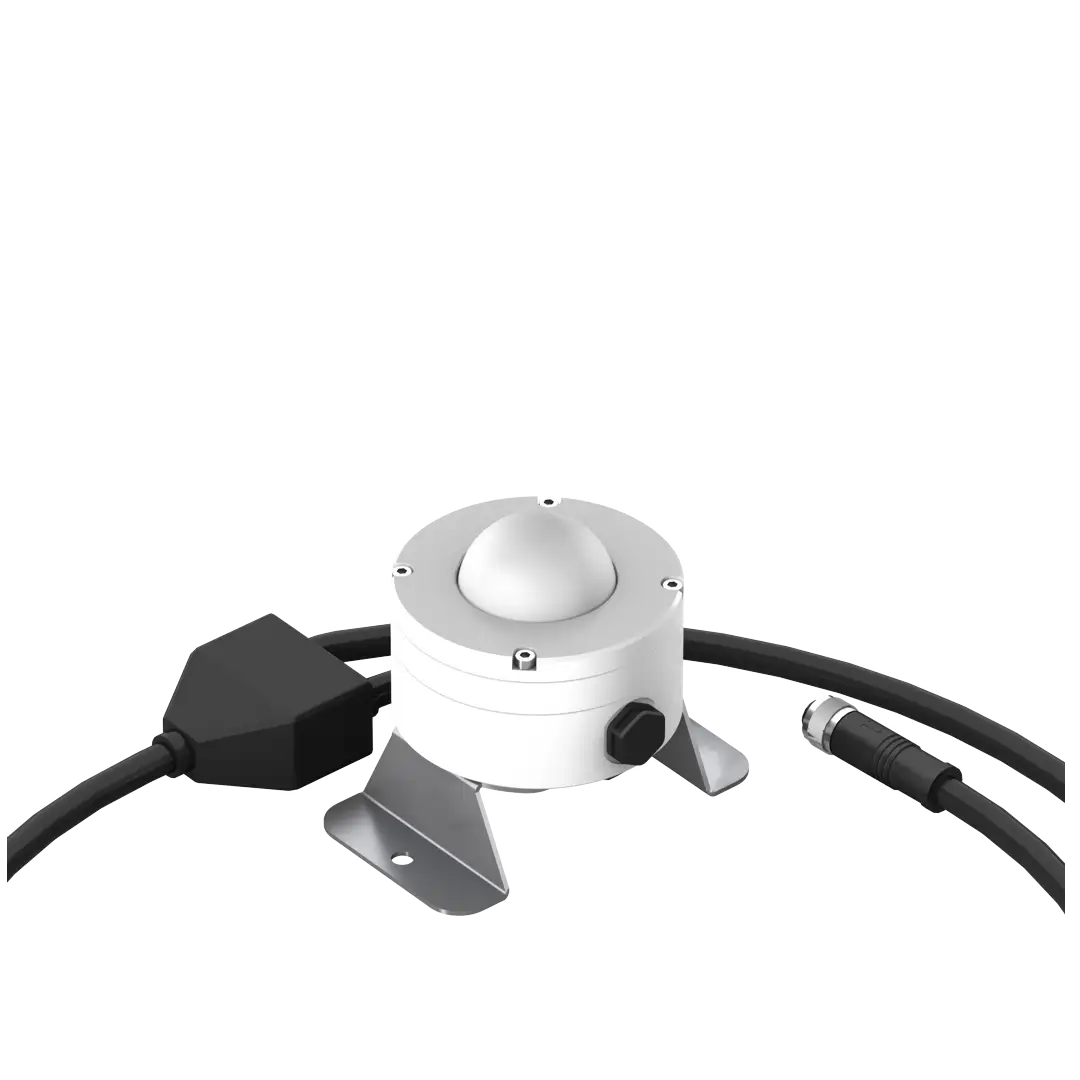

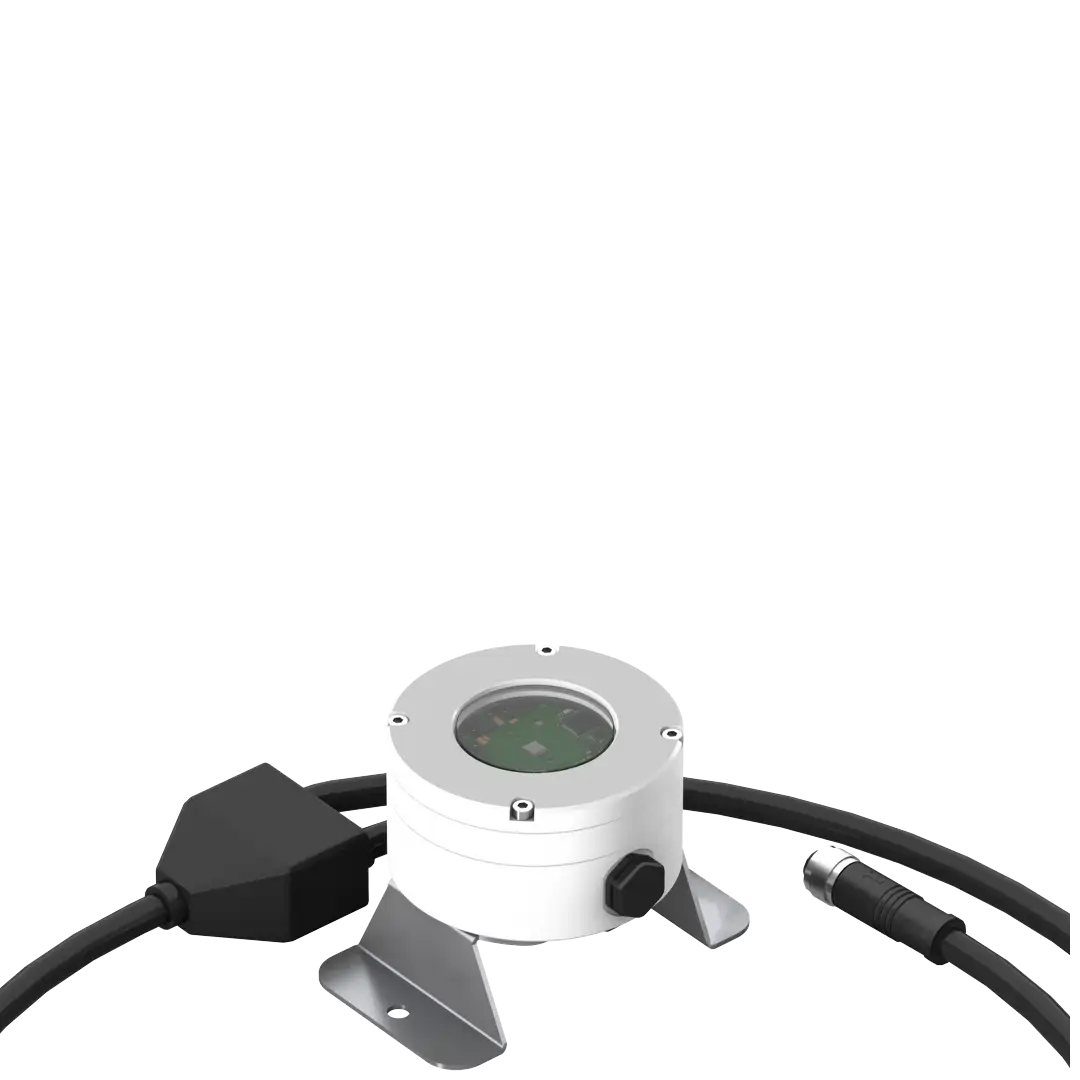

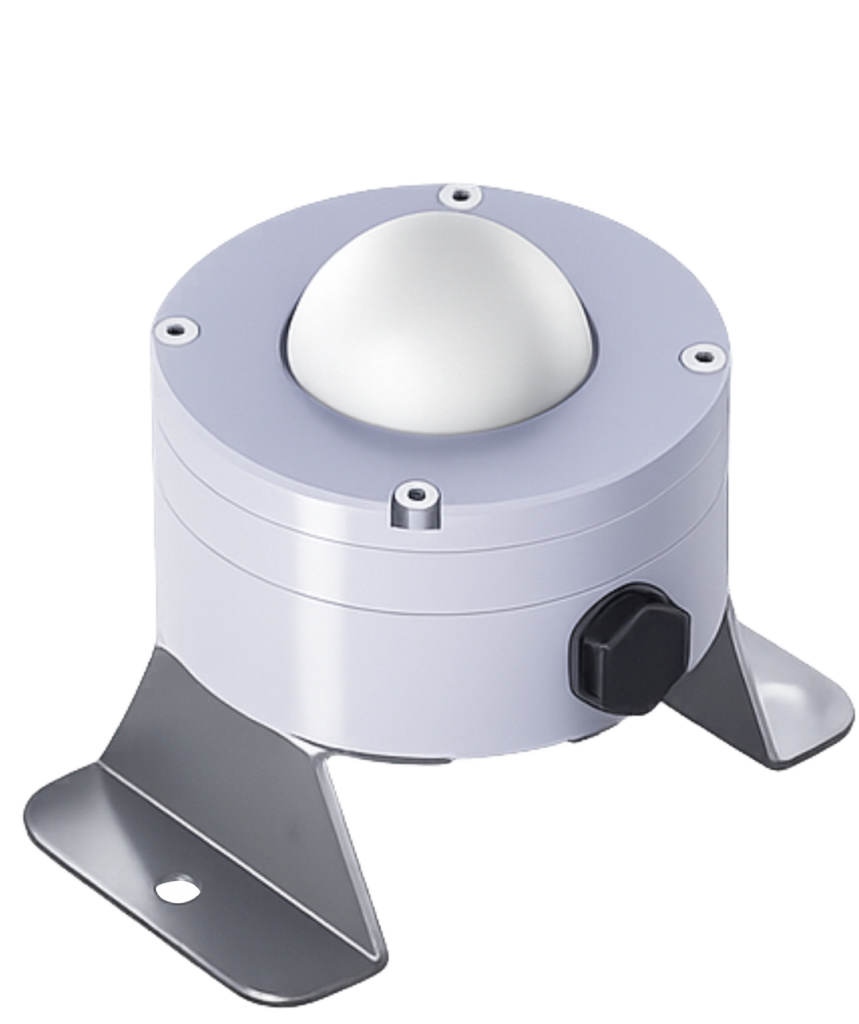

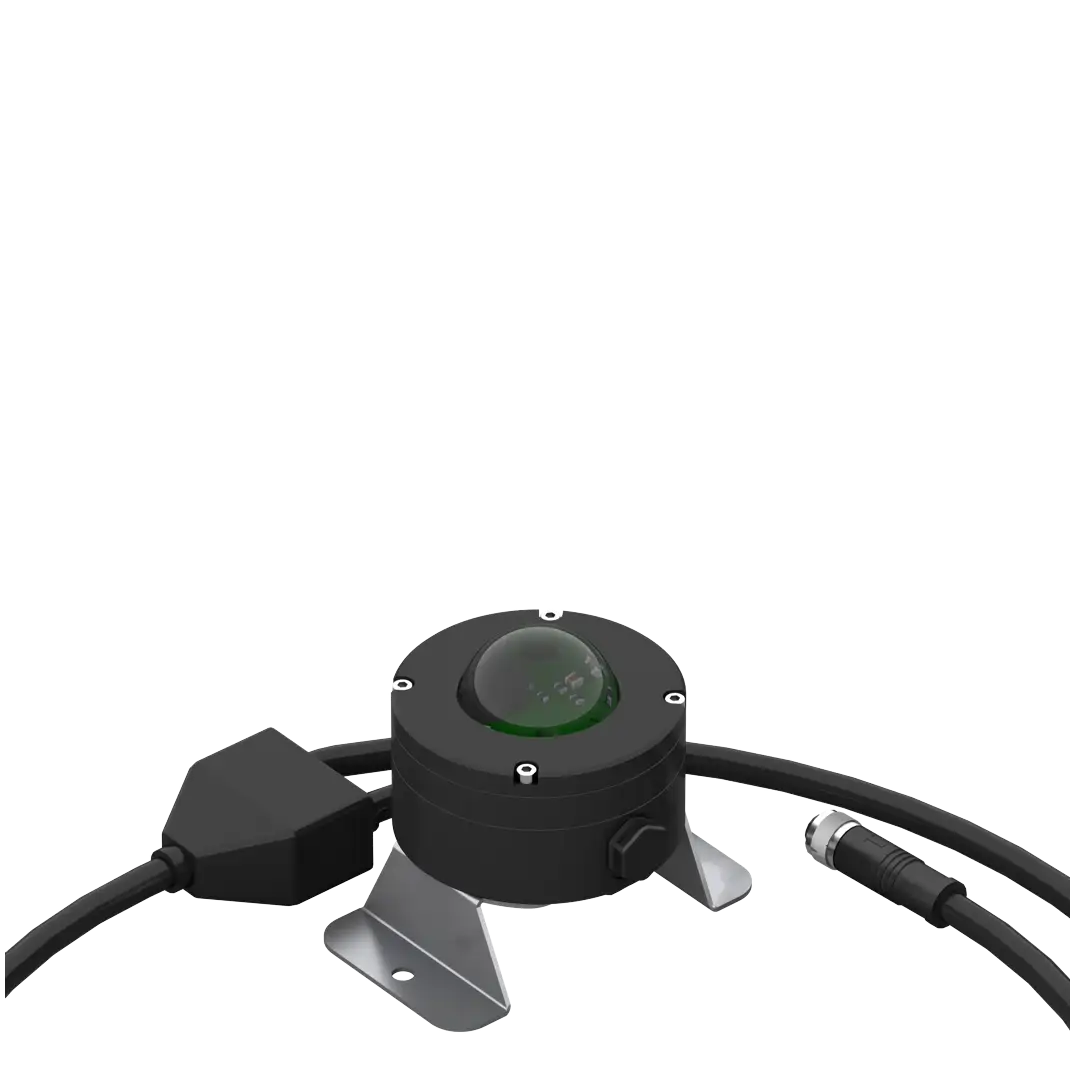

Omega Bracket with REAR cable exit: The specific "omega" geometry creates the necessary volume at the base of the product to house and protect the cable gland. This structure is paired with a rear cable exit, ideal for installations where cabling must disappear directly into the wall or mounting structure, ensuring absolute aesthetic cleanliness and total protection of the connections.

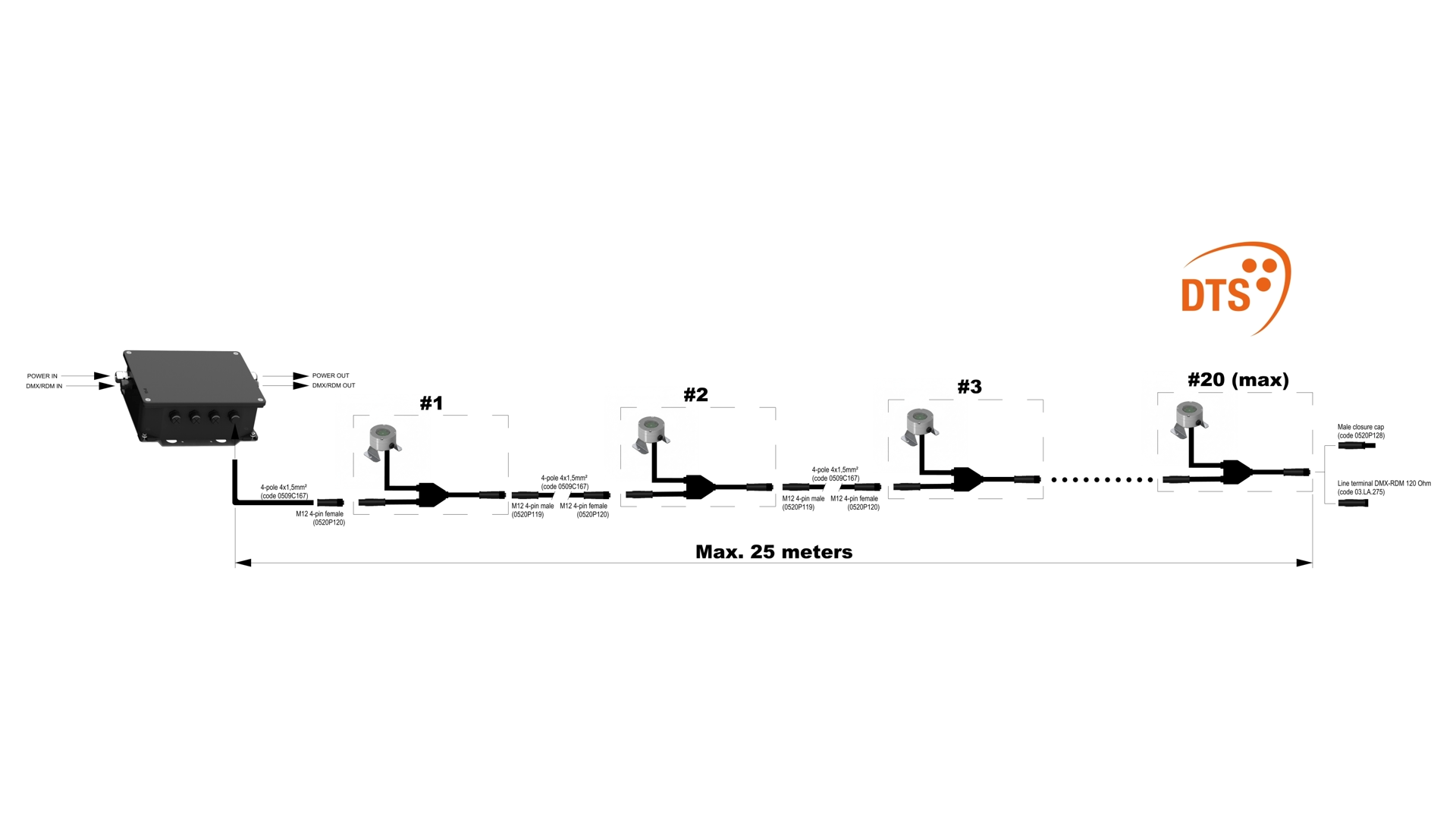

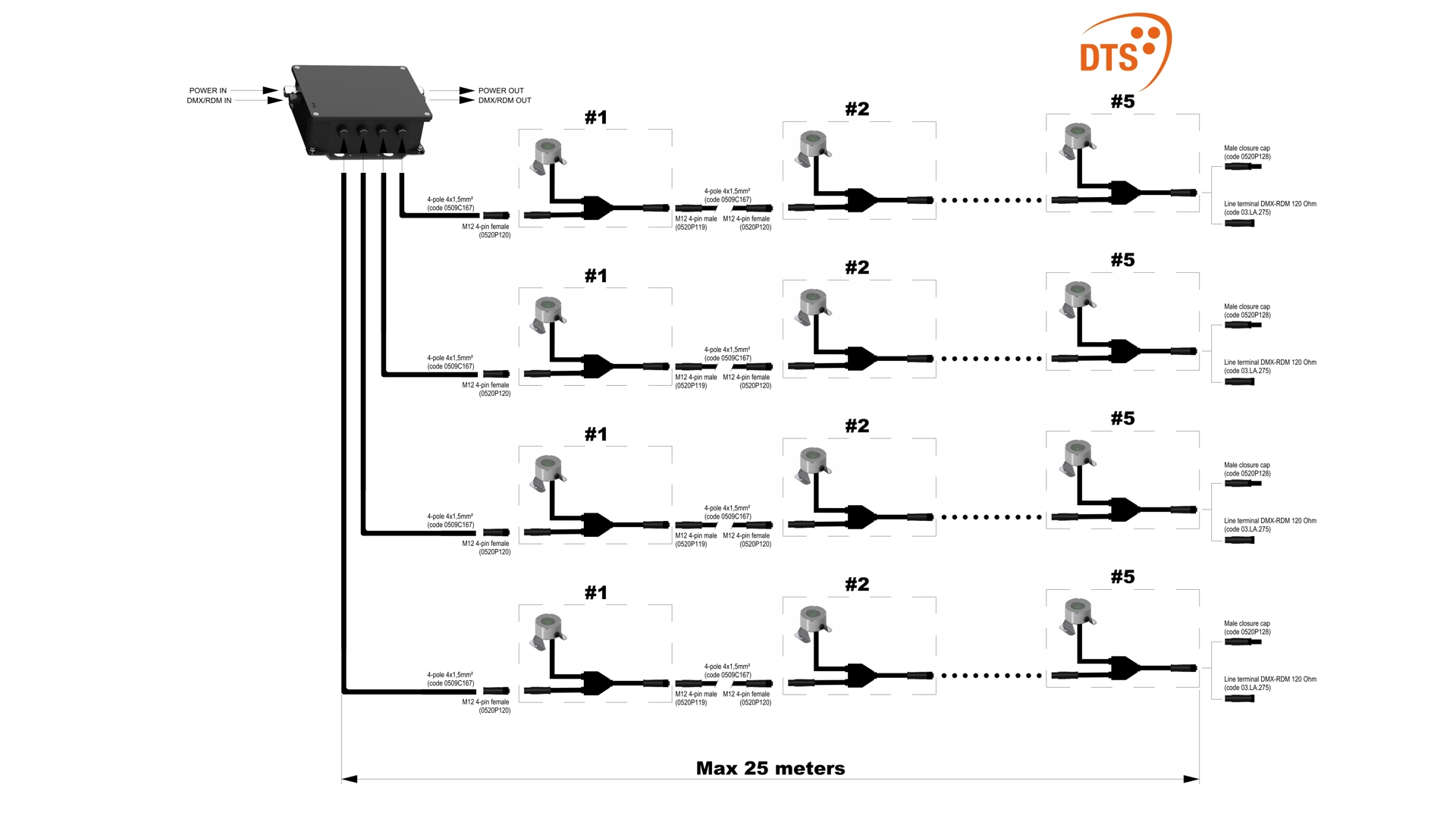

System intelligence is guaranteed by full support for DMX and RDM protocols. The latter enables comprehensive remote management, allowing for the addressing and monitoring of devices without physical access to the fixture. The system is powered by the high-performance 240W DMX Power Hub-4 IP66, a robust control unit that ensures constant operational stability and simplifies wiring in complex permanent installations.

Versatility and customization
