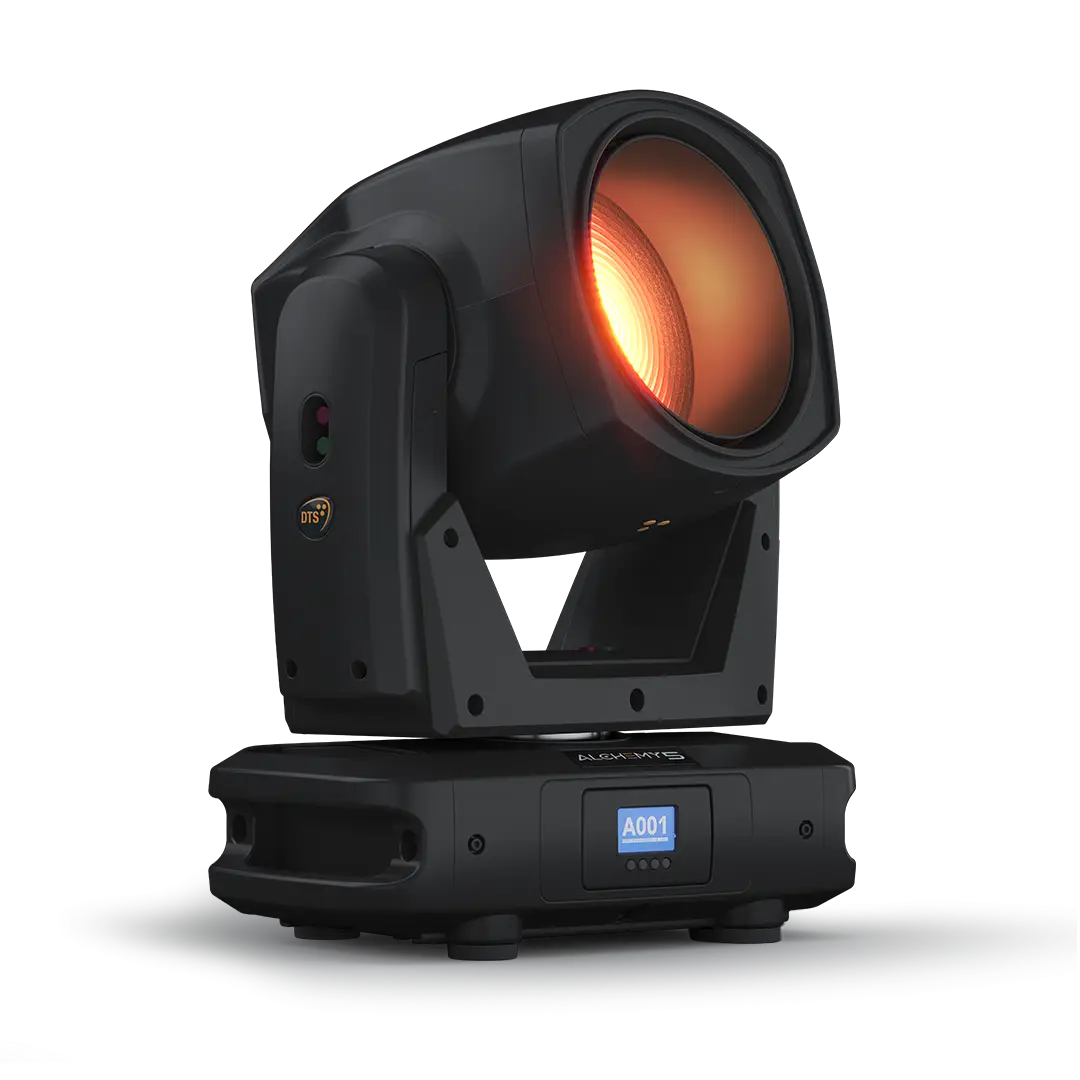

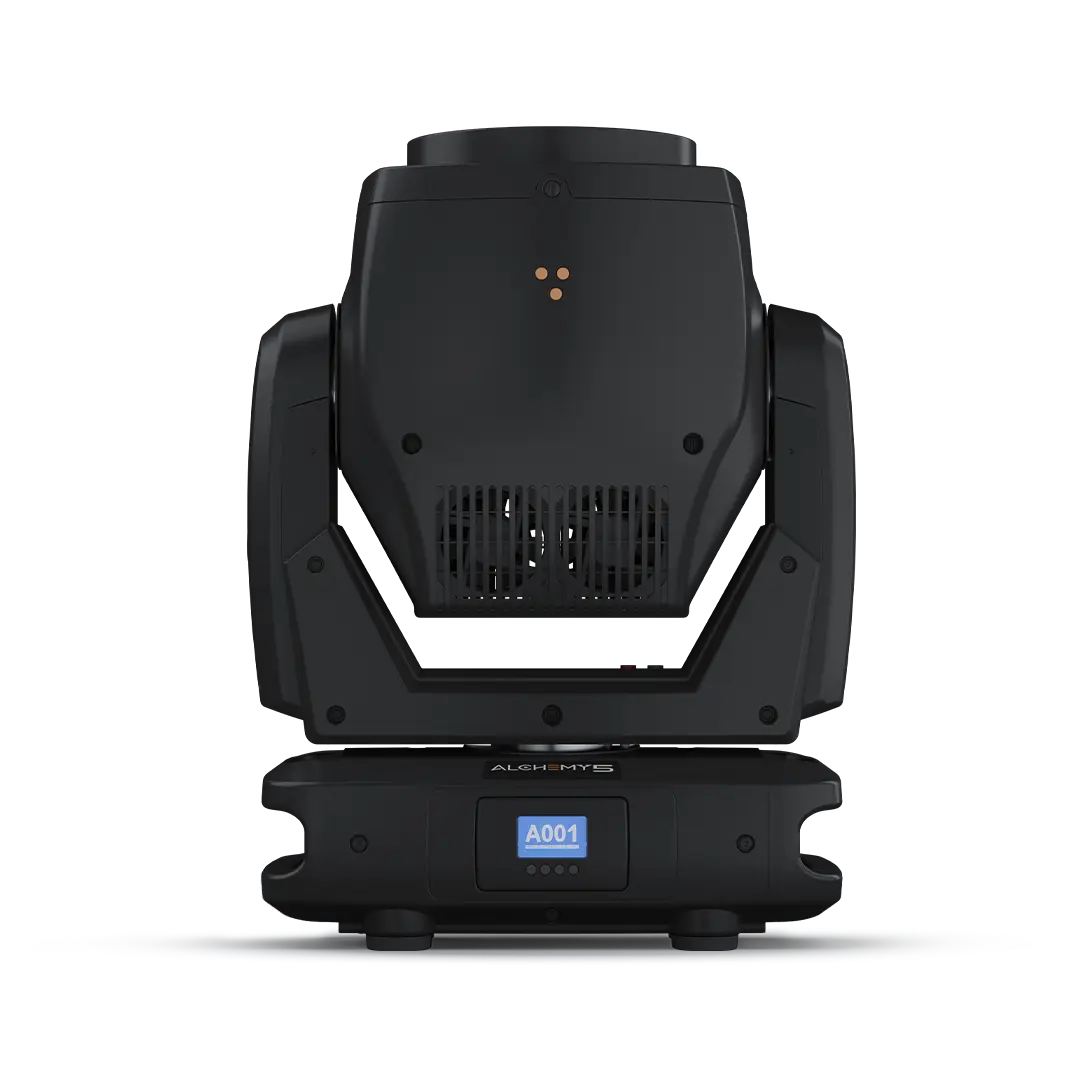

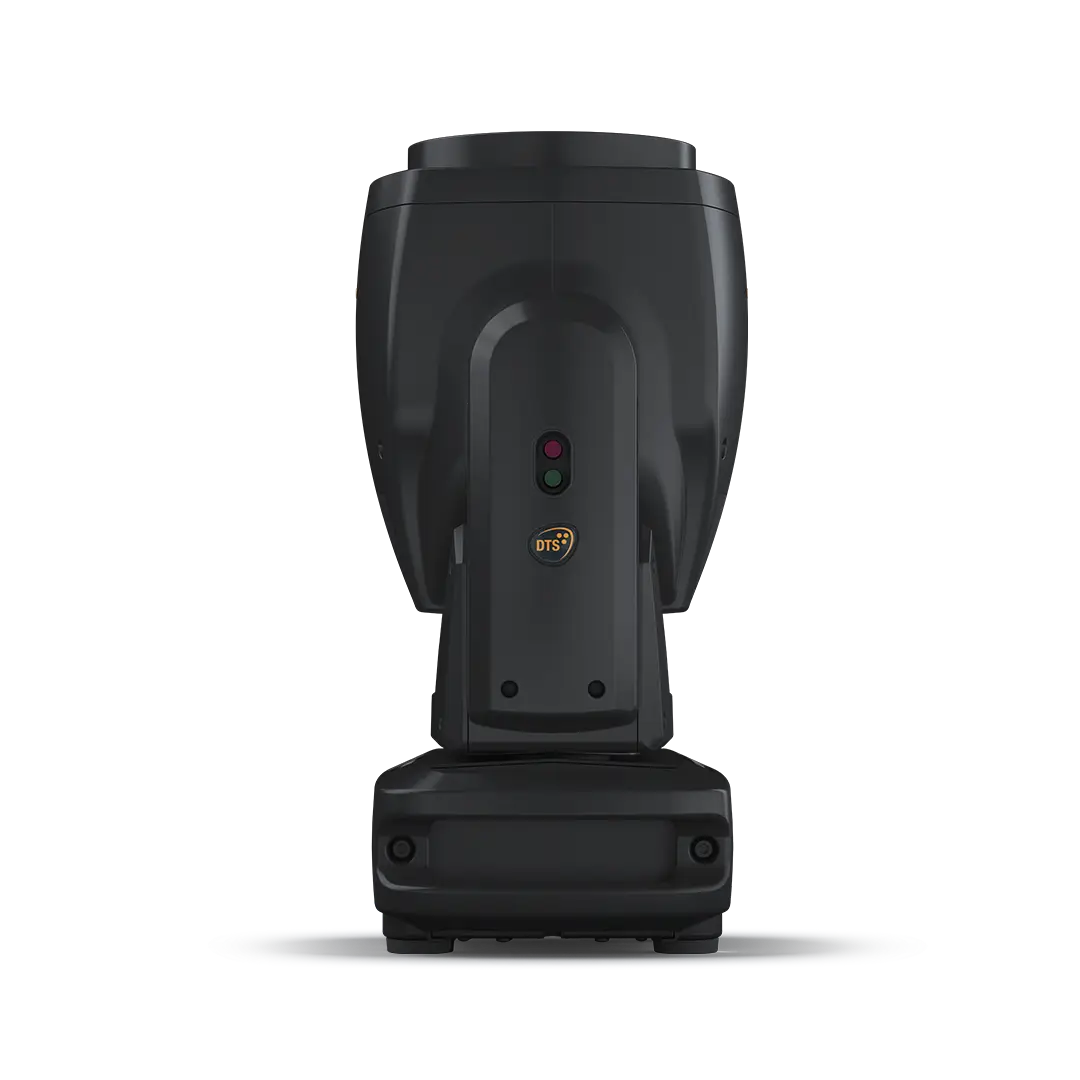

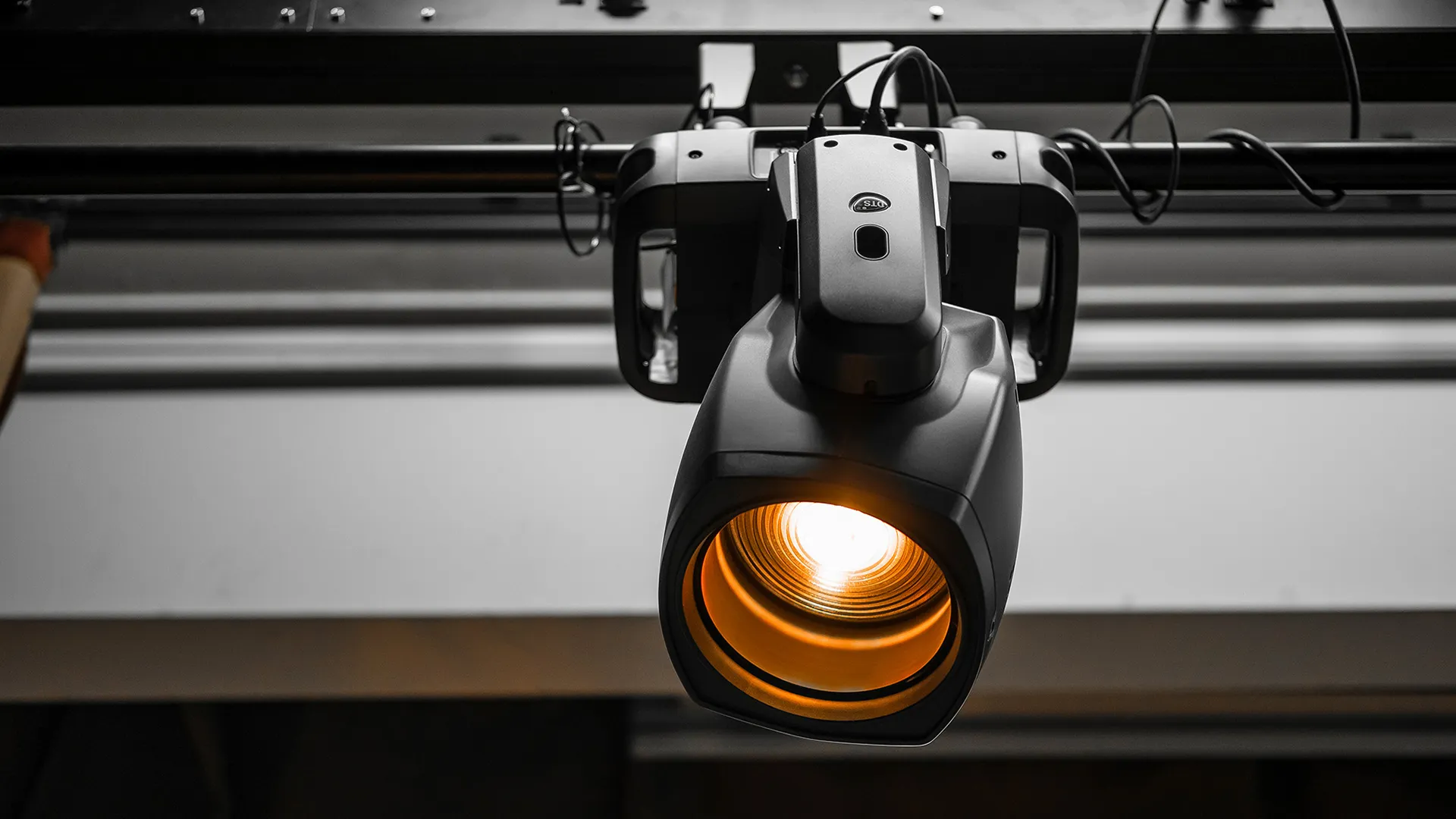

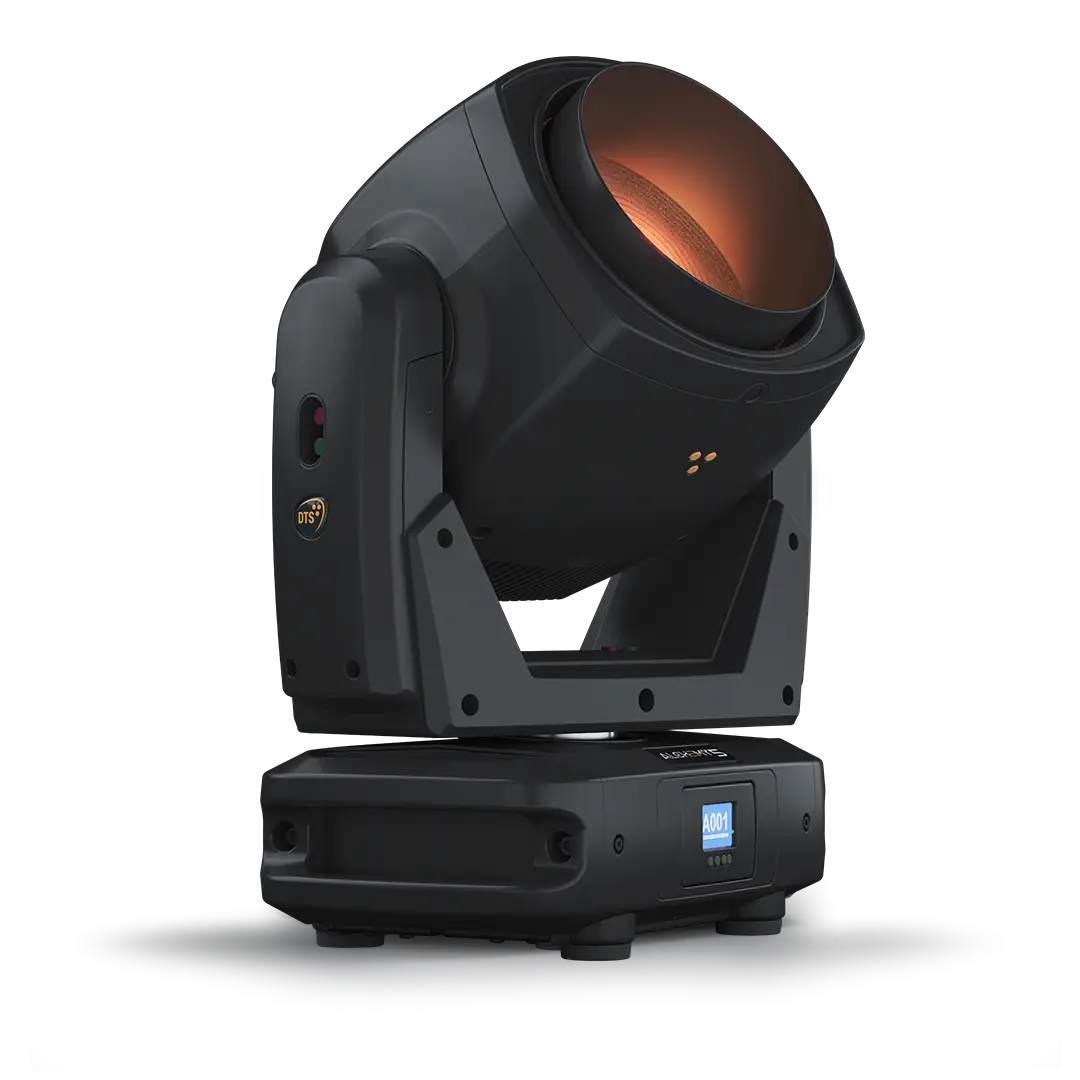

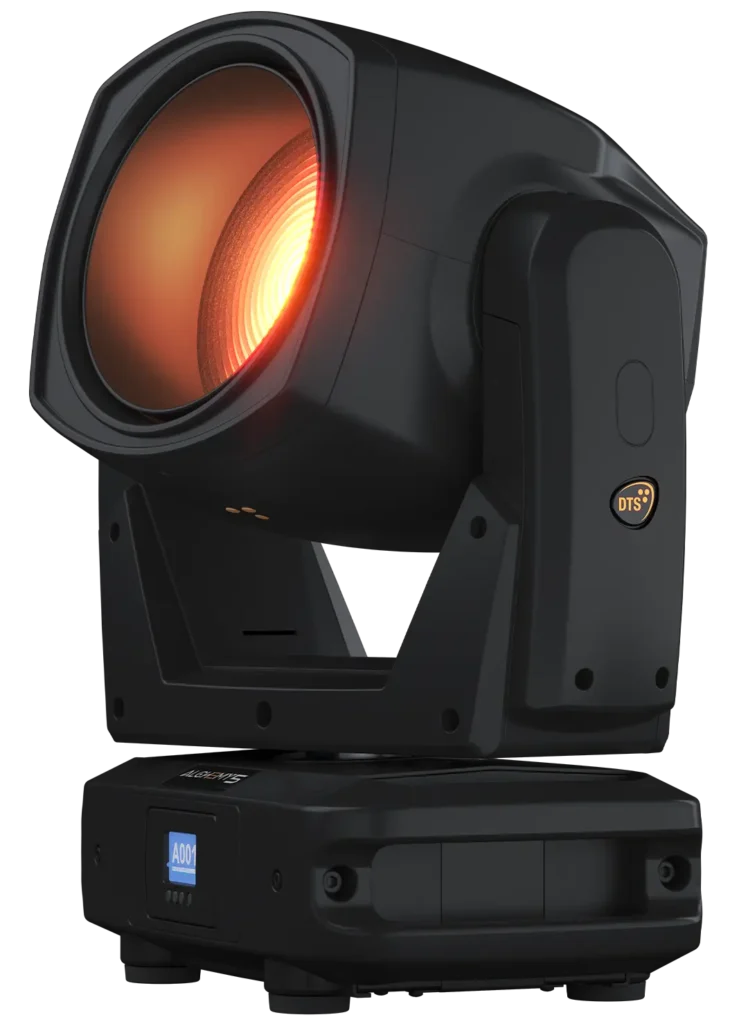

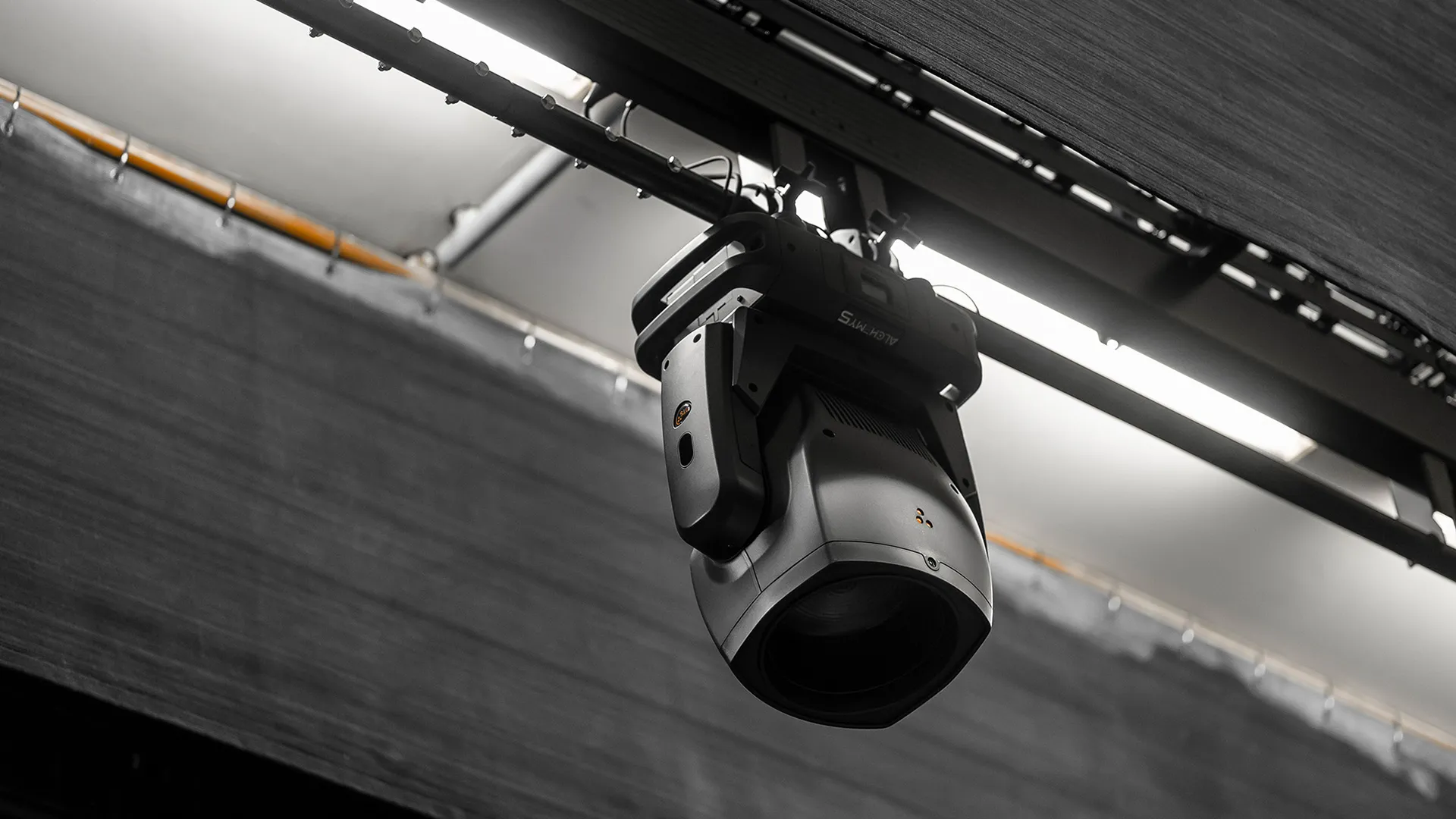

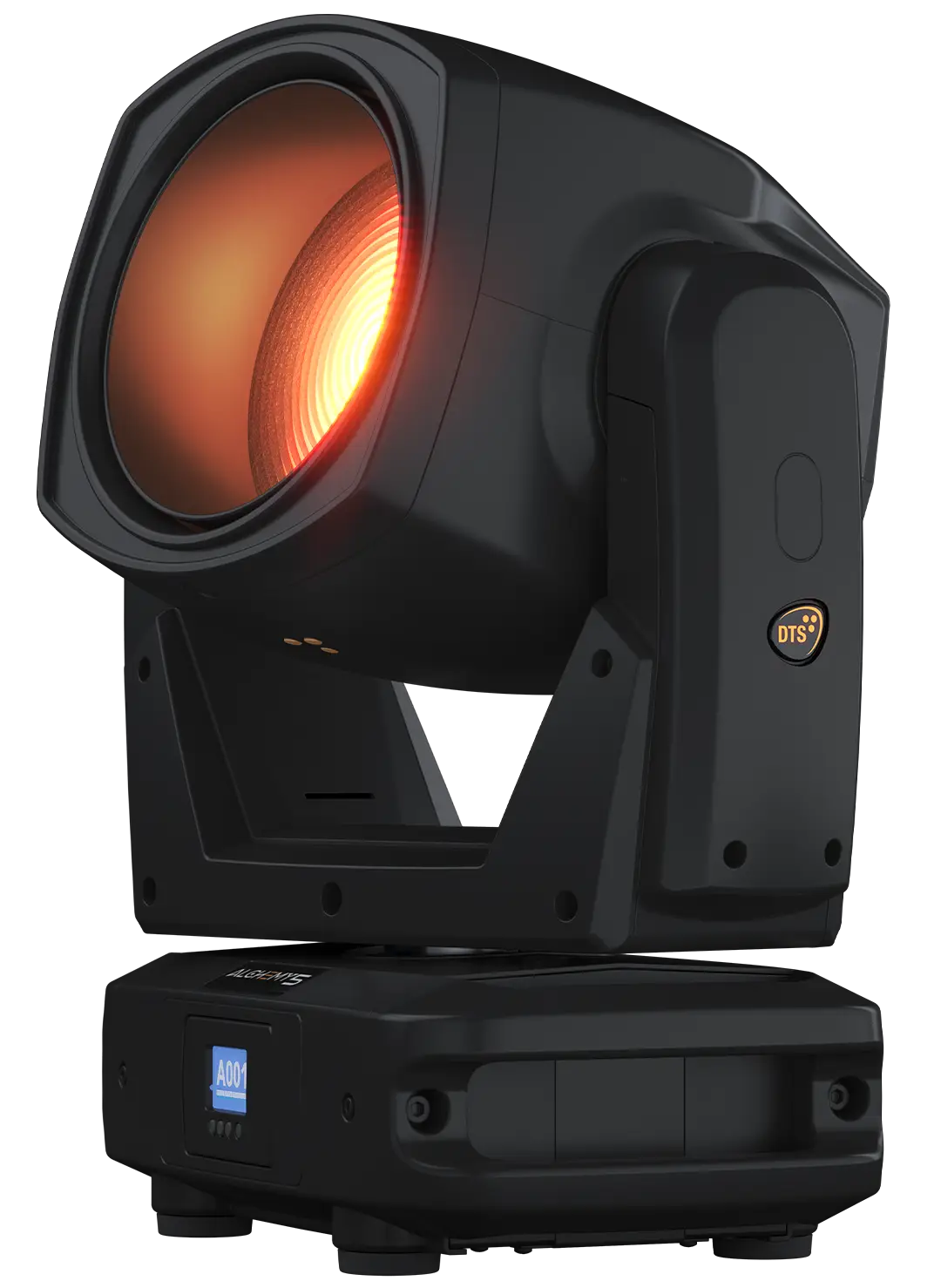

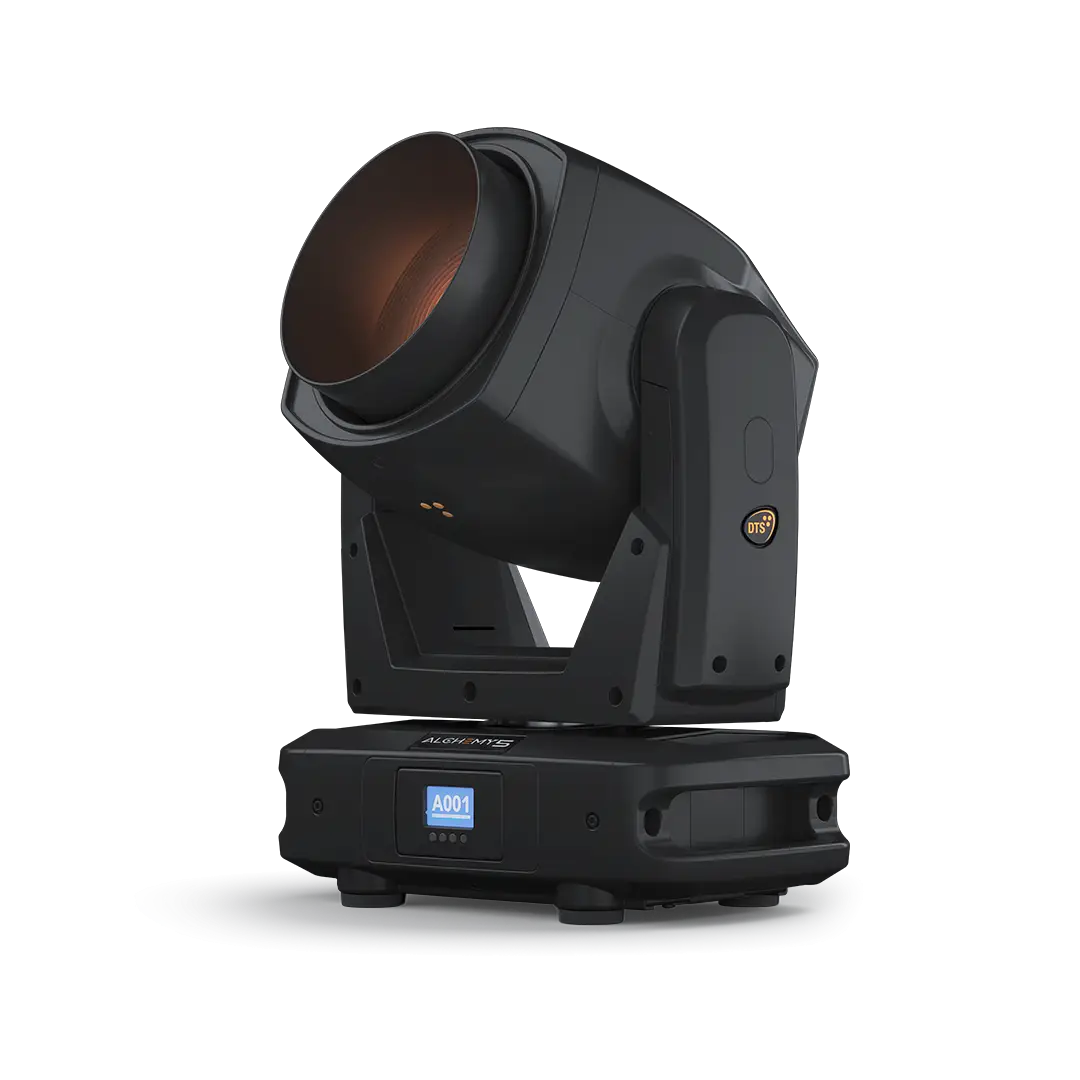

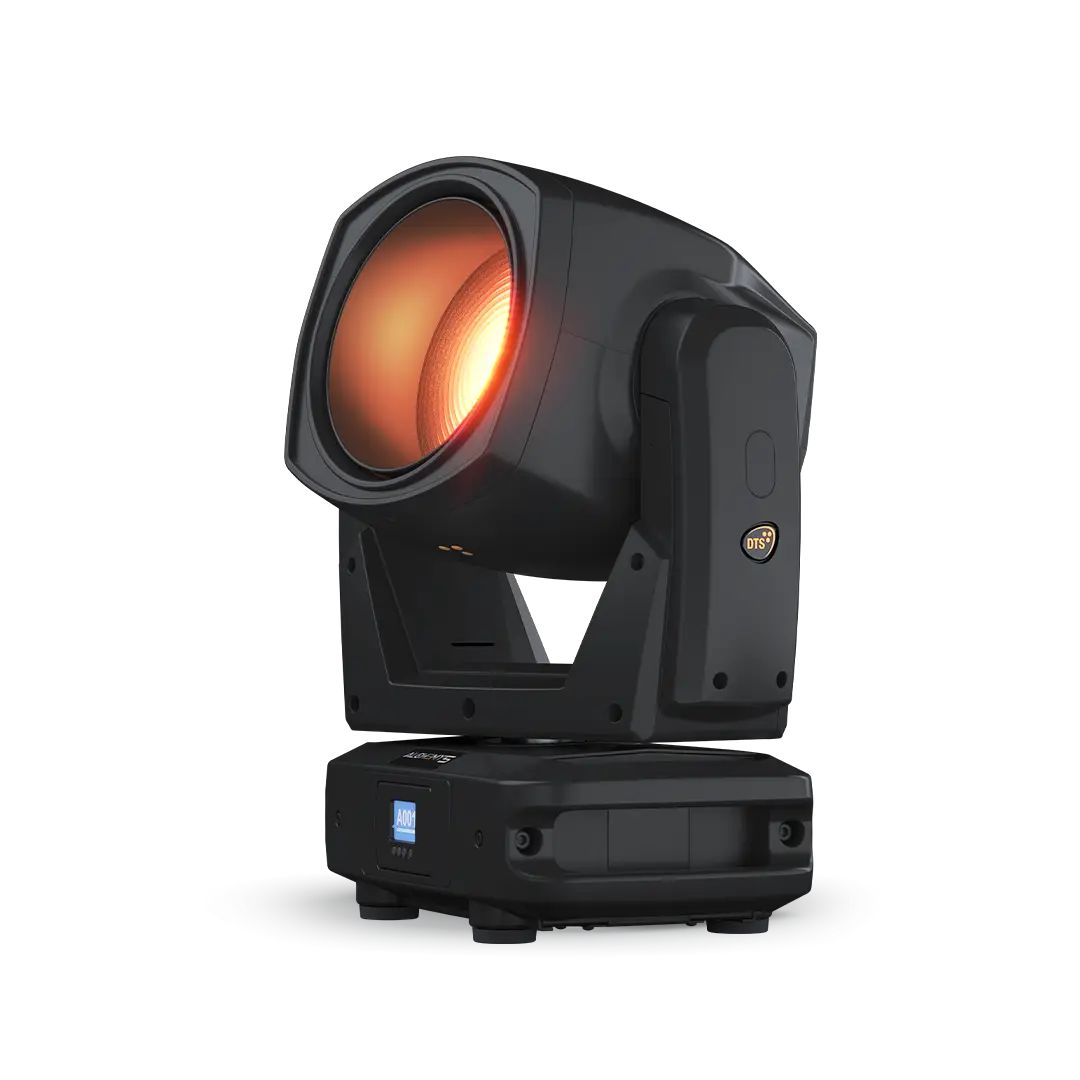

ALCHEMY 5

OUTPUT

• �� Lumen output: 10800
• �� CRI: up to 98
• �� R9: up to 95
• �� TLCI: up to 96
• �� LED lifespan: 50000 hours (L70B10)

OPTICAL GROUP

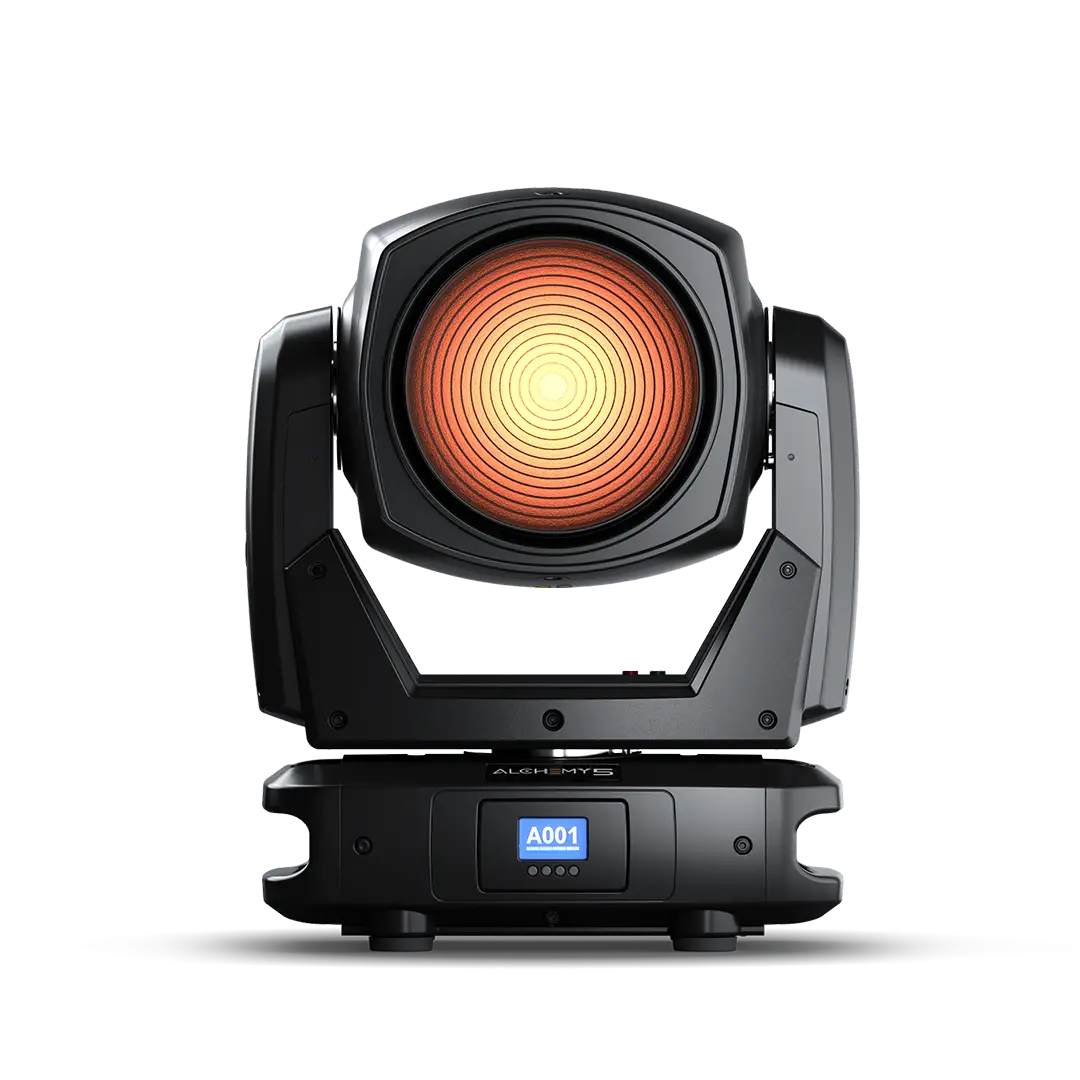

• �� Ø 250 mm Fresnel lens
• �� 10°- 47° linear zoom
• �� Indexable beam shaper (2×1 ratio) with endless continuous rotation
• �� Soft and heavy frost filter insertable via DMX
• �� Retractable ‘top hat’

COLOR / WHITE GENERATION

• �� 6 color LED engine
• �� Linear CCT (1,800 K – 10,000 K)
• �� Green saturation: Linearly adjustable green/magenta point
• �� 100 gel filters emulation:
  • Linear crossfade from gel filters emulation to CCT whites
  • Linear crossfade between emulated gel filters
  • True color of gel filters emulation at any CCT values
• �� “Raw” RGBACL color-mixing in ‘Advanced’ mode
• �� Extra deep colors: Two DMX-selectable filters (‘deep blue’ and ‘deep red’) allow to further extend the range of reproducible colors toward the two ends of the visible spectrum
• �� HQS (High Quality Spectrum) – DTS trademark certifies a product’ superior white light quality and its ability to generate an extended color palette offering a wider gamut of pastel shades with rich warm nuances.

DIMMER

• �� ‘Hi-Q Dimming’ technology – guarantees a perfect linearity in the increase / attenuation of brightness of multi-chip LED sources, even at low dimming levels, without visible ‘steps’ between adjacent values
• �� Tungsten emulation – CCT variation emulates behavior of Halo-lamps

CONTROL

• �� LCD graphic display with 4 soft keys (“auto-flip” and “key-lock” functions available)
• �� RDM / DMX 512 protocol, Art-Net 4, sACN protocols
• �� Wireless DMX available on request
• �� ‘Standard’ , ‘Silent’ operation modes.(automatic noise control up to the threshold of the operation modes)
  • Standard operation mode: 39 dBA@1mt (100% lumen output power)
  • Silent operation mode: 37 dBA@1mt (77% lumen out power)
• �� Firmware: Internal operating system updatable via DTS dongle firmware uploader
• �� “Li-Fe” backup battery allowing the use of the on-board unit display when it is not powered, besides ensuring a safe return and blockage of the top hat during shut down

DMX

• �� 5 DMX modes:
  • 1. CCT (Default)
  • 2. Advanced (Raw)
  • 3. Basic
  • 4. Expo
  • 5. CMY Emulation

PAN & TILT

• �� Pan 540° : 3.8 s
• �� Tilt 215° : 2.1 s
• �� 16-bit resolution
• �� Pan/Tilt Lock

POWER SUPPLY

• �� Electronic Wide-range 100-277 Vac 50-60 Hz
• �� Power consumption: 450 W max
• �� Power Factor: PF >0.90

CONNECTIONS

• �� Power supply: PowerCON TRUE1 In/Out panel connectors
• �� DMX: XLR 3-pole and 5-pole In/Out panel connectors
• �� Art-Net / sACN: etherCON RJ45 connector

CIRCUIT PROTECTIONS

• �� Overvoltage and overtemperature circuit protection

TEMPERATURE

• �� Operating: -10° / 45° C
• �� Storage: -20° / 60° C

PHYSICAL

• �� Weight: 26,5 Kg (58 lbs)
• �� Finishing: Black
• �� IP rating:IP20

TEST AND CERTIFICATION

• �� CE

ACCESSORIES INCLUDED

• �� 1x powerCON TRUE1 female cable connector (code 0520P066)
• �� 2 x Omega bracket with “Fast Lock” connection 1/4 turn (code 02K00549)
• �� 1 x Alchemy 5 EZ-shell 560 x 490 x 670 mm – 2 pcs needed in each flightcase (code0512K152.1)

ACCESSORIES ON REQUEST

• �� Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
• �� G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
• �� Flightcase for 2 units (code 0521C078)
• �� Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
• �� Safety cable 5 x 600 mm – Max load 60 Kg (code 0521A038)
• �� DTS firmware uploader dongle (code 03.LA.206)
