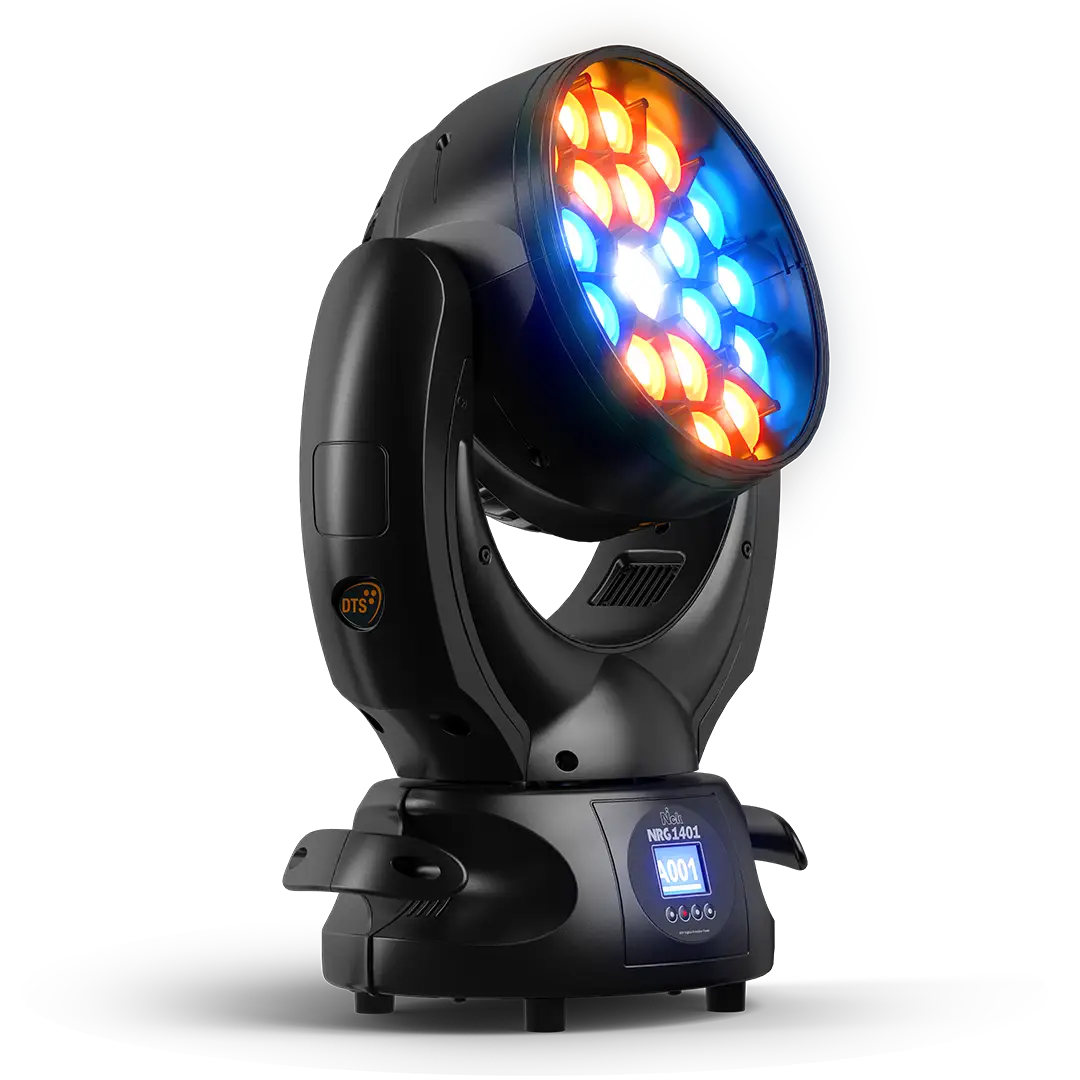

NICK NRG 1401

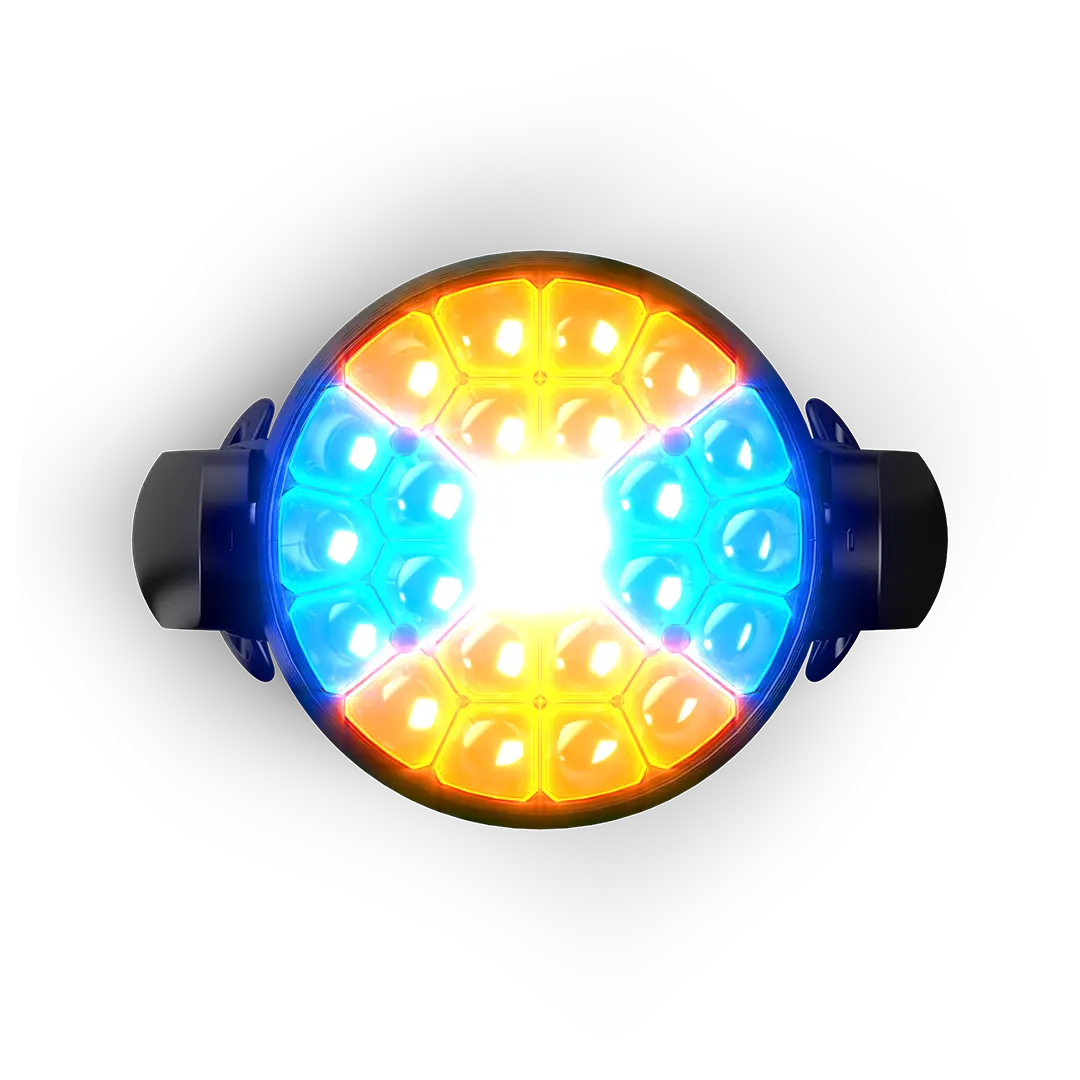

Equipped with 23 Full Color (RGBW) LEDs of 20 W each, delivering a total luminous flux of 11,500 lumens. Pixel-to-pixel control enables individual LED management for dynamic and customized graphic effects. The LEDs have a lifespan of 50,000 hours (L70B10), ensuring reliability and low maintenance.

The high-efficiency optical system features a 4° to 52° motorized linear zoom, allowing fast transitions from a wide wash effect to a narrow PC-style beam. The luminous output reaches 27,000 Lux at 5 meters, guaranteeing brightness and uniformity on any surface.

With RGBW mixing, the fixture offers a palette of 16 million colors with accurate and vibrant output. The wide range of pure white tones is complemented by continuous color temperature adjustment from 2700 K to 8000 K, suitable for any technical or scenic requirement.

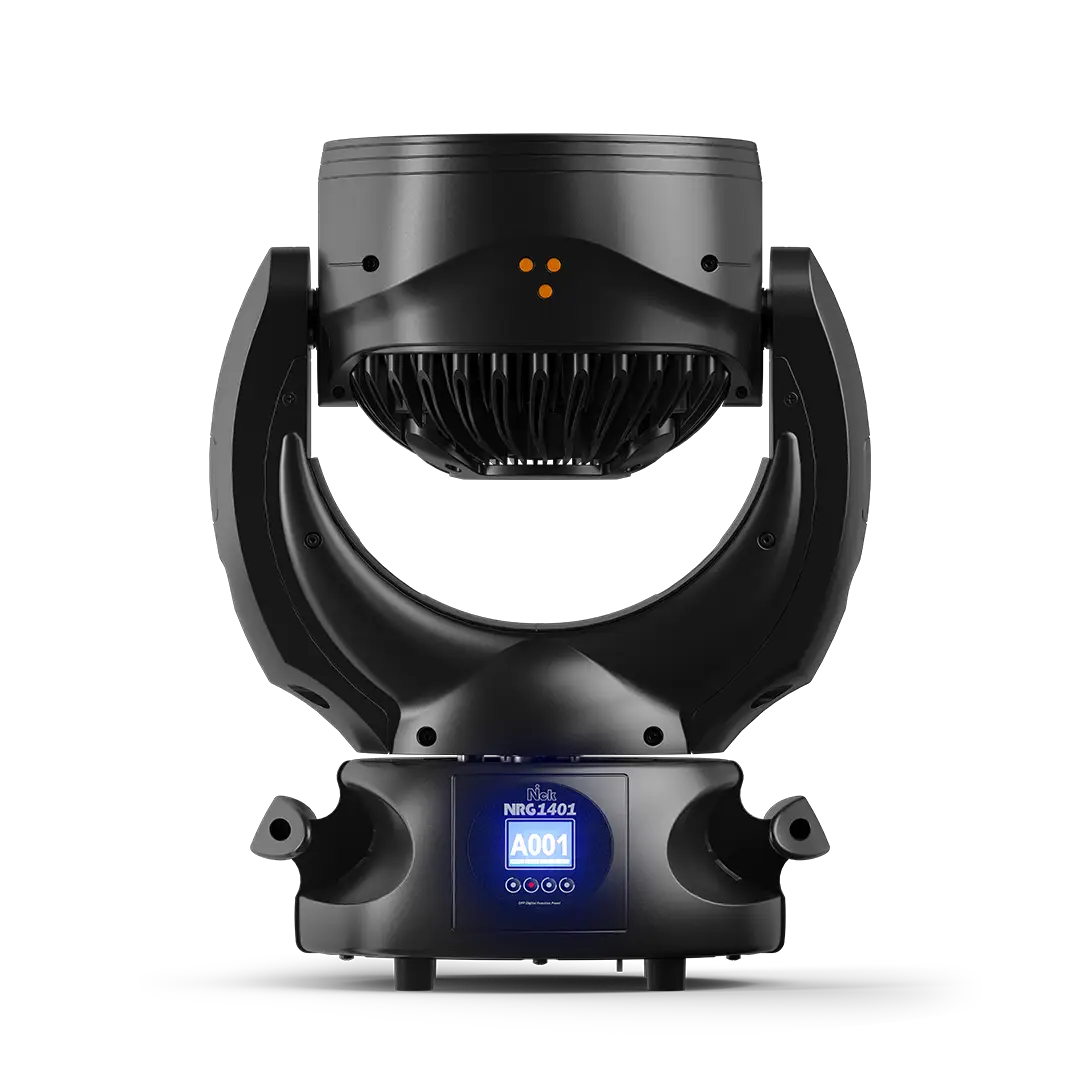

The unit features a multifunction OLED graphic display with four soft-touch buttons for easy access to key settings. It supports DMX 512 and RDM protocols, ensuring full integration into professional control systems. Firmware updates are possible via a DTS dongle.

Four selectable DMX modes are available: 20, 31, 33 (default), and 111 channels, offering different levels of control based on the complexity of the application.

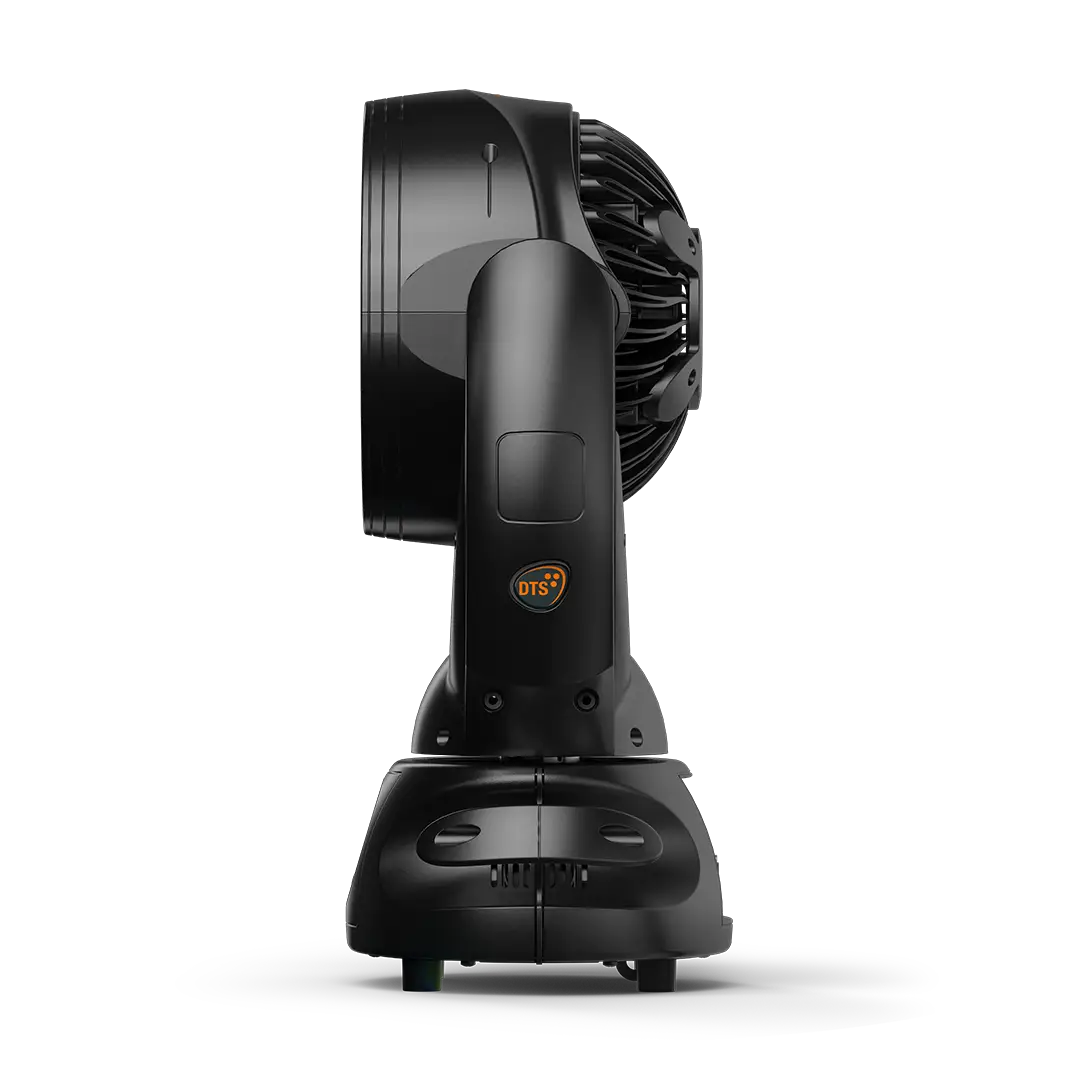

Thanks to DTS’s patented FPR (Free Pan Rotation) system, the fixture allows infinite PAN rotation in both directions. The TILT movement covers 258° in 1.1 seconds. Both movements are handled with 16-bit resolution for maximum precision.

Supports a universal input voltage of 100–240 V AC, 50/60 Hz, with a maximum power consumption of 390 W. A power factor above 0.95 ensures energy efficiency and compatibility with modern electrical systems.

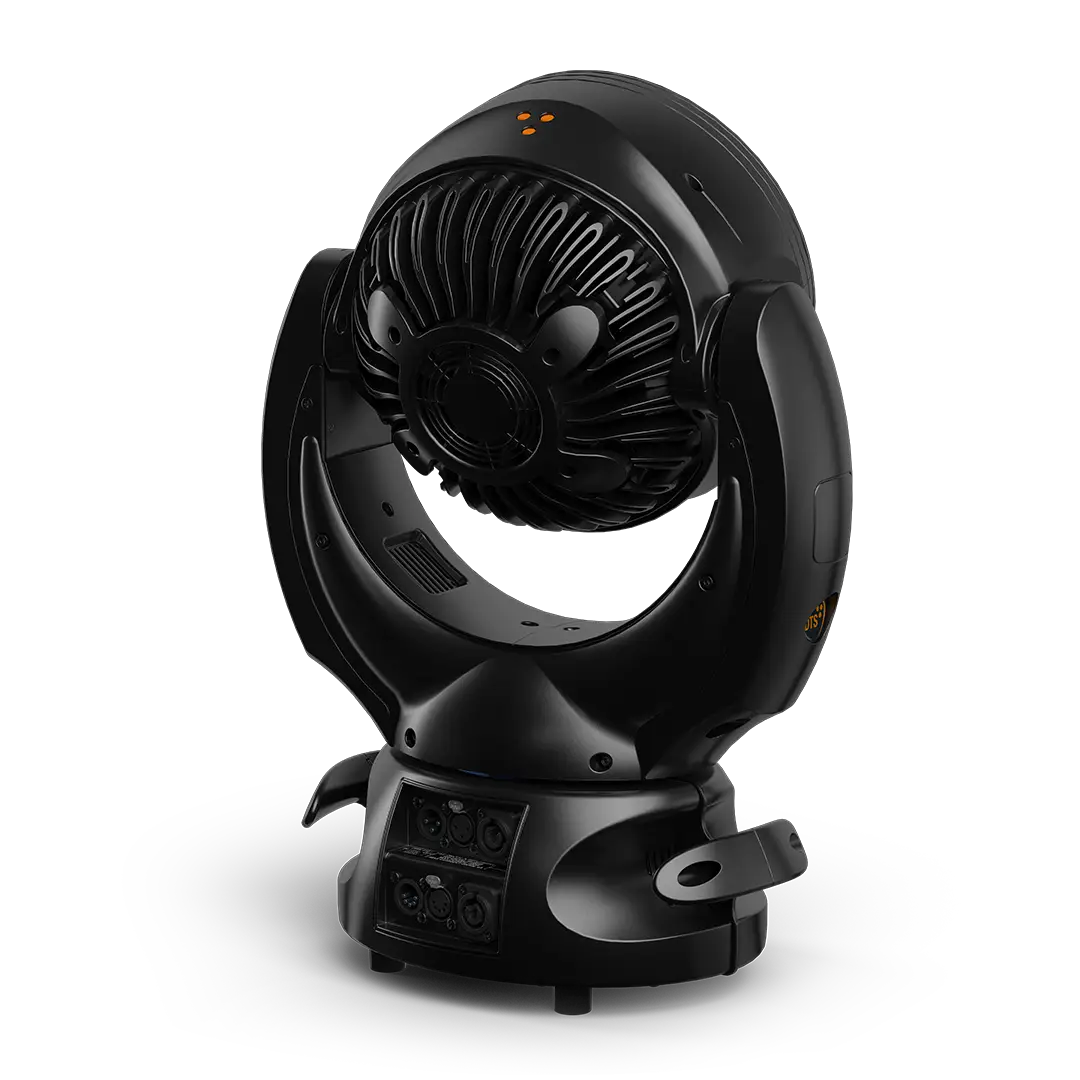

Equipped with 3-pin and 5-pin XLR connectors for DMX In/Out, and PowerCON panel connectors for power In/Out, making daisy-chaining simple and reliable.

Includes protections against overvoltage and overheating, ensuring safe operation even in intensive use conditions.

Operates in ambient temperatures ranging from -10 °C to +40 °C. The IP20 rating makes it suitable for indoor installations.

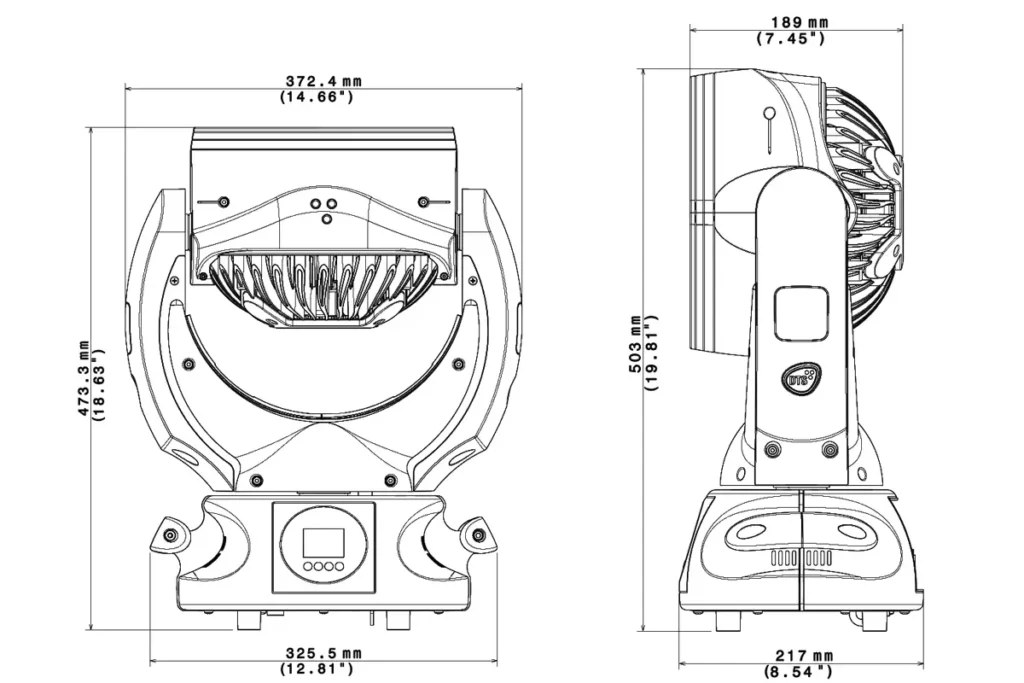

Weighing 13 kg and finished in professional black, the fixture is both robust and elegant—ideal for touring, fixed installations, and rental use.
