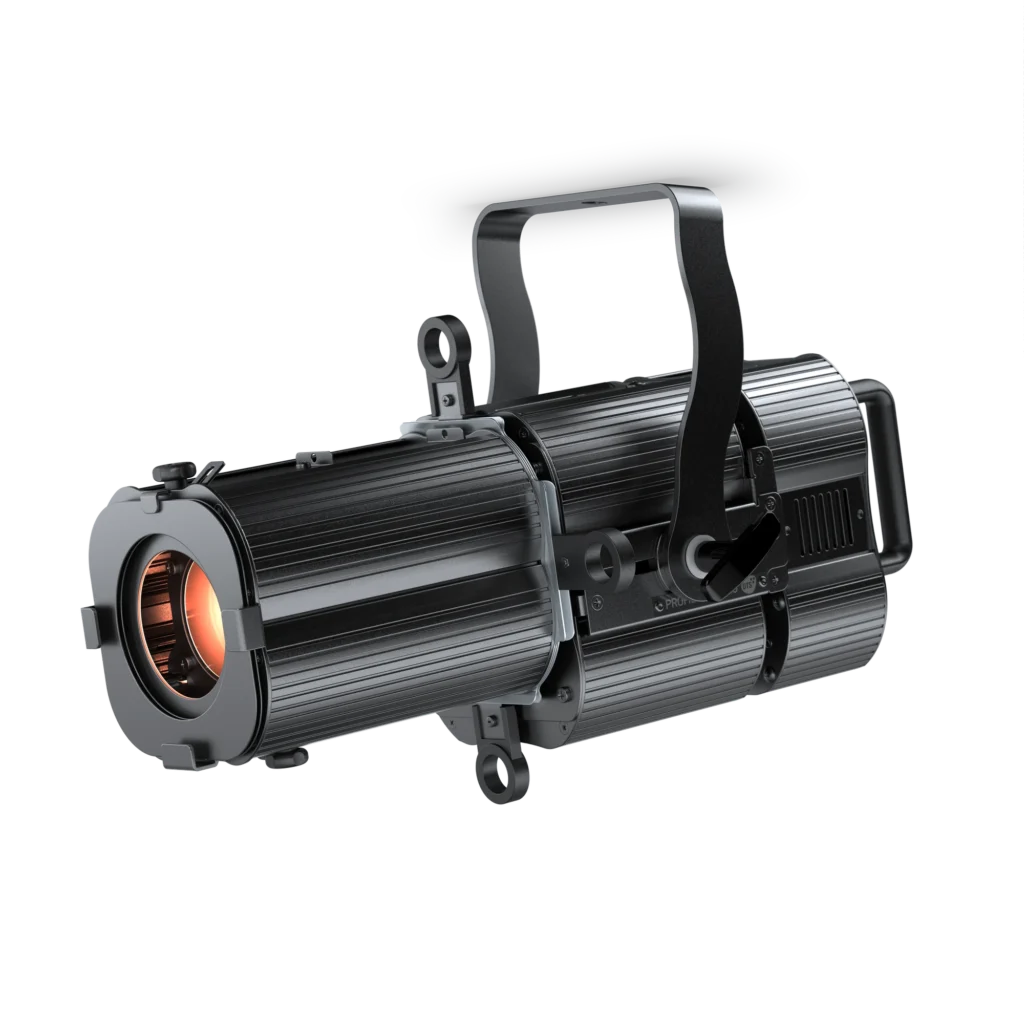

PROFILO LED 120 HQS

LED profile spot

PROFILO LED 120 HQS is a high-power ellipsoidal spotlight featuring DTS's proprietary HQS (High Quality Spectrum) technology. This system delivers ultra-pure whites, an extended color gamut, and a rich range of warm-toned pastel shades. Specifically designed for theaters, television studios, exhibitions, and applications where exceptional color fidelity is paramount.

highlights

Source

High-power 4-color LED source

Lumens

IP Rating

IP20

DMX

10 channels 4 channels 6 channels “Fine” mode “Prom” mode

operating
temperature

-10° / 40° C

Applications

Theatre and live shows

Precise and adjustable lighting for sets, performers, and smooth scene transitions.

Corporate events and conferences

Tunable whites ideal for professional environments and elegant presentations.

Concerts and music tours

Dynamic effects, vivid colors, and DMX control perfect for live performances.

TV sets and video productions

Uniform light and color accuracy suited for professional filming.

Museums and exhibitions

Discreet and controlled lighting to enhance artworks and displays.

Indoor architectural installations

Scenic projections on surfaces and architectural details.

Trade shows and exhibition booths

Eye-catching, compact lighting to highlight products and graphics.

Advertising and cinema

Stable, consistent light for video productions and film sets.

Churches and spiritual events

Evocative atmospheres with warm, controlled lighting, also for concerts or installations.

Features

High-power 4-color LED source▼

Combines four colors for intense luminous output, with a wide color gamut and uniform color mixing even at a distance.

20°–38° linear zoom with high-definition optics▼

Allows easy adjustment of beam angle while ensuring sharp focus and consistent optical quality across the entire zoom range.

Adjustable color temperature 2700K–8000K▼

Offers a wide range of white tones, from warm to cool, to suit any environment or stage requirement.

HQS Technology (High Quality Spectrum)▼

Delivers refined pastel tones and natural white light, ideal for applications requiring superior color rendering.

Hi-Q Dimming system▼

Enables smooth and precise brightness control, free of visible steps even at low levels.

DMX/RDM compatibility and manual control▼

Can be operated via lighting console or manually, with an LED display and soft-touch buttons for intuitive programming.

Firmware updatable via USB dongle▼

Ensures long-term product support and access to new features through easy firmware updates.

Low power consumption (max 120 W) with PF >0.95▼

High energy efficiency with universal power input, ideal for both mobile and fixed installations.

Professional PowerCON TRUE1 and 5-pin XLR connections▼

Ensures reliable and rugged power and DMX signal connections, even in demanding environments.

Solid and compact construction (IP20 – 6.3 kg)▼

Robust structure with black finish, suitable for indoor use in theaters, events, or TV studios.

Versatility and customization
