Profilo-LED-200

PROFILO LED 200 CT

Profilo-LED-200
Entertainment

LED profile spot

features
Technical Data
Download
Add To Compare
View Compare

High-power LED profile spot with variable color temperature white LED source. PROFILO LED 200 CT is suitable for medium to large television studios as well as theaters, representing a powerful and versatile alternative to conventional projectors in the same category.

highlights

Source

Single high-power white LED with linearly tunable color temperature (2700 K - 6500 K)

Lumens

IP Rating

IP20

DMX

7 channels 2 channel “CTC” mode

operating
temperature

-10° / 40° C

Applications

Live Shows
Theatre
Theme Parks
Tv Studios
Cruise & Yacht Lighting

Profilo-LED-200

Live theatre and performance

Precise and shapeable lighting for actors and stage sets, with high color rendering.

TV studios

Adjustable color temperature and optical quality ideal for professional filming.

Events and conferences

Flexible control and setup for conventions, trade shows, and corporate meetings.

Museums and exhibitions

Shapeable light and gobos to enhance artworks without damage.

Scenic installations and temporary architecture

Dynamic projections and sharp edges in creative, short-term setups.

Churches and auditoriums

Functional and discreet lighting for multifunctional spaces.

Photography and film

Stable, adjustable light for photo and video shoots.

Profilo-LED-200

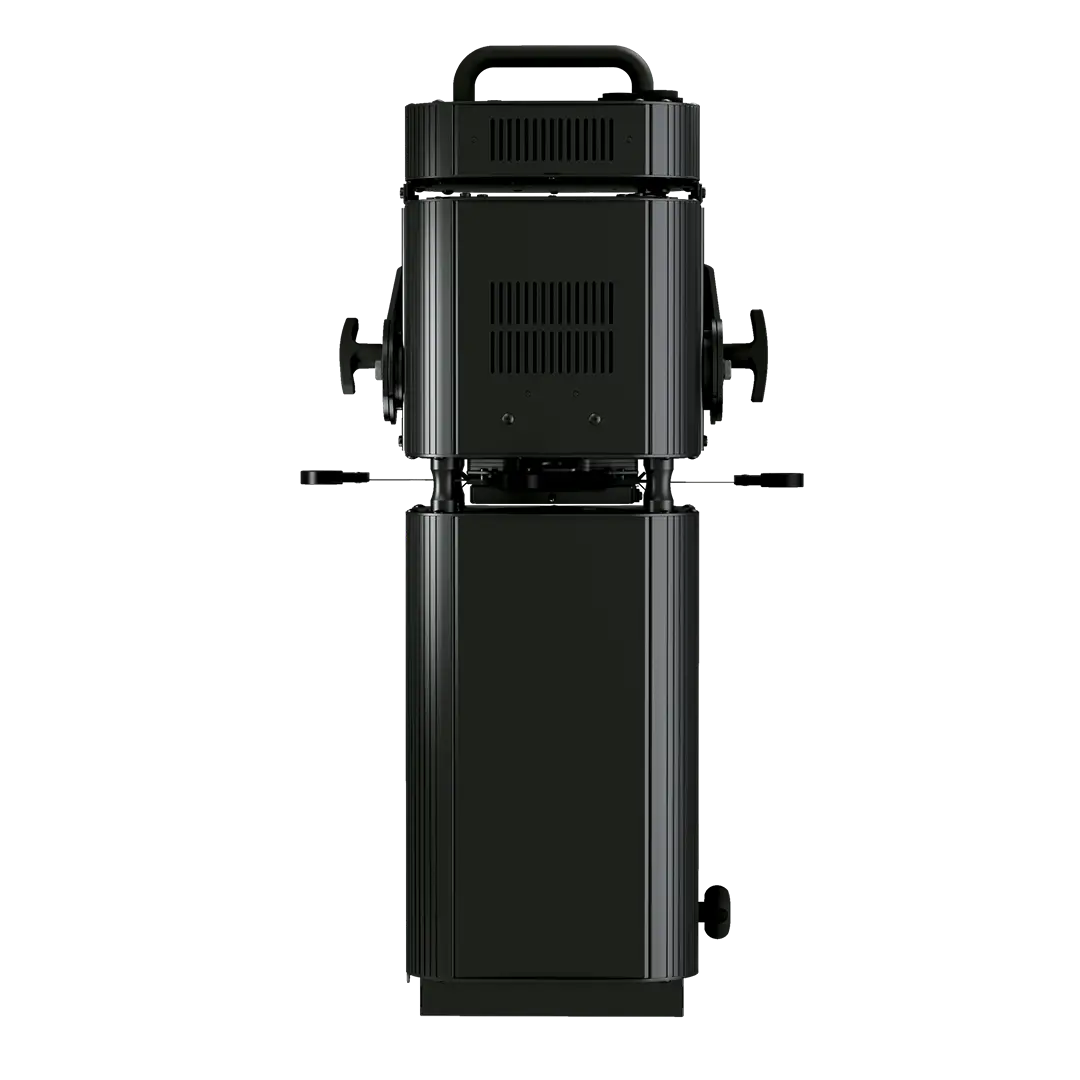

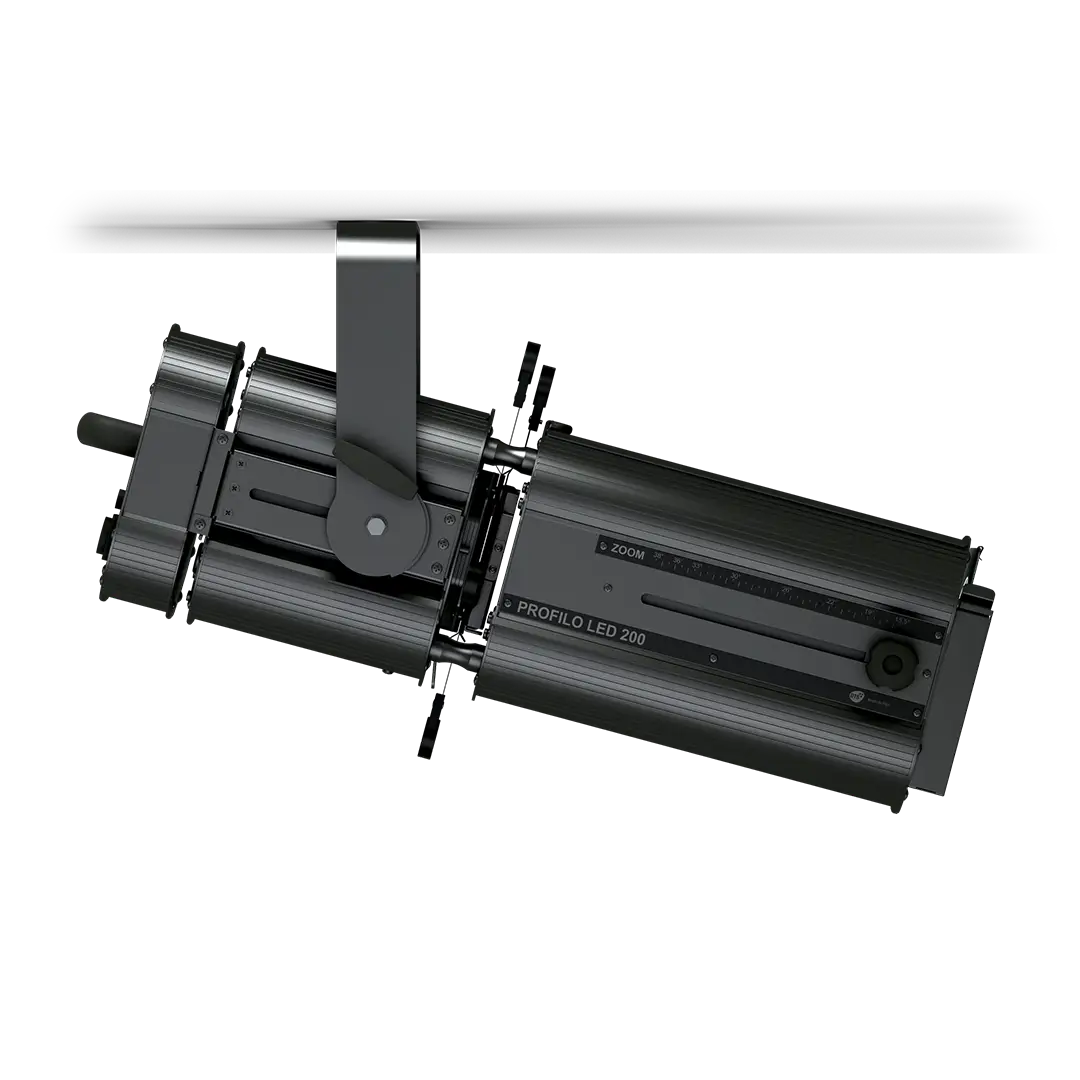

profilo-LED-200_gallery
profilo-LED-200_gallery

Features

High-power LED source with continuous adjustment from 2700 K to 6500 K to suit any scenic or ambient lighting need.

High-definition optical system with dual condenser, ideal for smooth transitions from narrow beams to wide coverage.

Asymmetric and reversible blades allow precise beam shaping, with full system rotation up to ±35°.

Enables use of gobos for graphic effects or custom shapes, with image diameter up to 60 mm.

Compatible with major professional lighting control standards, with a simple and modern user interface.

Accurate color reproduction, essential for theater, television, and photography applications.

Easy software updates via DTS dongle keep the fixture always up to date with new features.

Safety circuits against overvoltage and overheating ensure long-term reliability.

Robust, standardized connections for power and DMX, suitable for both touring and fixed installations.

Aluminum body with brakes and friction tilt system for quick, secure mounting.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical data

OUTPUT

  • Single high-power white LED with linearly tunable color temperature (2700 K – 6500 K)
  • Cold White CRI >90
  • LED lifespan: 50000 hours (L70B10)

OPTICAL GROUP

  • 15,5°- 38° linear zoom;
  • High definition zoom lens with double optical condenser lens

FRAMING SYSTEM

  • Framing system with 4 asymmetric blades
  • Each blade can be inverted
  • 70° full system rotation (+/- 35°)
  • Blades operate on three discrete plans
  • A 5th blade can be added

GOBOS

  • Gobo type B metal or glass:
    • Ø external: 86 mm
    • Ø of image: 60 mm
    • Thickness: from 0,2 to 2 mm

CONTROL

  • DMX 512 / RDM or Manual control
  • Multi-function 4-digit 7-segment LED display + 4 soft keys
  • Firmware updatable via DTS firmware uploader dongle

POWER SUPPLY

  • Electronic Wide-range 100-240 Vac 50-60 Hz
  • Power consumption: 200 W max
  • Power Factor: PF >0.94

DMX

  • 7 DMX channels (default)
  • 2 DMX channel
  • “CTC” mode

CIRCUITS PROTECTIONS

  • Overvoltage circuit protection and overtemperature circuit protection

CONNECTIONS

  • Power supply: PowerCON TRUE1 In/Out panel connectors
  • DMX: XLR 5-pole In/Out panel connectors

TEMPERATURE

  • Operating: -10° +40° C

PHYSICAL

  • Finishing: Black
  • Internal system with four removable shutters
  • Yoke featuring an exclusive sliding system with clutch for a wider tilt
  • Weight: 16.8 Kg (37.15 lbs)
  • IP rating: IP20

TEST AND CERTIFICATION

  • CE

ACCESSORIES INCLUDED

ON BOARD
  • 1 x Soft edge filter assembly (code 02TP0047)
  • 1 x Filterframe Black finishing (code 02M00420.49)
IN THE BOX
  • 1 x PowerCON TRUE1 female cable connector (code 0520P066)
  • 1 x XLR 5 pins female cable connector (code 0508B147)
  • 1 x XLR 5 pins male cable connector (code 0508B148)
  • 4 x Shutter blades assembly (single blade code 02SK0429)

ACCESSORIES ON REQUEST

  • 5th shutter blade (code 02SK0429)
  • Iris/Diaphragm (code 03.TA225)
  • Gobo holder (code 03.TA226)
  • Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
  • Universal Hook Clamp – Max load 40 Kg – 88 lbs (code 0521A047)
  • Safety cable – 3 x 600 mm – max. capacity load 30 Kg (code 0521A010)
  • DTS firmware uploader dongle (code 03.LA.206)

Features and certifications

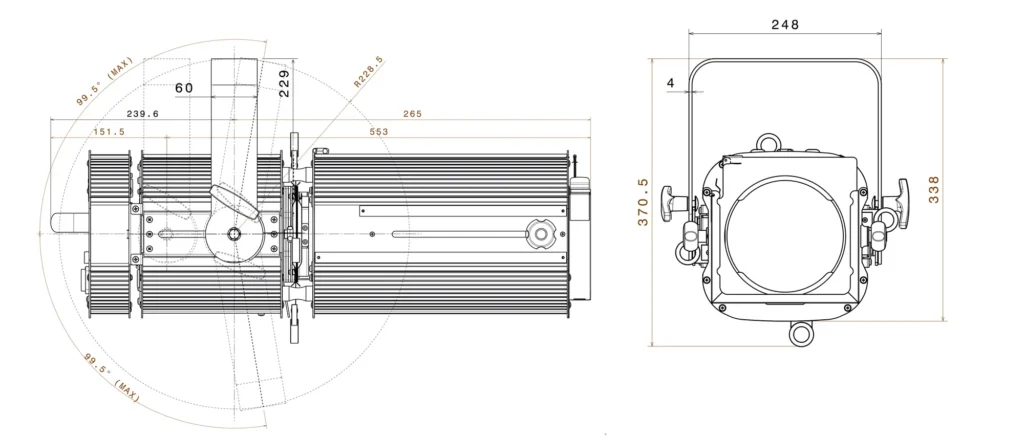

PROFILO-LED-200_DISEGNO-TECNICO

Product code:

03.TP039.46

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

profilo-led-200-ct_application sport events
profilo-led-200-ct_application
profilo-led-200-ct_application

Download

Fixtures

GDTF FILE PROFILO LED 200 CT

Download
Fixtures

Chamsys MagicQ fixture library for PROFILO LED 200 CT

Download
Fixtures

grandMA2 fixture library for PROFILO LED 200 CT

Download
Accessories

Filterframe Black finishing – 02M00420.46

Download
Accessories

Universal Hook Clamp – Max load 40 Kg – 88 lbs – 0521A047

Download
Accessories

XLR 5 pins male cable connector – 0508B148

Download
Accessories

XLR 5 pins female cable connector – 0508B147

Download
Accessories

Safety cable – 3x600mm – max capacity load 30 kg (66lbs) – 0521A010

Download
Accessories

PowerCON TRUE1 female connector – 0520P066

Download
Accessories

Outdoor DMX cable 2 x 0.25 mm² – Flame retardant – 0509C158

Download
Accessories

DTS firmware uploader dongle – 03.LA.206

Download
Manuals

User manual PROFILO LED 200 CT rel 1.2 EN

Download
Firmware

PROFILO LED 200 CT Soft. 1.06

Download
Software

DTS FIRMWARE UPGRADE UTILITY 2.02

Download
Certificates

RoHS and REACH Compliance Declaration

Download
Cad icons and Technical drawing

3D Icons PROFILO LED 200 CT

Download
Cad icons and Technical drawing

Technical drawing PROFILO LED 200

Download
Cad icons and Technical drawing

2D Icons PROFILO LED 200

Download
Photometrics

Photometric chart rev0 PROFILO LED 200 CT

Download
Catalogues and Data sheets

DATASHEET PROFILO LED 200 CT

Download
