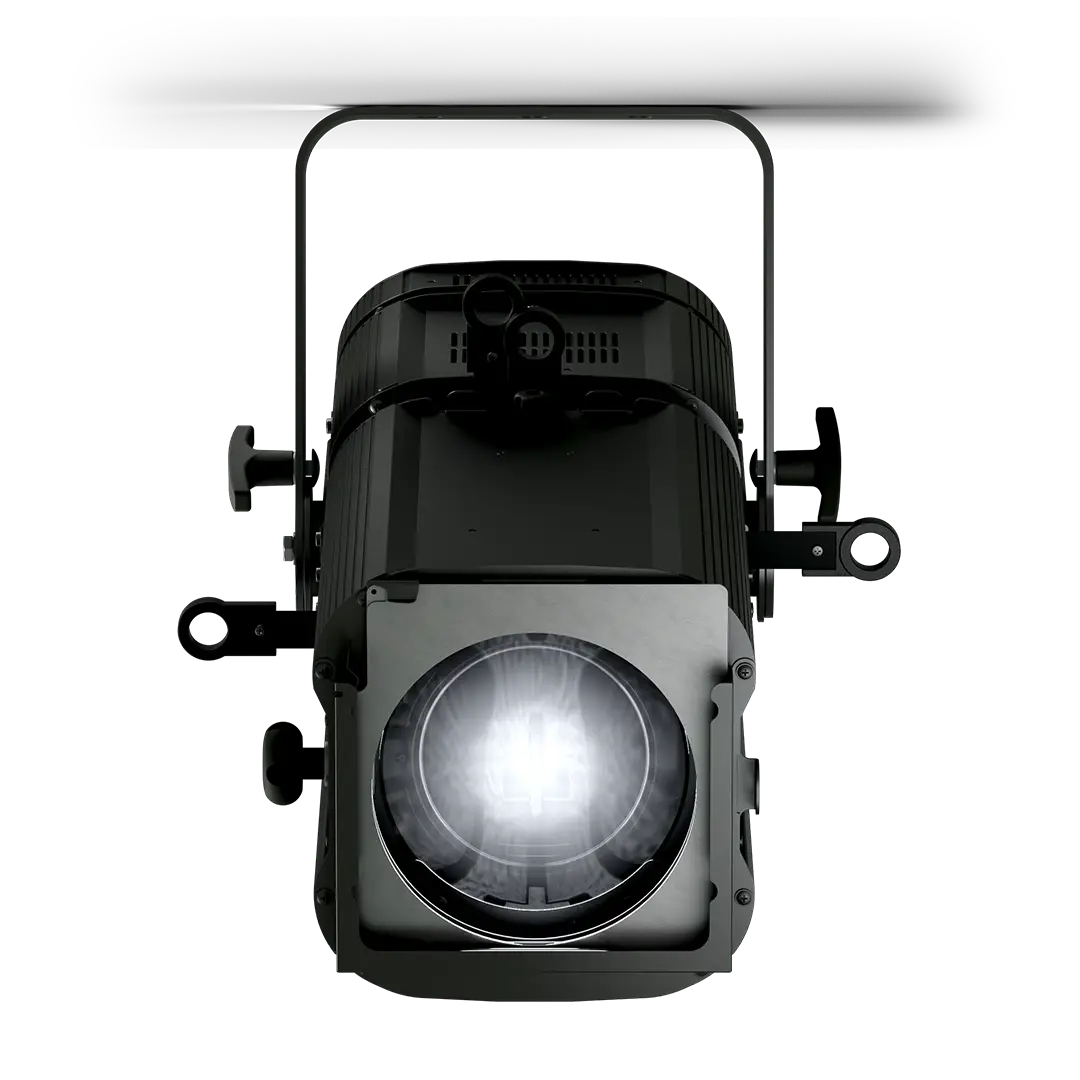

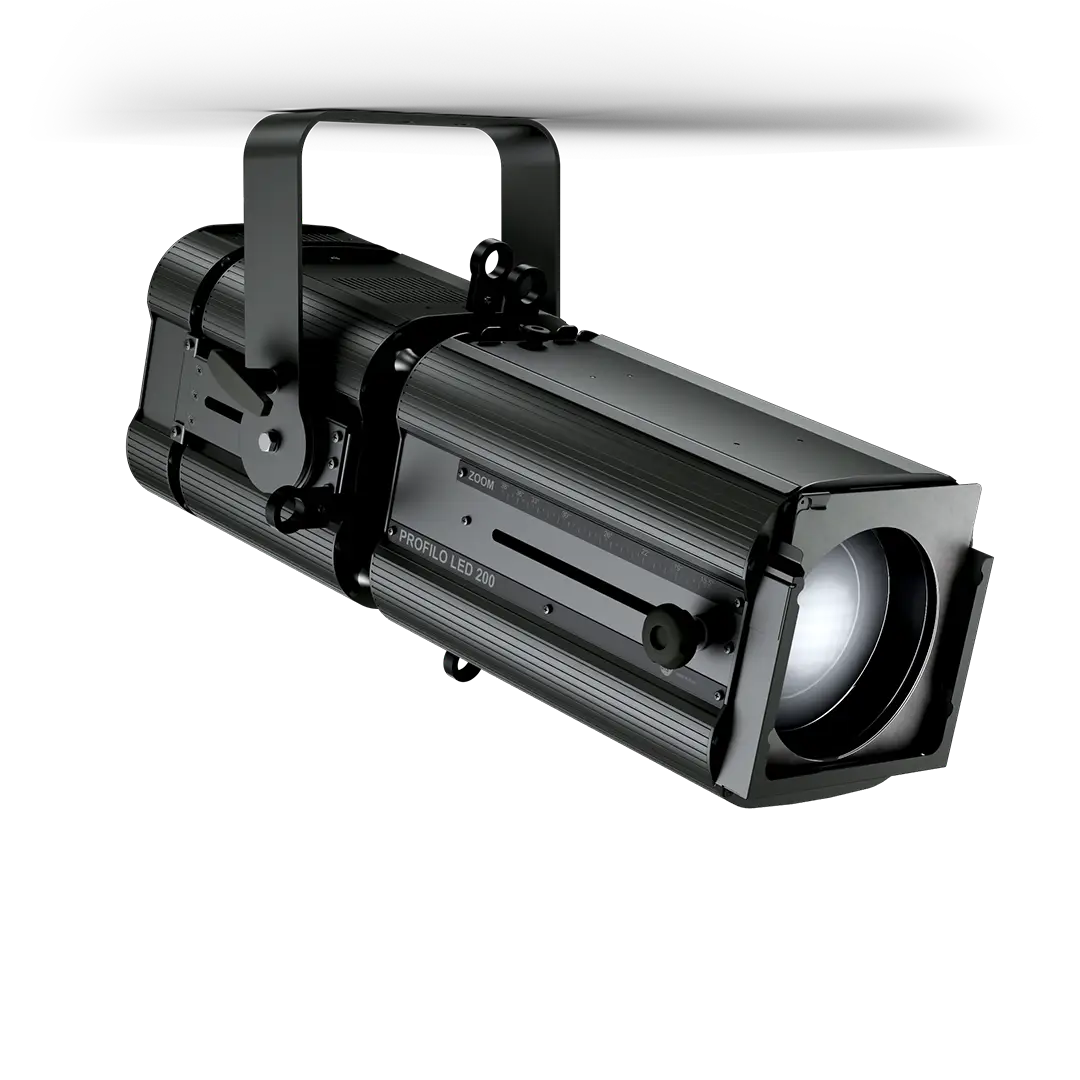

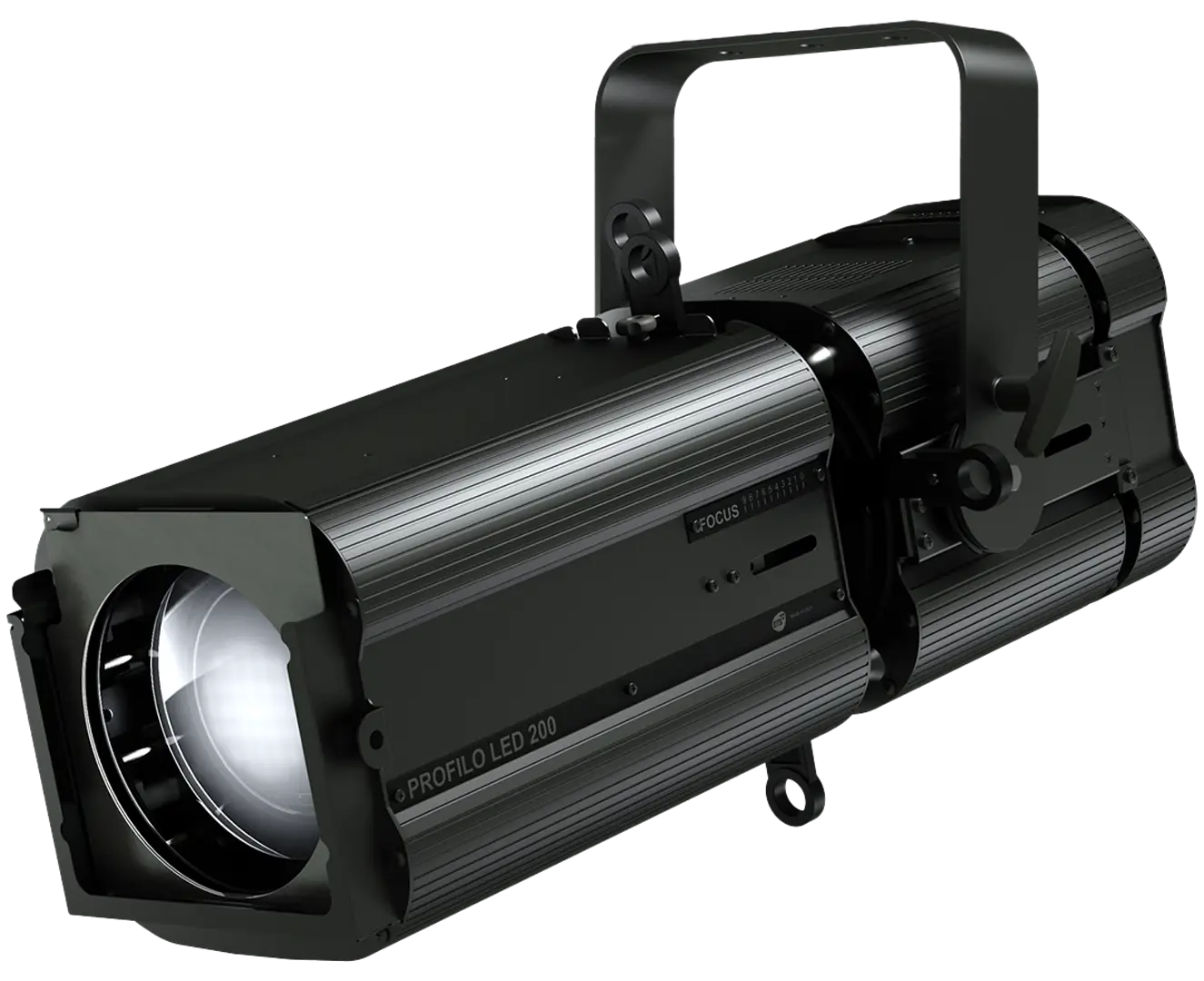

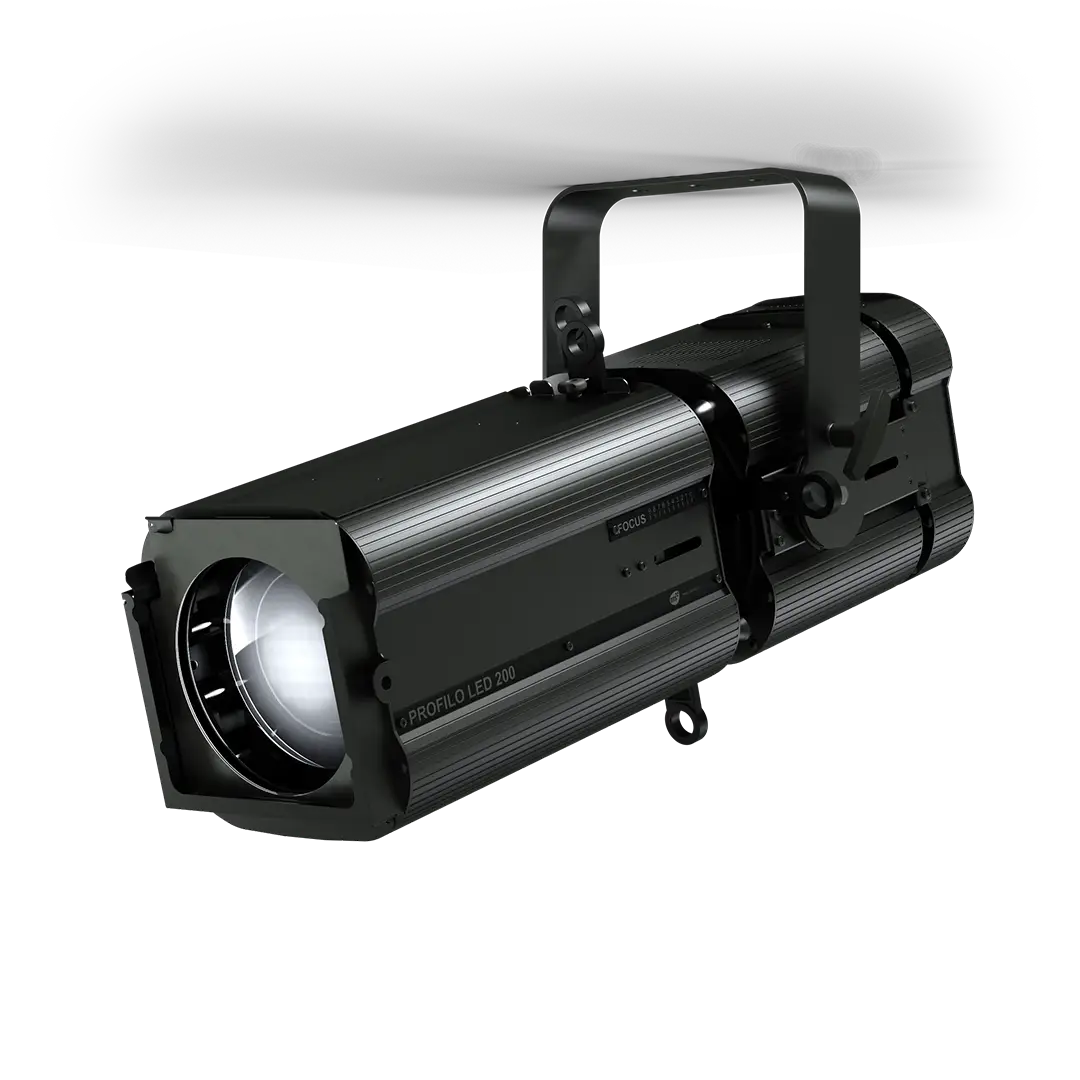

PROFILO LED 200 WH

LED profile spot

High-power LED profile spot featuring a fixed white LED light source. PROFILO LED 200 WH is engineered for medium-to-large television studios and theatrical applications, delivering a powerful and versatile alternative to conventional projectors in its class.

highlights

Source

Single high-power 200 W white LED

Lumens

IP Rating

IP20

DMX

4 channels 1 channel “Fine" mode

operating
temperature

-10° / 40° C

Applications

Theatre

The fixture is ideal for stage lighting in theatrical settings, thanks to its high CRI (>95), which ensures accurate color rendering on costumes and scenery. The framing system allows precise beam shaping to isolate actors and stage elements.

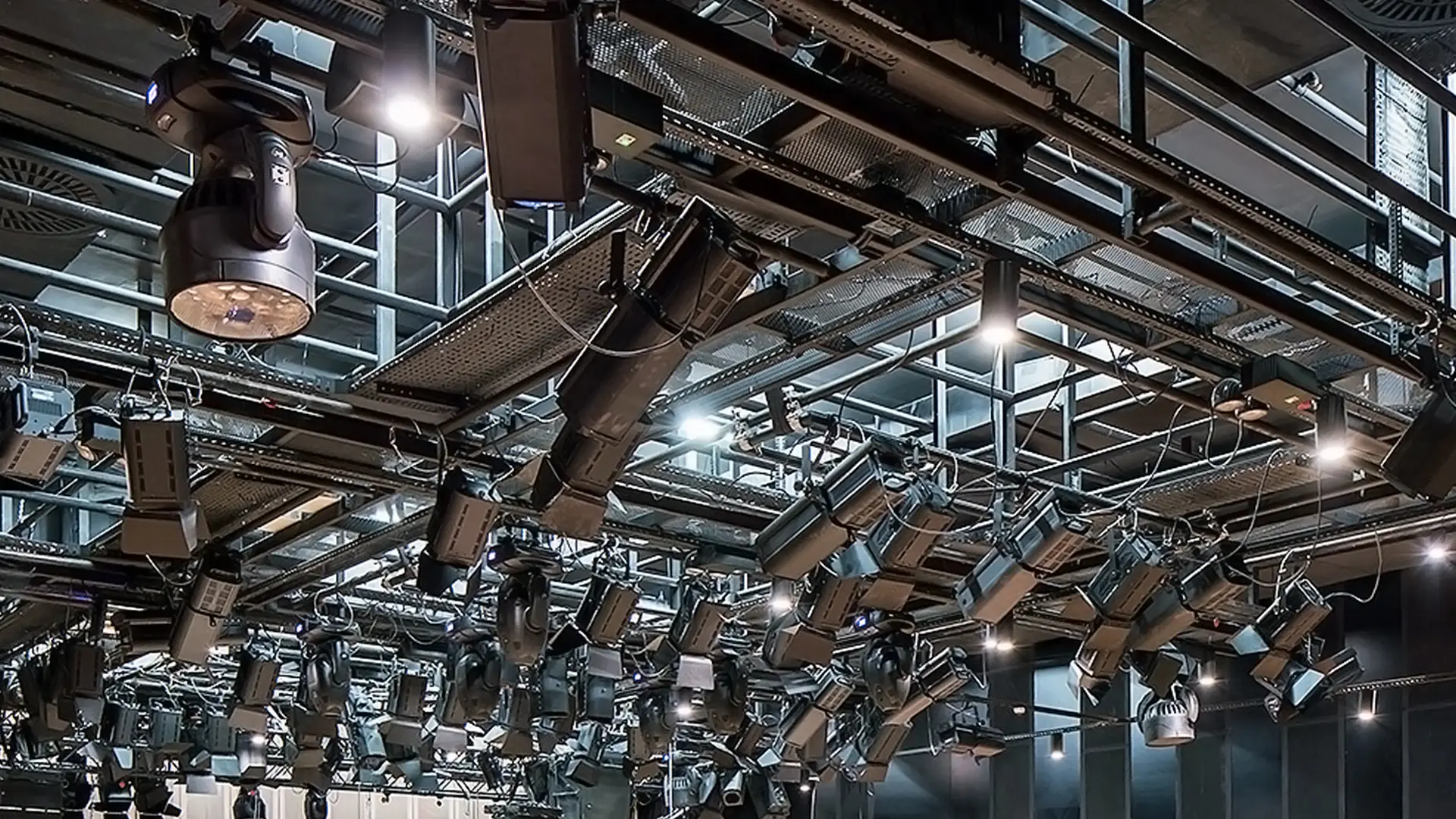

TV Studios & Broadcast

Perfect for TV studios due to its soft, even, flicker-free light output and calibrated color temperatures (3200 K, 4000 K, 5600 K). DMX/RDM control enables integration with automated stage systems.

Live Events & Indoor Concerts

Used for dynamic stage lighting effects or to define scenic elements, thanks to its zoom, gobo compatibility, and precise DMX control. Its robust construction makes it suitable for touring and temporary installations.

Conferences, Conventions & Corporate Events

Provides clear and controlled lighting for speakers or backdrops, with low power consumption and minimal maintenance. The high light quality enhances the visual result for video recordings or live streaming.

Museums & Temporary Exhibitions

Its ability to shape and adjust the beam makes it ideal for highlighting artworks or specific objects without light spill. The long LED lifespan reduces the need for maintenance.

Photo & Film Studios

Used as a key or rim light in portrait and set photography. The high CRI ensures color accuracy in image capture, while DMX adjustments allow smooth transitions during shooting.

Features

High-Power LED (200 W)▼

Equipped with a high-efficiency 200 W white LED, available in 3200 K, 4000 K, and 5600 K versions. It delivers intense and uniform illumination, suitable for a wide range of professional environments.

High Color Rendering Index (CRI >95)▼

Ensures natural and accurate color reproduction, which is essential in theatre, photography, and broadcast applications.

Linear Zoom (15.5°–38°)▼

Allows smooth transition from a narrow to a wide beam angle, offering flexibility in lighting adjustments.

Framing System with Asymmetric Blades▼

Features four independent blades (plus an optional fifth), arranged on different planes for precise beam shaping—ideal for isolating subjects or creating sharp-edged effects.

Gobo Compatibility (Type B)▼

Supports glass or metal gobos for projecting patterns, textures, or logos, with a 60 mm image diameter.

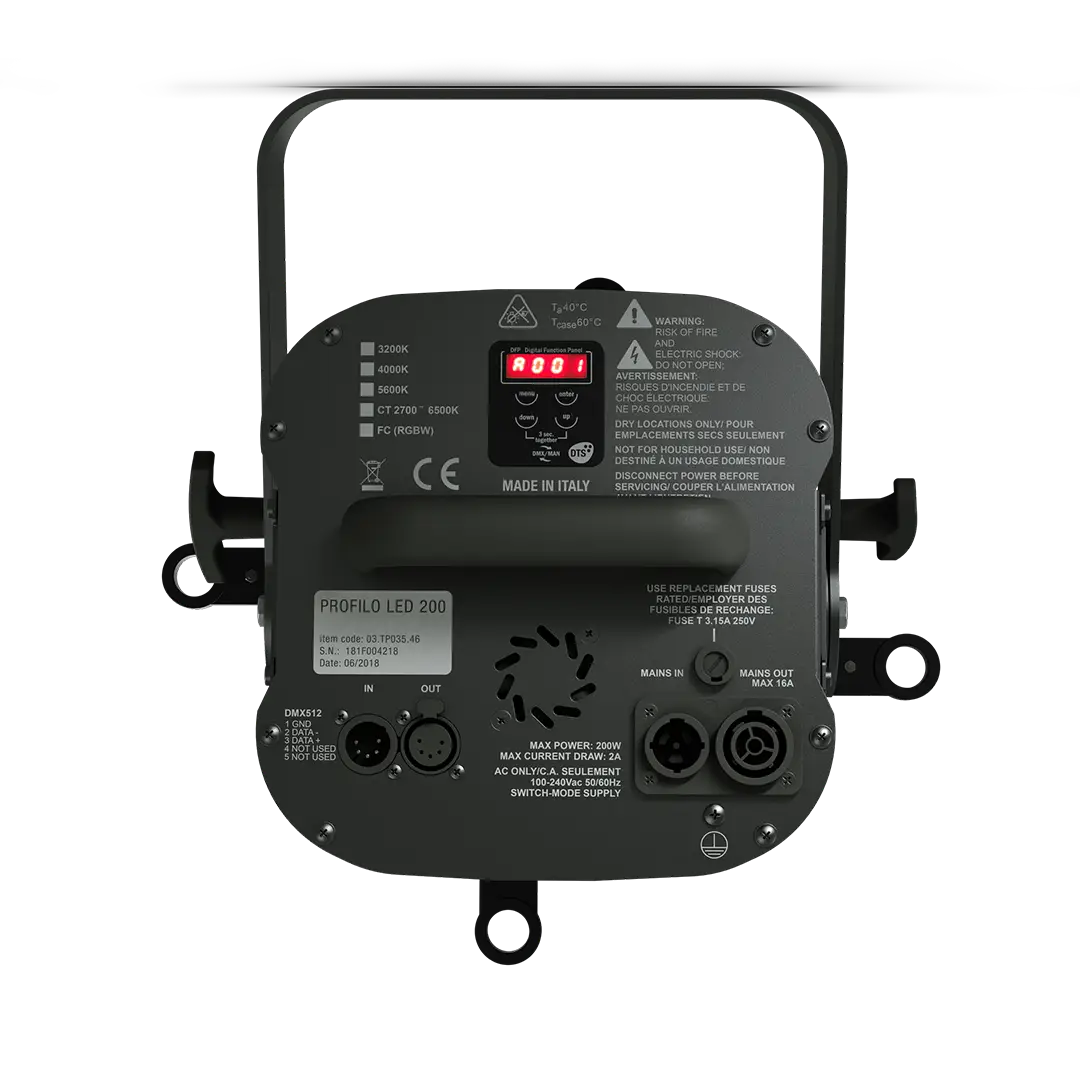

DMX/RDM and Manual Control▼

Can be controlled via DMX 512 or RDM protocols for professional lighting systems, or locally using the built-in LED display and soft-touch buttons.

Wide Range Power Supply & Low Consumption▼

Operates from 100 to 240 VAC with a maximum power draw of just 200 W. Its high power factor (>0.94) ensures energy-efficient performance.

Built-in Protections▼

Includes overvoltage and overtemperature protection circuits, improving operational safety and extending the fixture’s lifespan.

Rugged Build & Friction Yoke▼

Durable housing with black finish (IP20 rating), and a sliding yoke with clutch system that allows smooth and secure tilt adjustments.

Firmware Upgradable▼

The system can be updated via DTS firmware dongle, ensuring future compatibility with new features or standards.

Versatility and customization
