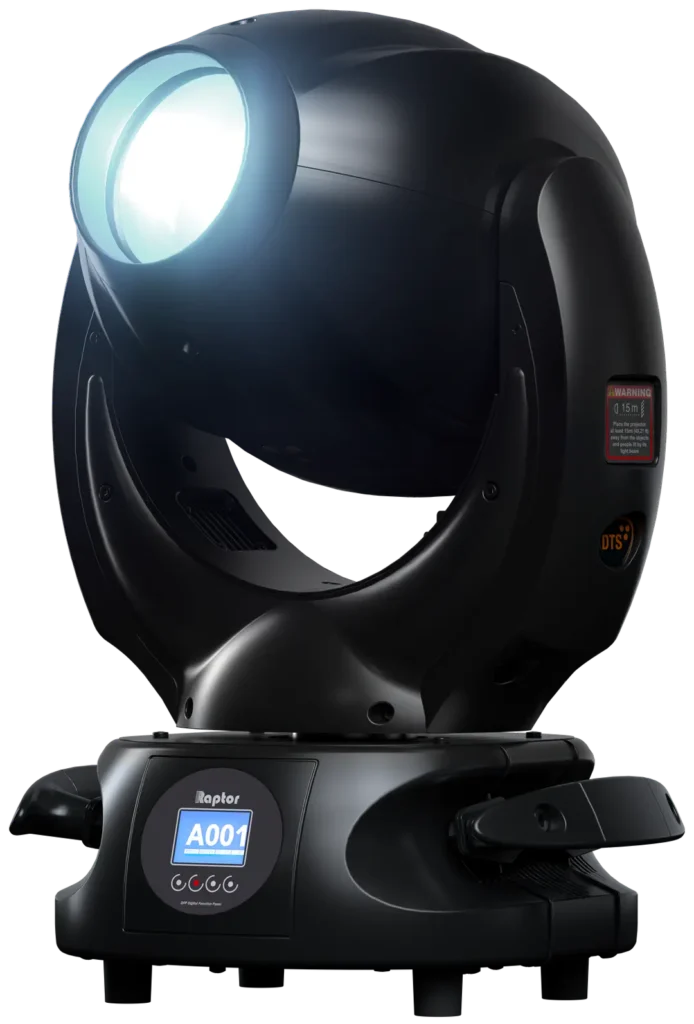

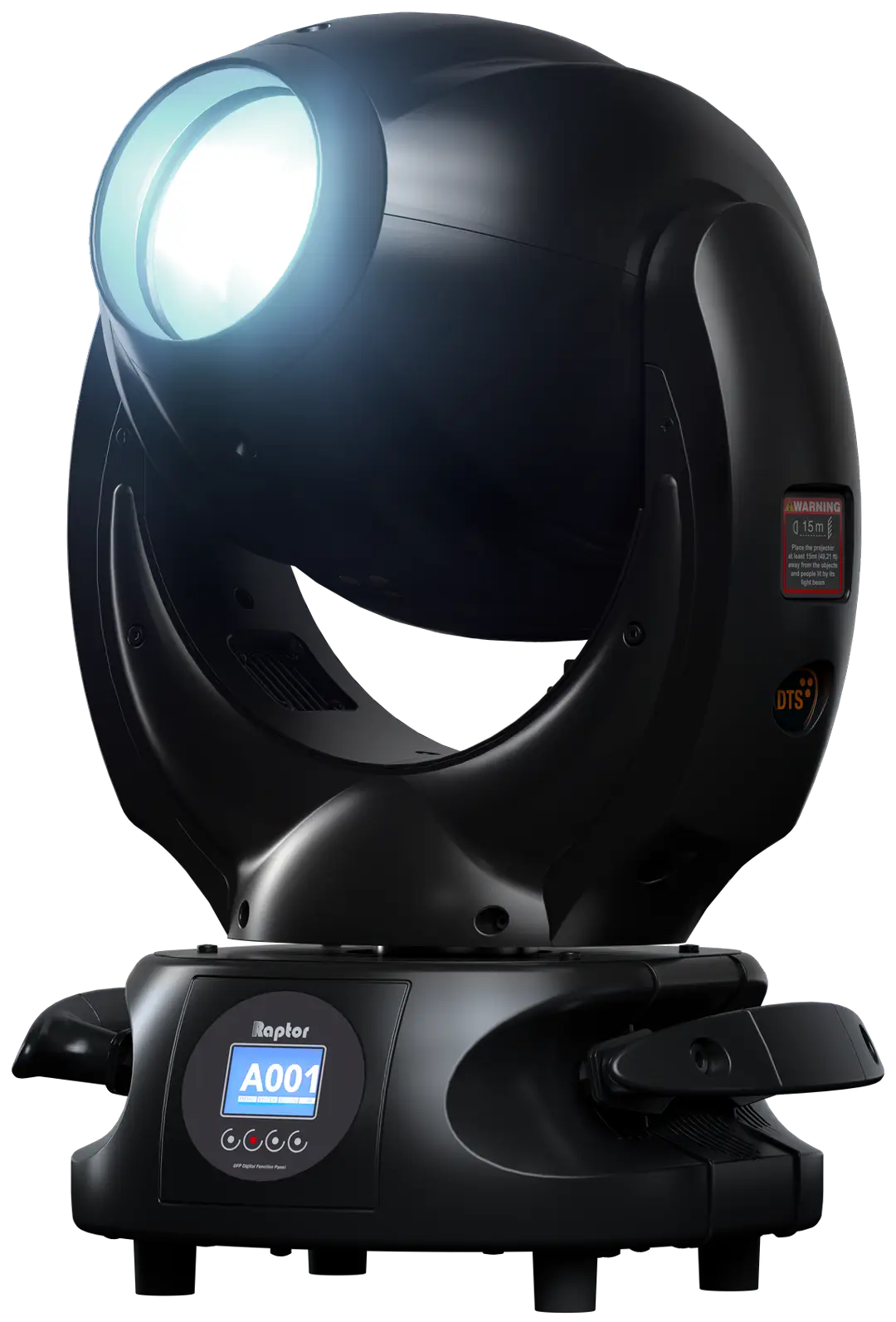

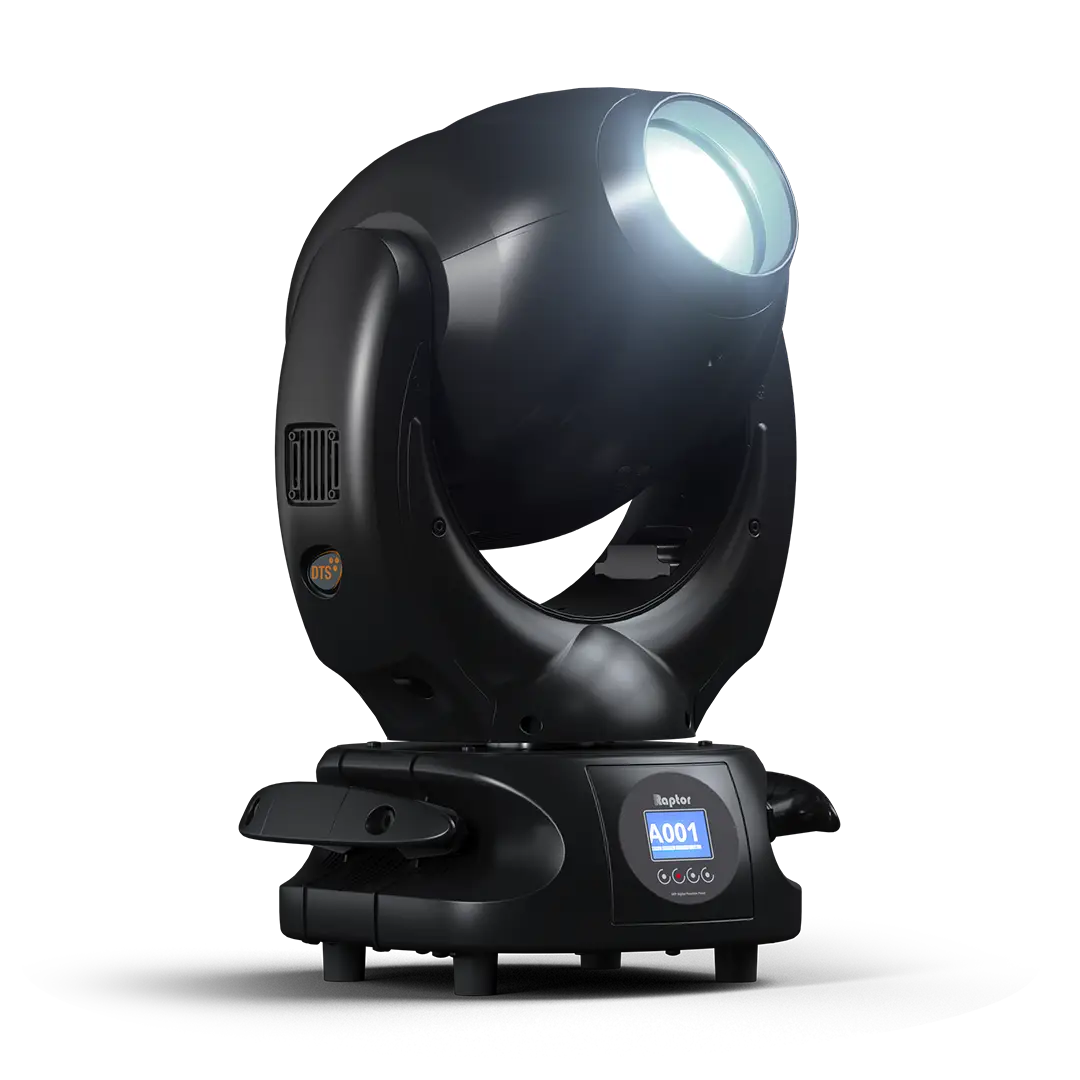

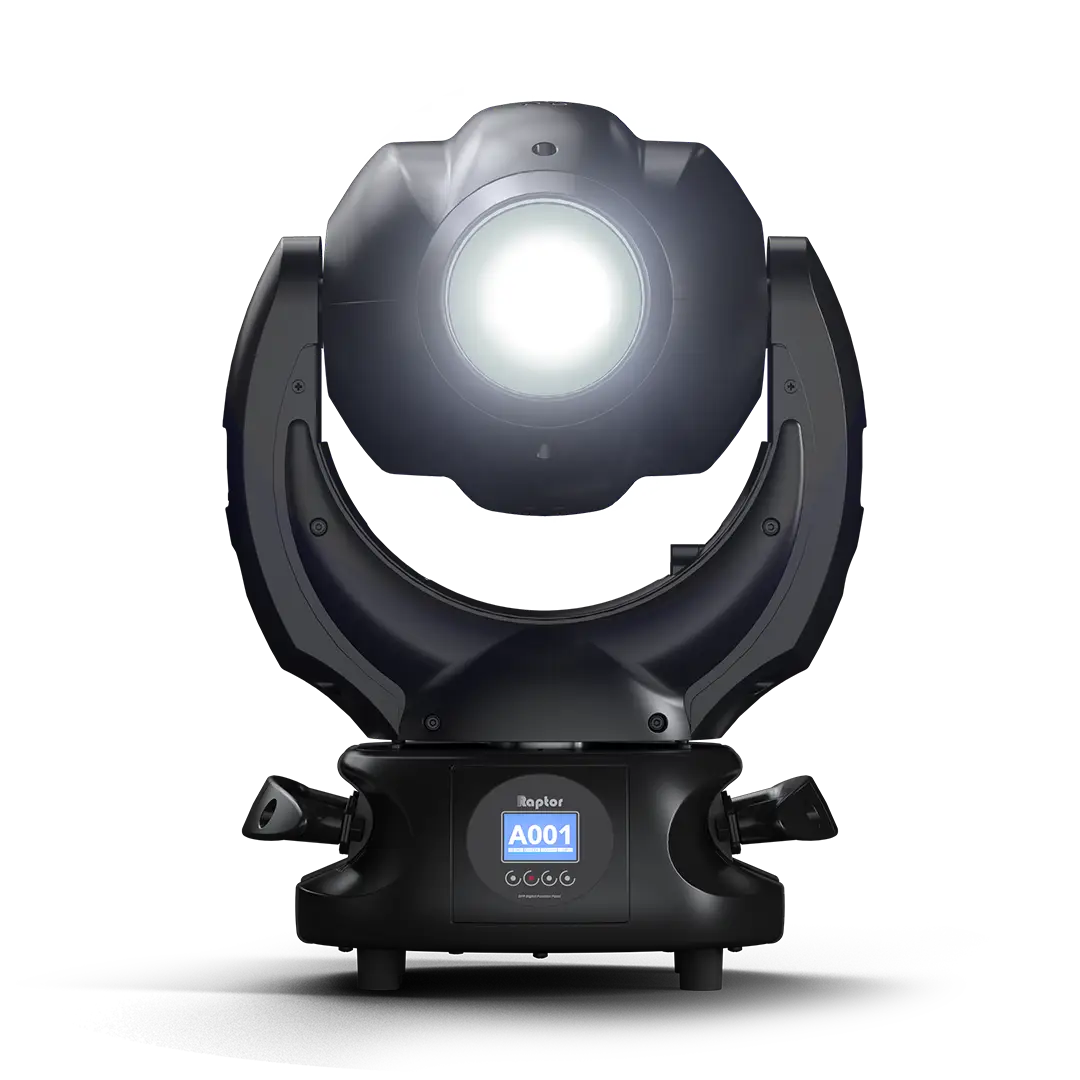

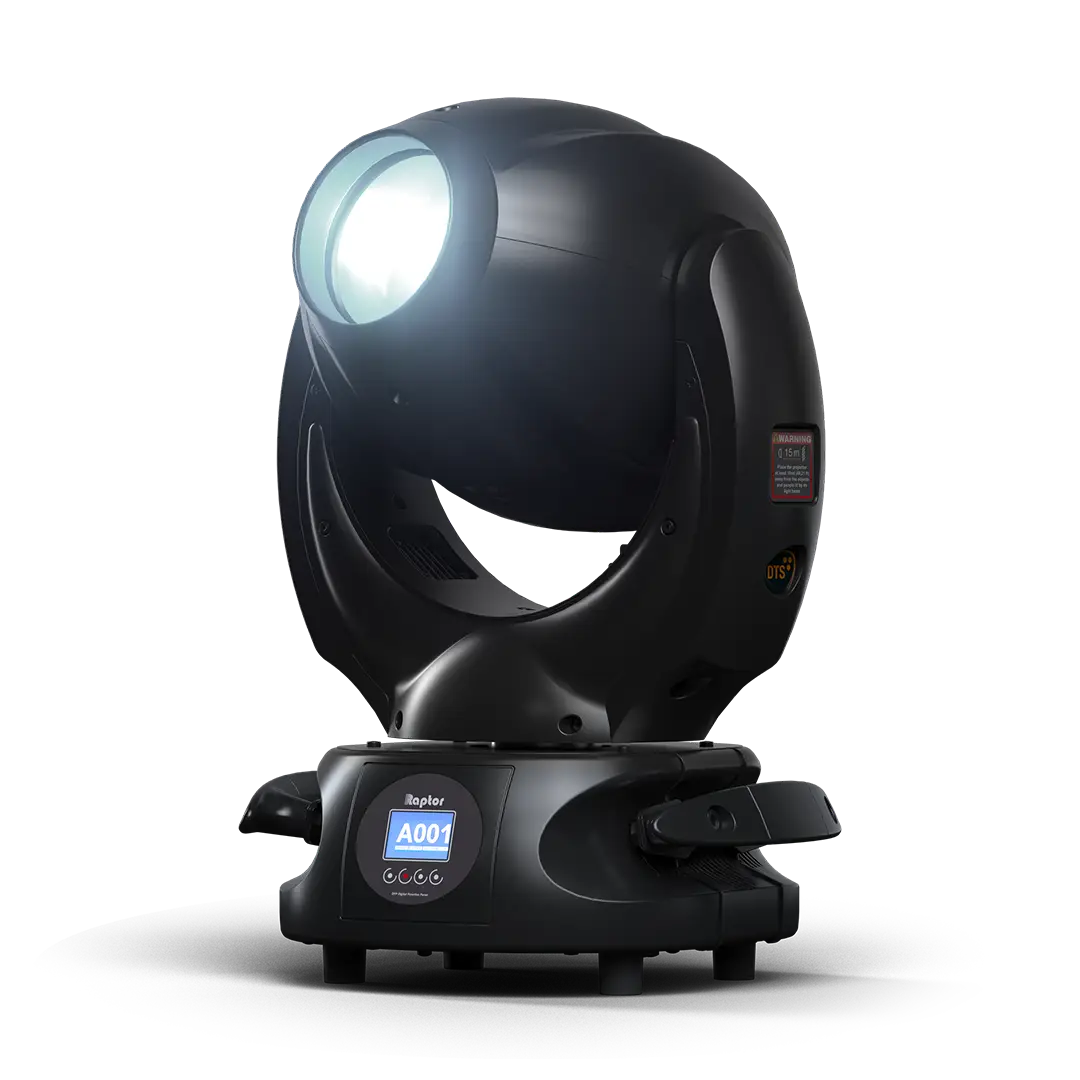

RAPTOR

Beam moving head

RAPTOR is the brightest and most compact beam moving head on the market. Perfect for concerts and live events, it excels both as an effects projector and follow spot. Featuring the patented 'FPR' system (DTS patent) and an exclusive 8-facet prism.

highlights

Source

Lamp: Osram Sirius HRI 330 W

Lumens

16500 Lm

IP Rating

IP20

DMX

18 channels 20 channels

operating
temperature

-20° / 45° C

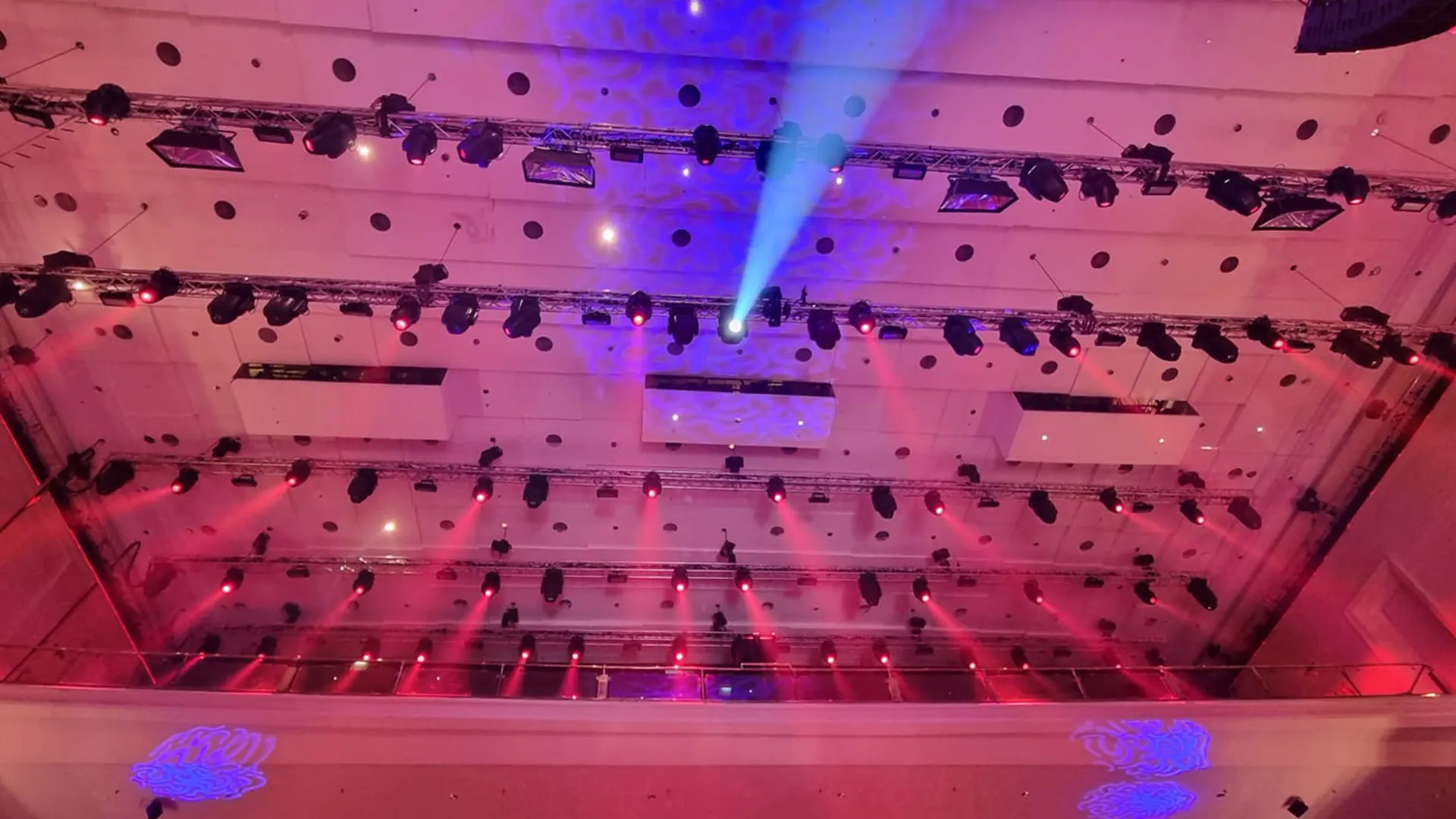

Applications

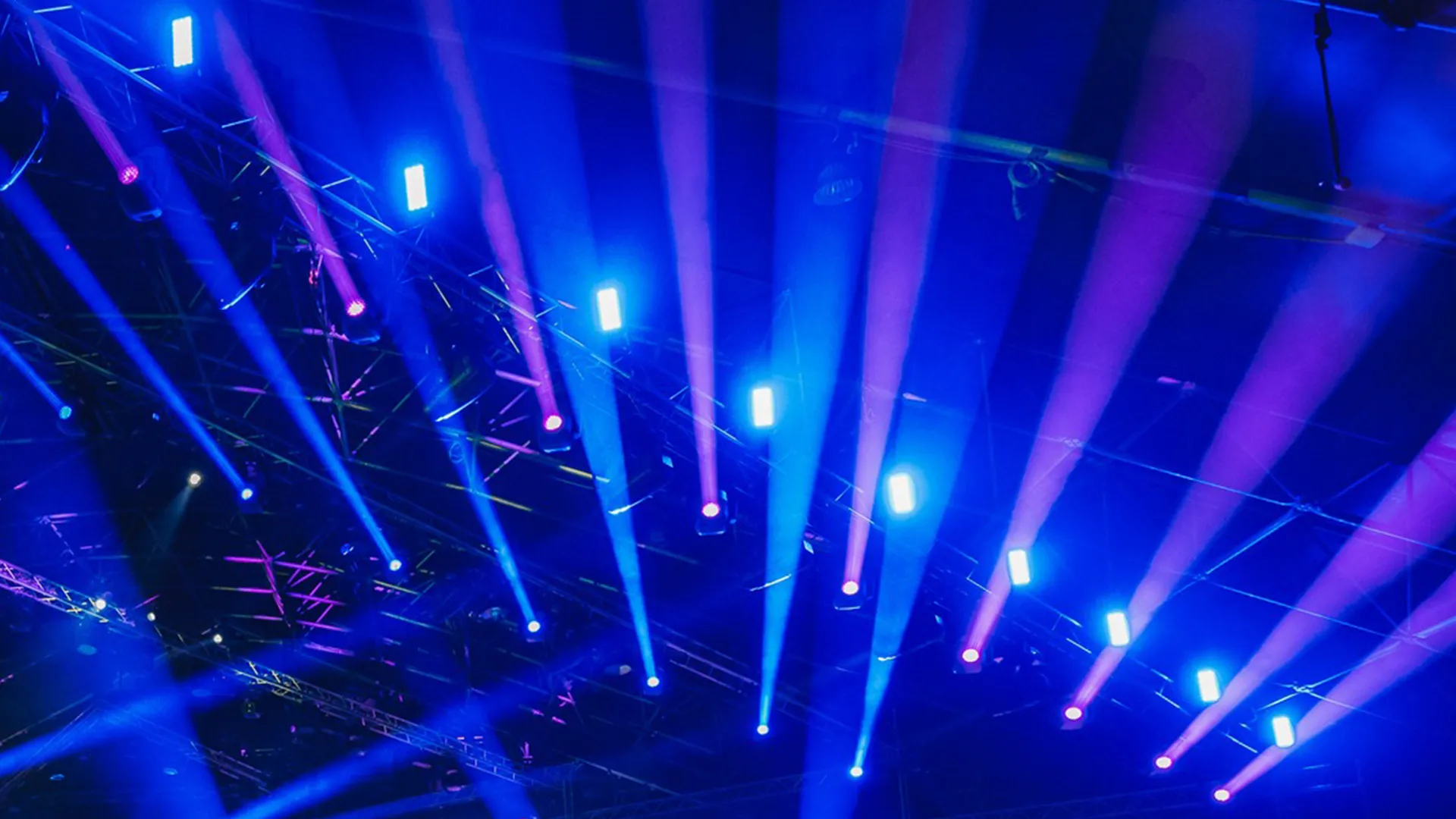

Live concerts and shows

Ideal for dynamic stage effects synchronized with audio and live performances.

Television and broadcast studios

Excellent color rendering and silent movements, perfect for live programs and TV sets.

Corporate events and trade fairs

Captures attention with graphic projections and bright beams for branding and exhibitions.

Clubs and discos

Spectacular effects with prisms, gobos, and strobe for immersive and engaging environments.

Theatres

Precise lighting and soft filters to enhance actors and stage sets without noise.

Theme parks and permanent installations

Reliable and updatable for continuous use in controlled environments.

Photo and video sets

Creative support for lighting effects and projections in shootings and visual productions.

Fixed gobo wheel

Color wheel

Features

High-power light source▼

Uses a 330 W Osram Sirius HRI lamp that delivers 16,500 lumens, suitable for large venues and spaces with high ambient light.

Focused and precise beam▼

With a narrow 3.4° beam angle, it produces an extremely sharp and visible light beam, ideal for long-distance effects.

High-resolution motorized optical system▼

16-bit linear focus allows precise and continuous beam sharpness adjustment, ensuring uniformity and flexibility.

Wide color range▼

17-color wheel with linear selection for smooth transitions and seamless two-color beam creation.

Advanced dynamic effects▼

Equipped with gobo wheel, 8-facet rotating prism, frost and smooth filters, enabling a variety of visual effects, from textured projections to soft or multi-beam lighting.

Ultra-fast and silent movements▼

PAN system with continuous rotation (DTS FPR) and 270° TILT in just 1.2 seconds. Trifase stepper motors ensure speed and quiet operation, ideal for live events, theaters, and TV studios.

Comprehensive professional control▼

Compatible with DMX 512 and RDM protocols, features LCD display with soft keys, and supports firmware updates via dongle for flexible integration into any lighting setup.

Selectable DMX modes▼

Offers two DMX control modes (18 or 20 channels) to meet both simplified and advanced programming needs.

High energy efficiency▼

Low consumption (450 W) with power factor > 0.90, supports universal power input (100–240 V AC) with Power Factor Correction (PFC).

Integrated electronic protections▼

Equipped with circuits to protect against overvoltage and overheating, ensuring maximum operational reliability over time.

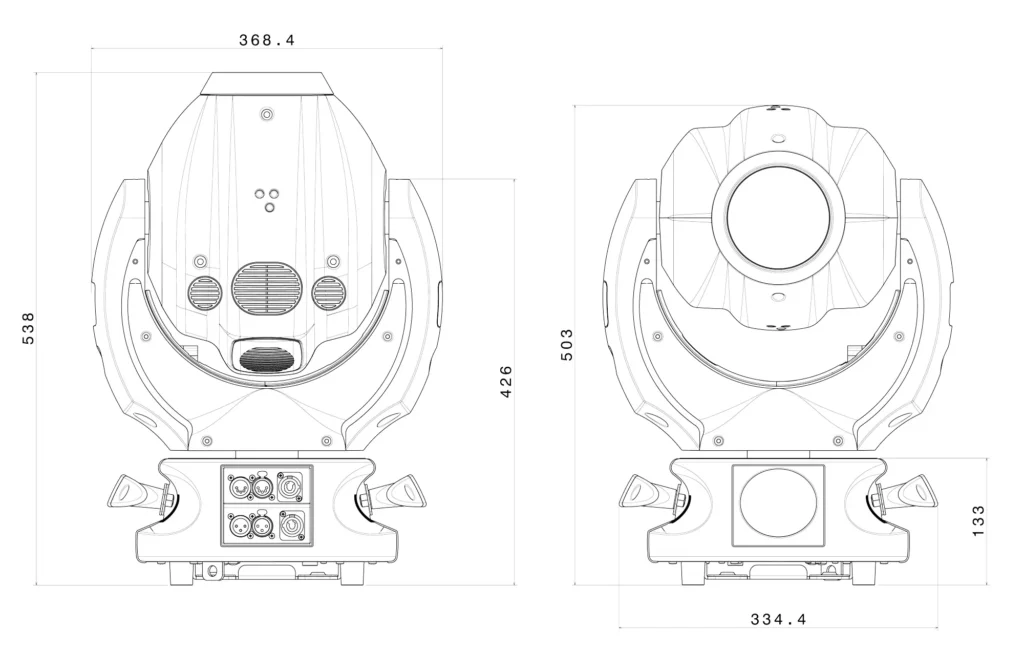

Compact and robust design▼

Weighs 17 kg with IP20 protection rating and professional black finish, suitable for indoor setups such as studios, theaters, and trade shows.

Versatility and customization
