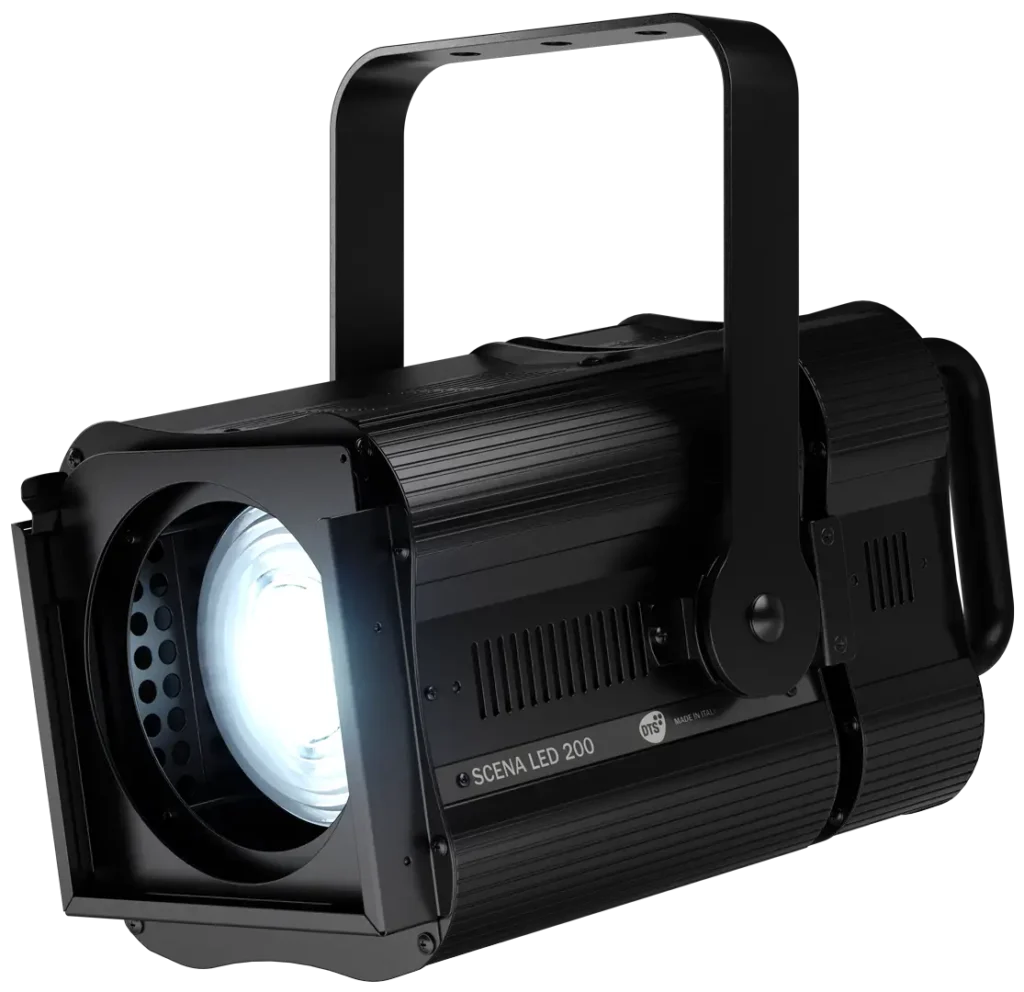

Scena-LED-200-CT

SCENA LED 200 CT

Scena-LED-200-CT
Entertainment

LED fresnel projector

features
Technical Data
Download
Add To Compare
View Compare

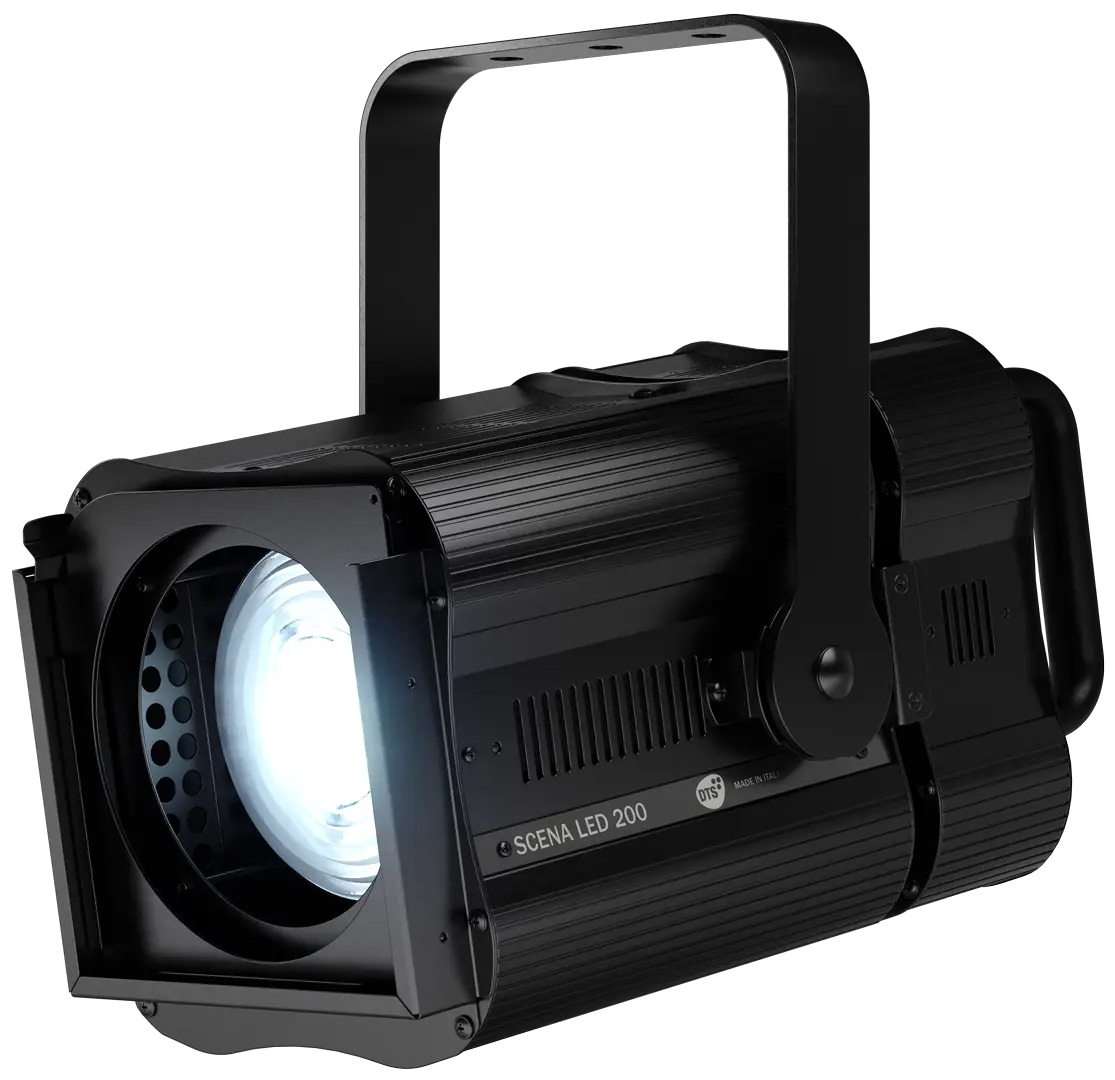

Powerful, compact, and lightweight LED projector featuring a variable color temperature white LED. SCENA LED 200 CT is ideal for television studios, theaters, museums, trade shows, and events, offering superior light quality and exceptional versatility with flicker-free projection, DMX-RDM remote or manual control, silent operation, and simplified maintenance.

highlights

Source

Single high-power White with linearly tunable color temperature (2700 K - 6500 K)

Lumens

5613 lm

IP Rating

IP20

DMX

7 channels 2 channels “CTC” mode

operating
temperature

-10° / 40° C

Applications

Live Shows
Theme Parks
Theatre
Tv Studios
Cruise & Yacht Lighting

Scena-LED-200-CT

Theatre and Performing Arts

High-quality light and flexible zoom to enhance actors and stage sets.

TV Studios

Adjustable color temperature and high CRI for flawless on-camera performance.

Live Events and Concerts

Reliability, DMX/RDM control and wide zoom range for professional use.

Museums and Exhibitions

Adaptable and discreet lighting to highlight artworks and installations.

Indoor Architectural Spaces

Adjustable lighting for churches, showrooms and conference halls, with easy installation.

Photography and Cinema

Natural and adjustable lighting, ideal for shooting and video productions.

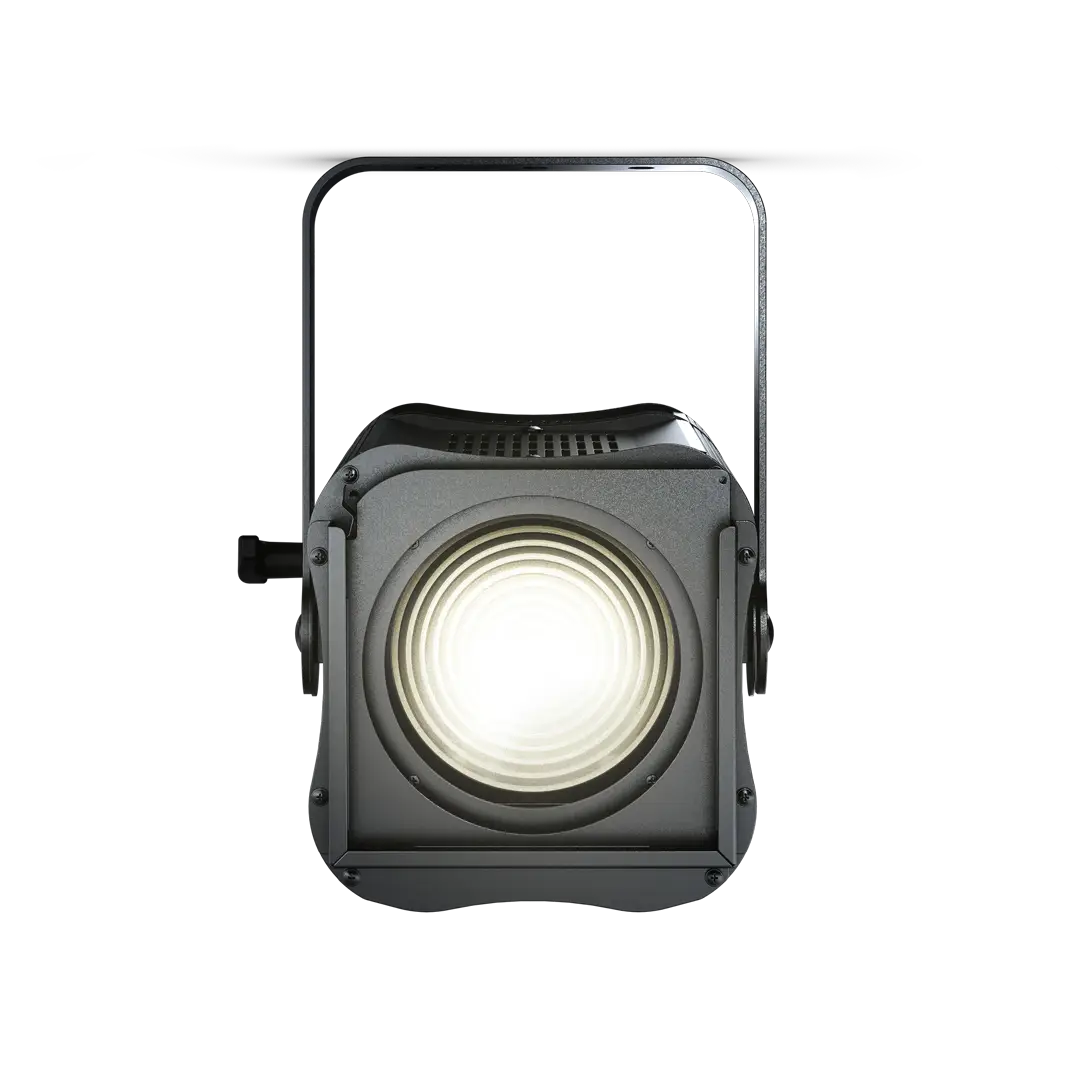

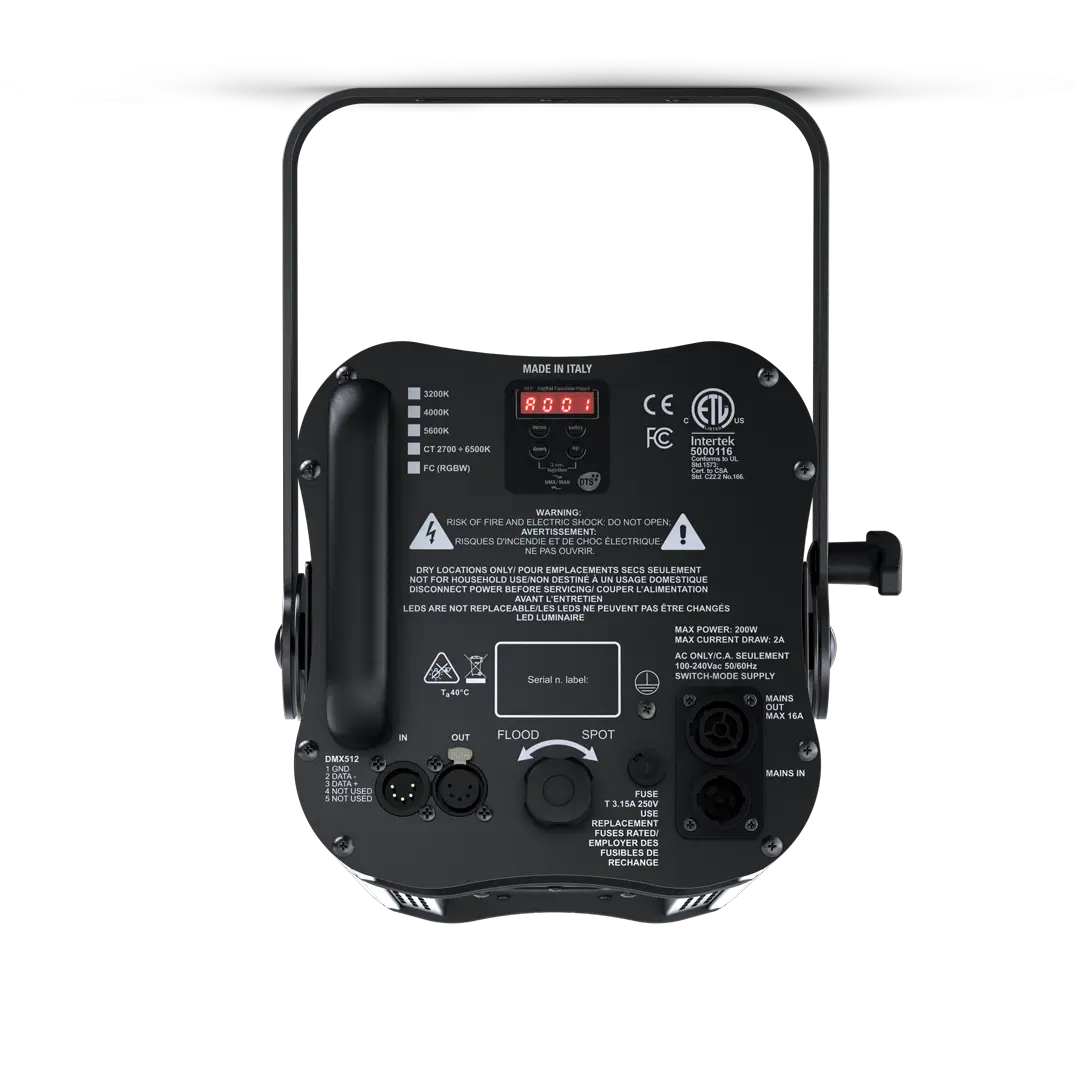

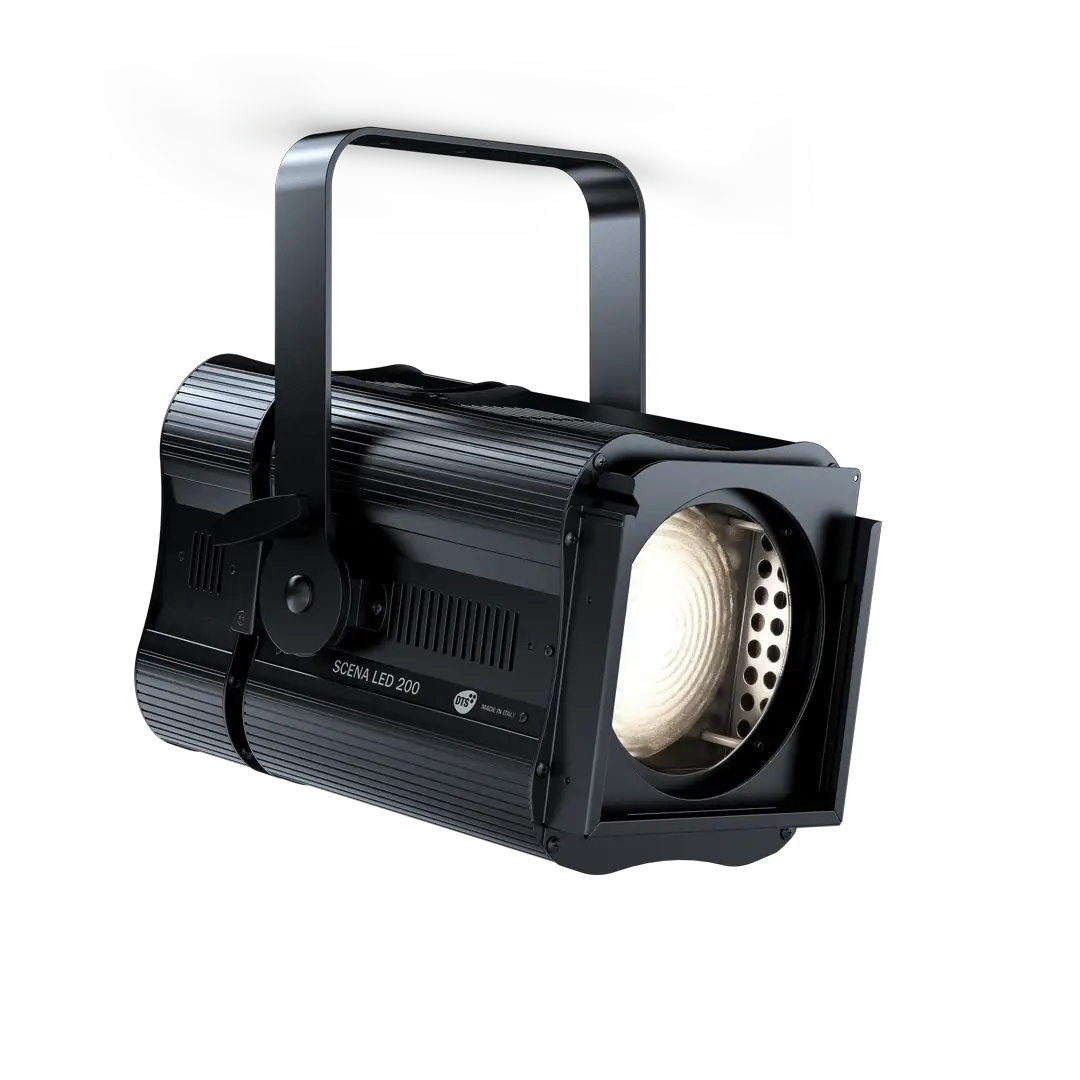

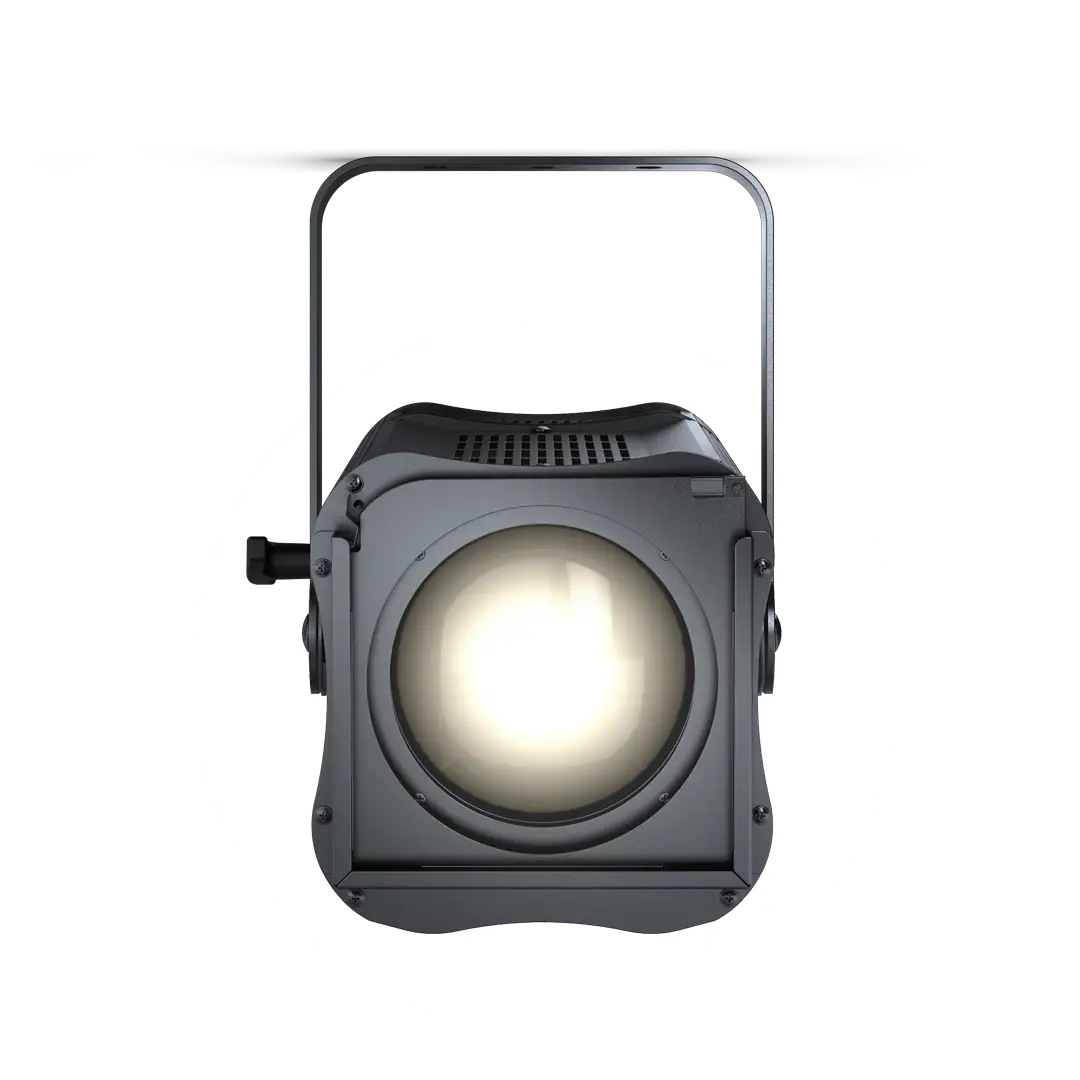

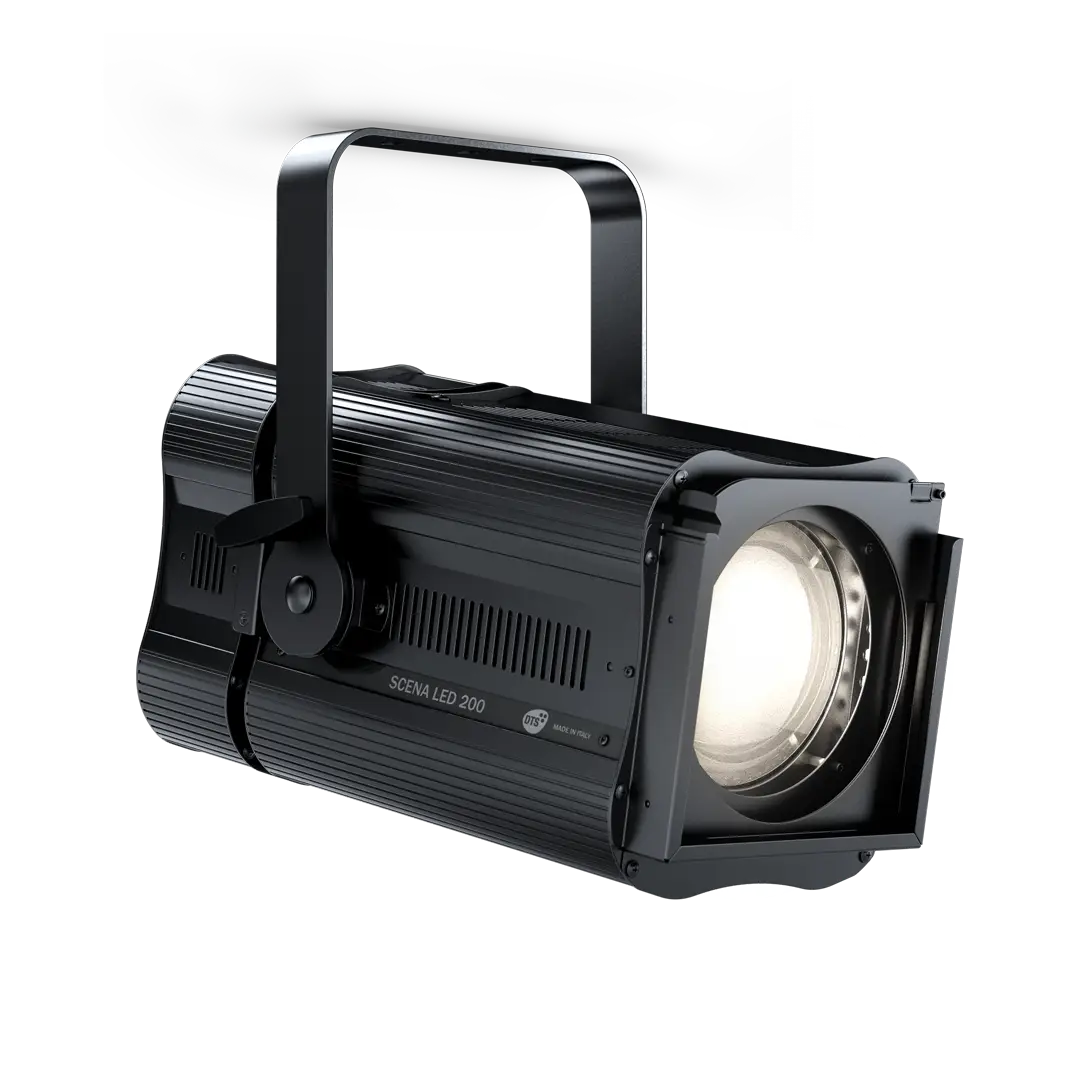

Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-C
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery
Scena-LED-200-FR-CT_gallery

Features

Allows light to be tailored to different stage and ambient settings, from warm to cool white.

Ensures natural and realistic colors, essential for theatrical, television, and photographic applications.

Wide beam range (6.5°–70° with Fresnel) for easy adjustment from narrow to wide beam.

Two lens types available to customize light distribution based on project needs.

Compatible with major lighting control protocols for flexible operation, either remotely or locally.

Simple and intuitive interface for quick configuration even without a console.

Safety systems against overvoltage and overheating for reliable, long-term use.

Professional and durable connections for safe and stable installation in any setting.

Only 200 W power draw for powerful light output with energy optimization.

Available in two versions (FR/PC), easy to transport and suitable for both fixed and mobile installations.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Versatility and customization

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Technical data

OUTPUT

  • Single high-power White with linearly tunable color temperature (2700 K – 6500 K)
  • CRI > 90
  • LED lifespan: 50,000 hours (L70B10)

OPTICAL GROUP

  • Ø 150 mm Fresnel and PC lens
  • Linear zoom:
    • 6.5° – 70° with Frensel lens
    • 6.4° – 64° with PC lens

CONTROL

  • DMX 512 / RDM or Manual control
  • Multi-function 4-digit 7-segment LED display + 4 soft keys
  • Firmware updatable via DTS firmware uploader dongle

POWER SUPPLY

  • Electronic Wide-range 100-240 Vac 50-60 Hz;
  • Power consumption: 200 W max
  • Power Factor: PF >0.94

DMX

  • 7 DMX channels (default)
  • 2 DMX channels
  • “CTC” mode

CIRCUITS PROTECTIONS

  • Overvoltage circuit protection and overtemperature circuit protection

CONNECTIONS

  • Power supply: PowerCON TRUE1 In/Out panel connectors
  • DMX: XLR 5-pole In/Out panel connectors

TEMPERATURE

  • Operating: -10° +40° C

PHYSICAL

  • Finishing: Black
  • Weight:
    • FR – 8.6 Kg (19 lbs)
    • PC – 9.5 Kg (21 lbs)
  • IP rating: IP20

TEST AND CERTIFICATION

  • CE

ACCESSORIES INCLUDED

  • 1 x PowerCON TRUE1 female cable connector (code 0520P066)
  • 1 x XLR 5 pins female cable connector (code 0508B147)
  • 1 x XLR 5 pins male cable connector (code 0508B148)
  • 1 x Filterframe Black finishing – already installed on the projector (code 02M093278.49)

ACCESSORIES ON REQUEST

  • Barndoor Black finishing (code 03.TBD04)
  • Universal Hook Clamp – Max load 40 Kg – 88 lbs (code 0521A047)
  • Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
  • Flightcase for 6 units (code 0521C075)
  • Safety cable – 3 x 600 mm – max. capacity load 30 Kg (code 0521A010)
  • DTS firmware uploader dongle (code 03.LA.206)

Features and certifications

SCENA-LED-200_disegni-tecnici

Product code:

03.TS051.46.F .AFresnel PC

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

06 White

14 Black

28 Silver

scena-led-200-ct_application TV studio

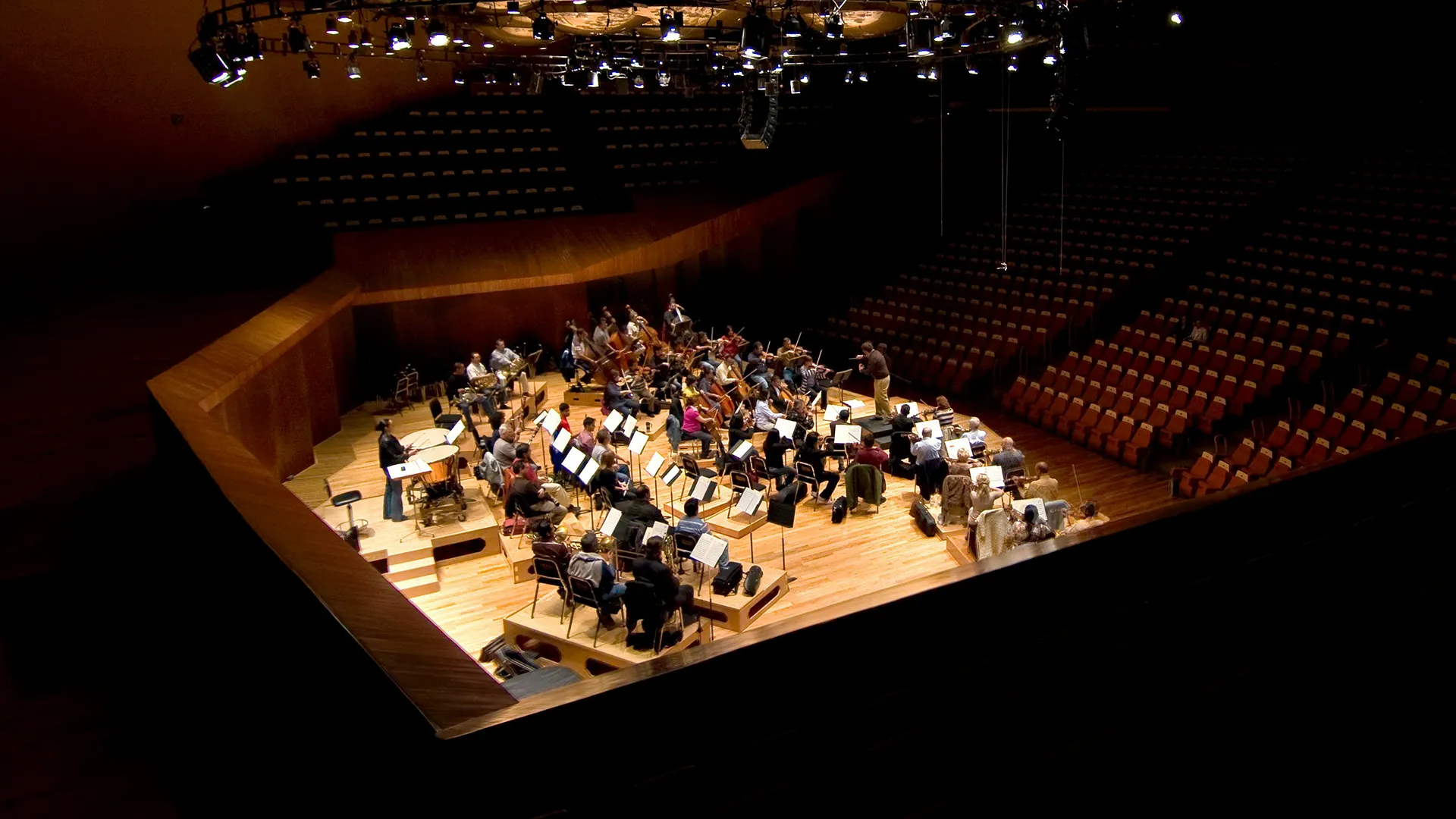

scena-led-200-ct_application arena
scena-led-200-ct_application

Download

Fixtures

GDTF FILE SCENA LED 200 CT

Download
Fixtures

Chamsys MagicQ fixture library for SCENA LED 200 CT

Download
Fixtures

Chamsys MagicQ fixture library for SCENA LED 200 MZ CT

Download
Fixtures

grandMA2 fixture library for SCENA LED 200 CT

Download
Fixtures

grandMA2 fixture library for SCENA LED 200 MZ CT

Download
Accessories

Barndoor Black finishing – 03.TBD04

Download
Accessories

Filterframe Black finishing – already installed on the projector – 02M093278.49

Download
Accessories

Universal Hook Clamp – Max load 40 Kg – 88 lbs – 0521A047

Download
Accessories

XLR 5 pins male cable connector – 0508B148

Download
Accessories

XLR 5 pins female cable connector – 0508B147

Download
Accessories

Safety cable – 3x600mm – max capacity load 30 kg (66lbs) – 0521A010

Download
Accessories

PowerCON TRUE1 female connector – 0520P066

Download
Accessories

Outdoor DMX cable 2 x 0.25 mm² – Flame retardant – 0509C158

Download
Accessories

DTS firmware uploader dongle – 03.LA.206

Download
Manuals

User manual SCENA LED 200 CT rel 1.3 EN

Download
Firmware

Firmware SCENA LED 200 CT Soft. 1.06

Download
Software

DTS FIRMWARE UPGRADE UTILITY 2.02

Download
Certificates

ETL authorization to mark SCENA LED 200

Login is required to access this page
Login
Certificates

RoHS and REACH Compliance Declaration

Download
Cad icons and Technical drawing

3D Icons SCENA LED 200 CT FRESNEL

Download
Cad icons and Technical drawing

Technical drawing SCENA LED 200 PC

Download
Cad icons and Technical drawing

2D Icons SCENA LED 200

Download
Cad icons and Technical drawing

Technical drawing SCENA LED 200 FR

Download
Photometrics

Photometric chart SCENA LED 200 CT

Download
Catalogues and Data sheets

DATASHEET SCENA LED 200 CT

Download
