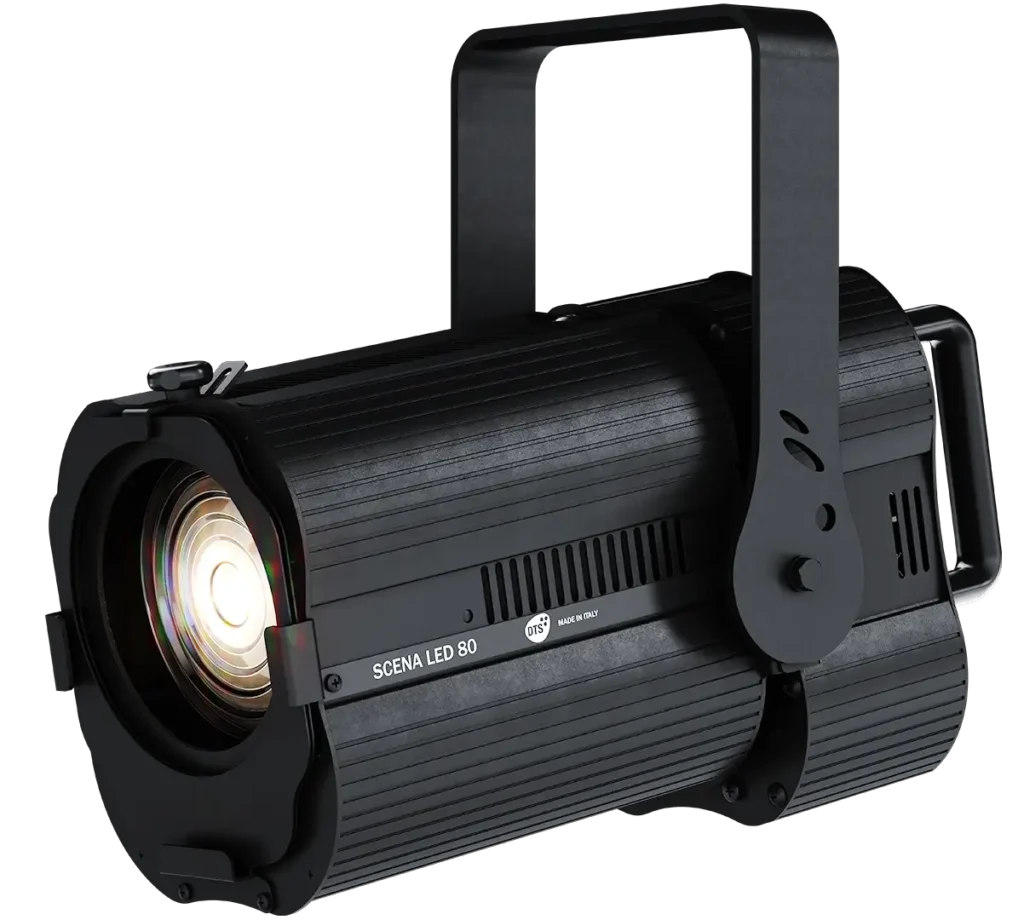

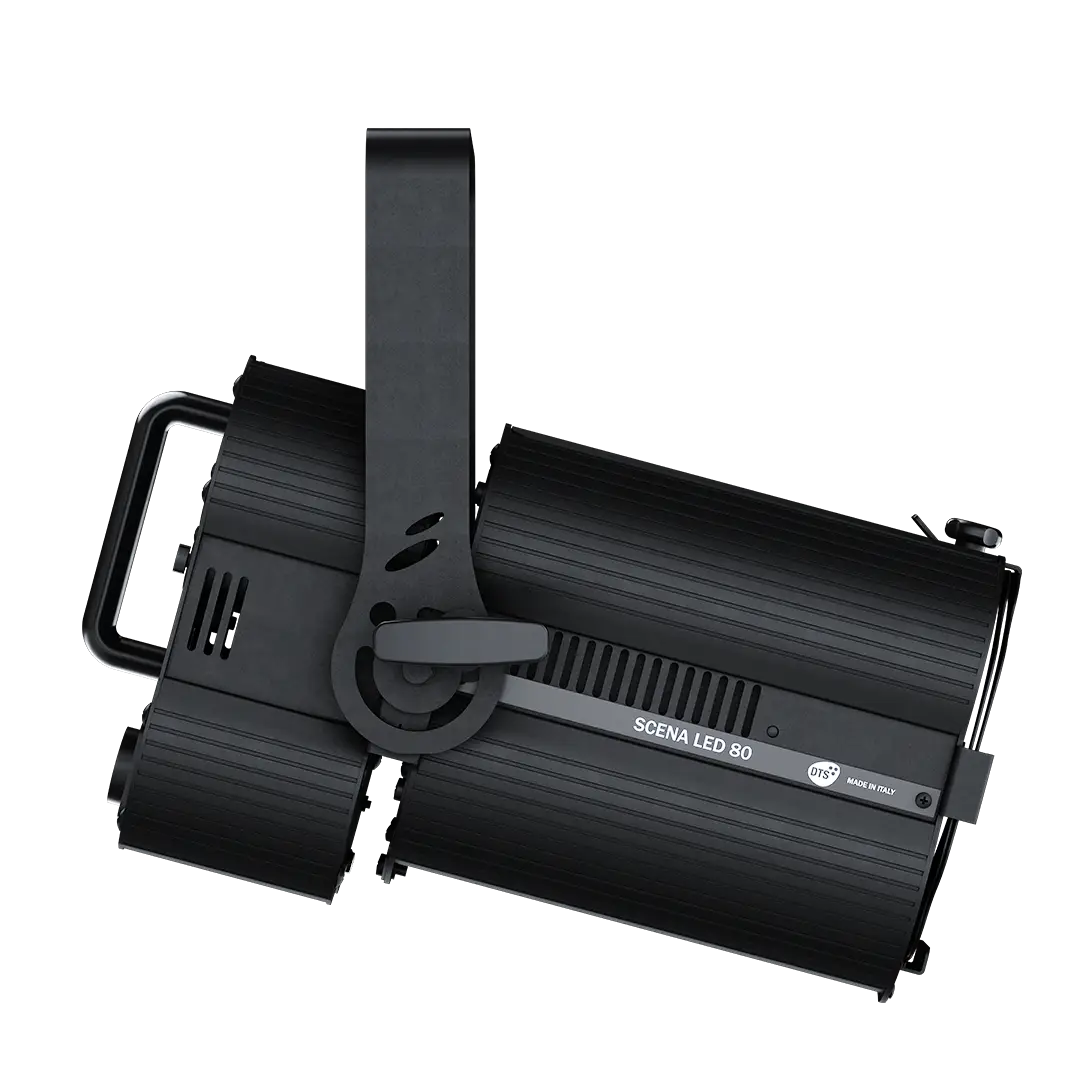

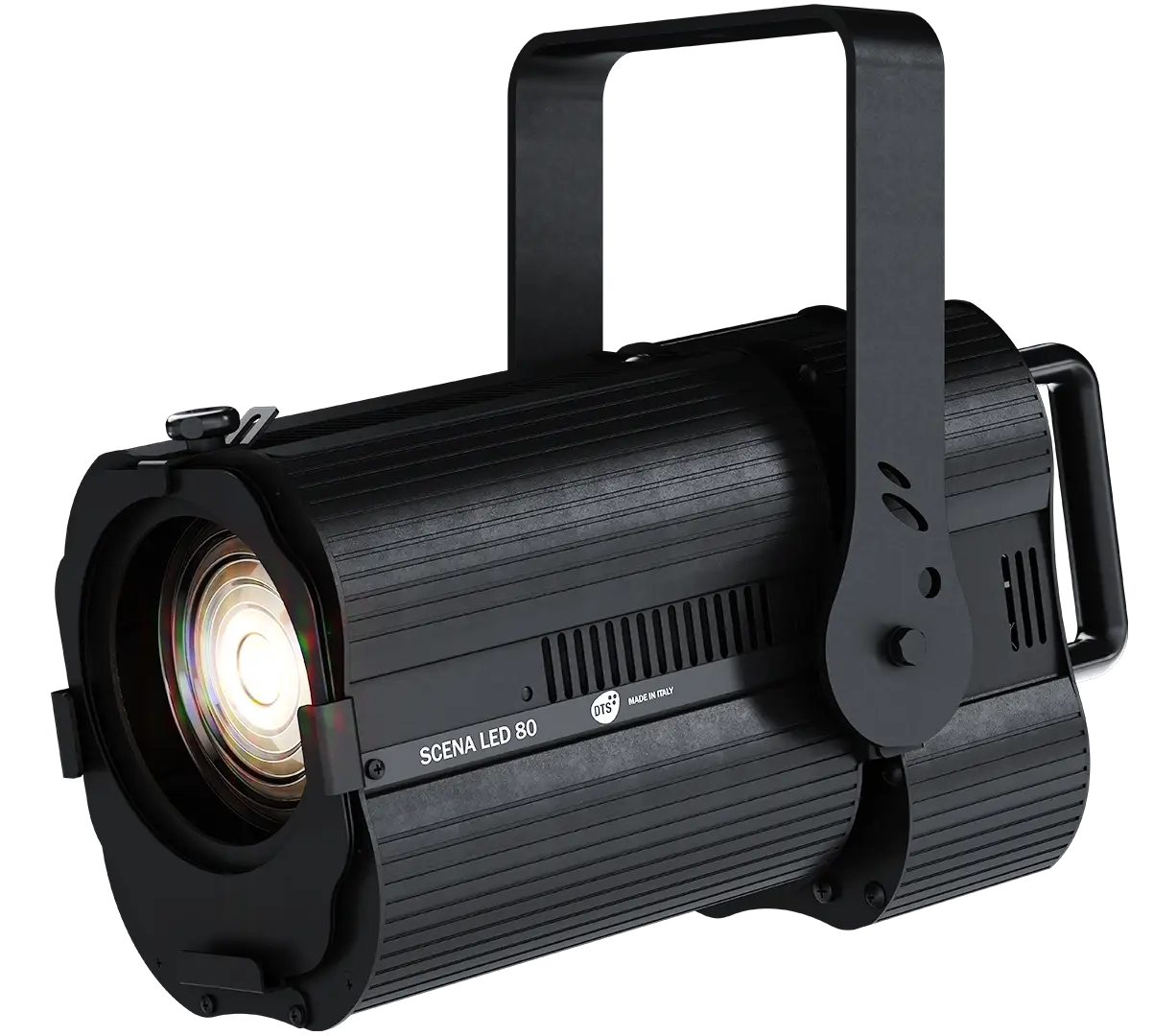

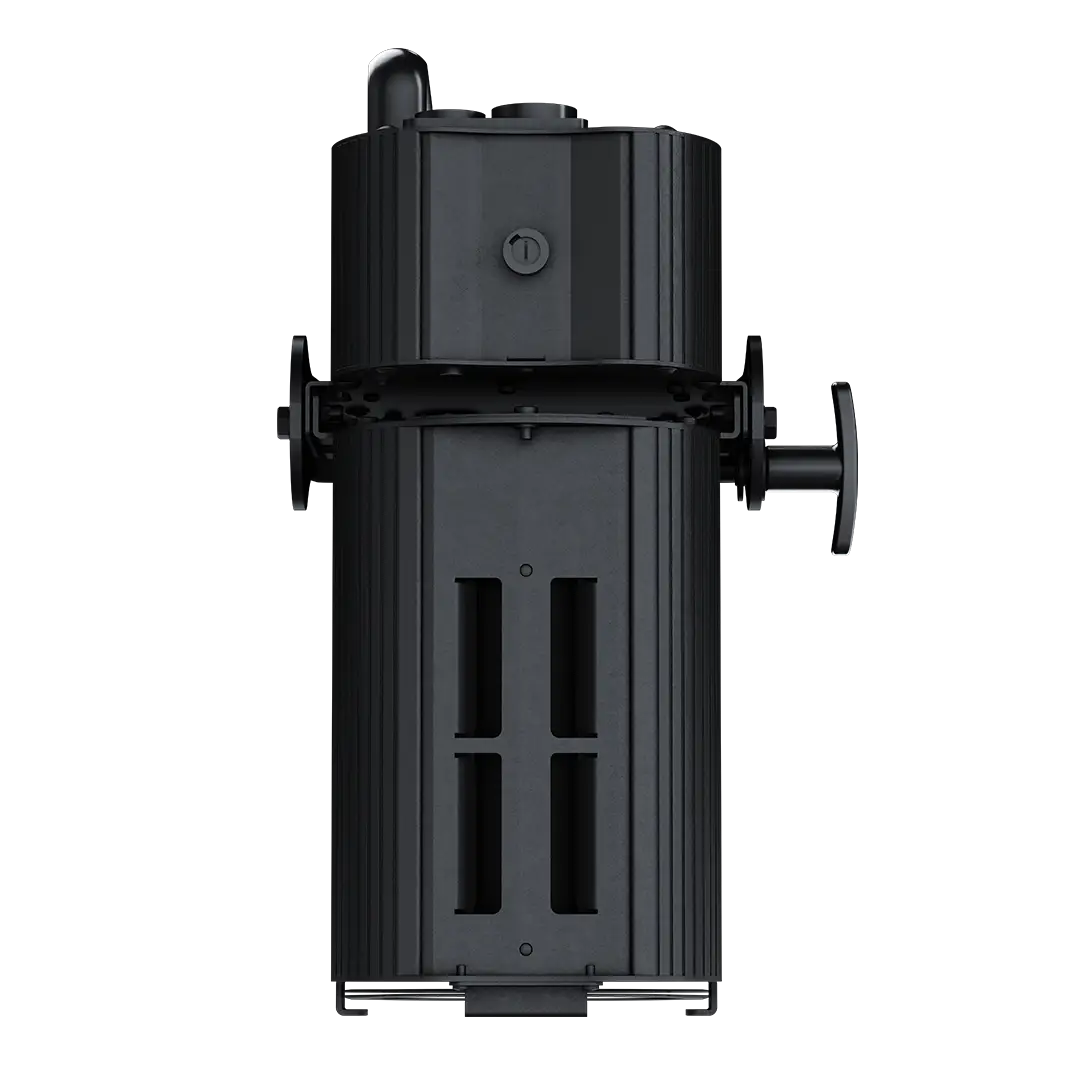

SCENA LED 80 CT

OUTPUT

• �� Single White LED source with linearly tunable color temperature (2700 K – 6000 K)
• �� Lumen output: up to 5400
• �� CRI > 80
• �� LED lifespan: 50000 hours (L70B10)

OPTICAL GROUP

• �� Ø 112 mm Fresnel lens
• �� 14°- 77° linear zoom

CONTROL

• �� DMX 512 / RDM protocols
• �� 4-digit 7-segment LED display + 4 soft keys
• �� Firmware updatable via DTS firmware uploader dongle

POWER SUPPLY

• �� Wide-range 100-240 Vac 50-60 Hz
• �� Power consumption: 100 W max
• �� Power factor: PF > 0.95

DMX

• �� 7 DMX channels (default)
• �� 2 DMX channels
• �� “CTC” mode

CIRCUITS PROTECTIONS

• �� Overvoltage circuit protection and overtemperature circuit protection

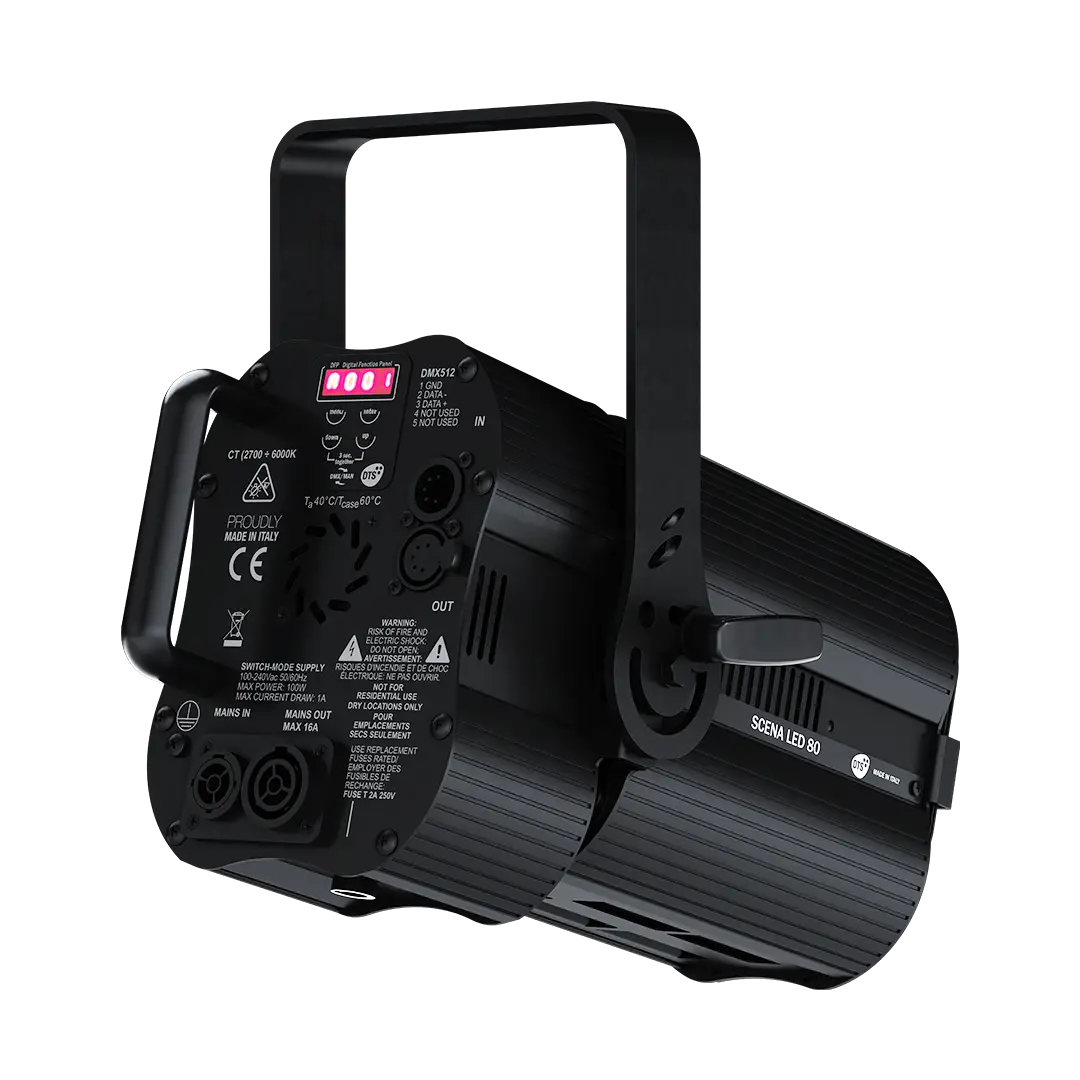

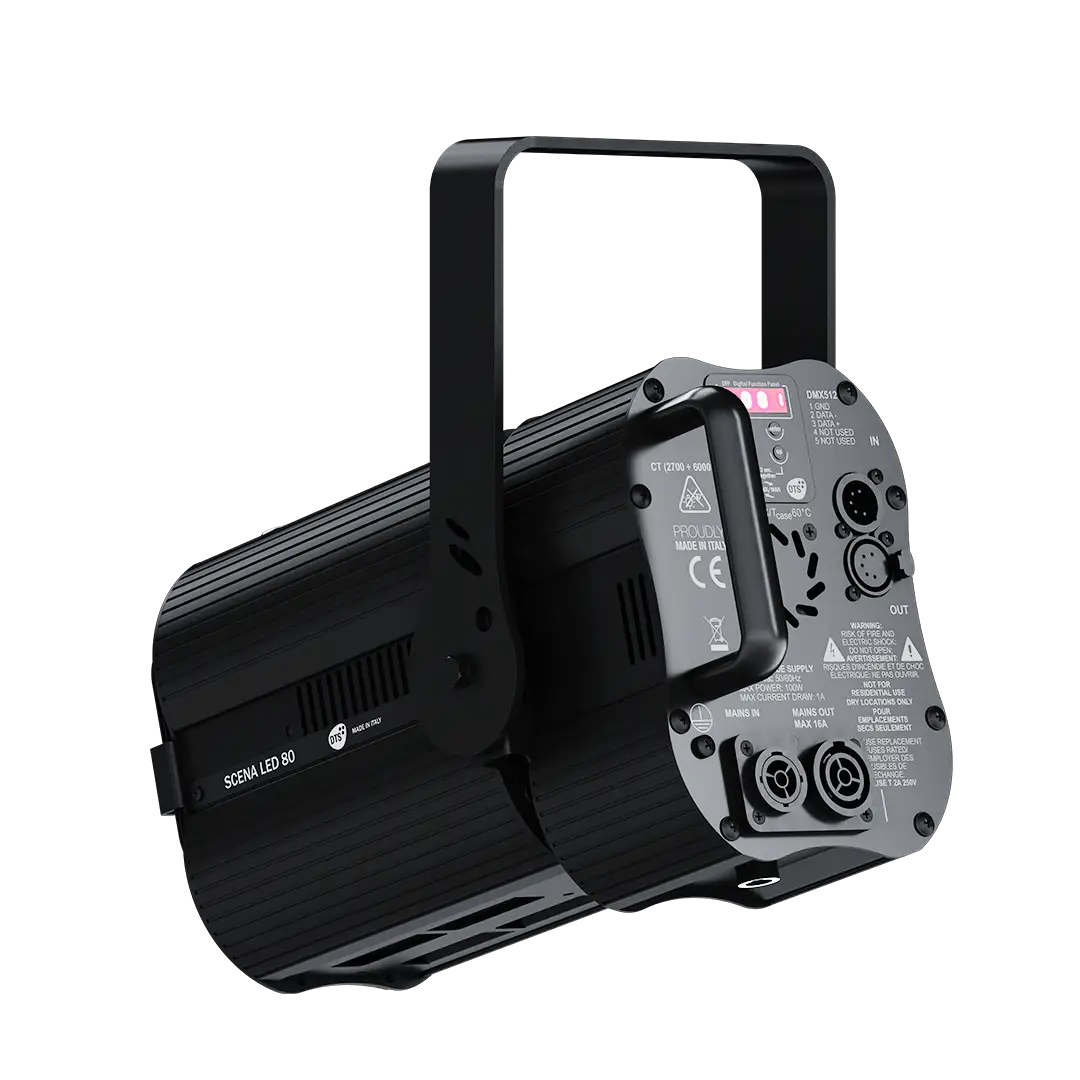

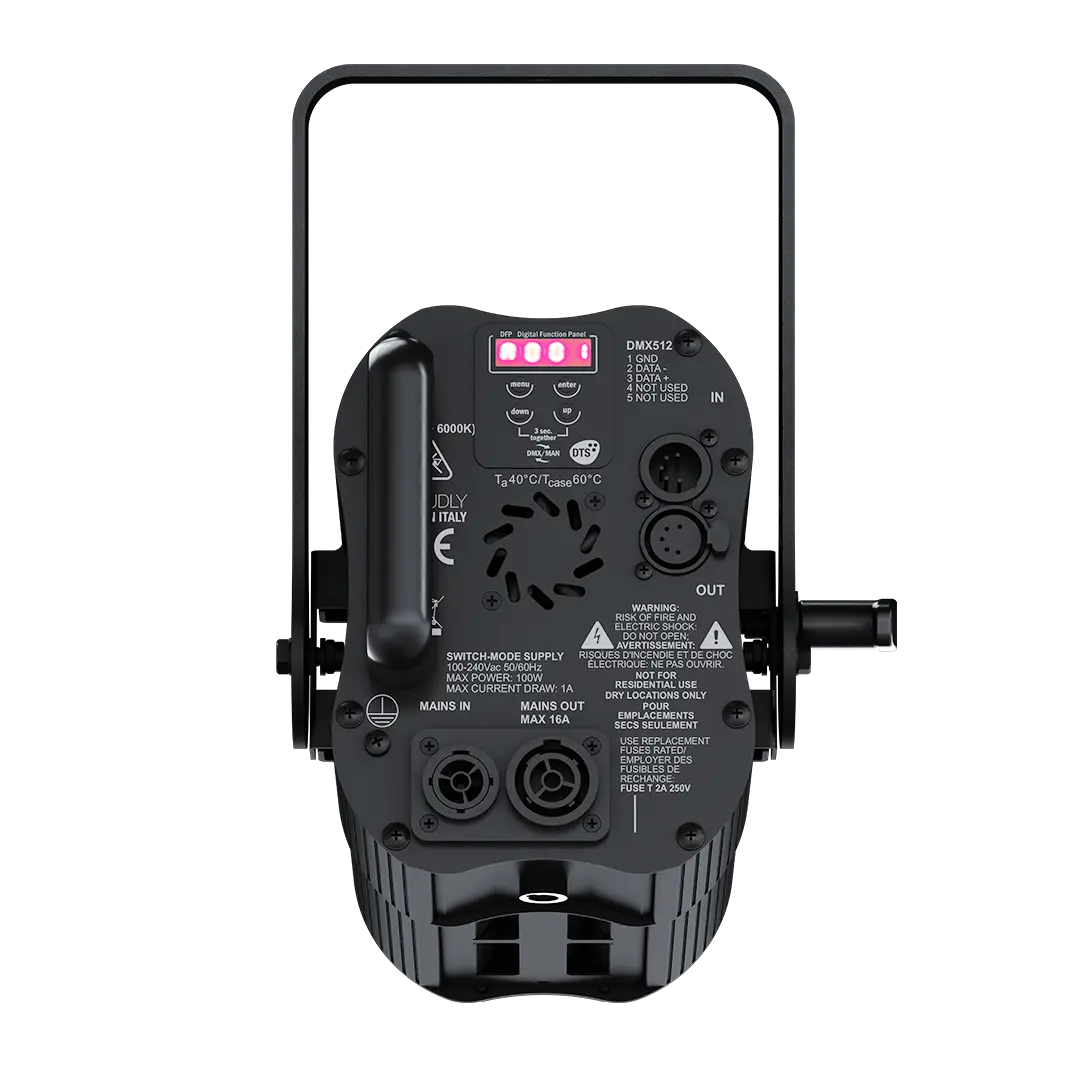

CONNECTIONS

• �� Power supply: PowerCON In&Out panel connectors
• �� DMX: XLR 5-pole In&Out panel connectors

TEMPERATURE

• �� Operating: -10° +40° C

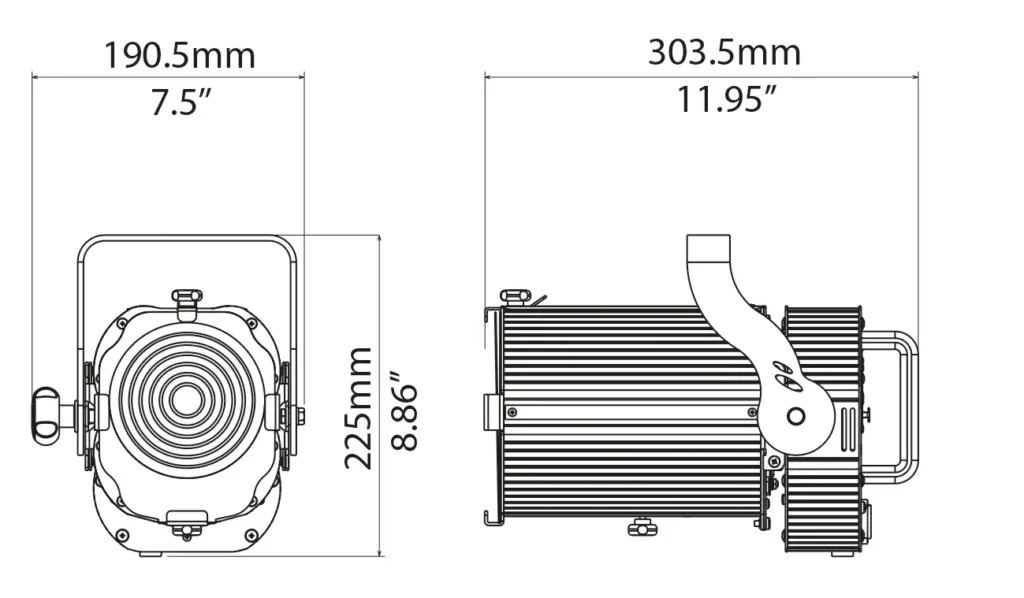

PHYSICAL

• �� Finishing: Black
• �� Weight: 4 Kg (8,8 lbs)
• �� IP rating: IP20

TEST AND CERTIFICATION

• �� CE

ACCESSORIES INCLUDED

• �� 1 x PowerCON female cable connector (code 0520P014)
• �� 1 x XLR 5 pins male cable connector (code 0508B028)
• �� 1 x XLR 5 pins female cable connector (code 0508B027)
• �� 1 x FilterframeBlack finishing – already installed on the projector (code 02M00422.46)

ACCESSORIES ON REQUEST

• �� Barndoor Black finishing (code 03.TA206)
• �� Universal Hook Clamp – Max load 40 Kg – 88 lbs (code 0521A047)
• �� Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
• �� Safety cable – 3 x 600 mm – max. capacity load 30 Kg (code 0521A010)
• �� DTS firmware uploader dongle (code 03.LA.206)

• �� Track adapter – black finishing (code 03.LA.235)
