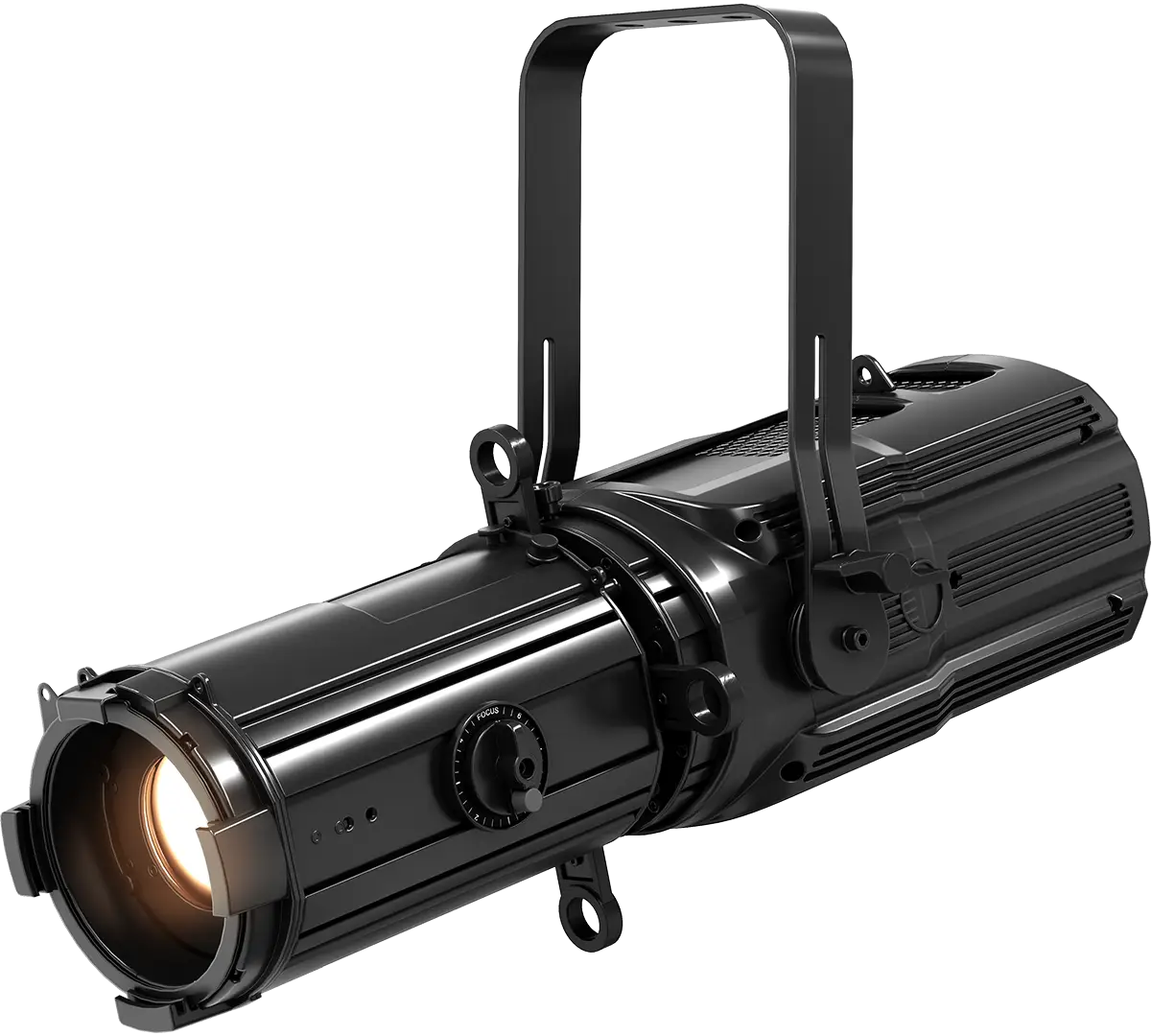

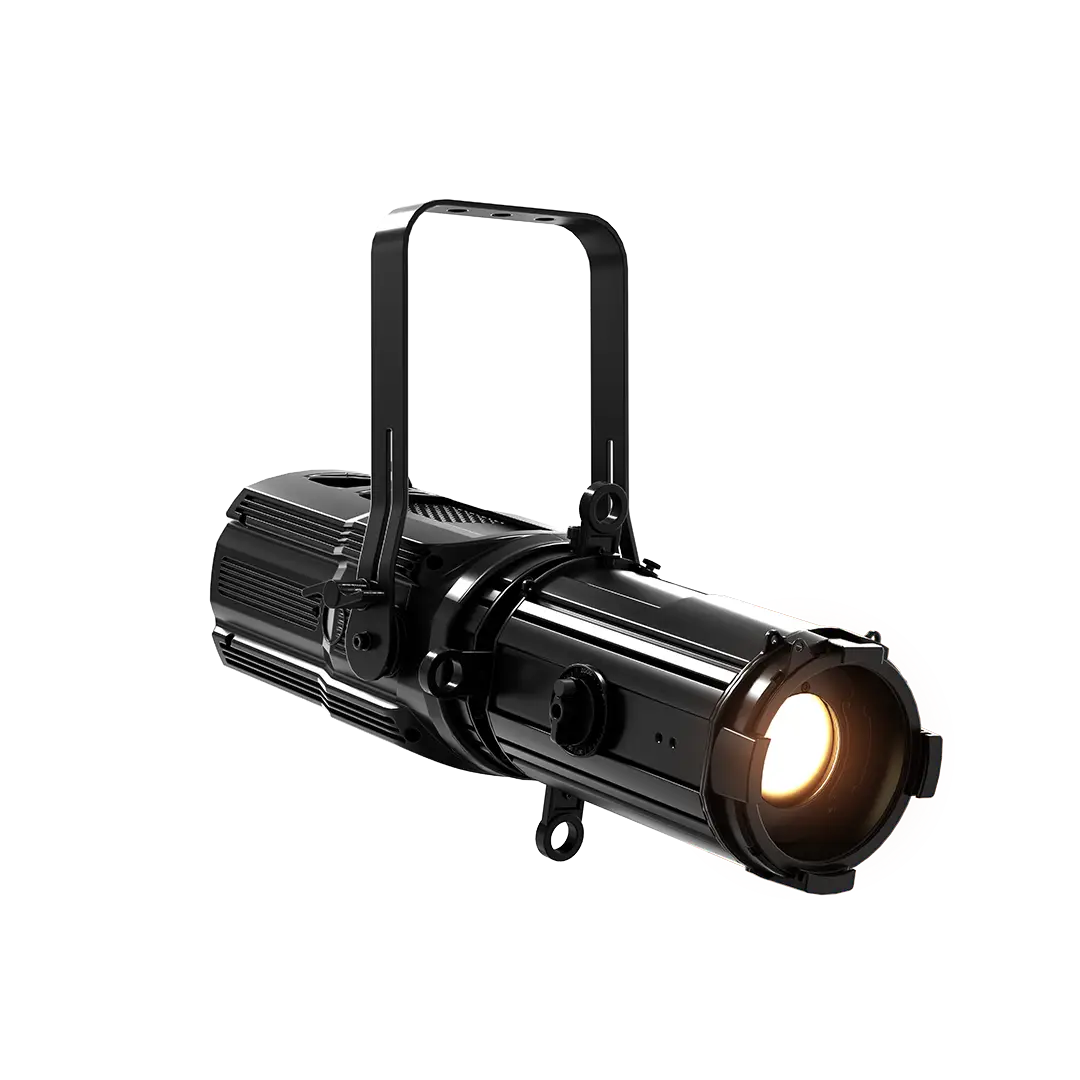

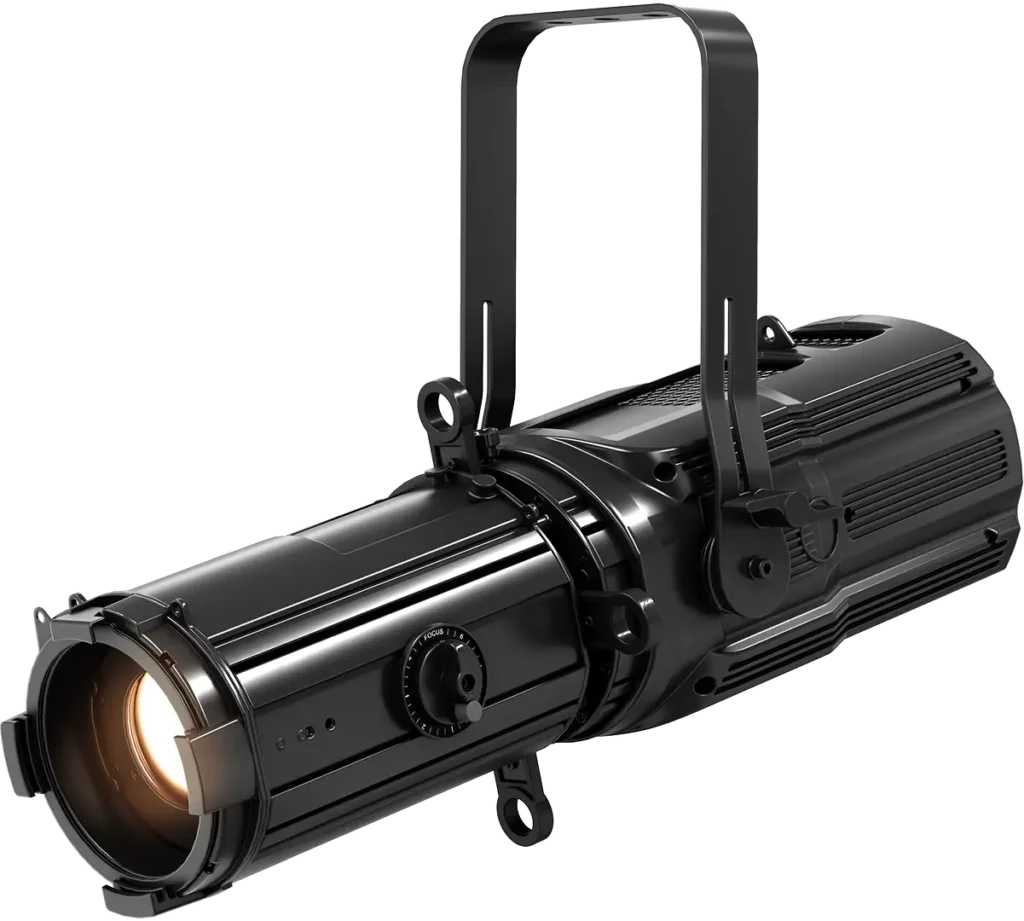

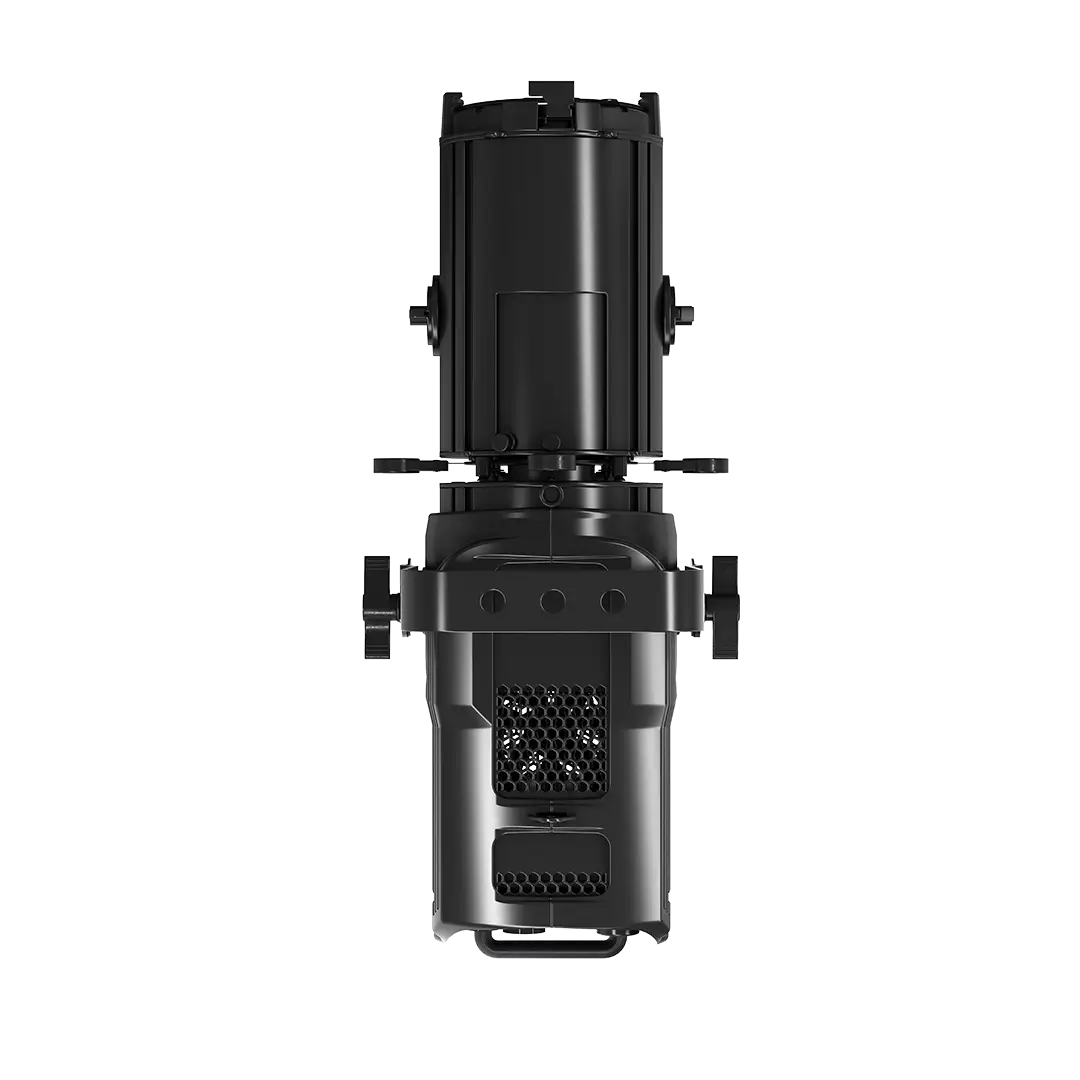

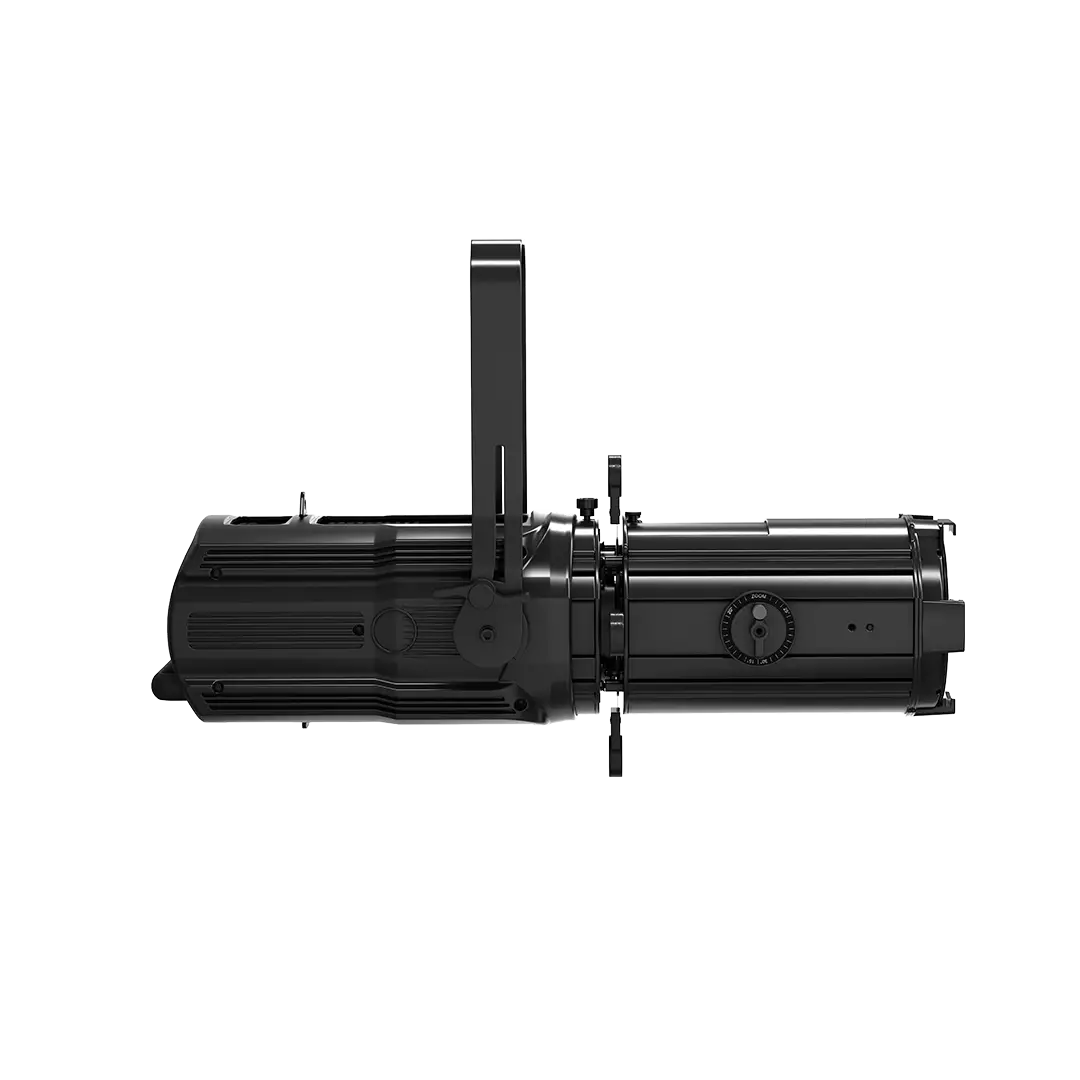

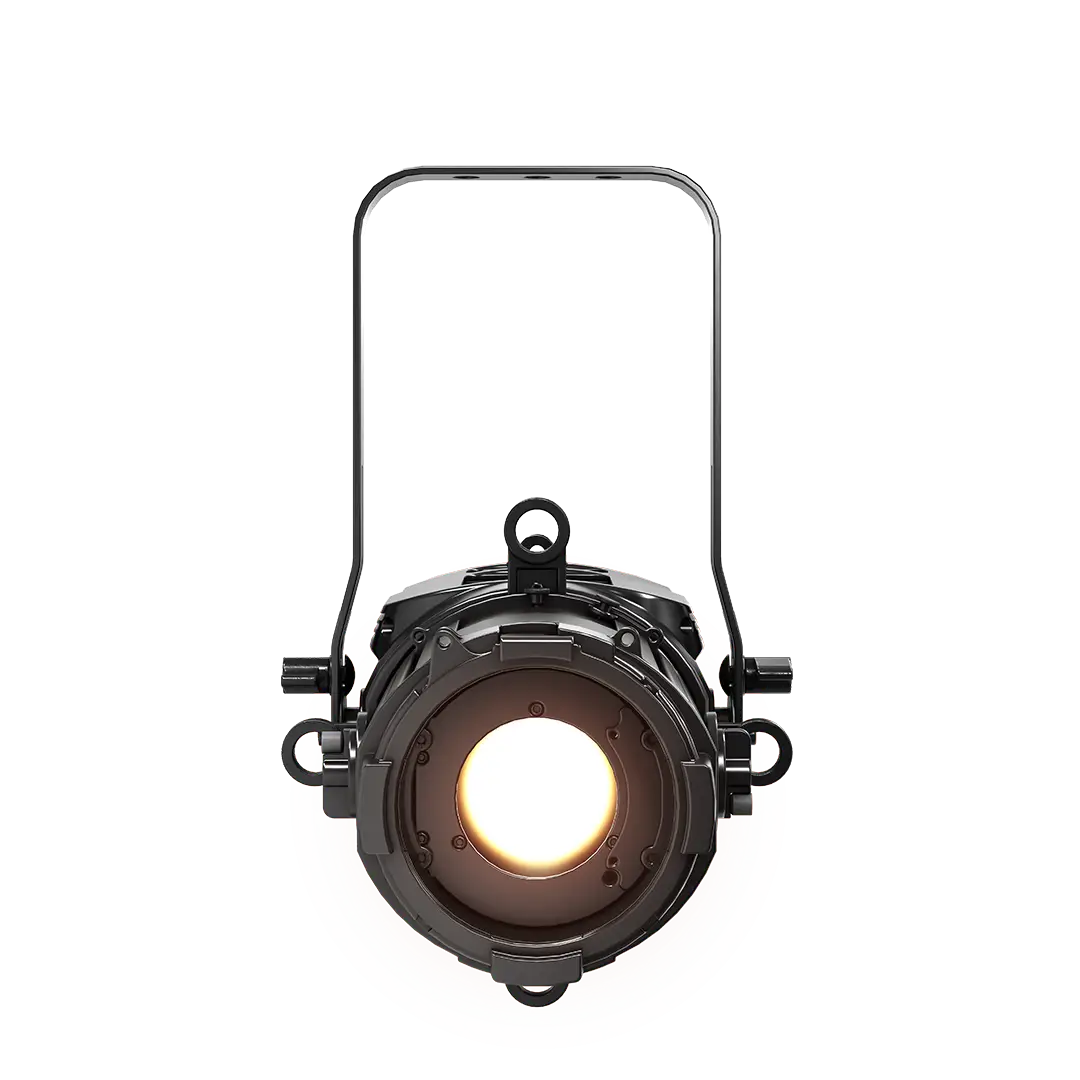

SOPRANO 1 HDW

LED projector

Projector with a single HDW (High Dynamic White) LED, featuring dynamic white light with adjustable color temperature. With its elegant and compact design, SOPRANO 1 HDW is perfect for any space, whether a small meeting room or a large auditorium. It is suitable for theaters, television studios, virtual production, conference halls, theme parks, and places of worship. Its advanced features and superior light quality make it the ideal choice for professional installations where performance and reliability are essential.

highlights

Source

Multi chip Led Source

Lumens

from 3000 lm to 3300 lm (Zoom Range 18°-34°) from3350 lm to 3500 lm (Zoom Range 25°-46°)

IP Rating

IP20

DMX

CCT Basic

operating
temperature

-10° / 45° C

Applications

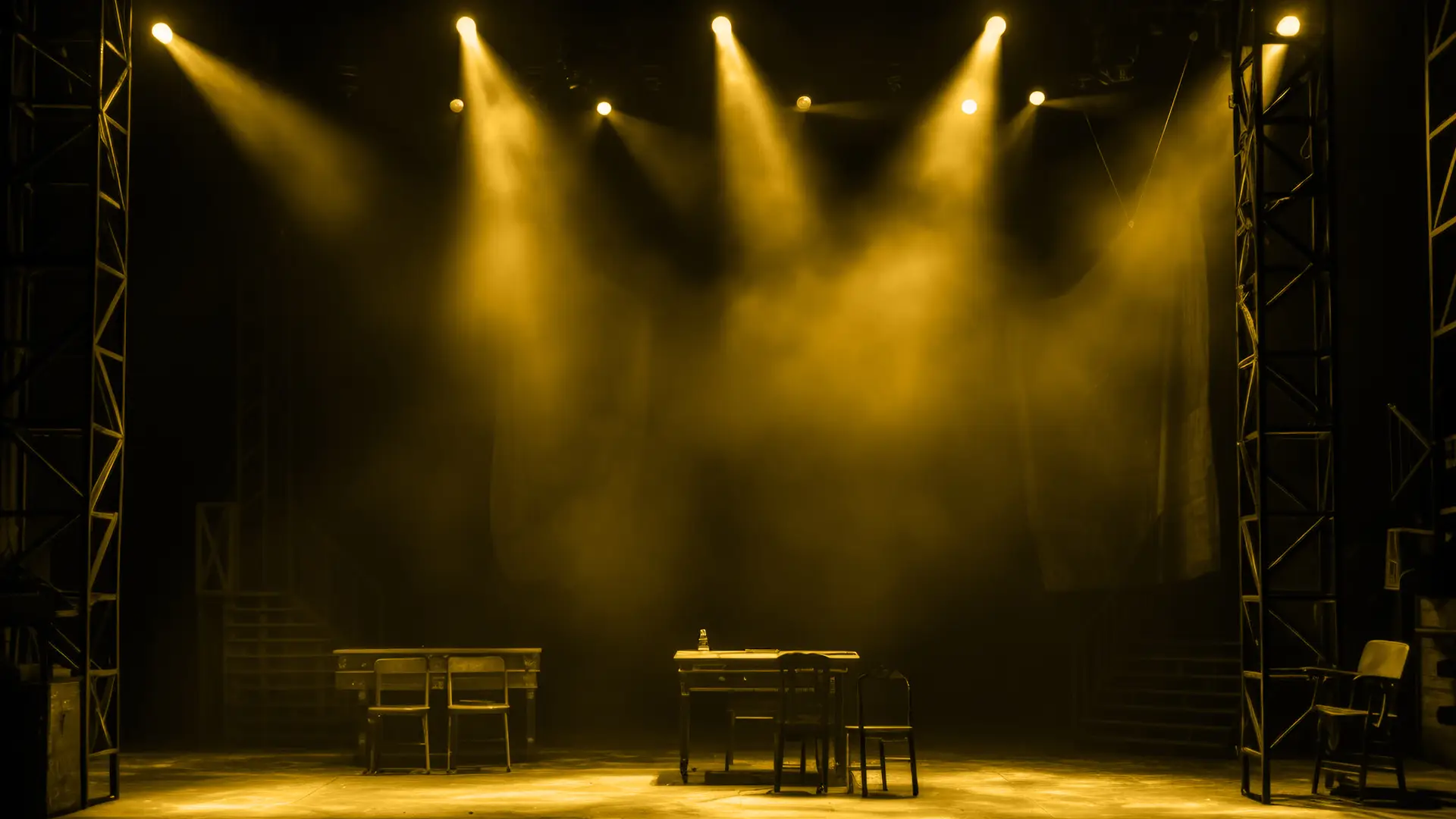

Theatres

Used to shape light on actors or scenery, providing precise, silent illumination with high color rendering—ideal for live performances.

TV Studios

Perfect for television sets thanks to its stable light output, smooth dimming, and ultra-silent fans, reducing noise and flicker during video recording.

Virtual Production Studios

Delivers controlled and uniform lighting for XR and green screen environments, with adjustable color temperatures and high color fidelity for seamless virtual integration.

Auditoriums

Offers versatile light coverage for events, concerts, or conferences, with linear zoom and color control suitable for any type of performance or presentation.

Conference Rooms

Ideal for corporate environments—silent, compact, and DMX/RDM-controllable, making it easy to create functional and professional atmospheres.

Theme Parks

Robust and reliable, ideal for creative and permanent installations requiring precise effects, dynamic white light, and resistance to variable operating conditions.

Places of Worship

Ensures respectful illumination—warm or neutral depending on the liturgical environment—free of noise or flicker, enhancing architecture and ceremonial moments.

Features

High-CRI Multichip LED Source▼

Features a multichip LED engine with CRI up to 98 and TLCI up to 96—ideal for video shooting and any environment where color fidelity is critical.

Interchangeable Linear Zoom (18°–34° / 25°–46°)▼

Two selectable zoom ranges thanks to a replaceable lens, offering maximum flexibility for stage and architectural applications.

Framing System with 3-Plane Blade Movement▼

Integrated 4-blade framing system with ±45° rotation, allowing precise light shaping on scenery, backdrops, or objects.

6-Color LED Engine with Dynamic White (1800–10000 K)▼

Highly customizable white generation, including green saturation control, to suit any visual context.

16-Bit Hi-Q Dimmer with Tungsten Emulation▼

Smooth, step-free dimming even at low levels, replicating the behavior of traditional halogen lamps.

Ultra-Silent and Automatic Cooling System▼

As quiet as 21 dBA in Ultra Silent mode. Automatic mode adjusts fan speed based on light output—ideal for noise-sensitive venues.

Full DMX / RDM Control + Local Jog Shuttle▼

Fully compatible with DMX512 and RDM, with a quick-access onboard interface for on-site setup and testing.

D-Size Gobo Compatibility▼

Accepts standard Ø 53.3 mm gobos for artistic or functional projections—perfect for theatres, theme parks, or scenic installations.

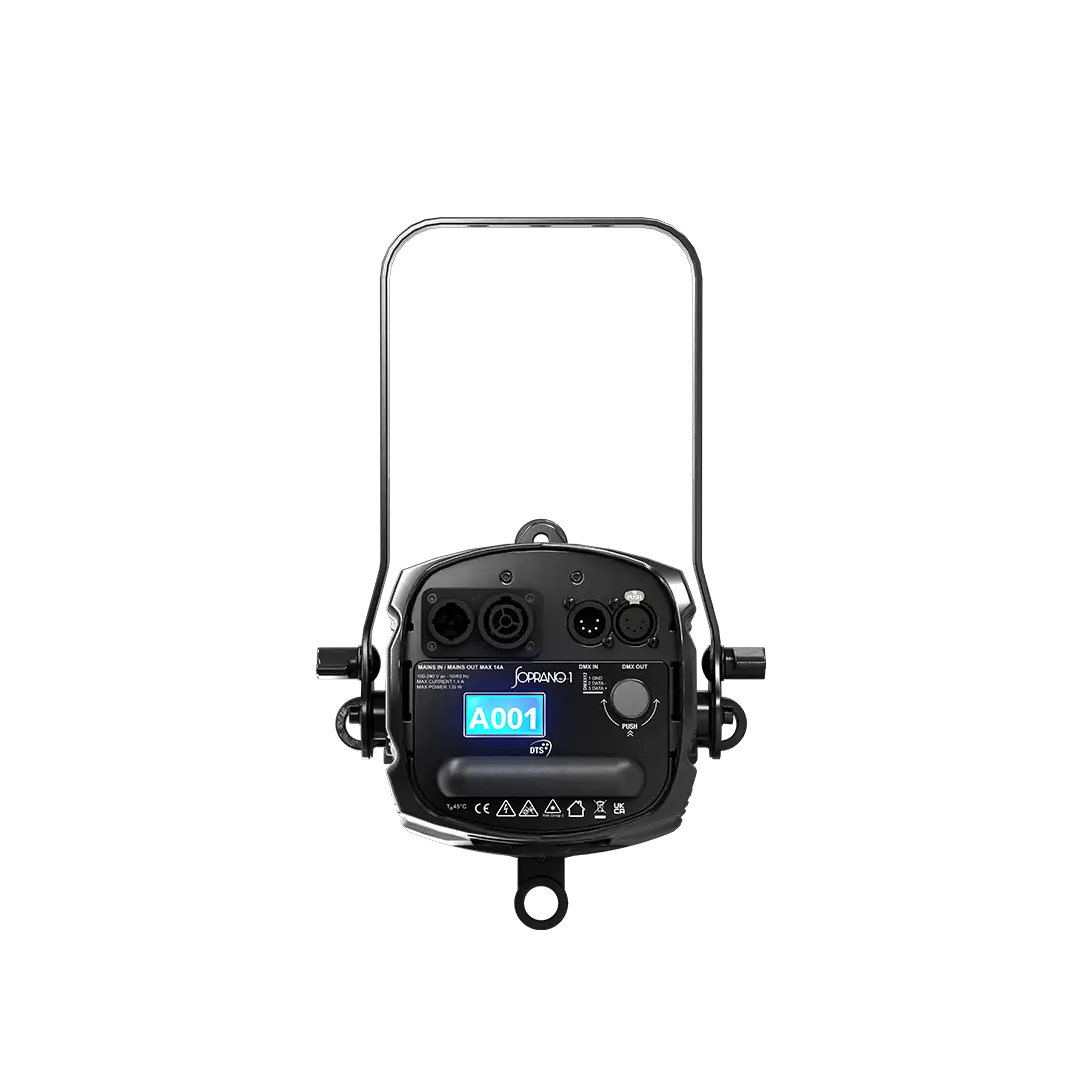

Professional PowerCON TRUE1 and XLR 5-Pin Connections▼

Industry-standard connectors ensure reliable, safe operation for mobile or fixed professional installations.

Firmware Upgradable via Dongle▼

Enables quick and easy updates to keep the fixture compatible with new functions or DMX configurations.

Versatility and customization
