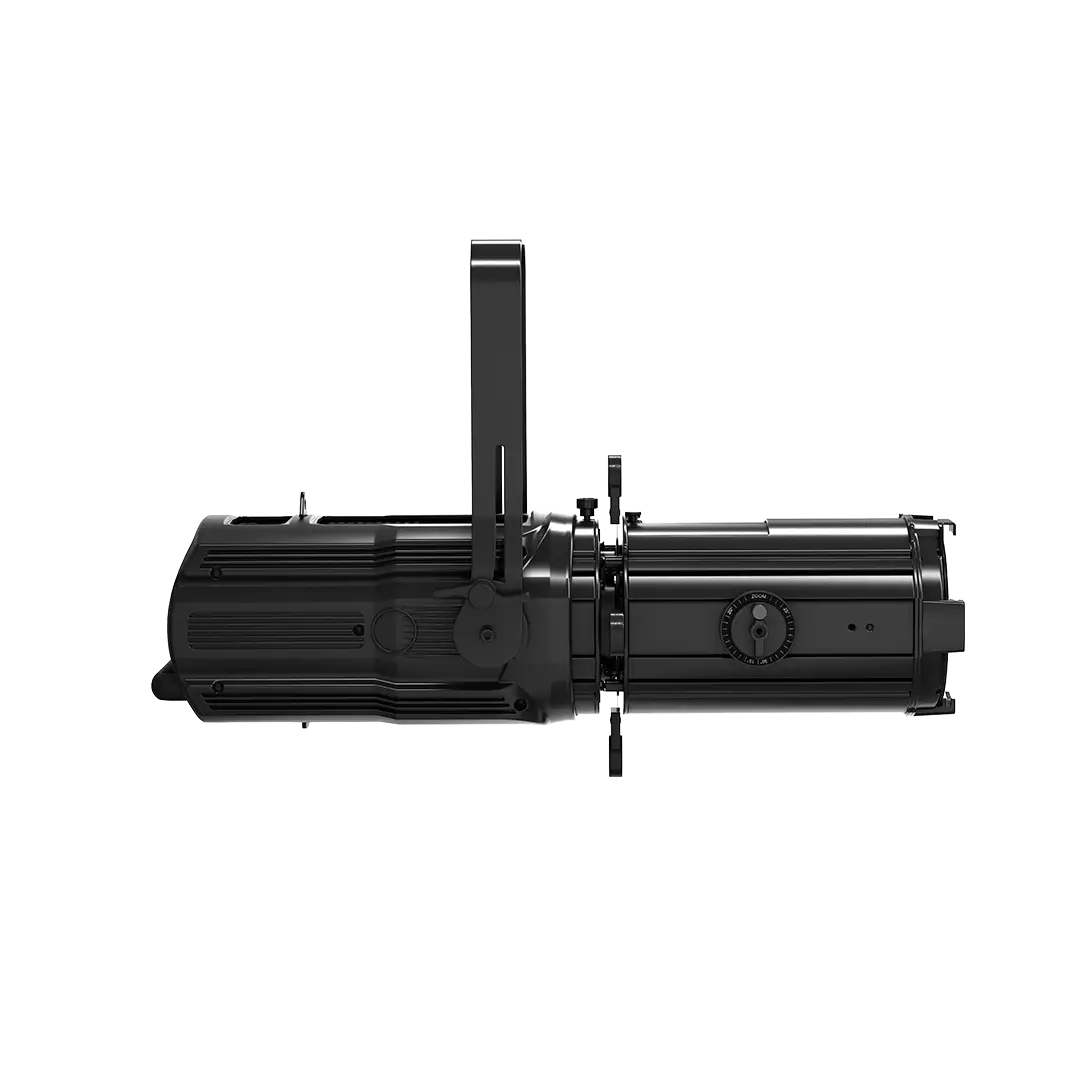

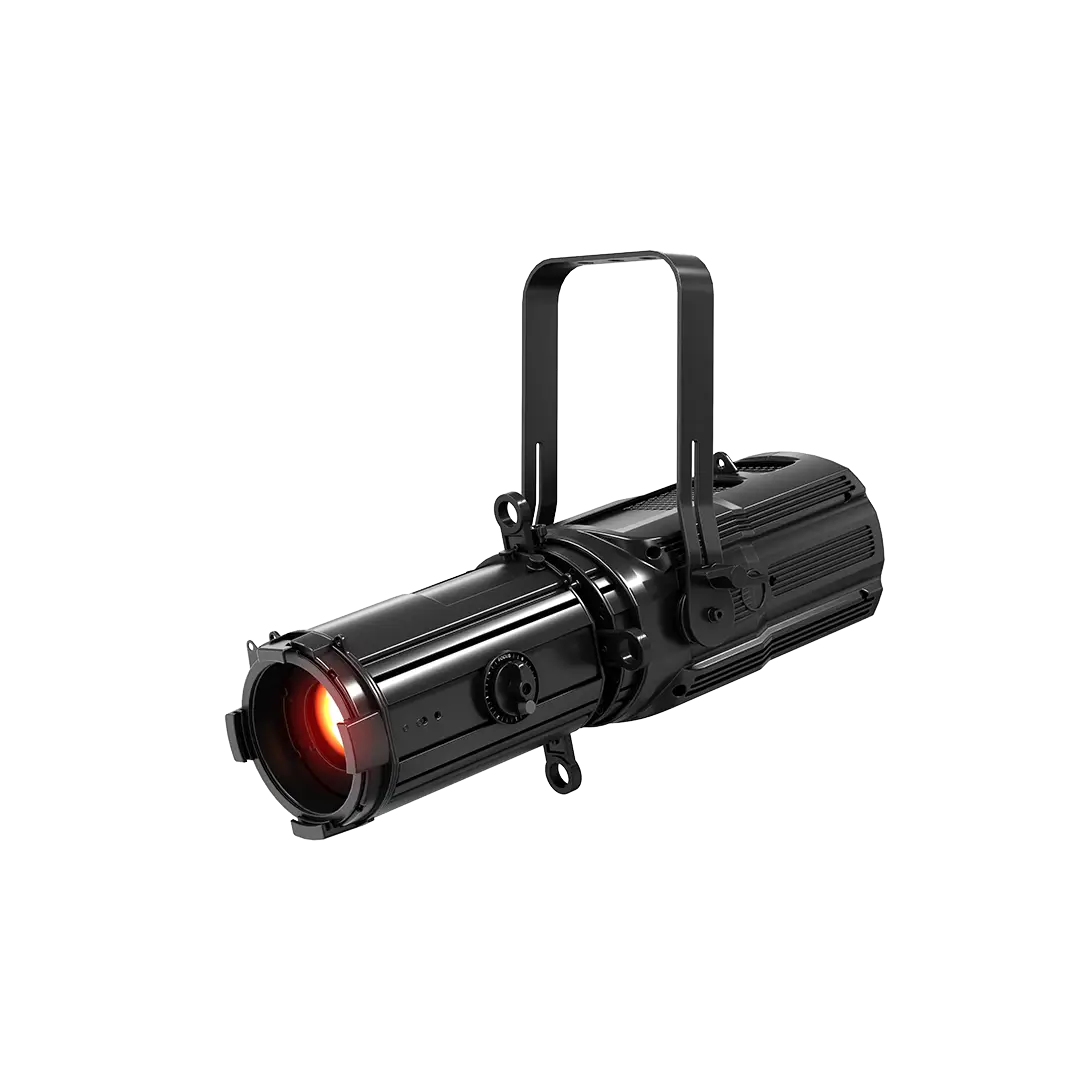

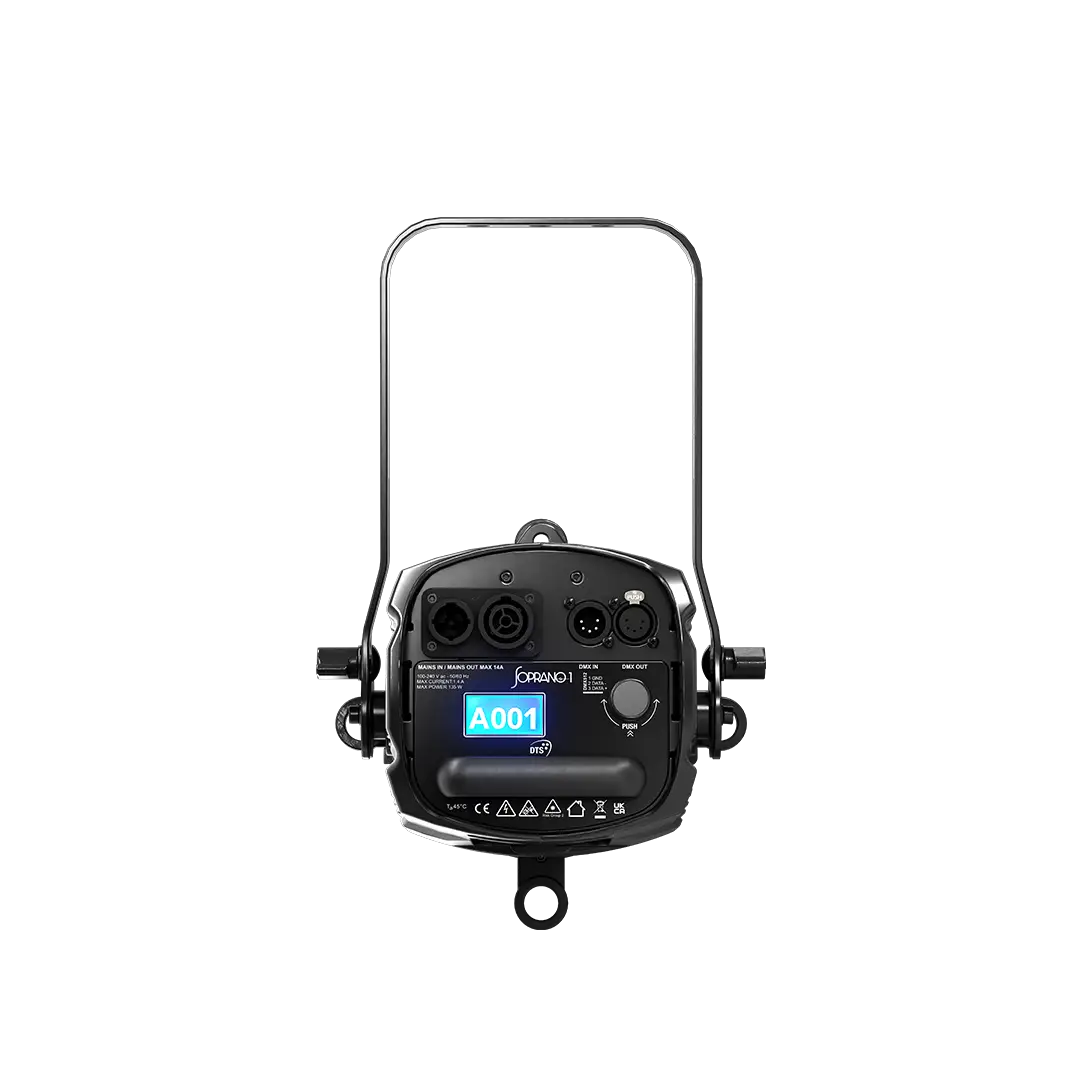

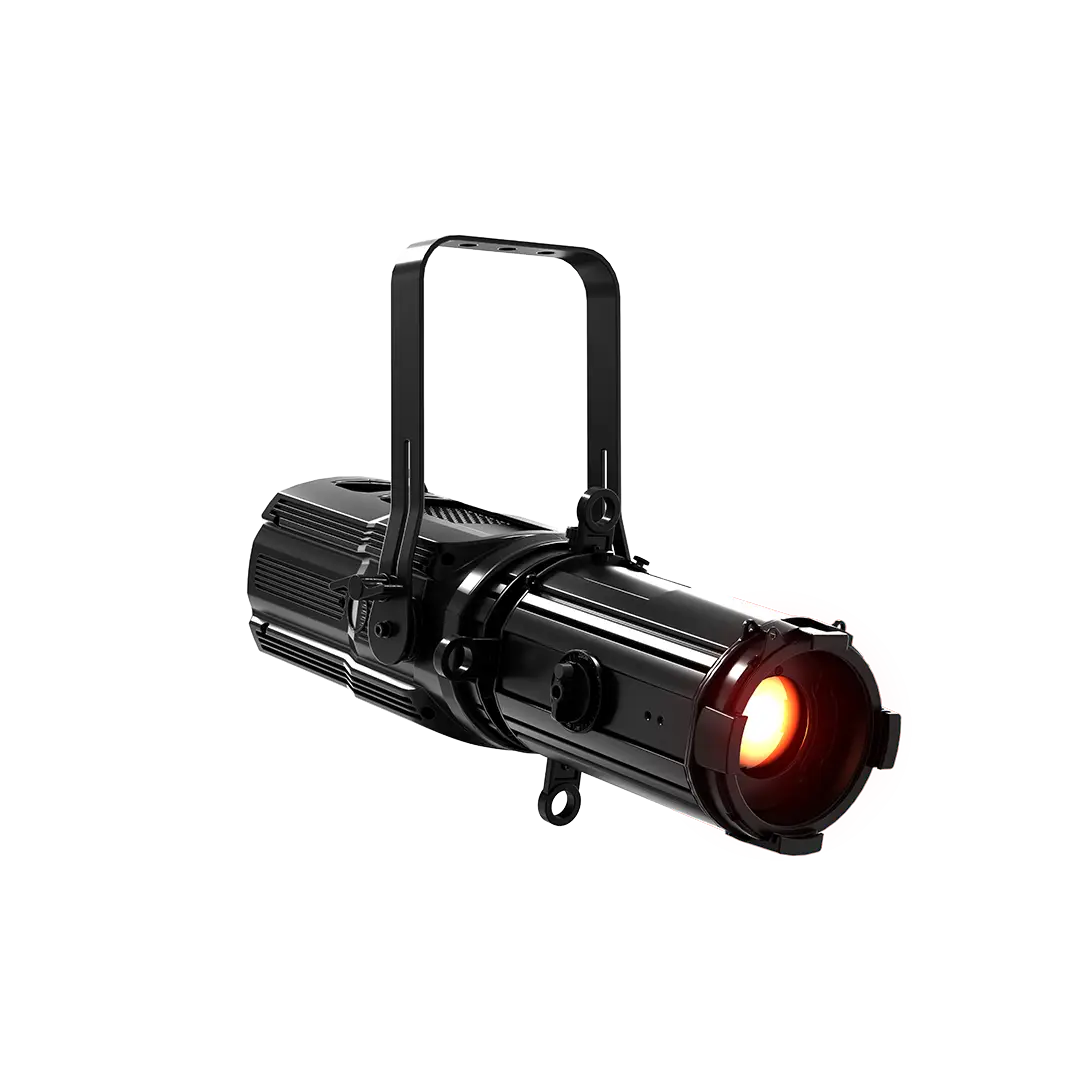

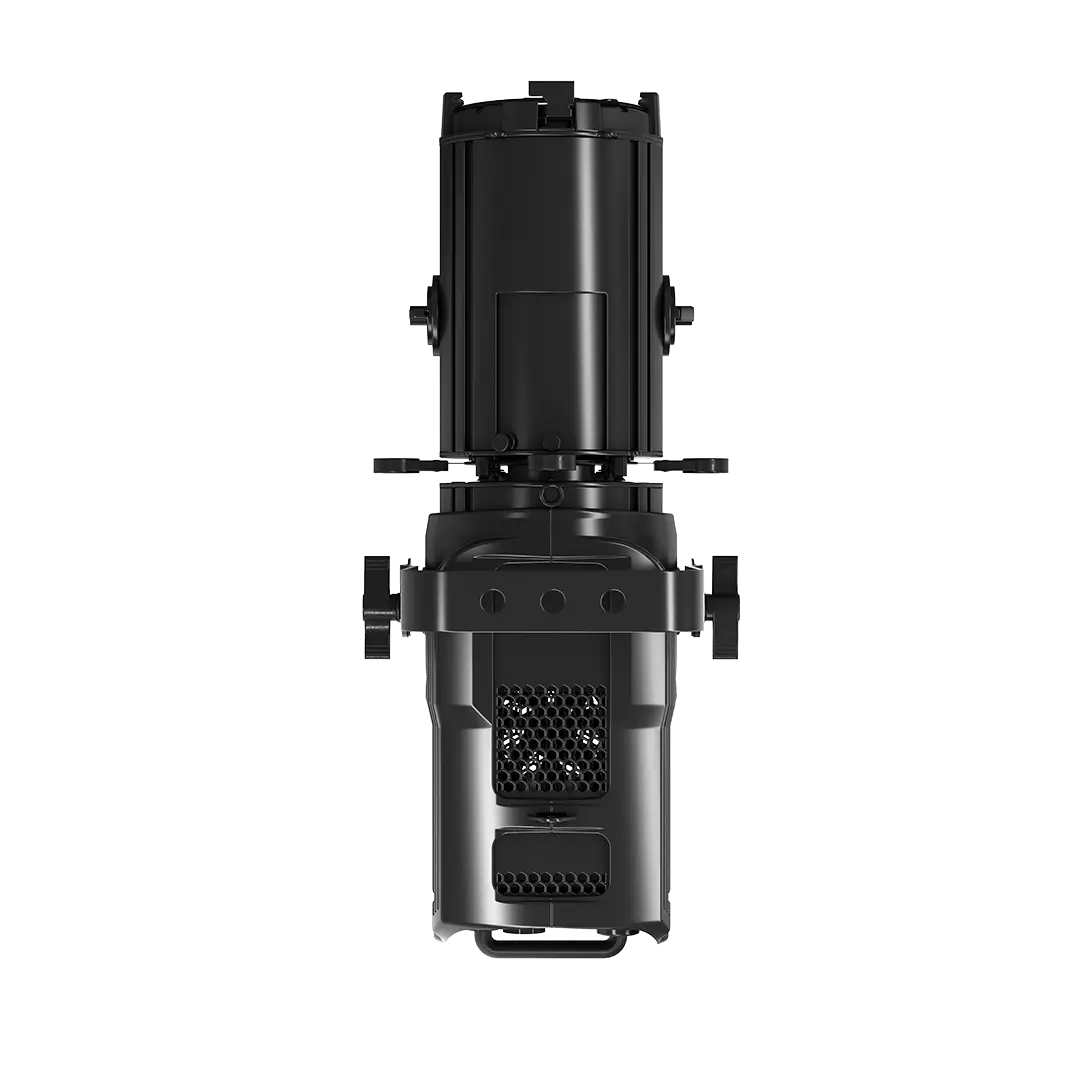

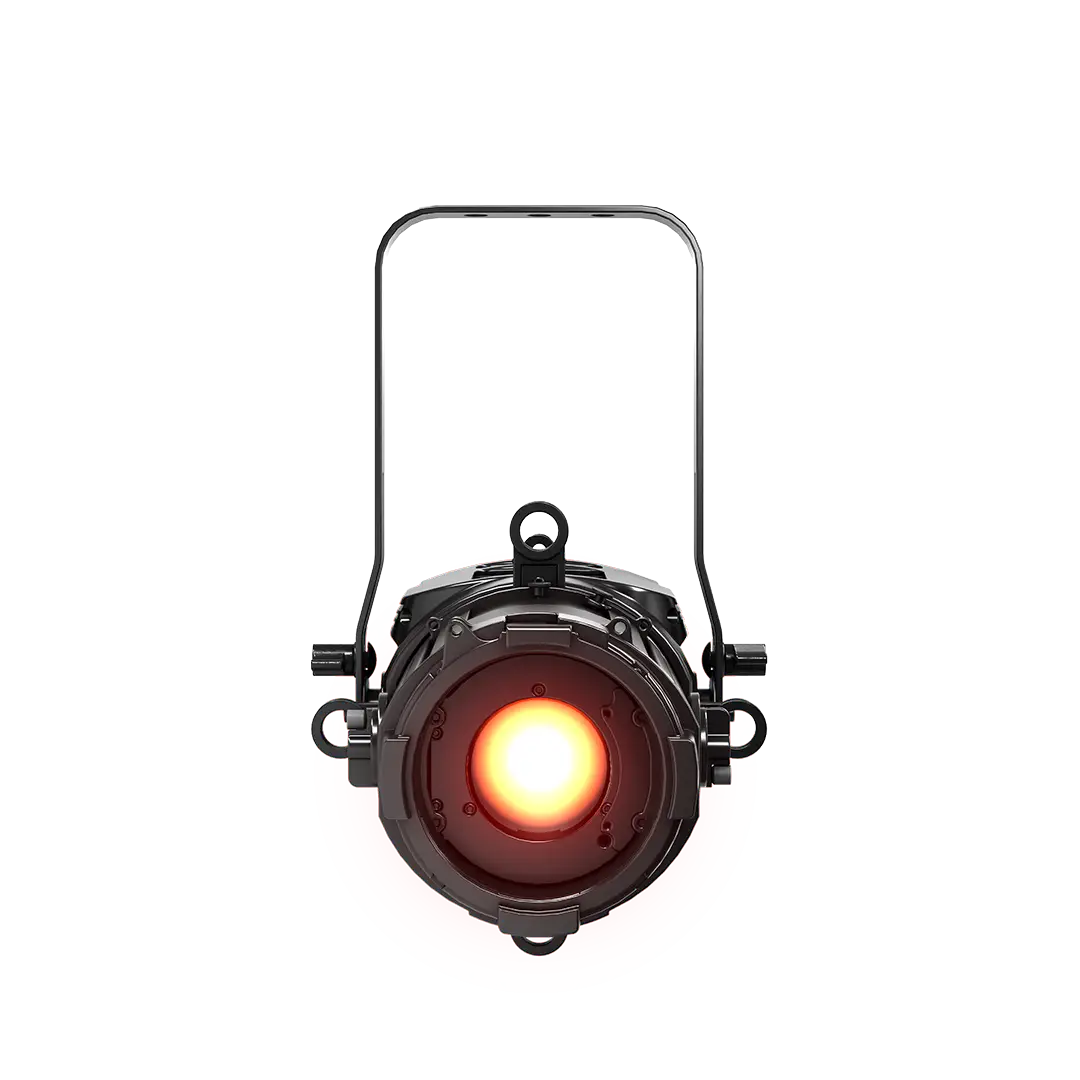

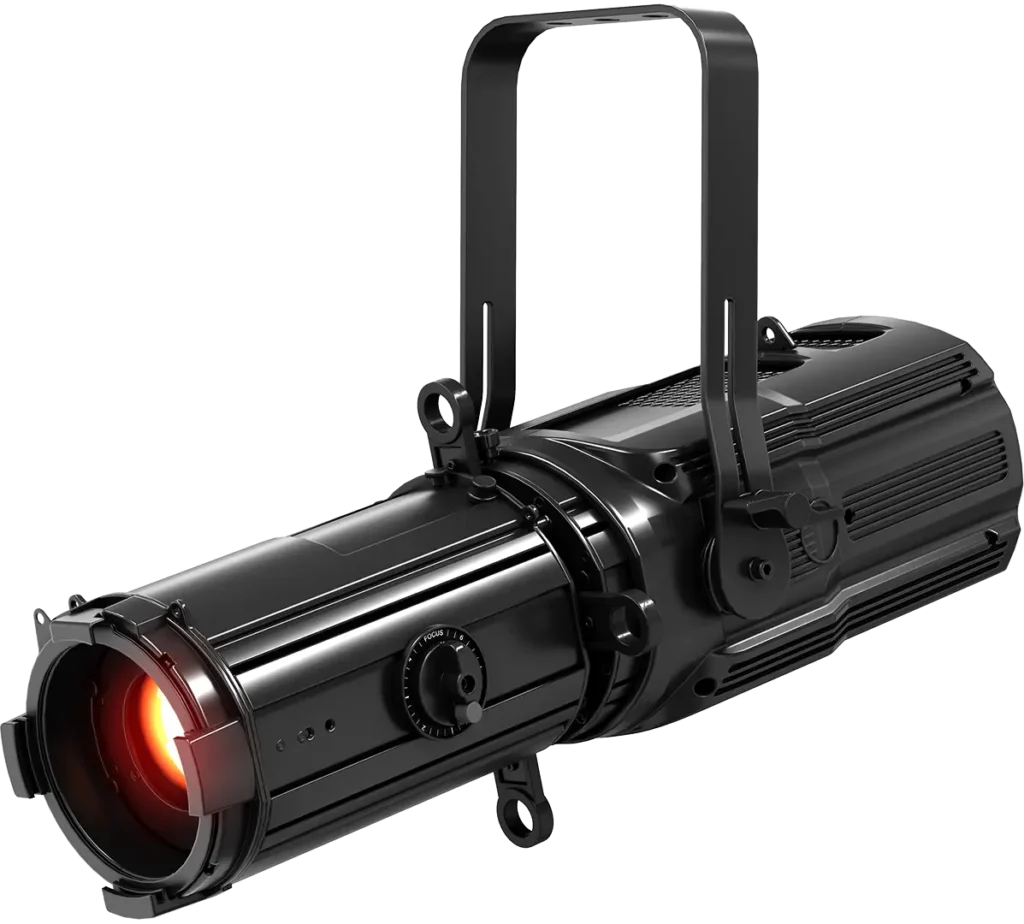

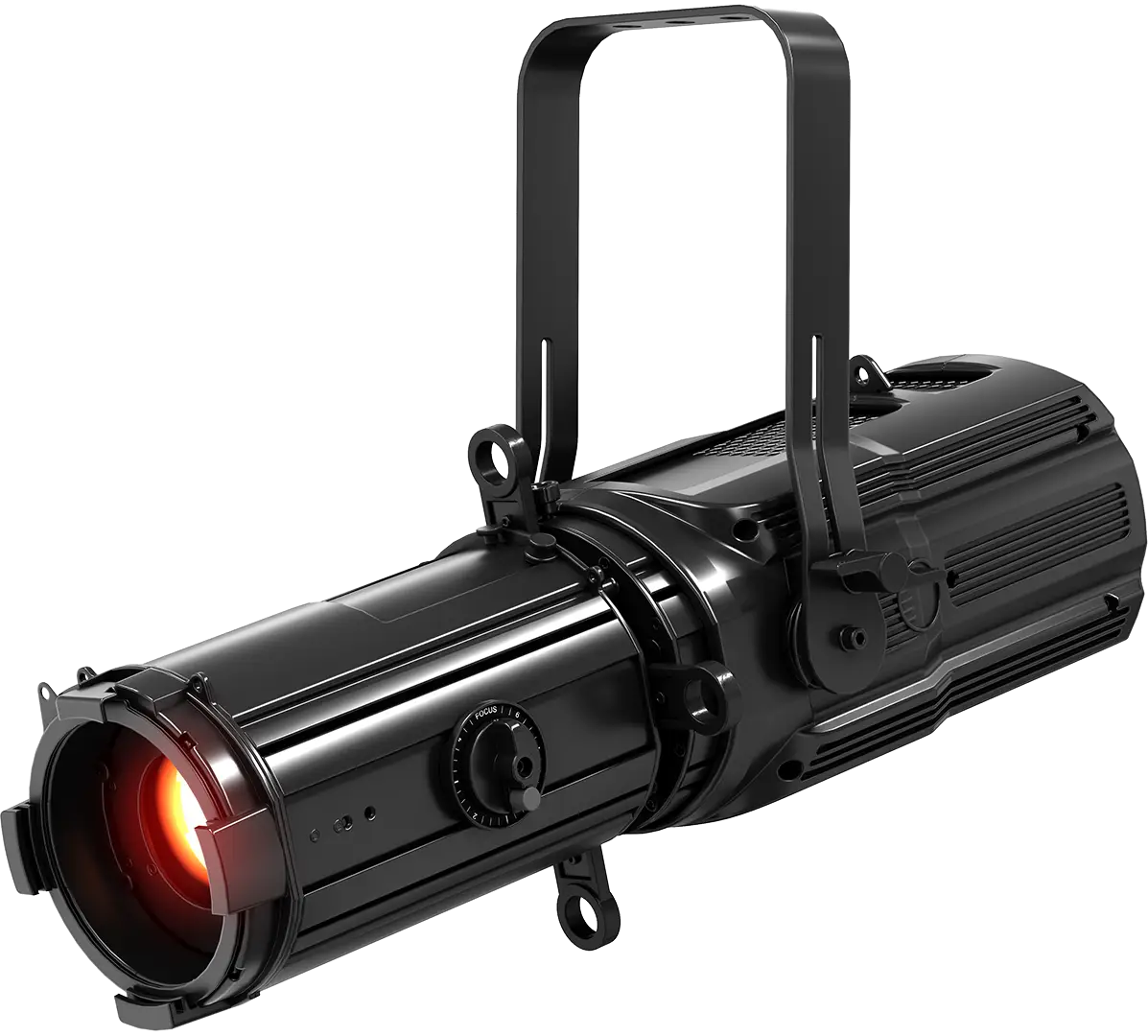

SOPRANO 1 HQS

LED projector

Projector with a single HQS (High Quality Spectrum) LED, delivering maximum color rendition and advanced color mixing. With its elegant and compact design, SOPRANO 1 HQS is perfect for any space, whether a small meeting room or a large auditorium. It is suitable for theaters, television studios, virtual production, conference halls, theme parks, and places of worship. Its advanced features and superior light quality make it the ideal choice for professional installations where performance and reliability are essential.

highlights

Source

Multi chip Led Source

Lumens

from 3000 lm to 3300 lm (Zoom Range 18°-34°) from3350 lm to 3500 lm (Zoom Range 25°-46°)

IP Rating

IP20

DMX

CCT Advanced Basic Expo CMY Emulation

operating
temperature

-10° / 45° C

Applications

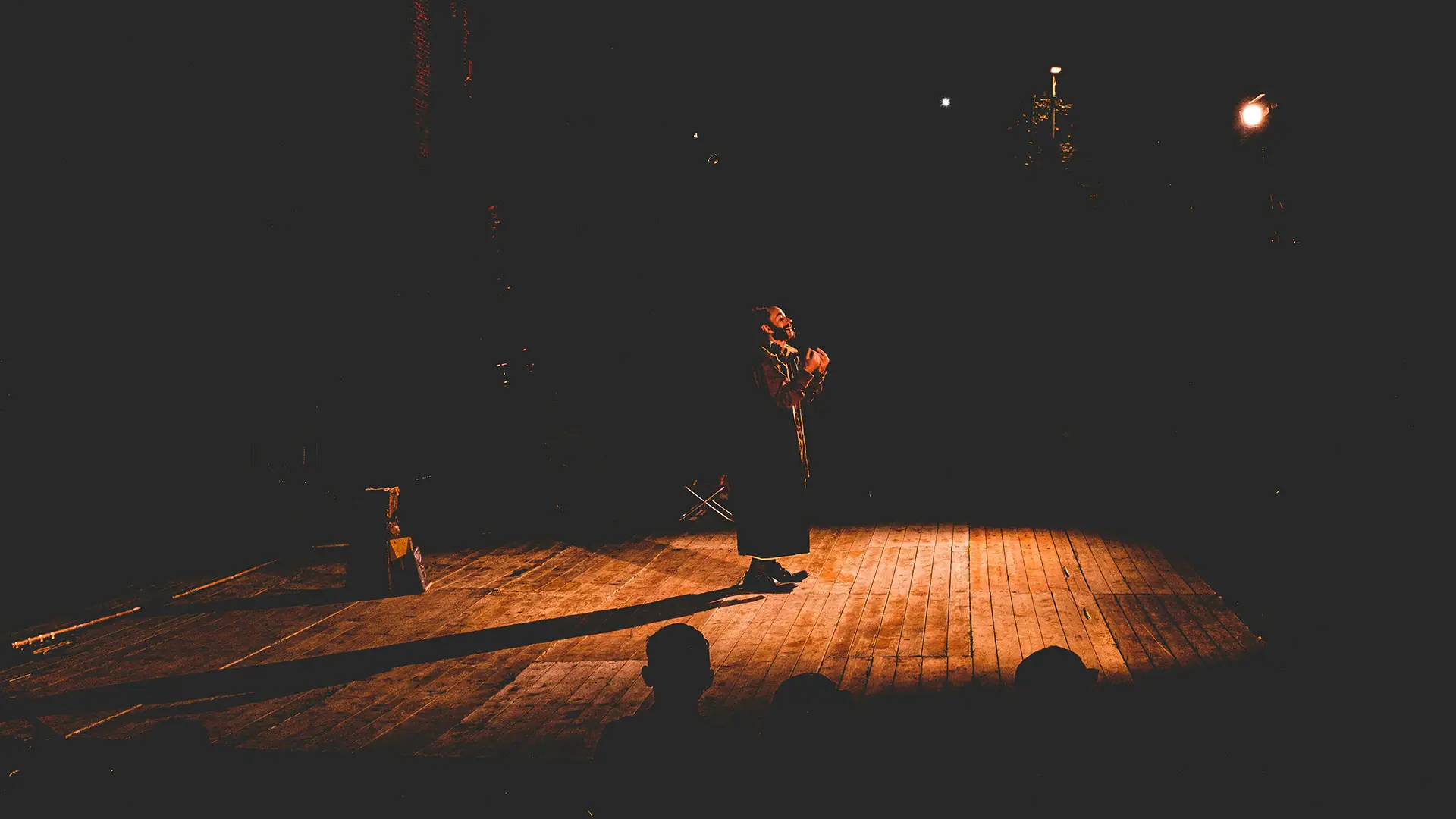

Theatres

The Soprano 1 HQS is ideal for theatrical lighting thanks to its high color rendering (CRI up to 98) and its ability to handle delicate and precise transitions through the Hi-Q dimming system. The integrated framing system allows for accurate light shaping on sets and performers.

TV Studios

With a TLCI of up to 96, this fixture delivers natural and faithful lighting for HD and 4K video productions. Ultra-quiet fans (as low as 21 dBA) allow use in environments with open microphones.

Virtual Production Studios

The 6-color engine and gel filter emulation allow for fast adaptation of the visual look for rendering and post-production. The wide CCT range and full RGBACL control make it ideal for LED wall or green screen environments.

Auditoriums

In multipurpose spaces, the Soprano 1 HQS offers scenic flexibility thanks to its zoom optics (18°–34°, or 25°–46° with optional lens) and five DMX modes, supporting both technical and artistic uses.

Conference Rooms

Its precise lighting and quiet operation make it suitable for conferences, presentations, and public meetings, without disturbing the audience or interfering with audio systems.

Places of Worship

The high-quality white light, tungsten lamp emulation, and the discreet appearance of the black or white housing make it an elegant and respectful choice for sacred spaces, where lighting must enhance without overwhelming.

Features

6-Color LED Engine (RGBACL)▼

Offers advanced color mixing with vibrant and natural tones, and supports precise emulation of gel filters and white points at any color temperature.

High Color Rendering▼

With a CRI up to 98 and TLCI up to 96, it ensures faithful and natural color reproduction, ideal for professional use in broadcast and theatre environments.

Motorized Linear Zoom▼

Optical system with 18°–34° zoom, extendable to 25°–46° with an optional additional lens, for greater flexibility in beam coverage.

Integrated Framing System▼

Four symmetrical blades operating on three planes, with ±45° module rotation, allow precise beam shaping on sets and objects.

Hi-Q Dimming▼

Linear dimming technology without visible steps, even at low levels—ideal for smooth, accurate fades in theatrical and TV contexts.

Tungsten Emulation▼

Simulates the behavior of halogen lamps during dimming, with progressive variation of correlated color temperature (CCT).

5 DMX Modes▼

Flexible configurations for all needs—from basic to advanced control with raw RGBACL, including CMY emulation and gel filter libraries.

Ultra-Silent Fans▼

Silent and Ultra Silent modes reduce acoustic levels down to 21 dBA, perfect for TV studios, conference halls, and quiet environments.

RDM Compatibility and Firmware Update▼

Supports DMX512/RDM protocols, with firmware updates via DTS dongle for remote and customizable management.

Robust and Versatile Build▼

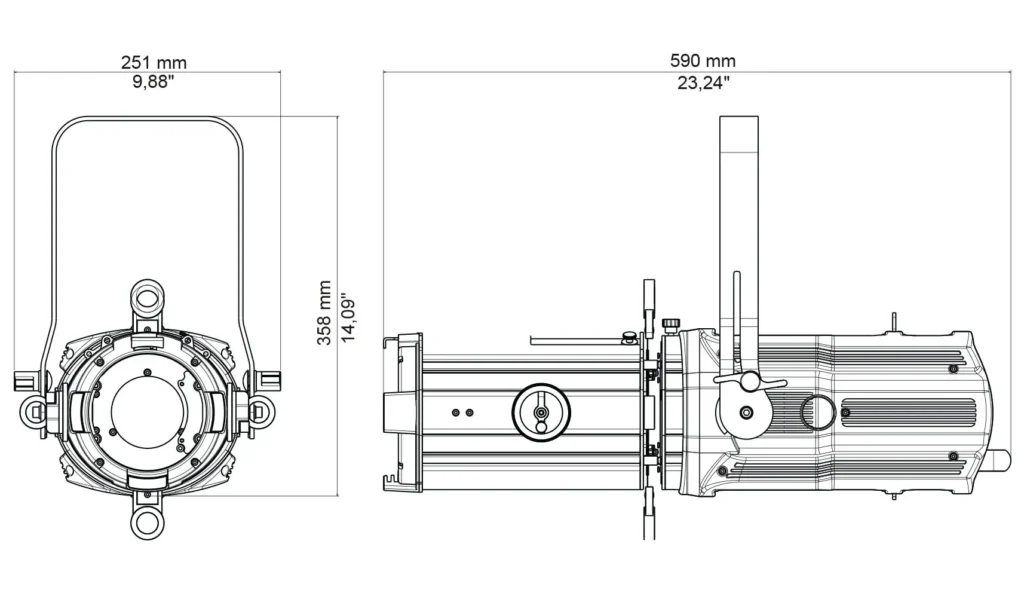

Compact body (8.2 kg), black or white finish, with built-in electronic protections and universal 100–240V power input—ideal for both fixed and mobile installations.
