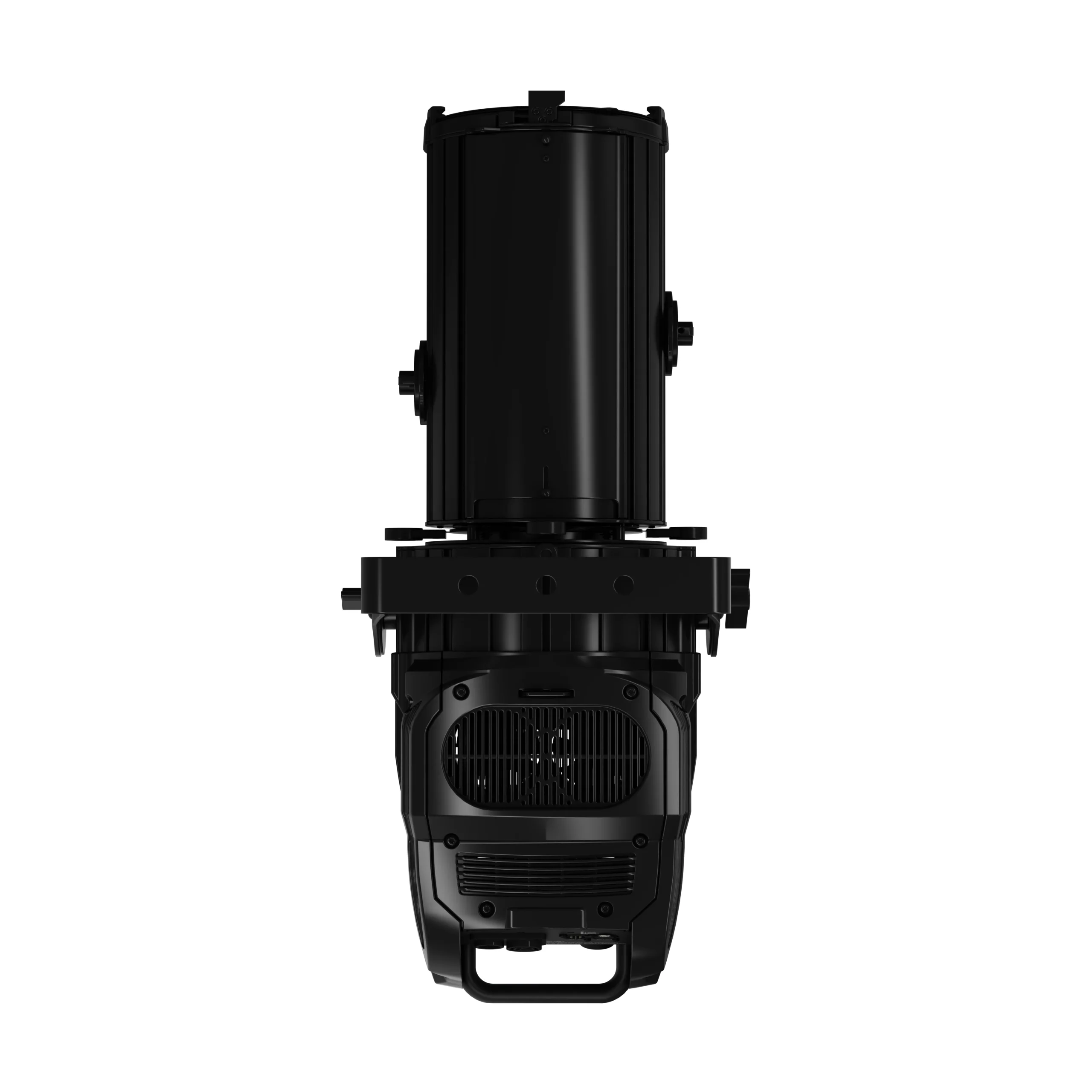

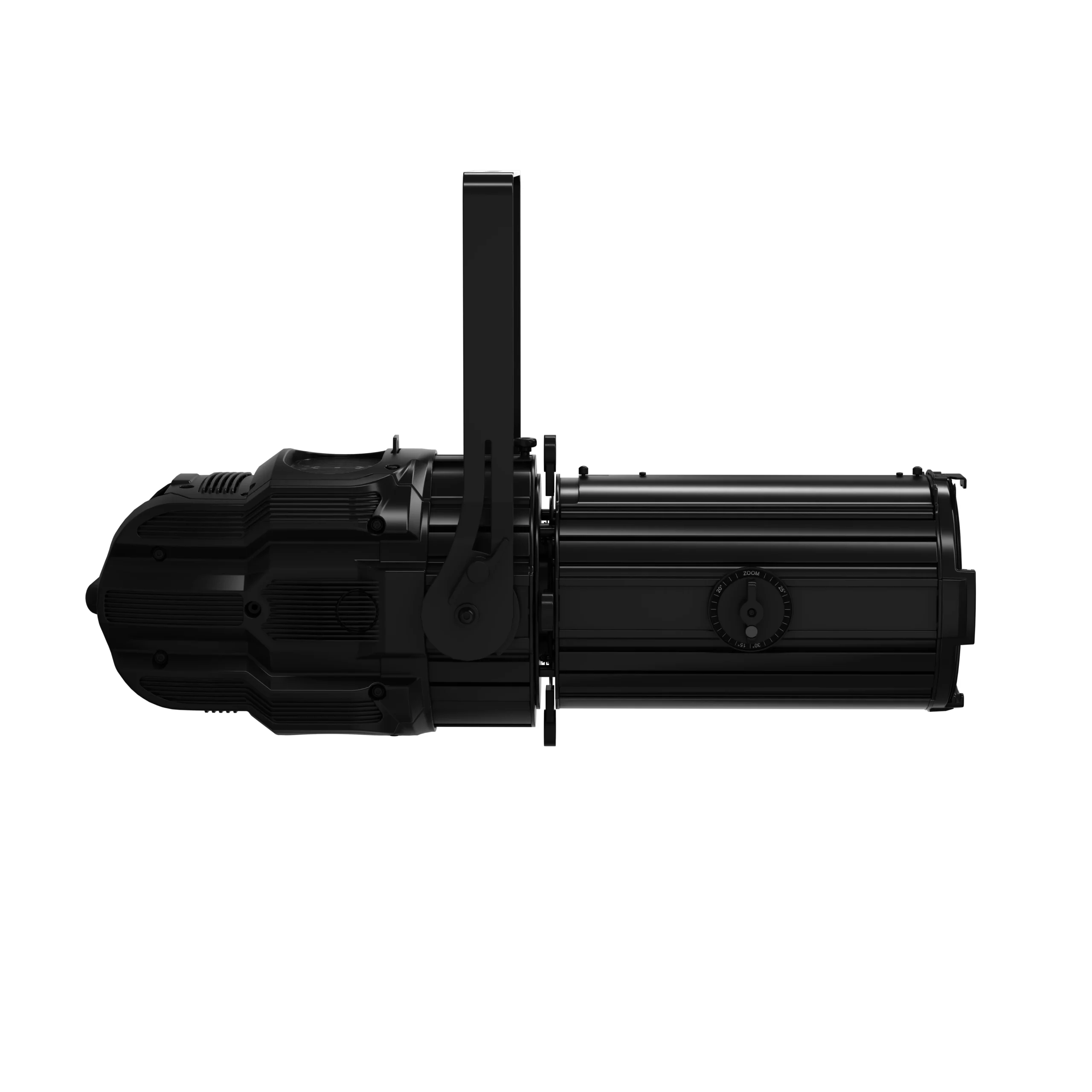

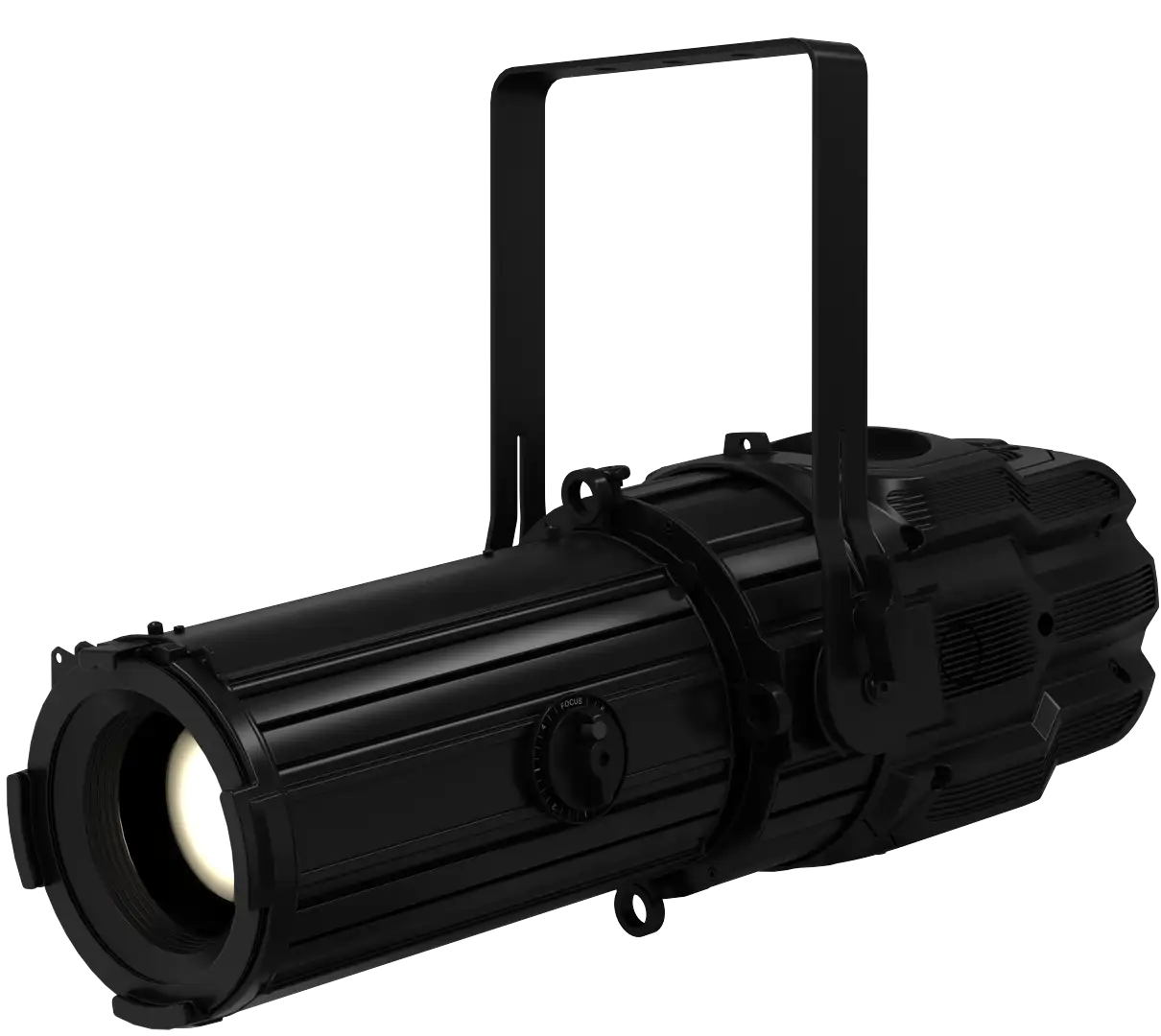

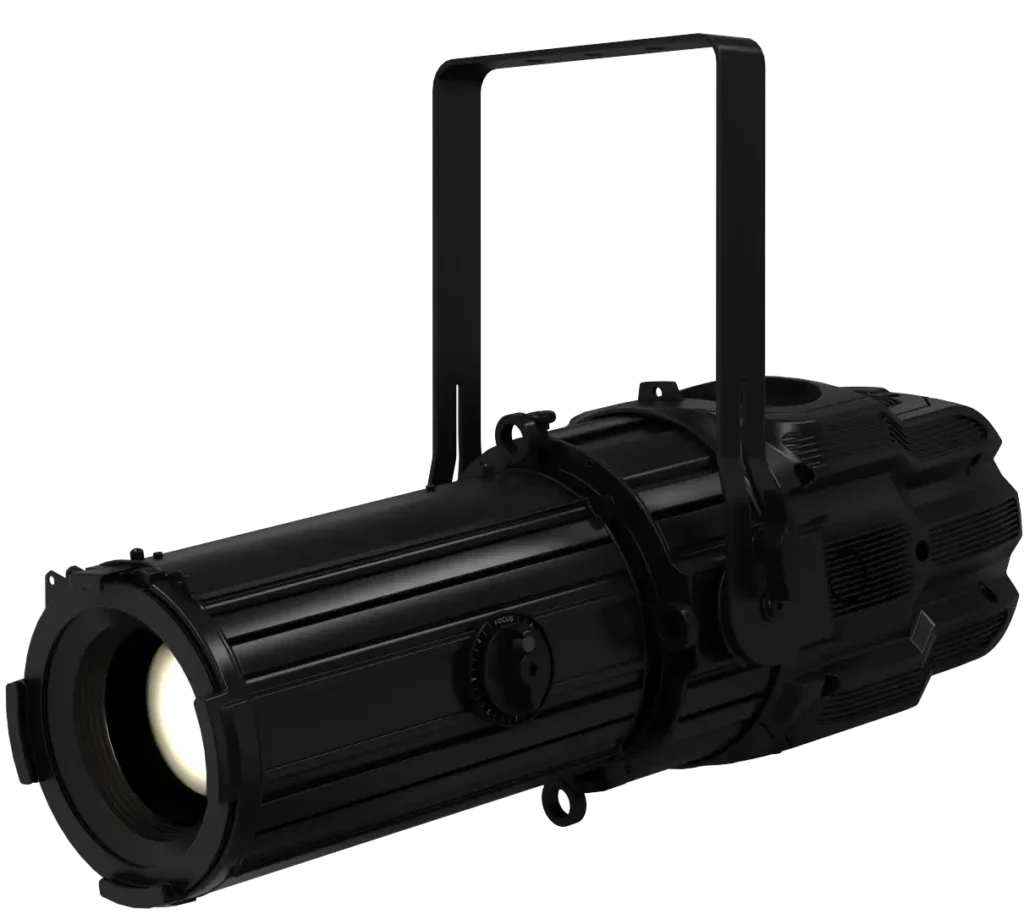

SOPRANO 5 HDW

LED projector

Projector with six HDW (High Dynamic White) LEDs, featuring adjustable dynamic white light. With its elegant and compact design, SOPRANO 5 HDW is perfect for any space, whether a small meeting room or a large auditorium. It is suitable for theaters, television studios, virtual production, and conference halls. Its advanced features and superior light quality make it the ideal choice for professional installations where performance and reliability are essential. Soprano 5 HDW is the most powerful model in the series.

highlights

Source

Multi chip LED Source

Lumens

8400 lm (Optical group 8-20) 9600 lm (Optical group 15-30) 11100 lm (Optical group 25-50)

IP Rating

IP20

DMX

CCT Basic

operating
temperature

-10° / 45° C

Applications

Theatres

The integrated framing system, combined with smooth dimming and high color rendering (CRI up to 98), allows for precise light shaping, enhancing actors and stage designs without visual distractions, even during the most subtle or dramatic scenes. The ultra-quiet fan makes it ideal for the silence required in theatrical performances.

Television Studios

With adjustable color temperature (from 1800 K to 10000 K), TLCI up to 96, and tungsten emulation, it ensures optimal video image quality with accurate color matching and flicker-free performance. Silent fan modes are perfect for microphone-sensitive environments.

Virtual Production Studios

The wide zoom range and precise beam shaping make it possible to adapt lighting to both real and virtual subjects in a seamless way. The continuous CCT variation allows for smooth blending of real lighting with environments rendered in real time on LED walls or green screens.

Auditoriums

It offers versatility and quiet operation in venues hosting speeches, concerts, and live performances. Its high light output and excellent white quality make it suitable for both formal and artistic moments, easily adapting to a variety of stage setups.

Conference Halls

The precise beam control and adjustable color temperature allow speakers and tables to be lit evenly and professionally, enhancing visibility and the perception of content even in camera-equipped or streaming environments.

Features

6-Color LED Engine▼

Offers a wide color gamut and extremely natural white rendering, with continuous adjustment from 1800 K to 10000 K.

High Color Rendering (CRI up to 98 / TLCI up to 96)▼

Ensures faithful and realistic color reproduction, ideal for professional environments where image quality is essential (theatre, TV, video production).

Integrated 4-Blade Framing System▼

Allows precise beam shaping, with full module rotation of +/-32° for creative and accurate light control.

Linear Zoom with Interchangeable Optics (8–46°)▼

Three available optical groups provide a wide beam range from narrow spot to wide flood, with smooth motorized zoom.

Hi-Q Dimming + Tungsten Emulation▼

Smooth and progressive dimming with no visible steps, even at low levels. Emulates the warm response of halogen lamps.

Ultra-Silent Cooling (down to 26 dBA @1m)▼

"Silent" and "Ultra Silent" modes are ideal for acoustically sensitive environments such as theatres, TV studios, or conference halls.

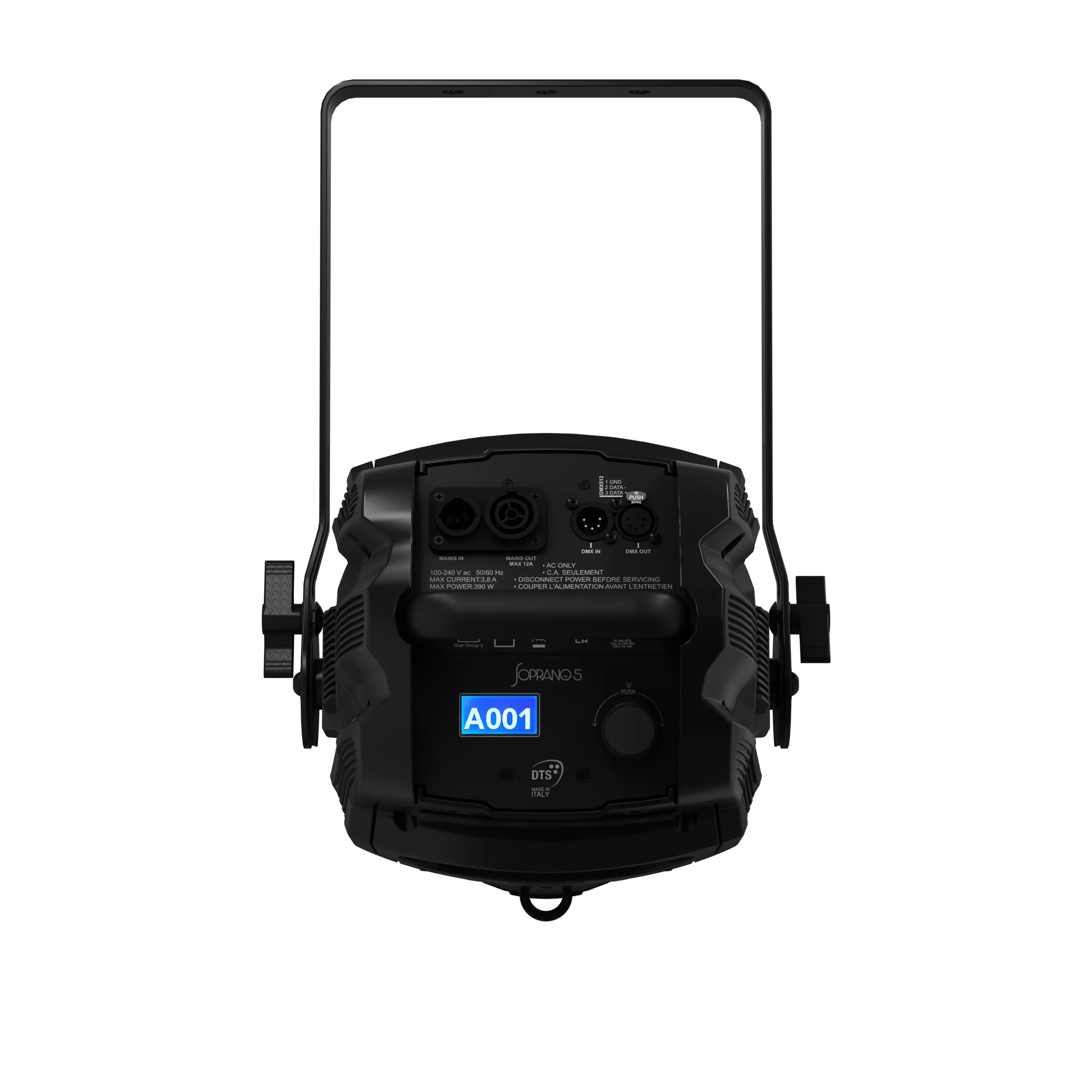

DMX/RDM Control with LCD Display and Jog Shuttle▼

User-friendly interface with standard DMX and RDM protocol for remote configuration. Firmware can be updated via dongle.

Standard Gobo Compatibility (Ø 50 mm)▼

Supports both glass and metal gobos for custom graphic projections and scenic textures.

Modular Construction▼

LED engine and optical groups are separate for greater flexibility in lighting setups and easier maintenance.

Reliability and Integrated Protection▼

Certified LED lifespan (L70B10 50,000 hours), with built-in protection against overvoltage and overheating.

Versatility and customization
