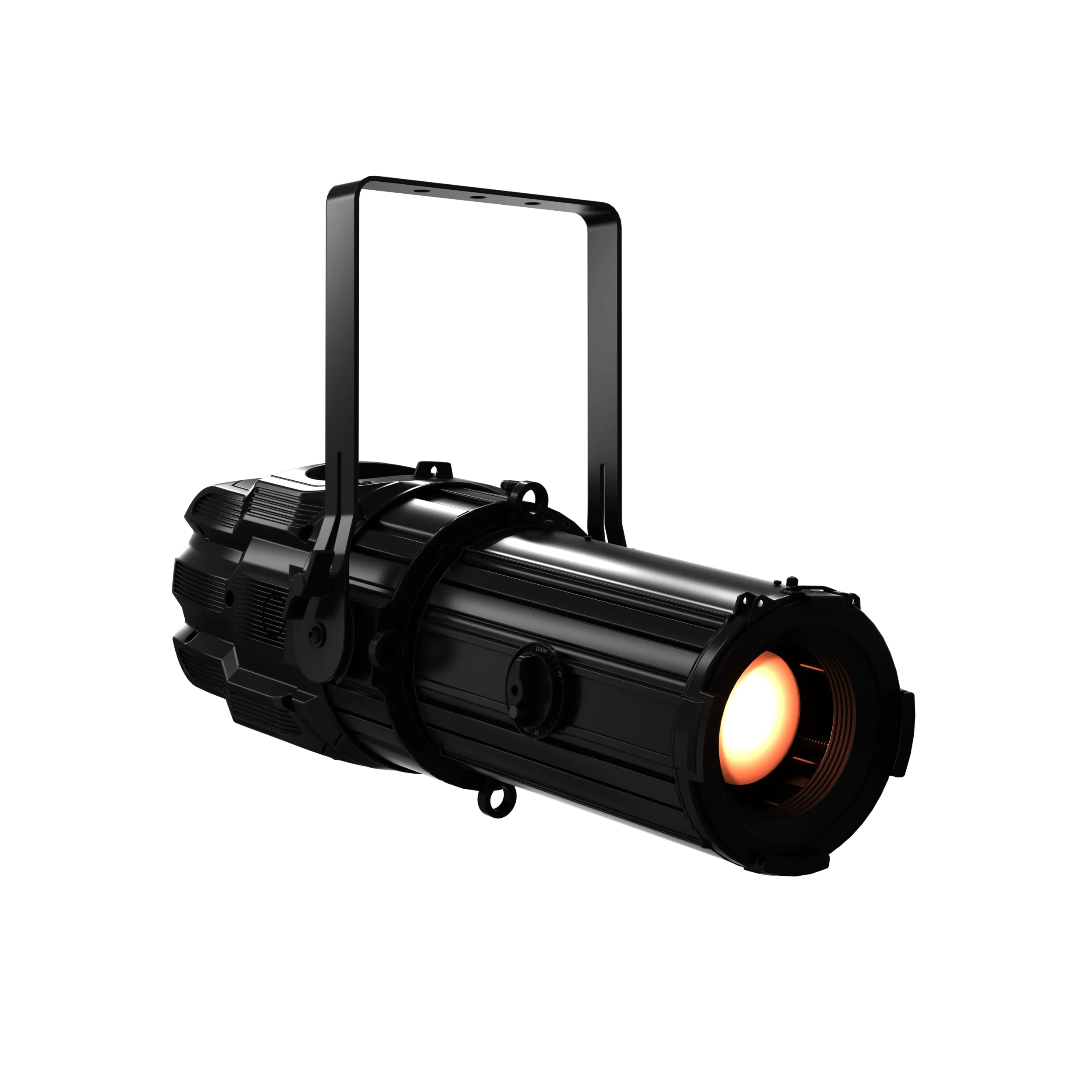

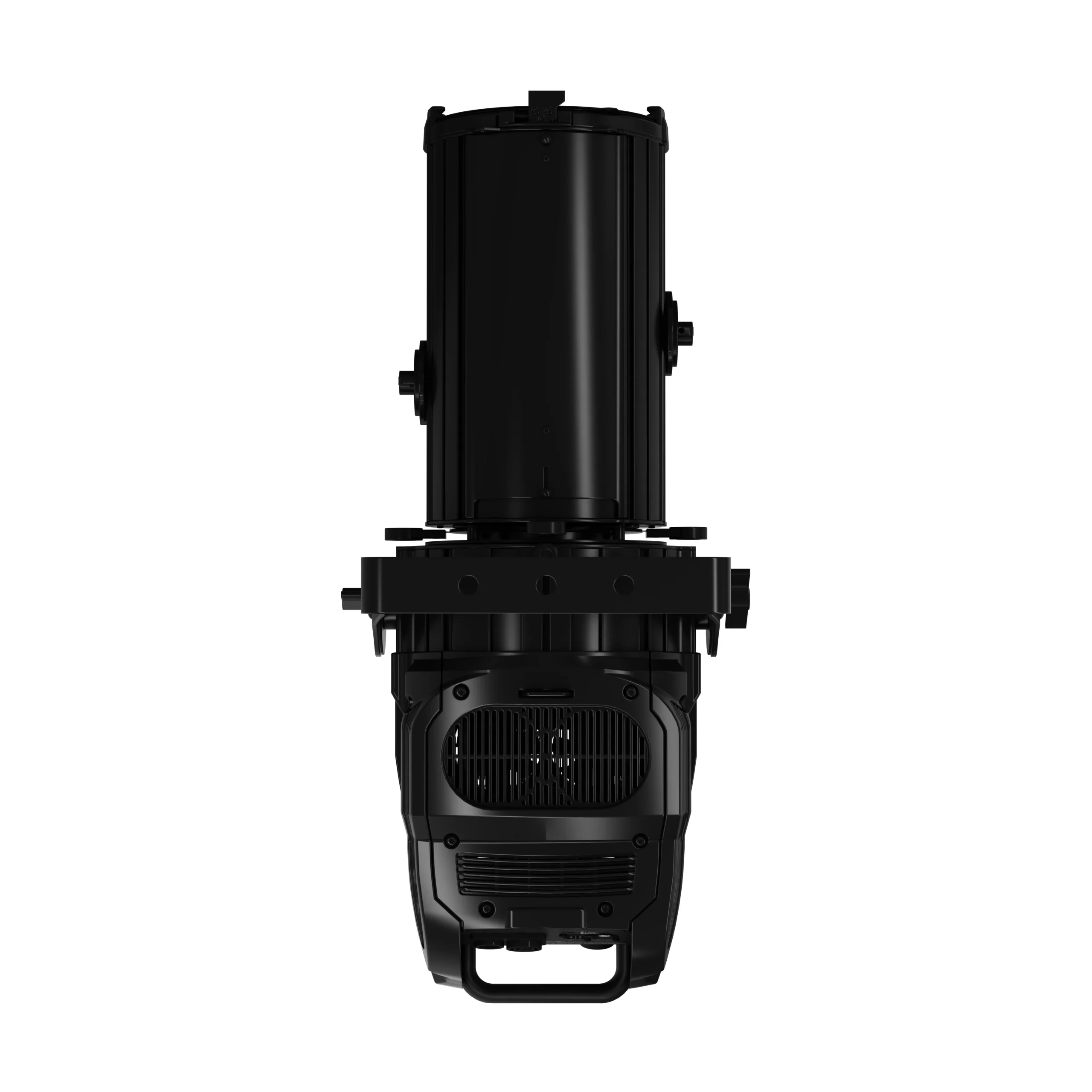

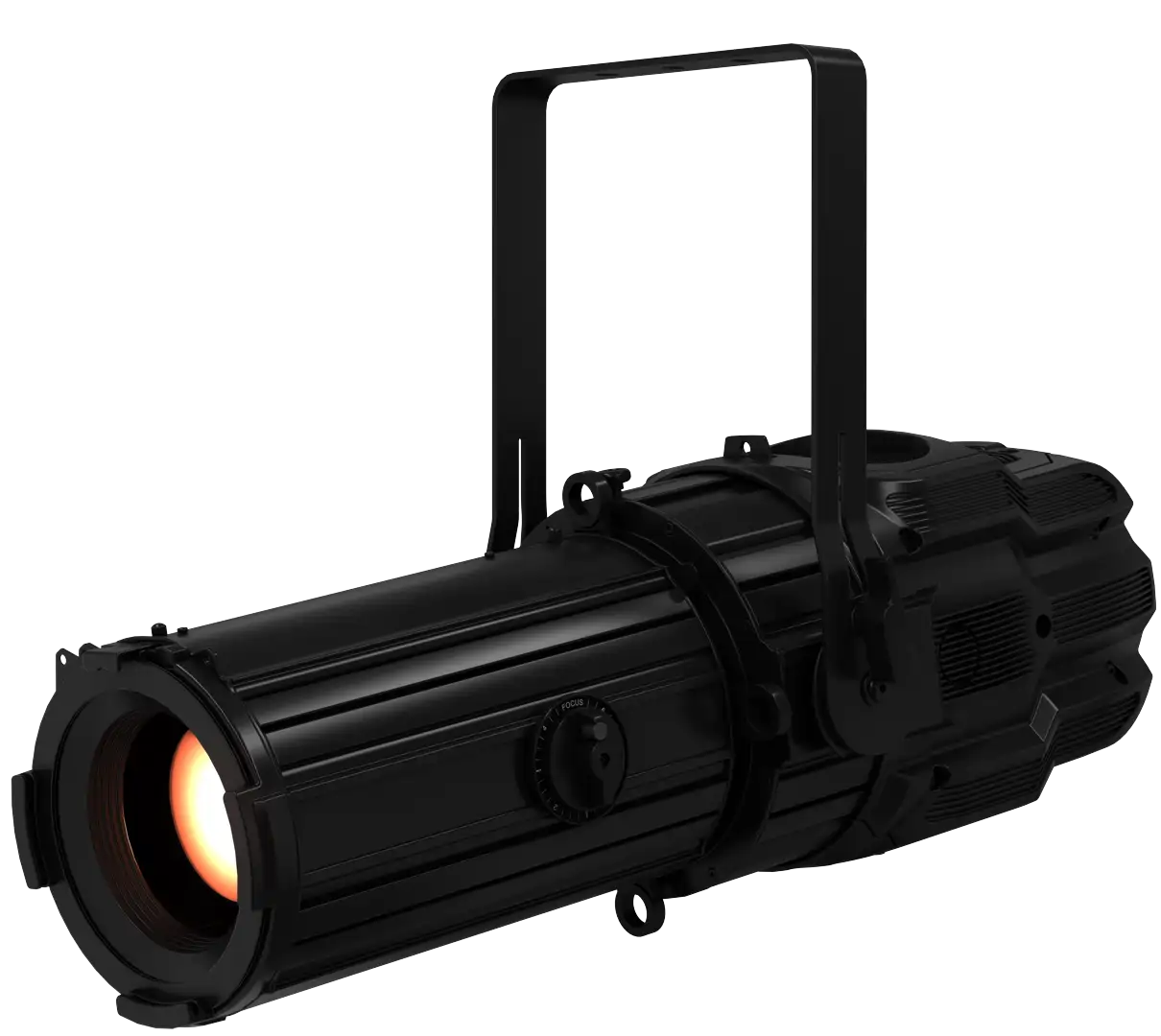

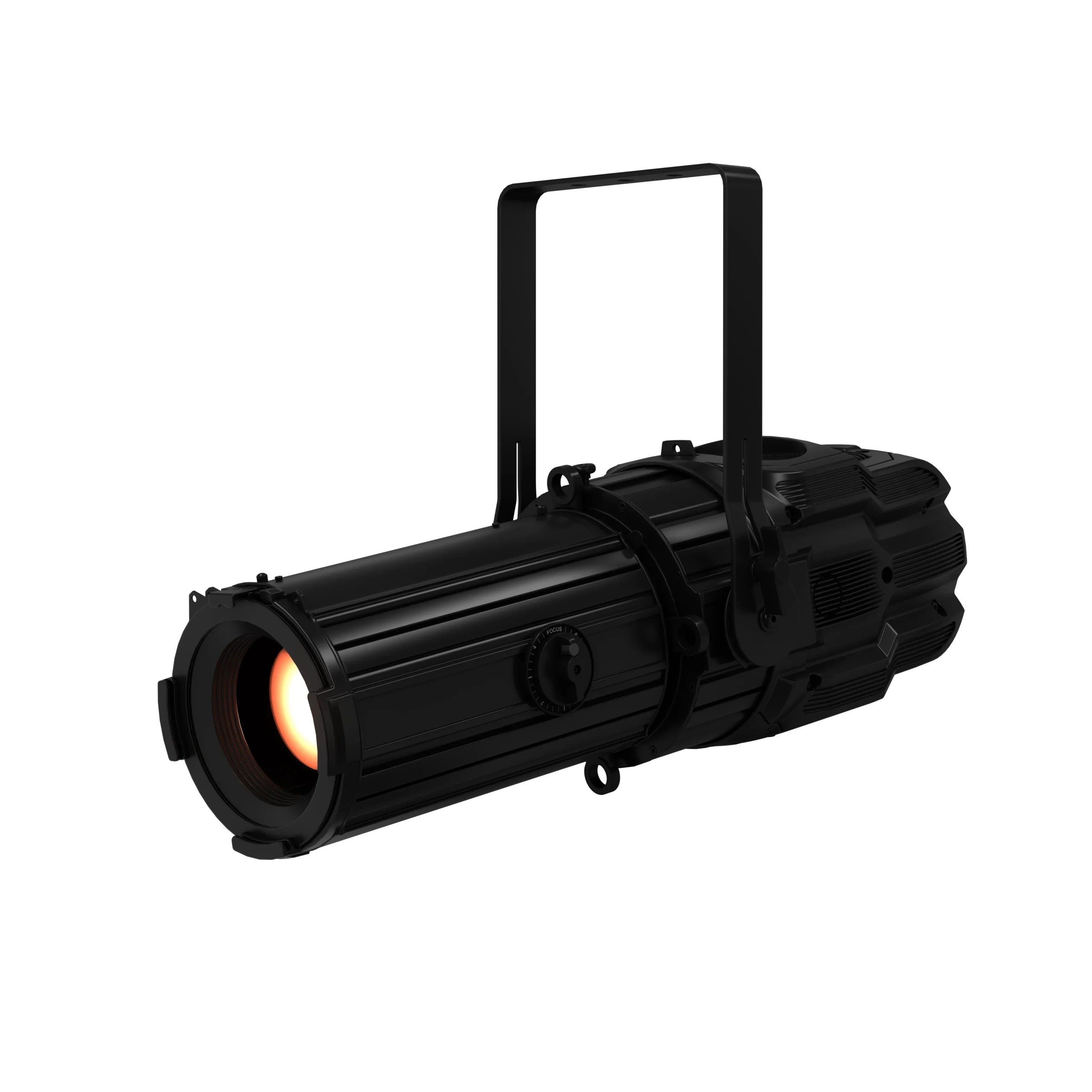

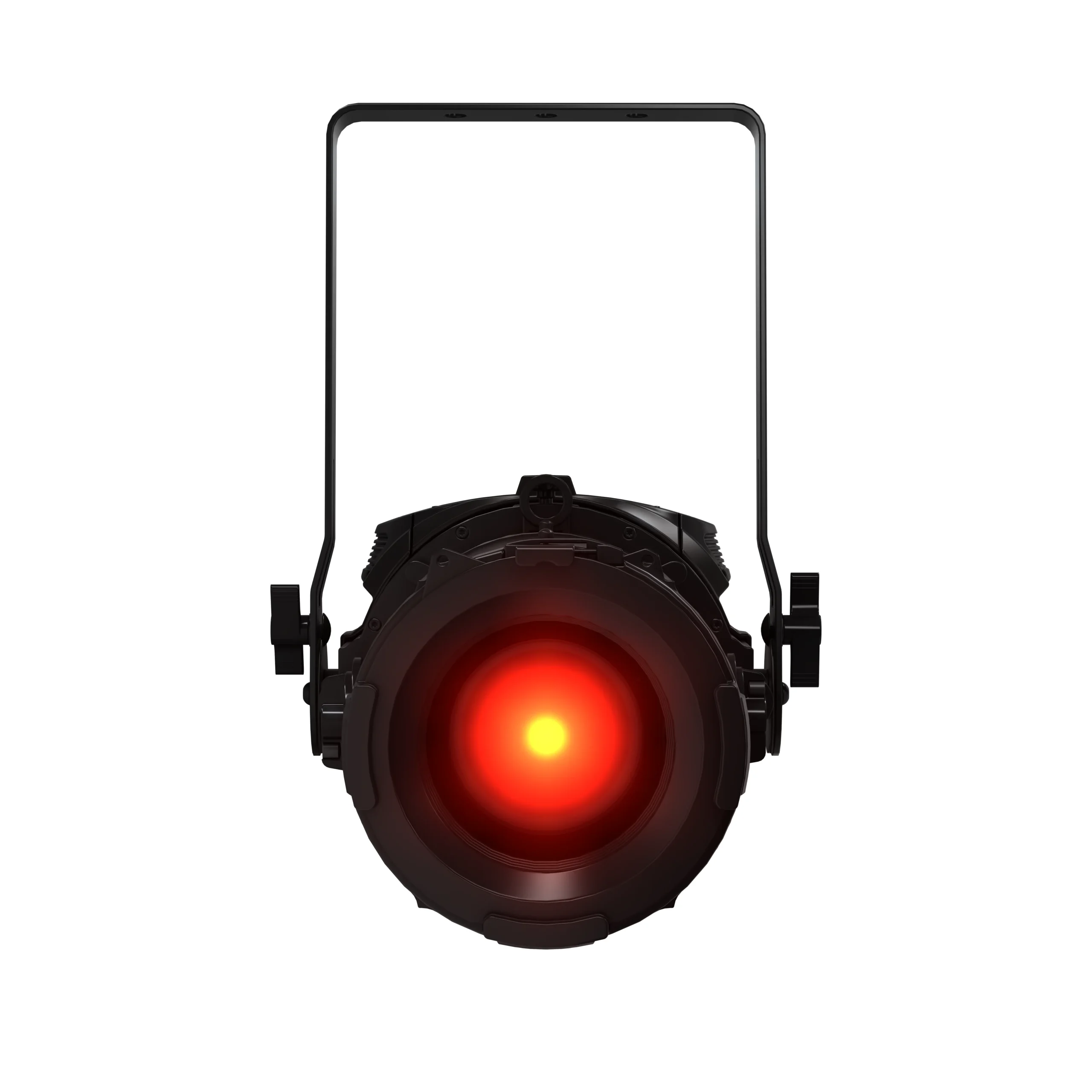

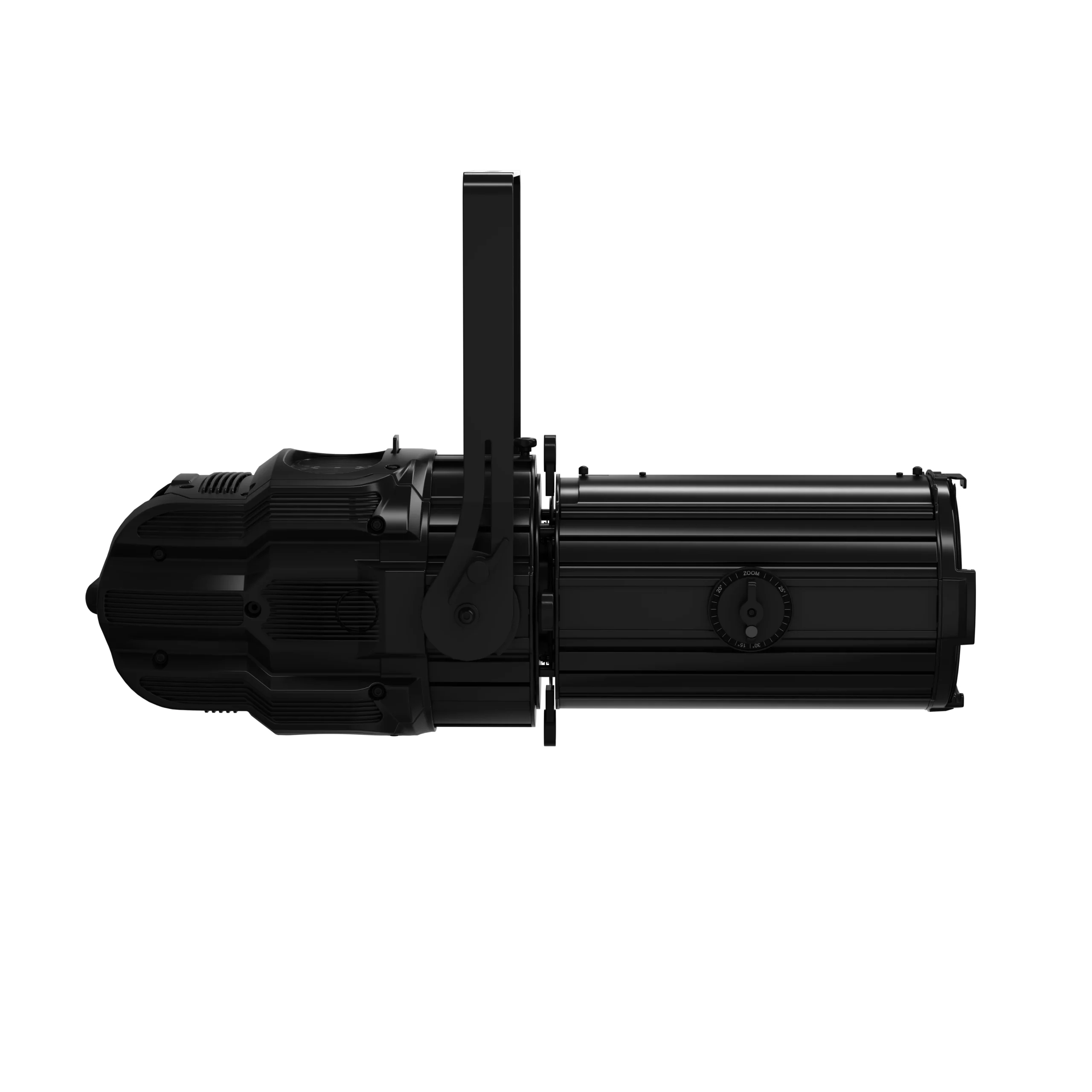

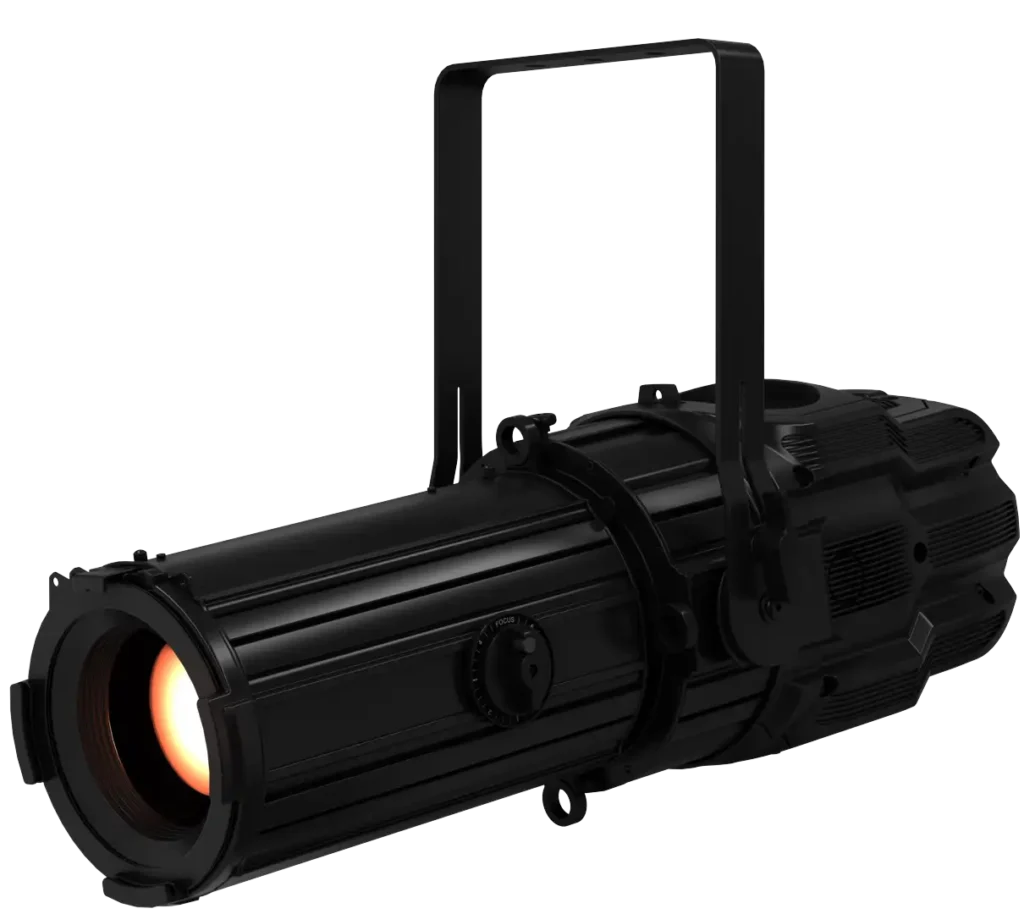

SOPRANO 5 HQS

LED projector

Projector with five HQS (High Quality Spectrum) LEDs, featuring advanced chromatic spectrum and maximum power output. With its elegant and compact design, SOPRANO 5 HQS is perfect for any space, whether a small meeting room or a large auditorium. It is suitable for theaters, television studios, virtual production, and conference halls. Its advanced features and superior light quality make it the ideal choice for professional installations where performance and reliability are essential.

highlights

Source

Multi chip LED Source

Lumens

8400 lm (Optical group 8-20) 9600 lm (Optical group 15-30) 11100 lm (Optical group 25-50)

IP Rating

IP20

DMX

CCT Advanced Basic Expo CMY Emulation

operating
temperature

-10° / 45° C

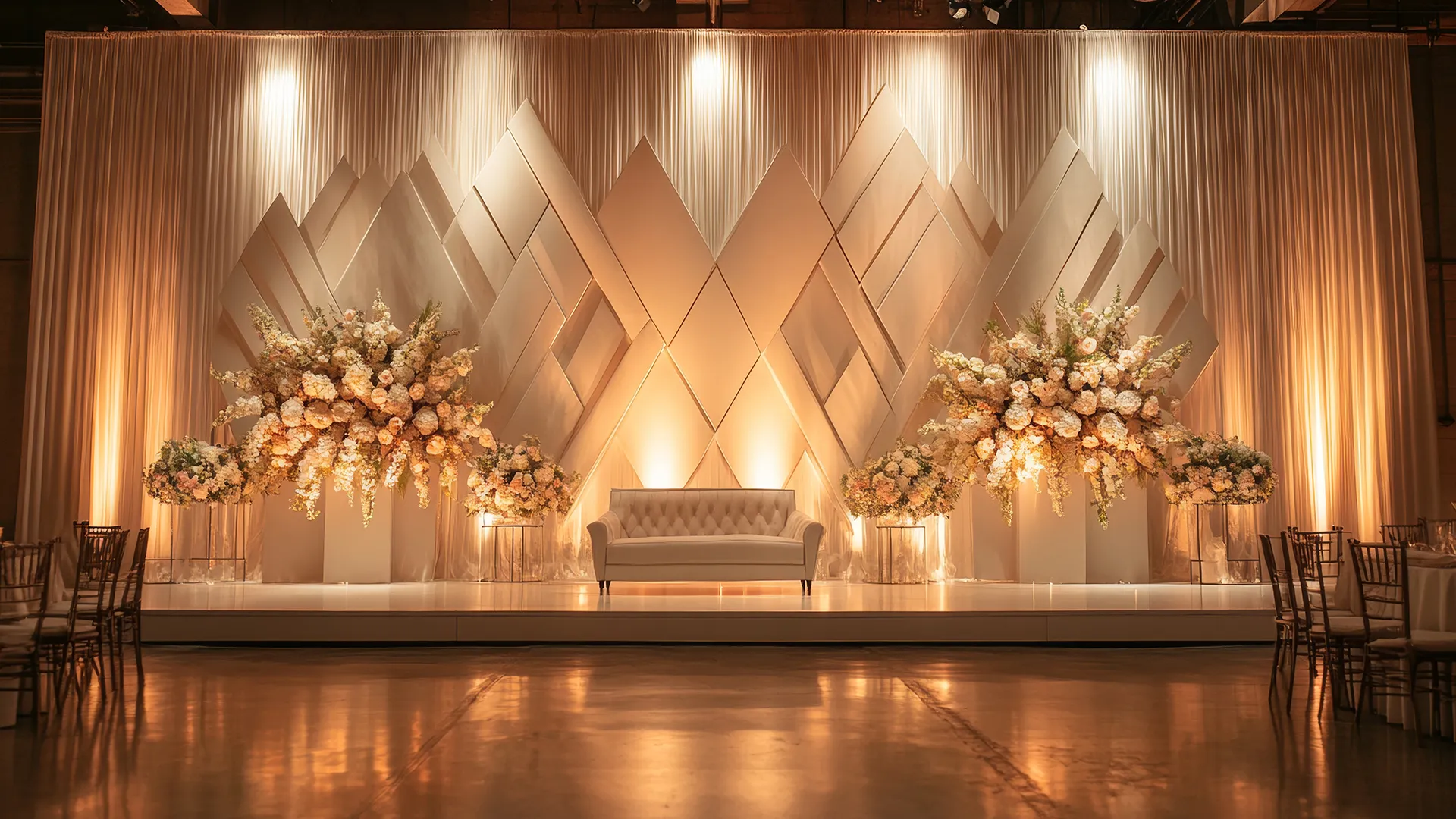

Applications

Theatres

The 4-blade framing system with 3-plane rotation and high color rendering (CRI up to 98) allows for precise light shaping and faithful color reproduction on stage. The tungsten emulation ensures warm and natural transitions, ideal for theatrical atmospheres.

TV Studios

Thanks to the “Hi-Q” dimmer and ultra-low noise levels (as low as 26 dBA in Ultra Silent mode), this fixture is perfect for sound-sensitive environments. Its color rendering is also optimized for cameras (TLCI up to 96), ensuring consistent visuals without color shifts.

Virtual Production Studios

The 6-color LED engine (RGBACL) and “Advanced” mode offer advanced color control, with the ability to adapt lighting precisely to LED backdrops or green screens. The linear transitions of color and temperature prevent flickering and video artifacts.

Auditoriums

The wide optical range (8° to 46°, with interchangeable optics) allows the light coverage to adapt to any distance and height within the seating or stage area. DMX and RDM control integration makes it ideal for permanent lighting systems.

Conference Rooms

Compact, silent, and versatile, this fixture is ideal for multifunctional and corporate environments. The CCT range from 1800 K to 10,000 K allows smooth transitions from warm atmospheres to neutral daylight with a simple recall of presets, even remotely.

Features

6-color LED engine (RGBACL)▼

Produces tunable white from 1800 K to 10,000 K and rich saturated colors with high color rendering (CRI up to 98, TLCI up to 96).

Interchangeable optics with linear zoom▼

Three optical groups (8–20°, 15–30°, 25–50°) with linear zoom for precise beam angle adjustment.

4-blade framing system▼

Blades operate on three separate planes with ±32° rotation, enabling advanced beam shaping for theatrical or museum use.

Color filter and CCT emulation▼

Simulates over 100 gel filters with smooth transitions between filters or towards white, offering maximum color versatility.

Hi-Q dimmer and halogen emulation▼

Ultra-smooth dimming even at low levels, with no visible "steps," replicating the behavior of traditional tungsten fixtures.

Advanced DMX/RDM control▼

Five DMX modes, including CCT, Advanced RGBACL, CMY emulation, and presets tailored for museum or broadcast installations.

Silent ventilation modes▼

Four fan profiles, including Ultra Silent (as low as 26 dBA), ideal for noise-sensitive environments like theatres and TV studios.

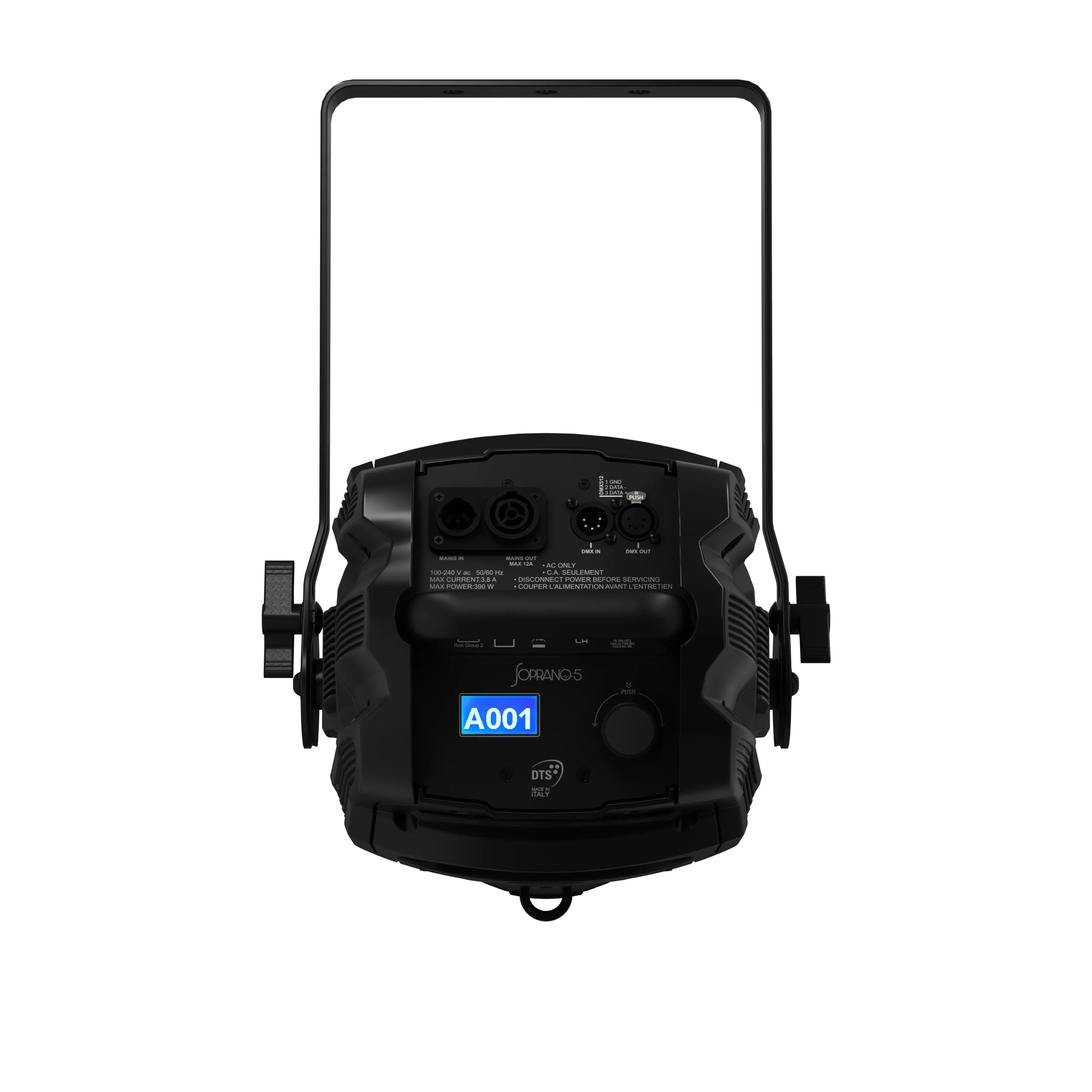

LCD display with Jog Shuttle▼

Intuitive interface for quick configuration, even without an external controller.

Integrated electronic protection▼

Safety systems against overvoltage and overheating ensure stable and secure operation.

Modular and professional design▼

IP20-rated body available in black or white, with separate LED engine and optical group for easy transport and maintenance.
