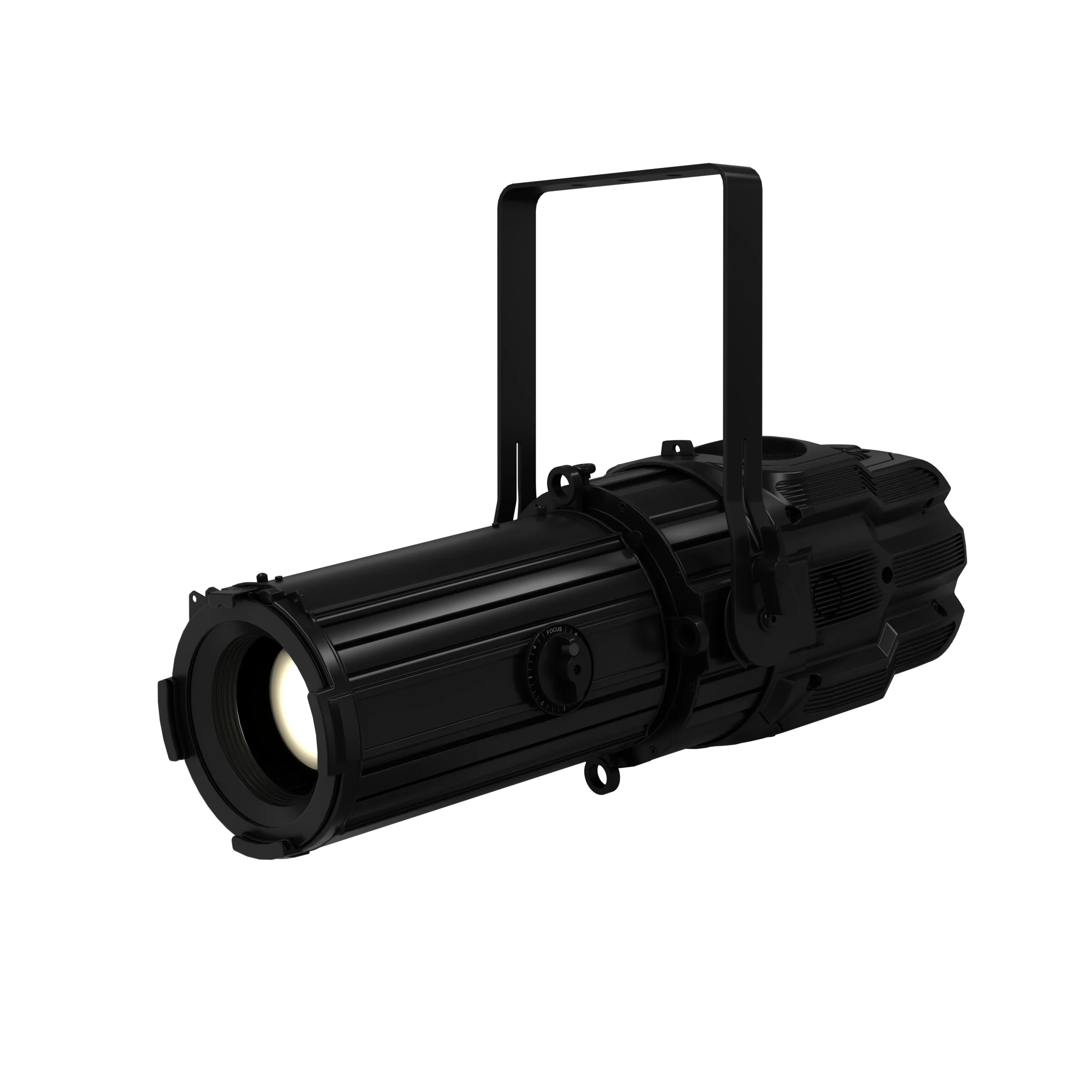

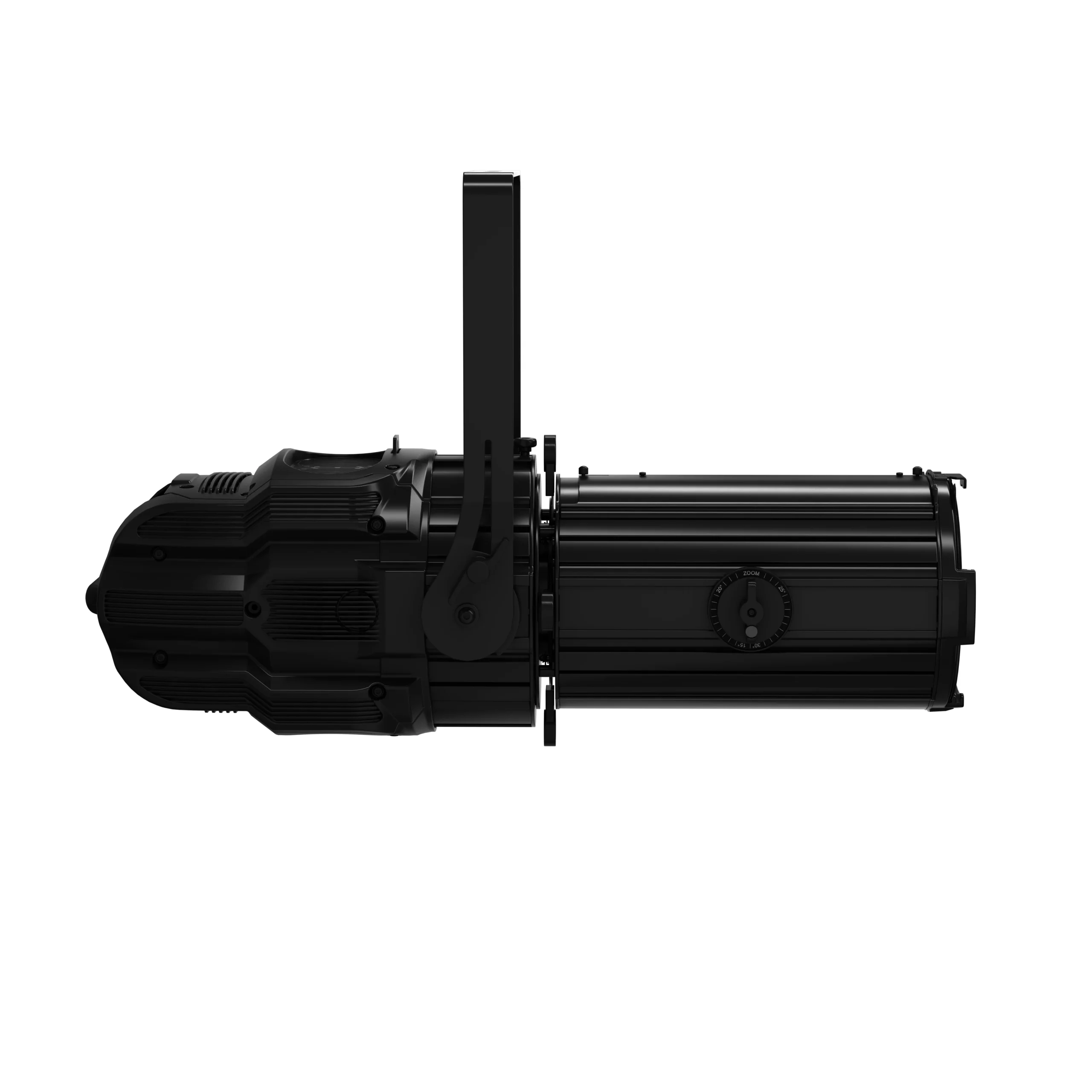

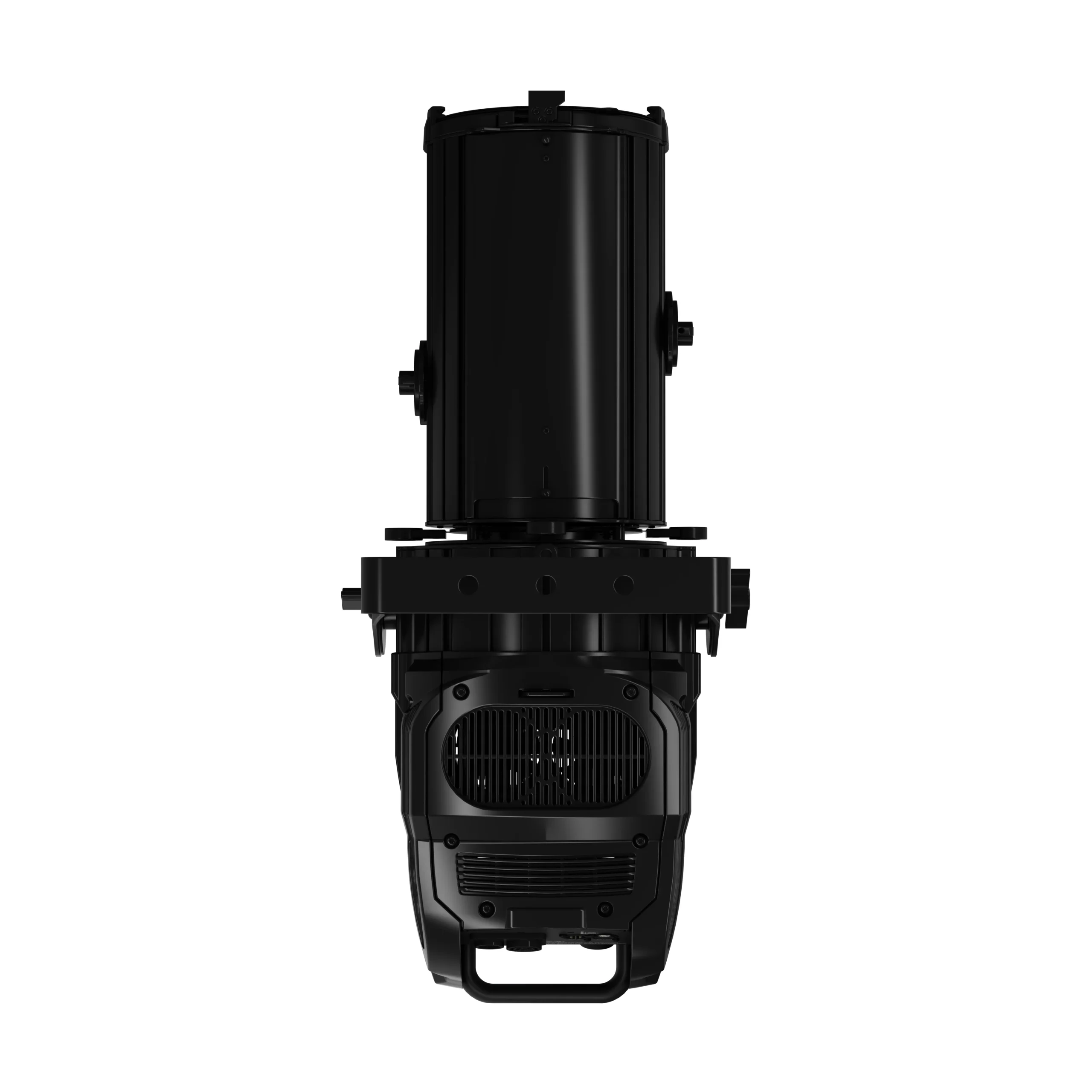

SOPRANO 5 WH

LED projector

Professional LED projector with interchangeable optics, ideal for applications requiring precision, versatility, and silent operation — such as theatres, TV studios, museums, corporate events, and exhibition spaces. SOPRANO 5 WH is available in multiple color temperatures, it delivers outstanding light quality. It features a lens-integrated four-blade rotating framing system, compatible with professional gobos, and ensures smooth light transitions thanks to its dimmer. Control is complete and intuitive.

highlights

Source

single led 3000k-4000k-5700k

Lumens

3000K - 7100 lm (Optical group 8-20) - 8100 lm (Optical group 15-30) - 9600 lm (Optical group 25-50) 4000K - 7300 lm (Optical group 8-20) - 8600 lm (Optical group 15-30) - 10100 lm (Optical group 25-50) 5700K - 8500 lm (Optical group 8-20) - 9900 lm (Optical group 15-30) - 11800 lm (Optical group 25-50)

IP Rating

IP20

DMX

4 channels 1 channel “Fine” mode

operating
temperature

-10° / 45° C

Applications

Theatres

Ideal for stage lighting thanks to its high CRI, fine beam adjustment, and Ultra Silent mode, ensuring maximum silence in acoustically sensitive environments.

TV studios and broadcast

Provides stable, flicker-free light, perfect for HD and 4K video recording. The high-quality white light delivers natural color rendering on skin tones and objects.

Museums and exhibition spaces

Thanks to its optical precision and CRI >95, it allows artworks, objects, and details to be illuminated without color distortion, with the possibility of using gobos for custom projections.

Corporate events and conferences

The versatility of the optical system and easy DMX/RDM management make it suitable for elegant installations in corporate or trade show environments.

Indoor architectural installations

Suitable for indoor use in both historic and modern buildings, where controlled, quiet light with a discreet finish (black or white) is required.

Touring shows and live productions

The modular design enables fast transport and setup. Interchangeable optics allow the fixture to be easily adapted to different stage designs.

Retail and showrooms

Excellent for enhancing products and spaces in shops and showrooms, thanks to its beam flexibility and outstanding color rendering.

Features

High color rendering LED source▼

Available in 3000K, 4000K, and 5700K versions, with CRI >90 / >95 for intense and natural light.

Interchangeable optics with linear zoom▼

Three optical groups (8–20°, 15–30°, 25–50°) to adjust the beam angle according to different needs.

4-blade framing system▼

Blades operate on three separate planes with ±32° rotation, allowing precise beam shaping.

PWM dimming▼

Smooth and flicker-free light adjustment, ideal for video and broadcast environments.

Silent operating modes▼

Four fan profiles (Standard, Silent, Ultra Silent, Automatic) for optimal use even in theatres and TV studios.

DMX/RDM control▼

Compatible with major lighting control protocols, with 3 selectable DMX modes.

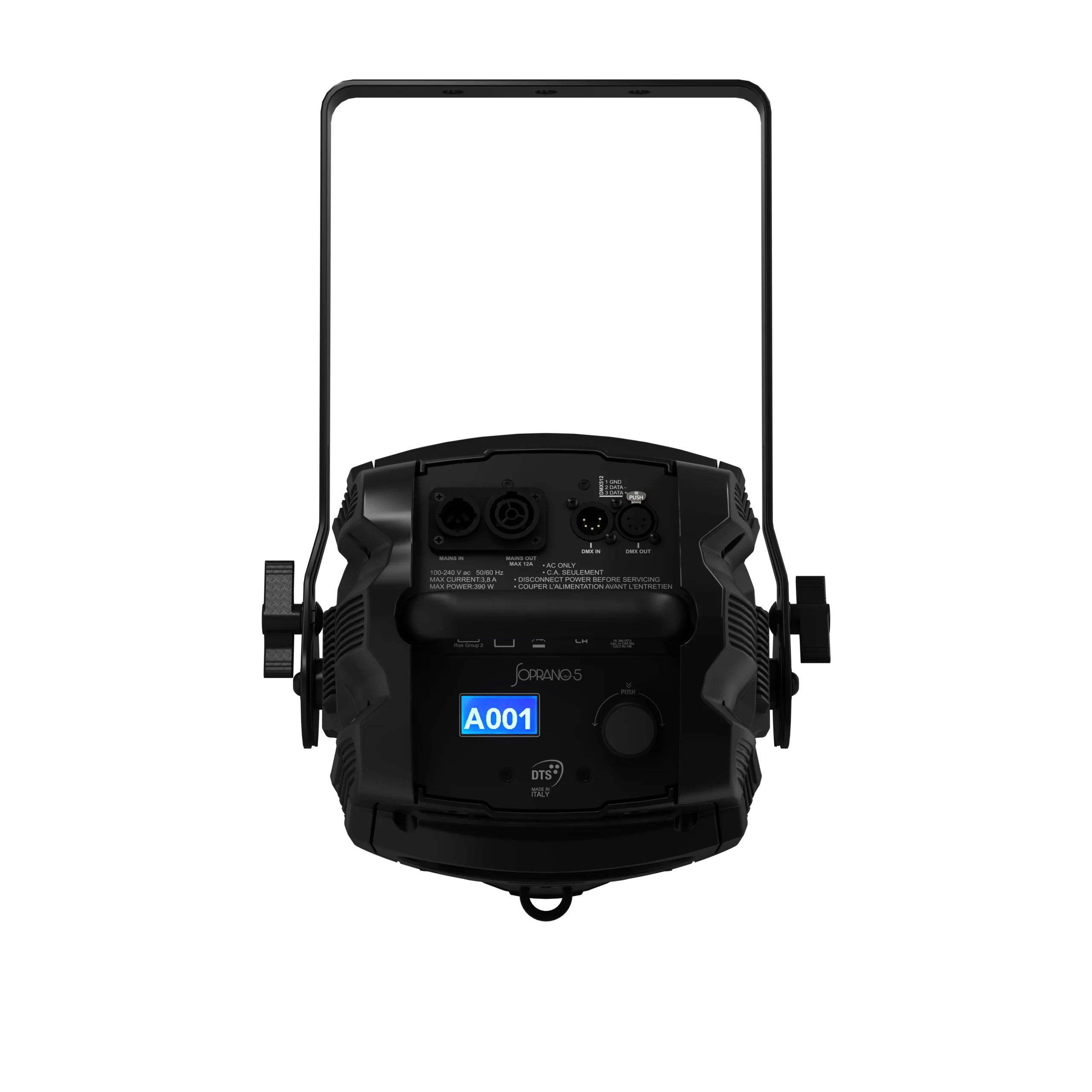

LCD display with Jog Shuttle▼

Simple and fast user interface for configuring the fixture without an external controller.

Modular design▼

Separated LED engine and optical group for easier maintenance, transport, and future upgrades.

Integrated electronic protection▼

Safety circuits against overvoltage and overheating ensure reliability and long lifespan.

Professional design with black or white finish▼

Elegant and discreet look, suitable for theatrical, museum, or indoor architectural installations.

Versatility and customization
