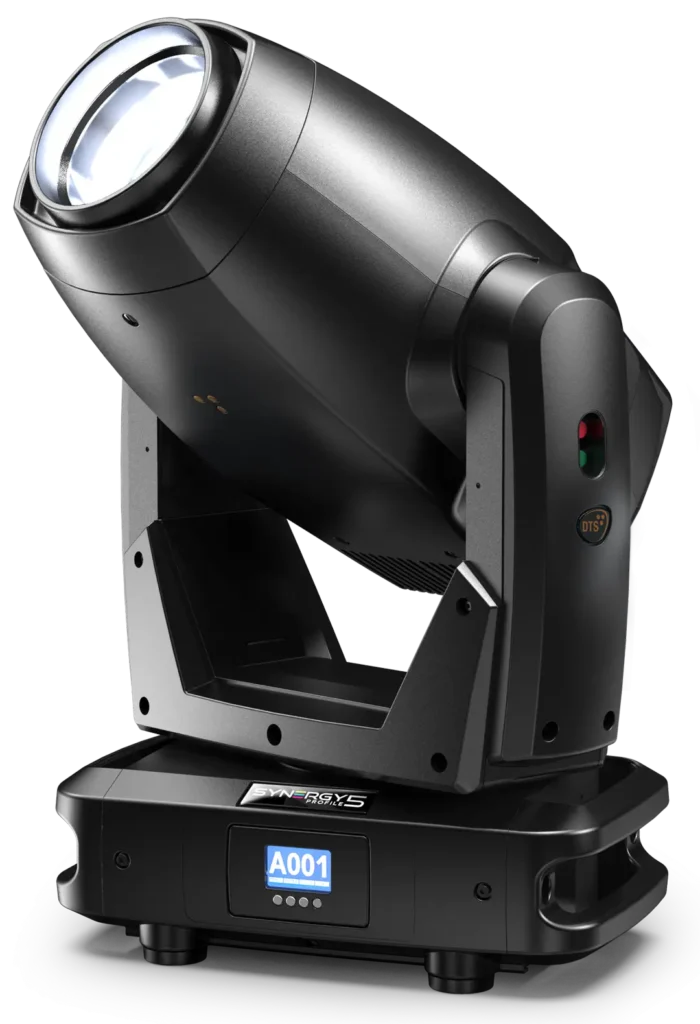

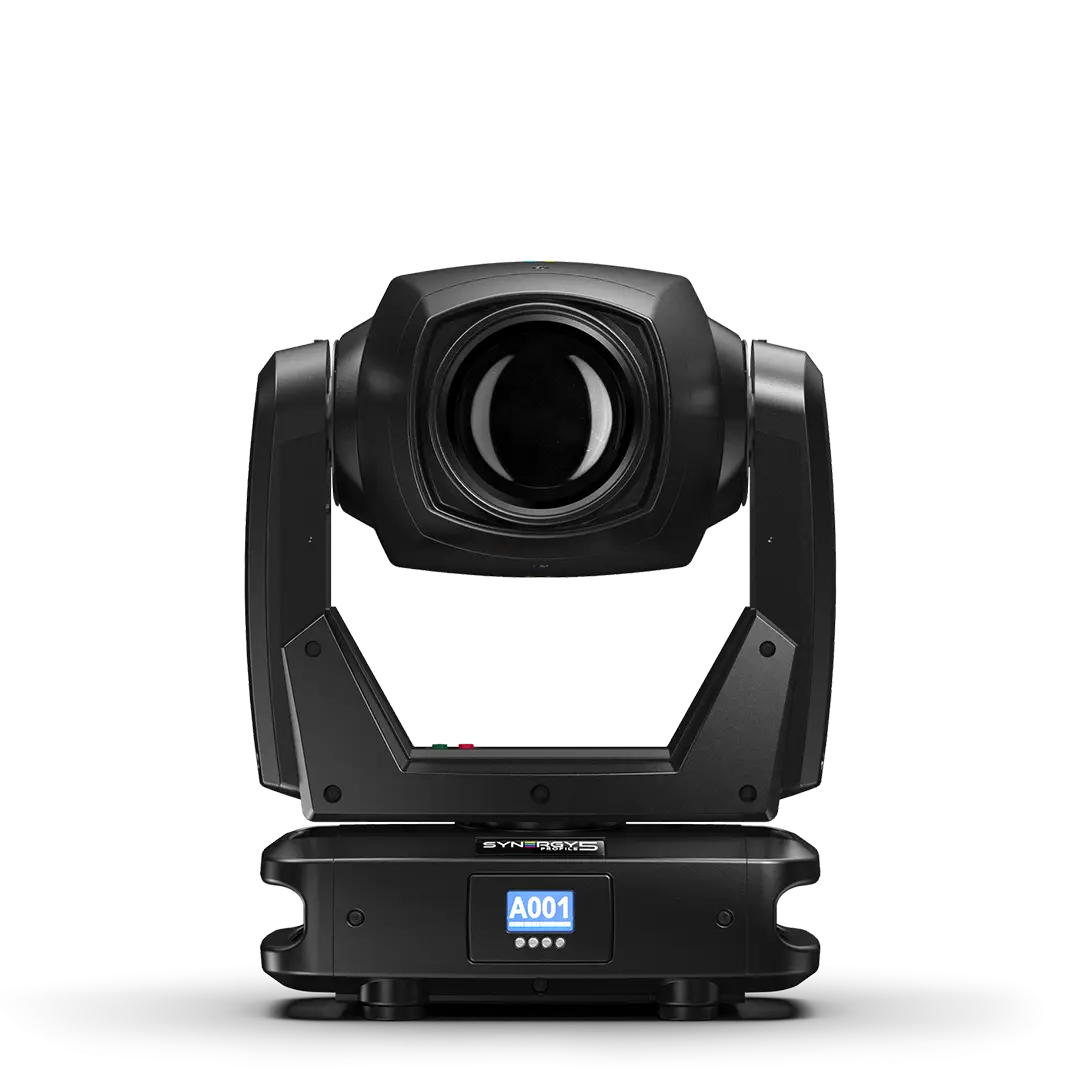

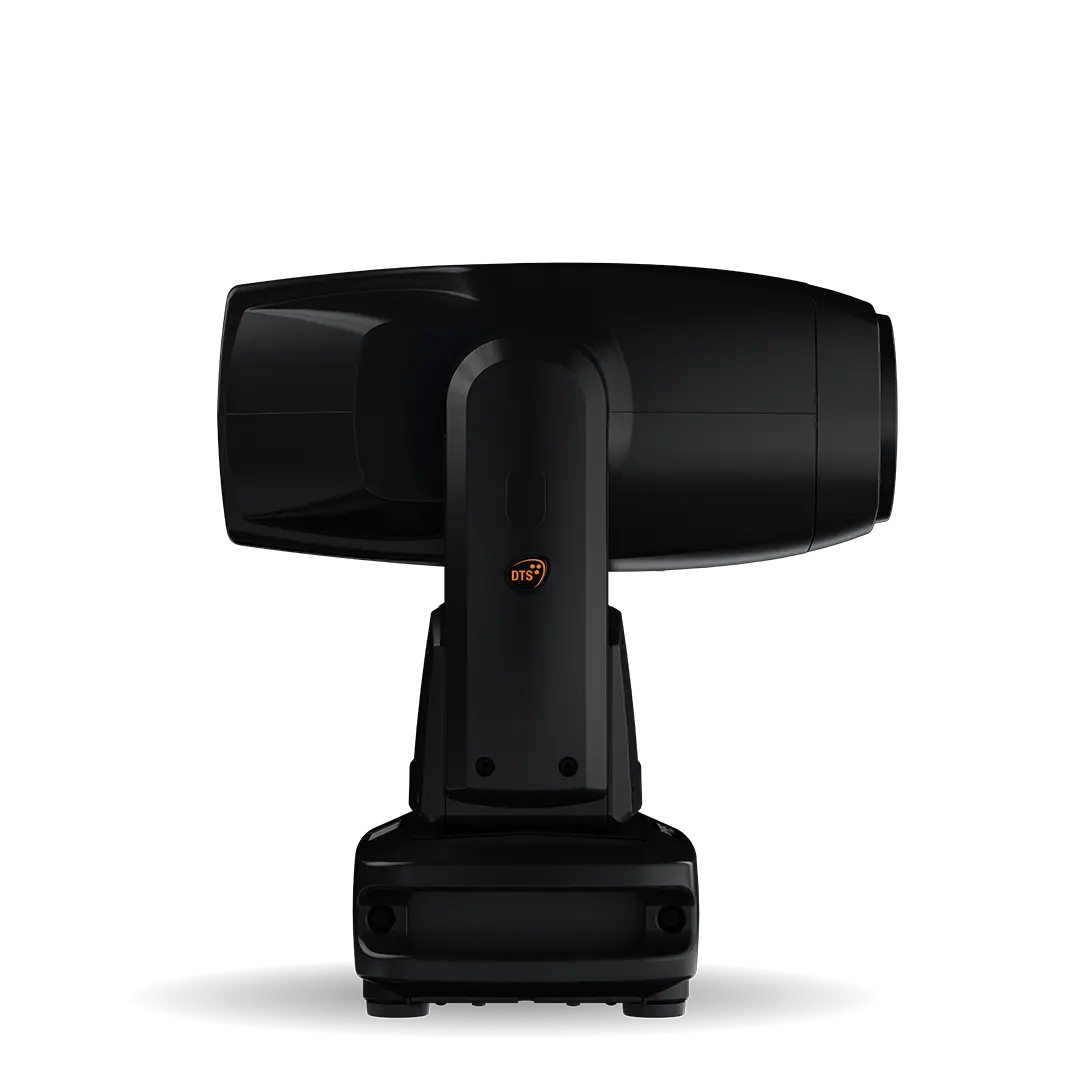

SYNERGY 5 PROFILE

OUTPUT

• �� 420 W pure white LED source: 7000 K – 16,500 Lumen output
• �� Double CRI (DMX-selectable): CRI >90 or CRI >75
• �� Average LED life: 50000 hours (L70B10)

OPTICAL GROUP

• �� 49,900 Lux (4.6°@ 5 m)
• �� 4.6° – 43° linear zoom with autofocus
• �� Linear soft frost fi lter
• �� Medium and Heavy frost filters available on demand
• �� Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)

COLOR GENERATION

• �� Linear CMY
• �� Linear CTO (3000 K – 7000 K)
• �� Gel filter emulation
• �� 6-color wheel
• �� Two-color generation

DYNAMIC EFFECTS

• �� Dynamove FX Engine
• �� Virtual Animation Wheel
• �� Customizable rotating 6-gobo wheel
• �� Circular 24-facet rotating prism
• �� Linear 6-facet rotating prism

ROTATING FRAMING SYSTEM

• �� 4-blade rotating framing system
• �� Real ‘curtain’ effect for each blade
• �� 60° rotation for each blade (+/- 30°)
• �� 90° full system rotation (+/- 45°)

CONTROL

• �� LCD graphic display + 4 soft-keys; Auto-flip; Key-lock function
• �� Art-Net 4, sACN, RDM/DMX protocols
• �� Standard and Silent operation modes
• �� Noise level at Silent mode: 34dBA @ 1m (normal operation, full power)
• �� Firmware updatable via DTS firmware uploader dongle
• �� Li-Fe backup battery for controlling the display settings even when the unit is not powered

DMX

• �� 44 DMX channels (default)
• �� 53 DMX channels
• �� 16 bit index for insertion and rotation of each blade
• �� 16 bit index for blade system rotation

PAN & TILT

• �� Pan: 540°: 2.7 sec.
• �� Tilt: 240°: 1.6 sec.
• �� Tri-phase stepper motor technology
• �� 16-bit resolution
• �� Selectable speed ranges
• �� Pan / Tilt lock

POWER SUPPLY

• �� Wide-range 100-277 Vac 50 / 60 Hz
• �� Power consumption: 550 W max
• �� Power Factor: PF >0.90

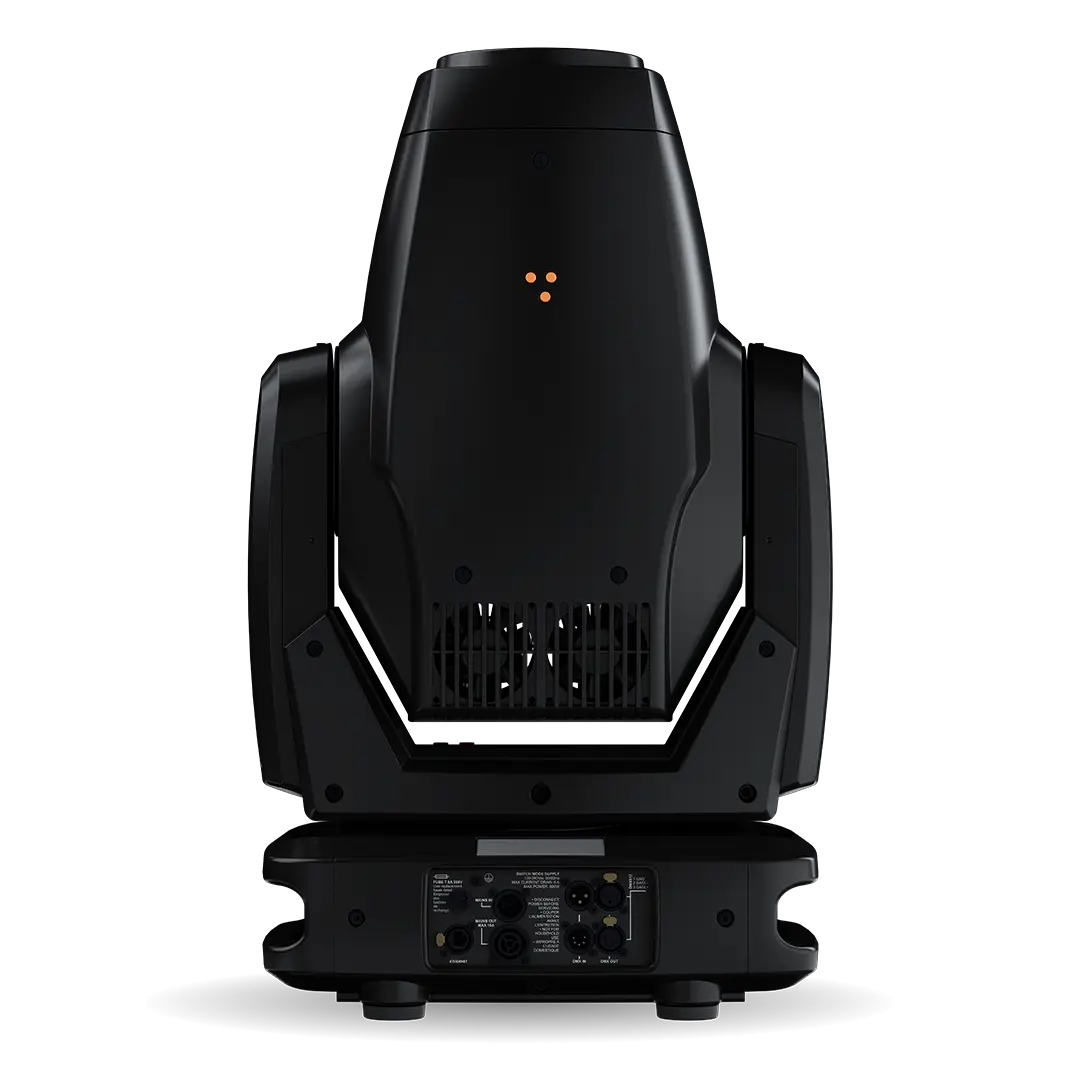

CONNECTIONS

• �� DMX: XLR 3-pole and 5-pole In / Out panel connectors
• �� Power supply: powerCON TRUE1 panel connector
• �� Art-Net / sACN: etherCON RJ45 panel connector

CIRCUITS PROTECTIONS

• �� Overvoltage and overtemperature circuits protection

TEMPERATURE

• �� Operating: -10° +45° C

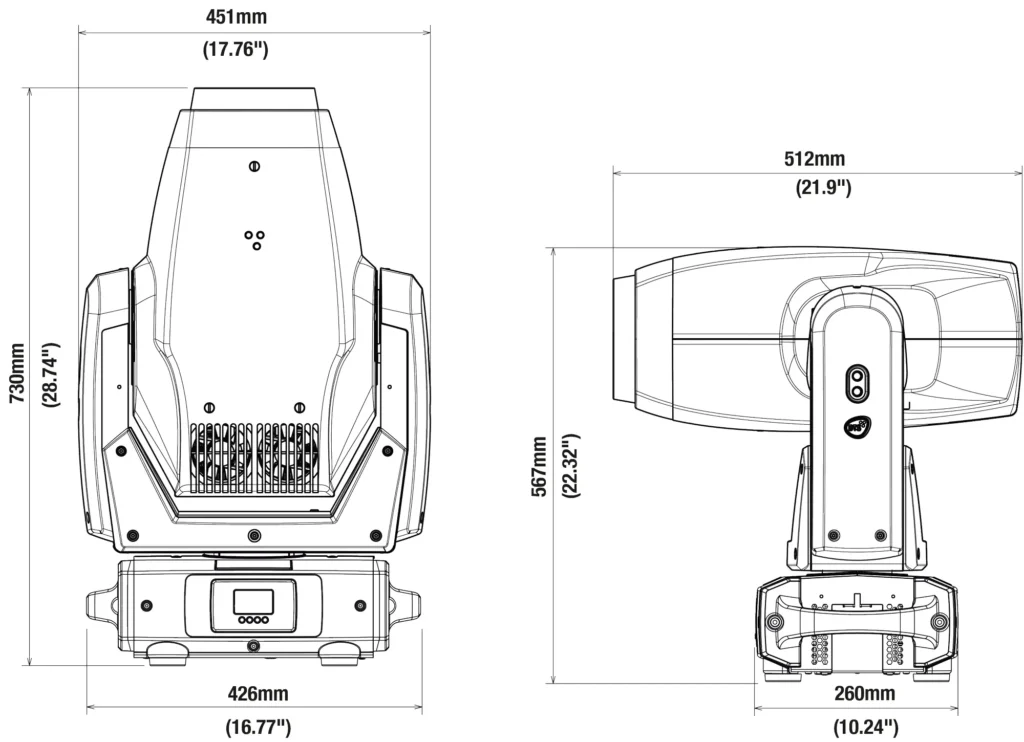

PHYSICAL

• �� Finishing: Black
• �� Weight: 35 Kg (77 lbs)
• �� IP rating: IP20

TEST AND CERTIFICATION

• �� CE

ACCESSORIES INCLUDED

• �� Synergy EZ-shell – 560 x 490 x 670 mm – 2 pcs needed in each flightcase (code 0512K146.1)
• �� 1 x Soft frost filter – already mounted on the unit (code 02SK0410)
• �� 1 x PowerCON TRUE1 female cable connector (code 0520P066)
• �� 1 x XLR 5 pins female cable connector (code 0508B147)
• �� 1 x XLR 5 pins male cable connector (code 0508B148)
• �� 2 x Kit Omega clamp “Fast Lock” (code 02K00549)

ACCESSORIES ON REQUEST

• �� Medium frost filter (code 02SK0428)
• �� Heavy frost filter (code 02SK0430)
• �� Flightcase for 2 units (code 0521C073)
• �� Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
• �� G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
• �� Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
• �� Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
• �� DTS firmware uploader dongle (code 03.LA.206)
