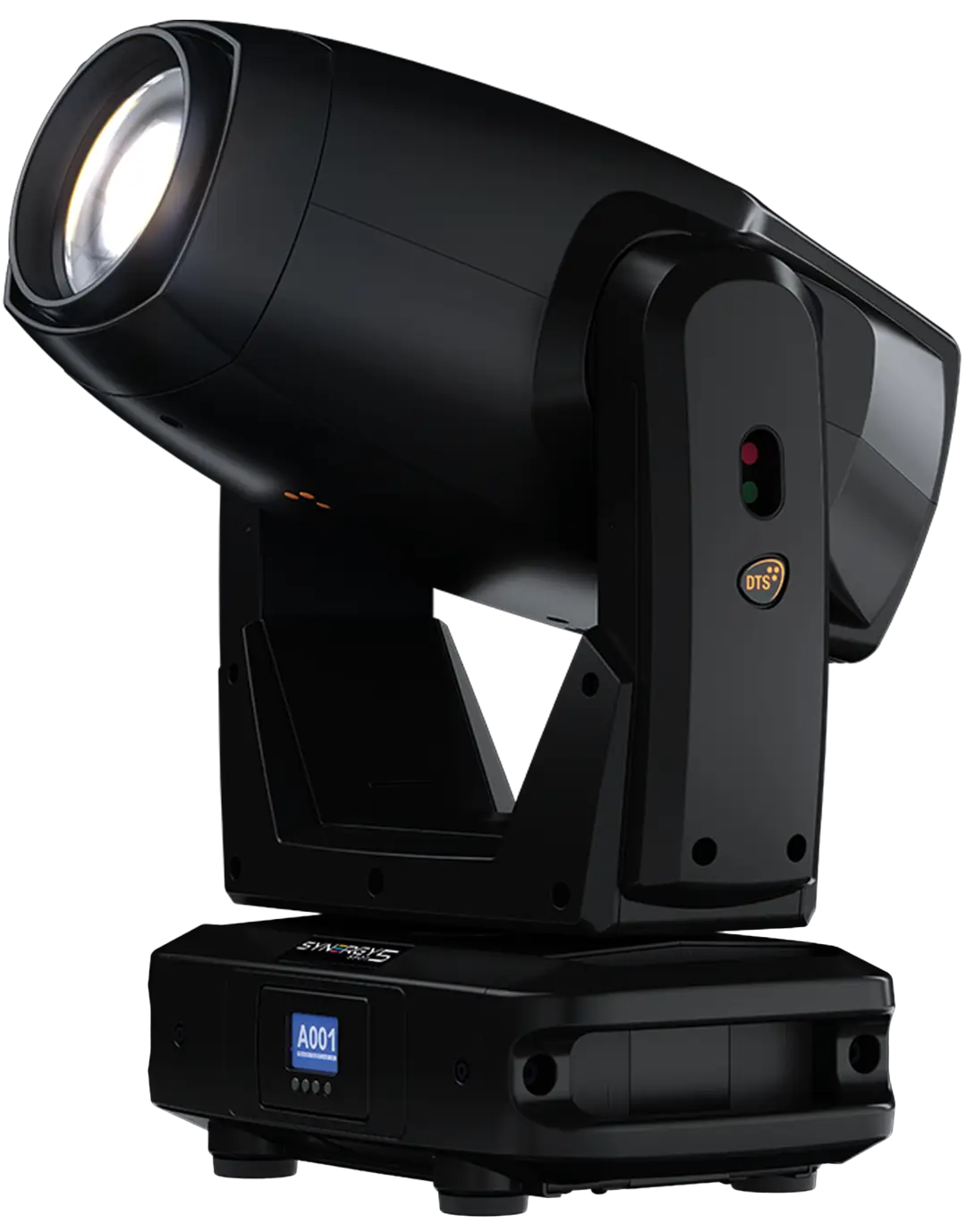

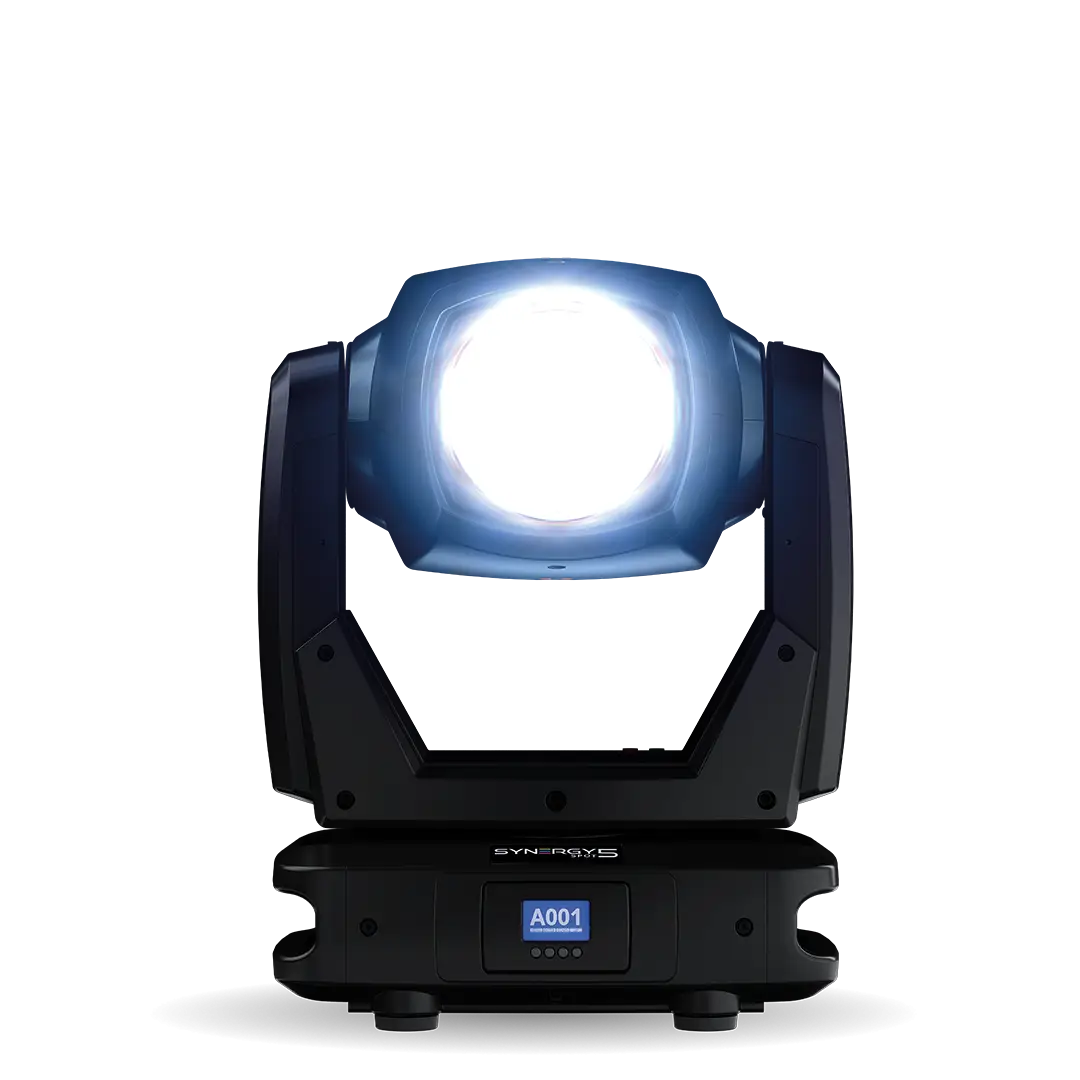

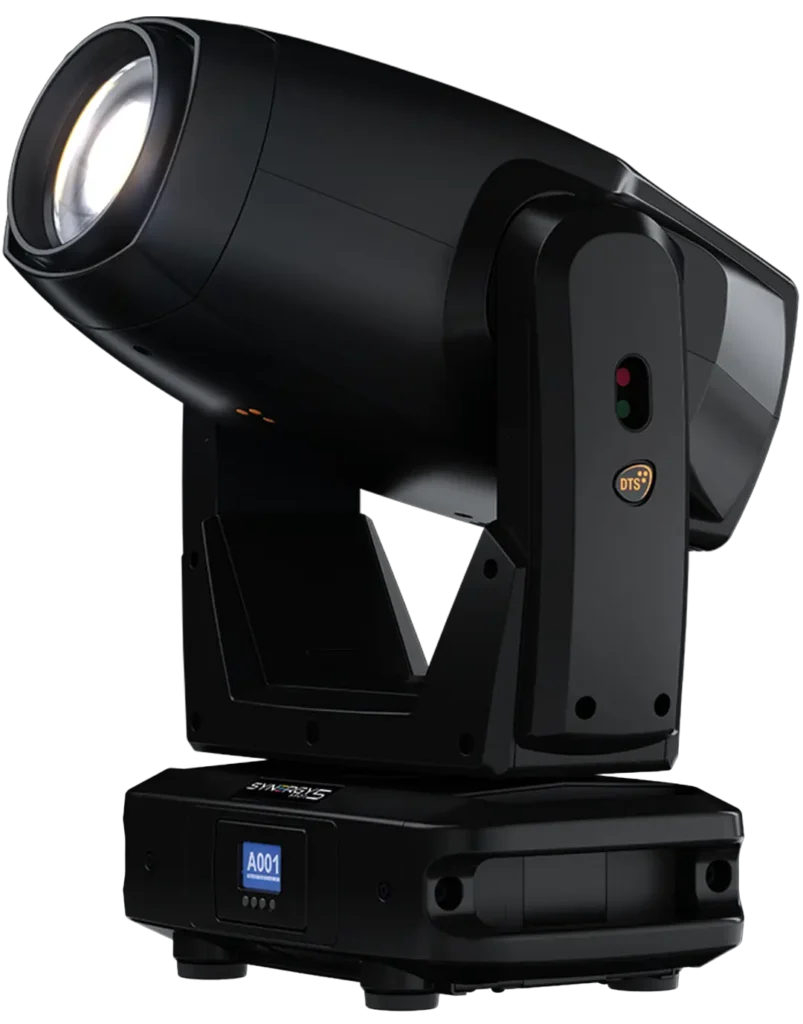

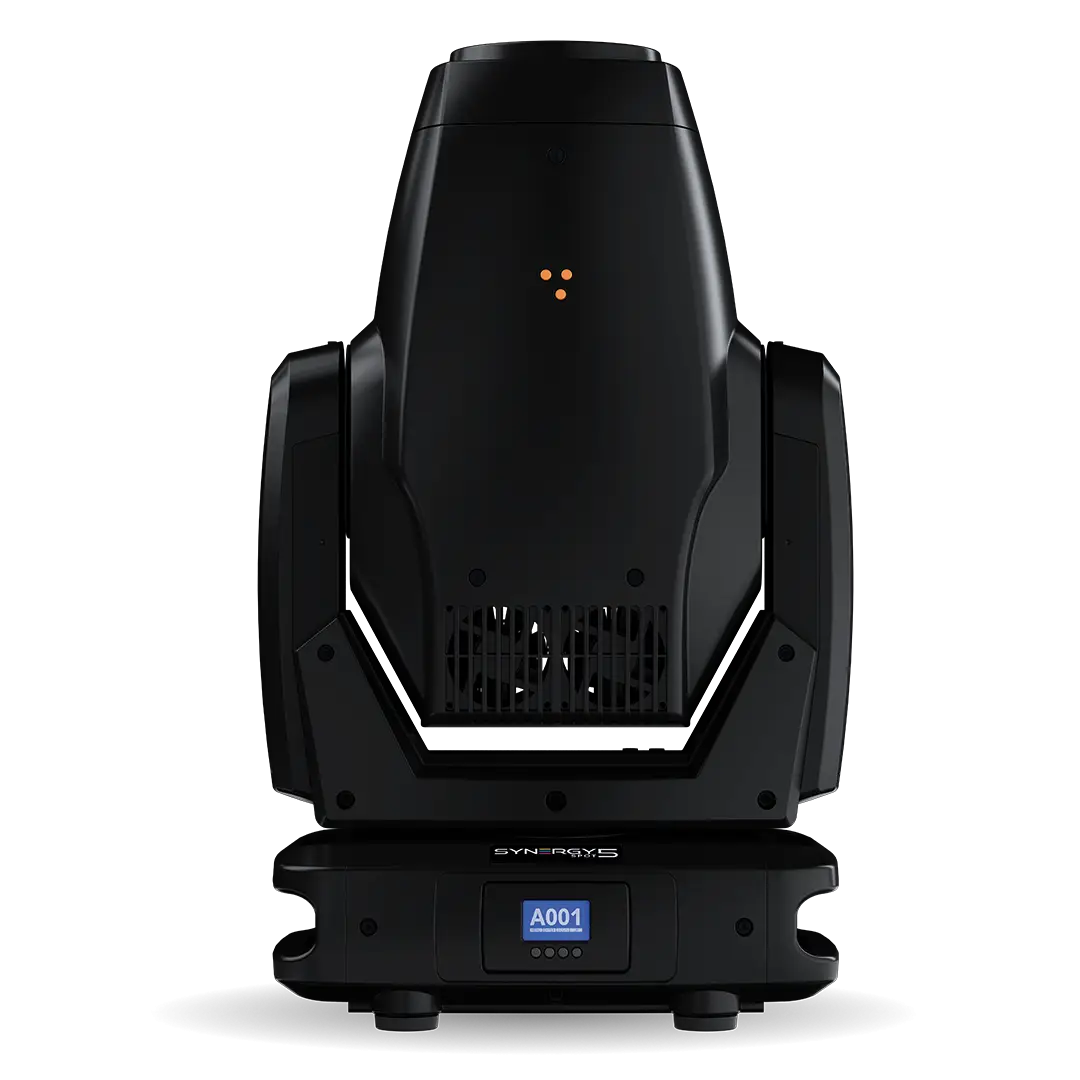

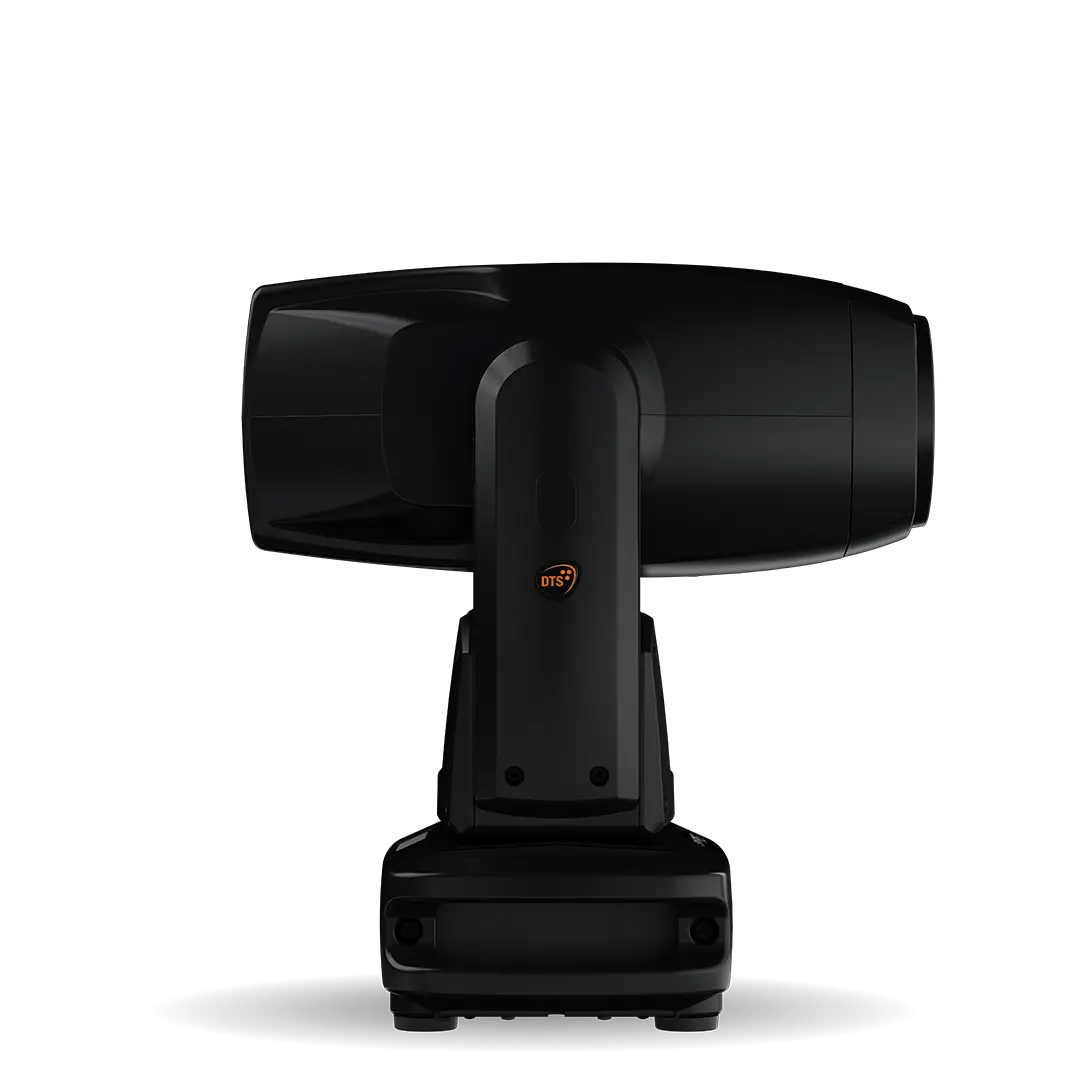

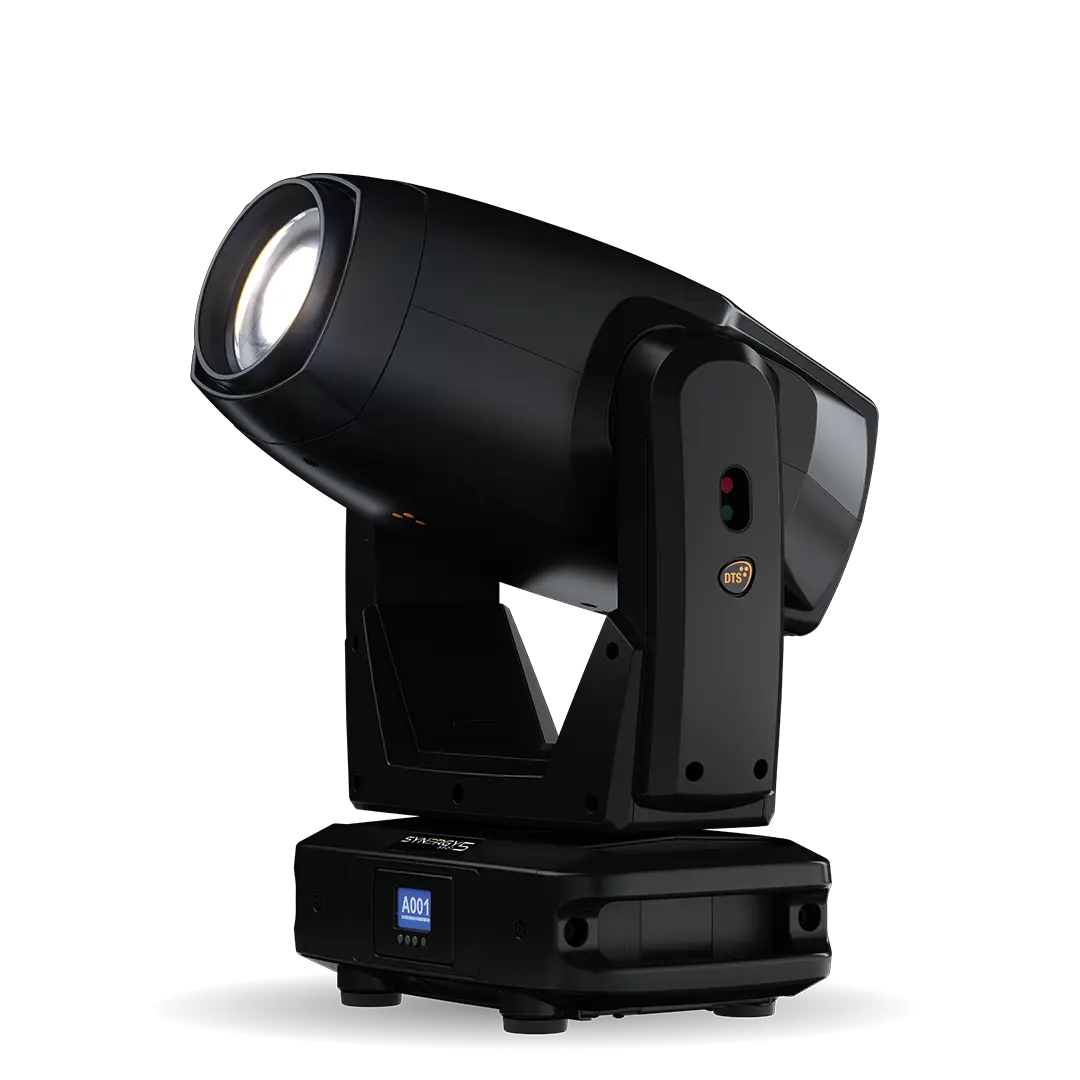

SYNERGY 5 SPOT

LED moving head

High-power moving head ideal for premium applications. Featuring an evenly diffused, flat light beam, SYNERGY 5 SPOT is particularly suited for concerts, live shows, and effect lighting.

highlights

Source

420 W pure white LED source

Lumens

16500 lm

IP Rating

IP20

DMX

37 channel

operating
temperature

-10° / 45° C

Applications

Live shows and theatrical performances

Delivers a powerful and precise beam with dynamic effects (gobos, prisms, animations), ideal for lighting sets, actors, and dancers with great visual impact.

TV productions and film studios

Thanks to DMX-selectable dual CRI (up to >90) and stable color rendering, it ensures accurate color reproduction and high-quality images for HD/4K filming.

Corporate events and conferences

Fast and flexible zoom, silent operation, and Art-Net/DMX connectivity allow for professional lighting of stages and speakers without disturbing the environment.

Concerts and tours

Customizable visual effects and high luminous output make this projector ideal for large indoor and outdoor venues, with shows synchronized to music and choreography.

Museum installations and galleries

Silent operation (37 dBA) and detailed beam quality are perfect for enhancing artworks and exhibits without affecting the visitor experience.

Trade shows and product presentations

Excellent color control, filter versatility, and high light quality make this unit ideal for highlighting products, booths, and display areas.

Theme park shows and attractions

Dynamic effects, DMX/Art-Net integration, and a robust structure make it well-suited for immersive scenic designs and themed indoor environments.

Fixed gobo wheel

Color wheel

Features

High-efficiency 420W LED source▼

Delivers high brightness (16,500 lumens) with a 7000 K color temperature, ideal for applications requiring a powerful and defined beam.

Dual CRI selectable via DMX▼

Allows selection between CRI >90 or CRI >75 depending on color rendering needs, suitable for television environments or live performances.

Motorized zoom 5.5°–43° with autofocus▼

Wide zoom range for smooth transitions from narrow beams to wide projections, with always-precise autofocus.

CMY + linear CTO color system (3000–7000 K)▼

Advanced color mixing with color temperature adjustment, color wheel, and gel filter emulation for broad creative possibilities.

Complete dynamic effects▼

Includes rotating and fixed gobo wheels, two prisms (24-facet circular and 6-facet linear), and virtual animation wheel for rich and creative stage effects.

Versatile and updatable control▼

Supports DMX, RDM, Art-Net 4, and sACN. Firmware can be updated via dongle. The LCD display with 4 buttons allows fast configuration, even when powered off, thanks to the integrated Li-Fe battery.

Silent operation modes▼

Selectable “Standard” and “Silent” modes; in silent mode, noise level does not exceed 37 dBA @1 m, ideal for theatres, museums, and studios.

Precise and fast Pan/Tilt movement▼

Pan rotates 540° in 2.7 s and Tilt 240° in 1.6 s, with tri-phase stepper motors, 16-bit resolution, mechanical locks, and selectable speeds.

Robust and protected construction▼

IP20 housing, built-in protections against overvoltage and overheating, suitable for continuous use in professional environments.

Professional connectivity and universal power supply▼

XLR 3/5-pin, etherCON RJ45, and powerCON TRUE1 connectors, compatible with 100–277 Vac power input – ideal for touring and fixed installations.

Versatility and customization
