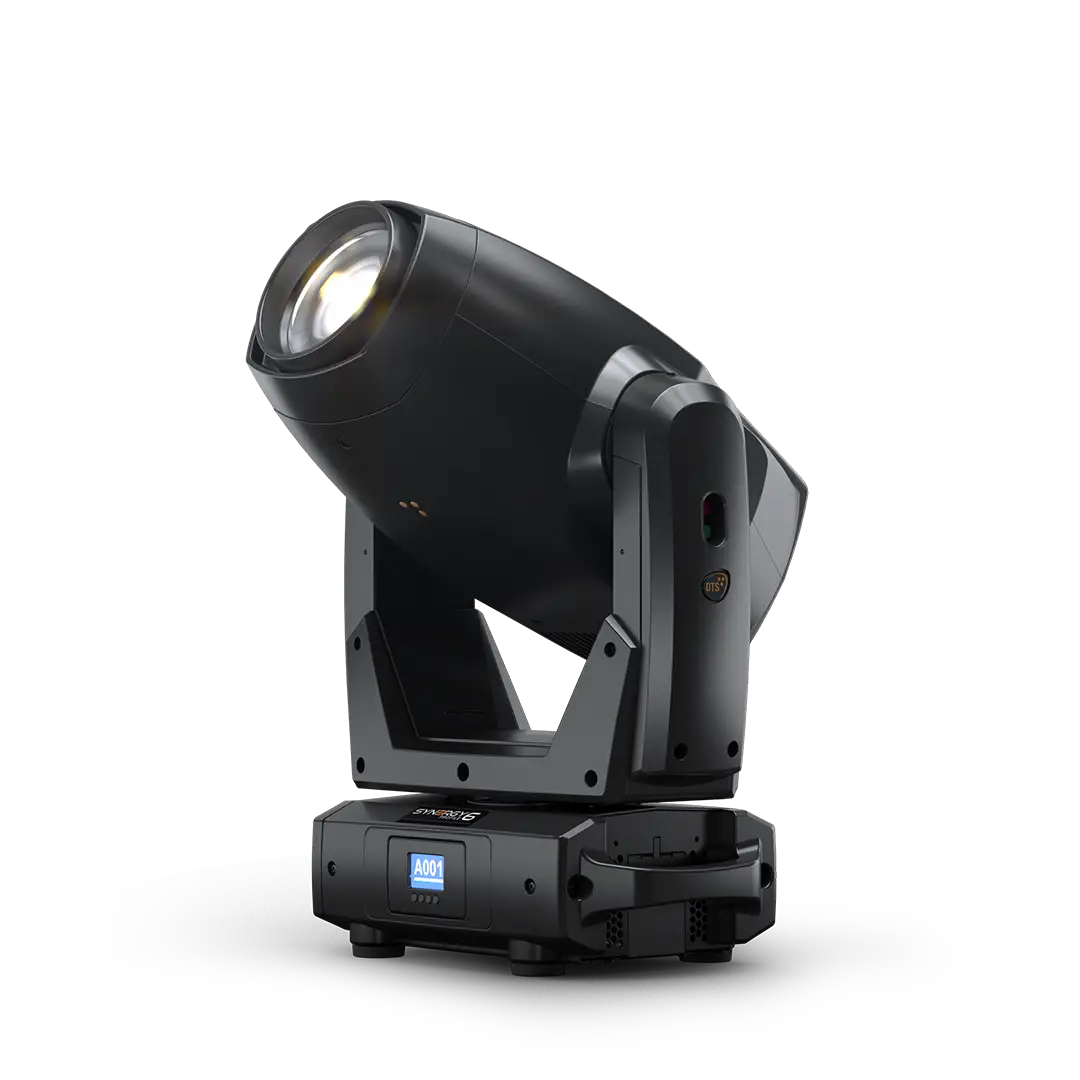

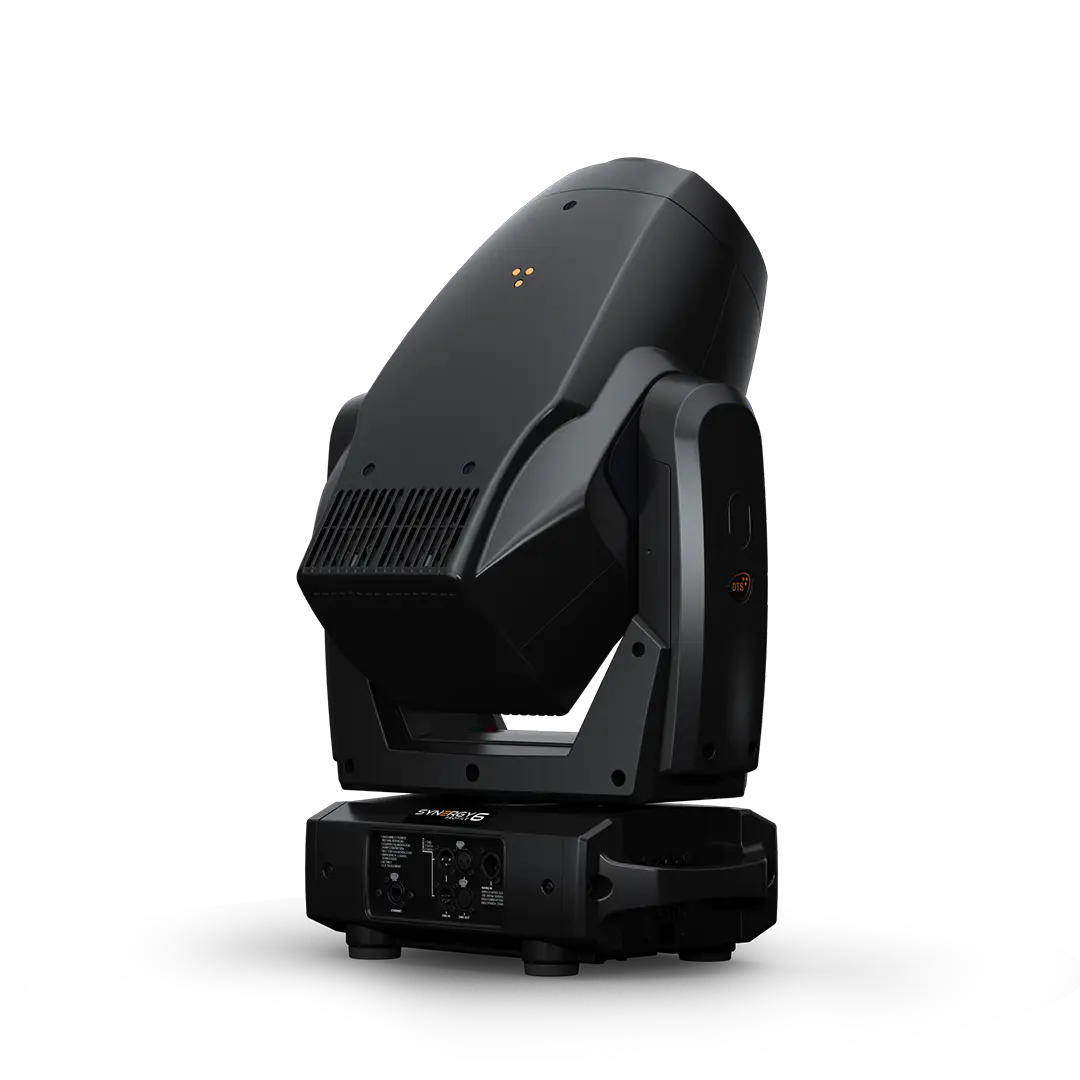

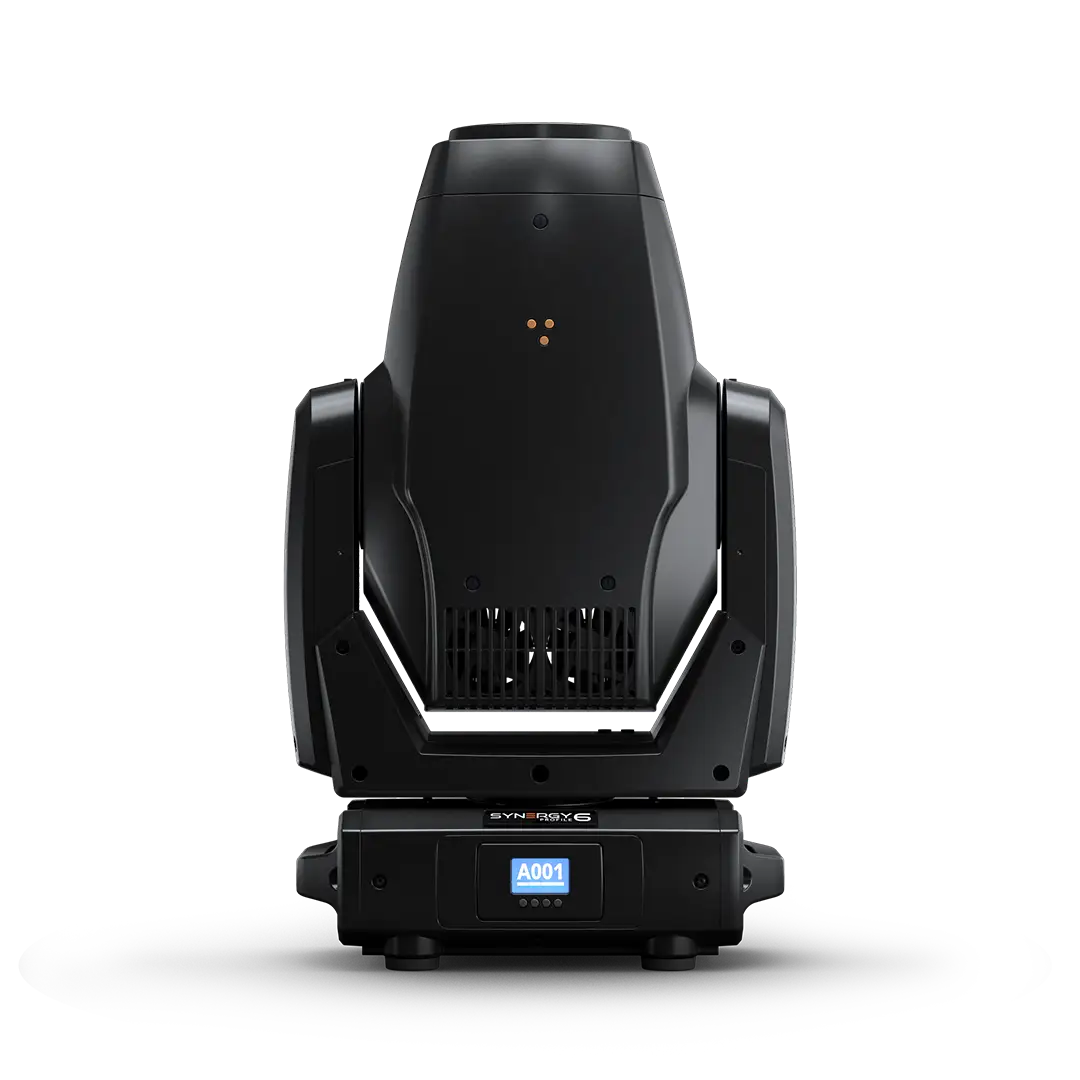

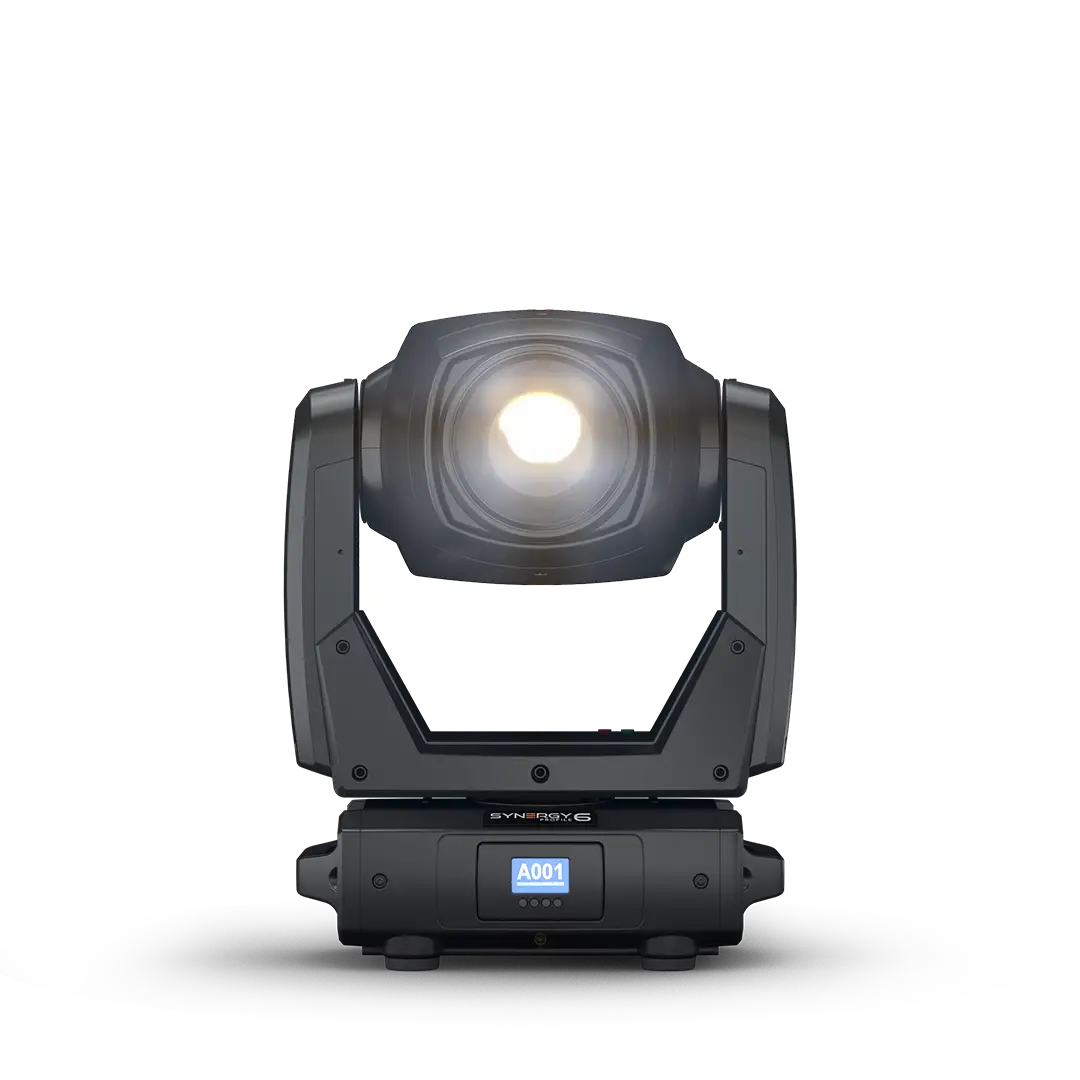

SYNERGY 6 PROFILE hi-cri

LED moving head

SYNERGY 6 HI CRI is an extremely powerful moving head, suitable for live television and theatre productions. Thanks to its high colour rendering index (CRI), it ensures impeccable colour rendition on camera and on stage, enhancing faces, costumes and sets with faithful and uniform light. The moving head has a 570W pure white LED source and a 4-blade shaping system. It features a long-throw motorised linear zoom with autofocus.

highlights

Source

570 W pure white LED source

Lumens

14000 lm

IP Rating

IP20

DMX

44 channels 53 channels

operating
temperature

-10° / 45° C

Applications

Live theatre and performances

Used to illuminate sets, actors, and dancers with precision and dynamism, thanks to the framing system, refined colors, and silent operation.

Television and film studios

Ideal for studio use thanks to its high CRI and TLCI (>95), which ensure faithful and natural color rendering under HD and 4K cameras.

Corporate events and conferences

Perfect for enhancing stages and speakers with sharp projections, dynamic effects, and remote control via Art-Net/sACN, even in controlled-light environments.

Concerts and music tours

Valued for its high luminous output and special effects (gobos, prisms, animations), enabling engaging visual creations even in large indoor/outdoor venues.

Museum installations and exhibitions

Thanks to its silent mode and high-definition beam, it's ideal for enhancing artworks or temporary exhibits.

Theme parks and attractions

Creates immersive atmospheres in shows and scenic paths, easily integrating with DMX or Art-Net control networks.

Fixed gobo wheel

Color wheel

Features

High-efficiency LED source▼

570W white LED with a color temperature of 6000 K and a luminous output of 14,000 lumens, for powerful and uniform illumination.

Very high color fidelity▼

CRI > 95, TLCI > 95 and R9 > 90 for excellent color rendering, ideal for broadcast, fashion, art, and video production.

Motorized zoom 4.6° – 43°▼

Wide linear zoom range with autofocus, allowing transitions from narrow beams to wide projections with maximum flexibility.

CMY + linear CTO system▼

Precise color mixing and color temperature control (from 2700K to 6000K), with support for virtual gels and a 6-position color wheel.

4-blade rotating framing system▼

Framing system with independent blade rotation and full module rotation, for custom-shaped beam cuts and precision masking.

Advanced dynamic effects▼

Includes 24-facet circular prism, 6-facet linear prism, customizable gobo wheel, and virtual animation wheel for complex visual effects.

Smart operating modes▼

Three modes – Standard, Silent, Auto – to adapt to different contexts, from silent theatre settings to dynamic shows.

Advanced control and networking▼

Compatible with Art-Net, sACN, DMX, and RDM, with 16-bit control of movement and framing; LCD display with backup battery for menu access.

High-precision Pan and Tilt motors▼

Smooth and fast movement (Pan 540° in 2.7s, Tilt 240° in 1.6s), using three-phase stepper motor technology and 16-bit resolution.

Robustness and reliability▼

Solid construction (IP20), built-in protection against overvoltage and overheating, wide operating temperature range (-10°C / +45°C), and firmware updates via dongle.

Versatility and customization
