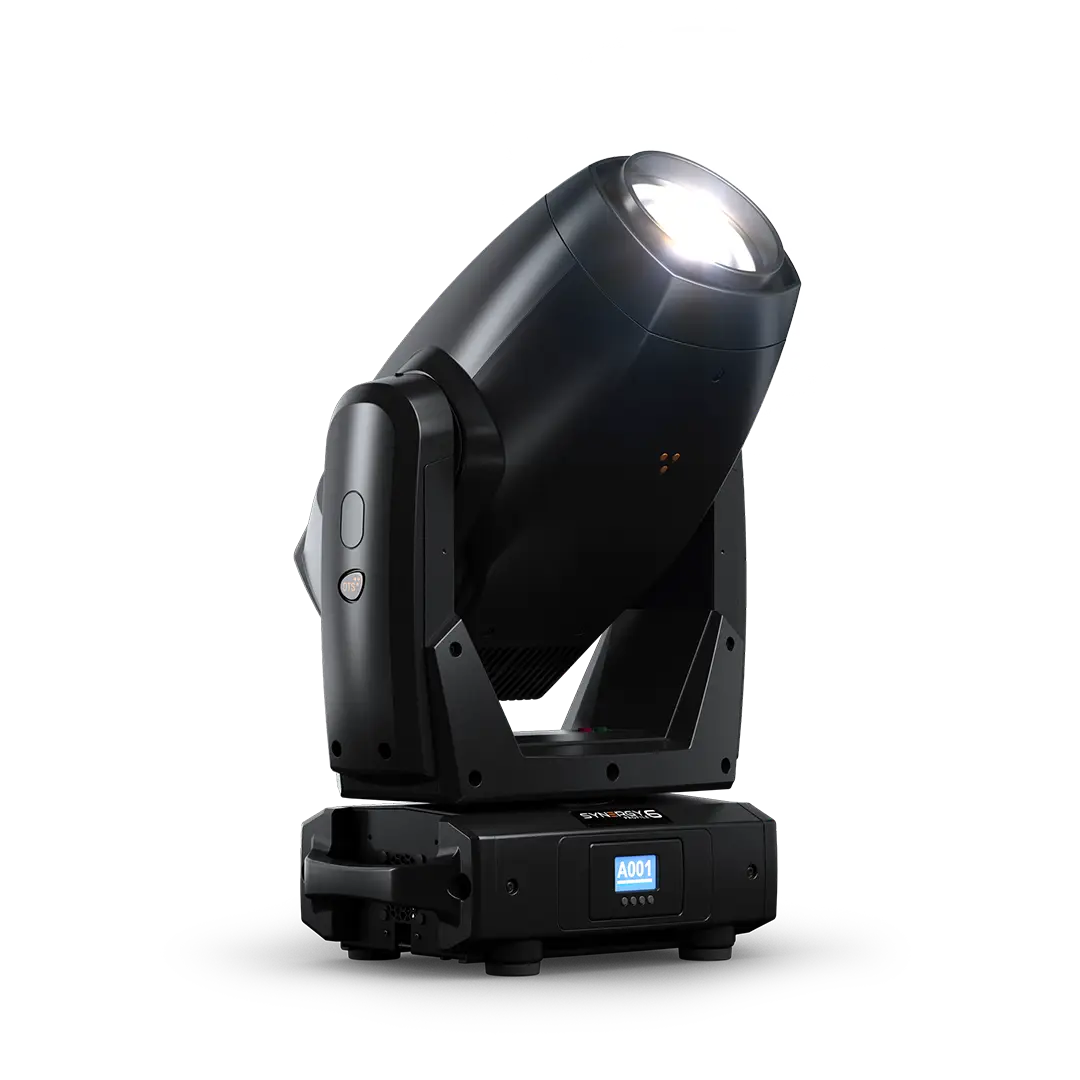

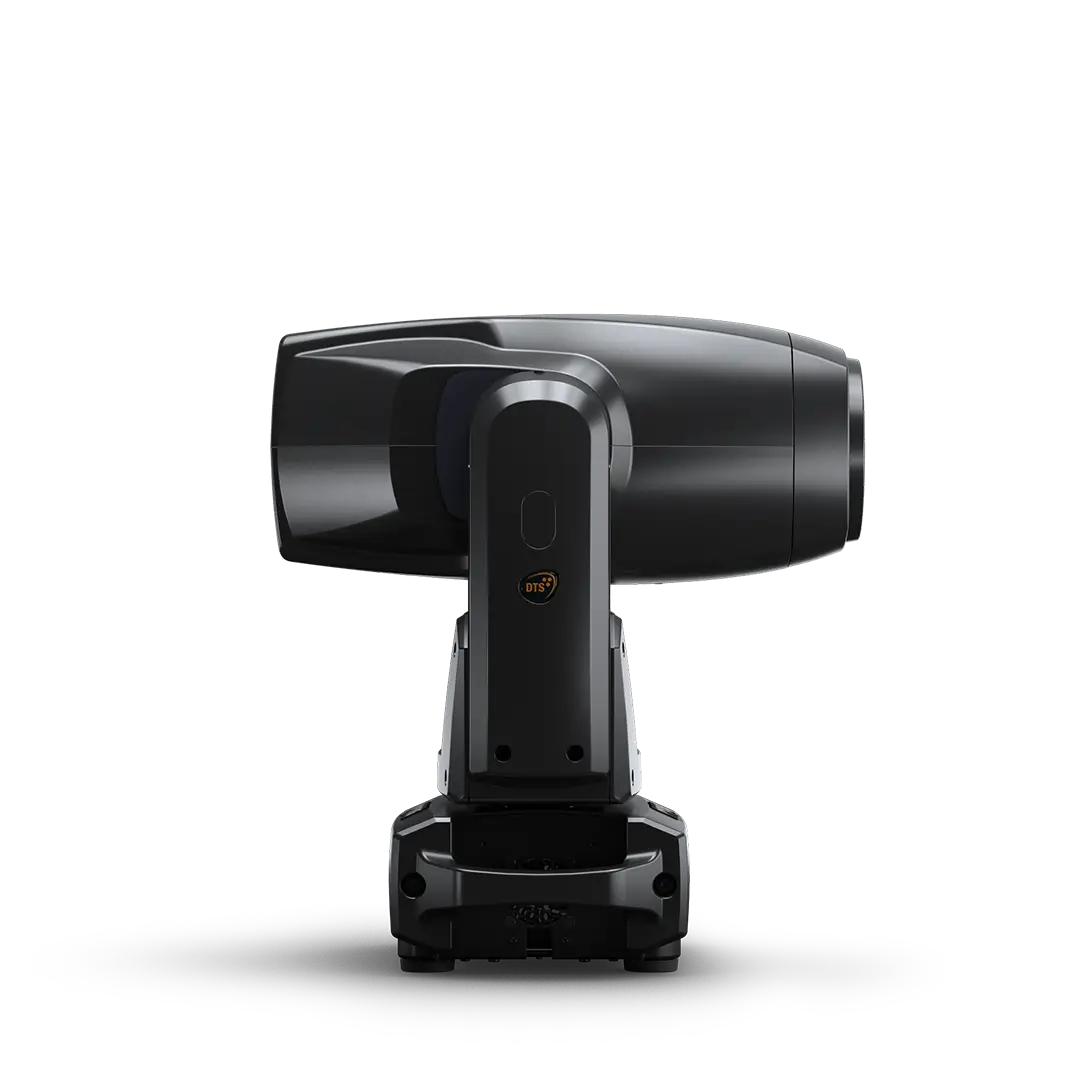

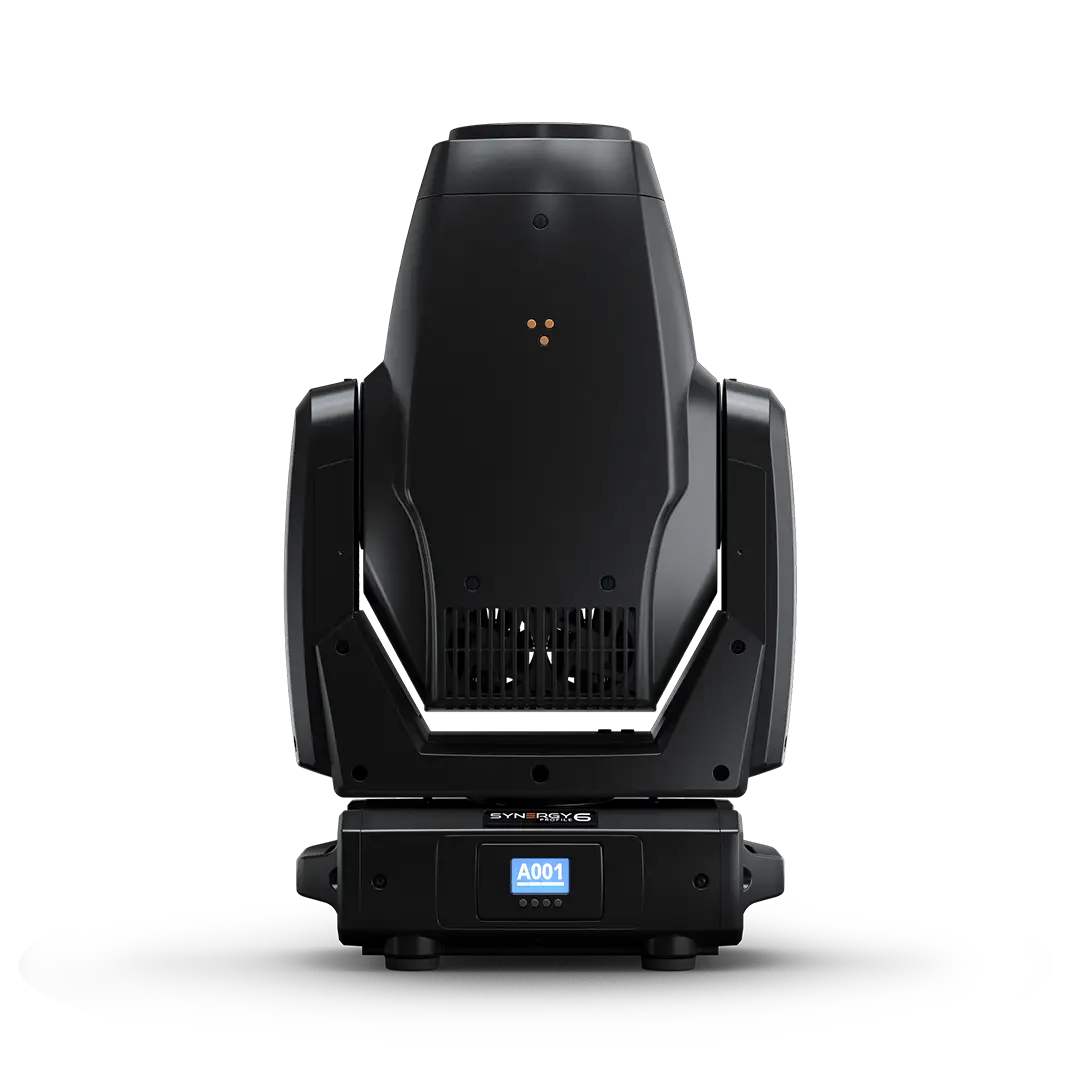

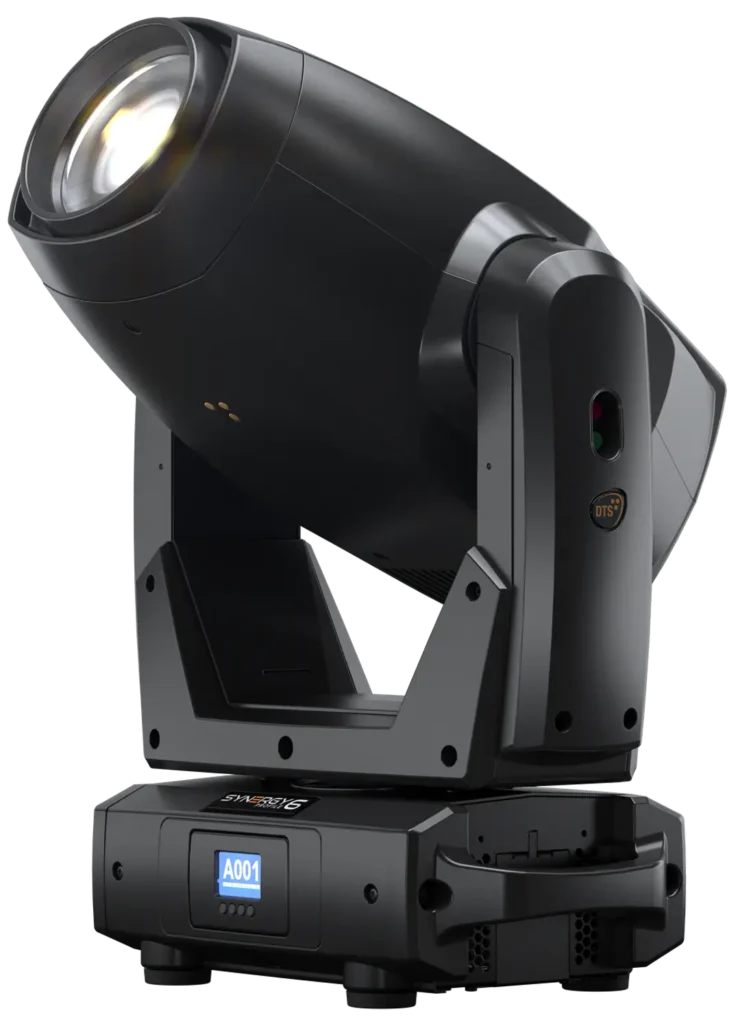

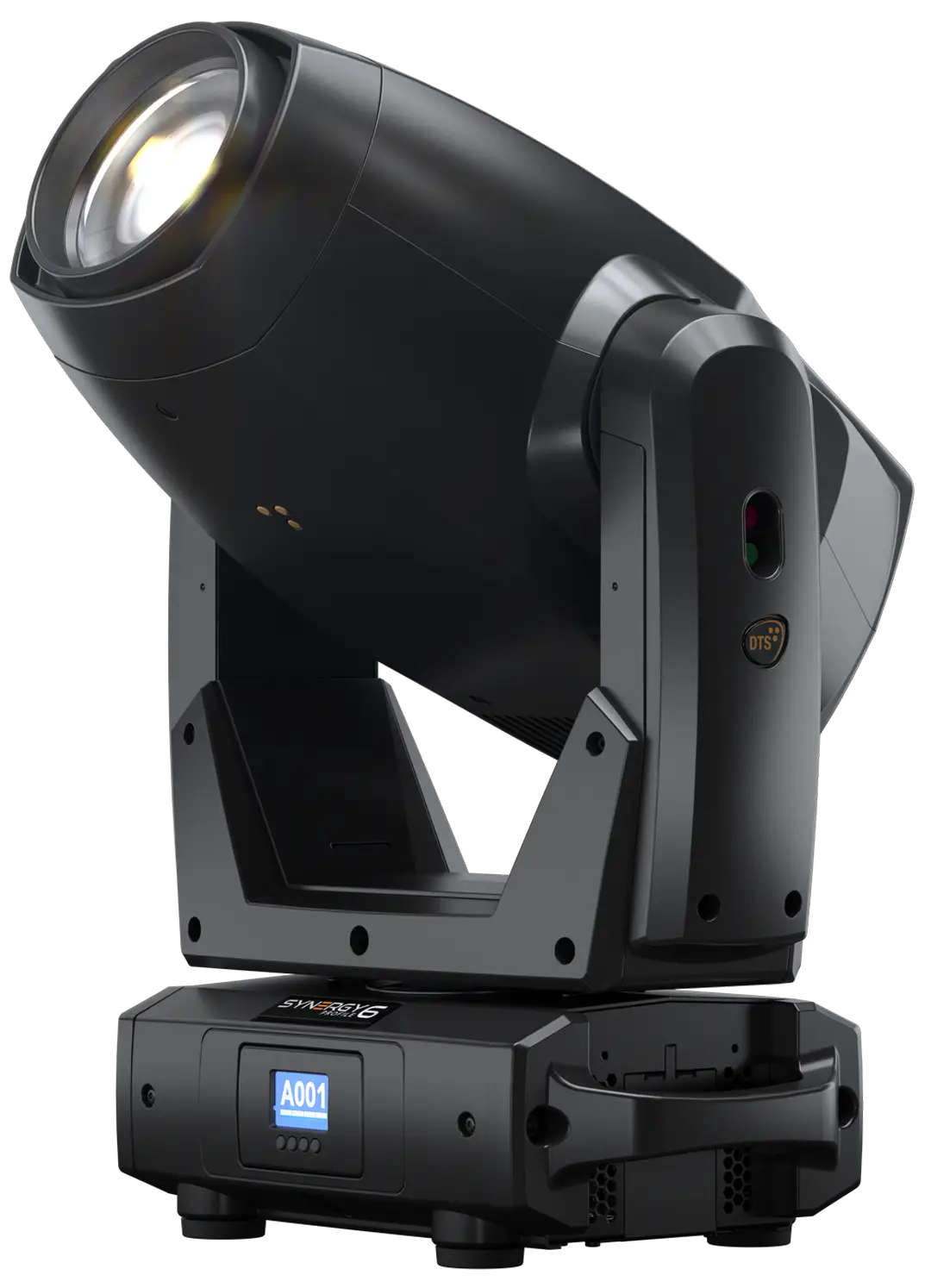

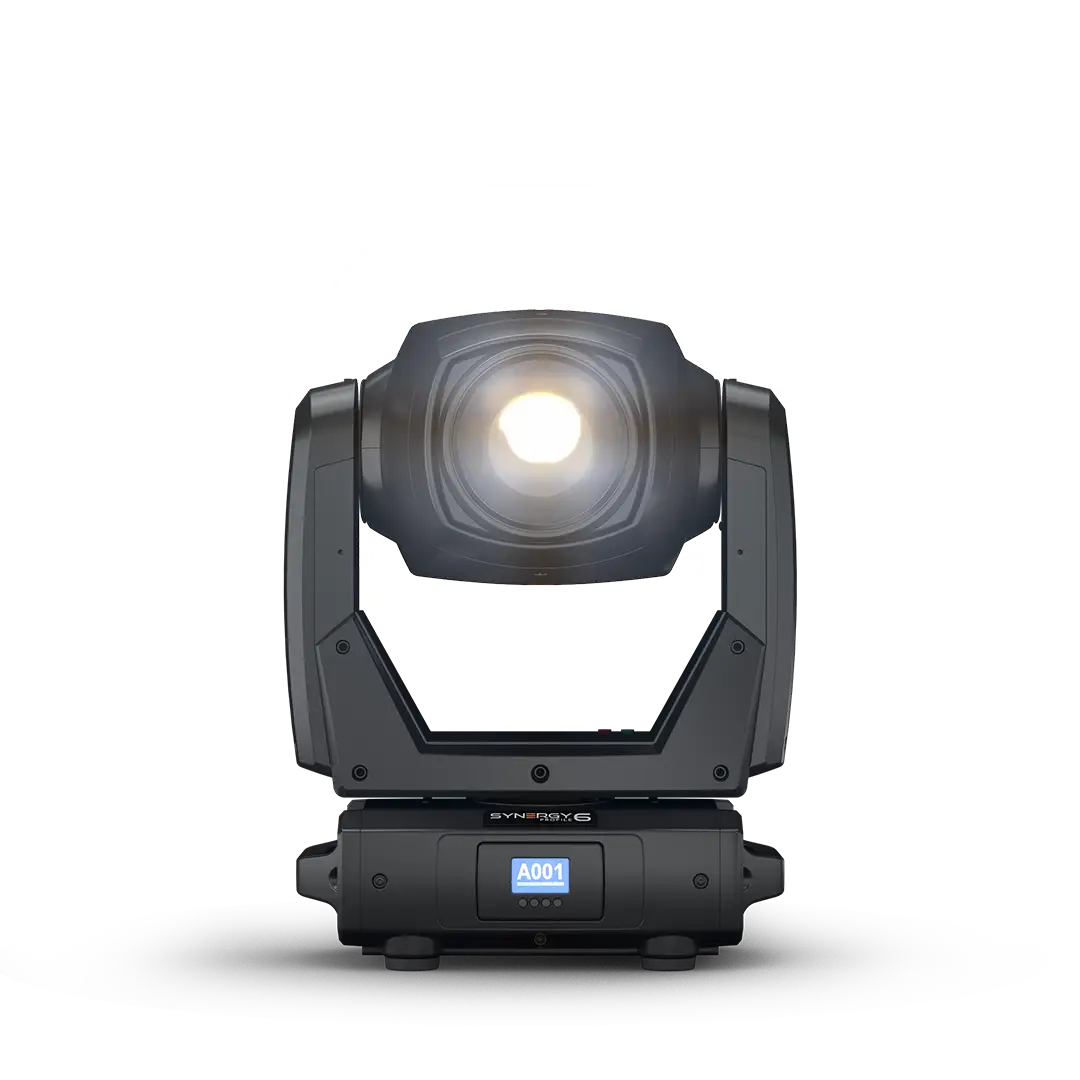

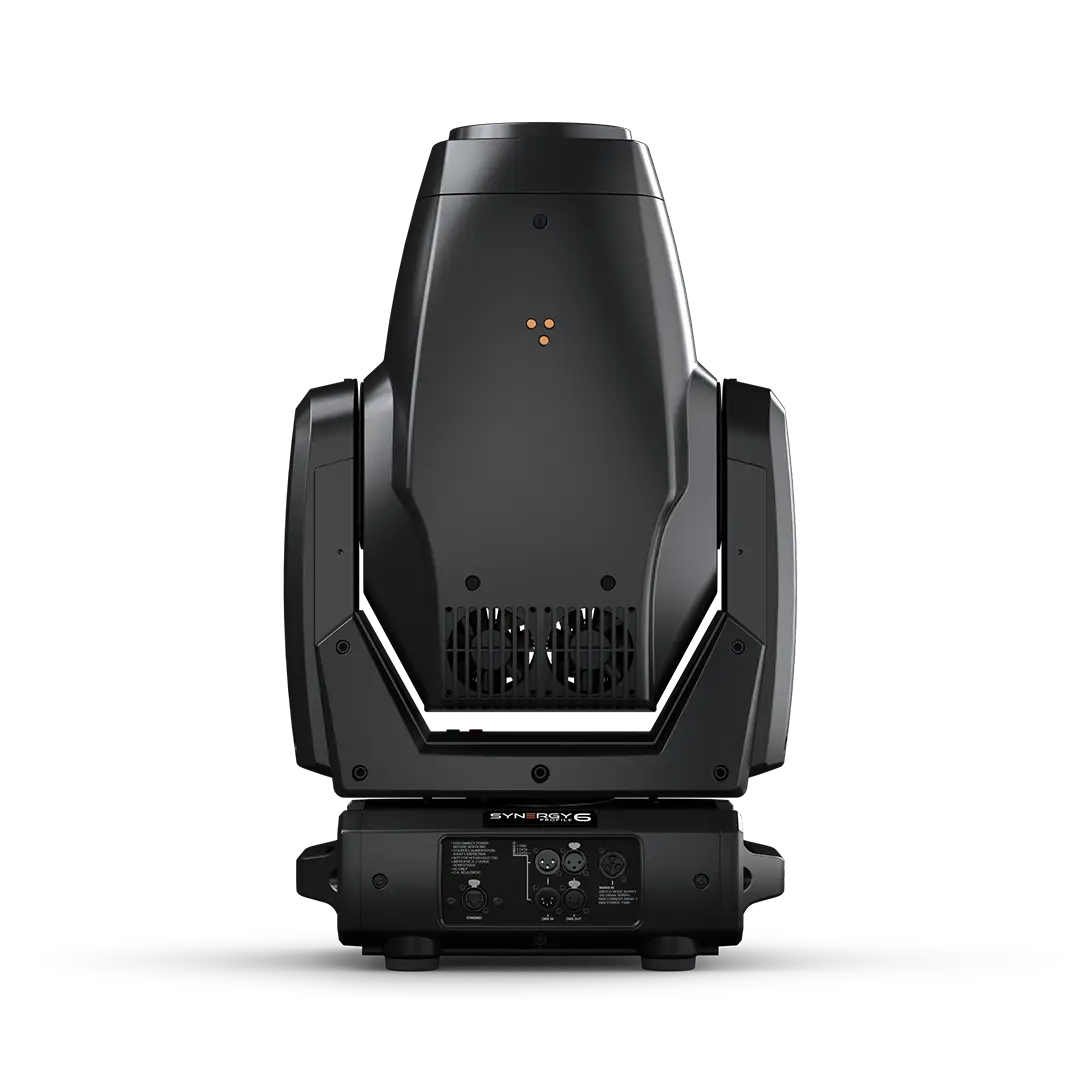

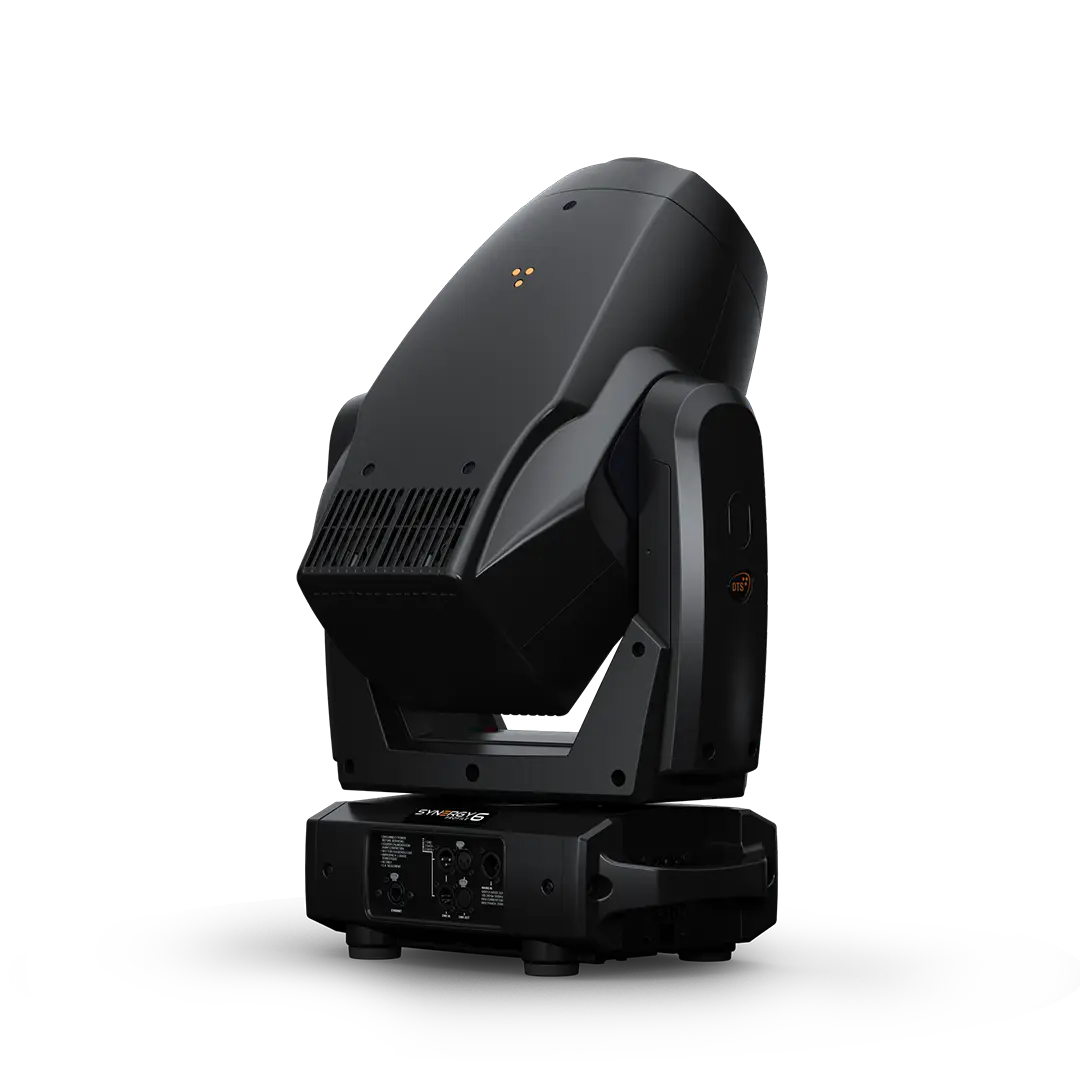

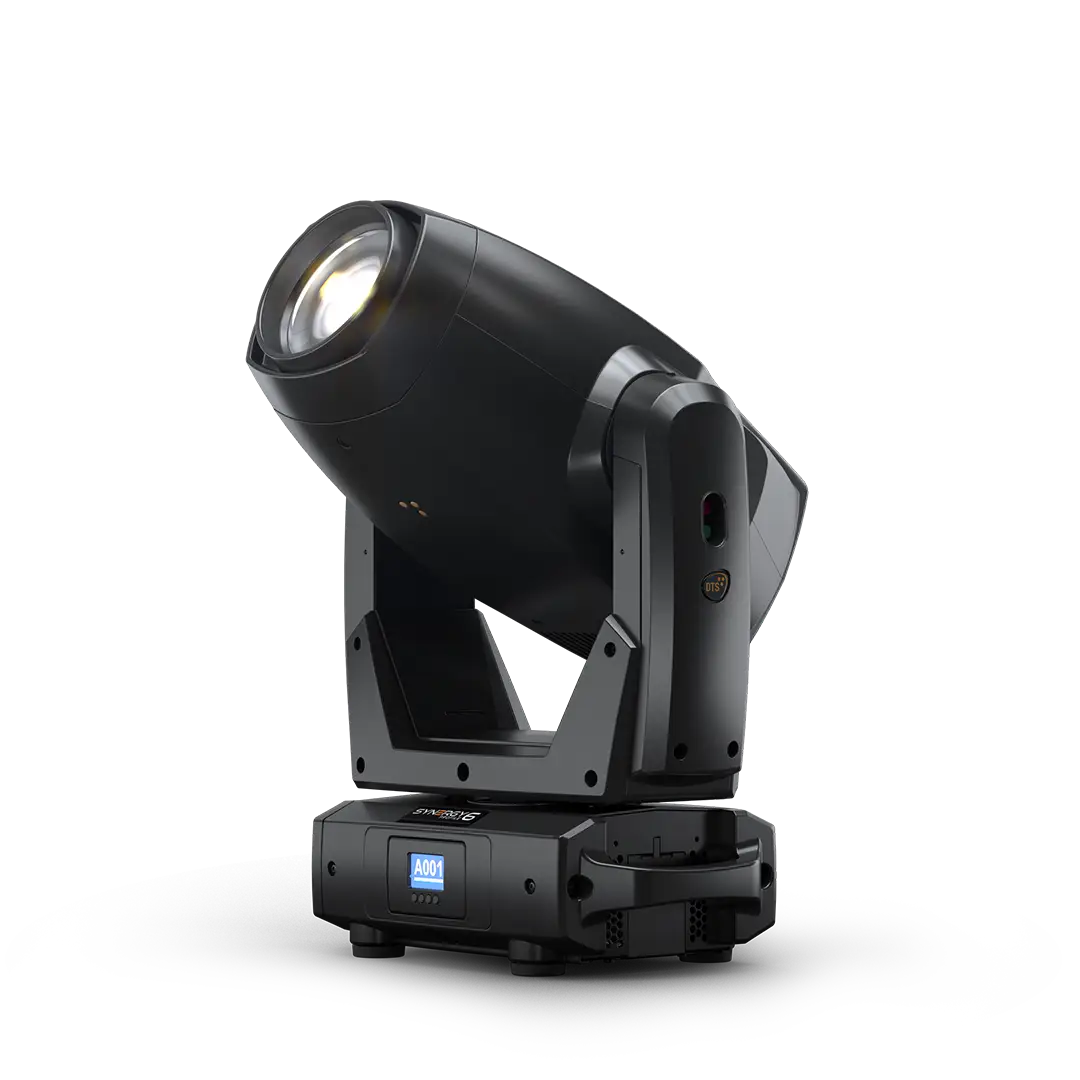

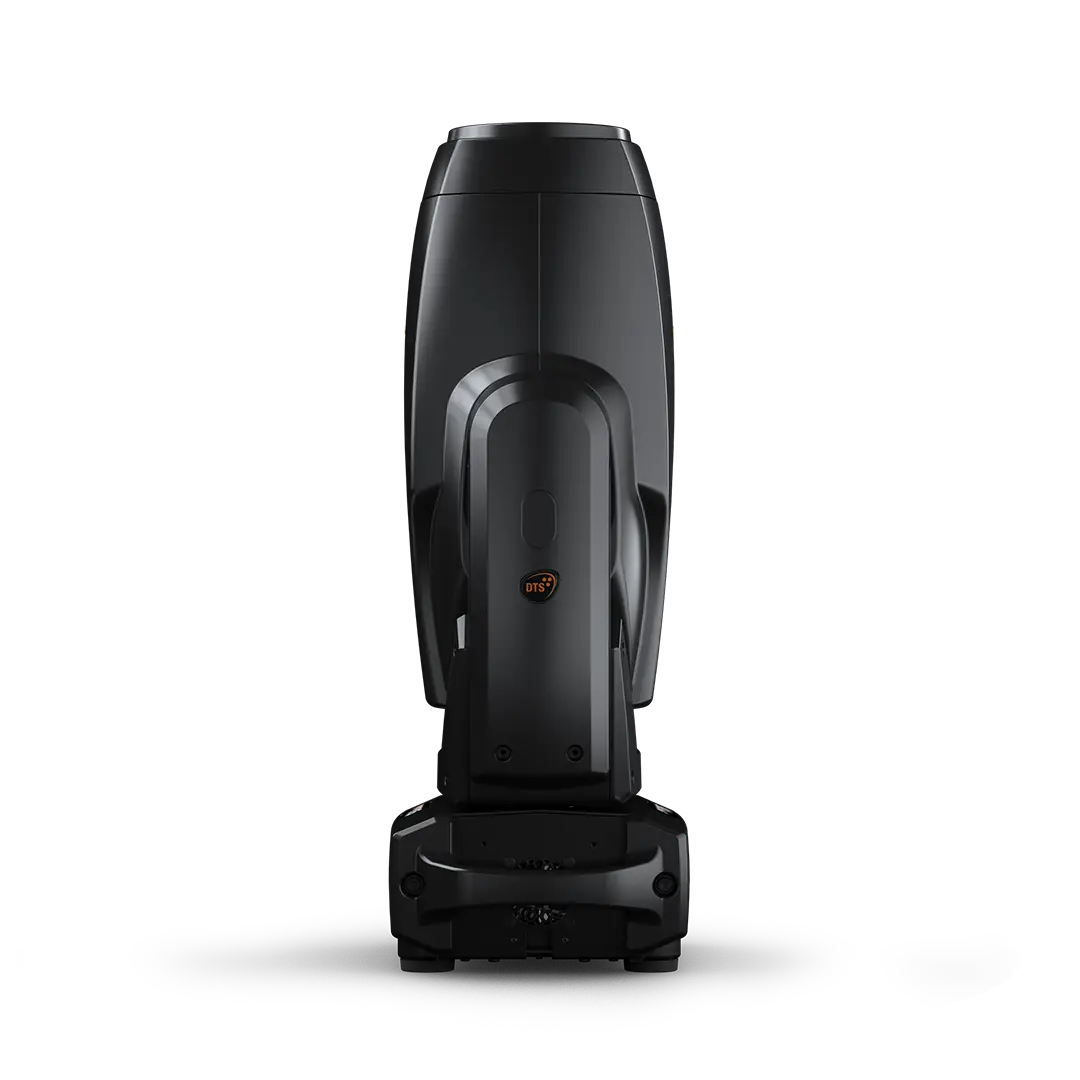

SYNERGY 6 PROFILE

OUTPUT

• �� 570 W pure white LED source 25,130 Lumens output (with goniometer)
• �� CCT output 7000 K
• �� Native CRI > 70; Higher CRI (DMX-selectable) CRI >90 (R9 >70);
• �� Average LED life: 50000 hours (L70B10)

OPTICAL GROUP

• �� 109,000 Lux (4.6°@ 5 m)
• �� 4.6° – 43° linear zoom with autofocus
• �� Linear soft frost fi lter (Medium and Heavy frost filters available on demand)
• �� Electronic dimmer / shutter / strobe (0.3 to 33.3 flash/sec)

COLOR GENERATION

• �� Linear CMY
• �� Linear CTO (7,000 K – 3,000 K)
• �� Gel filters emulation
• �� 6-color wheel (5 color + HI-CRI)
• �� Two-color generation

DYNAMIC EFFECTS

• �� Dynamove FX Engine
• �� Virtual Animation Wheel
• �� Customizable rotating 6-gobo wheel
• �� Circular 24-facet rotating prism
• �� Linear 6-facet rotating prism

ROTATING FRAMING SYSTEM

• �� 4-blade rotating framing system
• �� Real ‘curtain’ effect for each blade
• �� 60° rotation for each blade (+/- 30°)
• �� 90° full system rotation (+/- 45°)

CONTROL

• �� LCD graphic display + 4 soft keys (“auto-flip” and “key-lock” functions available)
• �� Li-Fe backup battery for controlling display settings when the unit is not powered
• �� Art-Net 4, sACN, RDM/DMX 512 protocols
• �� 16-bit index for insertion and rotation of each blade
• �� 16-bit index for blade system rotation
• �� “Standard”, “Silent” and “Auto” operation modes
• �� Noise level in mode:
  • “Standard” 43dBA @ 1 m
  • “Silent” 36 dBA @ 1m
• �� Internal operating system updatable via DTS firmware uploader dongle

DMX

• �� 44 DMX channels (default)
• �� 53 DMX channels

PAN & TILT

• �� Pan: 540° 2.7 sec
• �� Tilt: 240° 1.6 sec
• �� Tri-phase stepper motor technology
• �� 16-bit resolution
• �� Pan / Tilt lock

POWER SUPPLY

• �� Wide-range 100-240 Vac 50/60 Hz
• �� Power consumption: 750 W max
• �� Power Factor: PF >0.90

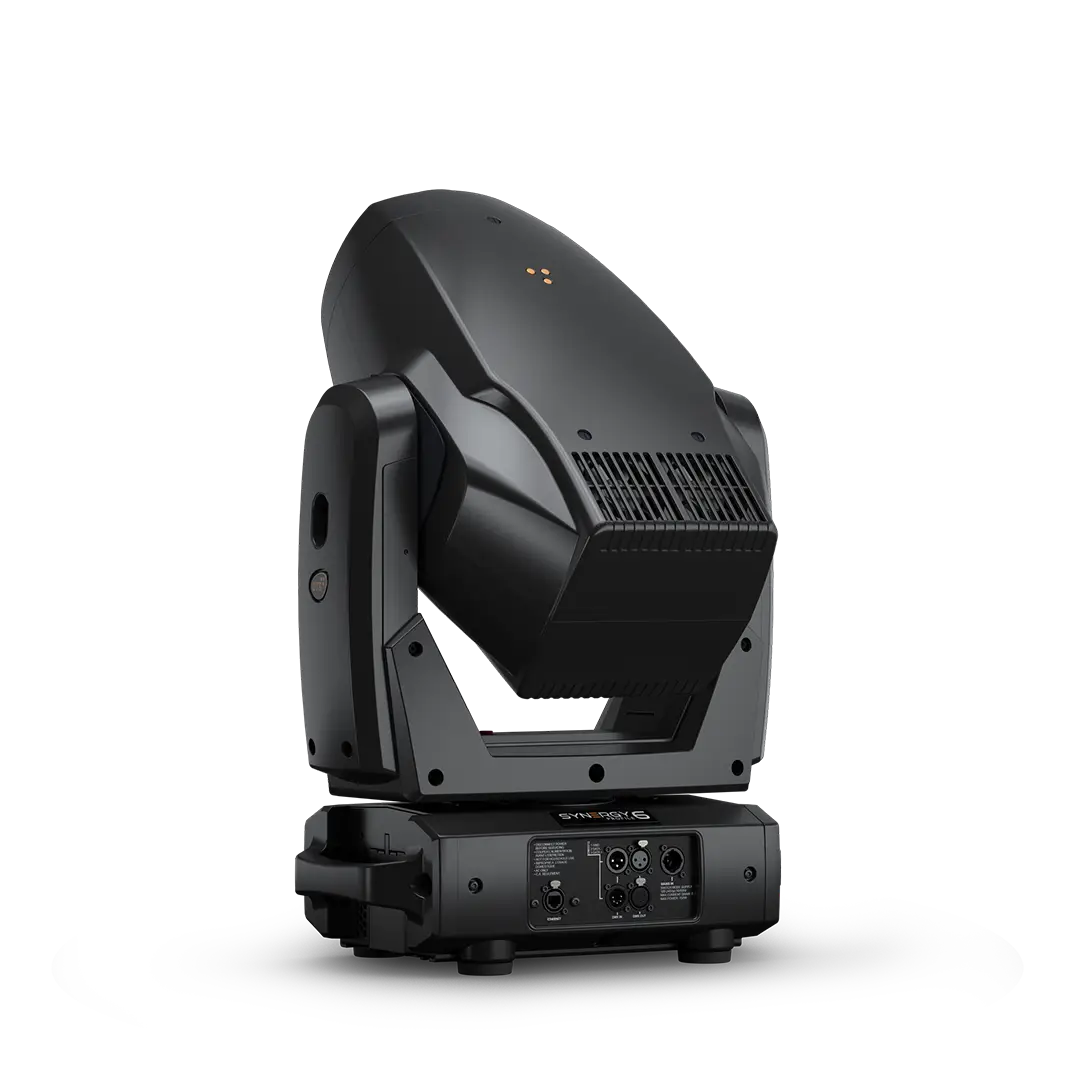

CONNECTIONS

• �� DMX: XLR 3-pole and 5-pole In / Out panel connectors
• �� Power supply: powerCON TRUE1 panel connector
• �� Art-Net / sACN: etherCON RJ45 panel connector

CIRCUITS PROTECTIONS

• �� Overvoltage and overtemperature circuits protection

TEMPERATURE

• �� Operating: -20° +45° C
• �� Storage: -40° +85° C

PHYSICAL

• �� Finishing: Black
• �� Weight: 34.5 Kg (76 lbs)
• �� IP rating: IP20

TEST AND CERTIFICATION

• �� CE

ACCESSORIES INCLUDED

• �� Cover L580XW490XH80 – SYNERGY 5/6 (code 0512K166.1)
• �� Base L580XW490XH70 – SYN 5/6-ALC 5 (code 0512K166.3)
• �� 1 x Soft frost filter – already mounted on the unit (code 02SK0410)
• �� 1 x PowerCON TRUE1 female cable connector (code 0520P066)
• �� 1 x XLR 5 pins female cable connector (code 0508B147)
• �� 1 x XLR 5 pins male cable connector (code 0508B148)
• �� 2 x Kit Omega clamp “Fast Lock” (code 02K00549)

ACCESSORIES ON REQUEST

• �� Medium frost filter (code 02SK0428)
• �� Heavy frost filter (code 02SK0430)
• �� Flightcase for 2 units (code 0521C073)
• �� Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
• �� G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
• �� Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
• �� Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
• �� DTS firmware uploader dongle (code 03.LA.206)
