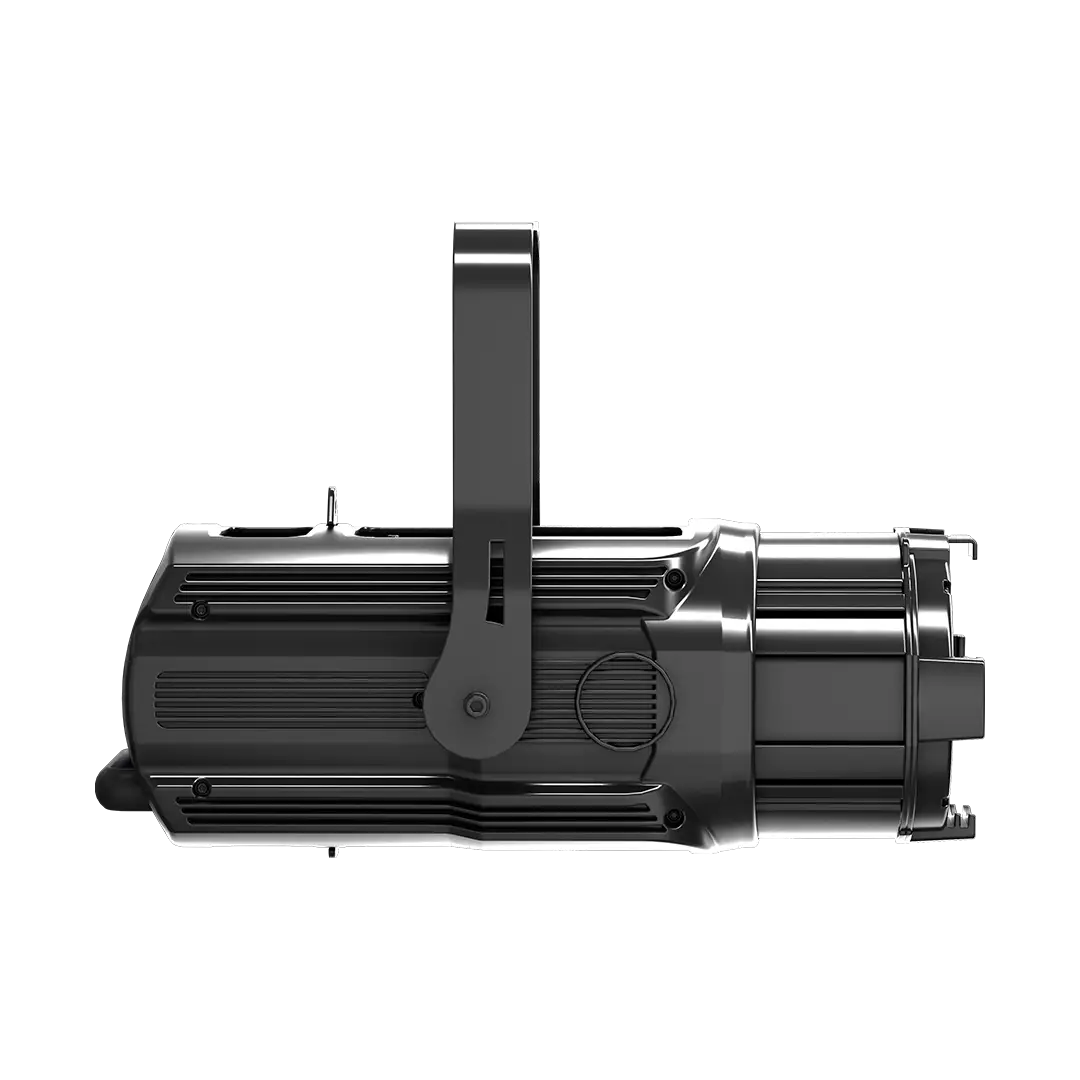

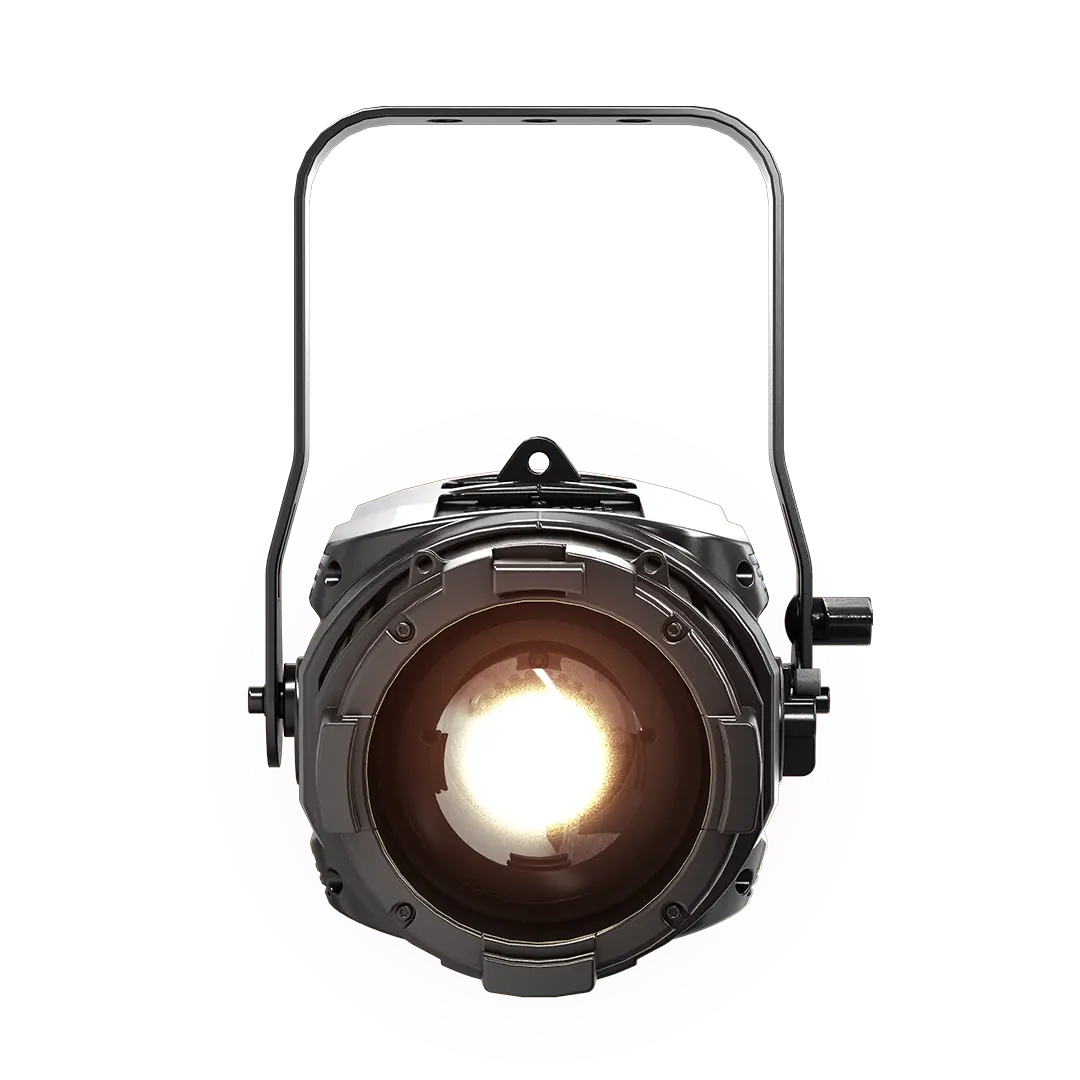

TENORE 1 HDW

LED wash projector

Wash projector with a single HDW (High Dynamic White) LED, featuring dynamic white light with adjustable color temperature. With its 6-color LED light source, it delivers exceptional color accuracy, perfect for highlighting details with clarity and intensity. Extremely versatile, it can switch from a Fresnel lens for soft, even light to a PC lens for a sharper beam. TENORE 1 HDW is the ideal choice for anyone needing a powerful, compact, and high-quality light source, perfect for any space—whether a small meeting room or a large auditorium. It is suitable for theaters, television studios, virtual production, conference halls, theme parks, and places of worship.

highlights

Source

Multi chip Led Source

Lumens

4200 lm (Fresnel Lens) 3800 lm (PC Lens)

IP Rating

IP20

DMX

CCT Basic

operating
temperature

-10° / 45° C

Applications

TV studios

TLCI up to 96 and adjustable CCT for professional video recording, with no background noise thanks to ultra-silent fans.

Virtual production studios

Precise control of white light and green saturation for consistent lighting with LED walls and virtual environments.

Auditoriums

Soft, adjustable lighting, perfect for cultural events and conferences, with discreet and quiet operation.

Conference rooms

Compact design and uniform light for corporate spaces, with elegant finishes and DMX/RDM control integration.

Theme parks

Reliable even under intensive use, with flexible zoom and internal protections—ideal for scenic effects and attractions.

Places of worship

Warm, natural tone with tungsten emulation to enhance sacred architecture and maintain a serene atmosphere.

Features

High-efficiency multichip LED source▼

Delivers up to 4200 lumens with excellent color rendering (CRI up to 98, TLCI up to 96), ideal for applications requiring accurate color reproduction.

Wide color temperature range▼

White light generation is fully linear from 1800 K to 10,000 K, allowing adaptation to any scene, from warm atmospheres to neutral daylight.

Hi-Q Dimming technology▼

Ensures smooth, continuous dimming even at low levels, with no visible steps or flicker. Includes tungsten emulation for halogen-like behavior.

Linear zoom 8°-68° (PC lens) or 10°-68° (Fresnel lens)▼

Delivers precise and flexible lighting, shifting from concentrated beams to wide projections with 120 mm Fresnel or PC lenses.

Silent operation modes▼

Four cooling modes, down to 21 dBA in “Ultra Silent”, make it suitable for noise-sensitive environments such as theatres and TV studios.

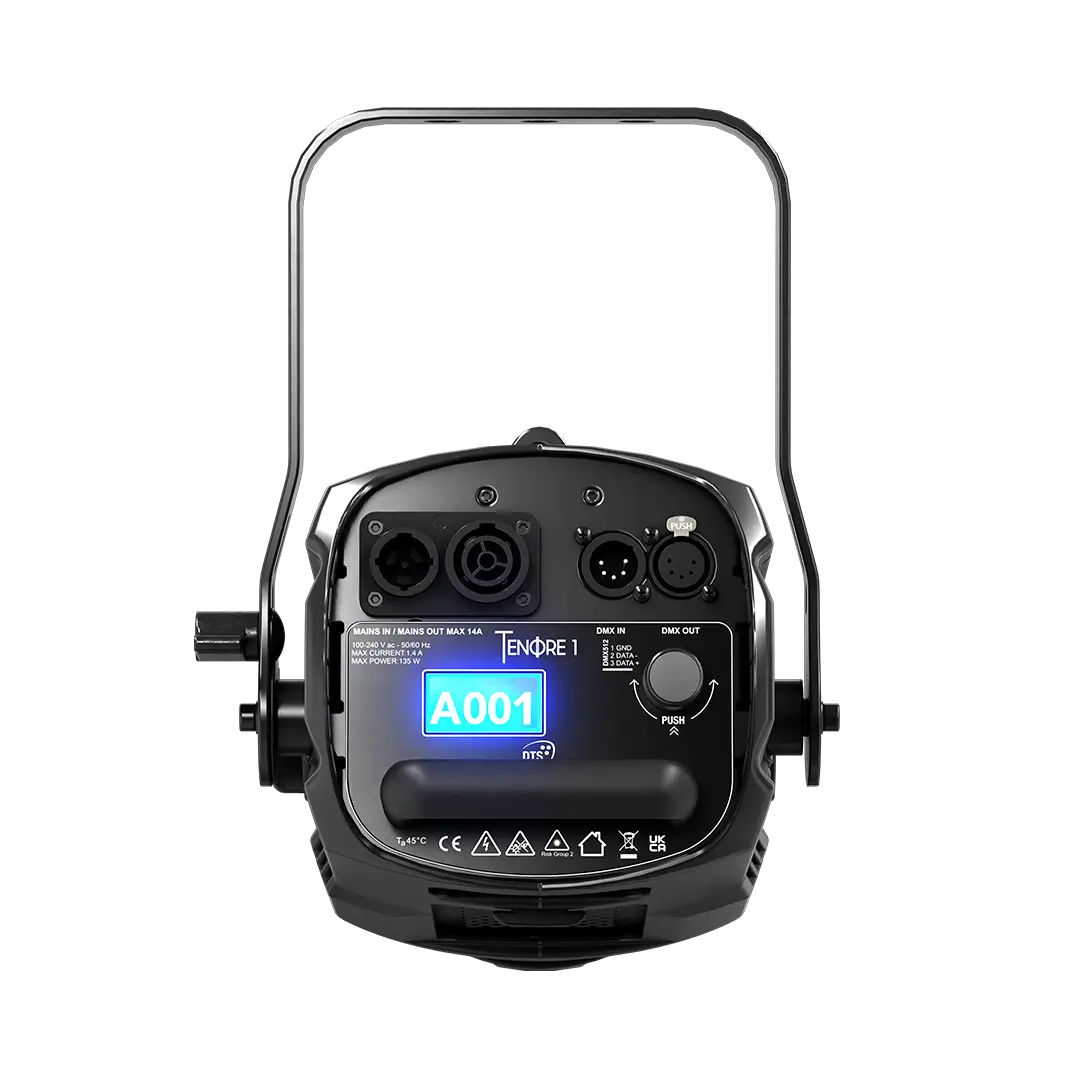

DMX/RDM control and firmware updates▼

Fully compatible with professional lighting networks via DMX512 and RDM. Firmware can be updated using the DTS dongle for future-proof functionality.

Compact and lightweight▼

Weighing between 5.3 and 5.6 kg, it is easy to handle and install. Available in black or white finish to match different settings.

High protection and reliability▼

Equipped with overvoltage and overtemperature protections, ensuring safe and continuous operation, even in demanding installations.

Universal power supply and low consumption▼

Operates from 100 to 240 V AC (50–60 Hz) with a maximum power consumption of just 135 W, ideal for energy-efficient systems.

Versatility and customization
