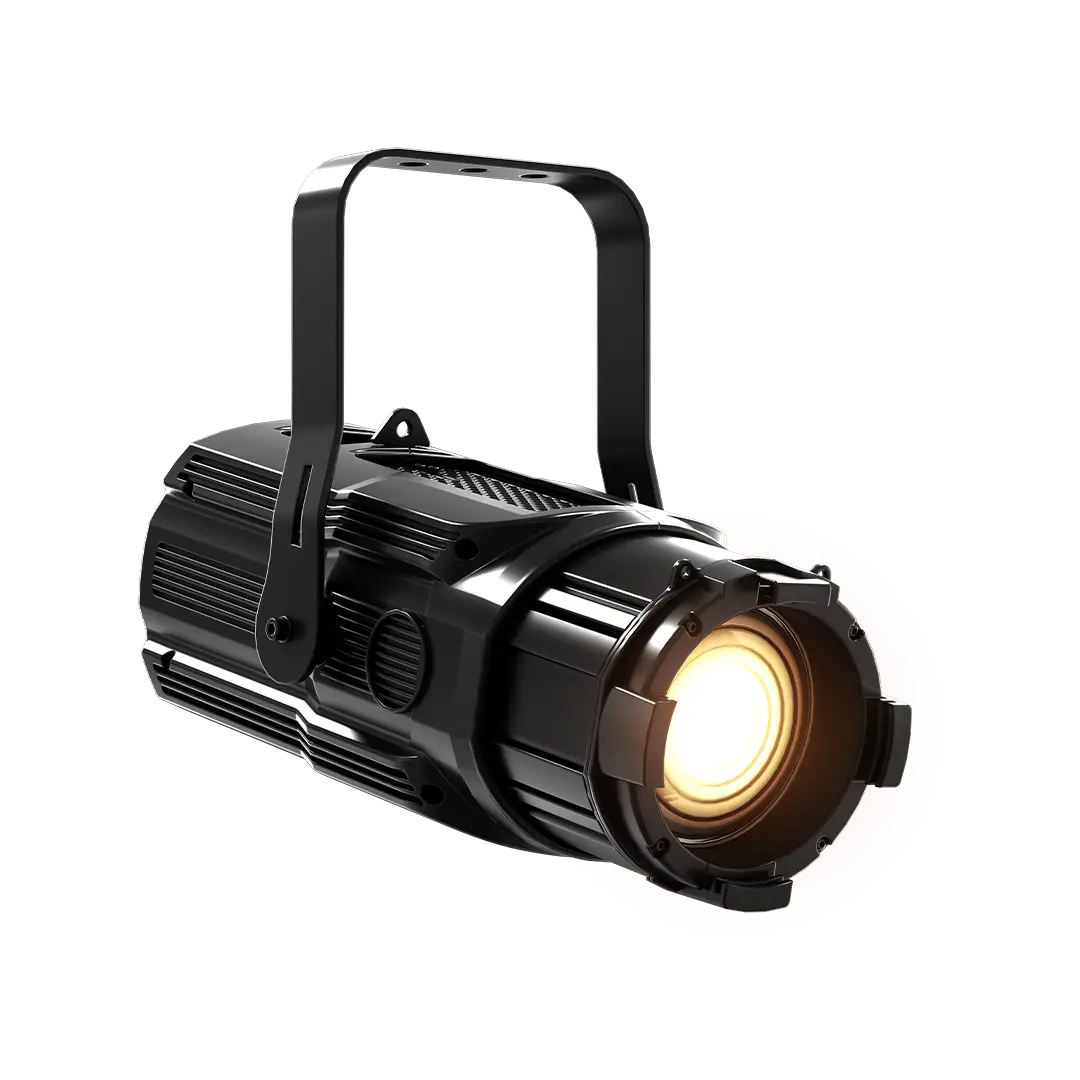

TENORE 1 WH

High-performance LED projector

Compact and versatile, this 100W LED profile spotlight is perfect for theatre applications, exhibitions and museum installations. TENORE 1 WH is a reliable, state-of-the-art solution designed for professionals requiring precision lighting tools and high performance.

highlights

Source

Single white led

Lumens

3000K - 5800 lm (Fresnel Lens) - 6100 lm (PC Lens) 4000K - 5900 lm (Fresnel Lens) - 6200 lm (PC Lens) 5000K - 6030 lm (Fresnel Lens) - 6300 lm (PC Lens)

IP Rating

IP20

DMX

4 channel 1 channel Fine

operating
temperature

-10° / 45° C

Applications

Theatres

High-quality light and elevated CRI to enhance sets and performances with accurate color rendering.

TV Studios

Ultra-silent ventilation and precise control for environments where sound and light consistency are critical.

Virtual Production Studios

Uniform beam and fine adjustment to blend seamlessly with digital sets.

Auditoriums

High performance and low noise for live events and conferences in large venues.

Conference Rooms

Discreet and adjustable lighting, ideal for professional settings and presentations.

Theme Parks

Reliable and versatile, ready for dynamic scenic installations even in continuous operation.

Places of Worship

Harmonious light and sober design to highlight architecture and spiritual atmospheres.

Features

White LED light source▼

The fixture uses a high-efficiency LED source available in three color temperatures (3000 K, 4000 K, and 5000 K), all featuring excellent color rendering (CRI greater than 90 or 95) to ensure natural and faithful lighting in any setting.

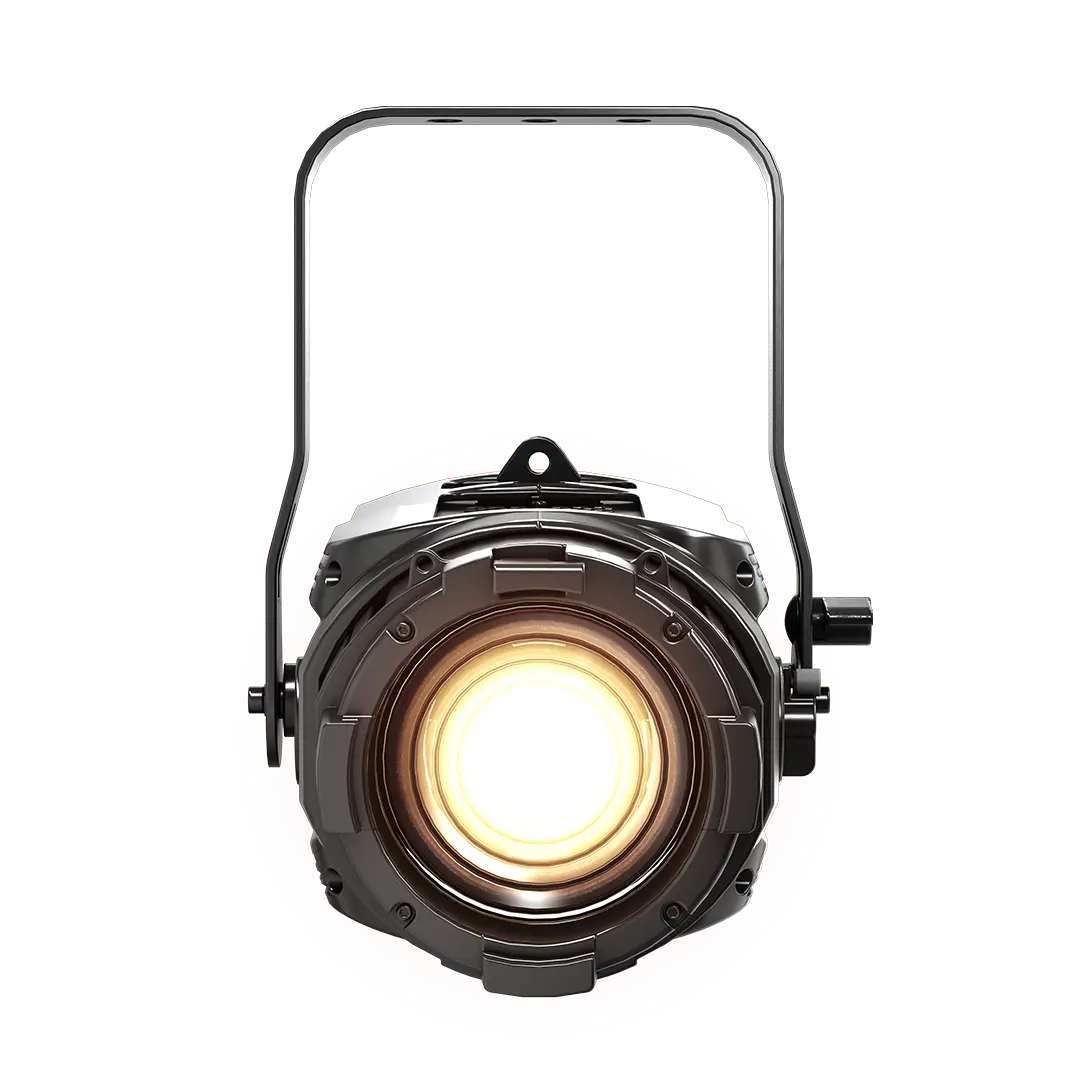

Fresnel or PC optics with linear zoom▼

You can choose between a Fresnel or a PC lens, both 120 mm in diameter and equipped with a linear zoom ranging from 9.5° to 75° with the PC lens, and from 12° to 75° with the Fresnel lens, ensuring great versatility of use — from focused projection to broad diffusion.

High-precision PWM dimming▼

Brightness adjustment is managed via PWM technology, ensuring smooth, flicker-free transitions, ideal for video and broadcast applications.

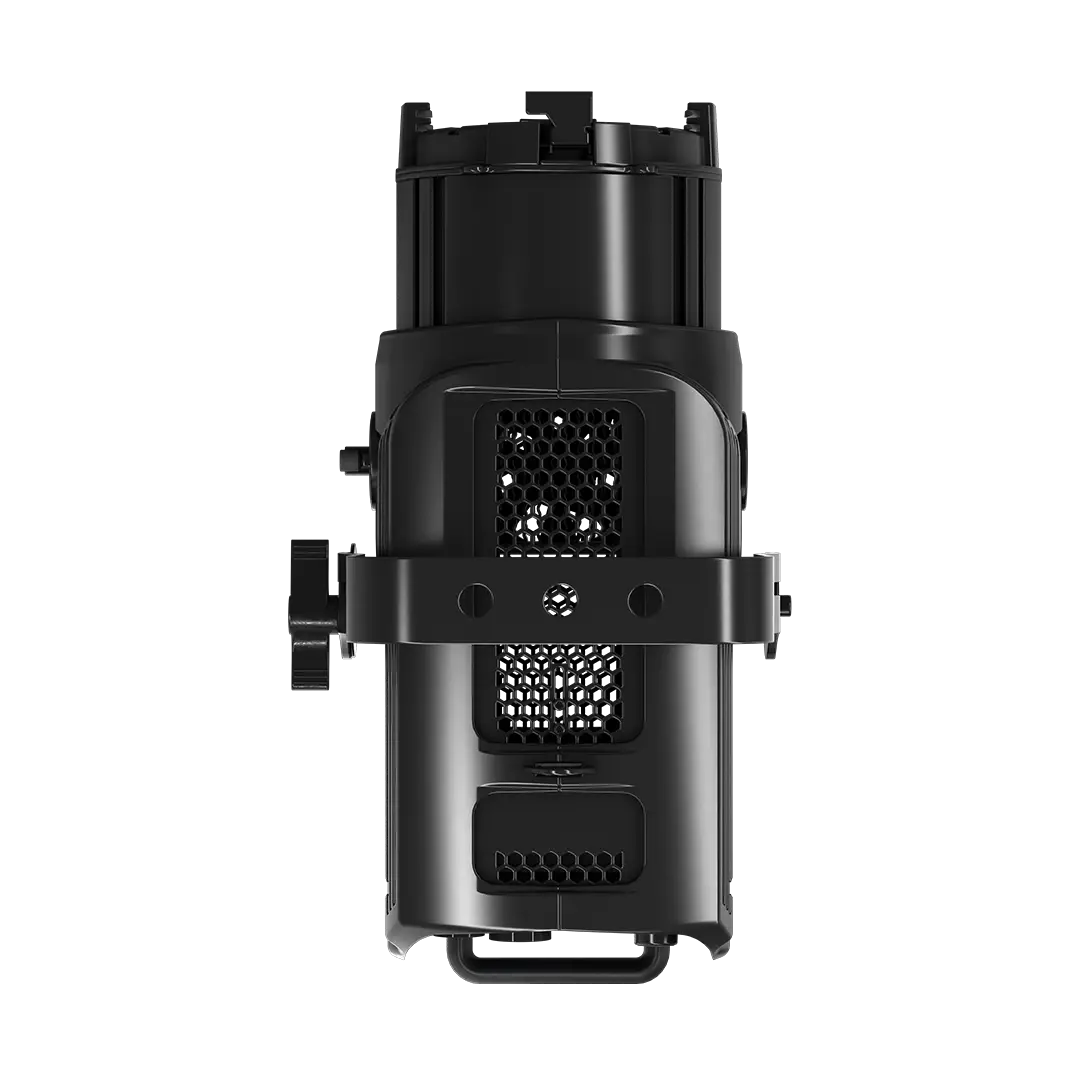

Silent fan with intelligent control▼

Thanks to its Standard, Silent, and Ultra Silent modes, the device adapts to different environments while maintaining extremely low noise levels down to 21 dBA, without sacrificing performance.

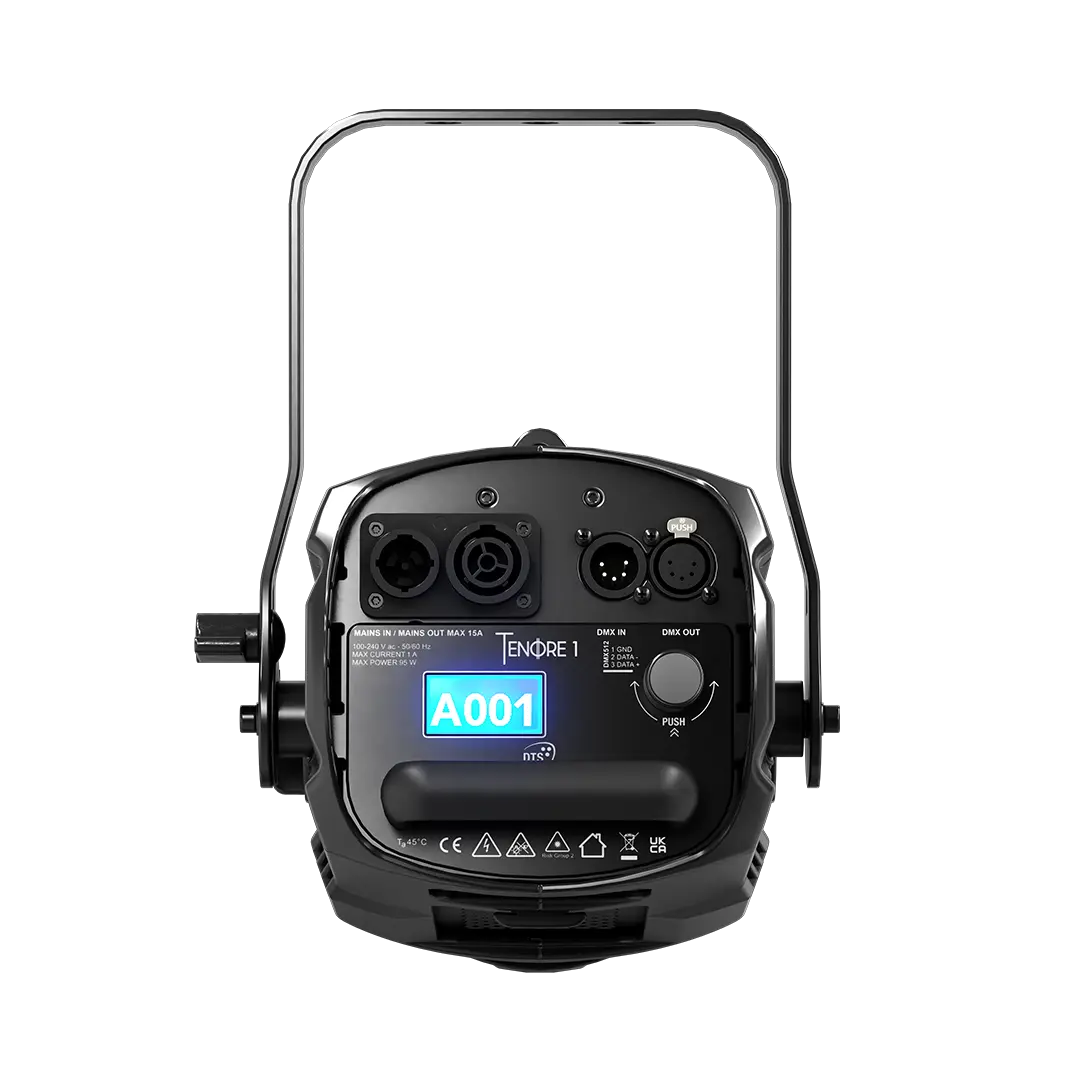

DMX/RDM control with integrated display▼

The projector supports DMX512 and RDM protocols and features a graphical LCD display with Jog Shuttle for quick and intuitive configuration. Firmware can be updated via dongle to stay current with new features.

Universal high-efficiency power supply▼

It supports 100–240 V AC input at 50/60 Hz, with a maximum power consumption of 95 W. The high power factor (>0.95) ensures efficient operation even in complex installations.

Professional and reliable connections▼

Equipped with 5-pin XLR DMX connectors and PowerCON TRUE1 for power, both in In/Out configuration, offering secure and practical wiring options.

Electronic protection and operational robustness▼

The unit integrates overvoltage and overtemperature protection for long-term reliability, even in critical conditions. It operates between -10°C and +45°C and can be stored up to +60°C.

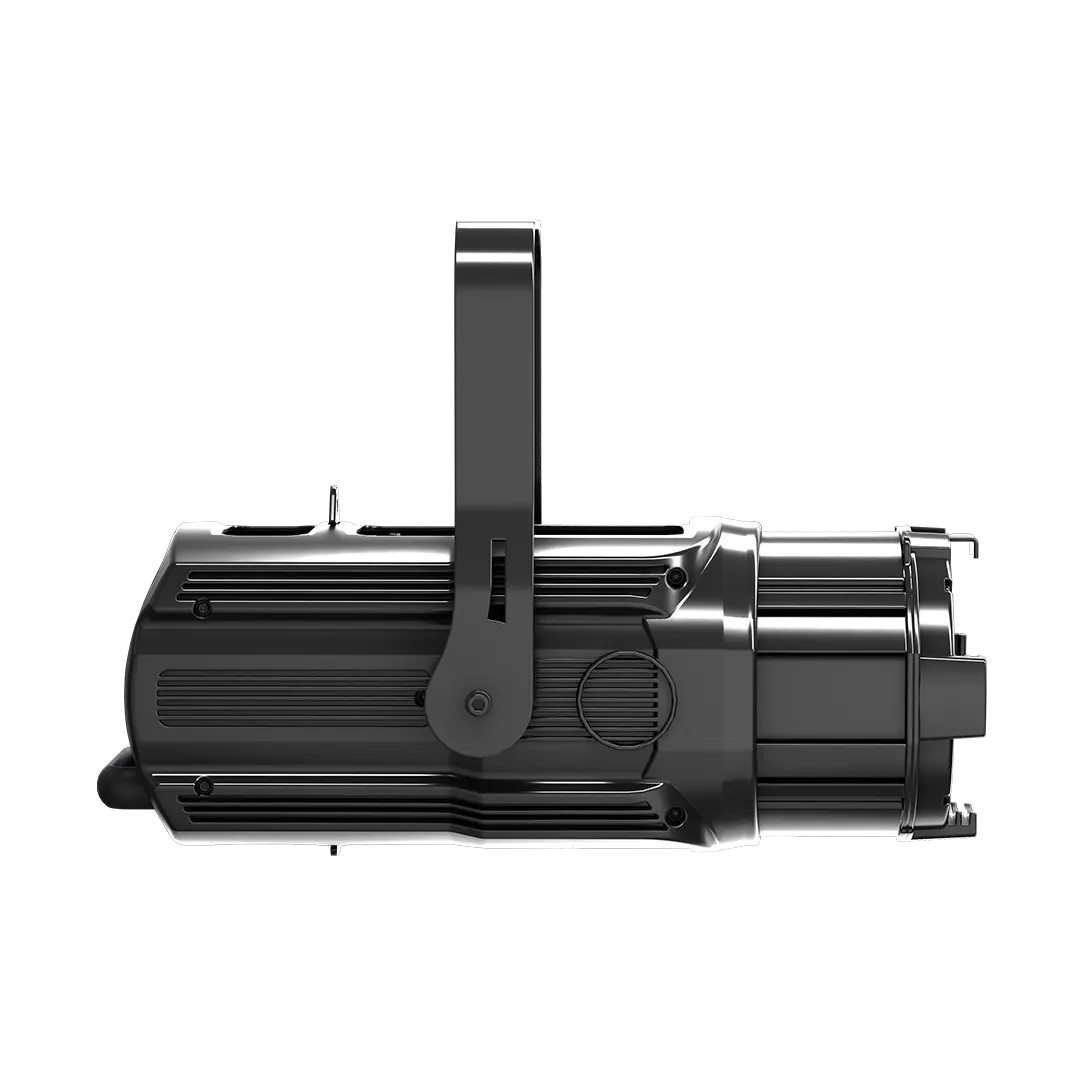

Compact design and professional finish▼

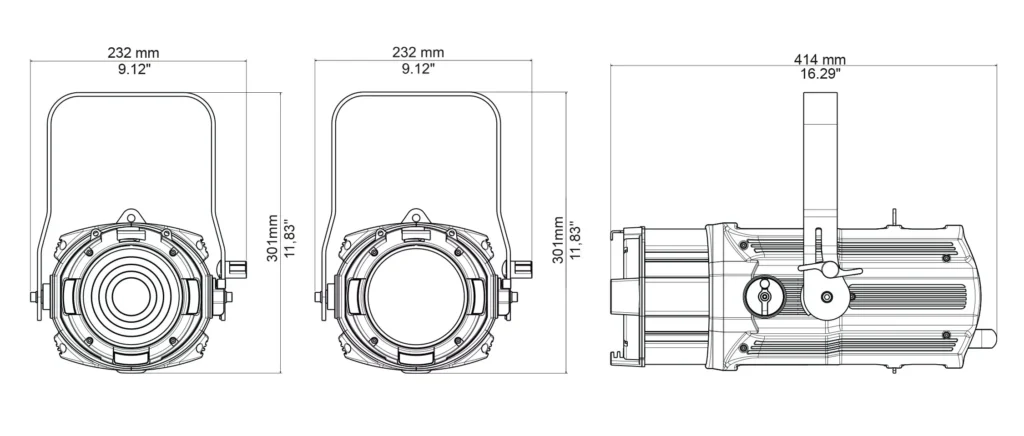

With a low weight (5.3–5.6 kg depending on the optics) and a black or white finish, it’s perfectly suited for theatrical, broadcast, or architectural installations. The IP20 rating makes it ideal for indoor use.

Versatility and customization
