TENORE 5 HDW

High-performance LED projector

LED Wash with high power and faithful color rendering. With its elegant and compact design, the TENORE 5 HDW fixture is perfect for any space, particularly theaters, TV studios, and architectural installations. It is the ideal choice for anyone in need of a powerful, flexible, and high-quality light source. Thanks to its outstanding performance and reliability, it is a product that can confidently meet the demands of the professional lighting industry.

highlights

Source

Multi chip LED Source

Lumens

9900 lm (Fresnel lens) 7180 lm (PC lens)

IP Rating

IP20

DMX

CCT Basic

operating
temperature

-10° / 45° C

Applications

Theatres

Ideal for stage lighting thanks to its color precision and the ability to simulate halogen light, offering smooth transitions and accurate control even at low intensity levels.

TV Studios

The high color rendering (CRI and TLCI up to 98) ensures faithful lighting of real colors, ideal for HD and 4K productions with high requirements for visual quality and low noise.

Virtual Production Studios

The continuous adjustment of CCT and green saturation allows the light to be perfectly tuned for green screens and immersive digital environments, avoiding unwanted color casts.

Auditoriums

Delivers powerful yet controllable illumination, ideal for live events, conferences, and performances, with silent ventilation modes for noise-sensitive environments.

Conference Rooms

Provides soft and adjustable light, perfect for integrating lighting with projections, video conferencing, or multimedia presentations, while maintaining visual comfort for the audience.

Features

High-efficiency multi-chip LED source▼

Delivers up to 9,300 lumens with outstanding color rendering (CRI up to 98), ideal for professional applications.

6-color LED engine with adjustable CCT▼

Produces variable white light from 1800 K to 10000 K with linear green saturation control, perfect for TV and virtual environments.

Available Fresnel or PC optics▼

Linear zoom from 12°–62° with Fresnel lens and 6.5°–45° with PC lens ensures flexibility in beam shaping.

Hi-Q dimmer with halogen emulation▼

Provides smooth transitions with no visible steps, even at low intensity levels.

Intelligent and silent cooling system▼

Fan modes include Standard, Silent, Ultra Silent, and Auto. Noise level as low as 26 dBA, ideal for studios and noise-sensitive environments.

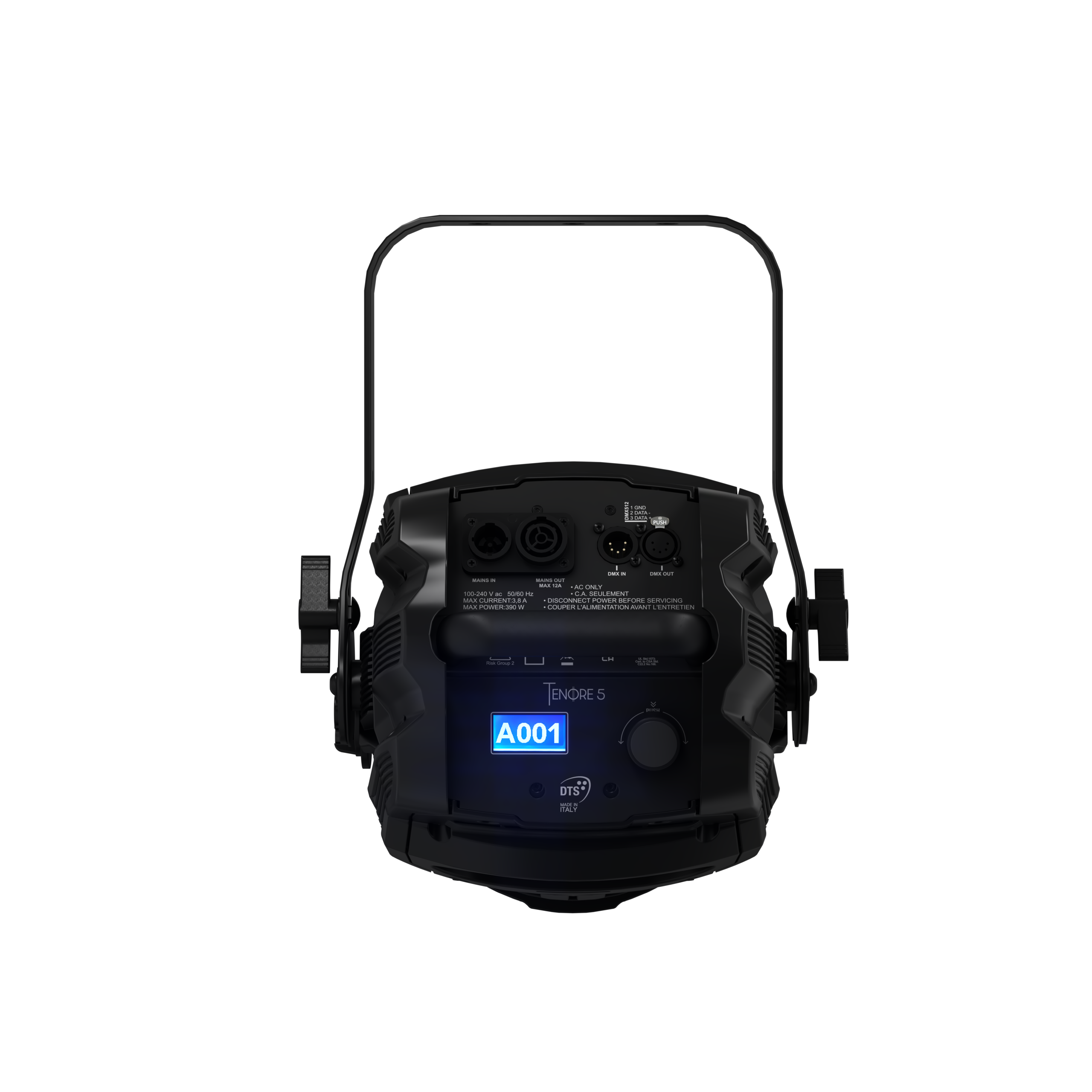

Advanced control▼

DMX/RDM compatible, equipped with LCD display and jog shuttle, firmware updatable via DTS dongle.

Robust construction with electronic protections▼

Includes overvoltage and overtemperature protections; IP20-rated housing available in black or white.

Universal power supply▼

Operates from 100–240 V, maximum power consumption 390 W, Power Factor >0.94, with PowerCON TRUE1 connectors.

Versatility and customization
