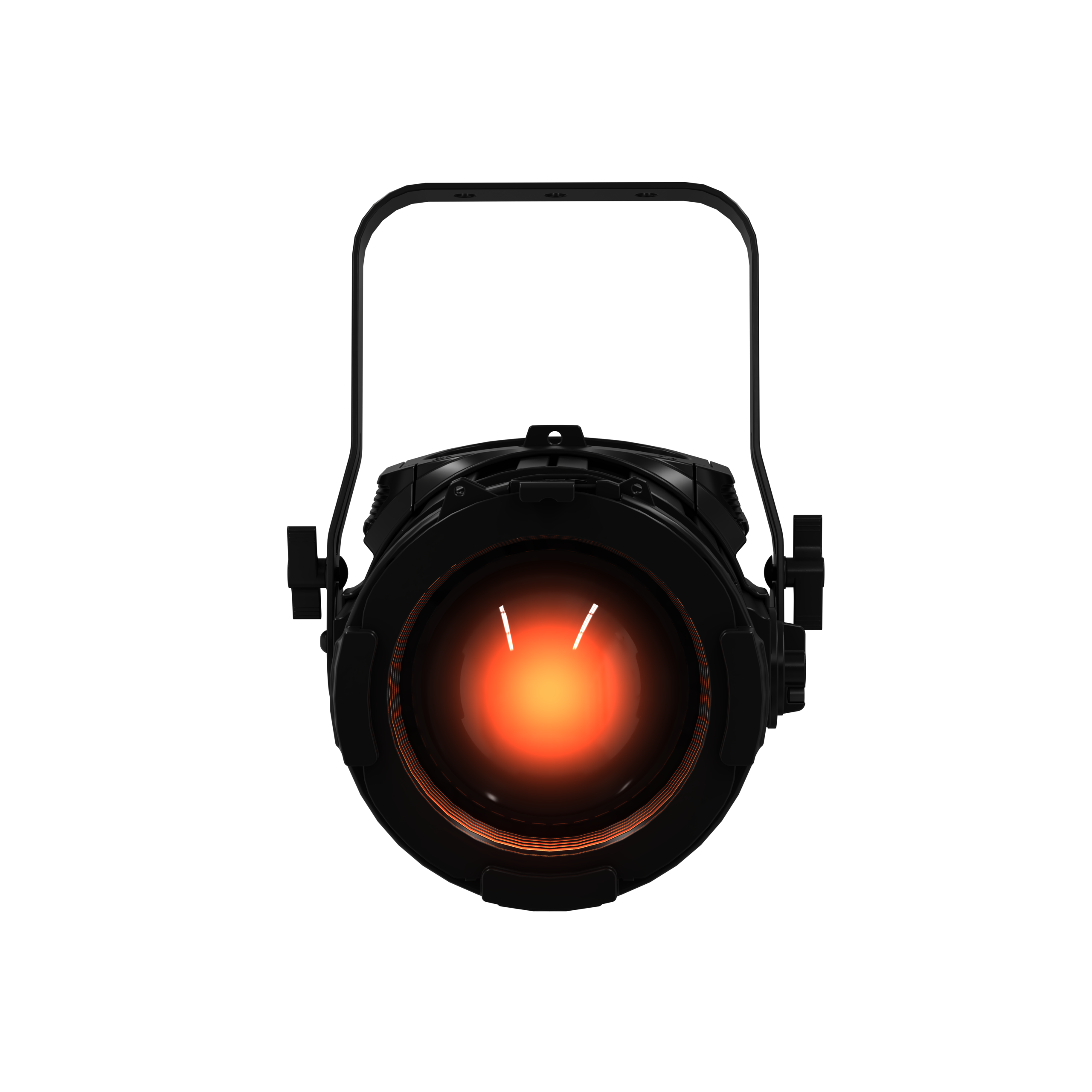

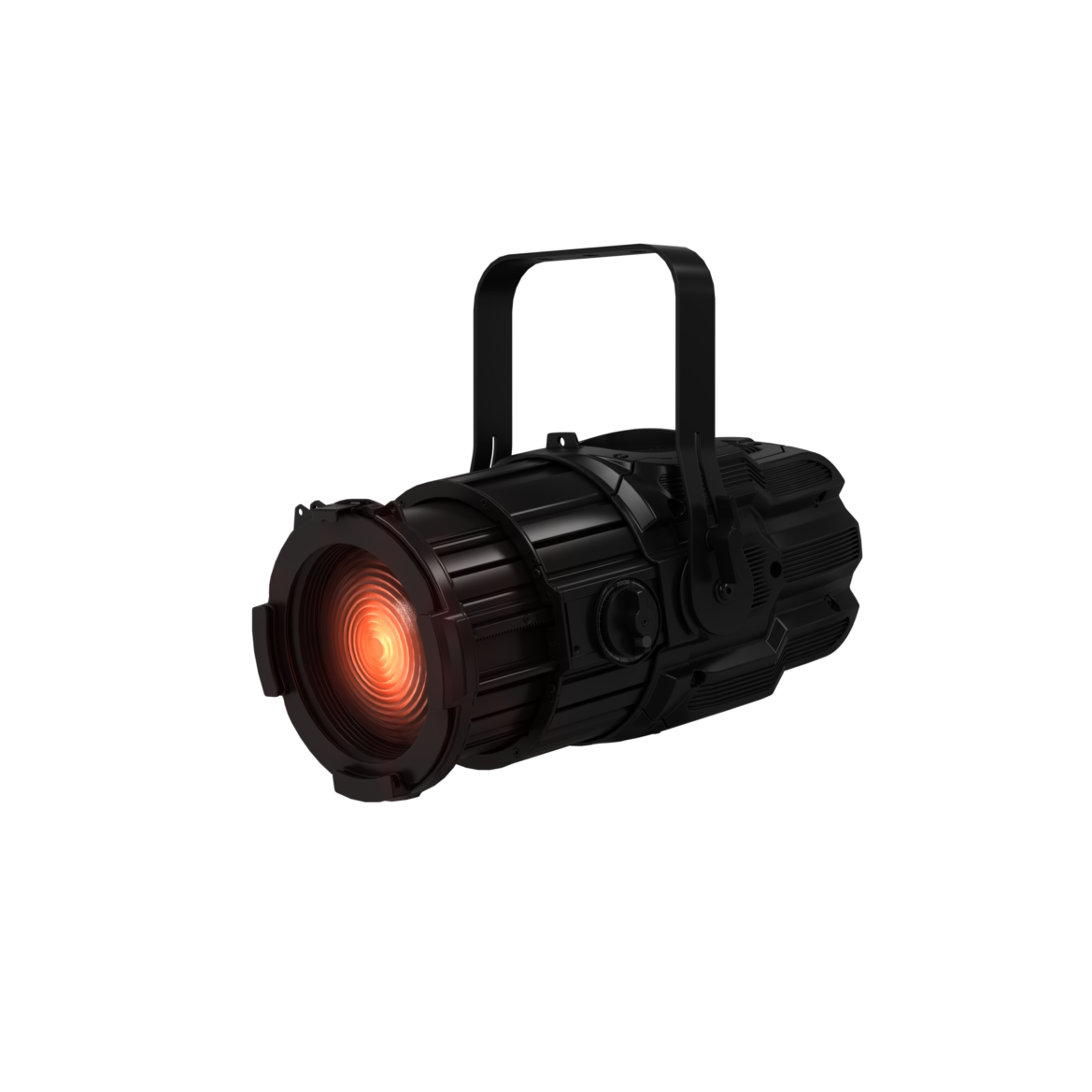

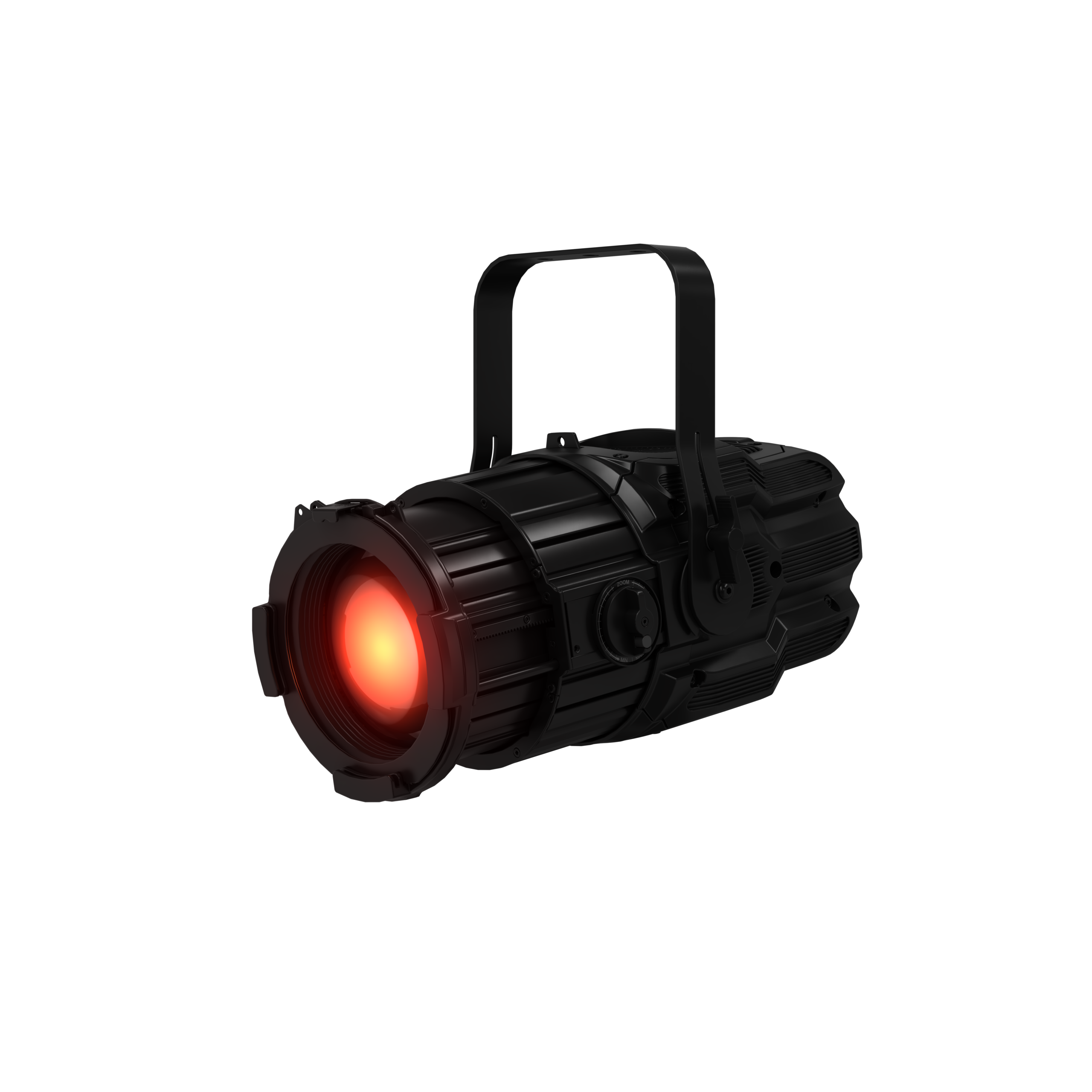

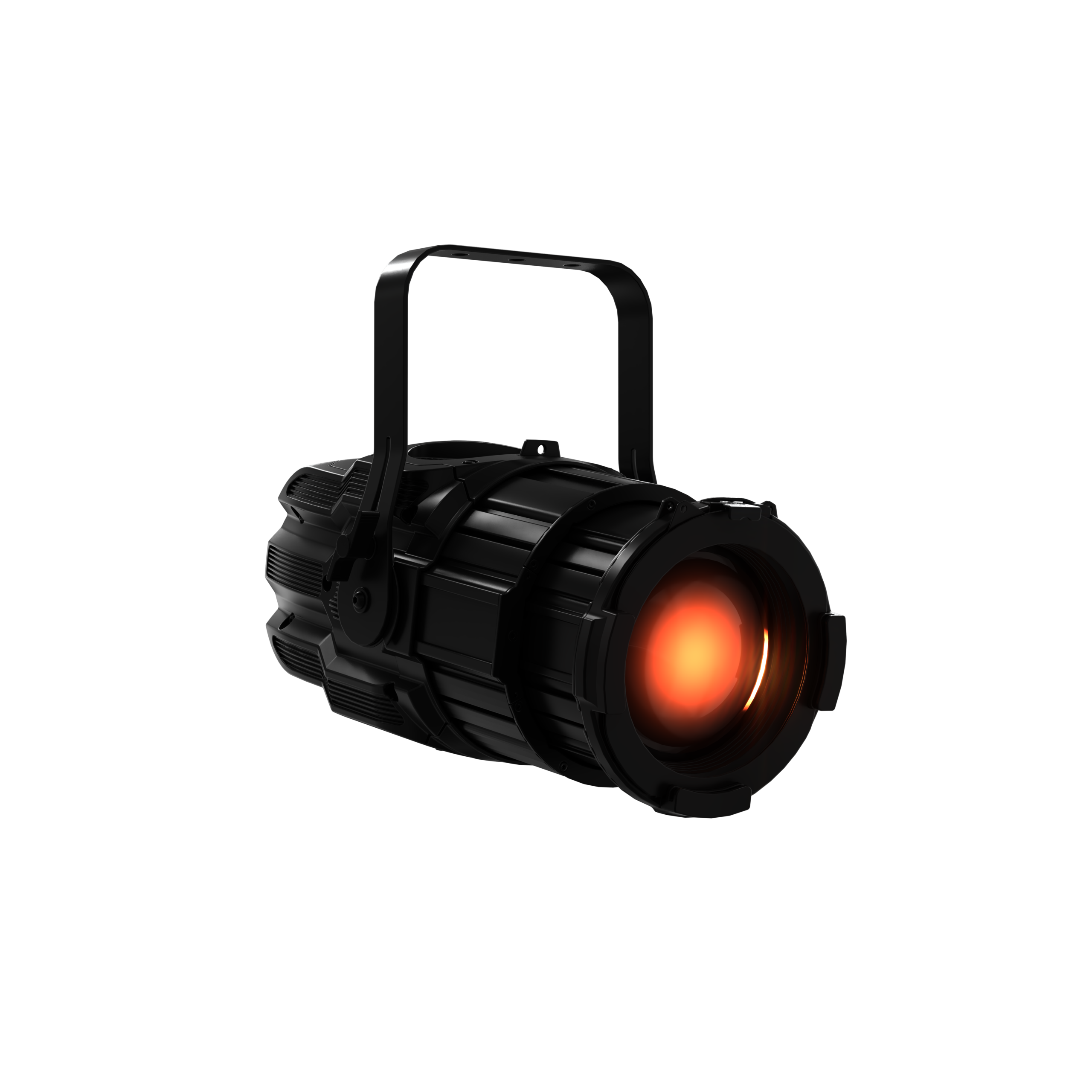

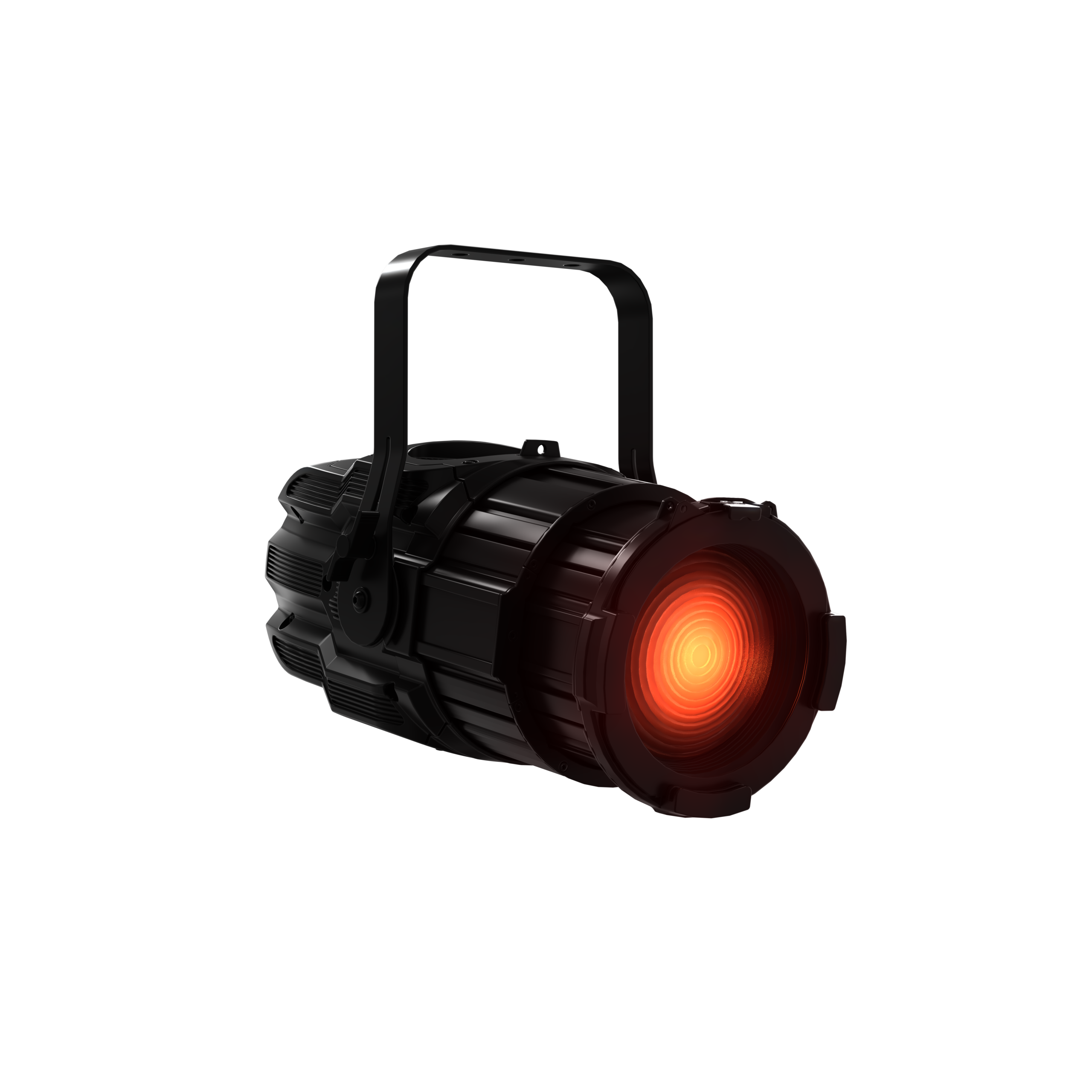

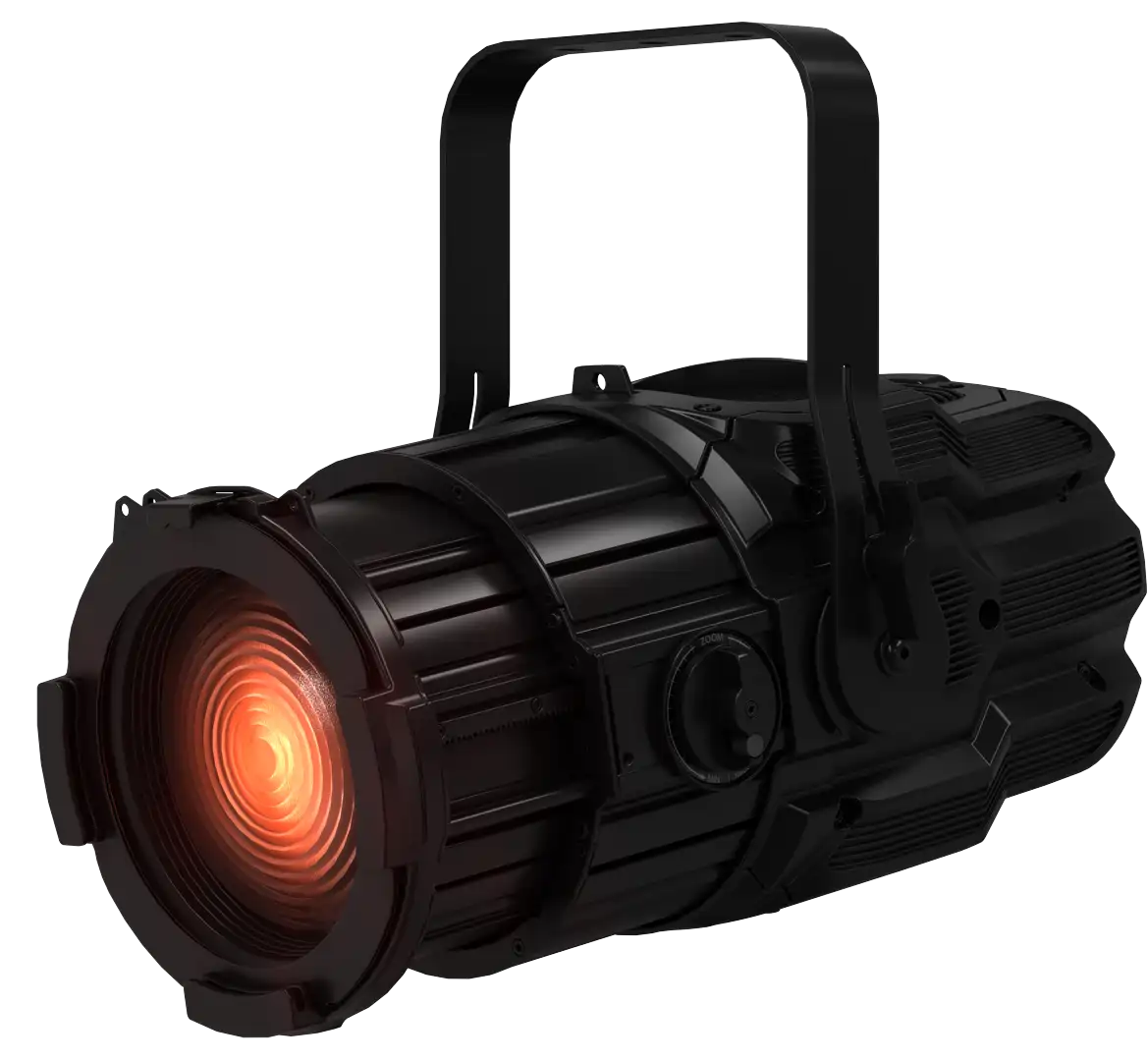

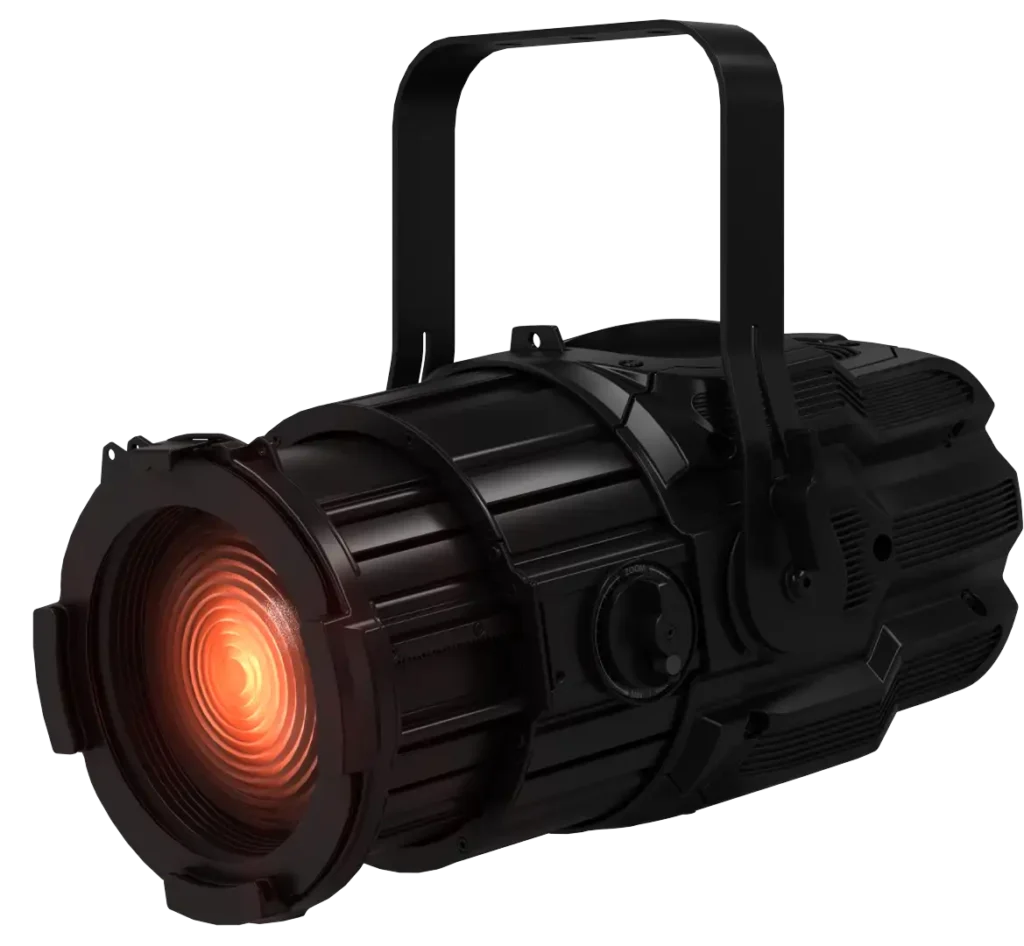

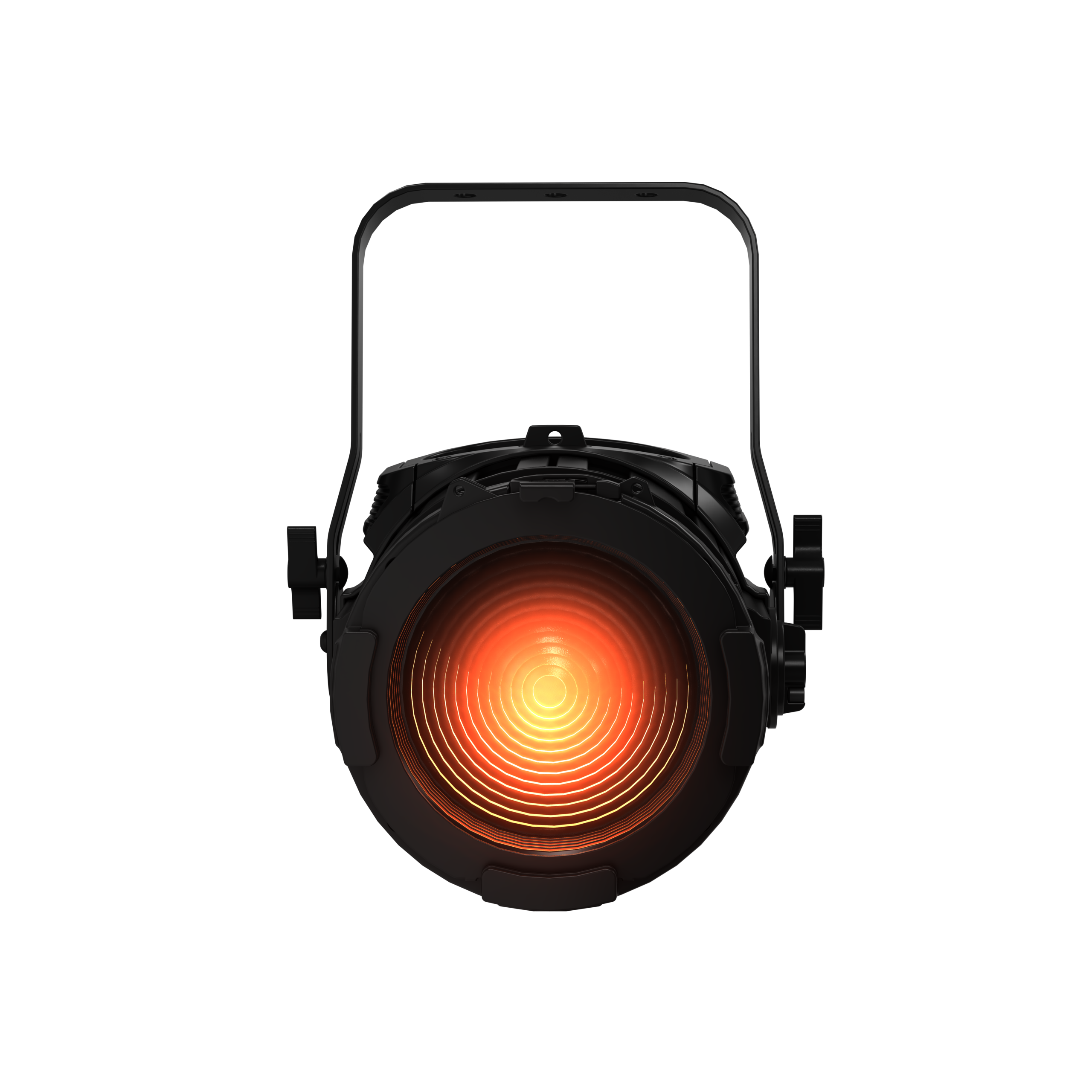

TENORE 5 HQS

High-performance LED projector

RGBACL technology with infinite colour spectrum and precise control. With its elegant and compact design, TENORE 5 HQS projector is perfect for any space, especially for high-impact events, TV shows and dynamic stage sets. It is the ideal choice for anyone in need of a powerful, flexible and high-quality light source. With its high performance and reliability, it is a product that is sure to meet the needs of the professional lighting sector.

highlights

Source

Multi chip LED Source

Lumens

9900 lm (Fresnel lens) 7180 lm (PC lens)

IP Rating

IP20

DMX

CCT Advanced Basic Expo CMY Emulation

operating
temperature

-10° / 45° C

Applications

Theatres

Perfect for stage lighting thanks to smooth dimming, natural color rendering, and tungsten lamp emulation.

TV Studios

Excellent light quality (high CRI and TLCI) and low noise, ideal for shooting in quiet environments and close-up camera work.

Virtual Production Studios

Wide CCT range, filter emulation, and RGBACL control enable precise integration with digital sets and green screens.

Auditoriums

Provides visual comfort, quiet adjustment, and even illumination—ideal for live events, conferences, and institutional performances.

Conference Rooms

Compact design, elegant finish, and flexible color control make it ideal for fixed installations in corporate settings.

Features

High-quality multichip LED source▼

Delivers up to 9,300 lumens with Fresnel lens and ensures professional color rendering, with CRI up to 98 and TLCI up to 96—ideal for broadcast, theatre, and photography lighting.

Optical system with linear zoom▼

Available with Fresnel or PC lenses, featuring smooth zoom: 12°–62° (Fresnel) or 6.5°–45° (PC), adaptable to a wide range of scenic and ambient needs.

Advanced color mixing with 6-color LED engine▼

6-channel LED engine with CCT range from 1800 K to 10,000 K, green saturation control, emulation of over 100 theatrical gels, and “Raw RGBACL” mode for maximum color freedom.

Hi-Q linear, step-free dimmer▼

Smooth dimming technology that avoids visible jumps even at low levels, with tungsten emulation for a warm, realistic look—ideal for theatre and television.

Silent operation and smart thermal management▼

Down to 26 dBA in “Ultra Silent” mode, with 4 fan modes. Fans auto-adjust to output level for maximum silence without compromising performance.

Professional and updatable control system▼

DMX/RDM compatible, with LCD display and jog shuttle. Firmware updatable via dongle. Includes 5 DMX operating modes.

Low power consumption and high efficiency▼

Max power draw of 390 W, supports 100–240 V AC input with Power Factor > 0.94, ensuring reliable operation even in complex setups.

Robust build and professional finishes▼

Available in black or white finish, IP20-rated, with low weight (9.3 kg Fresnel / 10.4 kg PC). Designed for demanding indoor environments such as theatres, TV studios, and fixed installations.

Versatility and customization
