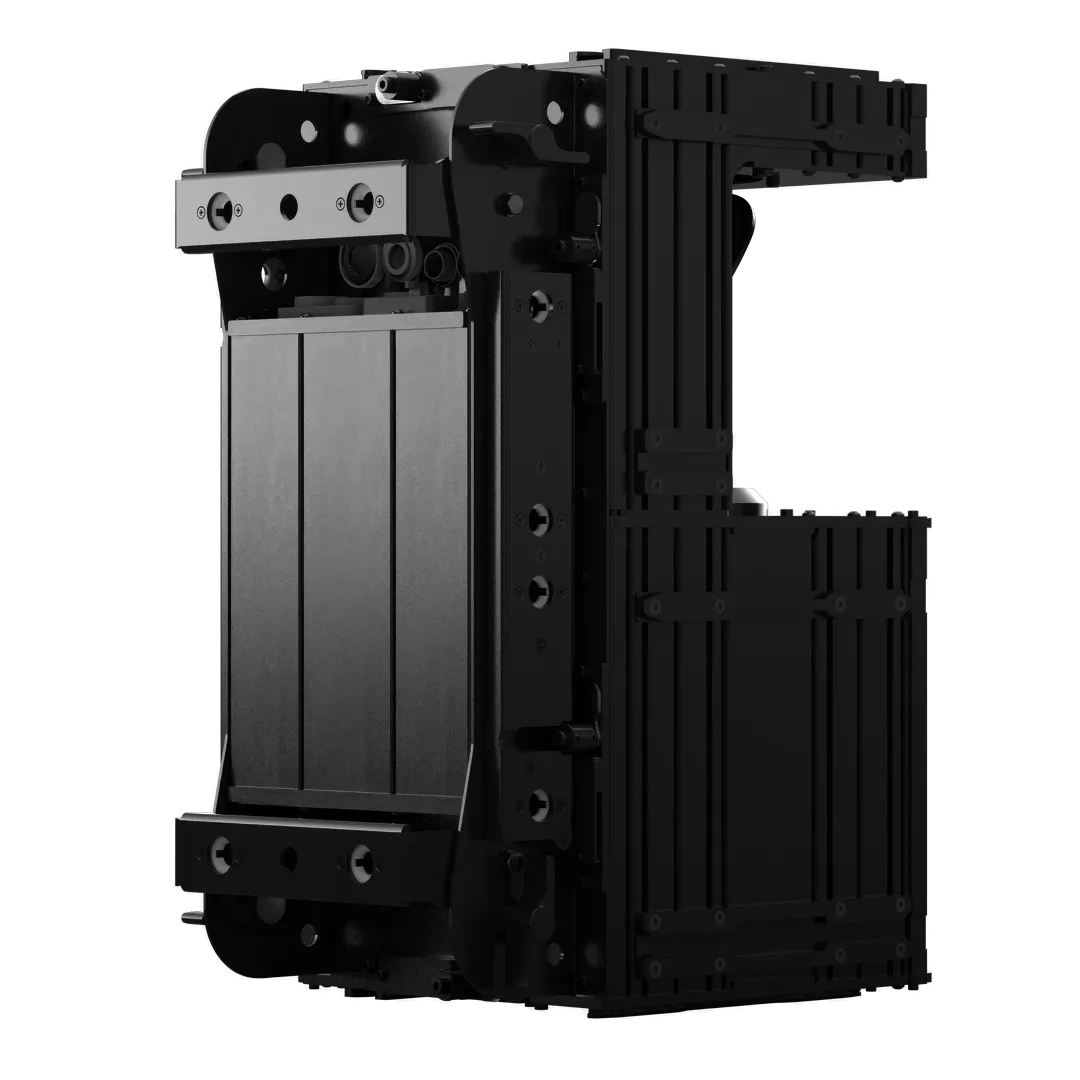

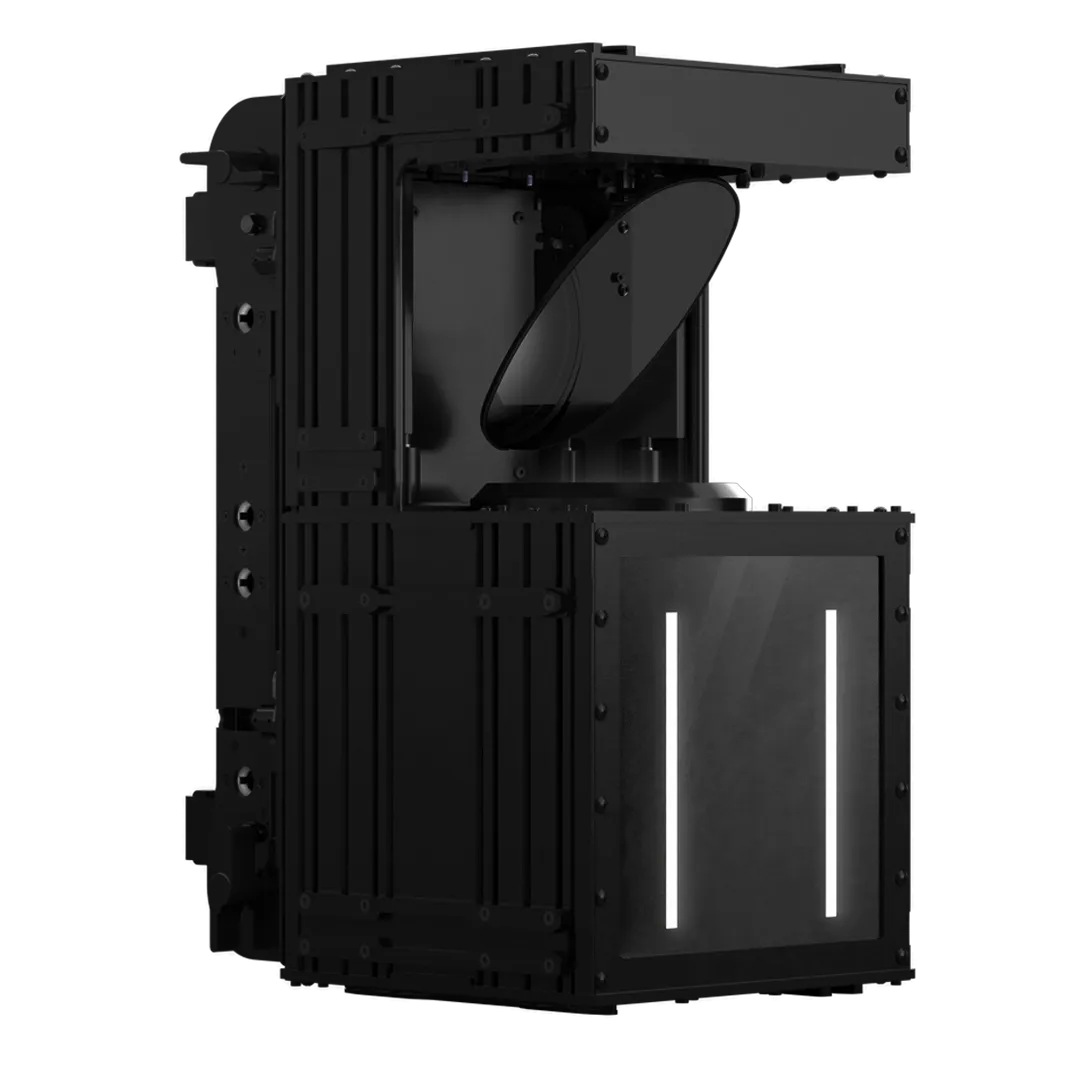

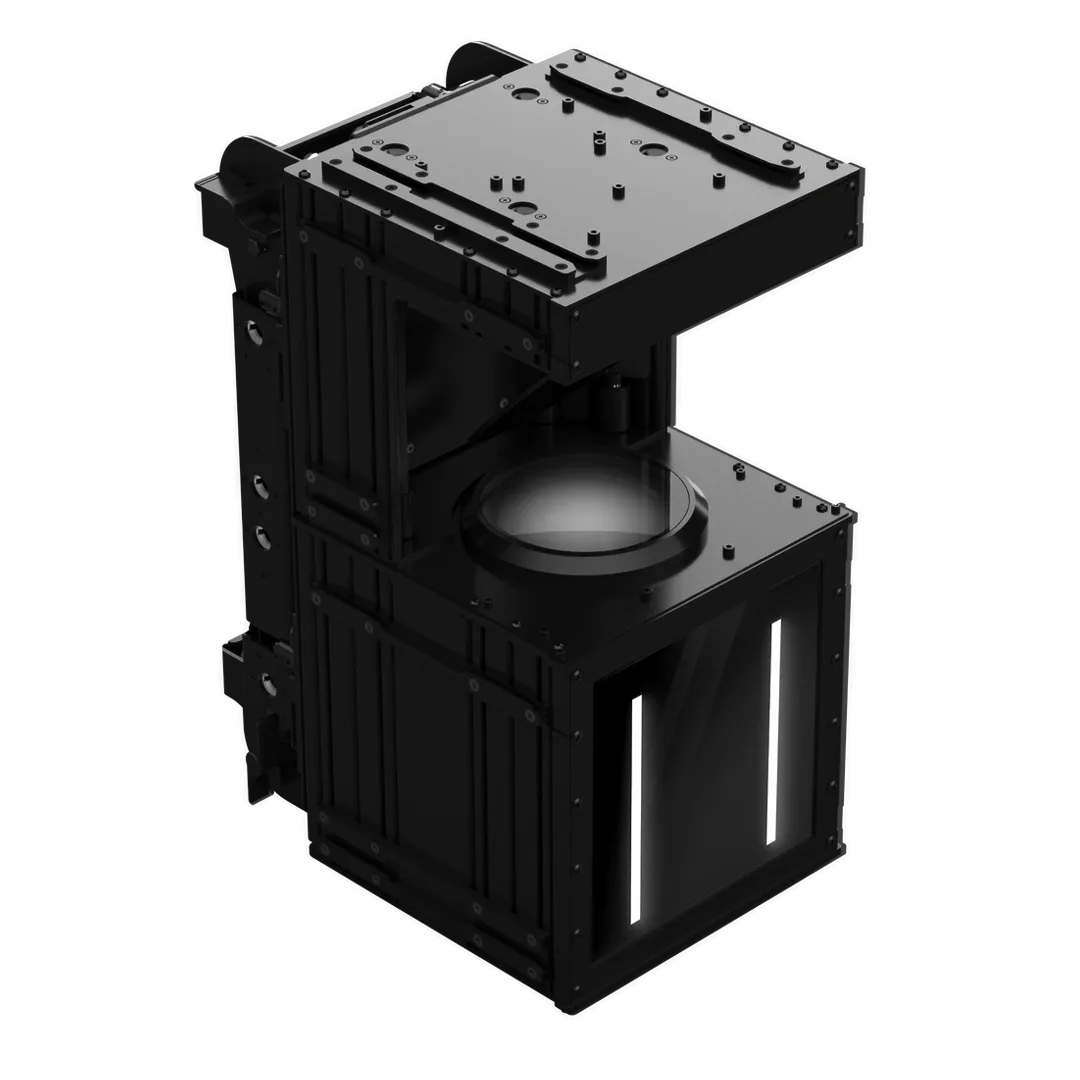

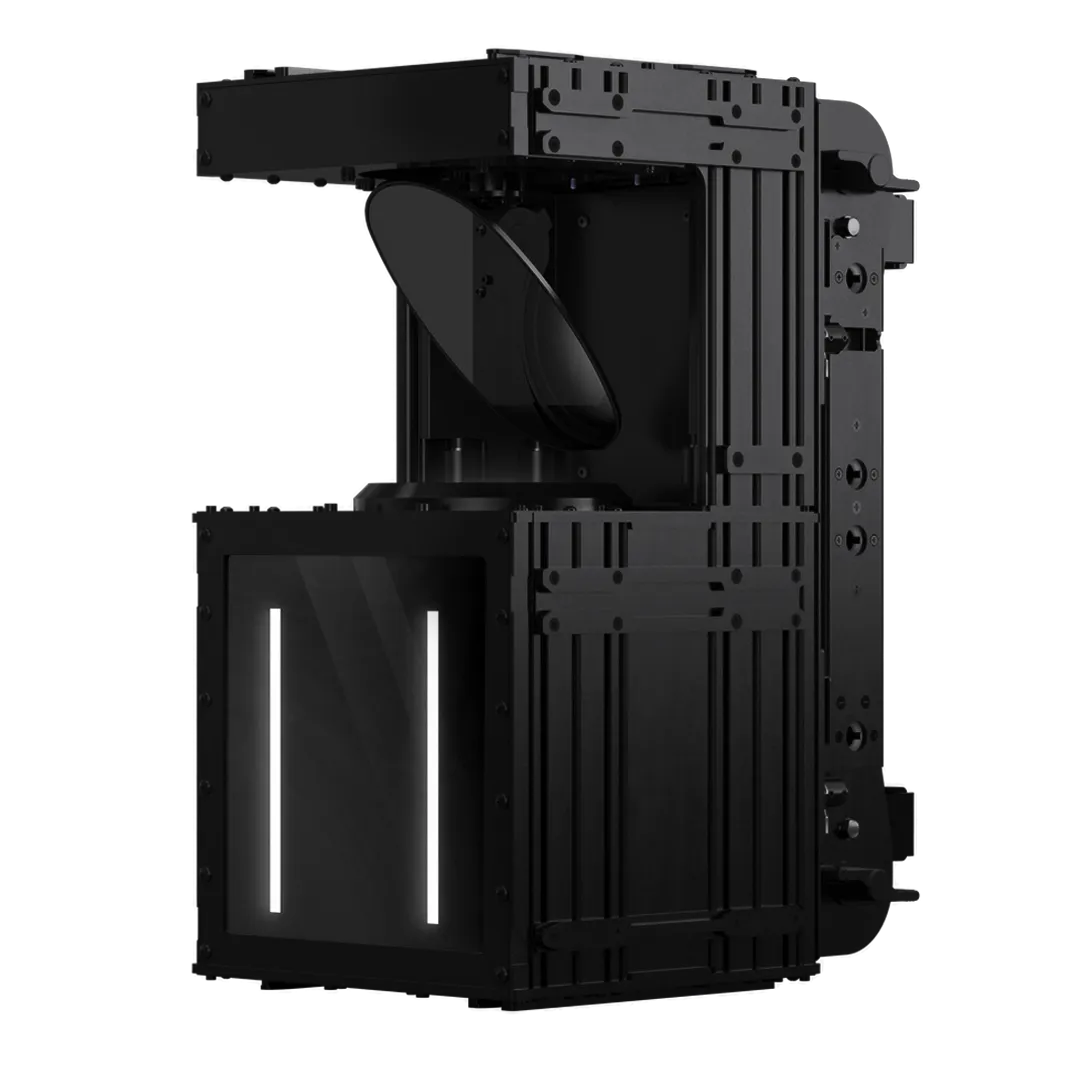

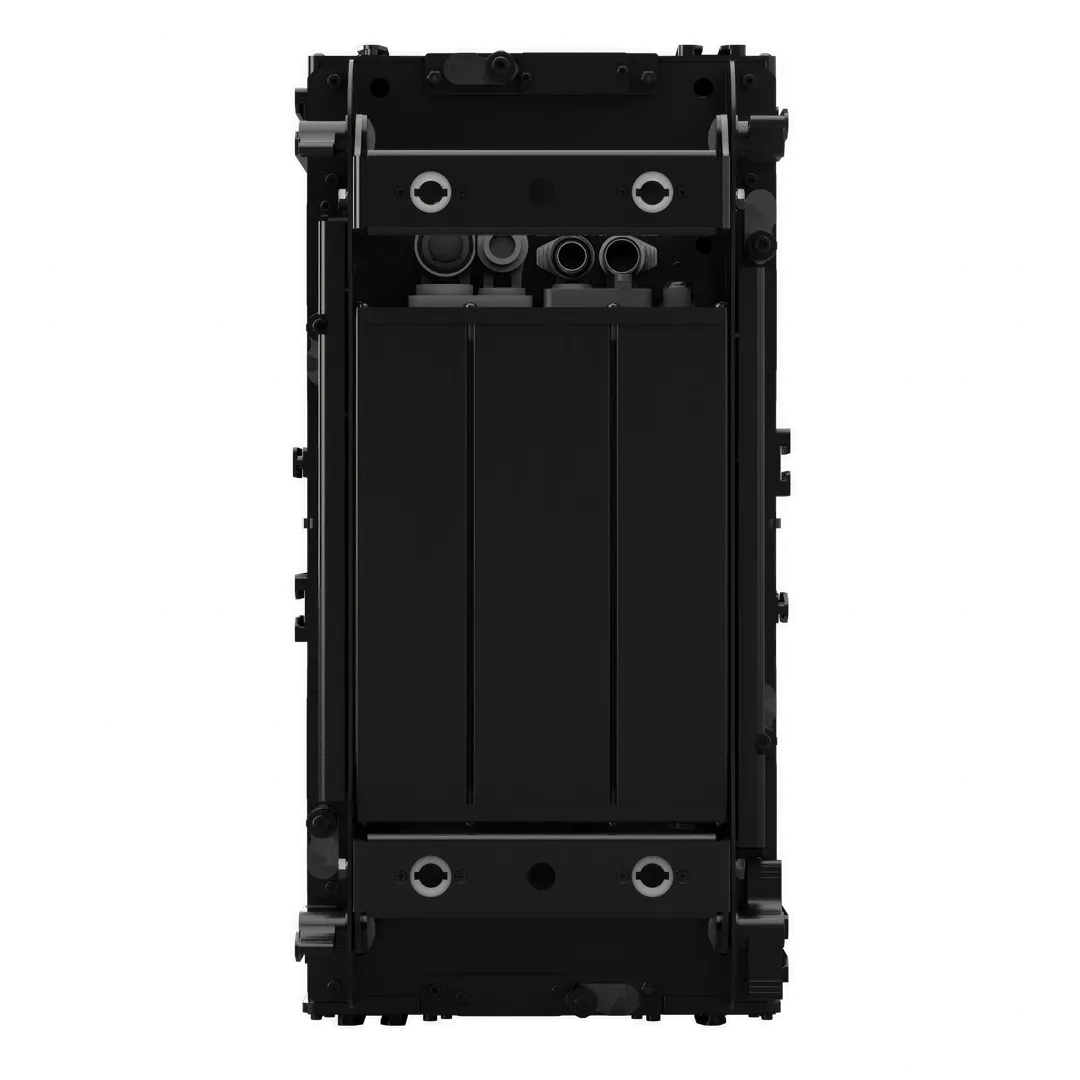

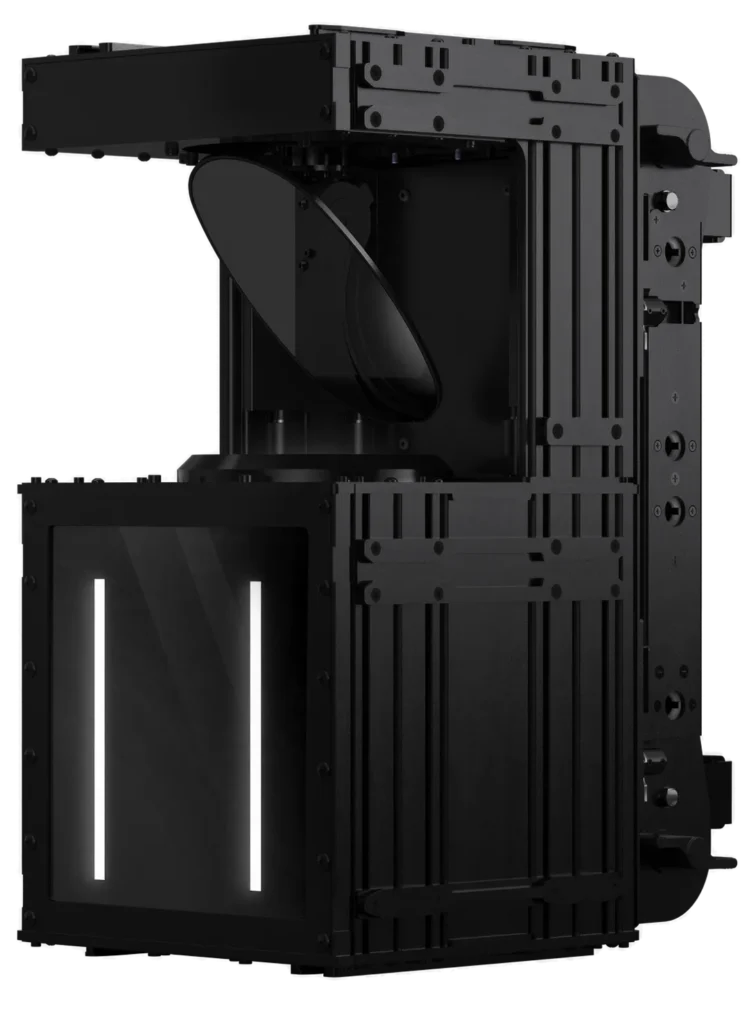

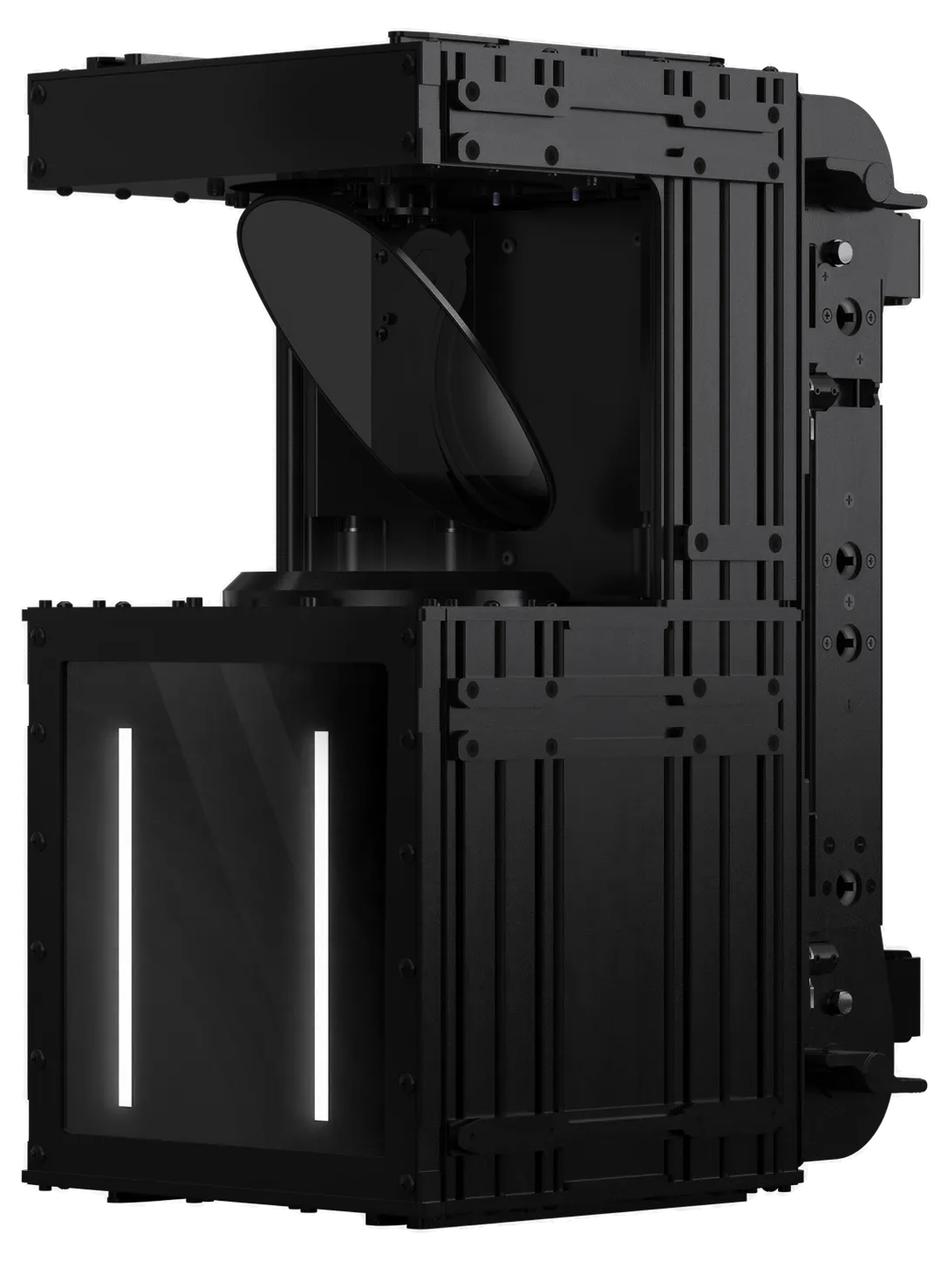

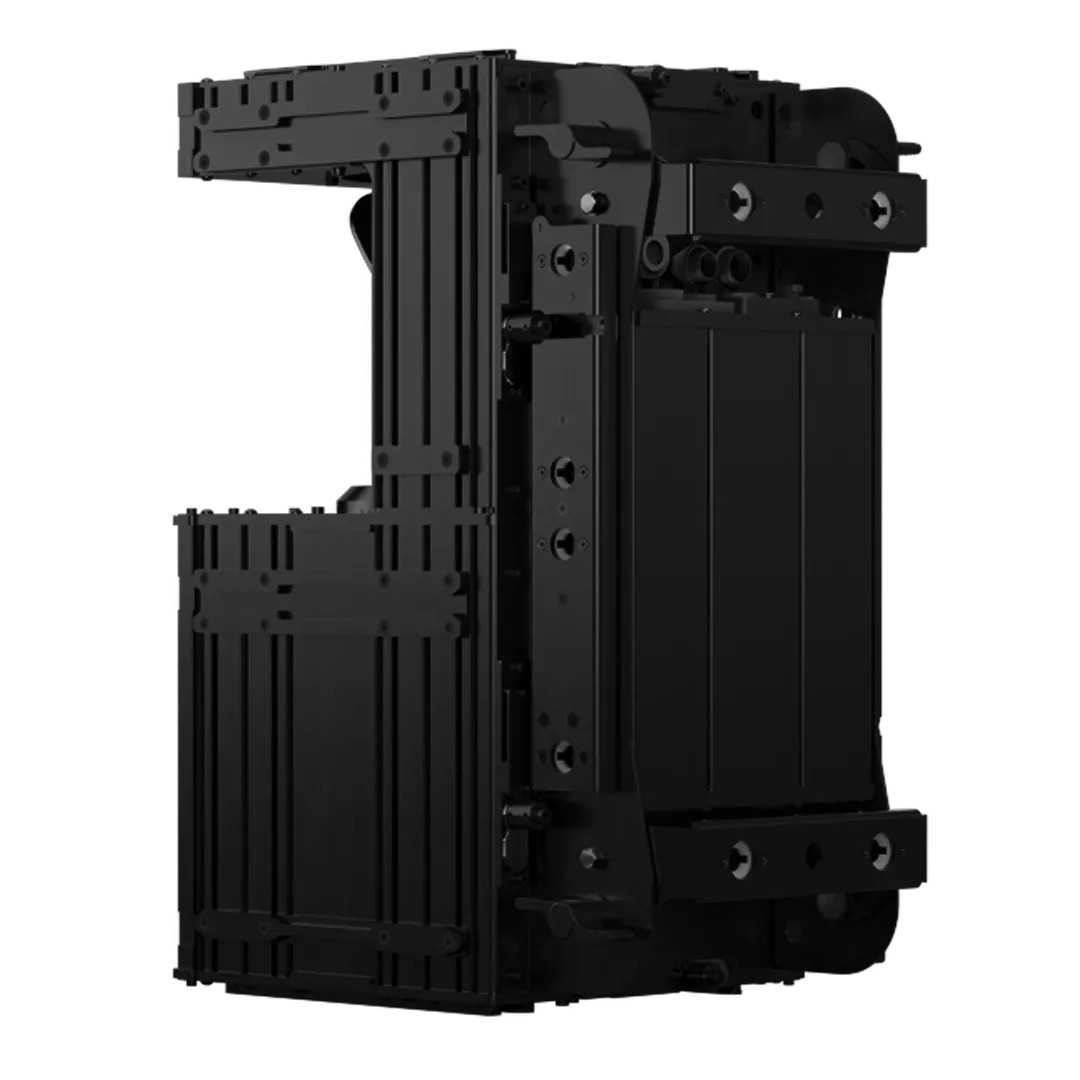

V-SNAP CS

OUTPUT

• �� 120 W laser module source (4000 lumens output from a 5000-lumen source)
• �� Average Laser life: 12000 hours (L70B10)

OPTICAL GROUP

• �� With a color temperature of 10,000 K and 68,000 lux at 20 meters
• �� Motorized focus
• �� Beam aperture:
  • 0.5° (minimum);
  • 1.6° (open/gobo);
  • Up to 3.3° with frost filter.
• �� PWM up to 20 kHz
  • Flicker-free modulation suitable for video recording.
• �� Strobe effect
  • Adjustable up to 33 Hz;
  • Wide dynamic intensity range.
• �� Dedicated white filter wheel with:
  • CTD (Converted To Daylight) – 6000 K;
  • CTH (Converted To Halogen) – 3000 K.
• �� Fixed gobo wheel
  • 24 positions, including 3 reducers.

COLOR GENERATION

• �� The color wheel features 12 filters.
• �� It includes a white/color strobe function available on 10 filters: Red, Green, Blue, Yellow, Magenta, Violet, Amber, Cyan, Jade Green and Light Pink.
• �� It outperforms traditional color wheels.
• �� The high-speed rotation enables extremely fast transitions.
• �� The split-color function allows users to:
  • combine or separate two colors within the same projection;
  • adjust the ratio between the two colors;
  • move from a smooth fade to a sharp, well-defined cut, ideal for mid-air effects.

DYNAMIC EFFECTS

• �� 2 static prisms (non-rotating):
  • 4-facet (array 2×2);
  • 8-facet (circular).
• �� 3 dynamic prisms:
  • 4-facet (linear);
  • 8-facet (circular);
  • 15-facet (circular: 5 inner facets + 10 outer facets arranged on two layers).
  • Indexable;
  • Rotating;
  • Equipped with partial insertion control via Dyna Prism system.
• �� Dyna Move effect (available on the 3 dynamic prisms):
  • 2:1 zoom ratio;
  • Range from 6.5° to 13°;
  • Transition from overlapping beams to widely spaced rays (Dyna Prism effect).

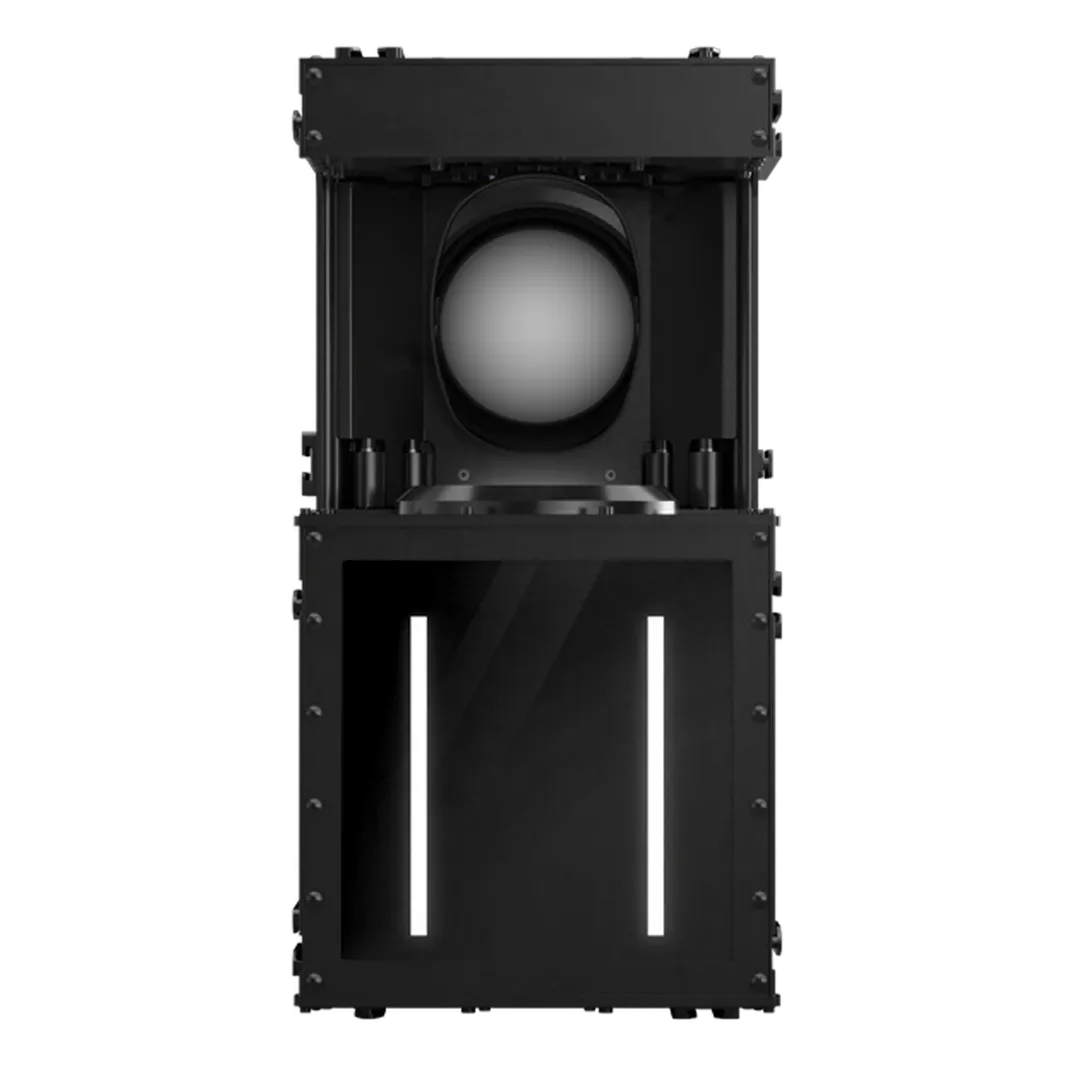

• �� Twin eye-candy:
  • Two individual strip LED RGBW;
  • Eye-candy dimmer;
  • Eye-candy strobe up to 33Hz;
  • RGBW control for each strip LED.

DMX

• �� 34 DMX channels

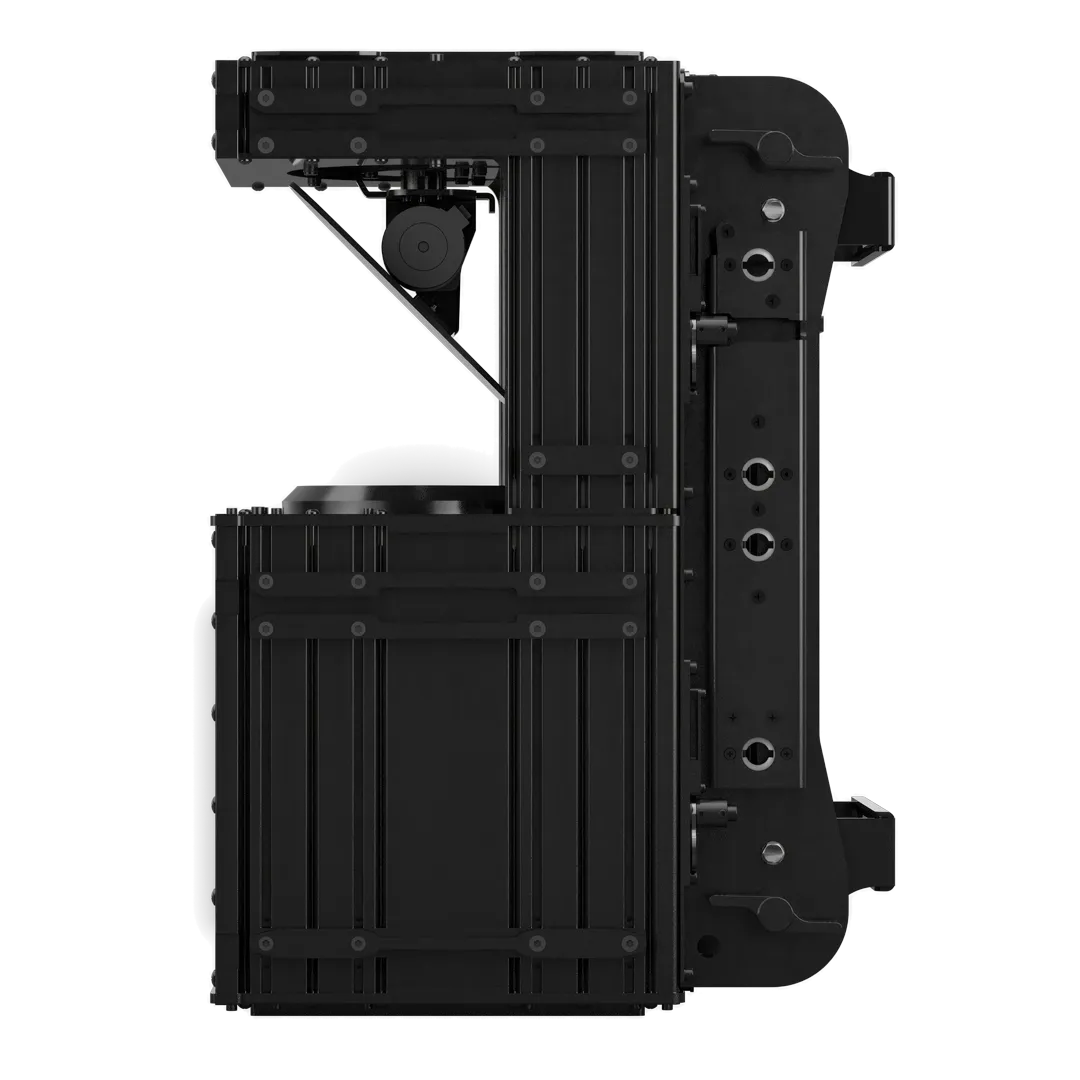

PAN & TILT

• �� Pan: 180° (full rotation in 0.33 seconds – 540°/second)
• �� Tilt: 70° (full rotation in 0.24 seconds – 290°/second)

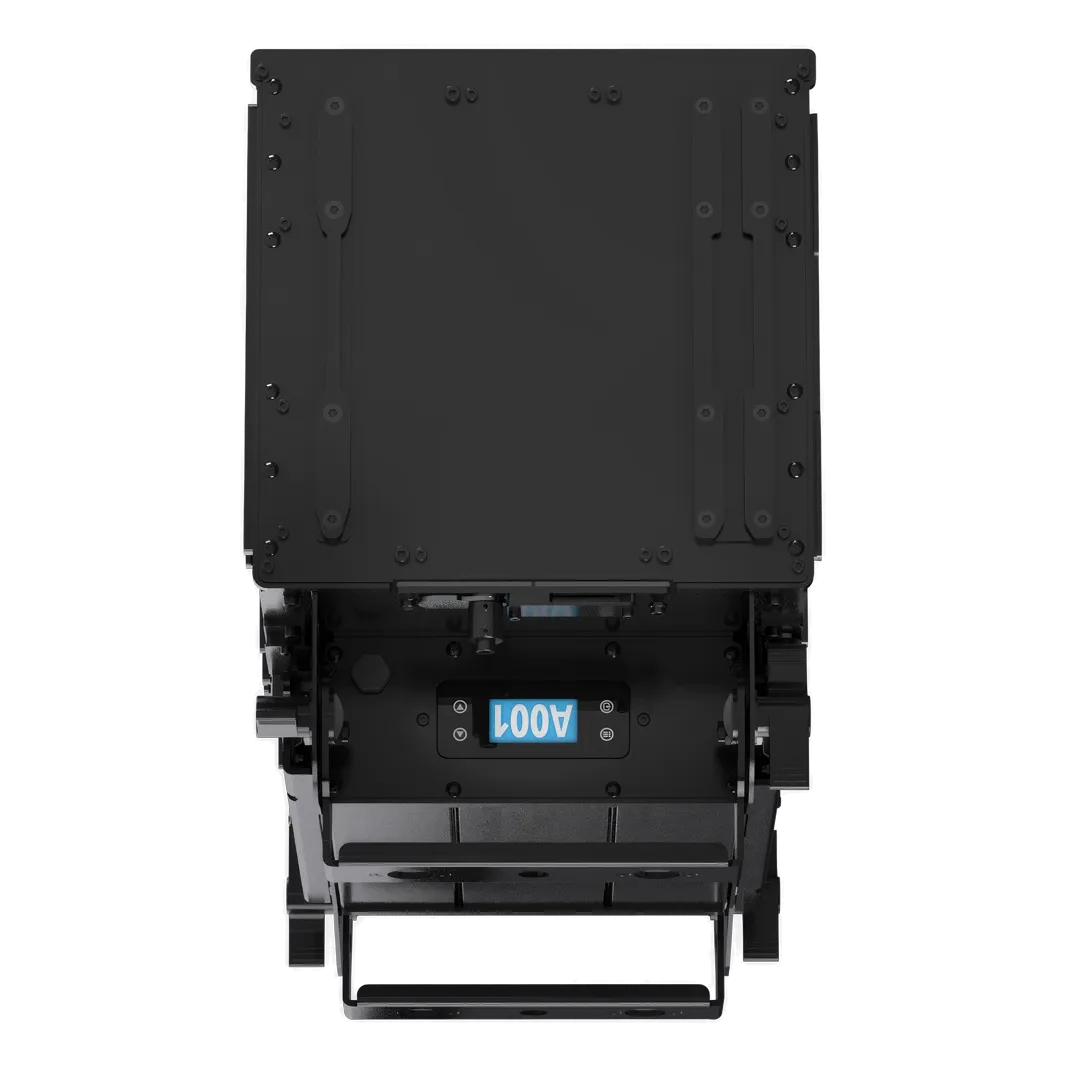

USER INTERFACE

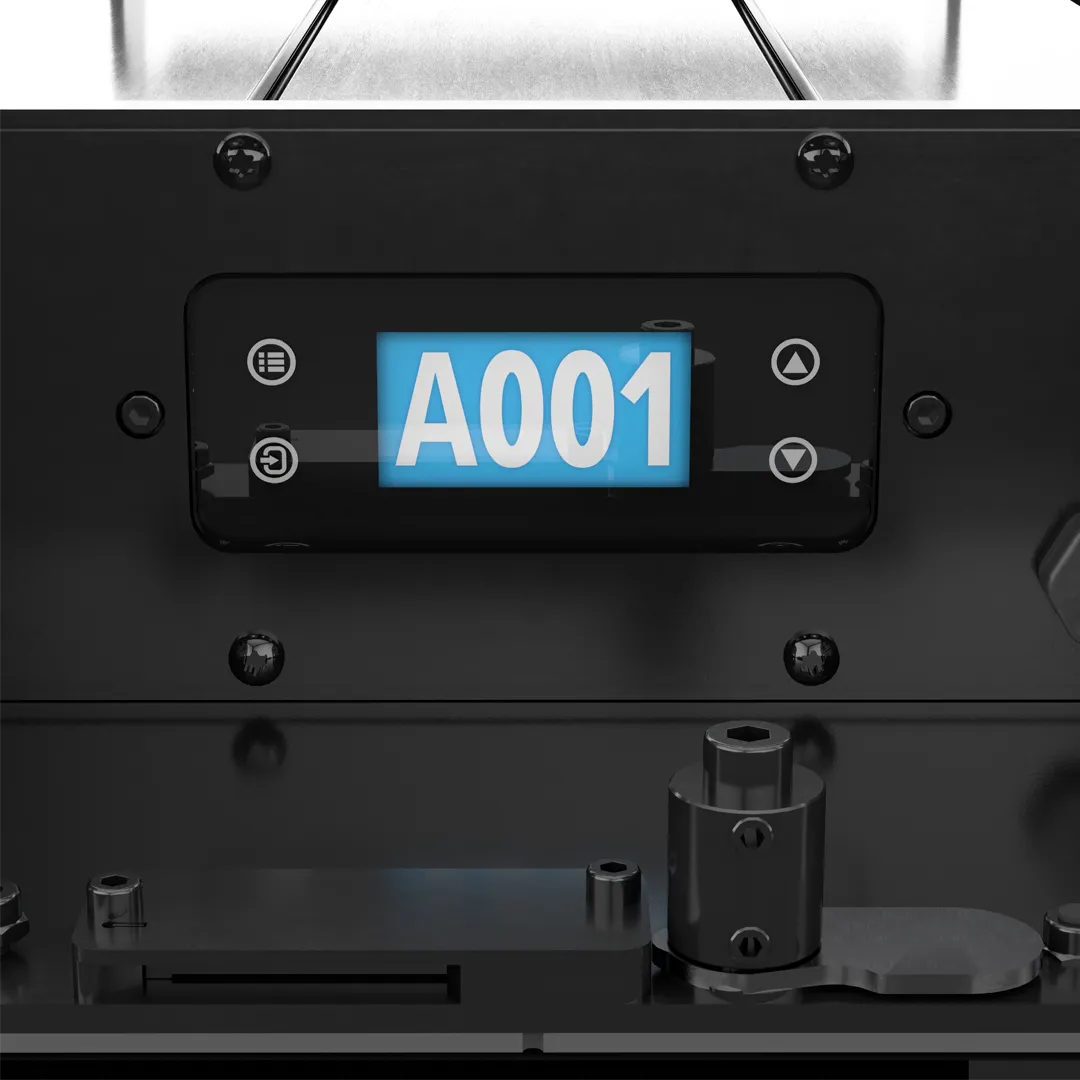

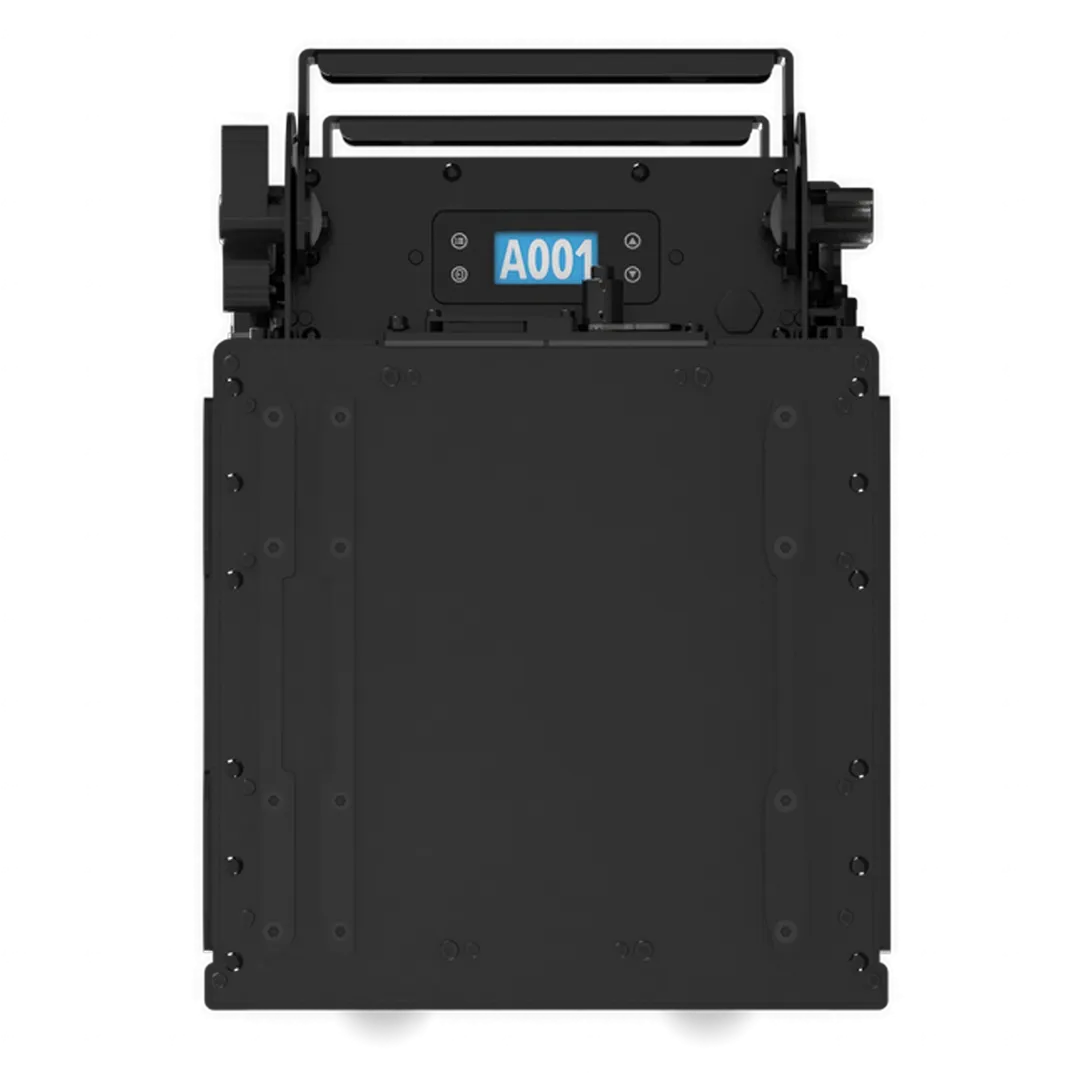

• �� LCD display + 4 capacitive touch keys

POWER SUPPLY

• �� Wide-range 100-240 Vac 50/60 Hz
• �� Power consumption: 210 W max
• �� Power Factor: PF >0.95

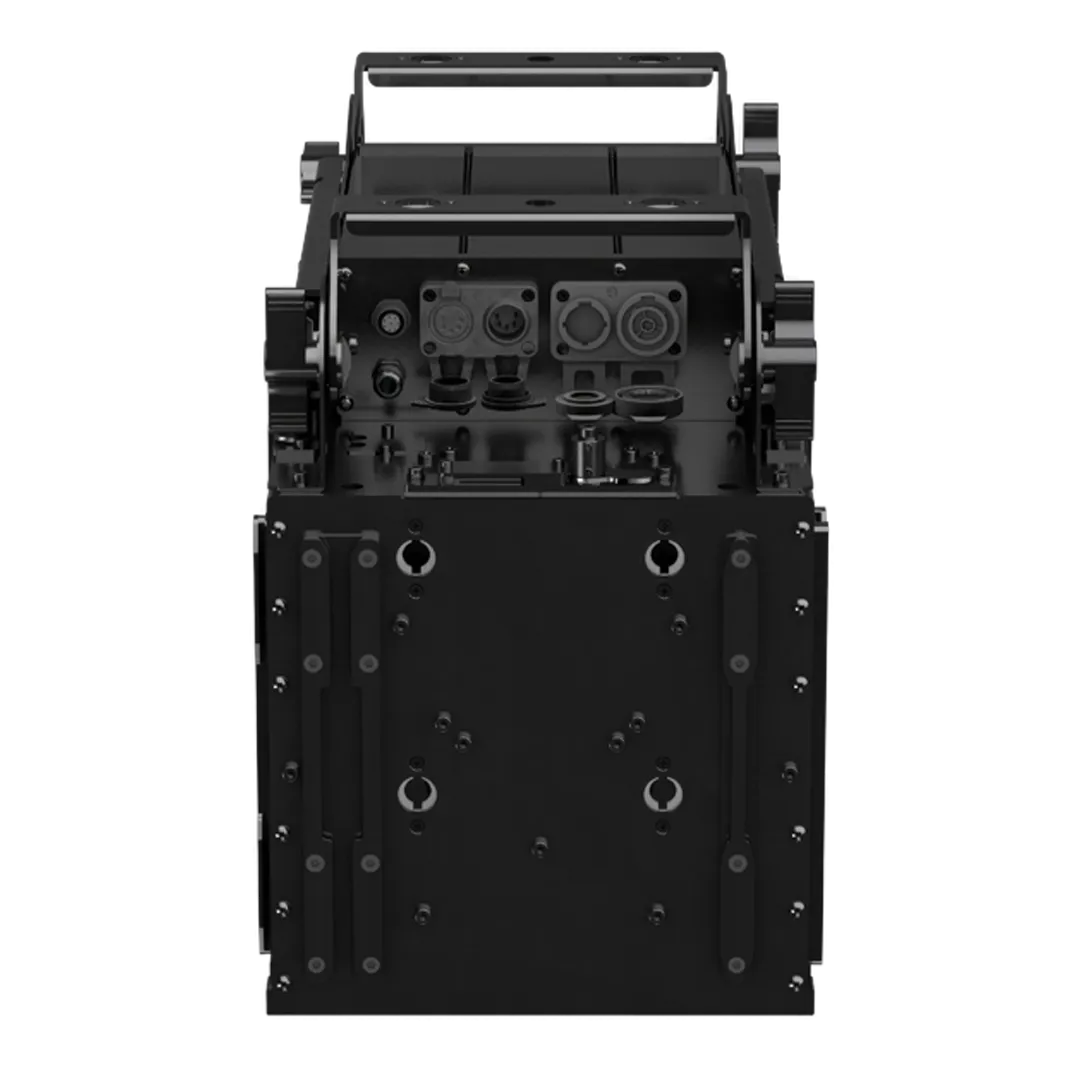

CONNECTIONS

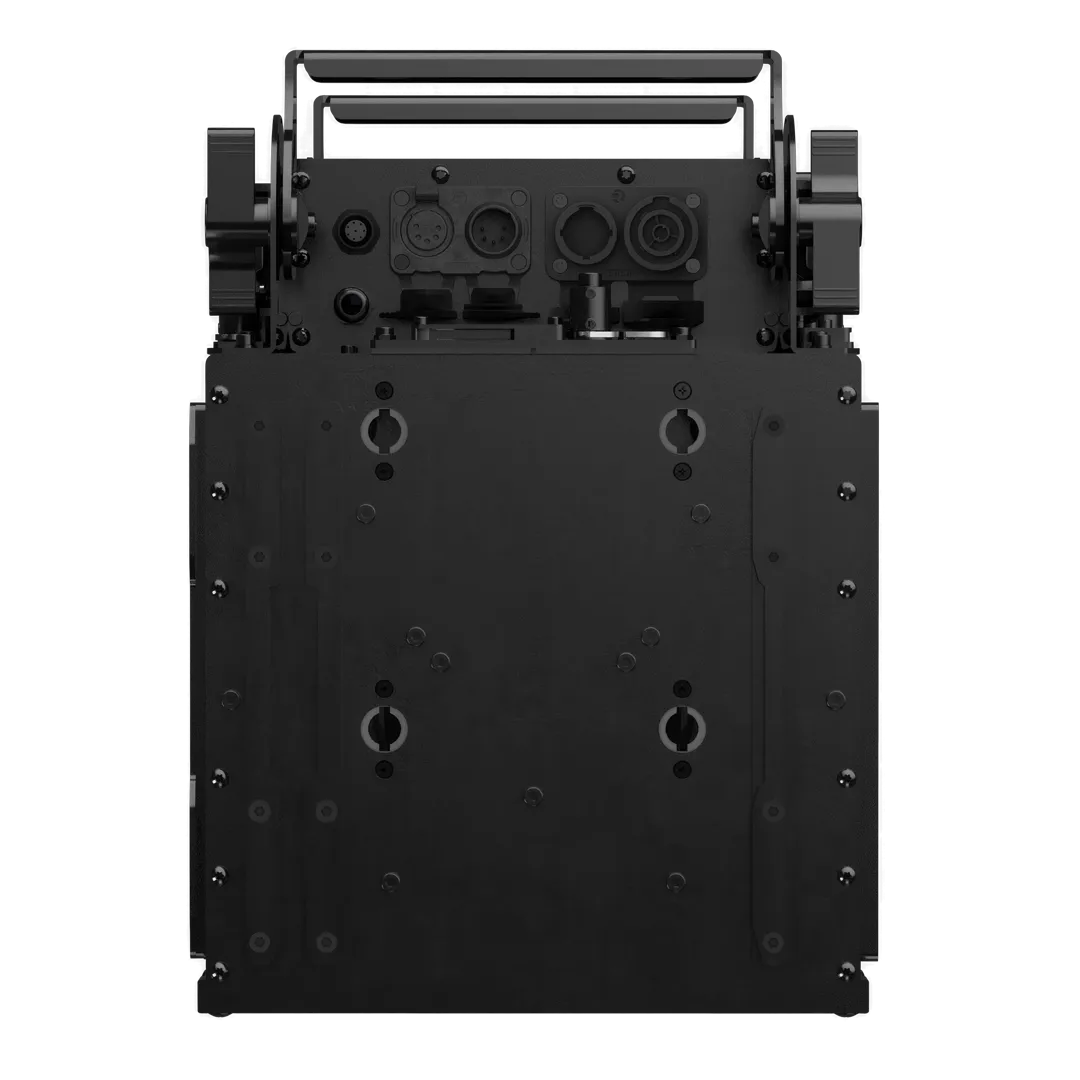

• �� DMX: XLR 5-pole In/Out panel connector
• �� Power supply: compatible powerCON True1 panel connector

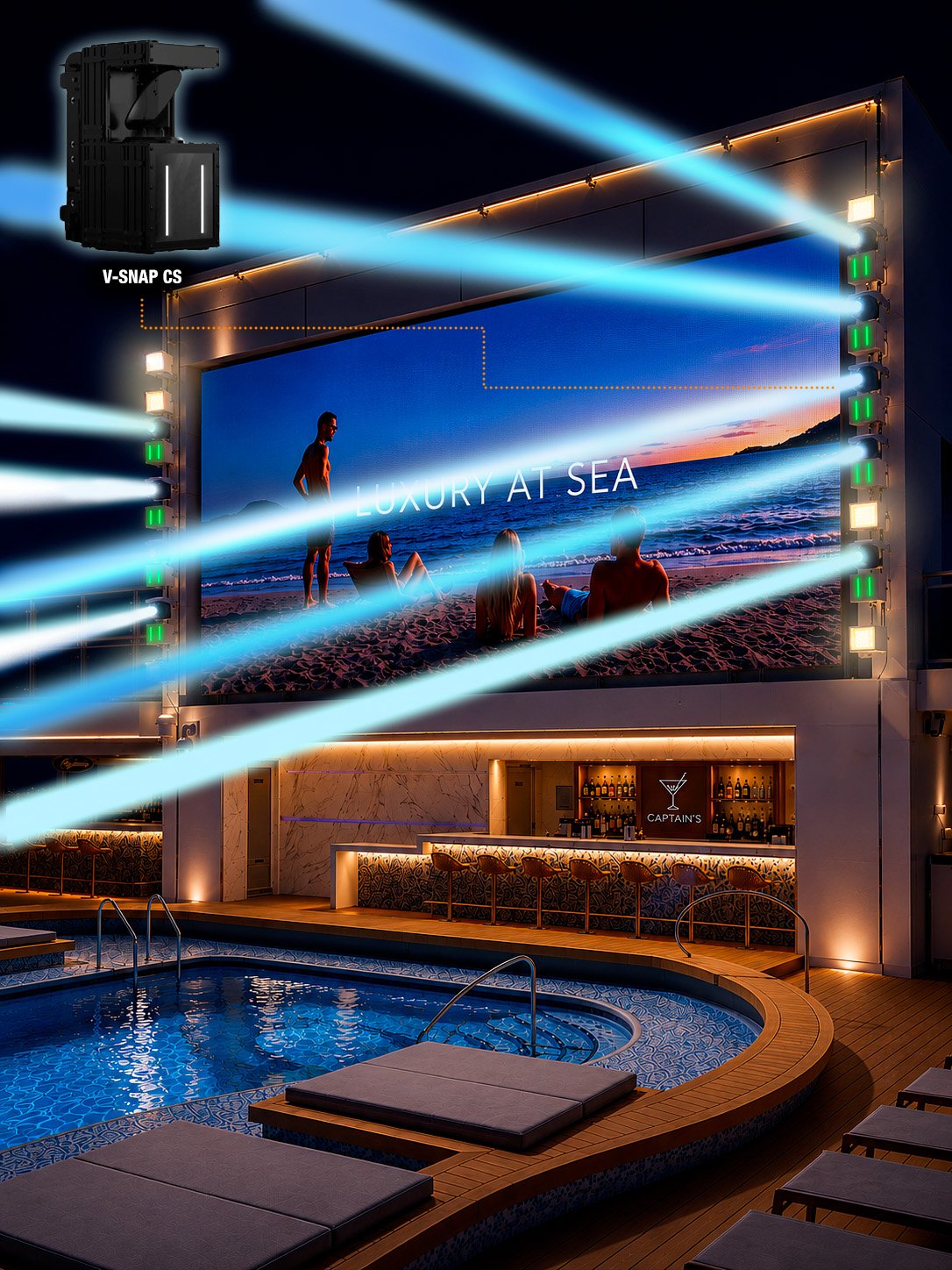

• �� Compact design allowing two units to be paired within a 500 × 500 mm footprint (standard LED panel size)
• �� FAD (Fast Array Design) system, enabling:
  • aligned or staggered configurations;
  • 250 mm pitch;
  • no additional accessories required.

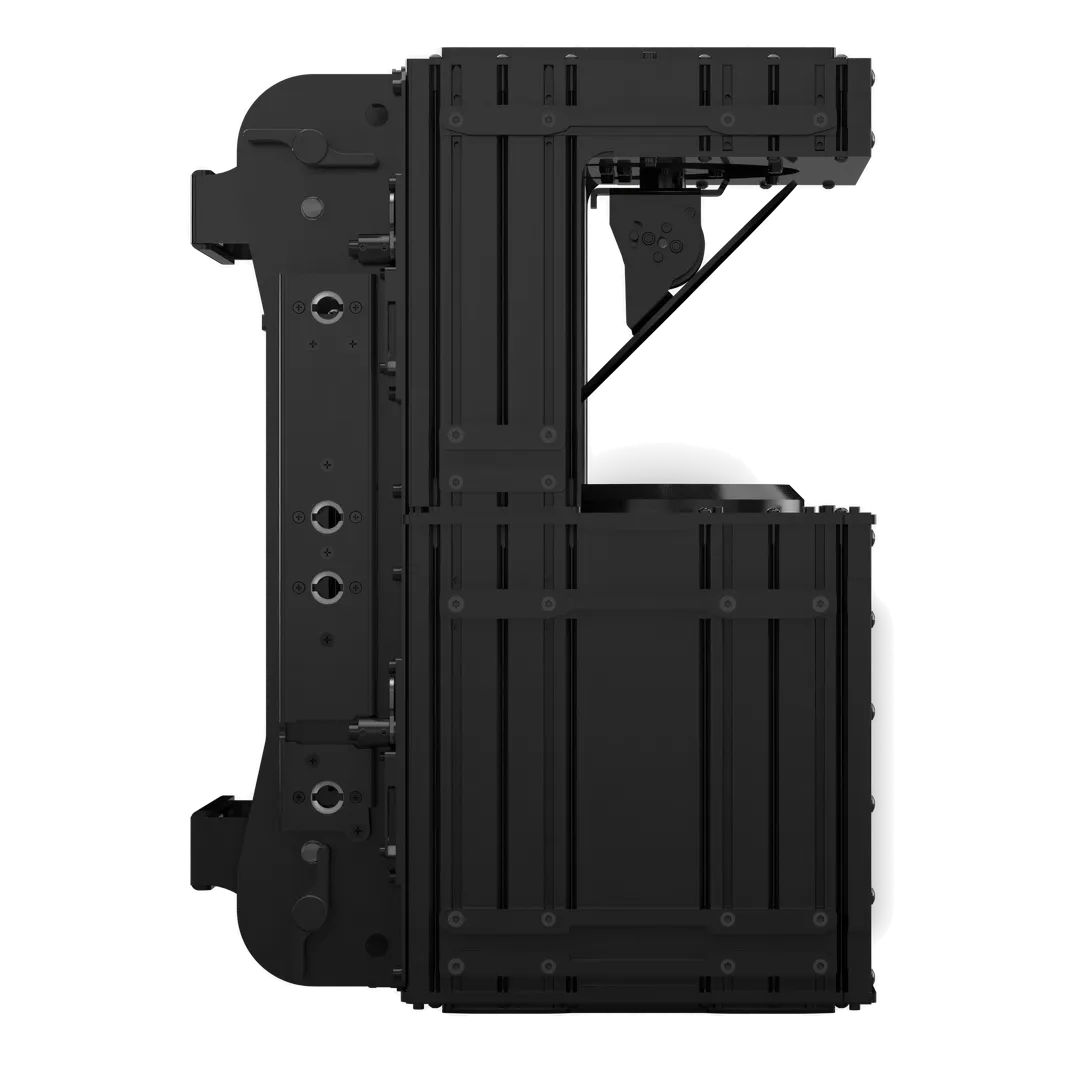

• �� Mounting via:
  • dual adjustable rear brackets;
  • fast-lock connections on three sides.

CIRCUITS PROTECTIONS

• �� Overvoltage and overtemperature circuits protection

TEMPERATURE

• �� Operating: -5° +45° C
• �� Storage: 0° +45° C

PHYSICAL

• �� Housing : Alluminium
• �� Brackets : 316L stainless steel
• �� Finishing: Black – White
• �� Dimensions: 252x495x324 mm
• �� Weight: 21,5 Kg (47,4 lbs)
• �� IP rating: IP65
• �� Corrosion rating: Cat. 4 (According to EN 1396) Very severe costal marine application

TEST AND CERTIFICATION

• �� CE

ACCESSORIES INCLUDED

• �� 1 x XLR 5 pins male cable connector (code 0520P126)
• �� 1 x XLR 5 pins female cable connector (code 0520P127)
• �� 1 x PowerCON REAN female cable connector (code 0520P129)
• �� 1 x PowerCON REAN male cable connector (code 0520P130)
• �� 2 x Kit Omega clamp “Fast lock” (code 02K00551)

ACCESSORIES ON REQUEST

• �� Safety cable 5 x 600 mm – max capacity load 60 Kg (code 0521A038)
• �� Aliscaf clamp for tube diameter 48-51 mm – max. load. 200 Kg (code 0521A033)
• �� G-QUICK clamp Professional – max. load 100 Kg (code 0521A037)
• �� Outdoor DMX cable 2 x 0,25 mm2 – Flame retardant (code 0509C158)
• �� Power supply cable 3 x 1,5 mm² (code 0509C040)
• �� DTS firmware Uploader Dongle (code 03.LA.206)
